Brand	Sharp
Model	XG-C40XE
Product Type	Video Projector
Display Technology	LCD (3LCD)
Native Resolution	XGA (1024 x 768)
Brightness	4000 ANSI Lumens
Contrast Ratio	4000:1
Lamp Type	275 W UHP
Lamp Life (Normal Mode)	2000 hours
Lamp Life (Eco Mode)	3000 hours
Zoom Factor	1.3x Manual
Lens Shift	Vertical: ±50%, Horizontal: ±10%
Keystone Correction	Vertical: ±30°, Horizontal: ±30°
Inputs	VGA (x2), S-Video, Composite, Component, HDMI, DVI-D, USB
Outputs	VGA Monitor Out, Audio Out (3.5mm), RS-232C
Noise Level (Normal)	35 dB
Noise Level (Eco)	29 dB
Power Consumption	350 W (Normal), 280 W (Eco), 0.5 W Standby
Dimensions (W x D x H)	315 x 294 x 120 mm (12.4 x 11.6 x 4.7 in)
Weight	4.9 kg (10.8 lbs)
Speaker	1 x 7W Mono
Filter Cleaning	Every 100 hours (washable)
Safety Features	Kensington Lock, Overheat Protection
Repairability	Lamp and filter user-replaceable; internal parts by qualified technician
General Information	Manual available in PDF; notice-facile.com provides free download

Frequently Asked Questions - XG-C40XE SHARP

What is the native resolution of the Sharp XG-C40XE?

The Sharp XG-C40XE has a native resolution of XGA (1024 x 768).

How bright is the Sharp XG-C40XE projector?

It produces 4000 ANSI Lumens of brightness, suitable for well-lit rooms.

What is the lamp life of the XG-C40XE?

In normal mode, the lamp lasts 2000 hours; in eco mode, it extends to 3000 hours.

Can I replace the lamp myself?

Yes, the lamp is user-replaceable. Refer to the manual for safe replacement steps.

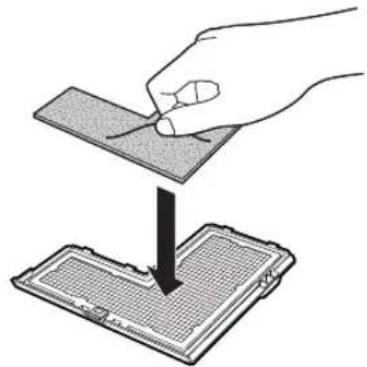

How often should I clean the air filter?

Clean the washable filter every 100 hours of use to prevent overheating.

What inputs does the projector have?

It includes VGA, S-Video, Composite, Component, HDMI, DVI-D, and USB inputs.

Does the projector have keystone correction?

Yes, it offers vertical and horizontal keystone correction up to ±30°.

What is the weight and size of the XG-C40XE?

It weighs 4.9 kg (10.8 lbs) and measures 315 x 294 x 120 mm (W x D x H).

Can I mount the projector on the ceiling?

Yes, it supports ceiling mount installation. Use a compatible mount and ensure proper ventilation.

How do I reset the lamp timer?

After replacing the lamp, go to the on-screen menu, select 'Lamp Reset' and confirm. See manual for details.

USER MANUAL XG-C40XE SHARP

Important Information
	Setup & Connections on
	Useful Features Maintenance & Troubleshooting Appendix

LCD PROJECTOR

Exterior view of a Sharp Sharp projector with a remote control unit (no visible text or symbols on the device body)

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 13A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked 🌐 or ◎ and of the same rating as above, which is also indicated on the pin face of the plug, must be used.

Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner.

Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a serious electric shock may occur.

To fit an appropriate plug to the mains lead, follow the instructions below:

IMPORTANT:

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this product may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured blue must be connected to the plug terminal which is marked N or coloured black.

- The wire which is coloured brown must be connected to the plug terminal which is marked L or coloured red.

Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three-pin plug.

Before replacing the plug cover make sure that:

- If the new fitted plug contains a fuse, its value is the same as that removed from the cut-off plug.

- The cord grip is clamped over the sheath of the mains lead, and not simply over the lead wires.

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

The supplied CD-ROM contains operation instructions in English, German, French, Swedish, Spanish, Italian, Dutch, Chinese, Korean and Arabic. Carefully read through the operation instructions before operating the LCD projector.

Before using the LCD projector, please read this operation manual carefully.

OPERATION MANUAL ENGLISH

IMPORTANT

For your assistance in reporting the loss or theft of your Colour LCD Projector, please record the Serial Number located on the bottom of the projector and retain this information. Before recycling the packaging, please be sure that you have checked the contents of the carton thoroughly against the list of "Supplied Accessories" on page 12.

Model No.: XG-C40XE

Serial No.:

WARNING:

Intense light source. Do not look into the beam or view it directly. Be especially careful that children do not look directly into the beam.

WARNING:

To reduce the risk of fire or electric shock, do not expose this appliance to liquids.

CAUTION:

To reduce the risk of electric shock, do not remove cabinet. No user-serviceable parts are inside. Refer servicing to qualified service personnel.

WARNING:

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

WARNING:

The cooling fan in this projector continues to run for about 90 seconds after the projector is turned off. During normal operation, when turning the power off always use the POWER buttons. Ensure the cooling fan has stopped before disconnecting the power cord. DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.

Line drawing of a kitchen appliance with a handle and side panel (no text or symbols)

Caution Concerning the Lamp Replacement

See "Replacing the Projection Lamp" on pages 50 and 51.

LAMP REPLACEMENT CAUTION

BEFORE REMOVING THE SCREW

Important Safeguards

ATTENTION: Please read all of these instructions before you operate your LCD Projector for the first time. Save these instructions for future reference.

For your own protection and prolonged operation of your LCD Projector, be sure to read the following "Important Safeguards" carefully, before use.

This projector has been engineered and manufactured to ensure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated into this LCD Projector, observe the following basic rules for its installation, use and servicing.

1. Unplug the LCD Projector from the wall outlet before cleaning.

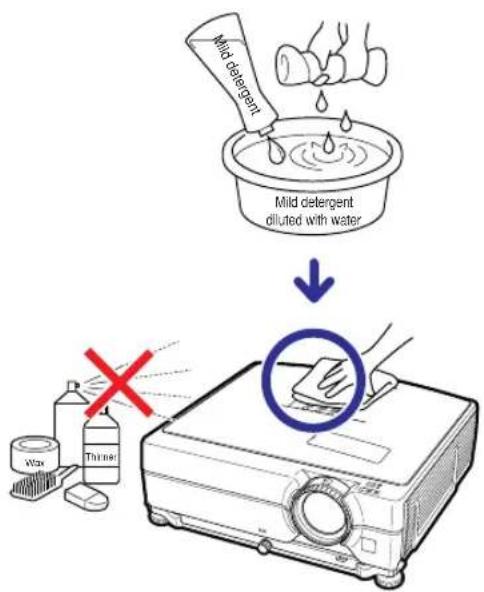

2. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
3. Do not use attachments not recommended by the LCD Projector manufacturer, as they may cause hazards.
4. Do not use the LCD Projector near water; for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, etc. Never spill liquid into the projector.
5. Do not place the LCD Projector on an unstable cart, stand, or table. The LCD Projector may fall, which may cause serious injury to a child or an adult, and/or serious damage to the unit.
6. Wall or Ceiling Mounting—The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. LCD Projector equipment and cart combinations should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn.
8. Slots and openings in the cabinet back and bottom are provided for ventilation. To ensure reliable operation of the LCD Projector and to protect it from overheating, these openings must not be blocked or covered. The openings should never be covered with cloth or other material.
9. This LCD Projector should never be placed near or over a radiator or heating vent. The LCD Projector should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
10. The LCD Projector should be operated only from the type of power source indicated on the back of the projector or in the specifications. If you are not sure of the type of power supplied to your home, consult your LCD Projector dealer or local power company.
11. Do not place the LCD Projector where the cord will be abused by persons walking on it.
12. Follow all warnings and instructions marked on the LCD Projector.
13. To prevent damage to the projector due to lightning and power-line surges, unplug the projector from the power outlet, when not in use.
14. Do not overload wall outlets and extension cords with too many products, because this can result in fire or electric shock.
15. Never push objects of any kind into the LCD Projector through the cabinet slots as they may touch high-voltage points or cause a short circuit. This could result in a fire or electric shock.
16. Do not attempt to service the LCD Projector yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

1. Unplug the LCD Projector equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the LCD Projector.

c. If the LCD Projector has been exposed to rain or water.

d. If the LCD Projector does not operate normally when you follow the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may cause damage and will often require extensive work by a qualified technician to restore the LCD Projector to normal operation.

e. If the LCD Projector has been dropped or the cabinet has been damaged.

f. When the LCD Projector exhibits a distinct change in performance—this indicates a need for service.

1. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original parts. Unauthorised substitutions may result in fire, electric shock, or other hazards.

2. This LCD Projector is provided with one of the following types of plugs. If the plug should fail to fit into the power outlet, please contact your electrician.

Do not defeat the safety purpose of the plug.

a. Two-wire type mains plug.

b. Three-wire grounding type mains plug with a grounding terminal.

This plug will only fit into a grounding type power outlet.

Outstanding Features

1. ADVANCED COMPATIBILITY WITH HIGH-END WORKSTATIONS AND PCS

Compatible with up to 200 Hz vertical refresh rate, Sync on Green and Composite Sync signals for use with a wide variety of high-end PCs and Workstations. (Page 13)

2. FOR USE WITH DTV\*

Allows projection of DTV images and 16:9 wide-screen images when connected to a DTV decoder or similar video systems. (Page 14)

Provides high quality images with minimal dot crawl and cross colour noise.

4. 3D DIGITAL UNIFORMITY

Equipped with new 3D digital uniformity technology for a clearer, more uniform image.

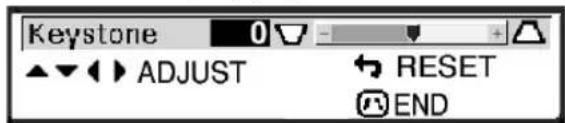

5. ANTI-ALIASING DIGITAL KEYSTONE CORRECTION

Digitally adjusts an image that is projected at an angle while maintaining image quality and brightness. (Page 22)

6. DIGITAL IMAGE SHIFT FUNCTION

Allows digital adjustment of 16:9 wide-screen images up or down for easier viewing. (Page 22)

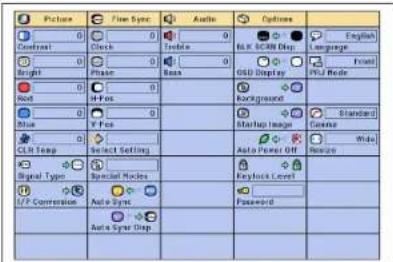

7. EASY-TO-USE GRAPHICAL USER INTERFACE (GUI)

A multi-colour, icon-based menu system allows for simple image adjustments. (Page 25)

8. USER-FRIENDLY DESIGN

The two-colour design along with an intuitive Graphical User Interface (GUI) makes this projector very easy to set up and adjust.

9. AUTO SYNC TECHNOLOGY FOR AUTOMATIC IMAGE PERFECTION

Automatically makes any necessary adjustments for perfectly synced computer images. (Page 34)

10. INTELLIGENT COMPRESSION AND EXPANSION

By using intelligent resizing technology, this projector can display higher and lower resolution images in detail without compromising quality. (Page 38)

11. XGA RESOLUTION FOR HIGH RESOLUTION PRESENTATIONS

With XGA (1,024 × 768) resolution, this projector can display very detailed presentation information.

12. UXGA COMPATIBLE

UXGA (1,600 × 1,200) resolution images are intelligently resized to 1,024 × 768 for full-screen or default presentations.

13. CUSTOMIZABLE STARTUP SCREEN

Allows you to load a custom startup image (i.e. your company logo) to be displayed while the projector is warming up. (Page 40)

14. BUILT-IN PRESENTATION TOOLS

A variety of helpful presentation utilities are incorporated to enhance presentations. These include "Stamp" functions, "Break Timer", and "Digital Image Magnification". (Page 45)

*DTV is the umbrella term used to describe the new digital television system in the united states.

Line drawing of a meeting scene with three people around a table, one person pointing at a screen (no text or symbols)

Illustration of a meeting scene with people, a screen, and a diagram on the table (no text or symbols present)

Contents

Important Information

Important Safeguards 3

Outstanding Features 4

Contents 5

Usage Guidelines 6

How to Access the PDF Operation Manuals (for Windows and Macintosh) 8

Part Names 9

Setup & Connections

Supplied Accessories 12

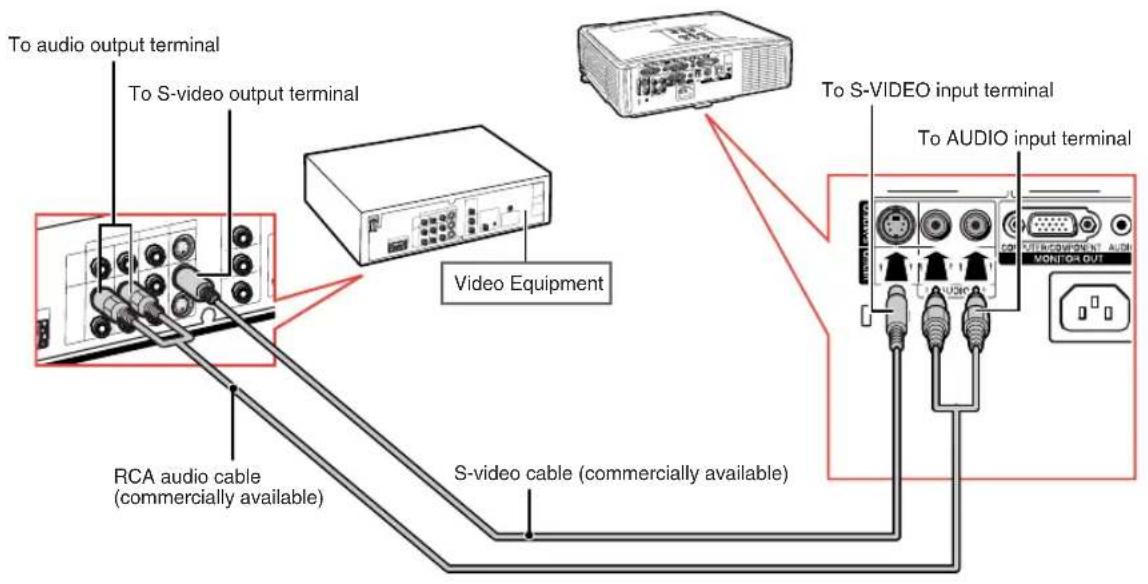

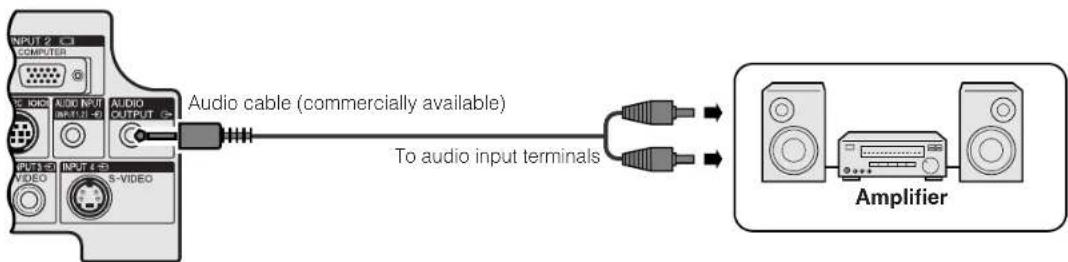

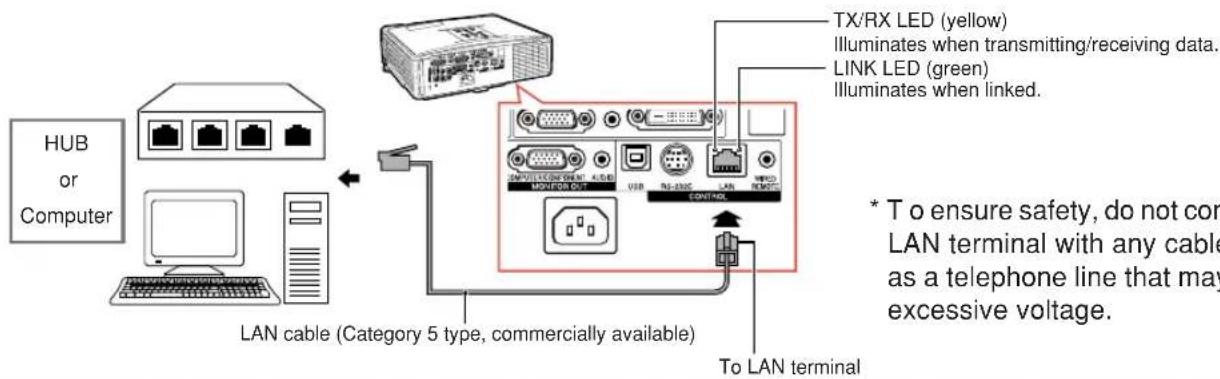

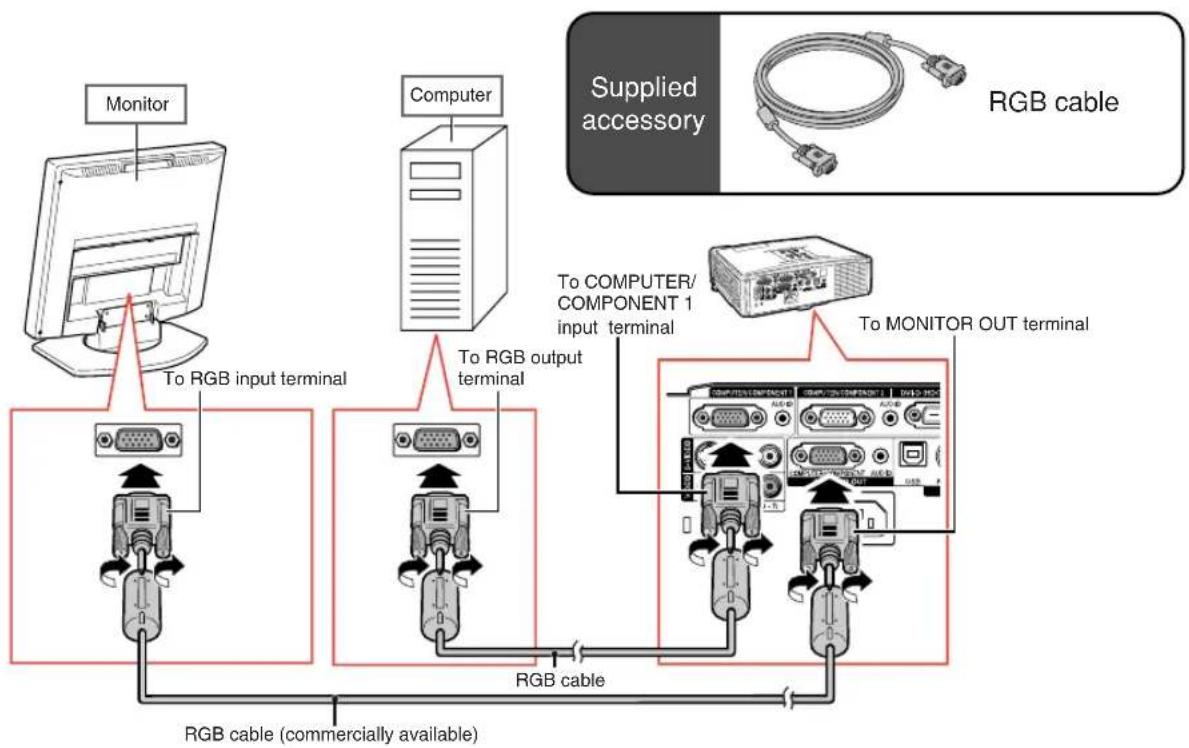

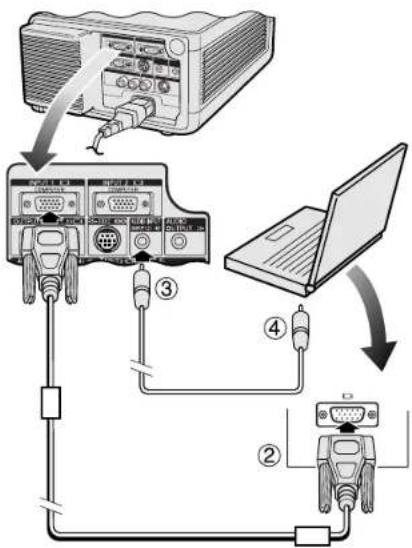

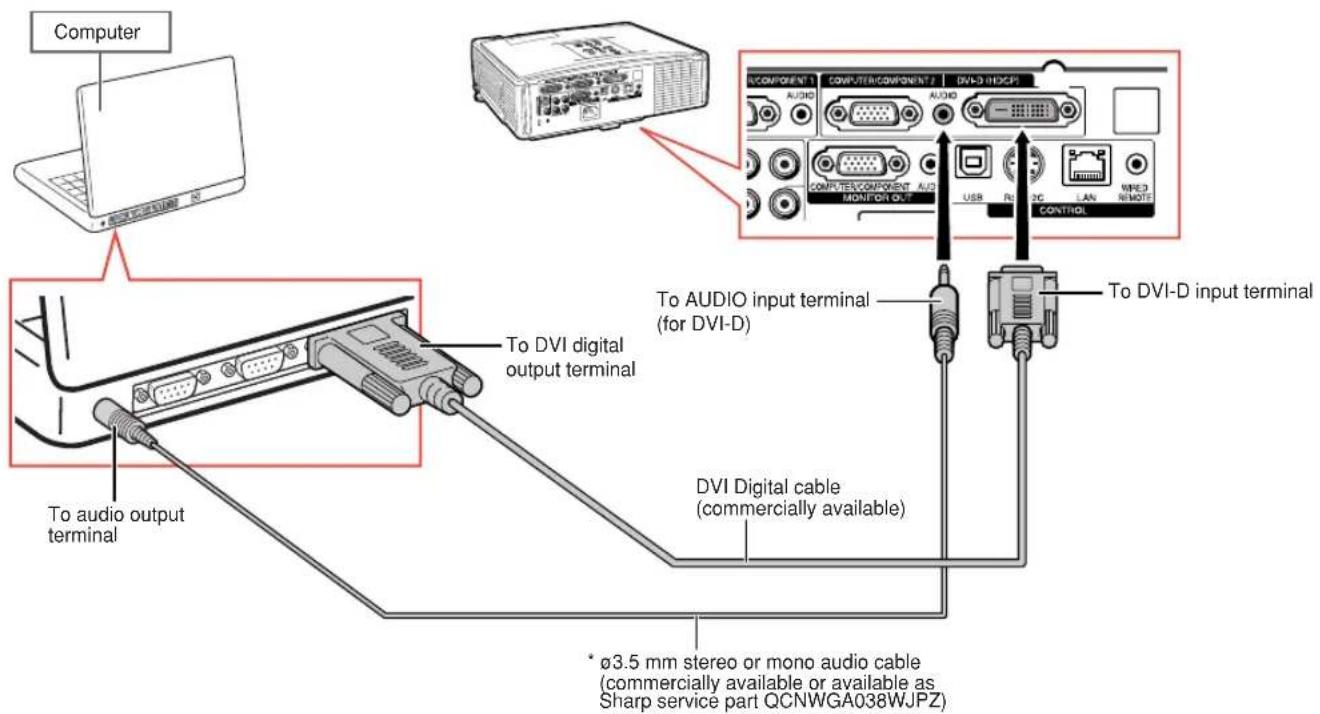

Connecting the Projector 13

Operation

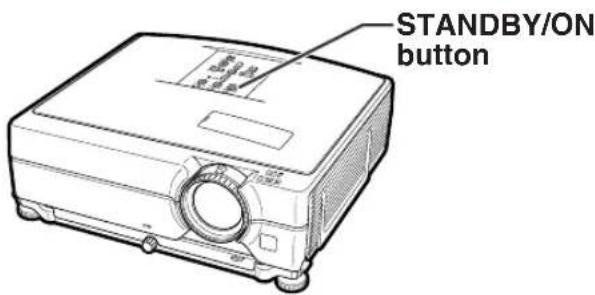

Basic Operations 18

Setting up the Screen 20

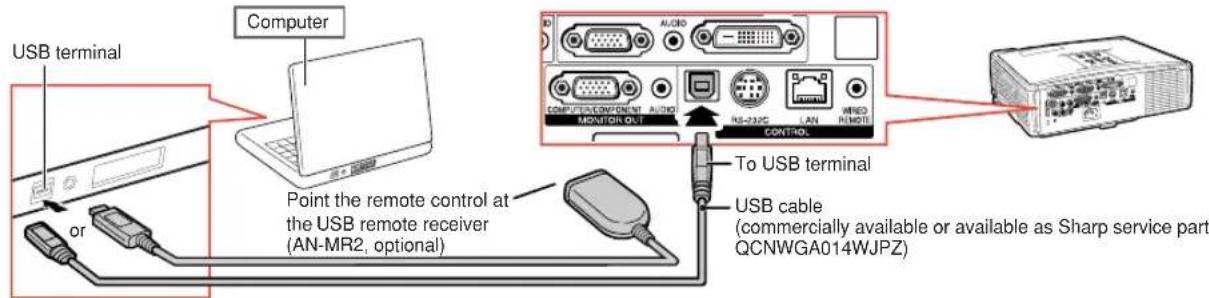

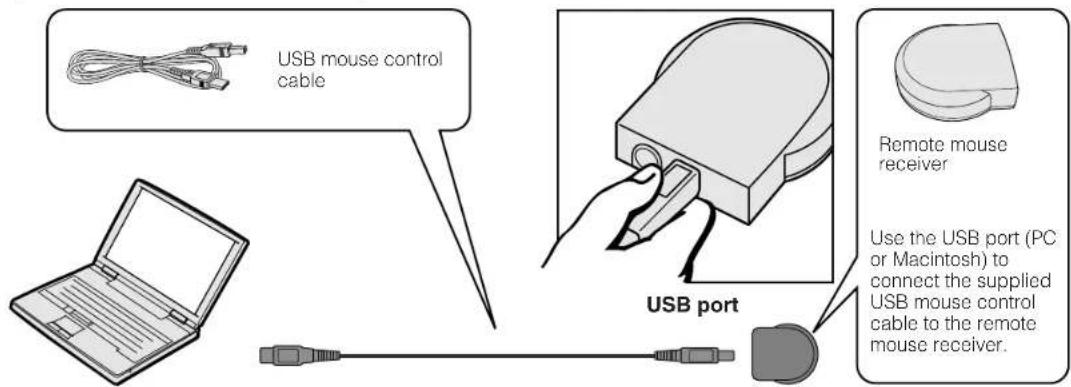

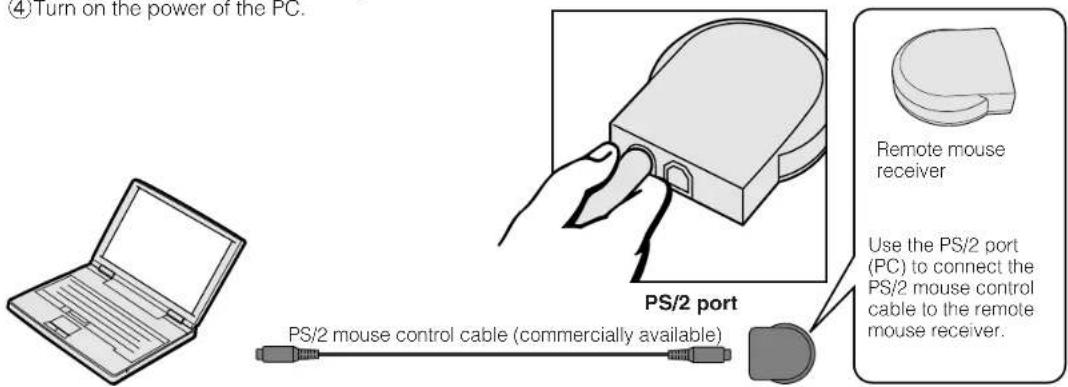

Operating the Wireless Mouse from the Remote Control 23

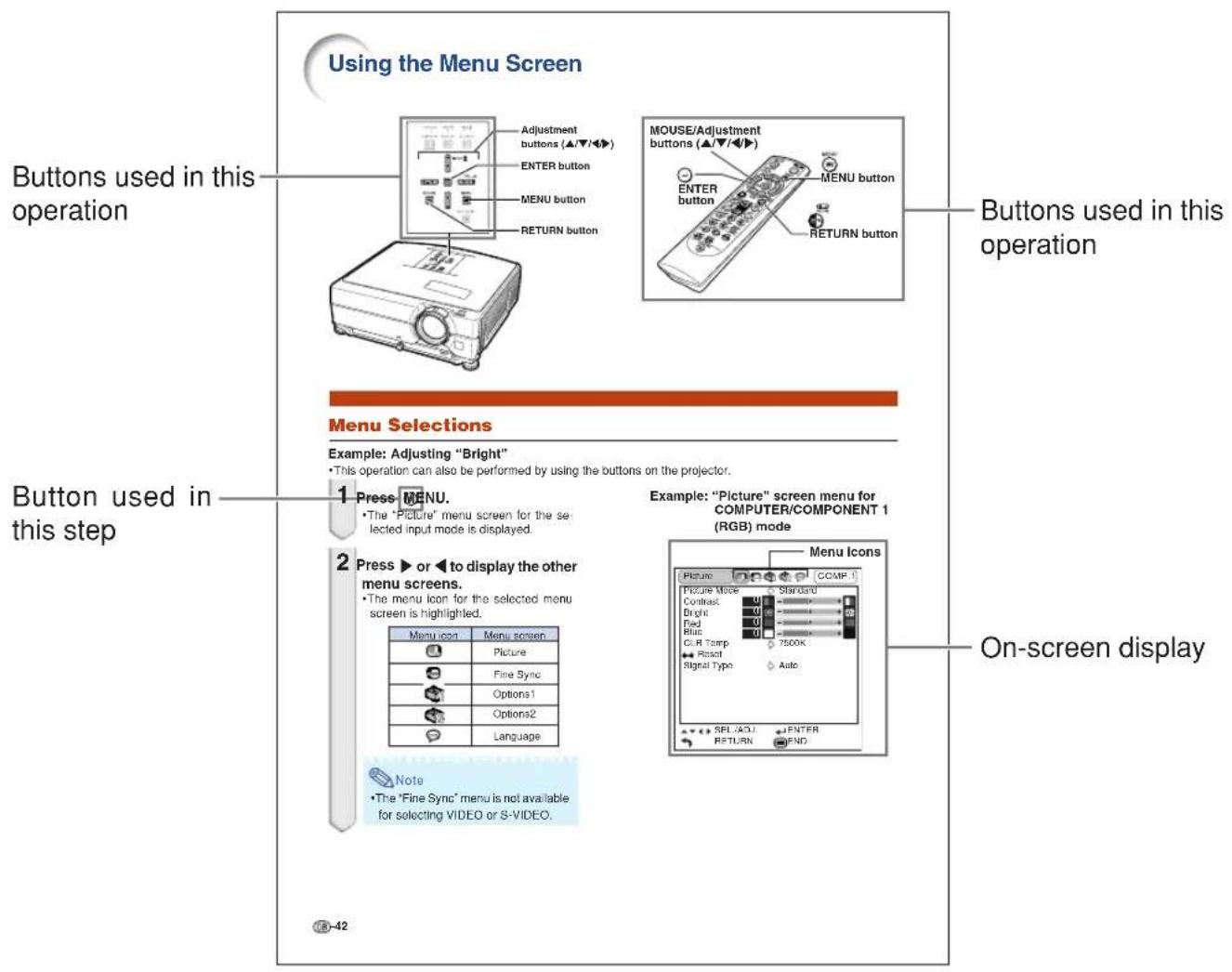

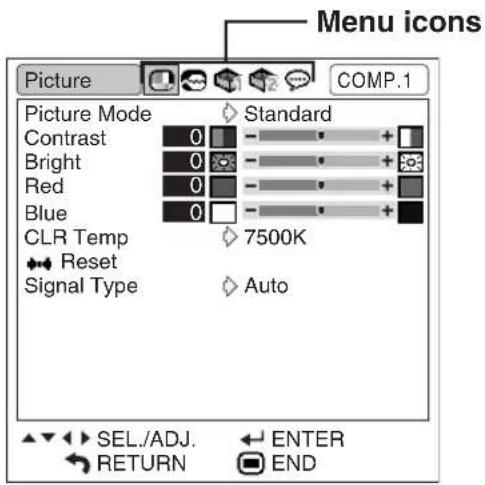

Using the GUI (Graphical User Interface) Menu Screens 25

Selecting the On-screen Display Language ... 27

Selecting the Video Input System Mode (INPUT 3 or 4 mode only) ...... 27

Picture Adjustments 28

Adjusting the Picture 28

Adjusting the Colour Temperature 29

Selecting the Signal Type 29

I/P Conversion 30

Audio Adjustments 30

Computer Image Adjustments (INPUT 1 or 2 mode only) .... 31

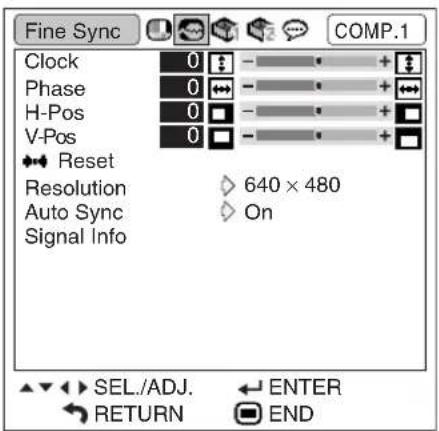

Adjusting the Computer Image 31

Saving and Selecting Adjustment Settings ... 32

Special Mode Adjustment 33

Checking the Input Signal 33

Auto Sync Adjustment 34

Auto Sync Display Function 34

Useful Features

Freeze Function 35

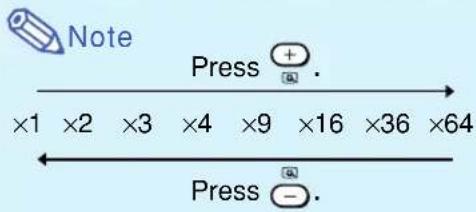

Digital Image Magnification 36

Gamma Correction 37

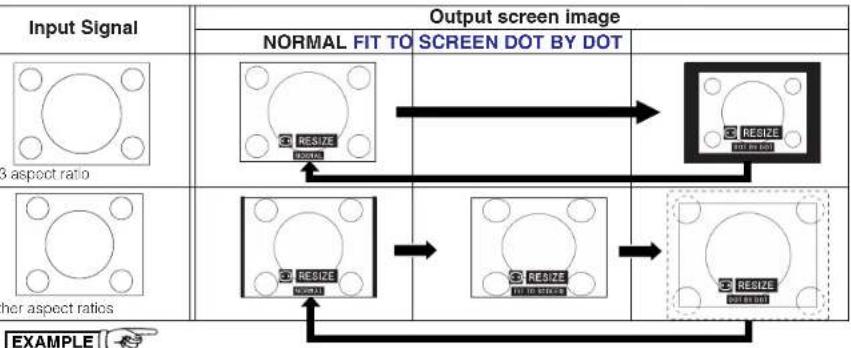

Selecting the Picture Display Mode 38

Black Screen Function 39

On-screen Display Override Function 39

Selecting a Background Image 40

Selecting a Startup Image 40

Economy Mode 41

Password 42

Selecting the Keylock Level 43

Checking the Lamp Usage Time 43

Reverse/Invert Image Function 44

Using the Presentation Tools 45

Status Function 46

Maintenance & Troubleshooting

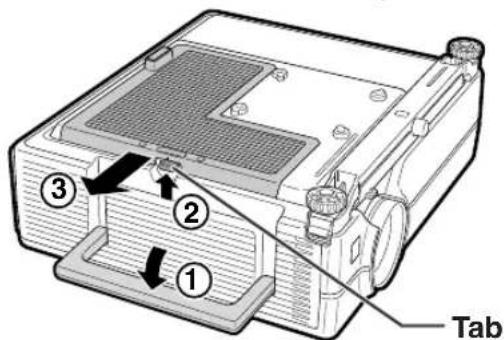

Air Filter Maintenance 47

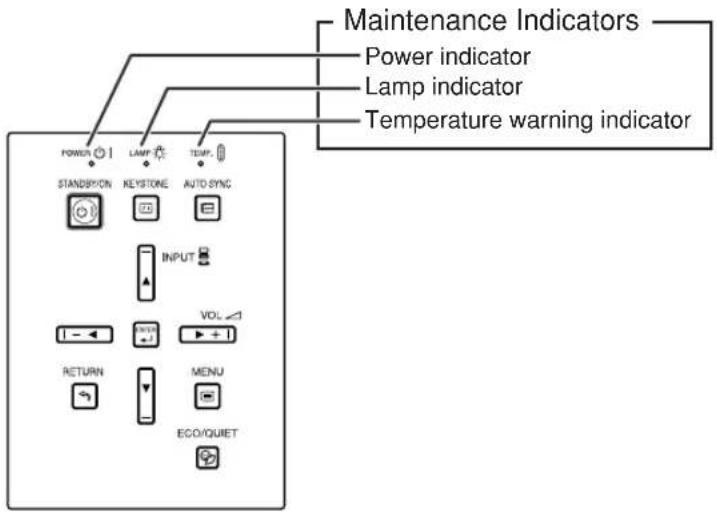

Lamp/Maintenance Indicators 49

Replacing the Projection Lamp 50

Using the Kensington Lock 52

Troubleshooting 52

Appendix

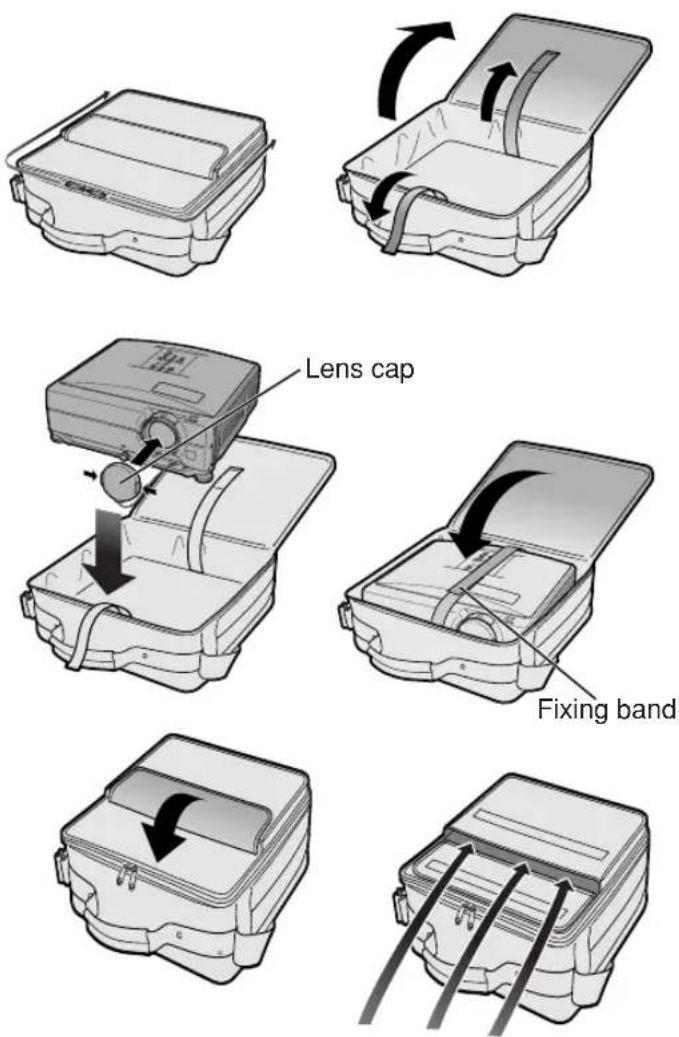

Transporting the Projector 53

Connection Pin Assignments 54

RS-232C Port Specifications 55

Computer Compatibility Chart 57

Specifications 58

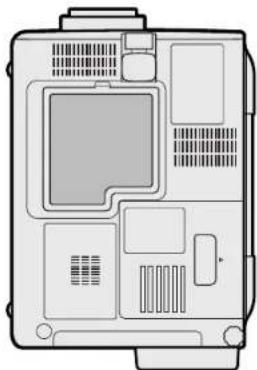

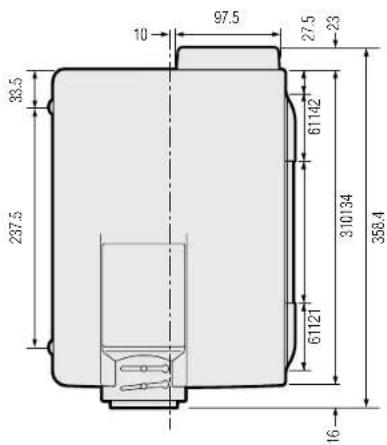

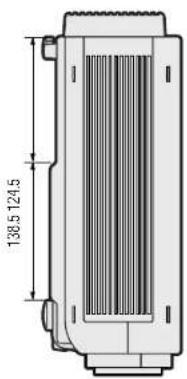

Dimensions 59

Glossary 60

Index 61

Usage Guidelines

LASER RADIATIONDO NOT STARE INTO BEAMCLASS 2 LASER PRODUCT	RADIACION LASERNO MIRE AL RAYOPRODUCTO LASER CLASE 2
RAYONNEMENT LASERNB PAS REGARDER DANS LE FUSCEAUAPPAREIL A LASER DE CLASSE 2
LASERSTRAHLUNGNICHT IN DEN STRAHL DERLASERVORRICHTUNG DERKLASSE II BLICKEN	LASERSTRÄL ARTITTA INTE IN LASERSTRÄLENKLASS 2 LASER PRODUKT.
LASERSÄTELYÄÄLAKATSO SOURAANGATEESEENLUOKAN 2 LASERTUOTE	LASEROVÉ ZIARENENEPOZERAJTE SA DO LÜÇALASEROVÝ VÝRODBK TRIEDY 2
LASEROVÉ ZIARENENHLEDTE DO PAPRSKULASEROVÝ VÝROBEK TRIEDY 2

Technical line drawing of a mechanical component with no visible text or symbols

CAUTION LAMP MAY RUPTURE POTENTIAL HAZARD OF GLASS PARTICLES. SEE OPERATION MANUAL.

ATTENTION RUPTURE POSSIBLE DE LA LAMPE, DANGER POTENTIEL DE PARTICULES DE VERRE. SE REPORTER AU MODE D'EMPLOI.

Cautions Concerning the Laser Pointer

The laser pointer on the remote control emits a laser beam from the laser pointer window. This is a Class II laser which may impair your sight if directed into the eyes. The three marks shown on the left are caution labels for the laser beam.

• Do not look into the laser pointer window or shine the laser beam on yourself or others. (The laser beam used in this product is harmless when directed onto the skin. However, be careful not to project the beam directly into the eyes.)
  • Always use the laser pointer at temperatures between +5°C and +40°C.
• Use of controls or adjustments, or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Caution Concerning the Lamp Unit

Potential hazard of glass particles if lamp ruptures. Please have Sharp Authorised LCD Projector Dealer or Service Centre replace lamp if rupture occurs.

See "Replacing the Projection Lamp" on pages 50 and 51.

CAUTION HOT SURFACE

HOT SURFACE. REPLACE WITH

SAME SHARP LAMP UNIT TYPE BOC -XGC40XUV1

ONLY. UV RADIATION: CAN CAUSE EYE DAMAGE.

TURN OFF LAMP BEFORE SERVICING. MEDIUM PRESSURE

LAMP: RISK OF EXPLOSION. HANDLE WITH CARE SEE OPERATION MANUAL

HANDLE WITH GARE. SEE SPECIFICAN WINDERS ATTENTION

ATTENTION SURFACE CINAUDE. NE REMPLACER DUE PAR LIME UNITE DE LAMZE GUARD DE TYRE

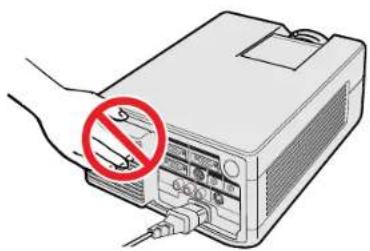

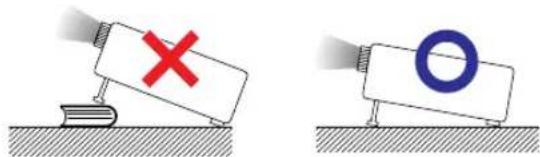

Cautions Concerning the Setup of the Projector

For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. If the projector is used in these environments, the lens and filter will need to be cleaned (or the filter replaced) more often, and internal cleaning may become necessary. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by a Sharp Authorised LCD Projector Dealer or Service Centre.

Illustration of a computer monitor with a red prohibition symbol indicating no disconnection (no text or symbols present)

Notes on Operation

• The exhaust vent, the lamp cage cover and adjacent areas may be extremely hot during projector operation. To prevent injury, do not touch these areas until they have sufficiently cooled.
• Allow at least 10 cm of space between the cooling fan (exhaust vent) and the nearest wall or obstruction.
• If the cooling fan becomes obstructed, a protection device will automatically turn off the projector lamp. This does not indicate a malfunction. Remove the projector power cord from the wall outlet and wait at least 10 minutes. Then turn on the power by plugging the power cord back in. This will return the projector to the normal operating condition.

Usage Guidelines

Temperature Monitor Function

If the projector starts to overheat due to setup problems or a dirty air filter, "TEMP." and "X" will flash in the lower-left corner of the picture. If the temperature continues to rise, the lamp will turn off, the TEMPERATURE WARNING indicator on the projector will flash, and after a 90-second cooling-off period the power will shut off. Refer to "Lamp/Maintenance Indicators" on page 49, for details.

NOTE

- The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed.

Lamp Monitor Function

When the projector is turned on after the lamp has been used for 1,900 hours, "LAMP" and "B" will flash in the lower-left corner of the picture to advise you to replace the lamp. See pages 50 and 51 for lamp replacement. If the lamp has been used for 2,000 hours, the projector power will automatically turn off and the projector will enter standby mode. Refer to "Lamp/Maintenance Indicators" on page 49, for details.

IMPORTANT

• Microsoft and Windows are registered trademarks in the United States and other countries of Microsoft Corporation.
  • PS/2 and PC/AT are registered trademarks in the United States of International Business Machines Corporation.
  • Acrobat and Acrobat Reader are registered trademarks or trademarks of Adobe Systems Incorporated.
  • Macintosh is a registered trademark in the United States and other countries of Apple Computer, Inc.
  • The other company and product names mentioned are trademarks or registered trademarks of each respective company.
• This software is based in part on the work of the Independent JPEG Group.

How to Access the PDF Operation Manuals (for Windows and Macintosh)

PDF operation manuals in several languages are included in the CD-ROM. To utilize these manuals, you need to install Adobe Acrobat Reader on your PC (Windows or Macintosh). If you have not installed Acrobat Reader yet, you can download it from the Internet (http://www.adobe.com) or install it from the CD-ROM.

To Install Acrobat Reader from the CD-ROM

For Windows:

① Insert the CD-ROM in the CD-ROM drive.
② Double click on the "My Computer" icon.
③Double click on the "CD-ROM" drive.
④ Double click on the "manuals" folder.
⑤Double click on the "acrobat" folder.
⑥ Double click on the "windows" folder.
⑦Double click on the desired installation programme and follow the instructions on the screen.

For Macintosh:

①Insert the CD-ROM in the CD-ROM drive.
② Double click on the "CD-ROM" icon.
③ Double click on the "manuals" folder.
④Double click on the "acrobat" folder.
⑤ Double click on the "mac" folder.
⑥Double click on the desired installation programme and follow the instructions on the screen.

For other operating systems:

Please download Acrobat Reader from the Internet (http://www.adobe.com).

For other languages:

If you prefer using Acrobat Reader for languages other than those included in the CD-ROM, please download the appropriate version from the Internet.

Accessing the PDF Manuals

For Windows:

①Insert the CD-ROM in the CD-ROM drive.
② Double click on the "My Computer" icon.
③Double click on the "CD-ROM" drive.
④ Double click on the "manuals" folder.
⑤Double click on the "xg-c40xe" folder.
⑥ Double click on the language (name of the folder) that you want to view.
⑦ Double click on the "c40" pdf file to access the projector manuals. Double click on the "saps" pdf file to access the Sharp Advanced Presentation Software manual.
⑧Double click on the pdf file.

For Macintosh:

①Insert the CD-ROM in the CD-ROM drive.
② Double click on the "CD-ROM" icon.
③ Double click on the "manuals" folder.
④Double click on the "xg-c40xe" folder.
⑤Double click on the language (name of the folder) that you want to view.
⑥ Double click on the "c40" pdf file to access the projector manuals. Double click on the "saps" pdf file to access the Sharp Advanced Presentation Software manual.
⑦Double click on the pdf file.

NOTE

• If the desired pdf file cannot be opened by double clicking the mouse, start Acrobat Reader first, then specify the desired file using the "File", "Open" menu.
  • See the "readme.txt" file on the CD-ROM for important information on the CD-ROM not included in this operation manual.

Part Names

Numbers next to the part names refer to the main pages in this manual where the topic is explained.

Projector

Front and Top View

Part Names

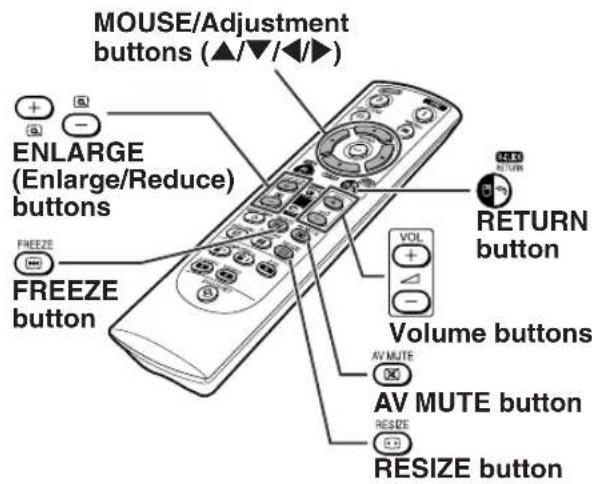

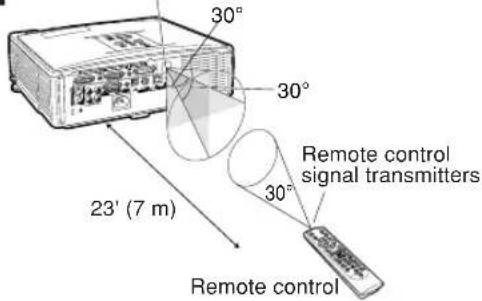

Remote Control

Front View

Rear View

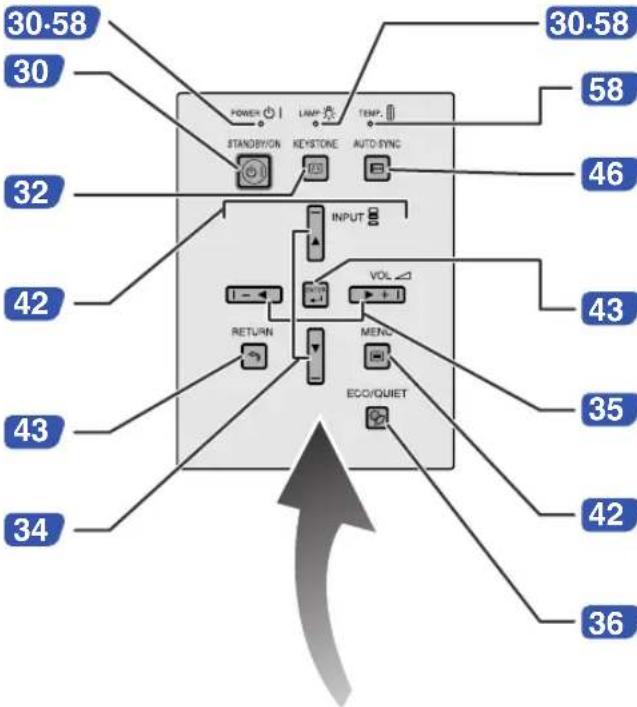

Top View

Important Information

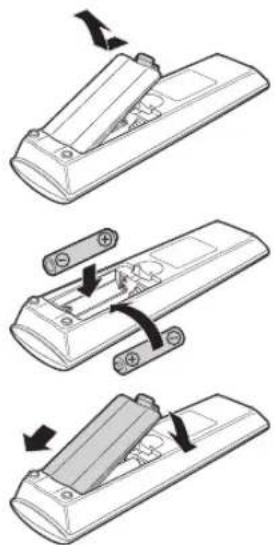

Inserting the batteries

1 Press in on the arrow mark and slide in the direction of the arrow to remove the battery cover.	2 Insert two AA size batteries, making sure their polarities match the + and - marks inside the battery compartment.	3 Insert the side tabs of the battery cover into their slots and press the cover in until it is properly seated.
	Battery compartment—	Battery cover·

Setup & Connections

Line drawing of a person packing or sorting packages on a desk with tools and boxes (no text or symbols)

Supplied Accessories

Remote control

Two AA size batteries

Power cord
For Europe, Hong Kong and Singapore		For Australia, New Zealand, and Oceania
(For Europe, except U.K.)	(For U.K., Hong Kong and Singapore)

NOTE

- The configuration of wall outlets differs from country to country. Use the power cord that corresponds to the wall outlet in your country.

Computer RGB cable

Computer audio cable

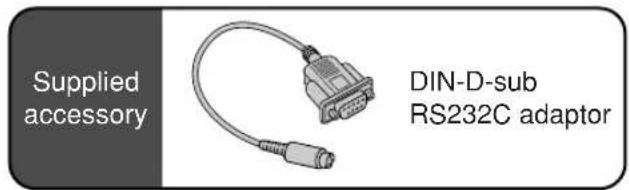

DIN-D-sub RS-232C cable

Remote mouse receiver

USB mouse control cable

Extra air filter

Lens cap

CD-ROM

LCD projector quick references

LCD projector operation manual

Sharp Advanced Presentation Software operation manual

Isometric line drawing of a mechanical assembly with no text or symbols

Optional cables

3RCA to 15 pin D-sub cable (3m)

5BNC to 15 pin D-sub cable (3m)

RS-232C serial control cable (10m)

Connecting the Projector

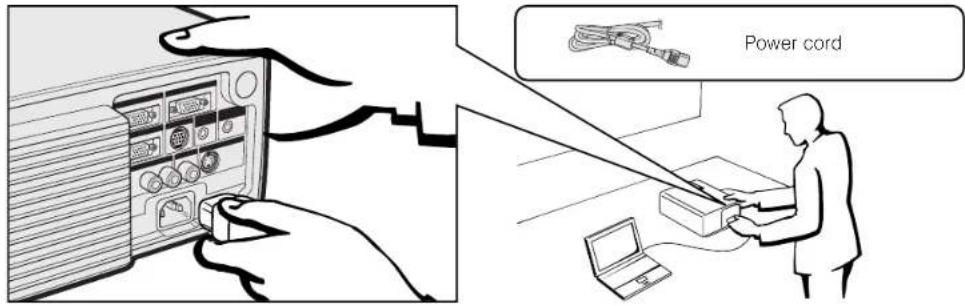

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the back of the projector.

NOTE

- The configuration of wall outlets differs from country to country. Use the power cord that corresponds to the wall outlet in your country.

Connecting the Projector to a Computer

You can connect your projector to a computer for projection of full colour computer images.

To a computer using the standard 15-pin input

Illustration of hands inserting a device into a rack (no text or symbols visible)

Computer RGB cable

Computer audio cable

①Connect one end of the supplied computer RGB cable to the INPUT 1 or 2 port on the projector.
②Connect the other end to the Monitor output port on the computer. Secure the connectors by tightening the thumb screws.
③To use the built-in audio system, connect one end of the supplied computer audio cable to the AUDIO INPUT terminal for INPUT 1, 2 on the projector.
④Connect the other end to the Audio output terminal on the computer.

CAUTION

- Before connecting, be sure to turn both the projector and the computer off. After making all connections, turn the projector on first. The computer should always be turned on last.

NOTE

• Please read the computer's operation manual carefully.
• Refer to page 57 "Computer Compatibility Chart" for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions not to work.

When connecting this projector to a computer, select "Computer/RGB" for "Signal Type" on the GUI menu. (See page 29.)

NOTE

- A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Sharp Authorised LCD Projector Dealer or Service Centre.

Connecting the Projector

Connecting other compatible computers

When connecting the projector to a compatible computer other than an IBM-PC (VGA/SVGA/XGA/SXGA/UXGA) or Macintosh (i.e. Workstation), a separate cable may be needed. Please contact your dealer for more information.

When connecting this projector to a computer, select "Computer/RGB" for "Signal Type" on the GUI menu. (See page 29.)

NOTE

• Connecting computers other than the recommended types may result in damage to the projector, the computer, or both.
• AUDIO INPUT for INPUT 1, 2 can be used input audio corresponding to the INPUT 1 and 2 video.

"Plug and Play" function

• This projector is compatible with VESA-standard DDC 1/DDC 2B. The projector and a VESA DDC compatible computer will communicate their setting requirements, allowing for quick and easy setup.
• Before using the "Plug and Play" function, be sure to turn on the projector first and the connected computer last.

NOTE

- The DDC, Plug and Play function of this projector operates only when used in conjunction with a VESA DDC compatible computer.

Connecting the Projector to Video Equipment

You can connect your projector to a VCR, laser disc player, DVD player, DTV* decoder and other audiovisual equipment.

CAUTION

- Always turn off the projector while connecting to video equipment, in order to protect both the projector and the equipment being connected.

To a video source (VCR, laser disc player, DTV decoder or DVD player) using the standard video input

Illustration of hands inserting a USB into a device panel (no text or symbols visible)

①Connect the yellow RCA connectors to the corresponding yellow VIDEO INPUT 3 terminal on the projector and the Video output terminal on the video source.
②To use the built-in audio system, connect the red and white RCA connectors to the corresponding red and white AUDIO INPUT terminals for INPUT 3, 4 on the projector and the Audio output terminals on the video source.

The S-VIDEO INPUT 4 terminal uses a video signal system in which the picture is separated into a colour and a luminance signal to realise a higher-quality image.

NOTE

• For higher quality video, you may use the S-VIDEO INPUT 4 terminal on the projector.
• If your video equipment does not have an S-video output terminal, use the Composite video output terminal.

*DTV is the umbrella term used to describe the new digital television system in the united states.

Connecting the Projector

To a DTV decoder or DVD player

Illustration of hands inserting a device into a rack (no text or symbols visible)

①Connect one end of the 3RCA to 15 pin D-sub cable to the INPUT 1 or 2 port on the projector.
②Connect the other end to the corresponding terminals on the video source.
③To use the built-in audio system, connect one end of the audio cable (commercially available) to AUDIO INPUT terminal for INPUT 1, 2 on the projector.
Connect the other end to the Audio output terminal on the video source.

Select "Computer/RGB" or "Component" for "Signal Type" on the GUI menu, depending on the video source.

Connecting an amplifier and other audio components

Illustration of a hand inserting a USB into an electronic device panel (no text or symbols visible)

CAUTION

• Always turn off the projector while connecting to audio components, in order to protect both the projector and the components being connected.

NOTE

• By using external audio components, the volume can be amplified for better sound.
• The AUDIO OUTPUT terminal allows you to output audio to audio components from the selected AUDIO INPUT terminal for INPUT 1, 2 or AUDIO INPUT terminals for INPUT 3, 4 connected to audiovisual equipment.

Connecting the Projector

Connecting RS-232C Port

When the RS-232C port on the projector is connected to a computer with an RS-232C cable (null modem, cross type, sold separately), the computer can be used to control the projector and check the status of the projector. See pages 55 and 56 for details.

① Connect the supplied DIN-D-sub RS-232C cable to the RS-232C port on the projector.
② Connect an RS-232C cable (null modem, cross type, sold separately) to the other end of DIN-D-sub RS-232C cable and to the serial port on the computer.

Line drawing of a laptop with blank screen and side panels (no text or symbols)

② RS-232C cable (null modem, cross type, sold separately)

① DIN-D-sub RS-232C cable

CAUTION

- Do not connect or disconnect an RS-232C cable to or from the computer while it is on. This may damage your computer.

NOTE

• The wireless mouse or RS-232C function may not operate if your computer port is not correctly set up. Please refer to the operation manual of the computer for details on setting up/installing the correct mouse driver.
  • The arrows (→, ↔) indicate the direction of the signals.
• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Sharp Authorised LCD Projector Dealer or Service Centre.

Connecting the Projector

Connecting the Remote Mouse Receiver

You can use the remote control as a remote mouse.

Illustration of a presentation scene with a presenter and audience, featuring a screen and a remote control icon (no text or symbols)

Connecting to the USB port on a PC or Macintosh

① Connect one end of the supplied USB mouse control cable to the corresponding terminal on the computer.
②Connect the other end to the USB port on the remote mouse receiver.

Connecting to the PS/2 port on a PC

①Turn off the power of the PC.
②Connect one end of the PS/2 mouse control cable to the corresponding terminal on the PC.
③Connect the other end to the PS/2 port on the remote mouse receiver.
④Turn on the power of the PC.

CAUTION

• Do not connect or disconnect the mouse control cables to or from the computer while it is on. This may damage your computer.
• Do not connect both the PS/2 and USB mouse control cables to the remote mouse receiver.
• Windows 95 does not support USB mouse driver software.
  • The minimum system requirements for the USB type mouse system are shown below.

Windows

Hardware: PC/AT compatible machine with USB port that has Windows 98/Windows 2000 or higher installed.

OS: Windows 98/Windows 2000 or higher

Macintosh

Hardware: Macintosh series with USB port

OS: Mac OS 8.5 or higher

NOTE

- The wireless mouse functions can be used to operate computers compatible with PS/2 or USB type mouse systems.

GB-17

Selecting the Picture Display Mode

Projector Remote control This function allows you to modify or customise the

picture display mode to enhance the input image. Depending on the input signal, you can choose NORMAL, FIT TO SCREEN, DOT BY DOT, WIDE or NORMAL (WIDE) image.

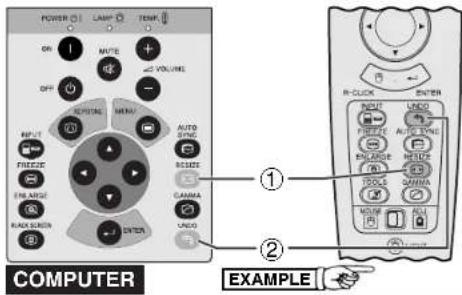

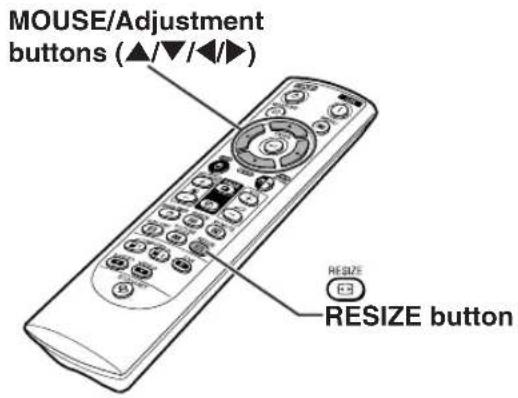

① Press RESIZE. Each time RESIZE is pressed, the picture mode changes as shown below.
②To return to the standard image, press UNDO while "RESIZE" is displayed on the screen.

		NORMAL FIT TO SCREEN DOT BY DOT
4:3 aspect ratio	SVGA (800 × 600)	1024 × 768	-	800 × 600
	XGA (1024 × 768)	1024 × 768	-	1024 × 768
	UXGA (1600 × 1200)	1024 × 768	-	1600 × 1200
Other aspect ratios	SXGA (1280 × 1024)	960 × 768	1024 × 768	1280 × 1024

VIDEO/DTV

		NORMAL WIDE	NORMAL (WIDE)
4:3 aspect ratio480/P, NTSC, PAL, SECAM	4:3	1024 × 768	1024 × 576*	768 × 576*
	Letterbox	1024 × 768	1024 × 576*	768 × 576*
	Squeeze	-	1024 × 576*	768 × 576*
16:9 aspect ratio, 720P, 1080	480/P, 720P, 1080		1024 × 576*

*The digital image shift function can be used with these picture display modes.

	Input Signal	Output screen image
		NORMAL WIDE NORMAL (WIDE)
480I/P, NTSC, PAL, SECAM	4:3 aspect ratio
	Letterbox
	Squeeze
720P, 1080i	16:9 aspect ratio

Useful Features

Black Screen Function

Projector

Remote control

Projected Image

(GUI) On-screen Display

This function can be used to superimpose a black screen over the projected image.

Blacking out the Projected Image

Press BLACK SCREEN. The screen turns black and "BLACK SCREEN" is displayed on the screen. To return to the original projected image, press BLACK SCREEN again.

NOTE

- To use the remote control to operate this function, slide the MOUSE/ADJUSTMENT switch to the MOUSE position before pressing BLACK SCREEN.

Turning off the On-screen Display

The On-screen Display ("BLACK SCREEN") that appears during black screen can be turned off. When "BLK SCRN Disp" is set to "■" in the GUI menu, "BLACK SCREEN" will not be displayed during function.

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

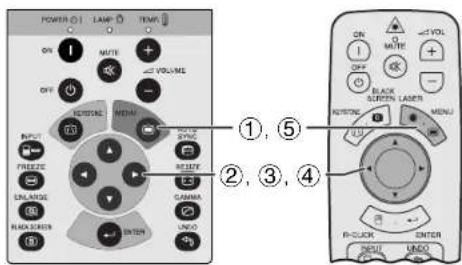

①Press MENU.
② Press ◀/▶ to select "Options".
③ Press ▲/▼ to select "BLK SCRN Disp".
④ Press ◀/▶ to select "■" to turn on or "■" to turn off the On-screen Display.
⑤To exit from the GUI, press MENU.

Useful Features

On-screen Display Override Function

Projector

(GUI) On-screen Display

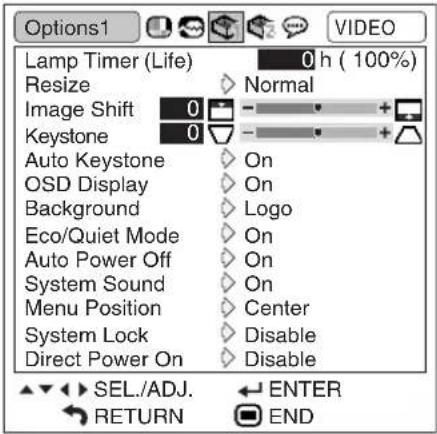

This function allows you to turn off the on-screen messages that appear during input select. Once "OSD Display" is set to "☐" in the GUI menu, the on-screen messages will not appear when INPUT is pressed.

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

①Press MENU.
② Press ◀/▶ to select "Options".
③ Press ▲/▼ to select "OSD Display".
④ Press ◀/▶ to select "☐" to turn on or "☐" to turn off the On-screen Display.
⑤To exit from the GUI, press MENU.

Selecting a Background Image

Projector

(GUI) On-screen Display

This function allows you to select the image displayed when no signal is being sent to the projector.

Description of Background Images

Selected item	Background image
Sharp	SHARP default image
Custom	User customised image (i.e. company logo)
Blue	Blue screen
None	Black screen

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

①Press MENU.
② Press ◀/▶ to select "Options".
③ Press ▲/▼ to select "Background", and then press
④ Press ▲/▼ to select the background image you want to display on the screen.
⑤Press ENTER to save the setting.
⑥To exit from the GUI, press MENU

NOTE

- By selecting "Custom", the projector can display a custom image (i.e. your company logo) as the background image. The custom image must be a 256-colour BMP file with a picture size no larger than 1,024 × 768 pixels. Please see the Sharp Advanced Presentation Software operation manual for how to save (or change) a custom image.

Selecting a Startup Image

Projector

(GUI) On-screen Display

• This function allows you to specify the image to be displayed upon the projector's startup.
• A custom image (i.e. your company logo) can be uploaded to the projector via an RS-232C cable. See page 16 in this operation manual, and also the supplied Sharp Advanced Presentation Software operation manual for detailed instructions.

Description of Startup Images

Selected item	Startup Image
Sharp	SHARP default image
Custom	User customised image (i.e. company logo)
None	Black screen

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

①Press MENU.
② Press ◀/▶ to select "Options".
③ Press ▲/▼ to select "Startup Image", and then press
④ Press ▲/▼ to select the startup image you want to display on the screen.
⑤Press ENTER to save the setting.
⑥To exit from the GUI, press MENU

NOTE

- By selecting "Custom", the projector can display a custom image (i.e. your company logo) as the startup image. The custom image must be a 256-colour BMP file with a picture size no larger than 1,024 × 768 pixels. Please see the Sharp Advanced Presentation Software operation manual for how to save (or change) a custom image.

Economy Mode

On-screen Display

Projector Remote control

(GUI) On-screen Display

Automatic Power Shutoff Function

When no input signal is detected for more than 15 minutes, the projector will automatically shut off. The on-screen message on the left will appear five minutes before the power is automatically turned off.

Description of Automatic Power Shutoff

	Power automatically shuts off after 15 minutes of no signal input.
[SWDS]	Automatic Power Shutoff disabled.

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

①Press MENU.
② Press ◀/▶ to select "Options".
③ Press ▲/▼ to select "Auto Power Off".
④ Press ◀/▶ to select "√" or "×"
⑤To exit from the GUI, press MENU.

NOTE

- "Auto Power Off" is factory preset to "√".

Useful Features

Password

Projector Remote control

(GUI) On-screen Display

(GUI) On-screen Display

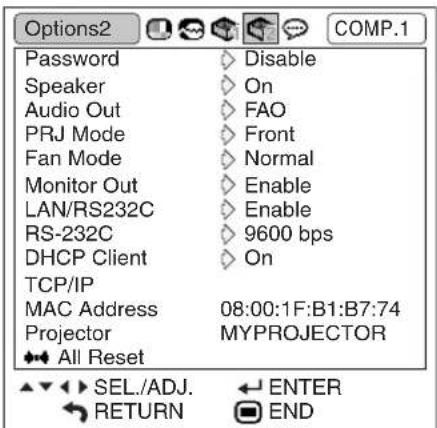

A password can be set by the user and used with the keylock level to prevent adjustments to certain settings on the GUI.

Setting the Password

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

①Press MENU.
② Press ◀/▶ to select "Options".
③ Press ▲/▼ to select "Password", and then press ▶.
④ Enter the new password using ▲/▼ to select the desired number, and then press ▶ to select the next digit. Continue this procedure for the remaining three digits, and then press ENTER.
⑤ Enter the password again ("Reconfirm") using ▲/▼/◄/►, and then press ENTER.
⑥To exit from the GUI, press MENU.

NOTE

• After setting the password, be sure to write it down in a secure location so as not to forget it.

Changing the Password

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

① Follow steps ① to ③ in "Setting the Password" above.
② Enter the old password using ▲/▼/◄/►, and then press ENTER.
③ Enter the new password using ▲/▼/◄/►, and then press ENTER.
④ Enter the password again ("Reconfirm") using ▲/▼/◄/►, and then press ENTER.

Clearing the Password

If you forget your password, you can use the following procedure to clear the password.

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

ON → ENTER → ON → ENTER → ON → ENTER → MENU

NOTE

- This procedure can be performed either from the projector or with the remote control.

Selecting the Keylock Level

Projector Remote control

(GUI) On-screen Display

This function can be used to lock the use of certain operation buttons on the projector. The user can still operate the projector fully with the remote control.

Description of Keylock Levels

Selected Item	Description
Normal	All operation buttons are functional.
Level A	Only INPUT, VOLUME, MUTE, BLACK SCREEN on the projector are available.
Level B	All operation buttons on the projector are unavailable.

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

①Press MENU.

② Press ◀/▶ to select "Options".
③ Press ▲/▼ to select "Keylock Level", and then press ▶.
④ Press ▲/▼ to select the desired level.
⑤To exit from the GUI, press MENU.

NOTE

• To cancel the keylock level, perform the above procedure using the remote control.
• If a password has been set and the keylock level selected, the password must be entered before adjusting the keylock level.

Useful Features

Checking the Lamp Usage Time

Projector

(GUI) On-screen Display

This function allows you to check the accumulated lamp usage time.

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

①Press MENU.
② Press ◀/▶ to select "Options". The lamp usage time will be displayed.

NOTE

- It is recommended that the lamp be replaced after approximately 1,900 hours of usage. See pages 50 and 51 for lamp replacement.

Reverse/Invert Image Function

Projector

Remote control

(GUI) On-screen Display
When "Front" is selected.

When "Ceiling + Front" is selected.

When "Rear" Is selected.

When "Ceiling + Rear" is selected.

This projector is equipped with a reverse/invert image function which allows you to reverse or invert the projected image for various applications.

Description of Projected Images

Selected item	Projected image
Front	Normal image
Ceiling + Front	Inverted image
Rear	Reversed image
Ceiling + Rear	Reversed and inverted image

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

①Press MENU.
② Press ◀/▶ to select "PRJ Mode".
③ Press ▲/▼ to select the desired projection mode.
④Press ENTER to save the setting.
⑤To exit from the GUI, press MENU.

NOTE

- This function is used for the reversed image and ceiling-mount setups. See page 21 for these setups.

Using the Presentation Tools

Projector Remote control

On-screen Display

Menu Window

Red Green Blue Yellow Orange White Black

Projector

When selecting Sharp default image

This projector is equipped with presentation tools that can be used to emphasize keypoints within your presentation.

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

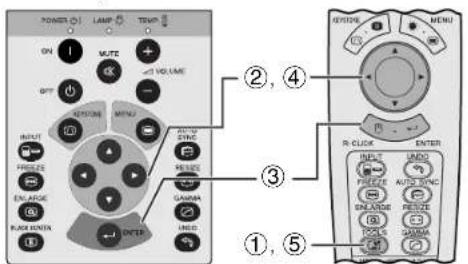

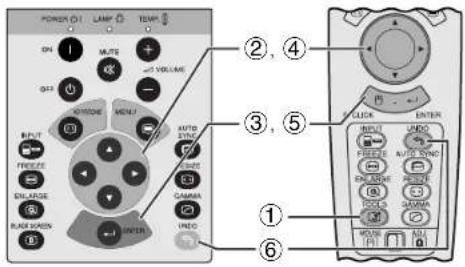

① Press TOOLS to display the presentation tools menu window on the screen.
② Press ▲/▼/◄/► to select the desired tool and colour.
③Press ENTER to select it.
④Once the tool is displayed on the screen, press ▲/▼/◄/► to move it around the screen.
⑤ Press ENTER to stamp the tool on the screen.
⑥ Press UNDO to individually delete tools stamped on the screen.

NOTE

• You can stamp each tool as many times as you want on the screen.
• To clear all the stamped presentation tools from the screen, press ▲/▼/◀/▶ to select "◆" and then press ENTER.

Displaying the Break Time

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

① Press TOOLS to display the presentation tools menu window on the screen.
② Press ▲/▼/◄/► to select "☐" in the menu window.
③ Press ENTER to start counting down the break time.
④ Press ▲ to increase or ▼ to decrease the break time.
⑤ Press TOOLS to return to normal screen.

NOTE

- The break time is displayed against the background image selected in "Selecting a Startup Image". (See page 40.)

Status Function

Projector

Remote control

This function can be used to display all the adjusted settings on the screen simultaneously.

(Slide the MOUSE/ADJUSTMENT switch on the remote control to the ADJ. position.)

①Press MENU.
② Press ◀/▶ to select "Status".
③ Press ENTER to display all the adjustment settings.
④To exit from the GUI, press MENU.

(GUI) On-screen Display
②

③

Maintenance & Troubleshooting

Line drawing of a person using a handheld device at a desk (no text or symbols)

Air Filter Maintenance

Bottom View

Cleaning the bottom air filter

• This projector is equipped with four air filters to ensure the optimal operating condition of the projector.
• The air filters should be cleaned every 100 hours of use. Clean the filters more often when the projector is used in a dusty or smoky location.
• Purchase a replacement air filer (PFILD0076CEZZ) from your nearest Authorized Sharp LCD Products Dealer or Service Center when if the filter is torn or become deteriorated.

Maintenance & Troubleshooting

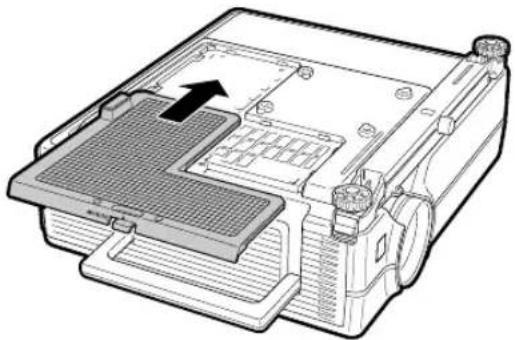

1 Unplug the power cord.	2 Remove the bottom filter cover.
	Turn over the projector. Press the tab and lift open the filter cover in the direction of the arrow.

Air Filter Maintenance

3 Clean the air filter.	4 Replace the filter cover.
Clean the dust off the air filter and cover with a vacuum cleaner extension hose.	Insert the tab on the end of the filter cover into the filter cover opening and press the filter cover into position.

Replacing the bottom air filter

1 Unplug the power cord.	2 Remove the bottom filter cover.		3 Remove the air filter.
	Turn over the projector. Press the tab and lift open the filter cover in the direction of the arrow.		Grasp the air filter between your fingers and lift it out of the filter cover.
4 Replace the new air filter.		5 Replace the filter cover.
Place the new air filter underneath the tabs on the filter frame.		Insert the tab on the end of the filter cover into the filter cover opening and press the filter cover into position.

4 Replace the new air filter.

NOTE

- Be sure the filter cover is securely installed. The power will not turn on unless it is correctly installed.

Cleaning the bottom air filters (not removable)

If dust or dirt has collected inside the air filter housing, clean the area with a vacuum cleaner extension hose.

Lamp/Maintenance Indicators

Maintenance Indicators

• The warning lights on the projector indicate problems inside the projector.

• There are two warning lights: a TEMPERATURE WARNING indicator which warns that the projector is too hot, and a LAMP REPLACEMENT indicator which lets you know when to change the lamp.

• If a problem occurs, either the TEMPERATURE WARNING indicator or the LAMP REPLACEMENT indicator will illuminate red. After turning off the power, follow the procedures given below.

Maintenance Indicator	Condition Possible Solution
TEMPERATURE WARNING indicator	The internal temperature is abnormally high.	• Blocked air intake.	• Relocate the projector to an area with proper ventilation.
		• Clogged air filter.	• Clean the filter.(See page 47.)
		• Cooling fan breakdown.• Internal circuit failure.	• Take the projector to your nearest Sharp Authorised LCD Projector Dealer or Service Centre for repair.
LAMP REPLACE-MENT indicator	The lamp does not illuminate.	• Burnt-out lamp.• Lamp circuit failure.	• Carefully replace the lamp. (See pages 50 and 51.)• Take the projector to your nearest Sharp Authorised LCD Projector Dealer or Service Centre for repair.
	The lamp requires replacement.	• Lamp has been used for over 1,900 hours.
POWER indicator	The POWER indicator flashes in red when the projector is on.	• The bottom filter cover is open.	• Securely install the bottom filter cover.

NOTE

• If the TEMPERATURE WARNING indicator illuminates, follow the above possible solutions and then wait until the projector has cooled down completely before turning the power back on. (At least 5 minutes.)
• If the power is turned off and then turned on again, as during a brief rest, the LAMP REPLACEMENT indicator may be triggered, preventing the power from going on. Should this occur, take the power cord out of the wall outlet and put it back in again.

Lamp

The lamp in this projector operates for approximately 2,000 cumulative hours, depending on the usage environment. It is recommended that the lamp be replaced after 1,900 cumulative hours of use or when you notice a significant deterioration of the picture and colour quality. The lamp usage time can be checked with the On-screen Display (see page 43).

CAUTION

- Intense light hazard. Do not attempt to look into the aperture and lens while the projector is operating.

NOTE

- As the usage environment can vary significantly, the projector lamp may not operate for 2,000 hours.

Condition	Problem	Possible Solution
The LAMP REPLACEMENT indicator illuminates red, and “LAMP” and “B” will flash in yellow in the lower-left corner of the picture.	• Lamp has been used for over 1,900 hours.	• Purchase a replacement lamp unit (lamp cage/module) of the current type BQC-XGC40XU/1 from your nearest Sharp Authorised LCD Projector Dealer or Service Centre.• Replace the lamp. (See pages 50 and 51.) If you wish, you may have the lamp replaced at your nearest Sharp Authorised LCD Projector Dealer or Service Centre.
The power will automatically turn off and the projector will enter standby mode.	• Lamp has been used for over 2,000 hours.
“LAMP” and “B” will flash in red in the lower-left corner of the picture, and the power will turn off.

Maintenance & Troubleshooting

Replacing the Projection Lamp

CAUTION:

• Potential hazard of glass particles if lamp ruptures. Please have Sharp Authorised LCD Projector Dealer or Service Centre replace lamp if rupture occurs.
• Do not remove the lamp cage directly after operation of the projector. The lamp may be extremely hot. Wait at least one hour after the power cord is disconnected to allow the surface of the lamp cage to fully cool before removing the lamp cage.

It is recommended that the lamp be replaced after approximately 1,900 cumulative hours of use or when you notice a significant deterioration of the picture and colour quality. Carefully change the lamp by following the steps below.

If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorised LCD Projector Dealer or Service Centre for repair. Purchase a replacement lamp unit (lamp/cage module) of the current type BQC-XGC40XU/1 from your nearest Sharp Authorised LCD Projector Dealer or Service Centre. Then carefully change the lamp by following the instructions below. If you wish, you may have the lamp replaced at your nearest Sharp Authorised LCD Projector Dealer or Service Centre.

Removing and installing the lamp unit

CAUTION

• Be sure to remove the lamp cage by the handle. Be sure not to touch the glass surface of the lamp cage or the inside of the projector.
• To avoid injury to yourself and damage to the lamp, be sure to carefully follow the steps below.
• Be sure to change the air filter during lamp replacement. The air filter comes packaged with the lamp unit.

1 Turn off the power.	2 Disconnect the power cord.	3 Remove the bottom filter cover.
Press POWER OFF. Wait until the cooling fan stops.	Unplug the power cord from the AC socket.	Turn over the projector. Press the tab and lift open the filter cover in the direction of the arrow.
4 Remove the air filter.	5 Replace the new air filter.	6 Replace the filter cover.
Grasp the air filter between your fingers and lift it out of the filter cover.	Place the new air filter underneath the tabs on the filter frame.	Insert the tab on the end of the filter cover into the filter cover opening and press the filter cover into position.

Replacing the Projection Lamp

7 Remove the lamp cage cover.	8 Remove the lamp cage.
Turn over the projector and loosen the user service screw that secures the lamp cage cover. Then slide the cover in the direction of the arrow.	Remove the securing screws from the lamp cage. Hold the lamp cage by the handle and pull it towards you.
9 Insert the new lamp cage.	10 Attach the lamp cage cover.
Press the lamp cage firmly into the lamp cage compartment. Fasten the securing screws.	Slide the lamp cage cover in the direction of the arrow. Then tighten the user service screw.
	user service screw

Resetting the lamp timer

1 Connect the power cord.	2 Reset the lamp timer.
Plug the power cord into the AC socket of the projector.	While pressing ▼, ▶ and ENTER on the projector, press POWER ON on the projector.	"LAMP 0000H" is displayed, indicating that the lamp timer is reset.

Maintenance & Troubleshooting

NOTE

- Reset the lamp timer only after replacing the lamp.

Using the Kensington Lock

Line drawing of a projector with lens and ventilation slots (no text or symbols)

Kensington Security Standard connector

This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

Troubleshooting

Problem	Check
Power cannot be turned on or off using the POWER buttons (ON/OFF) on the projector.	Keylock level is set to "Level A" or "Level B", preventing operation of some or all buttons (See page 43.)
No picture and no sound.	Projector power cord is not plugged into the wall outlet.The bottom filter cover is not securely installed.Selected input is wrong. (See page 19.)Cables incorrectly connected to rear panel of the projector. (See pages 13-17.)Remote control batteries have run down. (See page 10.)Remote control's MOUSE/ADJUSTMENT switch is set to MOUSE.
Sound is heard but no picture appears.	Cables incorrectly connected to rear panel of the projector. (See pages 13-17.)“Contrast” and “Bright” adjustments are set to minimum position. (See page 28.)On-screen Display ("BLACK SCREEN") is turned off and Black Screen function is turned on, croating a black image. (See page 39.)
Colour is faded or poor.	“Color” and “Tint” adjustments are not correct. (See page 28.)
Picture is blurred.	Adjust the focus. (See page 19.)Projection distance is too long or too short to allow for proper focus. (See page 20.)
Picture appears but no sound is heard.	Cables incorrectly connected to rear panel of the projector. (See pages 13-17.)Volume is set to minimum. (See page 19.)
An unusual sound is occasionally heard from the cabinet.	If the picture is normal, the sound is due to cabinet shrinkage caused by temperature changes.This will not affect operation or performance.
Maintenance indicator illuminates.	Refer to “Lamp/Maintenance Indicators” on page 49.
Picture noise appears.	Adjust the “Phase” setting. (See page 31.)
480P images do not appear.	Set the resolution mode to 480P. (See page 33.)
Colour is distorted (except for INPUT 3 (VIDEO) and INPUT 4 (S-VIDEO) mode).	Change the input system mode. (See page 29.)

Appendix

Line drawing of a meeting scene with three people seated at a table, one person presenting in front of a blank board (no text or symbols)

Transporting the Projector

Using the Carrying Handle
When transporting the projector, carry it by the carrying handle on the side.

CAUTION

• Always put on the lens cap to prevent damage to the lens when transporting the projector.
- Do not lift or carry the projector by the lens or the lens cap as this may damage the lens.

Appendix

GB-53

Connection Pin Assignments

Analog Computer 1 and 2 Signal Input Ports: 15-pin mini D-sub female connector

Computer Input

Analog

1. Video input (red)
2. Video input
   (green/sync on green)
3. Video input (blue)
4. Reserve input 1
5. Composite sync
6. Earth (red)
7. Earth (green/sync on green)

8. Earth (blue)

9. Not connected

10. GND
11. GND
12. Bi-directional data
13. Horizontal sync signal
14. Vertical sync signal
15. Data clock

RS-232C Port: 9-pin D-sub male connector of the DIN-D-sub RS-232C cable

Pin No. Signal Name I/O Reference

1 CD Not connected
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 ER Not connected
5 SG Signal Ground
6 DR Data Set Ready
7 RS Request to Send
8 CS Clear to Send
9 Cl
Output Not connected

Connected to internal circuit

Output Connected to internal circuit

Input Connected to internal circuit

Not connected

RS-232C Terminal: 9-pin Mini DIN female connector

Pin No.	Signal	Name	I/O	Reference
1	VCC	+3.3V (Reserved)	Output	Not connected
2	RD	Receive Data	Input	Connected to internal circuit
3	SD	Send Data	Output	Connected to internal circuit
4	EXIR	Detector of Option Unit (Reserved)	Input	Not connected
5 SG	Signal Ground		Connected to internal circuit
6	ERX	IR Receive Signal from IR Amplifier (Reserved)	Input	Not connected
7	RS	Request to Send	Output	Connected to internal circuit
8	CS	Clear to Send	Input	Connected to internal circuit
9	ETX	IR Transmit Signal (Reserved)	Output	Not connected

RS-232C Port Specifications

PC control

A computer can be used to control the projector by connecting an RS-232C cable (null modem, cross type, sold separately) to the projector. (See page 16 for connection.)

Communication conditions

Set the serial port settings of the computer to match that of the table.

Signal format: Conforms to RS-232C standard.

Baud rate: 9,600 bps

Data length: 8 bits

Parity bit: NONE

Stop bit: 1 bit

Flow control: None

Basic format

Commands from the computer are sent in the following order: command, parameter, and return code. After the projector processes the command from the computer, it sends a response code to the computer.

Command format

C1

C2

C3

C4

P1

P2

P3

P4

Return code (0DH)

Command 4-digits Parameter 4-digits

Response code format

Normal response

Problem response (communication error or incorrect command)

E

R

R

Return code (0DH)

When more than one code is being sent, send each command only after the OK response code for the previous command from the projector is verified.

NOTE

- When using the computer control function of the projector, the projector operating status cannot be read to the computer. Therefore, confirm the status by transmitting the display commands for each adjustment menu and checking the status with the On-screen Display. If the projector receives a command other than a menu display command, it will execute the command without displaying the On-screen Display.

Commands

EXAMPLE

- When "BRIGHT" of INPUT 1 IMAGE ADJUSTMENT is set to -10.

Computer

R

A

B

R

1

0

_

Projector

O

K

CONTROL ITEM	COMMAND				PARAMETER				CONTROL CONTENTS
	C1	C2	C3	C4	P1	P2	P3	P4
POWER SLITING	P	G	W	R	-	-	-	0	POWER OFF (STANDBY)
	P	G	W	R	-	-	-	1	POWER ON
INPUT SWITCHING	I	R	G	R	-	-	-	1	INPUT1
	I	R	G	B	-	-	-	2	INPUT2
	I	V	E	D	-	-	-	1	INPUT3 (VIDEO)
	I	V	E	D	-	-	-	2	INPUT4 (S VIDEO)
INPUT CHECK	I	C	H	K	-	-	-	0	INPUT CHECK
VOLUME ADJUSTMENT	V	G	L	A			^	^	VOLUME (00 - 60)
	M	U	T	L	-	-	-	0	MUTE OFF
	M	U	T	E	-	-	-	1	MUTE ON
KEYSTONE ADJUSTMENT	K	C	Y	S	*	*	*	*	KEYSTONE (-127 -- -127)
DIGITAL SHIFT	L	N	D	S	-	*	*	*	DIGITAL SHIFT (-86 -86)

CONTROL ITEM	COMMAND				PARAMETER				CONTROL CONTENTS
	C1	C2	C3	C4	P1	P2	P3	P4
INPUT 1 SIGNAL TYPE SELECTION	I	A	S	I	_	_	_	1	RGB
	I	A	S	I	_	_	_	2	COMPONENT
INPUT 1 IP CONVERSION	R	A	I	P				0	INTERLACED
	R	A	I	P	_	_	_	1	PROGRESSIVE
INPUT 1 IMAGE ADJUSTMENT	R	A	C	T	_	_	*	*	COLOR TEMPERATURE (5 - 3)
	R	A	P	I	_	_	_	*	CONTRAST (-30 +30)
	R	A	B	R	_	*	*	*	BRIGHT (-30 +30)
	R	A	R	D	_	_	_	^	RED (-30 +30)
	R	A	B	E	_	_	*	*	BLUE (-30 +30)
	R	A	C	O	_	*	*	*	COLOR (30 +30)
	R	A	T	I	_	_	_	*	TINT (-30 -30)
	R	A	H	E	_	_	_	0	INPUT DISPLAY
	R	A	R	E	_	_	_	1	RESET

Appendix

GB-55

RS-232C Port Specifications

CONTROL ITEM	COMMAND				PARAMETER				CONTROLCONTENTS
	C1	C2	C3	C4	P1	P2	P3	P4
INPUT 2 SIGNAL TYPE SELECTION	I	II	S	I					ROI
	I	B	S	I	-	-	-	-	COMPONENT
INPUT 2UP CONVERSION	R	B	I	P	-	-	-	0	INTERLACED
	R	B	I	P	-	-	-	-	PROGRESSIVE
INPUT 2IMAGEADJUSTMENT	R	B	C	T	-	-	*	*	COLOR TEMPERATURE(-3~+3)
	R	B	P	I	-	^	*	*	CONTRAST(30~-30)
	H	B	B	R	-	*	*	*	BHIGHT(-30~+30)
	R	B	R	D	-	^	*	*	RED(-30~-30)
	R	B	B	E	-	*	*	*	BLUE(-30~-30)
	R	B	C	O	-	^	*	*	COLOR(30~+30)
	R	B	T	I	-	*	*	*	TINT(-30~+30)
	R	B	R	E	-	-	-	0	INPUT 2 DISPLAY
	R	B	R	E	-	-	-	-	RESET
INPUT 3 (VIDEO)UP CONVERSION	V	A	I	P	-	-	-	0	INTERLACED
	V	A	I	P	-	-	-	-	PROGRESSIVE
INPUT 3 (VIDEO)IMAGEADJUSTMENT	V	A	C	I			*	*	COLOR TEMPERATURE(-3~+3)
	V	A	P	I	-	*	*	*	CONTRAST(-30~-30)
	V	A	B	R	-	*	*	*	BHIGHT(-30~+30)
	V	A	C	O	-	^	*	*	COLOR(-30~+30)
	V	A	T	I	-	^	*	*	TINT(-30~+30)
	V	A	S	H	-	*	*	*	SHARPNESS(-30~-30)
	V	A	R	D	-	*	*	*	RED(-30~+30)
	V	A	B	E	-	^	*	*	BLUE(-30~+30)
	V	A	R	E	-	-	-	0	VIDEO DISPLAY
	V	A	R	E	-	-	-	-	RESET
INPUT 4 (S-VIDEO)UP CONVERSION	V	B	I	P	-	-	-	0	INTERLACED
	V	B	I	P	-	-	-	-	PROGRESSIVE
INPUT 4 (S-VIDEO)IMAGEADJUSTMENT	V	B	C	T	-	-	*	*	COLOR TEMPERATURE(-3~+3)
	V	B	P	I	-	*	*	*	CONTRAST(-30~-30)
	V	B	B	R	-	^	*	*	BHIGHT(30~+30)
	V	B	C	O	-	*	*	*	COLOR(-30~+30)
	V	B	T	I	-	^	*	*	TINT(30~+30)
	V	B	S	H	-	*	*	*	SHARPNESS(-30~-30)
	V	B	R	D	-	^	*	*	RED(-30~+30)
	V	B	B	E	-	*	*	*	BLUE(-30~-30)
	V	B	R	E	-	-	-	0	VIDEO DISPLAY
	V	B	R	F					RESET
AUDIOADJUSTMENT	A	A	T	E	-	*	*	*	TREE(-30~+30)
	A	A	B	A	-	^	^	^	BASS(30~+30)
	A	A	R	E					AUDIO DISPLAY
	A	A	R	E					RESET
INPUT AUTOSYNCHRONIZATION	A	A	D	J					AUTO SYNC OFF
	A	A	D	J					AUTO SYNC ON
	A	D	J	S					AUTO SYNC START
INPUTADJUSTMENT	I	N	C	L	^	^	*	*	CLOCK(150~+150)
	I	N	P	II		^	*	*	PHASE(-60~-60)
	I	A	H	F	^	^	*	*	H-POS(150~+150)
	I	A	V	F		^	*	*	V-POS(-60~+60)
	I	A	R	E					COMPUTER INPUT DISPLAY
	I	A	R	E					RESET
SCREEN MODEMEMORY	M	E	M	S					SAVE SETTING(1~7)
	M	E	M	L					SELECT SETTING(1~7)
BLACK SCREEN	I	M	B	K					BLACK SCREEN OFF
	I	M	B	K					BLACK SCREEN ON
ON-SCREEN DISPLAYSETTING	I	M	B	O					BLACK SCREEN DISPLAY OFF
	I	M	B	O					BLACK SCREEN DISPLAY ON
	I	M	D	I					OSD DISPLAY OFF
	I	M	D	I					OSD DISPLAY ON
	I	M	A	S					AUTO SYNC DISPLAY OFF
	I	M	A	S					AUTO SYNC DISPLAY ON

CONTROL ITEM	COMMAND				PARAMETER				CONTROLCONTENTS
	C1	C2	C3	C4	P1	P2	P3	P4
VIDEO SYSTEM SELECTION	M	I	S	Y	-	-	-	-	AUTO
	M	E	S	Y	-	-	-	-	PAL (50/60 Hz)
	M	E	S	Y	-	-	-	-	SECAM
	M	E	S	Y	-	-	-	-	NTSC 4.43
	M	E	S	Y	-	-	-	-	NTSC 3.58
VIDEO CONFIRMATION	S	Y	S	E	-	-	-	-	DISPLAY
BACKGROUND SELECTION	I	M	B	G	-	-	-	-	SHARP
	I	M	B	G	-	-	-	-	CUSTOM
	I	M	B	G	-	-	-	-	BLUE
	I	M	B	G	-	-	-	-	NONE
STARTUP IMAGE SELECTION	I	M	S	I	-	-	-	-	SHARP
	I	M	S	I	-	-	-	-	CUSTOM
	I	M	S	I	-	-	-	-	NONE
AUTO POWER OFF	A	P	O	W	-	-	-	-	AUTO POWER OFF
	A	P	O	W	-	-	-	-	AUTO POWER ON
KEYLOCK	K	E	Y	L	-	-	-	-	LEVEL SETTING (0, 2)
LANGUAGE SELECTION	M	E	L	A	-	-	-	-	ENGLISH
	M	E	L	A	-	-	-	-	DEUTSCH
	M	E	L	A	-	-	-	-	ESPANOLO
	M	E	L	A	-	-	-	-	NEIDERLANDS
	M	E	L	A	-	-	-	-	FRANÇAIS
	M	E	L	A	-	-	-	-	ITALIANO
	M	E	L	A	-	-	-	-	SVENSKA
	M	I	L	A	-	-	-	-	日本語
	M	E	L	A	-	-	-	-	PORTUGUES
	M	E	L	A	-	-	-	-	汉语
	M	E	L	A	-	-	-	-	한국OH
INPUT 1/2 GAMMA SELECTION	G	A	M	R	-	-	-	-	STANDARD
	G	A	M	R	-	-	-	-	PRESENTATION
	G	A	M	R	-	-	-	-	CINEMA
	G	A	M	R	-	-	-	-	CUSTOM
INPUT 3 (VIDEO) INPUT 4 (S-VIDEO) GAMMA SELECTION	G	A	M	V	-	-	-	-	STANDARD
	G	A	M	V	-	-	-	-	PRESENTATION
	G	A	M	V	-	-	-	-	CINEMA
	G	A	M	V	-	-	-	-	CUSTOM
INPUT 1 RESIZE	H	A	S	R	-	-	-	-	NORMAL
	R	A	S	R	-	-	-	-	WIDE/FIT TO SCREEN
	R	A	S	R	-	-	-	-	DOT BY DOTNORMAL (WIDE)
INPUT 2 RESIZE	R	B	S	R	-	-	-	-	NORMAL
	R	B	S	R	-	-	-	-	WIDE/FIT TO SCREEN
	R	B	S	R	-	-	-	-	DOT BY DOTNORMAL (WIDE)
INPUT 3 (VIDEO) RESIZE	R	A	S	V	-	-	-	-	NORMAL
	R	A	S	V	-	-	-	-	WIDE
	R	A	S	V	-	-	-	-	NORMAL (WIDE)
INPUT 4 (S-VIDEO) RESIZE	R	B	S	V	-	-	-	-	NORMAL
	R	B	S	V	-	-	-	-	WIDE
	R	B	S	V	-	-	-	-	NORMAL (WIDE)
SCREEN SETTING	I	M	R	E	-	-	-	-	REVERSE ON
	I	M	R	E	-	-	-	-	REVERSE ON
	I	M	I	N	-	-	-	-	INVERT ON
	I	M	I	N	-	-	-	-	INVERT ON

NOTE

• If an underbar (_) appears in the parameter column, enter a space. If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.
• INPUT ADJUSTMENT can only be set in the displayed computer mode.

Computer Compatibility Chart

Horizontal Frequency: 15–126 kHz

Vertical Frequency: 43–200 Hz

Pixel Clock: 12-230 MHz*

Compatible with sync on green and composite sync signals

UXGA (1,600 × 1,200) compatible in advanced intelligent compression

AICS (Advanced Intelligent Compression and Expansion System) resizing technology

PCI MAC/WS	Resolution		Horizontal Frequency (kHz)	Vertical Frequency (Hz)	VESA Standard	Display
PC	VGA	640 × 350	27.0 60			Upscale
			31.5 70
			37.9 85		×
		720 × 350	27.0 60
			31.5 70
		640 × 400	27.0 60
			31.5 70
			37.9	85	×
		720 × 400	27.0	60
			31.5	70
			37.9	85	×
		640 × 480	26.2	50
			31.5	60	×
			34.7	70
			37.9	72	×
			37.5	75	×
			43.3	85	×
			47.9	90
			53.0	100
			61.8	120
			78.5	150
			80.9	160
			100.4 200
	SVGA	800 × 600	31.4 50
			35.1 56		×
			37.9 60		×
			44.5 70
			48.1 72		×
			48.9 75		×
			53.7 85		×
			56.9 90
			64.0 100
			77.2 120
			90.3 150
			102.1 160
			125.6 200
	XGA	1,024 × 768	35.5 43		×	True
			40.3 50
			56.5 70		×
			58.1 72
			68.7 85		×
			73.5 90
			77.2 96
			80.6 100
			98.8 120
			113.2 140
			125.6 150

PC/MAC/WS	Resolution Disp		Horizontal Frequency (kHz)	Vertical Frequency (Hz)	V=SA Standard
PC	SXGA	1,152 × 864	54.3 60			Advanced Intelligent Compression
			64.0 70
			64.1 72
			67.5 75		×
			75.7 80
			77.3 85
			90.2 100
			111.1 120
		1,152 × 882	54.8 60
			65.9 72
			67.4 74
		1,290 × 1,024	64.0 60		×
			74.6 70
			78.1 74
			75.7 75
			91.1 85		×
			106.4 100
	UXCA	1,800 × 1,200	74.7 52
			75.0 60		×
			81.3 65		×	Intelligent Compression
			87.5 70		×
			90.1 72
			93.8 75		×
			106.3 85		×
PC/MAC 13"	VGA	640 × 490	34.9	67		Upscale
PC/MAC 19"	XGA	1,024 × 768	48.4 60		×	True
			60.0	75	×
PC/MAC 21"	SXGA	1,290 × 1,024	80.0	75	×	Advanced Intelligent Compression
MAC 16"	SVGA	632 × 624	46.8 75			Upscale
			49.6 75
MAC 21"	SXGA	1,152 × 870	68.5	75		Advanced Intelligent Compression
HP (WS)	SXGA	1,290 × 1,024	78.1 72
PC (WS)		1,250 × 960	60.0 60		×
WS			85.9 95
SCI (WS)		1,280 × 1,024	53.5 50
			76.9 72
SUN (WS)		1,152 × 900	60.9 66
			71.9 76

Appendix

GB-57

Specifications

Product type LCD Projector

Model XG-C40XE

Video system PAL/SECAM/NTSC 3.58/NTSC 4.43/DTV 480P/DTV 720P/DTV 1080I

Display method LCD panel × 3, RGB optical shutter method

LCD panel Panel size: 22.9 mm (0.9") (13.9 [H] × 18.5 [W] mm)

Display method: Translucent TN liquid crystal panel

Drive method: TFT (Thin Film Transistor) Active Matrix panel

No. of dots: 786,432 dots (1,024 [H] × 768 [V])

Lens 1-1.3× zoom lens, F1.7-2.0, t = 33-43 mm

Projection lamp DC 200 W lamp

Contrast ratio 250:1

Video input signal RCA Connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ω terminated

RCA Connector: AUDIO, 0.5 Vrms more than 22 kΩ (stereo)

S-video input signal 4-pin Mini DIN connector

Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated

C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated

Horizontal resolution 560 TV lines (video input), 750 TV lines (DTV 720P input, Dot by Dot)

Audio output 3 W (monaural)

Computer RGB input signal 15-PIN MINI D-SUB CONNECTOR (INPUT 1, 2):

RGB separate/composite sync/sync on green type analog input: 0–0.7 Vp-p, positive,

75 Ω terminated

STEREO MINIJACK: AUDIO, 0.5 Vrms, more than 22 kΩ (stereo)

HORIZONTAL SYNC. SIGNAL: TTL level (positive/negative) or composite sync (Apple only)

VERTICAL SYNC. SIGNAL: Same as above

12-230 MH

Pixel clock

Vertical frequency 43-200 Hz

Horizontal frequency 15–126 kHz

Computer control signal 9-pin Mini DIN female connector (RS-232C Input Port)

Speaker system 8 cm (3 1/2") round

Rated voltage AC 100-240 V

Input current 3.3 A

Rated frequency 50/60 Hz

Power consumption 300 W

Standby power consumption 8.0 W (AC 230 V)

Power dissipation < 1,130 BTU/hour

Operating temperature +5°C to +40°C

Storage temperature -20°C to +60°C

Cabinet Plastic

I/R carrier frequency 38 kHz

Laser pointer of remote control Wave length: 650 nm / Max. output: 1 mW / Class II Laser Product

Dimensions (approx.) 229 × 121 × 310 mm (W × H × D) (main body only)

243.5 × 134 × 358.4 mm (W × H × D) (including adjustment feet and projecting parts)

Weight (approx.) 4.8 kg

Supplied accessories Remote control, Two AA size batteries, Power cord (1.8 m), Computer RGB cable (3 m),

Computer audio cable (3 m), USB mouse control cable (1 m), DIN-D-sub RS-232C cable

(15 cm), Remote mouse receivers, Extra air filter, Lens cap (attached), CD-ROM, LCD

projector operation manual, LCD projector quick references, Sharp Advanced Presentation

Software operation manual

Replacement parts Lamp unit (Lamp/cage module) (BQC-XGC40XU/1), Remote control (RRMCG1584CESA).

AA size batteries, Power cord, Computer RGB cable (QCNWG0002CEZZ), Computer

audio cable (QCNW-4870CEZZ), USB mouse control cable (QCNWG0007CEPZ), DIN-D-

sub RS-232C cable (QCNW-5288CEZZ), Remote mouse receiver (RUNTK0673CEZZ), Air

filter (PFILD0076CEZZ), Lens cap (GCOVH1307CESB), CD-ROM (UDSKA0057CEN1),

LCD projector operation manual (TINS-7533CEZZ), LCD projector quick references (TINS-

7534CEZZ, TINS-7535CEZZ, TINS-7536CEZZ), Sharp Advanced Presentation Software

operation manual (TINS-7537CEZZ)

This SHARP projector uses LCD (Liquid Crystal Display) panels. These very sophisticated panels contain 786,432 pixels (× RGB) TFTs (Thin Film Transistors). As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to.

This unit has some inactive TFTs within acceptable tolerances which may result in illuminated or inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit.

Specifications are subject to change without notice.

Dimensions

Rear View

Line drawing of a portable electronic device with ventilation grille and ports (no text or symbols)

Top View

Side View

Front View

Top-down schematic of a computer monitor case with visible ports and ventilation (no text or labels)

Bottom View

Appendix

Units: mm

GB-59

Glossary

Anti-aliasing digital keystone correction

Function to digitally correct a distorted image when the projector is set up at an angle.

Aspect ratio

Width and height ratio of an image. The normal aspect ratio of a computer and video image is 4:3. There are also wide images with an aspect ratio of 16:9 and 21:9.

Auto sync

Optimises projected computer images by automatically adjusting certain characteristics.

Background

Initial setting image projected when no signal is being input.

Clock

Clock adjustment is used to adjust vertical noise when clock level is incorrect.

Compatibility

Ability to use with various image signal modes.

Composite sync

Signal combining horizontal and vertical sync pulses.

Dot by dot

Mode that projects images in their native resolution.

Fit to screen

Function to adjust an image without a 4:3 aspect ratio, and project it in a 4:3 ratio.

Freeze

Function to freeze a moving image.

GUI

Graphical User Interface. User interface with graphics that allow easier operation.

I/P conversion

Function to convert an image between "Interlaced" and "Progressive" scan displays.

Intelligent compression and expansion

High quality resizing of lower and higher resolution images to fit the projector's native resolution.

Magnification

Digitally zooms in on a portion of an image.

PDF

Portable Document Format. Documentation format used to transfer text and images from the CD-ROM.

Phase

Phase shift is a timing shift between isomorphic signals with the same resolution. When phase level is incorrect, the projected image typically displays horizontal flicker.

Presentation tools

Helpful tools used to emphasize keypoints throughout a presentation.

RS-232C

Function to control the projector from the computer by using the RS-232C ports on the projector and computer.

Startup image

The image displayed when the projector is turned on.

Status function

Displays the settings of each adjustment item.

Sync

Synchronizes the resolution and phase shift of two signals. When receiving an image with a resolution different from that of the computer, the projected image may be distorted.

Sync on green

Video signal mode of a computer which overlaps horizontal and vertical sync signal to green colour signal pin.

Wireless mouse

Function to operate the mouse control of a computer with the supplied remote control.

XGA resolution

Resolution with 1,024 × 768 pixels that uses the signal of an IBM/AT compatible (DOS/V) computer.

Index

A

AC socket....13
ADJUSTMENT buttons 25
Air filter 47
Anti-aliasing digital keystone correction 4
Aspect ratio 38
Audio adjustments 30
AUDIO INPUT terminals for INPUT 3, 4 14
AUDIO INPUT terminal for INPUT 1, 2 .... 13
AUDIO OUTPUT terminal 15
Automatic power shutoff function 41
Auto sync adjustment 34
AUTO SYNC button 34

B

Background 40
BACKLIGHT button 24
BLACK SCREEN button 39

C

Carrying handle 53
Ceiling-mount 21
Ceiling + Rear 44
Clock 31
Computer audio cable 13
Computer RGB cable....13
Cooling fan (Exhaust vent) 6
Cooling fan (Intake vent) 47

D

DIN-D-sub RS-232C cable.... 16

Dot by dot 38

E

ENLARGE button 36

ENTER button 25

Extra air filter 12

F

Fit to screen 38

Foot release 21

FREEZE button 35

G

GAMMA button 37

GUI (Graphical User Interface) 25

1

INPUT 1 port 13

INPUT 2 port 13

INPUT button.... 19

Intelligent compression and expansion 4

I/P conversion 30

K

Kensington Security Standard connector 52

KEYSTONE button 22

L

LAMP REPLACEMENT indicator 49

LASER POINTER button....24

Laser pointer window 6

LEFT-CLICK button 24

Lens cap 53

M

MENU button....25
MOUSE/ADJUSTMENT switch 23
MOUSE buttons 24
MUTE button 19

0

On-screen display language 27

OUTPUT port for INPUT 1, 2....9

P

PDF 8
Phase 31
Picture adjustments 28
POWER buttons 18
Power cord 13
POWER indicator 18
Presentation tools.... 45
PS/2 mouse control cable 17

B

Rear projection....21
Remote control 23
Remote control sensor 23
Remote control signal transmitter 10
Remote mouse receiver 17
RESIZE button 38
RIGHT-CLICK button 24
RS-232C port 16

S

Speaker 9
Startup image 40
Status function 46
S-VIDEO INPUT 4 terminal 14
Sync 34
Sync on green 54

T

TEMPERATURE WARNING indicator 49

TOOLS button 45

U

UNDO button 22

USB mouse control cable 17

V

VIDEO INPUT 3 terminal 14

VOLUME buttons 19

W

Wireless mouse 23

X

XGA resolution 4

Appendix

GB-61

SHARP CORPORATION

LCD PROJECTOR

MODEL

XG-C430X

XG-C330X

OPERATION MANUAL

Illustration of a projector with a remote control unit beside it (no text or symbols visible)

IMPORTANT

- For your assistance in reporting the loss or theft of your Projector, please record the Model and Serial Numbers located on the bottom of the projector and retain this information.

- Before recycling the packaging, please ensure that you have checked the contents of the carton thoroughly against the list of "Supplied accessories" on page 10.

Model No.:

Serial No.:

SPECIAL NOTE FOR USERS IN THE U.K.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 10A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked 🌐 or ◎ and of the same rating as above, which is also indicated on the pin face of the plug, must be used.

Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner.

Under no circumstances should the cut-off plug be inserted elsewhere into a 10A socket outlet, as a serious electric shock may occur.

To fit an appropriate plug to the mains lead, follow the instructions below:

WARNING:

THIS APPARATUS MUST BE EARTHED.

IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow : Earth / Blue : Neutral / Brown : Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

- The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol ± or coloured green or green-and-yellow.

- The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

- The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

The supplied CD-ROM contains operation instructions in English, German, French, Swedish, Spanish, Italian, Dutch, Portuguese, Chinese and Korean. Carefully read through the operation instructions before operating the projector.

There are two important reasons for prompt warranty registration of your new SHARP Projector, using the REGISTRATION CARD packed with the projector.

1. WARRANTY

This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase.

2. CONSUMER PRODUCT SAFETY ACT

To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT "LIMITED WARRANTY" CLAUSE.

WARNING:

High brightness light source. Do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light.

WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

See bottom of projector.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT REMOVE SCREWS EXCEPT SPECIFIED USER SERVICE SCREW.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING:

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment. U.S.A. ONLY

INFORMATION

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

The enclosed computer cable must be used with the device. The cable is provided to ensure that the device complies with FCC Class A verification. U.S.A. ONLY

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

WARNING:

The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode. During normal operation, when putting the projector into standby mode always use the STANDBY button on the projector or on the remote control. Ensure the cooling fan has stopped before storing the projector in the storage case.

DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.

PRODUCT DISPOSAL

This projector utilizes tin-lead solder, and a pressurized lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or, if you are located in the United States of America, the Electronic Industries Alliance: www.eiae.org.

Caution Concerning Lamp Replacement

See "Replacing the Lamp" on page 60

This SHARP projector uses an LCD (Liquid Crystal Display) panel. This very sophisticated panel contains 786,432 pixels (x RGB) TFT's (Thin Film Transistors). As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to.

This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit.

• Microsoft ^ and Windows ^ are registered trademarks of Microsoft Corporation in the United States and/or other countries.
  • PC/AT is a registered trademark of International Business Machines Corporation in the United States.
• Adobe ^ Reader ^ is a trademark of Adobe Systems Incorporated.
  •Macintosh ^® is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.
• All other company or product names are trademarks or registered trademarks of their respective companies.

SHARP ELECTRONICS (Europe) GmbH

How to Read this Operation Manual

- In this operation manual, the illustrations and on-screen displays are simplified for explanation. This may differ from the actual on-screen display.

Info .....Indicates safeguards when using the projector.

Note ......Indicates additional information for setting up and operating the projector.

For Future Reference

Maintenance Troubleshooting Index

Page 55

Pages 64 and 65

Page 68

Preparing

Introduction

How to Read this Operation Manual .... 3

Contents...... 4

How to Access the PDF Operation Manuals ... 6

IMPORTANT SAFEGUARDS ...... 7

Accessories 10

Part Names and Functions ...... 12

Using the Remote Control 15

Usable Range 15

Inserting the Batteries 15

Quick Start

Quick Start 16

Setup

Setting Up the Projector 18

Setting Up the Projector 18

Projection (PRJ) Mode 19

Storing the Projector 20

How to Use the Storage Case 20

Connections

Samples of Cables for Connection .... 21

Connecting to a Computer 23

Connecting to Video Equipment 25

Controlling the Projector by a Computer ... 27

Connecting to a Monitor with RGB Input Terminal 28

Connecting to an Amplifier or Other Audio Equipment 29

Using

Basic Operation

Turning the Projector On/Off 30

Connecting the Power Cord 30

Turning the Projector On 30

Turning the Power Off (Putting the Projector into Standby Mode).... 30

Image Projection 31

Using the Adjustment Feet 31

Correcting Trapezoidal Distortion 32

Adjusting the Lens 33

Switching the INPUT Mode 34

Adjusting the Volume 35

Displaying the Black Screen and Turning Off the Sound Temporarily 35

Displaying an Enlarged Portion of an Image ..... 35

Freezing an Image.... 35

Displaying and Setting the Break Timer 36

Switching the Eco/Quiet Mode 36

Selecting the Picture Mode 36

Resize Mode 37

Using the Remote Control as the Wireless Computer Mouse 39

Useful Features

Menu Items 40

Using the Menu Screen 42

Menu Selections 42

Picture Adjustment ("Picture" menu) ..... 4

Selecting the Picture Mode 44

Adjusting the Image 44

Adjusting the Color Temperature 45

Selecting the Progressive Mode 45

Signal Type Setting 45

Selecting the Dynamic Range 45

Setting the Video System.... 45

Computer Image Adjustment

("Fine Sync" menu) 46

Adjusting the Computer Image 46

Resolution Setting 46

Auto Sync Adjustment 46

Checking the Input Signal 46

Using the "Options1" Menu 47

Checking the Lamp Life Status 47

Setting the Resize Mode 47

Adjusting the Image Position 47

Keystone Correction 48

Setting On-screen Display.... 48

Selecting a Startup and Background Image ..... 48

Eco/Quiet Mode Setting 48

Auto Power Off Function 48

Setting the System Sound 49

Selecting the Menu Screen Position 49

System Lock Function 49

Keylock Function 50

Direct Power On Function.... 50

Helpful Functions Set during Installation

("Options2" menu).... 51

Setting a Password 51

If You Forget Your Password 51

Speaker Setting 52

Audio Output Type Setting 52

Reversing/Inverting Projected Images 52

Fan Mode Setting 52

Monitor Output 52

LAN/RS232C 52

Selecting the Transmission Speed (RS-232C)..... 52

DHCP Client Setting 53

TCP/IP Setting 53

Confirming the Network Information for the Projector 54

Returning to the Default Settings 54

Selecting the On-screen Display Language ..... 54

Reference

Appendix

Maintenance 55

Replacing the Air Filter 56

Replacing the Air Filter 56

Maintenance Indicators 58

Regarding the Lamp 60

Lamp 60

Caution Concerning the Lamp 60

Replacing the Lamp 60

Removing and Installing the Lamp Unit 61

Resetting the Lamp Timer 62

Computer Compatibility Chart 63

Troubleshooting 64

For SHARP Assistance 66

Specifications 67

Index 68

SETUP MANUAL

Refer to the "SETUP MANUAL" contained on the supplied CD-ROM for details.

Setting up the Screen 2

Screen Size and Projection Distance ..... 3

Changing the Lens 9

Connecting Pin Assignments .... 11

RS-232C Specifications and Commands ... 13

Setting up the Projector Network Environment 18

Controlling the Projector via LAN 24

Setting up the Projector Using RS-232C or Telnet 29

Resetting the Lamp Timer of the Projector via LAN.... 39

Troubleshooting 41

Dimensions 44

How to Access the PDF Operation Manuals

PDF operation manuals in several languages are included in the CD-ROM, so that you can work with the projector. To utilize these manuals, you need to install Adobe Reader® on your computer (Windows® or Macintosh®).

Please download Adobe ^® Reader ^® from the Internet (http://www.adobe.com).

Accessing the PDF Manuals

For Windows®:

①Insert the CD-ROM in the CD-ROM drive.
②Double click the "My Computer" icon.
③Double click the "CD-ROM" drive.
④ When you want to view the operation manual
1) Double click the "MANUALS" folder.
2) Double click the language (name of the folder) that you want to view.
3) Double click the "C430_" pdf file to access the projector manuals.

When you want to view the setup manual

1) Double click the "SETUP" folder.
2) Double click the language (name of the folder) that you want to view.
3) Double click the "C430_S" pdf file to access the setup manual.

For Macintosh®:

①Insert the CD-ROM in the CD-ROM drive.
②Double click the "CD-ROM" icon.
③ When you want to view the operation manual
1) Double click the "MANUALS" folder.
2) Double click the language (name of the folder) that you want to view.
3) Double click the "C430_" pdf file to access the projector manuals.

When you want to view the setup manual

1) Double click the "SETUP" folder.
2) Double click the language (name of the folder) that you want to view.
3) Double click the "C430_S" pdf file to access the setup manual.

Info

- If the desired pdf file cannot be opened by double clicking the mouse, start Adobe ^ Reader ^ first, then specify the desired file using the "File", "Open" menu.

CAUTION: Please read all of these instructions before you operate this product and save these instructions for later use.

Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is provided with one of the following types of plugs. If the plug should fail to fit into the power outlet, please contact your electrician.

Do not defeat the safety purpose of the plug

a. Two-wire type (mains) plug.

b. Three-wire grounding type (mains) plug with a grounding terminal.

This plug will only fit into a grounding type power outlet.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power-line surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance, this indicates a need for service.

19. Replacement Parts

When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Ensure that you read the following safeguards when setting up your projector.

Caution concerning the lamp unit

■Potential hazard of glass particles if lamp ruptures. In case of lamp rupture, contact your nearest Sharp Authorized Projector Dealer or Service Center for replacement. See “Replacing the Lamp” on page 60.

Caution concerning the setup of the projector

For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the vents and lens must be cleaned more often. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by a Sharp Authorized Projector Dealer or Service Center.

Do not set up the projector in places exposed to direct sunlight or bright light.

■Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.

The projector may be safely tilted to a maximum angle of 9 degrees.

■ Placement should be within ±9 degrees of horizontal.

Two diagrams showing a hand holding a tool with a red X mark and a blue O-shaped object on a surface, no text or symbols present.

When using the projector in high-altitude areas such as mountains (at altitudes of approximately 1,500 meters (4,900 feet) or more)

When you use the projector in high-altitude areas with thin air, set "Fan Mode" to "High". Neglecting this can affect the longevity of the optical system.

Warning about placing the projector in a high position

■When placing the projector in a high position, make certain it is carefully secured to avoid personal injury caused by the projector falling down.

Do not subject the projector to hard impact and/or vibration.

■ Take care with the lens so as not to hit or damage the surface of the lens.

Rest your eyes occasionally.

■Continuously watching the screen for long hours will cause eye strain. Take regular breaks to rest your eyes.

Avoid locations with extremes of temperature.

■The operating temperature of the projector is from 41°F to 95°F (+5°C to +35°C).

■The storage temperature of the projector is from -4^ to 140^ ( -20^ to +60^ ).

Do not block the intake and exhaust vents.

■Allow at least 7 ^7/8 inches (20 cm) of space between the exhaust vent and the nearest wall or obstruction.

■Ensure that the intake vent and the exhaust vent are not obstructed.

If the cooling fan becomes obstructed, a protection circuit will automatically put the projector into standby mode to prevent overheat damage. This does not indicate a malfunction (see pages 58 and 59). Remove the projector power cord from the wall outlet and wait at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power cord back in and turn on the projector. This will return the projector to the normal operating condition.

Caution regarding usage of the projector

When using the projector, take care not to subject it to hard impact and/or vibration, as this can result in damage. Take extra care with the lens. If you are not to use the projector for a long time, make certain you unplug the power cord from the wall outlet, and disconnect any other cables connected to it.
■Do not carry the projector by holding the lens.
■ When storing the projector, ensure you attach the lens cap to the projector. (See page 12.)
■Do not expose the storage case or projector to direct sunlight or near heat sources. The storage case or projector may change color or become deformed.

Other connected equipment

■When connecting a computer or other audio-visual equipment to the projector, make the connections AFTER unplugging the power cord of the projector from the AC outlet and turning off the equipment to be connected.
■Please read the operation manuals of the projector and the equipment to be connected for instructions on how to make the connections.

Using the projector in other countries

■The power supply voltage and the shape of the plug may vary depending on the region or country you are using the projector in. When using the projector overseas, make sure you use an appropriate power cord for the country you are in.

Temperature monitor function

If the projector starts to overheat due to setup problems or blockage of the air vents,

TEMP.

“×” and “TEMP.” will illumi-

nate in the lower left corner of the picture. If the temperature continues to rise, the lamp will turn off, the temperature warning indicator on the projector will blink, and after a 90-second cooling-off period the projector will enter the standby mode. Refer to "Maintenance Indicators" on page 58 for details.

Info

•The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction.
- Even if you unplug the power cord after projector operation, the cooling fan continues to run for a while. When you place the projector into the storage case, make sure that the cooling fan has stopped.

Supplied accessories

Remote control RRMCGA502WJSA

Two R-6 batteries ("AA" size, UM/SUM-3, HP-7 or similar)

Power cord*

(1)

For U.S., Canada, etc. (6' (1.8 m)) QACCDA007WJPZ

(2) (3)

For Europe, except U.K. (6' (1.8 m)) QACCVA011WJPZ

For U.K., Hong Kong and Singapore (6' (1.8 m)) QACCBA036WJPZ

(4)

For Australia, New Zealand and Oceania (6' (1.8 m)) QACCLA018WJPZ

*Use the power cord that corresponds to the wall outlet in your country.

RGB cable (10' (3.0 m)) QCNWGA045WJPZ

DIN-D-sub RS-232C adaptor (5 57/64" (15 cm)) QCNWGA015WJPZ

Lens cap (attached) PCAPHA003WJSA

Lens cap strap UBNDTA017WJZZ

Storage case GCASNA020WJSA

•Operation manual (this manual (TINS-C555WJZZ) and CD-ROM (UDSKAA080WJZZ))

Optional accessories

■3 RCA to 15-pin D-sub cable (10' (3.0 m)) AN-C3CP2
■Remote receiver AN-MR2
■Lamp unit AN-C430LP

Note

- Some of the optional accessories may not be available depending on the region. Please check with your nearest Sharp Authorized Projector Dealer or Service Center.

Optional lenses

■Lens Projection distance for 100" screen size

Wide-zoom lens (× 1.5 – 1.9)	AN-C12MZ	9'11" – 12'5" (3.0 m – 3.8 m)
Tele-zoom lens (× 2.2 – 2.8)	AN-C18MZ	14'10" – 18'10" (4.5 m – 5.7 m)
Tele-zoom lens (× 3.3 – 5.1)	AN-C27MZ	22' – 33'11" (6.7 m – 10.3 m)
Tele-zoom lens (× 5.2 – 7.2)	AN-C41MZ	34'5" – 48'4" (10.5 m – 14.7 m)

The standard zoom lens is attached to the projector.

The optional lenses from Sharp are also available for specialized application. Please see your nearest Sharp Authorized Projector Dealer for details on all the lenses. (Refer to the SETUP MANUAL on the supplied CD-ROM for details.) Also, be sure to have service personnel install the optional lenses.

Throw Distance

The graph below is for 100 inches (254 cm) screen with 4:3 normal mode.

Screen

Numbers in refer to the main pages in this operation manual where the topic is explained.

Projector

Top View

Power indicator

STANDBY/ON button

For turning the power on and putting the projector into standby mode.

KEYSTONE button

For entering the Keystone Correction mode.

Adjustment buttons

(▲/▼/◄/►)

For selecting and adjusting on-screen items.

RETURN button

For returning to the previous display.

INPUT buttons

For switching input mode.

30·58 Lamp indicator

58 Temperature warning indicator

46 AUTO SYNC button

For automatically adjusting images when connected to a computer.

43 ENTER button

For setting items selected or adjusted on the menu.

35 Volume buttons

For adjusting the speaker sound level.

42 MENU button

For displaying adjustment and setting screens.

36 ECO/QUIET button

For lowering the noise of the cooling fan and extending the lamp life.

Front View

Zoom knob

For enlarging/

reducing the picture.

Tilt dial

Height Adjustment button

Adjustment foot

31

31

31

31

33

33 Focus ring

For adjusting the focus.

52 Speaker

15 Remote control sensor

31 Height Adjustment button

31 Adjustment foot

55·56

Air filter/Intake vent

(on the bottom of the projector)

Attaching the lens cap

After putting the lens cap strap on the lens cap, pass the other end of the strap through the hole on the front side of the projector, next to the lens, as shown in the illustration.

Projector (Rear View)

Terminals

Using the Carrying Handle

When transporting the projector, carry it by the carrying handle on the side.

• Always put on the lens cap to prevent damage to the lens when transporting the projector.
• Do not lift or carry the projector by the lens or the lens cap as this may damage the lens.

* Using the Kensington Lock

- This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

Remote Control

Using the Remote Control with a Signal Cable

When the signals from the remote control cannot be reached due to the positioning of the projector, use a 3.5 mm minijack cable to connect the remote control to the projector. Now you can control the projector with the remote control.

Note

- The wireless remote function is not possible when the 3.5mm minijack cable is connected to the projector. Should the wireless remote operation be required, the 3.5mm minijack cable should be disconnected from the projector.

Using the Remote Control

Usable Range

The remote control can be used to control the projector within the ranges shown in the illustration.

Note

- The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance of the signal may differ depending on the screen material.

When using the remote control:

• Take care not to drop, expose to moisture or high temperature.
- The remote control may malfunction under a fluorescent lamp. In this case, move the projector away from the fluorescent lamp.

Inserting the Batteries

1

Pull down the tab on the cover and remove the cover towards the direction of the arrow.

2

Insert the included batteries.

- Insert the batteries making sure the polarities correctly match the ④ and - marks inside the battery compartment.

3

Insert the lower tab of the cover into the opening, and lower the cover until it clicks in place.

Front View

Rear View
Remote control sensor

Three-step diagram showing a remote control device with arrows indicating movement, no text or symbols present.

Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.

Caution

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• Insert the batteries making sure the polarities correctly match the and marks inside the battery compartment.
• Batteries of different types have different properties, therefore do not mix batteries of different types.
• Do not mix new and old batteries.
  This may shorten the life of new batteries or may cause old batteries to leak.
• Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak. Battery fluid from leaked batteries is harmful to skin, therefore ensure you wipe them first and then remove them using a cloth.
• The batteries included with this projector may run down in a short period, depending on how they are kept. Be sure to replace them as soon as possible with new batteries.
• Remove the batteries from the remote control if you will not be using the remote control for a long time.
• Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.

Quick Start

This section shows the basic operation (projector connecting with the computer). For details, see the page described below for each step.

Setup and Projection

In this section, connection of the projector and the computer is explained using one example.

1. Place the projector facing a screen

Simple diagram showing a gray arrow pointing upward toward a rectangular block, with no text or symbols present.

→ Page 18

2. Connect the projector to the computer and plug the power cord into the AC socket of the projector

When connecting equipment other than the computer, see pages 25, 28 and 29.

→ Pages 23, 30

3. Remove the lens cap and turn the projector on

Diagram of a projector with a circular component inserted, showing no text or symbols

STANDBY/ON

On the remote control On the projector

→ Page 30

4. Adjust the angle

Adjust the projector angle

• Adjust the projector angle using the Height Adjustment buttons.
• Rotate the Tilt dial to adjust the horizontal tilt of the projector.

- This projector is equipped with an “Auto Keystone Correction” function that automatically corrects any trapezoidal distortion within the projected image.

→ Pages 31, 32

5. Adjust the focus and the zoom

Bring the projected image into focus

- Bring the projected image into focus by rotating the focus ring.

Adjust the projected image size

- Adjust the projected image size by moving the zoom knob.

→ Page 33

6. Select the INPUT mode

Select the "COMPUTER 1" using the INPUT buttons on the projector or the COMPUTER 1 button on the remote control.

On the projector

On the remote control

▼NPUT list

▼On-screen Display (RGB)

• When you press the INPUT buttons on the projector, the INPUT list appears.
  Press ▲▼ to select an item on the list, and press 📋 to switch to the selected INPUT mode.
• When using the remote control, press 1 2 3 / 4 to switch the INPUT mode.

→ Page 34

7. Turn the Power off

Press the STANDBY button, then press that button again while the confirmation message is displayed, to put the projector into standby mode.

On the remote control On the ProjectScreen Display

• Even if you unplug the power cord from the AC outlet, the cooling fan continues to run for a while.

→ Page 30

Setting Up the Projector

Setting Up the Projector

For optimal image quality, position the projector perpendicular to the screen with the projector's feet flat and level. Doing so will eliminate the need for Keystone correction and provide the best image quality. (See page 32.)

Standard Setup (Front Projection)

■Place the projector at the required distance from the screen according to the desired picture size. (For details, refer to the "SETUP MANUAL" contained on the supplied CD-ROM.)

Example of standard setup

Side View

Ceiling-mount Setup

It is recommended that you use the optional Sharp ceiling-mount bracket for this installation. Before mounting the projector, contact your nearest Sharp Authorized Projector Dealer or Service Center to obtain the recommended ceiling-mount bracket (sold separately).

- For the U.S.A.: AN-XGCM55 ceiling-mount bracket, its AN-EP101B extension tube and AN-JT200 universal bracket, adaptor for non-level ceiling installation.

- For countries other than the U.S.A.: AN-60KT ceiling-mount bracket, its AN-TK201 and AN-TK202 extension tubes.

■Invert the image by setting "Ceiling + Front" in "PRJ Mode". See page 52 for use of this function.

Line drawing of a meeting scene with a presenter and audience facing a presentation screen (no text or symbols)

Projection (PRJ) Mode

The projector can use any of the 4 projection modes, shown in the diagram below. Select the mode most appropriate for the projection setting in use. (You can set the PRJ mode in "Options2" menu. See page 52.)

■ Table mounted, front projection [Menu item → “Front”]

Simple line drawing of a projector and a person watching (no text or symbols)

■ Ceiling mounted, front projection [Menu item → “Ceiling + Front”]

Diagram showing a screen projecting onto a speaker, with two silhouettes below (no text or symbols)

■ Table mounted, rear projection (with a translucent screen) (with a translucent screen) [Menu item → “Rear”]

Diagram showing a projector projecting onto a screen to an audience (no text or symbols present)

■ Ceiling mounted, rear projection (en) [Menu item → “Ceiling + Rear”]

Simple line drawing of a projector projecting onto a screen to two seated audience members (no text or symbols)

Indication of the Projection Image Size and Projection Distance

For details, refer to the "SETUP MANUAL" contained on the supplied CD-ROM. Example: NORMAL Mode (4:3) for standard lens

Storing the Projector

How to Use the Storage Case

When storing the projector, attach the lens cap to the lens, and place it in the supplied storage case.

1 Open the cover of the storage case.
2 Place the projector into the storage case.

Info

• Ensure the projector has cooled down sufficiently before placing it in the case.
• Ensure the lens cap is attached to the lens for protection.
• Place the projector into the storage case with the lens facing the handle.
• Ensure the projector is held in place by using the fixing band.

3 Close the cover of the storage case.
4 Place the accessories in the front pocket of the storage case.

Supplied accessories (Remote control, etc.)

Samples of Cables for Connection

• For more details of connection and cables, refer to the operation manual of the connecting equipment.
• You may need other cables or connectors not listed below.

Equipment	Terminal on connected equipment	Cable	Terminal on the projector
Computer	RGB output terminal	RGB cable (supplied)	COMPUTER/COMPONENT 1, 2
	DVI digital video output terminal	DVI Digital cable (commercially available)	DVI-D
	Audio output terminal	ø3.5 mm stereo or mono audio cable (commercially available or available as Sharp service part QCNWGA038WJPZ)	AUDIO(for COMPUTER/COMPONENT 1, 2, DVI-D)
Audio-visual equipment	DVI digital video output terminal	DVI Digital cable (commercially available)	DVI-D
	Component video output terminal	3 RCA to 15-pin D-sub cable (optional: AN-C3CP2)	COMPUTER/COMPONENT 1, 2
	Terminal for using the dedicated cable	Connect with the cable adaptor, etc.Dedicated cable
	S-video output terminal	S-video cable (commercially available)	S-VIDEO
	Video output terminal	Video cable (commercially available)	VIDEO
Audio-visual equipment	Audio output terminal	ø3.5 mm stereo minijack to RCA audio cable (commercially available)	AUDIO(for COMPUTER/COMPONENT 1, 2, DVI-D)
	Terminal for using the dedicated cable	Connect with the cable adaptor, etc.Cable adaptorDedicat ø3.5 mm stereo minijack to RCA audio cable (commercially available)
	Audio output terminal	RCA audio cable (commercially available)	AUDIO(for VIDEO, S-VIDEO)
	Terminal for using the dedicated cable	Connect with the cable adaptor, etc.Cable adaptorDedicat RCA audio cable (commercially available)
Monitor	RGB input terminal	RGB cable (supplied or commercially available)	MONITOR OUTPUT
Amplifier	Audio input terminal	ø3.5 mm stereo minijack to RCA audio cable (commercially available)	AUDIO(MONITOR OUT)

Connecting to a Computer

Before connecting, ensure the power cord of the projector from the AC outlet is unplugged, and that the devices to be connected are turned off. After making all connections, turn on the projector and then the other devices. When connecting a computer, ensure that it is the last device to be turned on after all the connections are made.

Ensure the operation manuals of the devices to be connected have been read before making connections.

When connecting with the RGB cable

(Connecting to COMPUTER/COMPONENT 1 or 2: The illustration shown below is for the former.)

* When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm stereo audio cable.

Note

• See page 63 "Computer Compatibility Chart" for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions to not work.
• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Macintosh Dealer.
• Depending on the computer you are using, an image may not be projected unless the computer's external output port is switched on. (e.g. Press "Fn" and "F5" keys simultaneously when using a SHARP notebook computer). Refer to the specific instructions in your computer's operation manual to enable your computer's external output port.

When connecting with a DVI digital cable

The projector employs the DVI digital input terminal for direct input of Digital Video signals from a computer.

* When using the 3.5 mm mono audio cable, the volume level will be half of when using the 3.5 mm stereo audio cable.

Connecting to Video Equipment

The image quality is highest in order of the Component signal, the RGB signal, the S-video signal and the Video signal. If your audio-visual equipment has a component output terminal or RGB output terminal, use the COMPUTER/COMPONENT terminal 1 or 2 on the projector for video connection.

When connecting video equipment with a DVI output terminal

Note

- Select the input signal type of the video equipment. See page 45.

When connecting video equipment with component video output terminal

(Connecting to COMPUTER/COMPONENT 1 or 2: The illustration shown below is for the former.)

Note

- When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a commercially available cable that fits in the projector terminal you want to connect.

When connecting video equipment with S-video output terminal

When connecting video equipment with video output terminal

Note

- When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a commercially available cable that fits in the projector terminal you want to connect.

Controlling the Projector by a Computer

When the RS-232C terminal on the projector is connected to a computer, the computer can be used to control the projector and check the status of the projector. Refer to the "SETUP MANUAL" contained on the supplied CD-ROM for "RS-232C Specifications and Commands".

When connecting to a computer using an RS-232C serial control cable and a DIN-D-sub RS-232C adaptor

RS-232C serial control cable (cross type, commercially available)

Note

- The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the operation manual of the computer for details.

Info

• Do not connect the RS-232C cable to a port other than the RS-232C terminal on the computer. This may damage your computer or projector.
• Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on. This may damage your computer.

Controlling the Projector by a Computer

When connecting to the LAN terminal using a LAN cable

Note

• When connecting to hub, use straight-through Category 5 (CAT.5) type cable (commercially available).
• When connecting to computer, use cross-over Category 5 (CAT.5) type cable (commercially available).

Connecting to a Monitor with RGB Input Terminal

You can display computer images on both the projector and a separate monitor using two sets of RGB cables.

Connecting to an Amplifier or Other Audio Equipment

Audio signals input from equipment connected to each audio input terminal of the projector can be output to audio equipment.

Note

• Turn off the power of both the projector and audio equipment when connecting.
• When turning off the power in the case of connecting an amplifier or other audio equipment, first turn off the power of the amplifier and then turn off the power of the projector.
• By using external audio components, the volume can be amplified for better sound.
• For details on Variable Audio Output (VAO) and Fixed Audio Output (FAO), see page 52.

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the rear of the projector. Then plug into the AC outlet.

Turning the Projector On

Before performing the steps in this section, connect any equipment that you use with the projector. (See pages 23-29.)

Remove the lens cap and press

STANDBY/ON on the projector or

ON on the remote control.

•The power indicator illuminates green.
• After the lamp indicator illuminates, the projector is ready to start operation.
- When System Lock is set, the keycode input screen appears. Enter the right keycode to start projection. See page 49 for details.

Note

• The lamp indicator illuminates or blinks, indicating the status of the lamp.
Green: The lamp is on.
Blinking green: The lamp is warming up.
Red: The lamp is shut down abnormally or the lamp should be replaced.

• When switching on the projector, a slight flickering of the image may be experienced within the first minute after the lamp has been illuminated. This is normal operation as the lamp's control circuitry is stabilizing the lamp output characteristics. This does not indicate malfunction.
• If the projector is put into standby mode and immediately turned on again, the lamp may take some time to illuminate.

Turning the Power Off (Putting the Projector into Standby Mode)

1

Press STANDBY/ON on the projector or ⓄSTANDBY on the remote control, then press that button again while the confirmation message is displayed, to put the projector into standby mode.

Supplied accessory

Power cord

To AC outlet

Info

• If "Direct Power On" is set to "Enable", the projector will be turned on automatically when you plug the power cord into the AC outlet. (See page 50.)
• English is the factory preset language. If you want to change the on-screen display to another language, change the language according to the procedure on page 54.

▼On-screen Display

Enter STANDBY mode? Yes: Press Again. No: Please Wait.

Info

• This projector has the "Direct Power On" function. You can unplug the power cord even if the projector is operating.
• Even if you unplug the power cord from the projector, the cooling fan continues to run for a while.

Using the Adjustment Feet

The height of the projector can be adjusted using the adjustment feet when the screen is located higher than the projector, the screen is inclined or when the installation site is slightly inclined.

Install the projector so that it is as perpendicular to the screen as possible.

1

Press the Height Adjustment buttons.

•The adjustment feet come out.

2

Lift the projector to adjust its height and remove your hands from the Height Adjustment buttons.

• The projector is adjustable up to approximately 9 degrees.

3

Rotate the Tilt dial to finely adjust the horizontal tilt of the projector.

• The inclination is adjustable within approximately 2 degrees.

- When adjusting the height of the projector, trapezoidal distortion occurs. When "Auto Keystone" of the "Options1" menu is set to "On" (see page 48), keystone correction functions automatically to correct trapezoidal distortion. When you want to adjust the automatically corrected image, use the manual keystone correction. (See page 32.)

Info

- Do not press the Height Adjustment button when the adjustment feet come out without firmly holding the projector.

- Do not hold the lens when lifting or lowering the projector.

- When lowering the projector, be careful not to get your fingers caught in the area between the adjustment foot and the projector.

Illustration of hands holding a projector case with an arrow indicating upward motion (no text or symbols)

Diagram of a projector with a circular aperture and rotating button (no text or symbols)

Correcting Trapezoidal Distortion

Auto Keystone Correction

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally.

The function for correcting trapezoidal distortion is called Keystone Correction.

This projector is equipped with an "Auto Keystone Correction" function that automatically corrects any trapezoidal distortion within the projected image. The correction is made automatically provided the vertical incline or decline is within ± 12 degrees.

Note

- When not using the Auto Keystone Correction function, set "Auto Keystone" on the "Options1" menu to "Off".

Manual Keystone Correction

When you want to make fine adjustments after the Auto Keystone Correction function has been activated, or when you want to make corrections without using the Auto Keystone Correction function, you can make corrections manually using the following procedure.

1

Press ⓄKEYSTONE on the remote control to enter the Keystone Correction mode.

- You can also use KEYSTONE on the projector.

2

Press ▲, ▶ or ▼, ◀ on the remote control to adjust the Keystone Correction.

- You can also adjust the Keystone Correction using the ▲,▲ or ▼,▼ buttons on the projector.

Note

• Press 📋RETURN to return to the default setting.
• Straight lines or the edges of images may appear jagged while adjusting the image.

3

Press ⓄKEYSTONE.

•The on-screen display of the Keystone Correction mode will disappear.
- You can also use ☐KEYSTONE on the projector.

▼On-screen Display (Keystone Correction mode)

Compresses upper side.

Compresses lower side.

Note

- The Manual Keystone Correction can be adjusted up to an angle of approximately ±40 degrees and the screen can also be set up to an angle of approximately ±40 degrees (when the resize mode is set to "Normal" (see page 47)).

Adjusting the Lens

The image is focused and adjusted to the screen size using the focus ring or zoom knob on the projector.

1 The focus is adjusted by rotating the focus ring.

2 Zooming is adjusted by moving the zoom knob.

Switching the INPUT Mode

Select the appropriate input mode for the connected equipment.

On the remote control

Press 1, 2, DVI S-VIDEO or VIDEO on the remote control to select the input mode.

On the projector

①Press an INPUT ( ▲▼)button.
•The INPUT list appears.
②Press ▲▼ to select an item on the list.
③Press ENTER.

Note

- When no signal is received, "NO SIGNAL" will be displayed. When a signal that the projector is not preset to receive is received, "NOT REG." will be displayed.

About the INPUT mode

COMPUTER/COMPONENT1, 2	Used for projecting images from equipment that sends RGB signals or Component signals connected to the RGB input terminal.
DVI-D	Used for projecting images from equipment that sends DVI Digital RGB and Digital Component signals connected to the DVI-D input terminal.
S-VIDEO	Used for projecting images from equipment connected to the S-VIDEO input terminal.
VIDEO	Used for projecting images from equipment connected to the VIDEO input terminal.

▼On-screen Display of INPUT list

▼On-screen Display of INPUT Mode (Example)

Adjusting the Volume

Press 1-4/VOL on the projector or - / VOL on the remote control to adjust the volume.

▼On-screen Display

Note

- Pressing ⏻ or □-◀ VOL will lower the volume. Pressing ⊕ or ▶-+1 VOL will raise the volume.

Displaying the Black Screen and Turning Off the Sound Temporarily

Press ☒ AV MUTE on the remote control to temporarily display a black screen and turn off the sound.

▼On-screen Display

AV MUTE

Note

- Pressing AV MUTE again will turn the projected image and sound back on.

Displaying an Enlarged Portion of an Image

Graphs, tables and other portions of projected images can be enlarged. This is helpful when providing more detailed explanations.

1 Press + ENLARGE on the remote control.

- Enlarges the image. - Pressing + or - ENLARGE enlarges or reduces the projected image.

- You can change the location of the enlarged image using ▲, ▼, ◀ and ▶.

2 Press ⬇RETURN on the remote control to cancel the operation.

•The magnification then returns to ×1.

In the following cases, the image will return to the normal size ( ×1 ).

• When switching the INPUT mode.
• When RETURN has been pressed.
• When the input signal is changed.
• When the input signal resolution and refresh rate (vertical frequency) change.
• When RESIZE has been pressed.

Freezing an Image

1 Press 📄FREEZE on the remote control.

•The projected image is frozen.

2 Press 📄FREEZE again to return to the image from the currently connected equipment.

Displaying and Setting the Break Timer

This function allows you to show the remaining time for break during meeting.

1 Press BREAK TIMER. The break timer starts to count down from 5 minutes.

▼On-screen Display

4:50

2 When "is displayed, press ▲▲▼ or ▶ to set the break timer.

- You can set anywhere between 1 and 60 minutes (in 1 minute units).

3 Press BREAK TIMER to cancel the break timer.

Switching the Eco/Quiet Mode

Press ECO/QUIET on the remote control or ECG/QUIET on the projector to switch the Eco/Quiet mode between on and off.

- When the Eco/Quiet Mode is set to "On", the sound of the cooling fan will turn down, the power consumption will decrease, and the lamp life will extend. (Projection brightness decreases 20%.)

	Brightness	Power consumption(When using AC 100V)	Lamp life
On	80%	300 W	Approx.3,000 hours
Off	100%	360 W	Approx.2,000 hours

Selecting the Picture Mode

You can select the suitable picture mode for the projected image, such as movie or video game.

Press ⒽCTURE MODE on the remote control.

- When pressing ⒽCTURE MODE, the picture mode changes in order of:

Note

- "sRGB" is displayed only when RGB signal is input.

- Press RETURN to return to the "STANDARD" mode while "Picture Mode" is displayed on the screen.

Resize Mode

This function allows you to modify or customize the resize mode to enhance the input image. Depending on the input signal, you can choose a desired image.

COMPUTER

		NORMAL	FULL BORDER	SOREBCHDOT
4:3 aspect ratio	SVGA (800 × 600)	1024 × 768	1024 × 768	800 × 600	768 × 576	1024 × 576
	XGA (1024 × 768)			1024 × 768
	SXGA (1280 × 960)			1280 × 960
	SXGA+ (1400 × 1050)			1400 × 1050
Other aspect ratios	SXGA (1280 × 1024)	968 × 768		1280 × 1024
	1280 × 720	1024 × 576		1280 × 720	—	—
	1360 × 768	1024 × 578		1360 × 768	—	—
	1366 × 768	1024 × 576		1366 × 768	—	—
	1280 × 768	1024 × 614		1280 × 768	960 × 576	1024 × 576
	1280 × 800	1024 × 640		1280 × 800	922 × 576

Input signal		For 4:3 screen For 16:9 screen
Computer	Image type	NORMAL FULL BORDER		DOT BY DOT		STRETCH
Resolution lower than XGA	4:3 aspect ratio		—
XGA				—
Resolution higher than XGA
SXGA (1280 × 1024)	5:4 aspect ratio
1280 × 720	16:9 aspect ratio	*	[IMAGE]		Select “Normal”.
1360 × 7681366 × 768				[IMAGE]		·
1280 × 768	16:10 aspect ratio	*[IMAGE]
1280 × 800				[IMAGE]

VIDEO

Input signal		For 4:3 screen For 16:9 screen
	Image type NORMAL	ALDVD / Video	AREA ZOOM	V-STRETCH	BORDER STRETCH
480I, 480P,576I, 576P,NTSC, PAL,SECAM	4:3 aspect ratio
	Squeeze		KK74]		*	*
	Letter box
720P, 1035I,1080I	16:9 aspect ratio		[IMAGE]	[IMAGE]	Select “Normal”.
540P	16:9 aspect ratio
	(4:3 aspect ratio in 16:9)	*[IMAGE]	[IMAGE]	[IMAGE]

Select "Normal".
: Cutout area on which images cannot be projected
: Area on which the image is not included in the original signals
*The Image Shift function can be used for these images.

Using the Remote Control as the Wireless Computer Mouse

When connecting the projector and the computer with a USB cable, you can use the remote control as the computer mouse.

If the computer is placed too far away from the projector to be connected via the USB cable, the separately sold remote receiver (AN-MR2) makes it possible to operate the projector with the remote control. For details, see the operation manual of the receiver.

Connecting with a USB cable

The mouse pointer can be operated in the following way after it is connected.

■When moving the cursor

Press MOUSE/Adjustment buttons (▲/▼/◄/►).

■When left-clicking

Press Ⓗ CLICK.

■When right-clicking

Press ●-CLICK.

■When your computer supports only a one-click mouse (such as Macintosh)

Press ●CLICK or ReCLICK.

⑤ L-CLICK and ⚠-CLICK have common function.

■When using [Page Up] or [Page Down]

Same as the [Page Up] and [Page Down] keys on a computer keyboard.

Press 📄 or PAGE.

Note

- This function only works with the Microsoft ^ Windows ^ OS and Mac OS ^ . However, this function does not work with the following operation systems that do not support USB.

• Versions earlier than Windows® 95
• Versions earlier than Windows® NT4.0

• Versions earlier than Mac OS® 8.5

• You cannot use this function when displaying the menu screen.

• Confirm that the computer recognizes the USB connection.
• If "Resize" is displayed when signals having a higher resolution than XGA are being input and you have set "Dot By Dot" as the screen size, you cannot operate the mouse function.

The following shows the items that can be set in the projector.

"Picture" menu

COMPUTER/COMPONENT 1, 2, DVI-D (RGB signal)

COMPUTER/COMPONENT 1, 2, DVI-D (Component signal), VIDEO, S-VIDEO

    AF["Sub Menu"] --> AG["Standard Presentation Movie Game sRGB*1"]
    AG --> AH["5500K 6500K 7500K 8500K 9300K 10500K"]
    AH --> AI["2D Progressive 3D Progressive"]
    AI --> AJ["Auto RGB Component"]
    AJ --> AK["Standard Enhanced"]
    AK --> AL["Auto PAL SECAM NTSC4.43 NTSC3.58 PAL-M PAL-N PAL-60"]

    style A fill:#f9f,stroke:#333
    style AF fill:#f9f,stroke:#333

*1 Item when inputting RGB signal through COMPUTER/COMPONENT 1, 2 or DVI-D

^2 Items when inputting Component signal through COMPUTER/COMPONENT 1 or 2, or when selecting VIDEO or S-VIDEO

*3 "Progressive" can be adjusted only when 480I or 576I signal is input.

*4 Item when selecting COMPUTER/COMPONENT 1, 2 or DVI-D

^5 Item when selecting DVI-D

*6 Item when selecting VIDEO or S-VIDEO

"Fine Sync" menu

*7 Item when inputting RGB signal through COMPUTER/COMPONENT 1 or 2

*8 Item when inputting RGB signal through COMPUTER/COMPONENT 1, 2 or DVI-D

Note

- "Fine Sync" menu is only displayed when the projector input is COMPUTER/COMPONENT 1, 2 or DVI-D.

"Options1" menu

Main Menu Sub Menu

"Options2" menu

Main Menu

"Language" menu

Using the Menu Screen

Menu Selections

Example: Adjusting "Bright"

- This operation can also be performed by using the buttons on the projector.

1 Press MENU.

- The "Picture" menu screen for the selected input mode is displayed.

2 Press ▶ or ◀ to display the other menu screens.

- The menu icon for the selected menu screen is highlighted.

Menu icon Menu screen
	Fine Sync
	Options1
	Options2
	Language

Example: "Picture" screen menu for COMPUTER/COMPONENT 1 (RGB) mode

- The "Fine Sync" menu is not available for selecting VIDEO or S-VIDEO.

3

Press ▲▲r ▼▼ to select the item you want to adjust.

•The selected item is highlighted.

To adjust the projected image while viewing it

Press ENTER.

• The selected single adjustment item (e.g. "Bright") appears instead of the menu.
• When pressing ▲▲or▼, the following item ("Red" after "Bright") will be displayed.

Note

- Press RETURN to return to the previous screen.

4

Press ◀ or ▶ to adjust the item selected.

•The adjustment is stored.
- For some menu items, press ▶ to display its submenu and press ▲▲r ▼▼ to select an adjustment item, and then press ⏻ENTER.

5

Press MENU.

•The menu screen will disappear.

Picture Adjustment (“Picture” menu)

Example: "Picture" screen menu for DVI-D mode

Menu operation → Page 42

Example: "Picture" screen menu for VIDEO mode

① Selecting the Picture Mode

This function allows you to select the picture mode in accordance with brightness of the room or content of the image to be projected. In all picture modes, items on the "Picture" menu can be adjusted and saved.

Selectable items	Description
Standard	For standard image
Presentation	Brightens portions of image for more enhanced presentations.
Movie	Gives natural tint to the projected image.
Game	Gives sharpness to the projected image.
sRGB	For high fidelity reproduction of images from a computer.

Note

• You can also press 📄PICTURE MODE on the remote control to select the picture mode. (See page 36.)
• "sRGB" is displayed only when RGB signal is input.
• sRGB is an international standard of color reproduction regulated by the IEC (International Electrotechnical Commission). As the fixed color area has been decided by the IEC, the images are displayed in a natural tint based on an original image, when "sRGB" is selected. For additional information about the sRGB function, visit "http://www.srgb.com/". You cannot set the items "Red", "Blue", "CLR Temp", when "sRGB" is selected.

Info

- When "sRGB" is selected, the projected image may become dark, but this does not indicate a malfunction.

② Adjusting the Image

Select a picture mode before adjusting the image.

Selectable items	Press◀	Press▶
Contrast	For less contrast	For more contrast
Bright	For less brightness	For more brightness
Color*1	For less color intensity	For more color intensity
Tint*1	For making skin tones purplish	For making skin tones greenish
Sharp*1	For less sharpness	For more sharpness
Red*2	For weaker red	For stronger red
Blue*2	For weaker blue	For stronger blue

"Color", "Tint" and "Sharp" are not displayed when inputting RGB signal through COMPUTER/COMPONENT 1, 2 or DVI-D.
^2 “Red” and “Blue” cannot be adjusted when “sRGB” is selected.

Note

• "Sharp" can be adjusted when 480I, 480P, 540P, 576I, 576P, 720P, 1035I or 1080I signals are detected.
• To reset all adjustment items, select "Reset" and press 😊ENTER.

③ Adjusting the Color Temperature

Selectable items	Description
5500K	For lower color temperature for warmer, reddish incandescent-like images.
6500K
7500K
8500K
9300K	For higher color temperature for cooler, bluish, fluorescent-like images.
10500K

Note

• Values on "CLR Temp" are only for general standard purposes.
• "CLR Temp" cannot be set when "sRGB" is selected.

④ Signal Type Setting

This function allows you to select the input signal type RGB or Component for COMPUTER/COMPONENT 1, 2 or DVI-D.

COMPUTER/COMPONENT 1, 2

Selectable items	Description
Auto	Input signals are automatically recognized as RGB or component.
RGB	Set when RGB signals are received.
Component	Set when Component signals are received.

DVI-D

Selectable items	Description
D. PC RGB	Set when Digital PC RGB signals are received from a computer.
D. PC Comp.	Set when Digital PC Component signals are received from a computer.
D. Video RGB	Set when Digital Video RGB signals are received from video equipment.
D. Video Comp.	Set when Digital Video Component signals are received from video equipment.

⑤ Selecting the Dynamic Range

An optimum picture may not be displayed if a DVI-D-capable device's output signal type and the projector's input signal type do not match. If this should occur, switch "Dynamic Range".

Selectable items	Description
Standard	When the black levels of the image show banding or appear faded, select the item that results in the best picture quality. (In most circumstances, “Standard” should be selected.)
Enhanced

Note

- The Dynamic Range can be selected only when "DVI-D" input mode is selected.

⑥ Selecting the Progressive Mode

Selectable items	Description
2D Progressive	Useful to display fast-moving images such as sports and action films.
3D Progressive	Useful to display relatively slowmoving images such as drama and documentary more clearly.

Note

• When the image is blurred or noisy, switch to the optimal mode.
• When using progressive inputs, inputs are directly displayed so that "2D Progressive" and "3D Progressive" cannot be selected.

⑦ Setting the Video System

The video input system mode is factory preset to "Auto"; however, a clear picture from the connected audio-visual equipment may not be received, depending on the Video signal difference. In that case, switch the Video signal.

Selectable items

Auto

PAL

SECAM

*NTSC4.43

NTSC3.58

PAL-M

PAL-N

PAL -60

* When reproducing NTSC signals in PAL video equipment.

Note

• The Video signal can only be set in VIDEO or S-VIDEO mode.
• When "Video System" is set to "Auto", you may not receive a clear picture due to signal differences. Should this occur, switch to the video system of the source signal.

Computer Image Adjustment ("Fine Sync" menu)

Menu operation → Page 42

Adjusting the Computer Image

If the optimum image cannot be obtained with Auto Sync adjustment, use the Fine Sync function.

Selectable items	Description
Clock	Adjusts vertical noise.
Phase	Adjusts horizontal noise (similar to tracking on your VCR).
H-Pos	Centers the on-screen image by moving it to the left or right.
V-Pos	Centers the on-screen image by moving it up or down.

Note

- Toreset all adjustment items, select "Reset" and press ⏻ENTER.

Resolution Setting

Ordinarily, the type of input signal is detected and the correct resolution mode is automatically selected. However, for some signals, the optimal resolution mode in "Resolution" on the "Fine Sync" menu may need to be selected to match the computer display mode.

Note

- If your computer displays patterns which repeat every other line (horizontal stripes), flickering may occur which makes the image hard to see. - See “Checking the Input Signal” on the right column for information on the currently selected input signal.

Auto Sync Adjustment

Used to automatically adjust a computer image.

Selectable items	Description
On	Auto Sync adjustment will occur when the projector is turned on or when the input signals are switched, when connected to a computer.
Off	Auto Sync adjustment is not automatically performed.

Note

- Auto Sync adjustment is also performed by pressing ☐AUTO SYNC on the projector or ☑AUTO SYNC on the remote control. - The Auto Sync adjustment may take some time to complete, depending on the image of the computer connected to the projector.

Checking the Input Signal

This function allows you to check the current input signal information.

Using the "Options1" Menu

Checking the Lamp Life Status

You can confirm the cumulative lamp usage time and the remaining lamp life (percentage).

Lamp usage condition		Remaining lamp life
	“Life”	100% 5%
Operated exclusively while “Eco/Quiet Mode” is “On”.		Approx. Approx.3,000 hours 150 hours
Operated exclusively while “Eco/Quiet Mode” is “Off”.		Approx. Approx.2,000 hours 100 hours

Note

• It is recommended that the lamp be changed when the remaining lamp life becomes 5%.
• Remaining lamp life changes within the range of the values shown depending on the frequency at which "Eco/Quiet Mode" is switched to "On" and "Off". (See page 48.)
  •The lamp life may vary depending on the usage condition.

Menu operation → Page 42

Setting the Resize Mode

Note

• For details of the Resize mode, see pages 37 and 38.
• You can also press 📄RESIZE on the remote control to set the resize mode. (See page 37.)

Adjusting the Image Position

You can move the projected image vertically.

Note

• This function only works in some RESIZE modes. (See pages 37 and 38.)
• To reset this function, select "0".
• When adjusting the image shift, "Keystone" is set to "0" and "Auto Keystone" is set to "Off".

④ Keystone Correction

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction.

Auto Keystone Correction

Set "Auto Keystone" on the "Options1" screen menu to "On".

Manual Keystone Correction

Set "Auto Keystone" on the "Options1" screen menu to "Off", and select "Keystone", then adjust with the slide bar.

Manual Correction

Note

• The Keystone Correction can be adjusted up to an angle of approximately ±12 degrees with the "Auto Keystone" and up to an angle of approximately ±40 degrees with the manual "Keystone". (when "Resize" is set to "Normal")
• When the screen is slanting or the image is deteriorated, set "Auto Keystone" to "Off".
• When adjusting the keystone or when "Auto Keystone" is set to "On", "Image Shift" is auto matically set to "0".

⑤ Setting On-screen Display

This function allows you to turn the on-screen messages on or off.

Selectable items	Description
On	All On-screen Displays are displayed.
Off	•INPUT mode/VOLUME/AV MUTE/FREEZE/AUTO SYNC/ENLARGE/“An invalid button has been pressed.” are not displayed.•“All buttons on Projector are locked.” is displayed whenSTANDBY/ON is pressed while the Keylock function is active.

⑥ Selecting a Startup and Background Image

Selectable items	Description
Logo	SHARP default image
Blue	Blue screen
None	Black screen

⑦ Eco/Quiet Mode Setting

Select-able items	Brightness	Fan Sound	Power consumption (When using AC 110V)	Lamp life
On	80%	Low	300 W	Approx. 3,000 hours
Off	100%	Normal	360 W	Approx. 2,000 hours

Note

• When "Eco/Quiet Mode" is set to "On", the power consumption will decrease and the lamp life will extend. (Projection brightness decreases 20%.)
• You can also use ECO/QUIET button on the remote control or on the projector to switch the Eco/ Quiet Mode. (See page 36.)

⑧ Auto Power Off Function

Selectable items	Description
On	The projector automatically enters the standby mode when no input signal is detected for 15 minutes or longer.
Off	The Auto Power Off function will be disabled.

Note

- When the Auto Power Off function is set to "On", 5 minutes before the projector enters the standby mode, the message "Enter STANDBY mode in X min." will appear on the screen to indicate the remaining minutes.

Setting the System Sound

Selectable items	Description
On	A confirmation sound is made when the projector turns on/off.
Off	No confirmation sound is made.

Selecting the Menu Screen Position

Select "Menu Position" on the "Options1" menu and the desired position for the menu screen.

Selectable items	Description
Center	Displayed on the center of the image.
Upper Right	Displayed on the upper right of the image.
Lower Right	Displayed on the lower right of the image.
Upper Left	Displayed on the upper left of the image.
Lower Left	Displayed on the lower left of the image.

System Lock Function

This function prevents unauthorized use of the projector. Once this function is activated, users must enter the correct keycode each time the projector is turned on. We suggest you record the keycode in a safe place where only authorized users have access.

Info

- If you lose or forget your keycode, contact your nearest Sharp Authorized Projector Dealer or Service Center (see page 66). Even if the product warranty is valid, the keycode reset will incur a charge.

Setting/Changing the keycode

1

Select "System Lock" on the "Options1" menu, then press▶.

• A message is displayed.
- Read this message, and press ⏻ENTER.
•The screen for entering the keycode appears.

2

Press the 4 buttons on the remote control or on the projector to enter the preset keycode in "Old Code".

- When setting the keycode for the first time, press ▼ on the projector for four times.

Menu operation

Page 42

▼On-screen Display

Note

• If you input a wrong keycode, the cursor returns to the first point of the "Old Code".
• The preset keycode is 4 ▼ buttons on the projector. If this keycode is set, the keycode input screen does not appear when turning the power on.

3

Press the 4 buttons on the remote control or on the projector to enter the new keycode in "New Code".

Note

• You cannot use the following buttons for keycode:
  •STANDBY/ON button
  •ON button
  •STANDBY button
• ENTER button
  •L-CLICK button
  •R-CLICK/RETURN button
• MENU button
  • ECO/QUIET button
  •BREAK TIMER button
• System lock function recognizes each button on the remote control or on the projector as an individual button, even if they share the same button name. If you used the buttons on the projector in setting your keycode, the keycode cannot be canceled with the remote control.

4

Enter the same keycode in "Reconfirm".

Note

To cancel the keycode that you have already set

- Press ▼ on the projector for four times in steps 2 and 3 above.

When System Lock is set

When System Lock is set, the keycode input screen appears after the power is turned on.

When it appears, enter the right keycode to start projection. Failure to enter the keycode will cause images not to be projected even when signals are entered to the projector.

▼Input screen for keycode

System Lock

Note

- If no keycode is entered, the image will not be displayed, even if the projector receives the input signal.

Direct Power On Function

Selectable items	Description
Enable	The projector automatically turns on when the power cord is plugged into the AC outlet or the breaker switch is turned on.
Disable	The projector is turned on manually (see page 30), and does not turn on automatically when the power cord is plugged into the AC outlet or the breaker switch is turned on.

Menu operation

Locking the Operation Buttons on the Projector (Keylock Function)

Use this function to lock the operation buttons on the projector.

■ Locking the Operation Buttons

Hold down ENTER on the projector for about 5 seconds while the projector is being turned on.

▼On-screen Display

Keylock function ON

• The keylock function does not affect the operation with the remote control buttons.
• You cannot use the keylock function while the projector is warming up.

■ Taking the Keylock Off

Hold down ENTER on the projector for about 5 seconds.

▼On-screen Display

Keylock function OFF

- When the projector is in standby mode, you can release the keylock by holding down ☐ ENTER and STANDBY/ON on the projector simultaneously for about 5 seconds.

Info

- You can activate the keylock function only when no on-screen display is shown.

Helpful Functions Set during Installation (“Options2” menu)

Setting a Password

If you do not want others to change the setting for the "Options2" menu, set a password.

1

Select "Password", then press ▶.

- The screen for entering the password is displayed.

2

Press ▲▲r ▼▼ to set the first digit in "New Password" and then press ▶.

3

Enter the remaining 3 digits and press ⏻ENTER.

4

Enter the same password in "Reconfirm" and press ⏻ENTER.

Note

- Once the password is set, you must enter the password to change the "Options2" menu settings.

Menu operation Page 42

Changing the Password

1 Select "Password", then press ▶. • The screen for entering the password appears.

2 Enter the password in "Old Password" using ▲,▼,▼ and ◀, then press ⊙ENTER.

3 Enter the password in "New Password" using ▲,▼,▼ and ◀, then press ⏻ENTER.

4 Enter the same password again in "Reconfirm" using ▲,▼,▼ and ◀, then press ⓄENTER.

Note

- If you do not need the password protection for the "Options2" menu settings anymore, press ENTER without entering a new password in steps 3 and 4. - Tocancel the password settings, press RETURN.

If You Forget Your Password

If you forget the password, perform the following procedure to delete it, then set a new password.

On the projector, press:

Note

- If ENTER is held down for more than 5 seconds, the operation buttons on the projector will be locked. (See page 50.) - You cannot use the buttons on the remote control to delete the password.

Speaker Setting

This function allows you to set the audio output of the internal speaker to "On" or "Off" such as when the projector is connected to an external amplifier.

Selectable items	Description
On	The audio signal is output from the internal speaker.
Off	The audio signal is not output from the internal speaker.

Audio Output Type Setting

This function determines whether the audio level output from the AUDIO output (MONITOR output) terminal is fixed or variable by linking with VOLUME.

Selectable items	Description
FAO(Fixed Audio Output)	Audio output that does not vary in strength with the volume level of the source projector.
VAO(Variable Audio Output)	Audio output that varies in strength with the volume level of the source projector.

Info

- When "Audio Out" has been set to "VAO", first make sure to lower the volume of the projector before turning the power on or off and when switching the input.

Reversing/Inverting Projected Images

This projector is equipped with a reverse/invert image function that allows you to reverse or invert the projected image for various applications.

Selectable items	Description
Front	Normal image (Projected from the front of the screen)
Ceiling + Front	Inverted image (Projected from the front of the screen with an inverted projector)
Rear	Reversed image (Projected from the rear of the screen or with a mirror)
Ceiling + Rear	Reversed and inverted image (Projected with a mirror)

Note

- This function is used for the reversed image and ceiling-mount setups. (See page 19.)

Fan Mode Setting

This function changes the fan rotation speed.

Selectable items	Description
Normal	Suitable for normal environments.
High	Select this when using the projector at altitudes of approximately 1,500 meters (4,900 feet) or more.

When "Fan Mode" is set to "High", the fan rotation speeds up, and the fan noise becomes louder.

Monitor Output LAN/RS232C

When set to “Enable”, the function is activated and power is consumed even in the standby mode. It is recommended that the function be set to “Disable” when it is not connected. This reduces power consumption when the projector is in the standby mode.

Selectable items	Description
Enable	The function is activated even if the projector is in standby mode.
Disable	The function is switched off when the projector is in standby mode.

Note

- When you want to control the projector using the LAN/RS232C function, select "Enable".

Selecting the Transmission Speed (RS-232C)

Make sure that both the projector and computer are set for the same baud rate.

Selectable items	Description
9600 bps	Transmission speed is slow.
38400 bps
115200 bps	Transmission speed is rapid.

Note

- Refer to the "SETUP MANUAL" contained on the supplied CD-ROM for RS-232C Specifications and Command Settings.

- Refer to the computer's operation manual for instructions for setting the computer's baud rate.

⑨ DHCP Client Setting

Connect the LAN cable before turning the projector on. If not, the DHCP Client function does not work.

Selectable items	Description
On	Obtains configuration parameters for TCP/IP network automatically.
Off	Sets the TCP/IP manually.

Select "On" for "DHCP Client", then press ⏻ENTER.

"Obtaining IP Address..." appears, then the menu screen appears. Confirm the parameters of IP Address, Subnet Mask and Gateway on the TCP/IP screen.

If the DHCP server is not available, "Could not obtain IP Address." appears.

In this case, set the TCP/IP manually. (See the item ⑩.)

⑩ TCP/IP Setting

Set the TCP/IP manually.

1 Select "Off" for "DHCP Client", then press ⏻ENTER.
2 Select "TCP/IP", then press ENTER.
3 Enter "IP Address" using ▲,▼,▼ and ◀, then press 😊ENTER.

TCP/IP
IP Address	199. 168. 150. 002
Subnet Mask	255. 255. 255. 000
Gateway	000. 000. 000. 000
RETURN	END

4 Enter "Subnet Mask" using ▲,▼,▼ and ◀, then press ⓍENTER.
5 Enter "Gateway" using ▲,▼,▼ and ◀, then press ⏻ENTER.

Menu operation

Page 42

Selectable items	Description
IP Address	Factory default setting:192.168.150.002Enter an IP address appropriate for the network.
Subnet Mask	Factory default setting:255.255.255.000Set the subnet mask to the same as that of the computer and equipment on the network.
Gateway	Factory default setting:000.000.000.000* When not in use, set to:“000.000.000.000”.

Note

• Confirm the existing network's segment (IP address group) to avoid setting an IP address that duplicates the IP addresses of other network equipment or computers. If "192.168.150.002" is not used in a network with an IP address of "192.168.150.XXX", you don't have to change the projector IP address.
• For details about each setting, consult your network administrator.

Confirming the Network Information for the Projector

You can confirm the MAC address and projector name.

Displayed items	Description
MAC Address	The MAC address of the projector is displayed.
Projector	The projector name is displayed.

Note

- For information on how to change the projector name, see "SETUP MANUAL" contained in the supplied CD-ROM.

Returning to the Default Settings

This function allows you to initialize the settings you have made in the projector.

Note

The following items or menu cannot be initialized.

• "Fine Sync" menu Resolution
• "Options1" menu Lamp Timer (Life) System Lock
• "Language" menu

Menu operation

Selecting the On-screen Display Language

The projector can switch the on-screen display language among 11 languages.

Maintenance

Cleaning the projector

■Ensure the power cord is unplugged before cleaning the projector.
■The cabinet as well as the operation panel is made of plastic. Avoid using benzene or thinner, as these can damage the finish on the cabinet.
■Do not use volatile agents such as insecticides on the projector.

Do not attach rubber or plastic items to the projector for long periods.

The effects of some of the agents in the plastic may cause damage to the quality or finish of the projector.

■Wipe off dirt gently with a soft flannel cloth.
■When the dirt is hard to remove, soak a cloth in a mild detergent diluted with water, wring the cloth well and then wipe the projector.

Strong cleaning detergents may discolor, warp or damage the coating on the projector. Make sure to test on a small, inconspicuous area on the projector before use.

Cleaning the lens

■Use a commercially available blower or lens cleaning paper (for glasses and camera lenses) for cleaning the lens. Do not use any liquid type cleaning agents, as they may wear off the coating film on the surface of the lens.
■As the surface of the lens can easily get damaged, be careful not to scrape or hit the lens.

Cleaning the exhaust and intake vents

■Use a vacuum cleaner to clean dust from the exhaust vent and the intake vent.

Technical illustration of a projector with two close-up views showing cable and plug connections (no text or symbols)

Info

• If you want to clean the air vents during projector operation, ensure you press 📄STANDBY/ON on the projector or ⒽSTANDBY on the remote control and put the projector into standby mode. After the cooling fan has stopped, unplug the power cord from the AC socket and clean the vents.
• The air filters should be cleaned every 100 hours of use. Clean the filters more often when the projector is used in a dusty or smoky location.

Replacing the Air Filter

• This projector is equipped with air filters to ensure the optimal operating condition of the projector.
• Ask your nearest Sharp Authorized Projector Dealer or Service Center to exchange the filter (PFILDA022WJKZ) when it is no longer possible to clean.

Replacing the Air Filter

1 Press STANDBY/ON on the projector or ⏻STANDBY on the remote control to put the projector into the standby mode.

- Wait until the cooling fan stops.

2 Disconnect the power cord.

- Unplug the power cord from the AC socket.

3 Remove the filter cover.

- Turn over the projector. Pull down the carrying handle (①), grab the tab (②) and slide open the filter cover (③).

4 Remove the air filter.

- Pick the air filter up with your fingers and lift it out of the filter cover.

Illustration of a hand holding a small object on a flat surface (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating force or direction (no text or symbols)

5 Place a replacement air filter.

- Place the new air filter onto the filter cover.

6 Replace the filter cover.

- Slide the filter cover in the direction of the arrow to close it.

Note

- Ensure the filter cover is securely installed. The power will not turn on unless it is correctly installed.

Illustration of a hand holding a flat surface above a grid device (no text or symbols)

Technical diagram of a computer chassis showing internal components and a highlighted area (no text or symbols)

Maintenance Indicators

■The warning lights on the projector indicate problems inside the projector.

If a problem occurs, either the temperature indicator or the lamp indicator will illuminate red, and the projector will enter the standby mode. After the projector has entered the standby mode, follow the procedures given below.

About the temperature warning indicator

TEMP.

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, "TEMP." will illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will turn off and the temperature warning indicator will blink, the cooling fan will run for a further 90 seconds, and then the projector will enter the standby mode. After "TEMP." appears, ensure you perform the measures described on page 59.

About the lamp indicator

Change The Lamp.

■When the remaining lamp life becomes 5% or less, “☒” (yellow) and “Change The Lamp.” will be displayed on the screen. When the percentage becomes 0%, it will change to “☒” (red), the lamp will automatically turn off and then the projector will automatically enter the standby mode. At this time, the lamp indicator will illuminate in red.

If you try to turn on the projector a fourth time without replacing the lamp, the projector will not turn on.

Maintenance indicator			Problem	Cause Possible solution
	Normal	Abnormal
Temperature warning indicator	Off	Red on (Standby)	The internal temperature is abnormally high.	• Blocked air intake
				• Cooling fan break-down• Internal circuit failure• Clogged air intake
Lamp indicator	Green on (Green blinks when the lamp is warming up)	Red on	The lamp does not illuminate.	• The lamp is shut down abnormally.
			Time to change the lamp.	• Remaining lamp life becomes 5% or less.
		Red on (Standby)	The lamp does not illuminate.	• Burnt-out lamp• Lamp circuit failure
Power indicator	Green on/ Red on Green blinks (Cooling)	Red blinks	The power indicator blinks in red when the projector is on.	• The filter cover, lamp unit cover or lens housing cover is open.• Cooling fan breakdown

Info

• If the temperature warning indicator illuminates and the projector enters the standby mode, check whether any of the ventilation holes are blocked (see page 8) and then try turning the power back on. Wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 10 minutes.)
• If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.
• The cooling fan keeps the internal temperature of the projector constant and this function is controlled automatically. The sound of the cooling fan may change during operation because the fan speed may change and this is not a malfunction.

Regarding the Lamp

Lamp

It is recommended that the lamp unit (optional: AN-C430LP) be replaced when the remaining lamp life becomes 5% or less, or when you notice a significant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display. See page 47.
■ Purchase a replacement lamp unit of type AN-C430LP from your place of purchase, nearest Sharp Authorized Projector Dealer or Service Center.

IMPORTANT NOTE TO U.S. CUSTOMERS:

The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this projector under warranty, including lamp replacement, must be obtained through a Sharp Authorized Projector Dealer or Service Center. For the name of the nearest Sharp Authorized Projector Dealer or Service Center, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).

Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information

www.lamprecycle.org or 1-800-BE-SHARP

U.S.A. ONLY

Caution Concerning the Lamp

This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time.
The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking.
■ When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.
- Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.
■ Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector Dealer or Service Center to assure safe operation.

Replacing the Lamp

Caution

• Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn or injury.
• Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool before removing the lamp unit.
  ■ Carefully change the lamp by following the instructions described in this section. *If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center.
  * If the new lamp does not illuminate after replacement, take your projector to the nearest Sharp Authorized Projector Dealer or Service Center for repair.

Removing and Installing the Lamp Unit

Warning!

- Do not remove the lamp unit from the projector right after use. The lamp and parts around the lamp will be very hot and may cause burn or injury.

Info

• Do not touch the glass surface of the lamp unit or the inside of the projector.
  • To avoid injury to yourself and damage to the lamp, make sure you carefully follow the steps below.
• Do not loosen other screws except for the lamp unit cover and lamp unit.

1

Press STANDBY/ON on the projector or ⏻STANDBY on the remote control to put the projector into standby mode.

- Wait until the cooling fan stops.

2

Disconnect the power cord.

• Unplug the power cord from the AC socket.
• Leave the lamp until it has fully cooled down (about 1 hour).

3

Remove the lamp unit cover.

- Loosen the user service screw (①) that secures the lamp unit cover. Slide down (②) and remove the lamp unit cover (③).

4

Remove the lamp unit.

- Loosen the securing screws from the lamp unit. Hold the lamp unit and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

Optional accessory

Technical line drawing of a mechanical component (no text or symbols visible)

Lamp unit AN-C430LP

Regarding the Lamp

5 Insert the new lamp unit.

- Press the lamp unit firmly into the lamp unit compartment. Fasten the securing screws.

6 Replace the lamp unit cover.

- Align the lamp unit cover and slide it to close. Then tighten the user service screw to secure the lamp unit cover.

Info

- If the lamp unit and lamp unit cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector.

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.

Info

• Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.
• You can also reset the lamp timer via the LAN.

(Refer to the SETUP MANUAL on the supplied CD-ROM for details.)

1 Connect the power cord.

- Plug the power cord into the AC socket of the projector.

2 Reset the lamp timer.

• While simultaneously holding down ▼, ENTER and MENU on the projector, press STANDBY/ON on the projector.
• “LAMP 0000H” is displayed, indicating that the lamp timer is reset.

Technical illustration of two electronic devices with a screwdriver inserted, showing internal components and a close-up view of the device (no text or symbols present)

Computer Compatibility Chart

The table below lists signal codes that are compatible with the projector. When the images are distorted or cannot be projected, adjust the output signal of your computer and so forth while referring to the table below.

Computer

•Multiple signal support

Horizontal Frequency: 15–70 kHz

Vertical Frequency: 43–85 Hz

Pixel Clock: 12–108 MHz

Sync signal: Compatible with TTL level

• Compatible with sync on green signal
• SXGA+ and SXGA compatible in intelligent compression
•Intelligent Compression and Expansion System resizing technology

The following is a list of modes that conform to VESA. However, this projector supports other signals that are not VESA standards.

PC/MAC Resolution VESA Standard			Horizontal Frequency (kHz)	Vertical Frequency (Hz)		DVI Support	Display
PC	VGA	640 × 400	27.0	60		√	Upscale
			31.5	70
			37.9	85	√
		720 × 400	27.0	60
			31.5	70
			37.9	85	√
		640 × 480	26.2	50
			31.5	60	√
			34.7	70
			37.9	72	√
			37.5	75	√
			43.3	85	√
	SVGA	800 × 600	31.4	50
			35.1	56	√
			37.9	60	√
			46.6	70
			48.1	72	√
			46.9	75	√
			53.7	85	√
	XGA	1,024 × 768	35.5	43		√	True
			40.3	50
			48.4	60	√
			56.5	70	√
			60.0	75	√
			68.7	85	√
	SXGA	1,152 × 864	55.0	60			Intelligent Compression
			66.2	70
			67.5	75	√
		1,280 × 1,024	64.0	60	√
	SXGA+	1,400 × 1,050	64.0	60
	WXGA	1,280 × 768	47.8	60
		1,280 × 800	62.6	75
		1,360 × 768	47.7	60
		1,366 × 768	47.8	60
MAC 13"	VGA	640 × 480	34.9	67			Upscale
MAC 16"	SVGA	800 × 600	37.8	60
		832 × 624	49.7	75
MAC 19"	XGA	1,024 × 768	60.2	75			True
MAC 21"	SXGA	1,152 × 870	68.7	75			Intelligent Compression

Note

• This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD) mode. Should this occur, turn off the LCD display on the notebook computer and output the display data in "CRT only" mode. Details on how to change display modes can be found in your notebook computer's operation manual.
• When this projector receives 640 × 350 VESA format VGA signals, "640 × 400" appears on the screen.
• When projecting the RGB interlace signal using COMPUTER/COMPONENT 1, 2 or DVI-D with "Signal Type" set to "Auto" or "RGB", the image may not be projected as desired. In this case, use either Video or S-Video

DTV

Signal	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	DVI Support
480I	15.7	60
480P	31.5	60	√
540P	33.8	60	√
576I	15.6	50
576P	31.3	50	√
720P	45.0	60	√
1035I	28.1	50
1035I	33.8	60
1080I	28.1	50	√
1080I	33.8	60	√

Problem	Check	Page
No picture and no sound or projector does not start.	•Projector power cord is not plugged into the wall outlet.	30
	•Power to the external connected devices is off.	—
	•The selected input mode is wrong.	34
	•The AV MUTE function is working.	35
	•Cables incorrectly connected to the rear panel of the projector.	23-29
	•Remote control batteries have run out.	15
	•External output has not been set when connecting notebook computer.	23
	•The filter cover, lamp unit cover or lamp housing cover is not installed correctly.	59
Sound is heard but no picture appears.	•Cables incorrectly connected to the rear panel of the projector.	23-29
	•“Bright” is set to minimum position.	44
Color is faded or poor.	•Image adjustments are incorrectly set.	44
	(Video, S-Video Input only)•Video input system is incorrectly set.(COMPUTER/COMPONENT 1, 2, DVI-D only)•Input signal type (RGB/Component) is incorrectly set.	4545
Picture is blurred; noise appears.	•Adjust the focus.	33
	•The projection distance exceeds the focus range.	19
	•There is fog on the lens. If the projector is carried from a cold room into a warm room, or if it is suddenly heated, condensation may form on the surface of the lens and the image will become blurred. Please set up the projector at least one hour before it is to be used. If condensation should form, remove the power cord from the wall outlet and wait for it to clear.	—
	(Computer Input only)•Perform “Fine Sync” Adjustments. (“Clock” Adjustment)•Perform “Fine Sync” Adjustments. (“Phase” Adjustment)•Noise may appear depending on the computer.	4646—
Picture appears but no sound is heard.	•Cables incorrectly connected to the rear panel of the projector.	23-29
	•Volume is set to minimum.	35
An unusual sound is occasionally heard from the cabinet.	•If the picture is normal, the sound is due to cabinet shrinkage caused by room temperature changes. This will not affect operation or performance.CheckProblem Page	—
Maintenance indicator illuminates or blinks in red.	•See “Maintenance Indicators”.	58
The projector cannot be turned on or put into the standby mode using the STANDBY/ON button on the projector.	•The keylock is set.If the keylock is set to ON, all the buttons are locked.	50
Picture is green with component input signals (COMPUTER/COMPONENT 1, 2, DVI-D).	•Change the input signal type setting.	45
Picture is pink (no green) with RGB input signals (COMPUTER/COMPONENT 1, 2, DVI-D).
Picture is too bright and whitish.	•Image adjustments are incorrectly set.	44
The black levels of the image show banding or appear faded when DVI-D is selected.	•Select the Dynamic Range setting (“Standard” or “Enhanced”) that results in the best picture quality.	45
The cooling fan becomes noisy.	•When temperature inside the projector increases, the cooling fan runs faster.	—
The lamp does not light up even after the projector turns on.	•The lamp indicator is illuminating in red.Replace the lamp.	58
The lamp suddenly turns off during projection.
The image sometimes flickers.	•Cables incorrectly connected to the projector or the connected equipment works improperly.•If this happens frequently, replace the lamp.	23-2960
The lamp takes a long time to turn on.	•The lamp will eventually need to be changed.The lamp has reached the end of its life. Replace the lamp.	60
Picture is dark.
The remote control cannot be used.	•Operate the remote control while pointing it at the projector’s remote control sensor.•The remote control may be too far away from the projector.•If direct sunlight or a strong fluorescent light is shining on the projector’s remote control sensor, place the projector where it will not be affected by strong light.	15
	•The batteries may be depleted or inserted incorrectly. Make sure the batteries are inserted correctly or insert new ones.	15

This projector is equipped with a microprocessor. Its performance could be adversely affected by incorrect operation or interference. If this should happen, unplug the projector and plug it in again after more than 5 minutes.

If you encounter any problems during setup or operation of this projector, first refer to the "Troubleshooting" section on pages 64 and 65. If this operation manual does not answer your question, please contact the SHARP Service departments listed below.

U.S.A. Sharp Electronics Corporation

1-888-GO-SHARP (1-888-467-4277)

[e-mail]

http://www.sharplcd.com

Canada Sharp Electronics of Canada Ltd.

[phone]

http://www.sharp.ca

Mexico Sharp Electronics Corporation Mexico Branch

[phone]

http://www.sharp.com.mx

Latin America Sharp Electronics Corp. Latin American Group

[phone]

[e-mail]

http://www.siempresharp.com

Germany Sharp Electronics (Europe) GMBH

01805-234675

http://www.sharp.de

U.K. Sharp Electronics (U.K.) Ltd.

08705 274277

http://www.sharp.co.uk/customersupport

Italy Sharp Electronics (Italy) S.P.A.

(39) 02-89595-1

http://www.sharp.it

France Sharp Electronics France

01 49 90 35 40

[e-mail]

http://www.sharp.fr

Spain Sharp Electronica Espana, S.A.

93 5819700

[e-mail]

http://www.sharp.es

Switzerland Sharp Electronics (Schweiz) AG

0041 1 846 63 11

[e-mail]

http://www.sharp.ch

Sweden Sharp Electronics ( Nordic ) AB

(46) 8 6343600

[e-mail]

http://www.sharp.se

Austria Sharp Electronics (Europe) GMBH

Branch Office Austria

0043 1 727 19 123

[e-mail]

http://www.sharp.at

Benelux SHARP Electronics Benelux BV

0900-SHARPCE (0900-7427723)

Nederland

9900-0159 Belgium

http://www.sharp.nl

http://www.sharp.be

http://www.sharp.lu

Australia Sharp Corporation of Australia

Pty. Ltd.

1300-135-022

http://www.sharp.net.au

New Zealand Sharp Corporation of New Zealand

[phone], [phone]

http://www.sharp.net.nz

Singapore Sharp-Roxy Sales (S) Pte. Ltd.

65-226-6556

[e-mail]

http://www.sharp.com.sg

Hong Kong Sharp-Roxy (HK) Ltd.

(852) 2410-2623

[e-mail]

http://www.sharp.com.hk

Taiwan Sharp Corporation (Taiwan)

0800-025111

http://www.sharp-scot.com.tw

Malaysia Sharp-Roxy Sales & Service Co.

(60) 3-5125678

U.A.E. Sharp Middle East Fze

971-4-81-5311

[e-mail]

Thailand Sharp Thebnakorn Co. Ltd.

02-236-0170

[e-mail]

http://www.sharp-th.com

Korea Sharp Electronics Incorporated of Korea

(82) 2-3660-2002

[e-mail]

http://www.sharpkorea.co.kr

India Sharp Business Systems (India) Limited

(91) 11-6431313

[e-mail]

Product type	LCD Projector
Model	XG-C430X/XG-C330X
Video system	NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL-60/SECAM/DTV480I/DTV480P/DTV540P/DTV576I/DTV576P/DTV720P/DTV1035I/DTV1080I
Display method	LCD panel × 3, RGB optical shutter method
LCD panel	Panel size: 0.8"No. of dots: 786,432 dots (1,024 [H] × 768 [V])
Lens	1.2 × zoom lens, F1.7–1.9, f = 28.0–33.6 mm
Projection lamp	275 W AC lamp
Component input	15-pin mini D-sub connector
(COMPUTER/COMPONENT 1, 2)/output (MONITOR OUT) signal	Y: 1.0 Vp-p, sync negative, 75 Ω terminatedPB: 0.7 Vp-p, 75 Ω terminatedPR: 0.7 Vp-p, 75 Ω terminated
Horizontal resolution	700 TV lines (DTV720P)
Computer RGB input	15-pin mini D-sub connector
(COMPUTER/COMPONENT 1, 2)/output (MONITOR OUT) signal	RGB separate/sync on green type analog input: 0–0.7 Vp-p, positive, 75 Ω terminatedHORIZONTAL SYNC. SIGNAL: TTL level (positive/negative)VERTICAL SYNC. SIGNAL: Same as above
RGB digital input signal (DVI-D)	DVI connector (24-pin), RGB (digital), 250 –1,000 mV, 50 Ω (Compatible with HDCP)
Video input signal	RCA connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ωterminated
S-video input signal	4-pin mini DIN connectorY (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminatedC (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated
Audio input signal	ø3.5 mm minijack, RCA terminal0.5 Vrms, more than 22 kΩ (stereo)
Audio output signal	ø3.5 mm minijack0.5 Vrms, less than 2.2 kΩ (stereo)
USB terminal	4-pin B-type USB female connector
RS-232C terminal	9-pin mini DIN connector
LAN terminal	8-pin RJ-45 modular connector
Pixel clock	12–108 MHz
Vertical frequency	43–85 Hz
Horizontal frequency	15–70 kHz
Audio output	2.0 W (monaural)
Speaker system	3.6 cm round × 1
Rated voltage	AC 100–240 V
Input current	3.6 A
Rated frequency	50/60 Hz
Power consumption	360 W (Eco/Quiet Mode “Off”)/300 W (Eco/Quiet Mode “On”) with AC 100 V345 W (Eco/Quiet Mode “Off”)/285 W (Eco/Quiet Mode “On”) with AC 240 V
Power consumption (standby)	6 W (AC 100 V) – 8 W (AC 240 V) (LAN/RS232C Disable)
Heat dissipation	1,350 BTU/hour (Eco/Quiet Mode “Off”)/1,125 BTU/hour (Eco/Quiet Mode “On”) with AC 100 V1,295 BTU/hour (Eco/Quiet Mode “Off”)/1,070 BTU/hour (Eco/Quiet Mode “On”) with AC 240 V
Operating temperature	41°F to 95°F (+5°C to +35°C)
Storage temperature	-4°F to 140°F (-20°C to +60°C)
Cabinet	Plastic
I/R carrier frequency	38 kHz
Dimensions (approx.)	12 27/32" × 4" × 11 1/64" (326 (W) × 101.5 (H) × 279.5 (D) mm) (main body only)12 15/16" × 4 63/64" × 11 1/2" (328.5 (W) × 126.5 (H) × 292 (D) mm) (including adjustment foot and projecting parts)
Weight (approx.)	10.8 lbs. (4.9 kg)
Replacement parts	Lamp unit (Lamp/cage module) (AN-C430LP), Remote control (RRMCGA502WJSA), Power cord for U.S., Canada, etc. (QACCDA007WJPZ), Power cord for Europe, except U.K. (QACCVA011WJPZ), Power cord for U.K., Hong Kong and Singapore (QACCBA036WJPZ), Power cord for Australia, New Zealand and Oceania (QACCLA018WJPZ), RGB cable (QCNWGA045WJPZ), DIN-D-Sub RS-232C adaptor (QCNWGA015WJPZ), Storage case (GCASNA020WJSA), Lens cap (PCAPHA003WJSA), Lens cap strap (UBNDTA017WJZZ), Projector manual and technical reference CD-ROM (UDSKAA080WJZZ), Operation manual (TINS-C555WJZZ)

As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

2D Progressive 45

3D Progressive 45

AC socket 30

Adjustment buttons 42

All Reset 54

Area Zoom 38

Aspect ratio 37, 38

AUDIO input terminal 23-26

Audio Output 52

AUDIO output terminal 29

Auto Keystone 48

Auto Power Off 48

Auto Sync (Auto Sync adjustment) 46

AUTO SYNC button 46

AV MUTE button 35

Background 48

Blue 44

Border 37

Bright 44

Clock 46

CLR Temp (Color Temperature) 45

Color 44

COMPUTER/COMPONENT 1 input terminal .... 23, 25

COMPUTER/COMPONENT 2 input terminal .... 23, 25

Contrast 44

DHCP Client 53

DIN-D-sub RS-232C adaptor 27

Direct Power On 50

Dot By Dot 37

Dynamic Range 45

DVI-D input terminal 24, 25

ECO/QUIET button 36

Eco/Quiet Mode 48

ENLARGE buttons 35

ENTER button.... 43

Exhaust vent 13,55

Fan Mode 52

Fine Sync 40, 46

FREEZE button 35

Full 37

Game 44

Gateway 53

Height Adjustment button 31

H-Pos 46

Image Shift 47

INPUT buttons 34

Intake vent 13,55

IP Address 53

Kensington Security Standard connector 13

Keycode 49

Keylock 50

KEYSTONE button 32

Keystone Correction 32,48

Lamp 60

Lamp indicator 58

Lamp Timer (Life) 47

LAN terminal 28

Language (on-screen display language) 41, 54

LAN/RS232C 52

L-CLICK button 39

Lens cap 12

Lens cap strap 10

MAC Address.... 54

MENU button 42

Menu Position 49

Monitor Output 52

MOUSE/Adjustment buttons 39, 42

Movie 44

Normal 37

ON button 30

Optional accessories 10

Options1 41,47

Options2 41,51

OSD Display 48

Password 51

PDF 6

Phase 46

Picture 40,44

Picture Mode.... 44

PICTURE MODE button 36

Power cord 30

Power indicator 30

Presentation 44

PRJ mode 52

Progressive 45

Projector 54

R-CLICK/RETURN button 39,43

Red 44

Remote control 14

Remote control sensor 15

Remote receiver 39

Replacing the lamp 60

Reset 44

Resize 47

RESIZE button 37

Resolution 46

RGB cable 23

RS-232C 52

RS-232C terminal 27

Sharp 44

Signal Info 46

Signal Type 45

Speaker 52

sRGB 44

Standard 44

STANDBY button 30

Storage case....20

Stretch 37

Subnet Mask 53

Supplied accessories 10

S-VIDEO input terminal 26

System Lock 49

System Sound 49

TCP/IP 53

Temperature warning indicator 58

Tilt dial 31

Tint 44

USB terminal 39

VIDEO input terminal 26

Video System 45

Volume buttons 35

V-Pos 46

V-Stretch 38

WIRED REMOTE terminal 14

SHARP®

SHARP CORPORATION
