StrikeBack - Keyboard Ozone - Free user manual and instructions

Product Type	Mechanical Gaming Keyboard
Brand	Ozone
Model	StrikeBack
Dimensions (W x D x H)	440 x 135 x 38 mm
Weight	1.1 kg
Connectivity	USB 2.0 (wired)
Cable Length	1.8 m braided cable
Power Supply	USB bus powered (5V, 500 mA)
Switch Type	Mechanical (blue/red depending on variant)
Key Number	104 keys
Key Rollover	Full NKRO (N-Key Rollover)
Backlighting	RGB per-key (16.8 million colors)
Keycap Material	ABS double-shot
Multimedia Keys	Yes (via FN combos)
Wrist Rest	Detachable, magnetic
Software Support	Ozone Strike (macros, lighting customization)
System Compatibility	Windows 7/8/10/11, macOS
Maintenance	Clean with soft dry cloth; avoid liquids
Safety Precautions	Do not disassemble; keep away from moisture
Spare Parts	Keycaps available; cable not user-replaceable
Warranty	2 years limited

Frequently Asked Questions - StrikeBack Ozone

How do I change the RGB lighting on my Ozone StrikeBack keyboard?

You can change the lighting using the Ozone Strike software. Install it from the official website, then customize per-key colors, effects, and brightness. Preset effects are also accessible via FN + function keys.

How to clean the keyboard properly?

Unplug the keyboard, turn it upside down to shake out debris. Use a soft brush or compressed air for between keys. Wipe the surface with a slightly damp microfiber cloth, then dry thoroughly. Do not use alcohol or abrasive cleaners.

Is the Ozone StrikeBack compatible with PS4 or Xbox?

The keyboard works via USB, so it will function as a text input device on PS4 and Xbox, but full gaming features (lighting, macros) may not be supported without PC software. Check console compatibility first.

Can I replace the mechanical switches?

No, the switches are soldered to the PCB and are not hot-swappable. However, keycaps can be removed and replaced with standard Cherry MX compatible ones.

How do I set up macros on the StrikeBack?

Download and install the Ozone Strike software. Open the macro tab, create a new macro, record key presses, assign it to a key, and save to the keyboard memory. You can store up to three profiles.

What type of mechanical switches does the keyboard use?

The Ozone StrikeBack typically uses blue switches (clicky, tactile) or red switches (linear, quiet). Check the box or sticker on the back to confirm your variant.

How long is the cable?

The keyboard comes with a 1.8-meter (approx. 6 feet) braided USB cable with a gold-plated connector.

Is the wrist rest removable?

Yes, the wrist rest attaches magnetically and can be removed for compact storage. It provides comfortable palm support during long gaming sessions.

Where can I download the Ozone Strike software?

Visit the official Ozone website (ozone-gaming.com), go to the support/download section, and select your keyboard model. The software is compatible with Windows and macOS.

What is the warranty period for the StrikeBack?

Ozone offers a 2-year limited warranty for manufacturing defects. Keep your proof of purchase. Contact customer support via the website for claims.

USER MANUAL StrikeBack Ozone

1. Plug StrikeBack USB connector to a USB port of your PC
2. Wait until your system detects, configures the plug and play device and finishes its installation
3. Enjoy gaming with StrikeBack!

STRIKEBACK KEY FUNCTIONS

• Fully 105 mechanical switched gaming keyboard with RGB back-lighting.
• Press ③ + 1 to 6 keys to set the lighting effect Press 3 times to reveal on each keystroke a LED effect

•

A. The trial of light
B. Breathing
C. Normally ON

A. Ripple graff
B. Pass without trace
C. Fast run without trace

A. Hurricane
B. Accumulate
C. Digital times

A. Go with the stream
B. Clouds fly
C. Winding paths

A. Flowers blooming
B. Swift action
C. Snow winter jasmine

A. Both ways
B. Surmount
C. Fast and the Furious

Creating a custom backlit mode

Press 34” “enter custom mode. Press again +” to start setting: now, 4 LED indicators will flash. At this point, certain keys would be already backlit: you can now select these and any other keys to start setting their lighting on/off. Press your selected keys 1-8 times to launch and choose one of its 8 available colors. Press 34” “to save custom mode

104 single different LED colors can be launched and chosen by pressing ③ + Space bar: now, just hit on the keyboard width your preferred color to choose and save it, or press Space bar to choose and save rainbow mode

- Press ③ + “BLOQ DESPL” to change side surrounding LED mode and ③ + “F12” to change volume button LED modes.

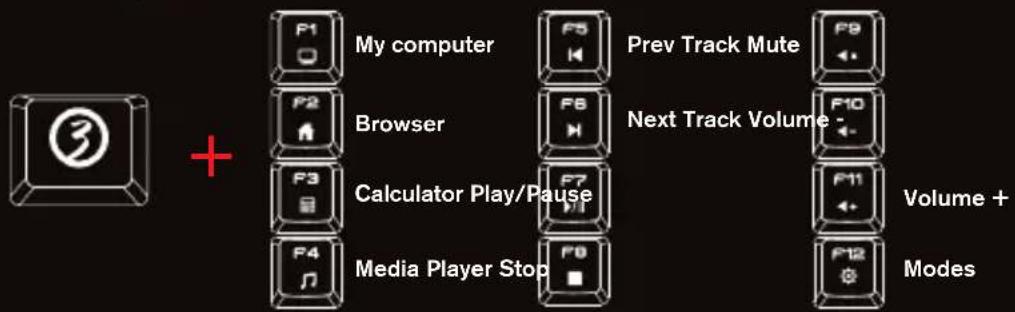

- Multimedia and other shortcut keys on keyboard Press Ⓗ + F1 to F11 keys for media playback and other functions

- Press ③ + ArrowUp or ArrowDn to increase or decrease back lighting brightness in different levels Press ③ + ArrowLeft or ArrowRight to increase or decrease back lighting breathing frequency and circle running control

- Press ③ + “?” to set LED direction change

- Press ③ + “¿” to set LED color selection

- Press Ⓤ + W (3 sec) to switch between WASD and ARROW KEYS

• Gaming Mode: Press 📊 + Windows key to enter gaming mode (G-Mode) and block Windows key

- Reset to default: Press ③ + Esc + F1 + F3 + F5 to reset keyboard to its default configuration

N-Keys conflict free and 6 keys conflict free are automatically identified

DIRECTIVES

CE STATEMENT OF COMPLIANCE WITH EUROPEAN UNION DIRECTIVES

Ozone declares that this product is in compliance with the essential requirements and other relevant provisions from the following Directive: 2014/30/EU, as applicable. The technical documentation required by the Conformity Evaluation process is in Ozone's possession and can be requested through [e-mail]

DISPOSAL OF BATTERIES AND ELECTRICAL OR ELECTRONIC EQUIPMENT WASTE

The existence of this symbol on the product, batteries or respective packaging, signifies that this product and the contained batteries can not be disposed as domestic waste. It is the user's responsibility to deliver this product at a battery, electrical or electronic recycling pick-up point. The pick-up and separate recycling contributes for the preservation of natural resources and suppresses potential negative consequences for the human health and the environment resultant of inadequate disposal of dangerous substances contained in batteries and electrical or electronic equipment. For additional informations regarding batteries, electrical or electronic recycling pick-up points, please contact your local municipal services.

ozone

www.ozonegaming.com

EN

All safety warnings give specific details of the potential danger/warning present and indicate how to reduce risk of injury, damage resulting from improper use of the product.

Carefully observe the following instructions:

• Installation and maintenance must be carried out by a qualified technician, in compliance with the manufacturer's instructions and local safety regulations.
• Do not repair or replace any part of the appliance unless specifically stated in the user manual.
• The appliance must be disconnected from the power supply before carrying out any installation work
• Do not touch the appliance with any wet part of the body and do not operate it when barefoot
• The product is not intended for use by persons (including children) with any physical, sensory or mental impairment, or without experience and knowledge of the appliance, unless supervised or previously instructed in its use by those responsible for their safety.
• Children must be supervised to ensure they do not play with the product.
• This product is not suitable for outdoor use.

GENERAL RECOMMENDATIONS:

Before use:

Remove cardboard protection pieces, protective film and adhesive labels from accessories. Children must be supervised during the process to avoid any risk of suffocation.

Check the appliance for any transport damage.

During use:

To avoid any damage do not place any weights on the appliance.

Do not expose the appliance to atmospheric agents.

CLEANING:

IMPORTANT:

Do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with the appliance, clean immediately with a damp cloth. Do not clean or open the product while when any power cables are attached.

Clean the surfaces with a damp cloth. Finish off with a dry cloth.

IMPORTANT:

Do not use abrasive sponges or metallic scrapers or scourers. Over time, these can ruin the surface.

TATEMENT OF COMPLIANCE WITH EUROPEAN UNION DIRECTIVES

Ozone declares that this product is in compliance with the essential requirements and other relevant provisions from the following Directive: 2014/30/EU, as applicable. The technical documentation required by the Conformity Evaluation process is in Ozone's possession and can be requested through [e-mail]

AL OF BATTERIES AND ELECTRICAL OR ELECTRONIC EQUIPMENT WASTE

The existence of this symbol on the product, batteries or respective packaging, signifies that this product and the contained batteries can not be disposed as domestic waste.

It is the user's responsibility to deliver this product at a batteries, electrical or electronic recycling pick-up point.

The pick-up and separate recycling contributes for the preservation of natural resources and suppresses potential negative consequences for the human health and the environment resultant of inadequate disposal of dangerous substances contained in batteries and electrical or electronic equipment.

For additional informations regarding batteries, electrical or electronic recycling pick-up points, please contact your local municipal services.

WARNINGS FOR WIRELESS PRODUCTS USAGE

Radio waves from this product may negatively affect the operation of medical electronic equipment, causing them to malfunction. When using this product inside medical facilities or near medical equipment, follow directions from the authorized personnel representing the medical facilities, and follow all posted warnings and directions on the medical equipment.

Radio waves from this product may negatively affect the operation of automatically controlled devices such as automatic doors or fire alarms, and could lead to accidents due to malfunction. When using this product near automatically controlled devices, follow all posted warnings and directions on these devices.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televisión reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient and relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment to an electrical outlet on a different circuit to that which the receiver is connected.

This product, liek other radio devices, emits radio frequency electromagnetic energy and operate within the guidelines found in radio frequency safety standards and recommendations.

WARRANTY:

Who does the warranty protect:

This warranty is valid for the original purchaser only.

What does the warranty protect:

For warranty claims, please contact Ozone's overseas distribution partners in your country. Find the distribution partner list at www.ozonegaming.com

Warranty: 3 years from the date of purchase (from January 2022 and depending on the laws of each country)

What does not the warranty cover:

1. Any product, on which the serial number has been defaced, modified or removed.
2. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
3. Repair or attempted repair by anyone not authorized by Ozone Gaming.
4. Damage to or loss of any programs, data or removable storage media.
5. Software or data loss occurring during repair or replacement.
6. Any damage of the product due to shipment.
7. Removal or installation of the product.
8. External causes, such as electric power fluctuations or failure.
9. Use of supplies or parts not meeting Ozone Gaming's specifications.
10. Normal wear and tear.
11. Any other cause which does not relate to a product defect.

If you have any questions regarding technical problems, please contact us via our website: www.ozonegaming.com

Ozone reserves the right for any modifications in text and/or images.

Ozone Gaming registered trademark of Atlas Informática S.L. - B92492032 - Calle Punta Alta, 33, 29006 - Málaga - Spain. [e-mail]

WithinTheGame

www.ozonegaming.com

ES
