DP500A2D - Desktop computer SAMSUNG - Free user manual and instructions

Product type	Desktop computer
Brand	Samsung
Model	DP500A2D
Dimensions (W x D x H)	180 x 390 x 370 mm
Weight	8.5 kg
Power supply	250 W, internal power supply
Processor	Intel Core i5 3rd generation
RAM memory	4 GB DDR3 (expandable)
Hard drive	500 GB SATA
Operating system	Windows 8
Wireless connectivity	Wi-Fi, Bluetooth
Wired connectivity	Ethernet 10/100/1000
Ports	USB 2.0, USB 3.0, HDMI, VGA, audio
Main functions	Office work, web browsing, multimedia
Maintenance and cleaning	Regular dusting with a soft cloth; avoid liquids
Security	Do not open the case; unplug before cleaning
Spare parts and repairability	Contact Samsung after-sales service

Frequently Asked Questions - DP500A2D SAMSUNG

How to turn on the computer?

Press the power button located on the front of the case. Wait for the operating system to load.

How to properly shut down the computer?

Click on Start then on Shut down. Do not turn off by unplugging the power cable.

How to clean the computer?

Turn off the device and unplug it. Use a soft dry cloth to dust the exterior. Avoid any liquid products.

What to do if the computer does not turn on?

Check that the power cable is plugged in and the outlet works. If nothing happens, contact after-sales service.

How to connect the computer to a Wi-Fi network?

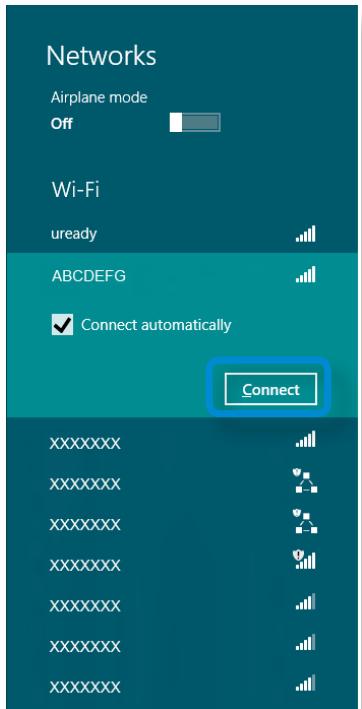

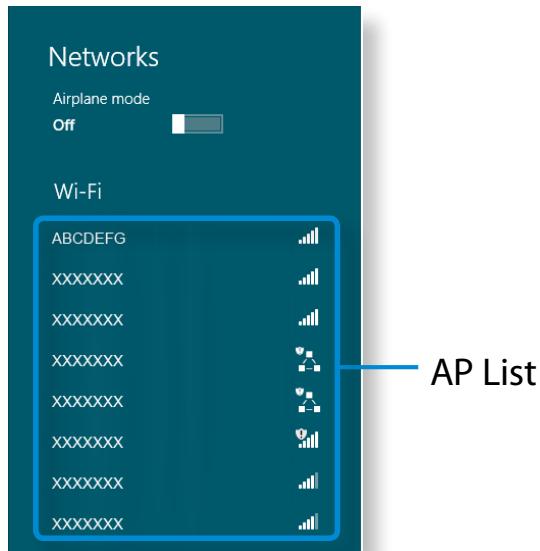

Click on the network icon in the taskbar, select your network, enter the password, and click Connect.

The computer makes noise, is it normal?

A slight fan noise is normal. If the noise becomes loud, check that the ventilation openings are not obstructed and clean the dust.

How to reset the computer to factory settings?

Go to Settings > Update & Security > Recovery and choose Reset this PC. Back up your data beforehand.

What is the battery life of the computer?

This desktop computer does not have an internal battery. It must remain plugged into the mains to operate.

How to update the operating system?

Go to Settings > Update & Security > Windows Update and click Check for updates. Install the proposed updates.

Where to find spare parts?

Contact Samsung after-sales service or an authorized dealer. Do not attempt to replace parts yourself.

USER MANUAL DP500A2D SAMSUNG

Samsung TV displaying a colorful autumn leaf image on a stand against a blue background with circular graphics (no text or symbols on the device itself)

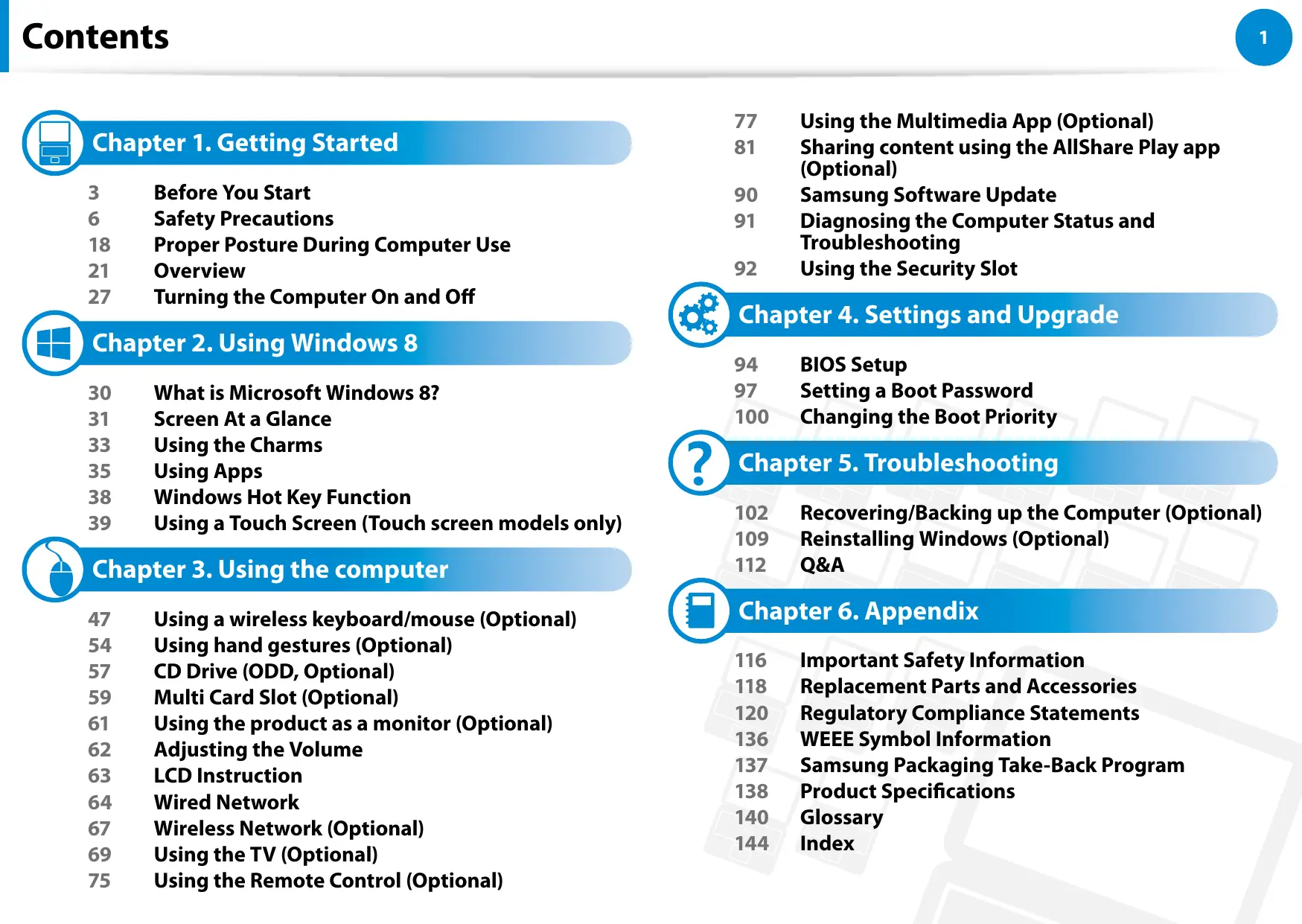

Chapter 1. Getting Started

3 Before You Start
6 Safety Precautions

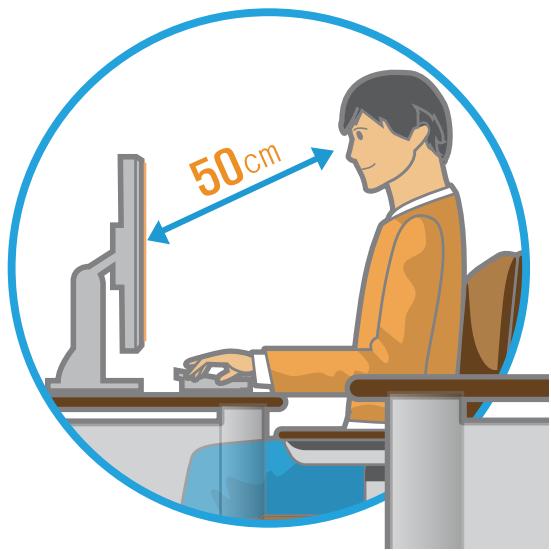

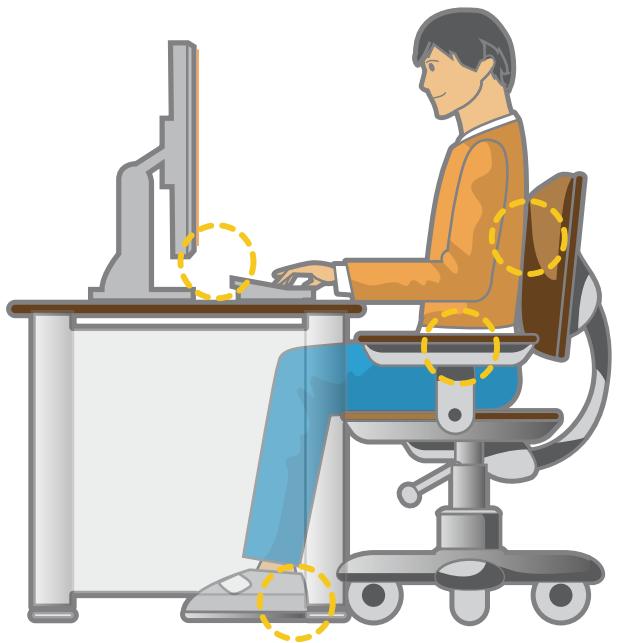

18 Proper Posture During Computer Use
21 Overview
27 Turning the Computer On and Off

Chapter 2. Using Windows 8

30 What is Microsoft Windows 8?
31 Screen At a Glance
33 Using the Charms
35 Using Apps
38 Windows Hot Key Function
39 Using a Touch Screen (Touch screen models only)

Chapter 3. Using the computer

47 Using a wireless keyboard/mouse (Optional)

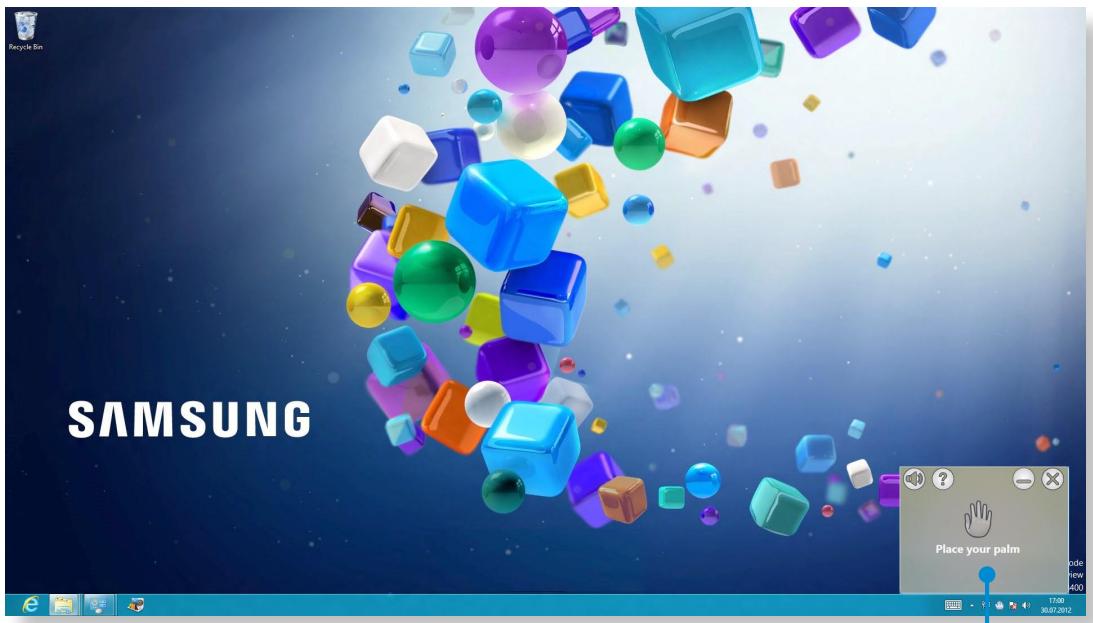

54 Using hand gestures (Optional)

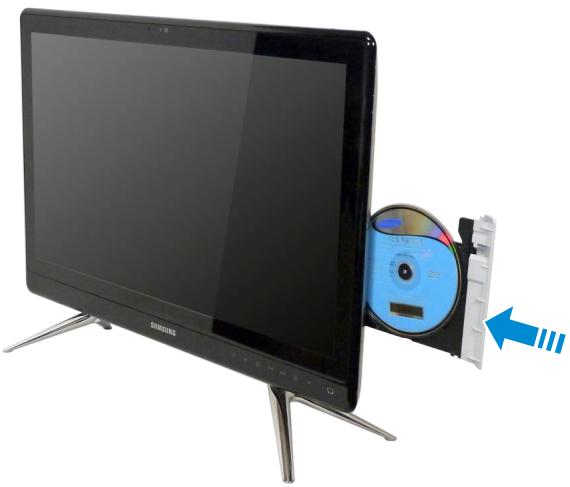

57 CD Drive (ODD, Optional)
59 Multi Card Slot (Optional)
61 Using the product as a monitor (Optional)
62 Adjusting the Volume
63 LCD Instruction
64 Wired Network
67 Wireless Network (Optional)
69 Using the TV (Optional)
75 Using the Remote Control (Optional)

77 Using the Multimedia App (Optional)
81 Sharing content using the AllShare Play app (Optional)

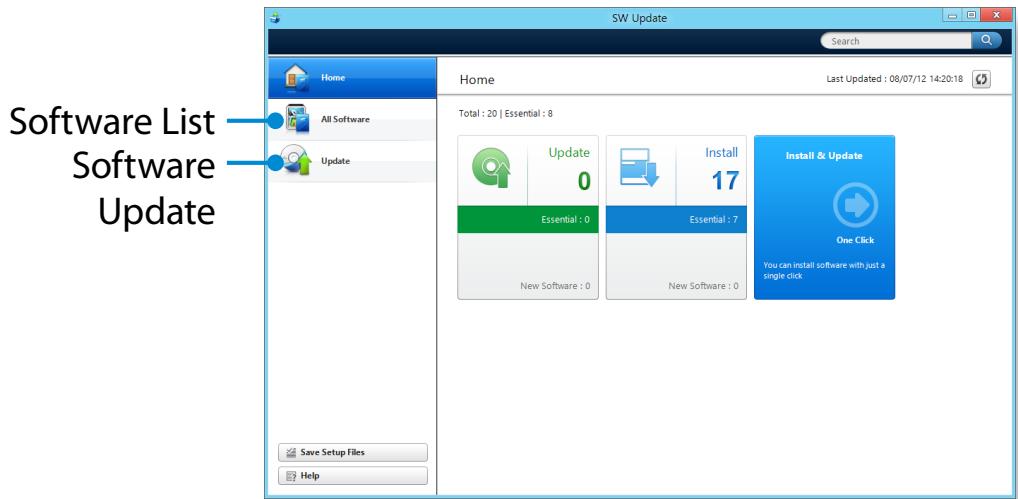

90 Samsung Software Update
91 Diagnosing the Computer Status and Troubleshooting
92 Using the Security Slot

Chapter 4. Settings and Upgrade

94 BIOS Setup
97 Setting a Boot Password
100 Changing the Boot Priority

Chapter 5. Troubleshooting

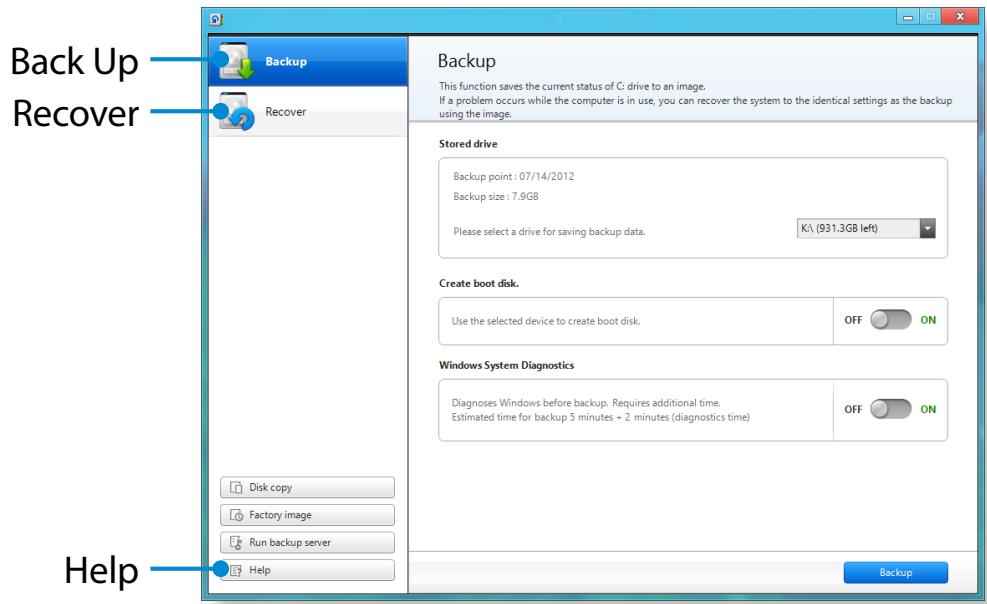

102 Recovering/Backing up the Computer (Optional)
109 Reinstalling Windows (Optional)
112 Q&A

Chapter 6. Appendix

116 Important Safety Information
118 Replacement Parts and Accessories
120 Regulatory Compliance Statements
136 WEEE Symbol Information
137 Samsung Packaging Take-Back Program
138 Product Specifications
140 Glossary
144 Index

Blue icon of a laptop inside a white circle (no text or symbols)

Chapter 1. Getting Started

Before You Start 3

Safety Precautions 6

Proper Posture During Computer Use 18

Overview 21

Turning the Computer On and Off 27

g the Computer On and Off 27

Before reading the User Guide, first check the following information.

- Optional items, some devices and software referred to in the User Guide may not be provided and/or changed by upgrade.

Note that the computer environment referred in the User Guide may not be the same as your own environment.

• The pictures used for the cover and the main body in the User Manual are those of the representative model of each series and may differ from the actual appearance of the product.
• This guide decribes procedures for using both the mouse and the touchpad.
• This manual has been written for the Windows 8 operating system. The descriptions and figures may differ depending on the installed operating system.
• The User guide supplied with this computer may vary depending on your model.

Using the software

- From the Start Screen, right-click any area and select All apps in the bottom right corner.

Then, click a desired program.

Or you can simply launch Quick Starter to do the same.

- You can install Quick Starter from SW Update.

Safety Precaution Notations

Icon	Notation	Description
	Warning	Failure to follow instructions marked with this symbol, may cause personal injury and or fatality.
	Caution	Failure to follow instructions marked with this symbol, may cause slight injury to yourself or damage your property.

Text Notations

Icon	Notation	Description
	Caution	Content included in this section includes information required about the function.
	Note	Content included in this section includes helpful information to use the function.

Copyright

© 2012 Samsung Electronics Co., Ltd.

Samsung Electronics Co., Ltd. owns the copyright of this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, without the consent of Samsung Electronics Co., Ltd.

The information in this document is subject to change without notice due to improving the performance of the product.

Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any important data and backup your data to prevent any such data loss.

OS and Software Support

If you change the product's factory OS (Operating System) to another OS or if you install software which is not supported by the product's original factory OS, you will not receive any technical support, product exchange or refund. And a fee will be charged when requesting a service.

Please use your computer with the original factory OS. If you install an OS other than the factory OS, data may be deleted or the computer may not start.

About the Product Capacity Representation Standard

About the capacity representation of the storage

The capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes.

However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity due to the difference in capacity calculation.

(E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB, 80x1,000x1,000x1,000 byte/(1,024x1,024x1,024)byte = 74.505GB)

In addition, the capacity representation in Windows may be even smaller because some programs such as Recovery may reside in a hidden area of the HDD.

About Memory Capacity Representation

The memory capacity reported in Windows is less than the actual capacity of memory.

This is because BIOS or a video adapter uses a portion of memory or claims it for further use.

(E.g. For 1GB(=1,024MB) memory installed, Windows may report the capacity as 1,022MB or less)

For your security and to prevent damage, please read the following safety instructions carefully.

Since this is commonly applied to Samsung Computers, some pictures may differ from actual products.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Installation Related

Illustration of a laptop computer with a monitor displaying a cartoon character and floating icons, no text or symbols present.

Do not install the product in places exposed to humidity such as a bathrooms.

There is a danger of electric shock. Use the product within the operating conditions specified in the Manufacturers User Guide.

Illustration showing a baby being stopped by a 'no stop' symbol and a person using a trash bin, indicating food safety or waste management.

Keep the plastic bags out of the reach of children.

There is a danger of suffocation.

Simple line drawing of a desk with a computer and 15cm measurement label (no other text or symbols)

Keep a distance of 15cm or more between the computer and the wall and do not place any objects between them.

This may increase the internal temperature of the computer and may cause an injury.

Do not install the computer on a slant or a place prone to vibrations, or avoid using the computer in that location for a long time.

This increases the risk that a malfunction or damage to the product will occur.

Illustration showing a hand interacting with a laptop, accompanied by icons for cooling, speed measurement, and thermometer.

Be careful that people are not exposed to the computer's ventilator, adapter, etc., as they generate heat over a long period of time when your PC is powered on.

Illustration showing a hand holding a thermometer with a 'no warning' symbol, indicating incorrect thermal treatment.

Exposing a part of your body close to the heat from the vent or AC adapter for long periods of time may cause a burn.

Illustration showing a computer monitor placed on a chair with a 'No' symbol and labeled items (A, B, C, D) indicating absence or prohibition.

Avoid blocking the vent at the bottom or side of the computer when using it on a bed or cushion.

If the vent is blocked, there is a danger of damaging the computer or overheating the inside of the computer.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Power Related

The power plug and wall outlet figures may differ depending on the country specifications and the product model.

Diagram illustrating a hand holding a device with a prohibition symbol and water droplets, indicating no protection or damage.

Do not touch the main plug or power cord with wet hands.

There is a danger of electric shock.

Illustration of two hands using a tool to mark a mechanical or electrical component with no visible text or symbols

Do not exceed the standard capacity (voltage/current) of a multiplug or power outlet extension when using it for the product.

There is a danger of electric shock or fire hazard.

AS SAMSUNG

If the power cord or power outlet makes a noise, disconnect the power cord from the wall outlet and contact a service center.

There is a danger of electric shock or fire hazard.

Safety warning illustration showing a plug being replaced by a fuse, with a hand holding a fuse and lightning bolts indicating electrical hazard.

Do not use a damaged or loose main plug or power cord or power outlet.

There is a danger of electric shock or fire hazard.

Illustration of a hand inserting a plug into a socket (no text or symbols)

Plug the power cord firmly into the power outlet and AC adapter.

Failure to do so may cause fire hazard.

Illustration showing a hand using a screwdriver to test electrical shock with a 'No' symbol above, indicating no protection or dislocation.

Do not unplug the power cord by pulling the cable only.

If the cord is damaged, it may cause electric shock.

Illustration of a dog using a plug with a no-smoking symbol above it (no text or labels)

Do not bend the power cord excessively or do not place a heavy object over the power cord. It is especially important to keep the power cord out of reach of infants and pets.

If the cord is damaged, it may cause electric shock or fire.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Diagram of a rectangular block with four circular holes and two arrows indicating direction (no text or symbols)

Connect the power cord to an outlet or multiple power plug (extended cable) with a ground terminal.

Failure to do so may result in electric shock.

When the power supply is ungrounded, the current may leak resulting in electric shock.

Illustration of a computer monitor with a cartoon face and a blue prohibition symbol (no text or labels)

If water or another substance enters the power input jack, AC adapter or the computer, disconnect the power cord and contact the service center.

If the notebook computer has an external type (removable) battery, separate the battery also.

Damage to the device within the computer may cause electric shock or fire hazard.

Illustration of a hand using a tool to connect an electrical socket to a block (no text or symbols present)

Keep the power cord or outlet clean so that they are not covered with dust.

Failure to do so may result in fire.

AC Adapter Usage Precautions

Diagram illustrating cable connection to a computer via USB cable, showing cable routing and cable attachment steps.

Connect the power cord to the AC adapter firmly.

Otherwise, there is a danger of fire due to an incomplete contact.

Use only the AC adapter supplied with the product.

Using another adapter may cause the screen to flicker.

Simple line drawing of a table with an electrical outlet and a switch, no text or symbols present.

Do not place heavy objects or step onto the power cord or AC adapter to avoid damaging the power cord or AC adapter.

If the cord is damaged, there is a danger of electric shock or fire.

Unplug the wall-mount AC adapter (adapter and plug intergrated type) from the wall outlet while holding the body and pulling it in the direction of the arrow.

Safety warning illustration showing a hand holding a plug with a 'no power' symbol and explosion effect

If you unplug the adapter by holding and pulling the cable, the adapter may be damaged and an electric shock, explosive sound or spark may occur as a result.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Battery Usage Related

Please charge the battery fully before using the computer for the first time.

Illustration of a baby crying while holding a phone, with a no-smoking symbol nearby (no text or labels)

Keep the battery out of the reach of infants and pets, as they could put the battery into their mouths.

There is a danger of electric shock or choking.

SAMSUNG

Use an authorized battery and AC adapter only.

Please use an authorized battery and adapter approved by Samsung Electronics.

Unauthorized batteries and adapters may not meet the proper safety requirements and may cause problems or malfunctions and result in an explosion or fire.

Illustration of a person sleeping on a chair with a no-smoking symbol (no text or symbols present)

Do not use the computer in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as room with floor heating as it may cause the computer to overheat.

Take care that the computer vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, the computer may overheat and it may cause a computer problem, or even an explosion.

Illustration of a laptop with floating icons and a prohibition symbol (no text or labels)

Do not use the computer in a humid location such as a bathroom or sauna.

Please use the computer within the recommended temperature and humidity range (10\~32°C, 20\~80% RH).

Illustration showing a notebook with a stack of books and a power button, accompanied by a prohibition symbol and a 'STOP' icon.

Do not close the LCD panel and put the computer into your bag to move it when it is still turned on.

If you put the computer into your bag without turning it off, the computer may overheat and there is a danger of fire. Shut the computer down properly before moving it.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Illustration of a portable stove with a flame inside and a computer monitor nearby (no text or symbols)

Never heat the product(or battery) or put the product(or battery) into a fire. Do not put or use the product(or battery) in a hot location such as a sauna, inside a vehicle exposed to the heat, and so on.

There is a danger of an explosion or fire.

Illustration of a damaged electrical component with a power plug and chains, no text or symbols present

Take care not to allow metal objects such as a key or clip to touch the battery terminal (metal parts).

If a metal object touches the battery terminals, it may cause excessive current flow and it may damage the battery, or result in a fire.

Illustration of a smokestack emitting smoke next to a laptop with a cartoon face, no text or symbols present.

If liquid leaks out of the product(or battery) or there is a funny smell coming from the product(or battery), remove the the product(or battery) the computer and contact a service center.

There is a danger of an explosion or fire.

Two gray electronic components with no visible text or symbols, one with a circular icon and the other with a pointer (no readable text or symbols)

To use the computer safely, replace a dead battery with a new, authorized battery.

Usage Related

Illustration showing a hand holding a small object next to a laptop and a magnifying glass (no text or symbols)

Disconnect all cables connected to the computer before cleaning it. If your notebook is external & removable battery type, remove the external battery.

There is a danger of electric shock or damage to the product.

Illustration showing a laptop with a smiling face and a phone connected to a crossed-out X symbol, with a no-smoking symbol above the laptop.

Do not connect a phone line connected to a digital phone to the modem.

There is a danger of a electric shock, fire or damage to the product.

Illustration of a computer monitor with a cartoon face and a prohibition symbol (no text or symbols present)

Do not place any container filled with water or chemicals over or near the computer.

If water or chemicals enter the computer, this may cause fire or electric shock.

AS SAMSUNG

If the computer is broken or dropped, disconnect the power cord and contact a service center for a safety check.

If the notebook computer has an external type (removable) battery, separate the battery also.

Using a broken computer may cause electric shock or fire hazard.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Illustration of a car interior with steering wheel, laptop, and warning symbol, likely indicating safety or hazard.

Avoid direct sunlight when the computer is in an air-tight location such as inside a vehicle.

There is a danger of a fire hazard. The computer may overheat and also present opportunity to thieves.

Illustration showing temperature measurement steps with hand and gauge symbols, including a checkmark and warning symbol.

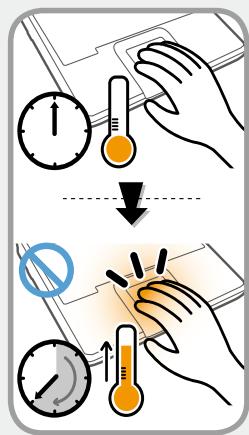

Do not use your computer for long periods of time while any part of your body is making direct contact with it. The temperature of the product may increase during normal operation.

This may result in harming or burning your skin.

Upgrade Related

Illustration of a medical device with surgical tools and a no-smoking symbol (no text or labels)

Never disassemble the power supply or AC adapter.

There is a danger of electric shock.

Illustration of a baby sitting on the floor using a device, with a no-smoking symbol above (no text or labels)

When removing the RTC (Real Time Clock) battery, keep it out of the reach of children as they could touch and/or swallow it.

There is a danger of choking. If a child has swallowed it, contact a doctor immediately.

Illustration of a computer monitor with a smiling face, accompanied by icons for a no-smoking sign, a screwdriver, and a smartphone (no text or symbols present)

Use only authorized parts (multi- plug, battery and memory) and never disassemble parts.

There is a danger of damaging the product, electric shock or fire hazard.

OFF

Shut down the computer and disconnect all cables before disassembling the computer. If there is a modem, disconnect the phone line. If your notebook is external & removable battery type, remove the external battery.

Failure to do so, may cause electric shock.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Security and Movement Related

Illustration of two people in a meeting, one gesturing while speaking (no text or symbols present)

Follow the instructions for the relevant location (e.g. airplane, hospital, etc.) when using a wireless communication device (wireless LAN, Bluetooth, etc.).

SACENER

Avoid exposing a drive to magnetic fields. Security devices with magnetic fields include airport walk-through devices and security wands.

The airport security devices that check carry-on luggage, such as conveyor belts, use x-rays instead of magnetism and will not damage a drive.

Illustration showing a briefcase with documents and a prohibition symbol, alongside icons of writing notes and a pen.

When carrying the notebook computer with other items, such as the adapter, mouse, books etc, take care not to press anything against the notebook computer.

If a heavy object is pressed against the notebook computer, a white spot or stain may appear on the LCD. Therefore, take care not to apply any pressure to the notebook.

In this case, place the notebook computer in a separate compartment away from the other objects.

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

Installation Related

Do not block the ports (holes), vents, etc. of the product and do not insert objects.

Damage to a component within the computer may cause electric shock or fire.

When using the computer with it lying on its side, place it so that the vents face upwards.

Failure to do so, may cause the internal temperature of the computer to rise and the computer to malfunction or halt.

Do not place a heavy object over the product.

This may cause a problem with the computer. In addition, the object may fall and cause injury, or damage the computer.

Battery Usage Related

Dispose of worn-out batteries properly.

• There is a danger of fire or explosion.
- The battery disposal method may differ depending on your country and region. Dispose of the used battery in an appropriate way.

Do not throw or disassemble the battery and do not put it into water.

This may cause an injury, fire or explosion.

Use only a battery authorized by Samsung Electronics.

Failure to do so may cause an explosion.

Avoid contact with metal objects such as car keys or clips when keeping or carrying a battery.

Contact with a metal may cause excessive current and a high temperature and may damage the battery or cause a fire.

Charge the battery according to the instructions in the manual.

Failure to do so, may cause an explosion or fire from damage to the product.

Do not heat the product(or battery) or expose it to heat (e.g. inside a vehicle during the summer).

There is a danger of explosion or fire.

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

Usage Related

Do not place a candle, light cigar, etc. over or on the product.

There is a danger of fire.

Use a wall outlet or multi-plug with a grounding part.

Failure to do so may cause electric shock hazard.

Make sure to have the product tested by a safety service engineer after repairing the product.

Authorized Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for safety may cause an electric shock or fire.

In case of lightning, immediately turn the system off, disconnect the power cord from the wall outlet and phone line from modem. Do not use a modem or phone.

There is a danger of electric shock or fire.

Do not use your computer and AC-Adapter on your lap or soft surfaces.

If the computer temperature increases, there is a danger of burning yourself.

Connect only permitted devices to the connectors or ports of the computer.

Failure to do so, may cause electric shock and fire.

Close the LCD panel only after checking if the notebook computer is turned off.

The temperature may rise and it may cause overheating and deformation of the product.

Do not press the Eject Button while the CD-ROM drive is in operation.

You might lose data and the disk might be suddenly ejected and could cause an injury.

Take care not to drop the product while using it.

This may cause personal injury or loss of data.

Do not touch the antenna with electricity facility such as the power outlet.

There is a danger of electric shock.

When handling computer parts, follow the instructions on the manual supplied with the parts.

Failure to do so, may cause damage to the product.

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

If the computer emits smoke, or there is a burning smell, disconnect the power plug from the wall outlet and contact a service center immediately. If your notebook is external & removable battery type, remove the external battery.

There is a danger of fire.

Do not use a damaged or modified CD.

There is a danger of damaging the product or personal injury.

Do not insert your fingers into the PC Card Slot.

There is a danger of injury or electric shock.

Use recommended computer cleansing solution when cleaning the product and only use the computer when it is completely dried.

Failure to do so may cause electric shock or fire.

Emergency disk eject method using paperclip should not be used while the disk is in motion. Make sure to use the emergency disk eject method only when the Optical Disk Drive has stopped.

There is a danger of injury.

Do not place your face close to the Optical Disk Drive tray when it is operating.

There is a danger of injury due to an abrupt ejection.

Check CDs for cracks and damage prior to use.

It may damage the disc and cause disorder of device and injury of user.

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

Upgrade Related

Take care when touching the product or parts.

The device may be damaged or you may be injured.

Take care not to throw or drop a computer part or device.

This may cause injury or damage to the product.

Make sure to close the computer cover before connecting the power after a reassembly.

There is a danger of electric shock if your body touches an internal part.

Use parts authorized by Samsung Electronics only.

Failure to do so, may cause fire or damage the product.

Never disassemble or repair the product by yourself.

There is a danger of electric shock or fire.

To connect a device that is not manufactured or authorized by Samsung Electronics, enquire at your service center before connecting the device.

There is a danger of damaging the product.

Security and Movement Related

When moving the product, turn the power off and separate all connected cables first.

The product might be damaged or users may trip over the cables.

For long periods of not using the notebook computer, discharge the battery and preserve as it is detached. (For external & removable battery type)

The battery will be preserved at its best condition.

Do not operate or watch the computer while driving a vehicle.

There is a danger of a traffic accident. Please concentrate on driving.

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

Cautions on Preventing Data Loss (Hard Disk Management)

Take care not to damage the data on a hard disk drive.

• A hard disk drive is so sensitive to external impact that an external impact may cause loss of data on the surface of the disk.
• Take extra care, because moving the computer or an impact on the computer when it is turned on may damage the data of the hard disk drive.
• The company is not liable for any loss of data on the hard disk drive.

Causes that may damage the data of a hard disk drive and the hard disk drive itself.

• The data may be lost when an external impact is applied to the disk while disassembling or assembling the computer.
• The data may be lost when the computer is turned off or reset by a power failure while the hard disk drive is operating.
• The data may be lost and irrecoverable due to a computer virus infection.
• The data may be lost if the power is turned off while running a program.
• Sudden impact or movement to the computer while the hard disk drive is operating, may cause files to be corrupted or bad sectors on the hard disk.

To prevent data loss due to damage to the hard disk drive, please backup your data frequently.

Proper Posture During Computer Use

Maintaining a proper posture during computer use is very important to prevent physical harm.

The following instructions are about maintaining a proper posture during computer use developed through human engineering. Please read and follow them carefully when using the computer.

Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may increase and serious physical harm may be caused.

• The instructions in this manual have been prepared so that they can be applied within the coverage of general users.
• If the user is not included in the coverage, the recommendation is to be applied according to the user's needs.

Proper Posture

Adjust the heights of desks and chairs appropriate to your height.

The heights are to be adjusted so that your arm forms a right angle when you place your hand over the keyboard while sitting down on a chair.

Adjust the height of chair so that your heel is comfortably placed on the floor.

• Do not use the computer while you are lying down, but only while you are sitting down.
• Do not use the computer on your lap. If the computer temperature increases, there is a danger of burning yourself.
  • Work while keeping your waist straight.
  • Use a chair with a comfortable back.
• Keep the center of your leg weight not on the chair but on your feet when you are sitting on a chair.
• To use the computer while talking over the telephone, use a headset. Using the computer with the phone on your shoulder is bad for posture.
• Keep frequently used items within a comfortable work range (where you can reach them with your hands).

Illustration of a person sitting at a desk using a computer, with no visible text or symbols

Eye Position

Keep the monitor or LCD away from your eyes by at least 50cm.

50cm

• Adjust the height of the monitor and the LCD screen so that its top height is equal to or lower than your eyes.
• Avoid setting the monitor and LCD excessively bright.
• Keep the monitor and LCD screen clean.
  • If you wear glasses, clean them before using the computer.
• When entering contents printed on a paper into the computer, use a static paper holder so that the height of the paper is almost equal to that of the monitor.

Hand Position

Keep your arm at a right angle as shown by the figure.

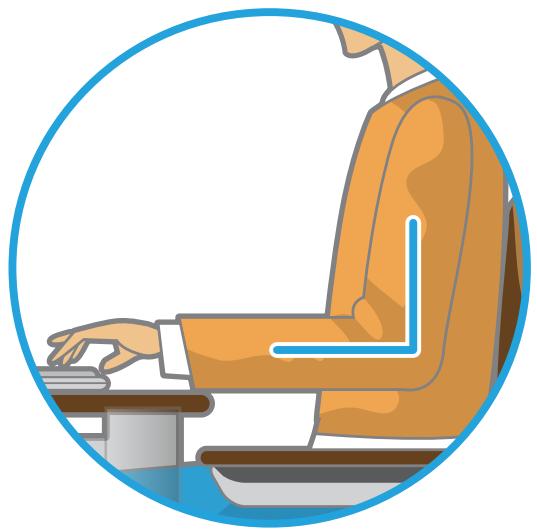

Illustration of a person typing at a desk inside a circular frame (no text or symbols)

• Keep the line from your elbow to your hand straight.
• Do not place your palm over the keyboard while typing.
• Do not hold the mouse with excessive force.
• Do not press the keyboard, touchpad or mouse with excessive force.
• It is recommended connecting an external keyboard and mouse when using the computer for long periods of time.

Volume Control (Headphones and Speakers)

Check your volume first to listen to music.

VOLUME Check your volume!

• Check if the volume is too loud before using headphones.
• It is not recommended using headphones for long periods of time.
• Any deviation from the equalizer default setting could cause hearing impairment.
• The default setting can be changed through software and driver updates without your intervention. Please check the equalizer default setting before first usage.

Use Time (Break Time)

- Take a break for 10 minutes or more after a 50-minute period when working for more than one hour.

Illumination

• Do not use the computer in dark locations. The illumination level for computer use must be as bright so for reading a book.
• Indirect illumination is recommended. Use a curtain to prevent reflection on the LCD screen.

Operation Condition

• Do not use the computer in hot and humid locations.
• Use the computer within the allowed temperature and humidity range specified in the User Guide.

Front View

• The pictures used for the cover and the main body in the User Manual are those of the representative model of each series. Therefore the colors and appearance of the pictures may differ from the actual appearance of the product depending on the model.
• The actual color and appearance of the computer may differ from the pictures used in this guide.

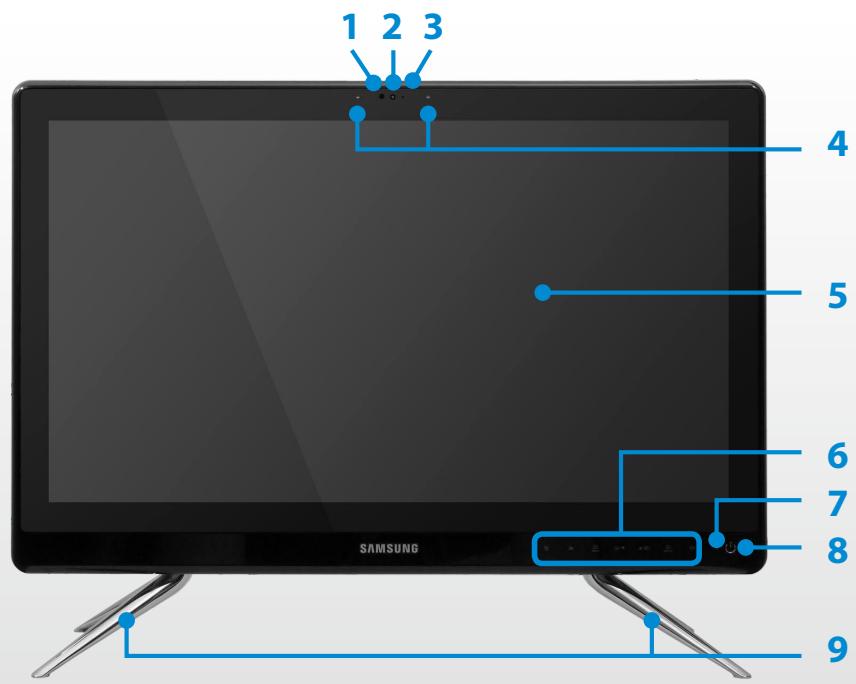

1 2 3 4 5 6 7 8 9 SAMSUNG

1	Camera operating indicator	This indicates the camera operating status.
2	Camera	Using this camera, you can take still pictures and record video.You can take a picture or make a movie using theCharms > Start > Camera.
3	Remote Control Sensor (Optional)	If a user presses a button on the remote control, the sensor detects the signal from the remote control and the computer performs the corresponding action.When using the remote control, take care not to block the sensor.If the sensor is blocked, the remote control will not function.
4	Microphone	You can use the built-in microphone.
5	LCD or Touch screen (Optional)	The screen images are displayed here.It works as a touch screen in models that support the touch screen feature. (Optional)
6	Touch buttons (for corresponding models only)	You can use the functions by lightly touching the sensor buttons with your fingers.
7	HDD/ODD operating indicator	The indicator turns on while the HDD/ ODD is active.
8	Power Button	Turns the computer on and off.
9	Stand	This is the stand supporting the computer.

Touch buttons (for corresponding models only)

• Some touch buttons may not be provided depending on the model specifications.
• Menu, Screen Settings, Volume Control buttons are only supported in Monitor Mode.

If you touch the sensor, the touch button works.

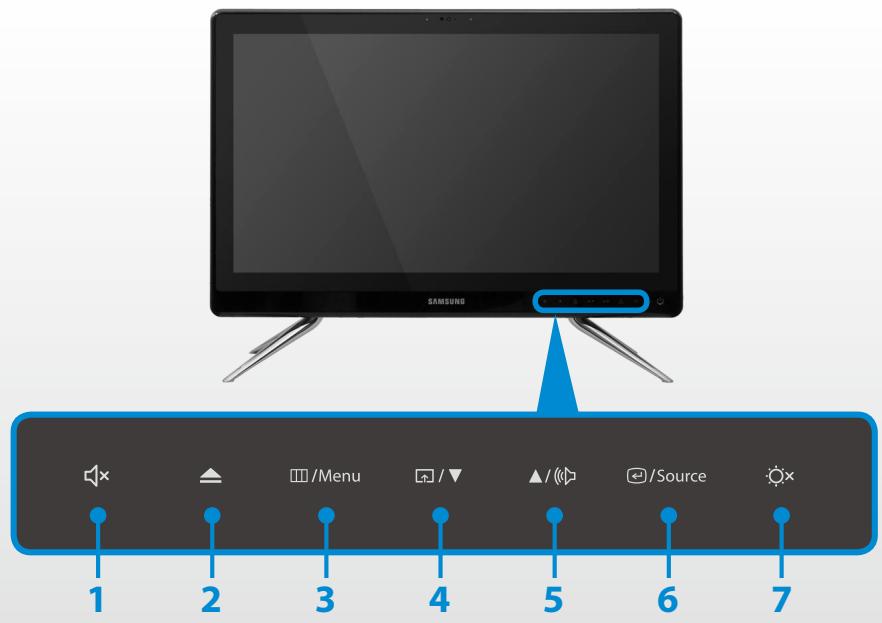

SAMSUNG 1 2 3 4 5 6 7

1	Mute	This is the button to mute the sound.
2	Eject CD	Eject the media from the CD drive.

3	□□/Menu Menu	Shows or hides the screen settings OSD.
4	□/▼Screen Settings	The menu of the mode selected by the user pressing the ↻/Source button is supported.The, and menus are supported.: You can choose the optimal screen settings for a movie or game.The, and: You can choose the optimal screen settings for your viewing angle.If you configure this setting when you watch the screen from above, below or the side of the screen, you can view the screen as if you were directly in front.: This mode provides power-saving mode by decreasing the current to the display panel.: This mode provides various screen size options.The terms in this manual may differ from the actual terms displayed on the screen.
5	▲/Volume Control	Launches the volume control menu.When the volume control menu is running, press ▲/▶ to turn the volume up or press ▼/▼ to turn the volume down.
6	↔/Source Mode Selection	Switches to PC mode or monitor mode.PC Mode: The mode that maintains the screen of this product.Monitor Mode: The mode used when this product is used as a monitor.Source is used to switch between PC and Monitor modes when the system is in use.
7	LCD On/Off	Turns the LCD on or off.For models that support monitor mode, this button turns both the LCD and the speaker on or off at the same time.When the system is hibernating or shutdown, press the LCD on/off button to use the product in Monitor mode.

Caution when using the touch buttons

• You can only use the touch buttons when the computer is turned on.
• Touch the touch buttons with clean, dry hands.
  In a humid environment, use the buttons after first removing moisture from your fingers or the touch buttons.
• Since the touch buttons will work even if you do not press them hard, do not press them excessively.
  Since a serious impact may damage the sensor in the touch button, take care when using the buttons.
• Do not press the buttons with sharp objects such as a stylus pen, ball-point pen, etc. Sharp objects may damage the touch buttons.
• When you touch the touch buttons, take care not to touch another button so that your finger tip touches the touch buttons precisely corresponding to the required function.
• When you are wearing gloves or the touch buttons are covered with plastic packaging or some kind of protective covering, the touch buttons may not work properly.
• If a conductive object such as a metal object makes contact with the touch buttons, the touch buttons may malfunction. Therefore, take care not to touch the touch buttons with a conductive object.

Right View

Side view of a modern flat-screen TV with a blue-labeled panel and stand (no text or symbols visible)

1

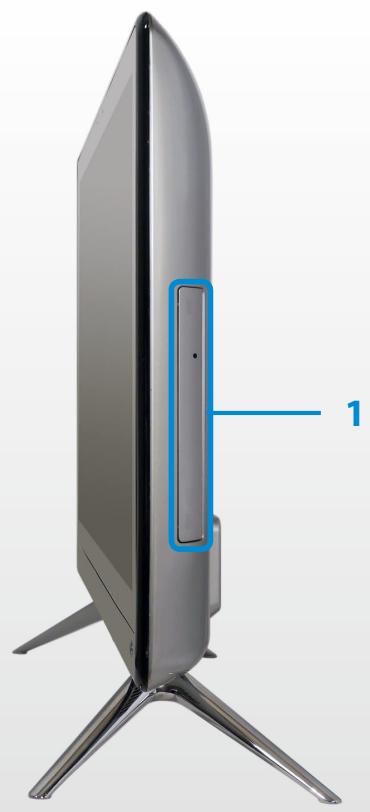

CD Drive (ODD) (Optional)

Plays CD or DVD titles.

A CD Drive is optional. The installed drive may die depending on the model specifications.

Left View

Diagram of a flat-screen TV with labeled ports and connectors, showing front and back views with numbered labels.

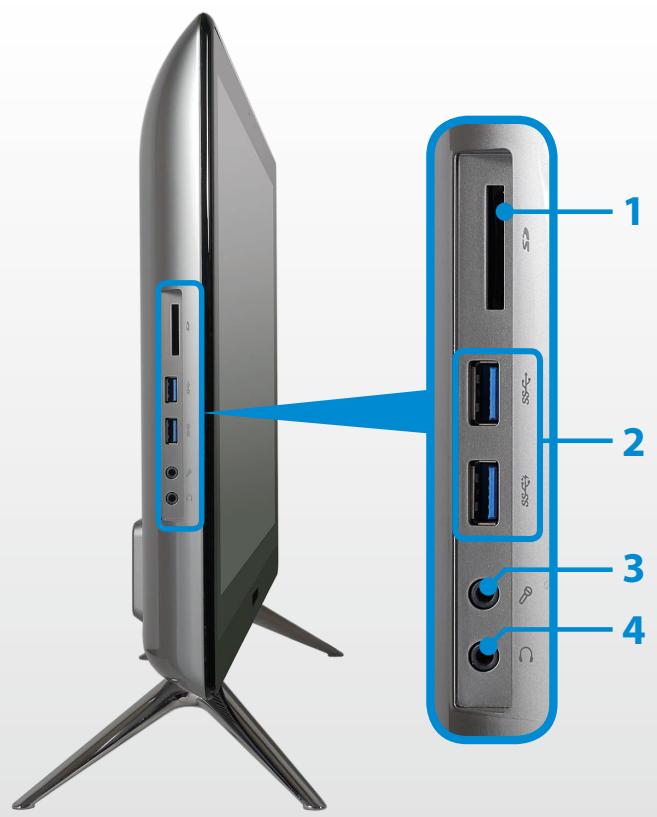

What is a chargeable USB port?

• USB device accessing and charging functions are supported.
• The USB charging function is supported regardless of whether the power is turned on or off.
• Charging a device through a chargeable USB port may take longer than general charging.
• Using the Chargeable USB function when the computer is running on battery power reduces the battery usage time.

1	Multi Card SlotSD	A card slot supports multi cards.
2	USB PortorChargeable USBPort(Optional)	This port is used as a USB port or chargeable USB port.Using a chargeable USB port, you can access or charge a USB device.You can tell the ports apart using the figures printed on the ports or by the colors.USB 2.0 port: blackChargeable USB 2.0 Port: blackUSB 3.0 port: blueChargeable USB 3.0 port: blue
3	Microphone Jack	A jack used to connect the microphone.
4	Headphone Jack	A jack used to connect the headphones.

• The user cannot evaluate the charging status of the USB device from the computer.
• This may not be supported for some USB devices.
• You can turn the Chargeable USB function ON/OFF by selecting the Settings > Power Management > USB Charging option. (Optional)

Rear View

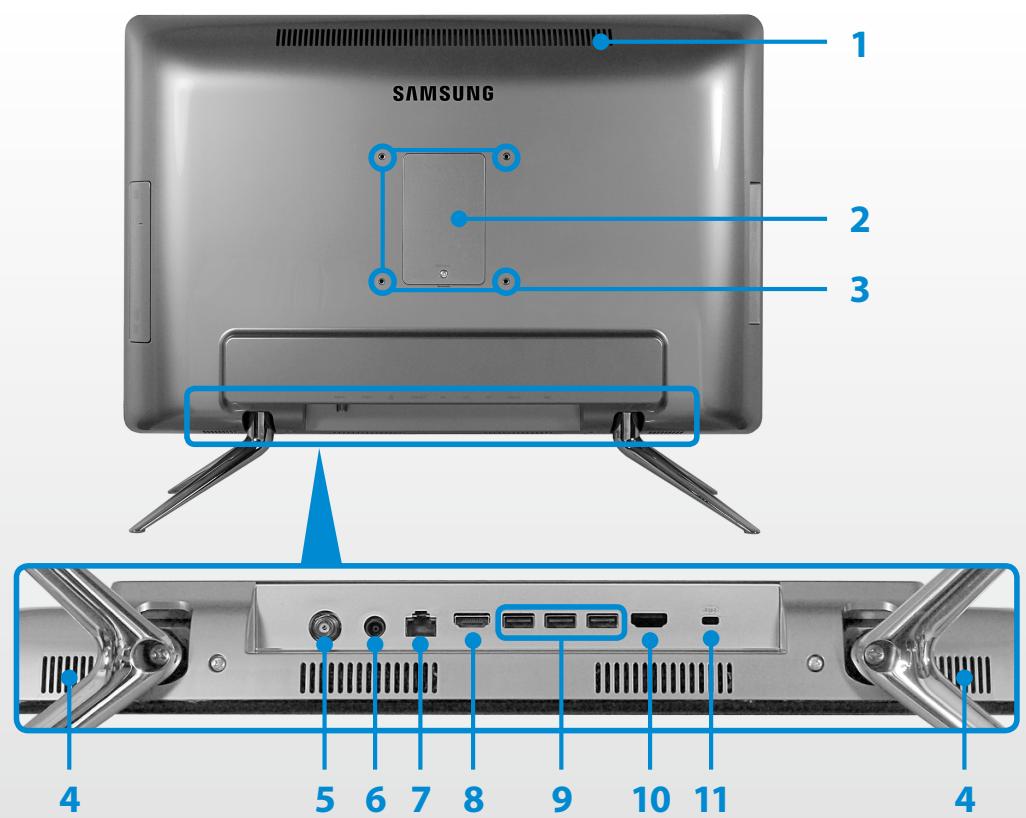

SAMSUNG 1 2 3 4 5 6 7 8 9 10 11 4

1	Fan Vents	The internal heat of the computer is emitted through these holes.⚠️ If the vents are blocked the computer may overheat.Avoid blocking the vents as this may be dangerous.
2	Memory Compartment Cover	The main memory is installed inside the cover.

3	Vesa bracket hall (12x12cm)	You can mount the monitor on the wall by removing the stand and purchasing and attaching a Vesa bracket (optional).Check the projected parts on the sides and back of the product to maintain a sufficient space from the wall.
4	Speaker	A device used to generate sound.

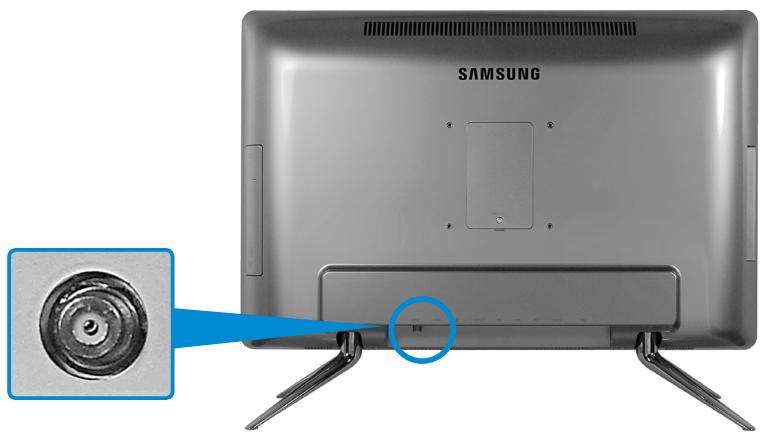

5	TV Antenna Input Port (Optional)	You can watch TV by connecting the antenna cable.Only for models with a TV tuner card.The shape of the port may differ depending on the country.
6	DC Jack ◇◆◆	A jack to connect the AC adapter that supplies power to the computer.

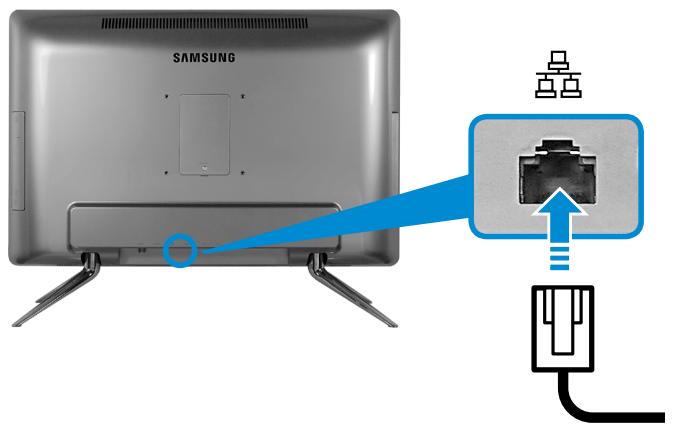

7	Wired LAN Port	Connect the Ethernet cable to this port.
8	Digital Vioo/Audio out port (HDMI-OUT)	You can connect an HDMI cable to this port.You can connect the computer to a TV and output digital video and audio to the TV.

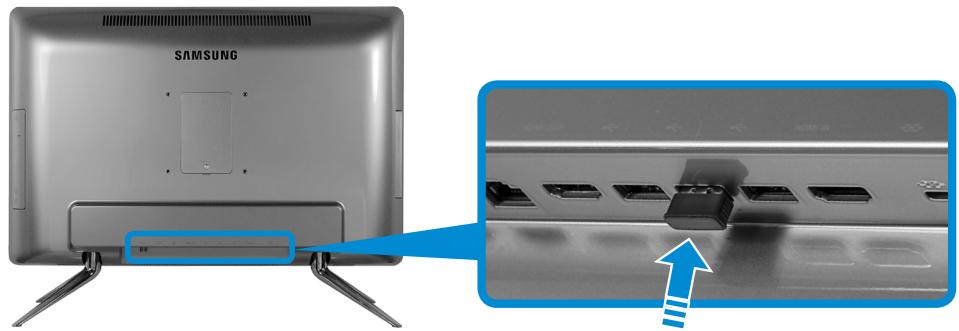

9	USB 2.0 Port	You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.
10	Digital Video/ Audio Input Port (HDMI-IN) (Optional)	You can connect an HDMI cable to this port.You can connect the HDMI port to a device with an HDMI output port and use this product as a monitor with digital video and audio output from the device.

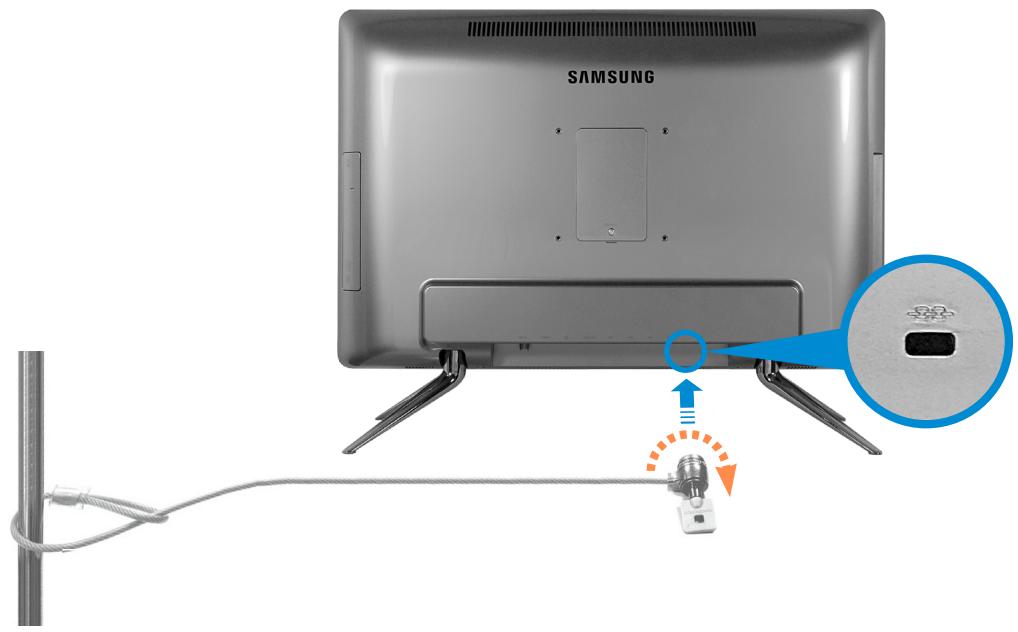

11	Security Slot	You can secure the computer by connecting a lock and cable to the Security Slot.

Turning the computer on

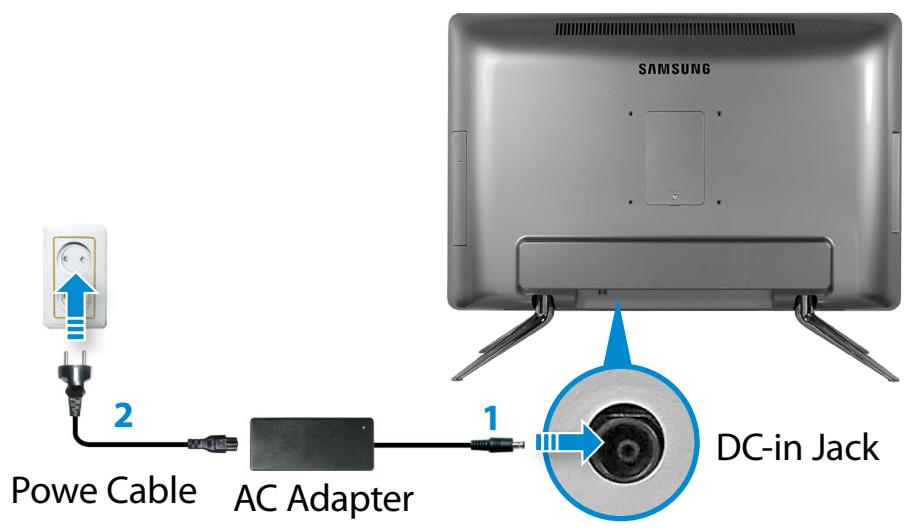

1 Connect the AC adapter.

SAMSUNG 2 Power Cable AC Adapter 1 DC-in Jack

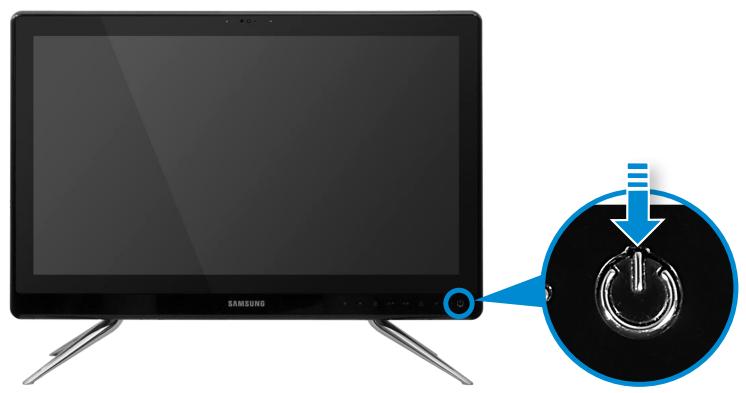

2 Press the Power button to turn the computer on.

Power indicator is lit while the computer is turned on.

SAMSUNG

About Windows Activation

When you turn the computer on for the first time, the Windows activation screen appears.

Follow the activation procedures according to the instructions on the screen to use the computer.

If the screen is not displayed when you turn the computer on (for corresponding models only)

• Press the touch button ⚙️ × to turn the LCD on.

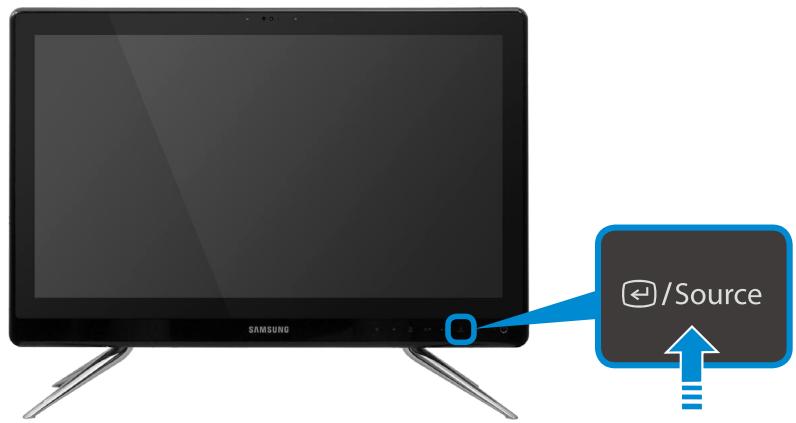

• If "HDMI" message is displayed on the screen, press the touch button ←/Source to switch the LCD panel to the PC mode.

Turning the computer off

• Since the procedures to turn the computer off may differ depending on the installed operating system, please turn the computer off according to the procedures for the purchased operating system.
• Save all your data before clicking on Shut down.

1 The Charms menu appears when you place your mouse pointer at the edge of the top or bottom right of the screen.

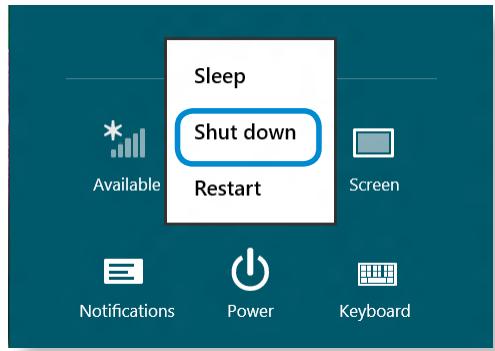

2 Click Settings ⏻ > Power ⏻ > Shut down.

Sleep Shut down Restart Available Screen Notifications Power Keyboard

If you want to power off your computer when you are logged out, unlock the screen and click Power ⏻ > Shut down.

Windows logo with four blue squares arranged in a 2x2 grid inside a white circle (no text or symbols)

Chapter 2. Using Windows 8

What is Microsoft Windows 8? 30

Screen At a Glance 31

Using the Charms 33

Using Apps 35

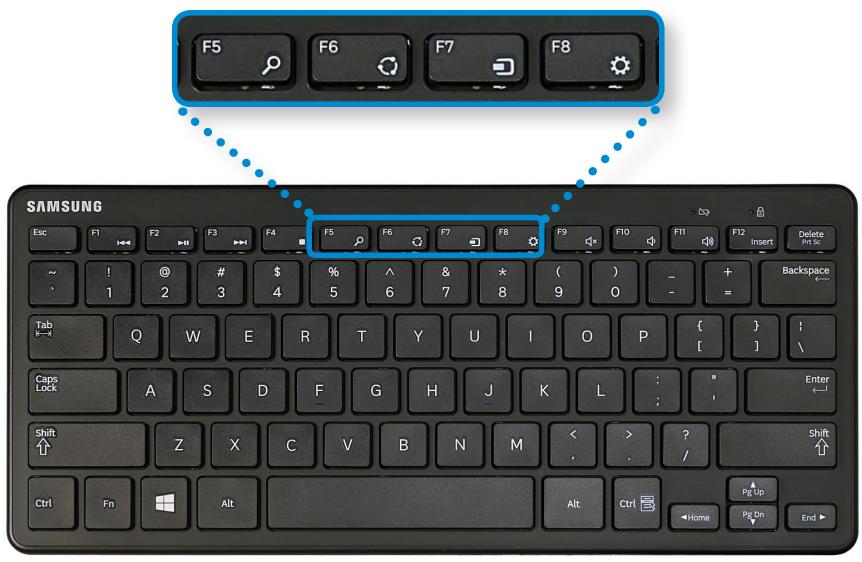

Windows Hot Key Function 38

Using a Touch Screen (Touch screen models only) 39

What is Microsoft Windows 8?

Microsoft Windows 8 (hereafter referred to as Windows) is an operating system that is required for operating a computer.

To use your computer optimally, you need to know how to use it properly. Therefore, It is better to learn how to use Windows by utilizing Windows Help and Support.

• The screen may appear somewhat different depending on the model and the operating system.
• Since this guide has been prepared based on Windows 8, some of the instructions may differ depending on the version. It may also be modified without prior notice.
• The descriptions here are for using a mouse. For the descriptions on using a touch screen, refer to the Using the Touch Screen section.

Displaying Help

Press the F1 Key on the keyboard to display the Help.

Alternatively, place your mouse cursor over the end of the top or bottom right area on the screen to display the Charms menu.

Click Charms menu > Settings > Help.

If you are connected to the internet, you can access the most recent online Help.

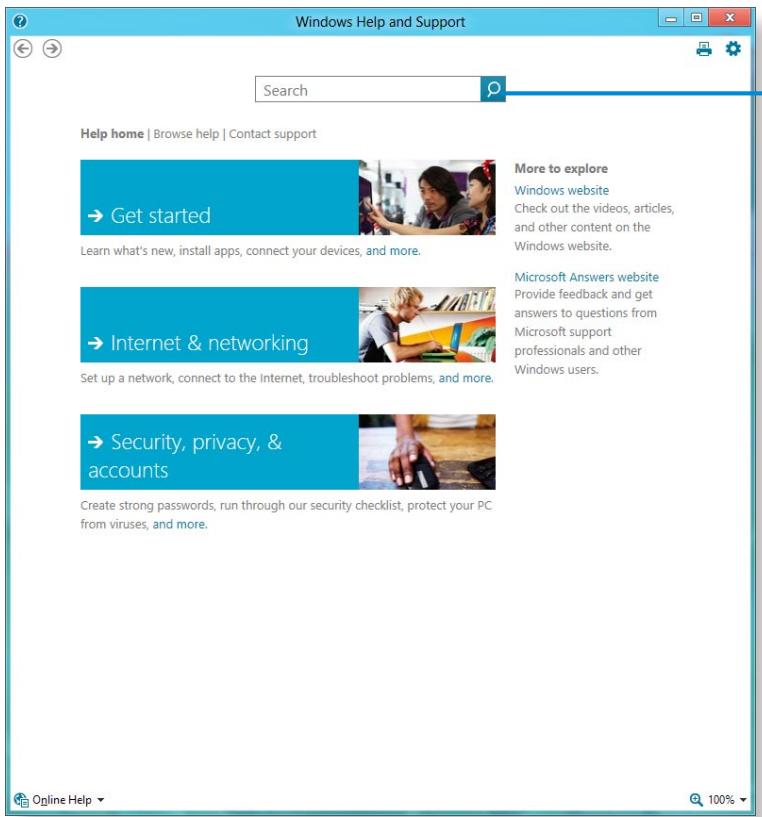

Windows Help and Support Search Help home | Browse help | Contact support → Get started Learn what's new, install apps, connect your devices, and more. More to explore Windows website Check out the videos, articles, and other content on the Windows website. → Internet & networking Set up a network, connect to the Internet, troubleshoot problems, and more. Microsoft Answers website Provide feedback and get answers to questions from Microsoft support professionals and other Windows users. → Security, privacy, & accounts Create strong passwords, run through our security checklist, protect your PC from viruses, and more. Online Help

Searching for Help

Get Started	You can view basic instructions on how to use your computer including new function(s) for the Windows OS.
Internet & networking	After connecting to the network, you can check the Help section required to use the internet.
Security, privacy, & accounts	You can check the Help information required to protect your computer and personal information.

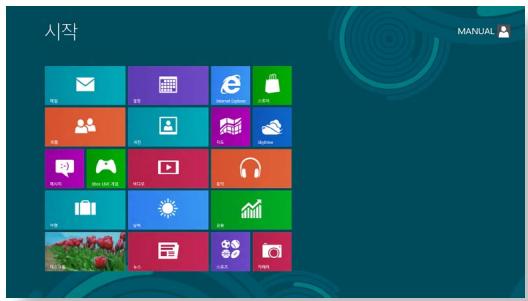

Windows 8 provides both the new Start screen mode and the Desktop mode of the existing OS.

Field of red tulips with green leaves against a blue sky background (no text or symbols visible)

Desktop

Start Screen

When you turn on the computer, the Start screen is displayed, which allows you to use the applications (Application, App, hereafter referred to as an App) at the same location.

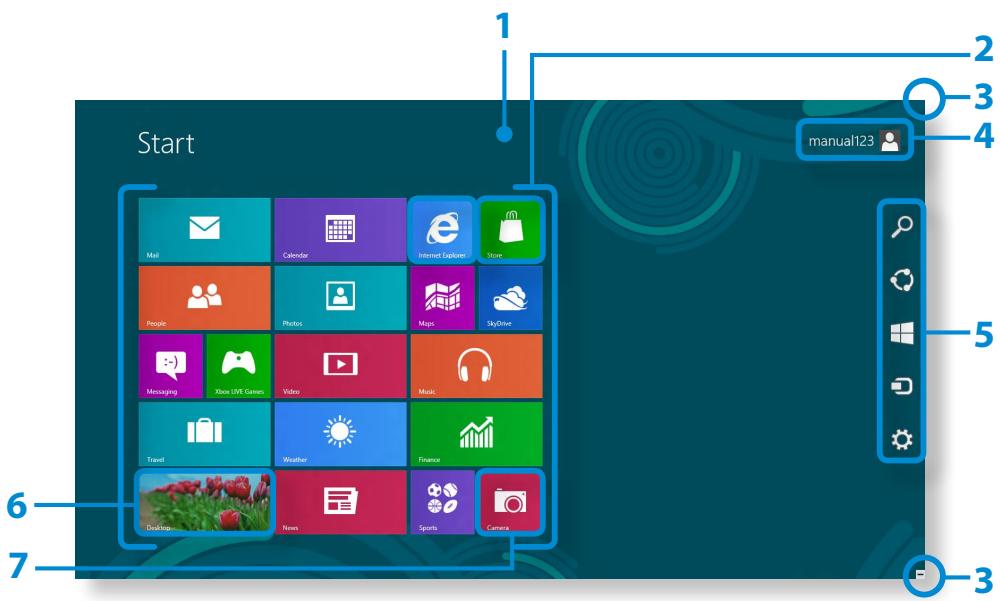

Start mail Calendar Internet Explorer Store People Photos Maps SkyDrive Messaging Xbox LIVE Games Video Music Travel Weather Finance Desktop News Sports Camera manual123 2 3 4 5 6 7

1	Start Screen	Refers to the default Start screen of Windows 8.
2	App	Refers to the apps that are currently installed.
3	Displaying the Charms	The Charms is hidden at the right of the screen. Place your mouse pointer at the edge of the top or bottom right of the screen to display the Charms.
4	User Account	This refers to the currently used user account.
5	Charms	This refers to the menu that allows you to use functions such as Search, Share, Start, Device and Settings.
6	Desktop	Switches to Desktop mode.
7	Camera	Allows you to take pictures or make a movie.

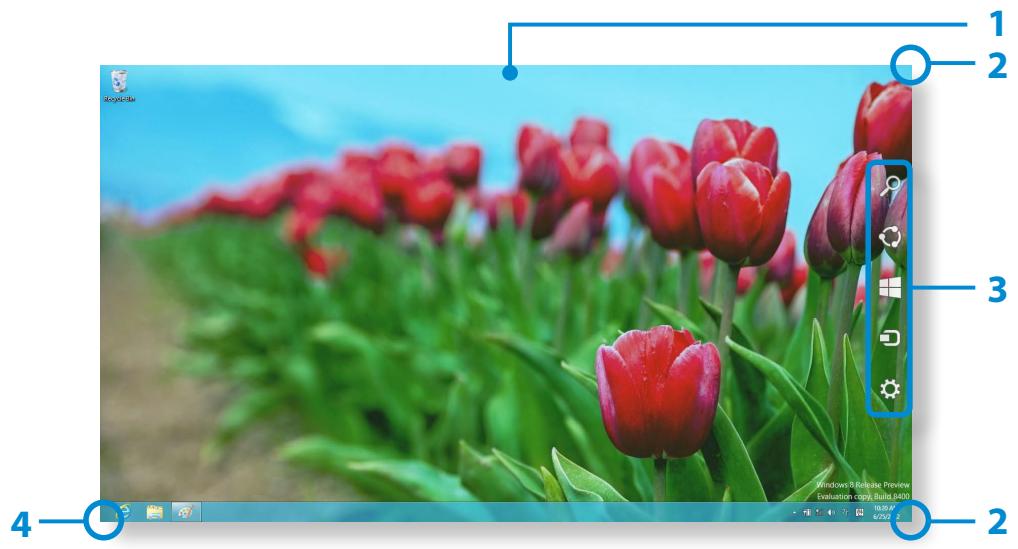

Desktop

This provides similar functions to those provided by the Desktop in prior Windows versions.

Field of red tulips under a blue sky, no visible text or symbols on the flower or background

1	Desktop	Refers to the Desktop.
2	Displaying the Charms	The Charms is hidden at the right of the screen. Place your mouse pointer at the edge of the top or bottom right of the screen to display the Charms.
3	Charms	This refers to the menu that allows you to use functions such as Search, Share, Start, Device and Settings.
4	Switching to the Start Screen	Click the corner of the bottom left of the screen to switch to the Start screen.

Displaying Documents and Files

Click Windows Explorer in the taskbar on the Desktop search for documents and files.

to

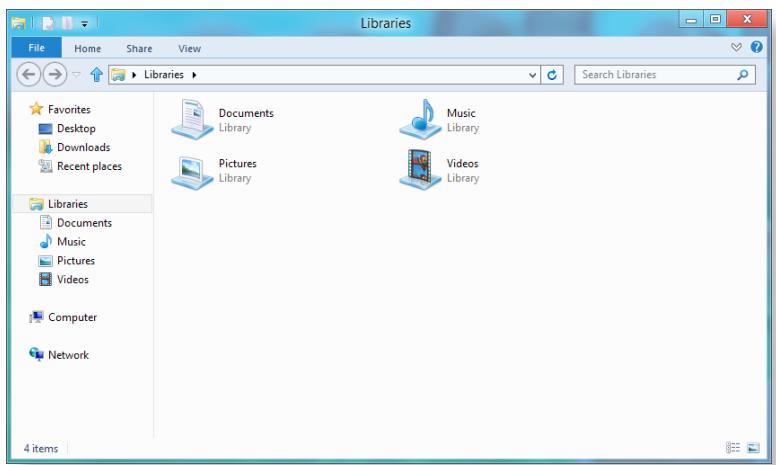

Libraries File Home Share View Search Libraries Favorites Desktop Downloads Recent places Libraries Documents Music Pictures Videos Computer Network 4 items

The Charms is a new type of menu that combines the Start menu with the Control Panel of existing Windows.

The Charms allows you to quickly configure the device(s) connected to your computer, search for App(s)/file(s), and use the sharing function, etc.

Activating the Charms

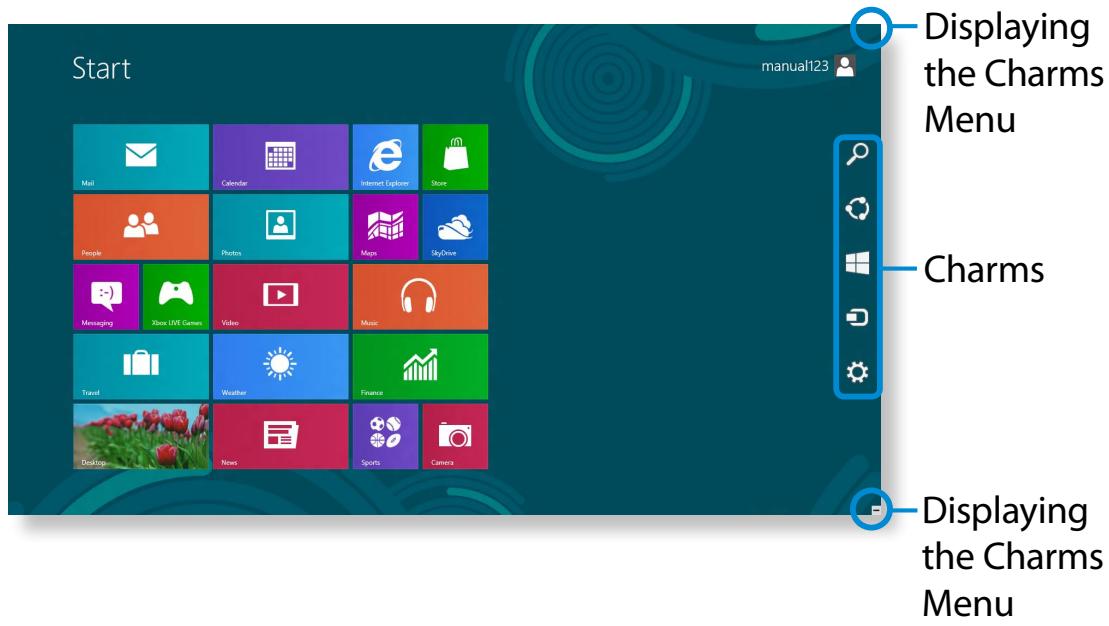

If you move your mouse pointer to the top or bottom right corner of the screen, the Charms appears.

Start mail Calendar Internet Explorer Store People Photos Maps SkyDrive Messaging Xbox LIVE Games Video Music Travel Weather Finance Desktop News Sports Camera Displaying the Charms Menu Charms Displaying the Charms Menu manual123

Search	If you want to search for a program or file in the App(s)/ Settings/File(s), simply enter a keyword in the Search charm and start Search.You can also search within an App or on the Web.
Share	You can use this menu to transfer a picture or file to another user. You can easily share pictures or files with other users simply by associating multiple Apps with the Share charm.
Start	You can move to the Start screen.
Device	As this allows you to move directly to a desired device, you can handle tasks such as importing pictures from a digital camera, streaming a video to your TV or transferring files to a device on the current screen.
Settings	The Settings charm allows you to perform basic tasks such as adjusting the volume, turning off the PC, etc. If you select the Settings charm while a specific App is running, the settings for the currently running App are displayed.

Changing the Settings

Frequently used Windows menus are collected.

Click the Charms > Settings.

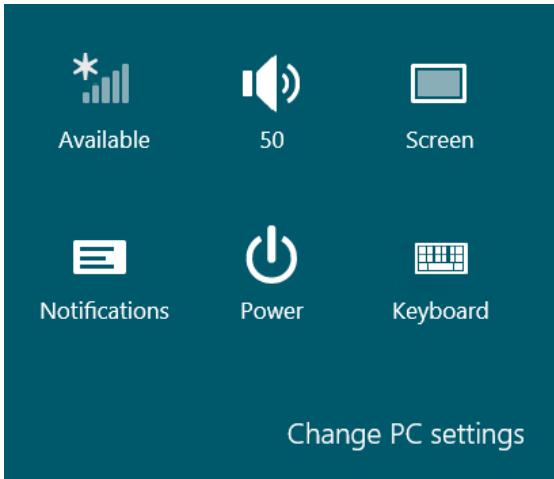

Available 50 Screen Notifications Power Keyboard Change PC settings

Icon	Name	Function Description
	Wireless Network	You can connect to a wireless network. Select a wireless network to connect to.
	Adjusting the Volume	You can adjust the volume or mute the sound.
	Notice	You can set the interval at which an App sends notices.
	Power	You can turn off your computer or select the Power Options.
	Keyboard	You can set the Language or launch Touch keyboard.

Change PC settings

You can change more settings.

An App refers to an application program (hereafter referred to as an App). In a larger sense, it refers to all the software programs installed on the operating system.

Windows 8 provides basic Apps for frequently performed tasks.

Starting/Exiting an App

Click on an App in the Start screen to activate it.

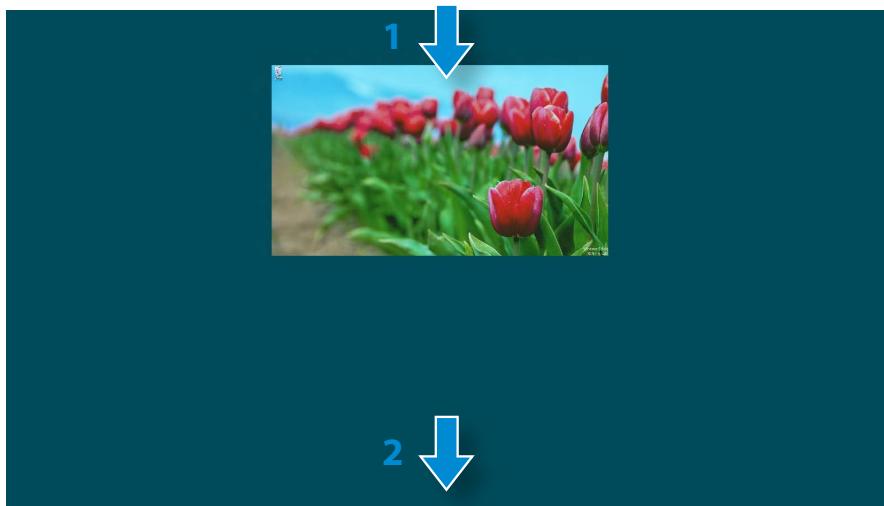

To exit the App

1 Move your mouse pointer to the top of the screen. Your mouse pointer changes to a hand shape.
2 Click and hold your mouse button and then drag it to the bottom of the screen. The App moves downward and disappears and exits.

Field of red tulips in a green field under a blue sky, with arrows pointing to positions 1 and 2 (no text or symbols on the image itself)

Using Apps

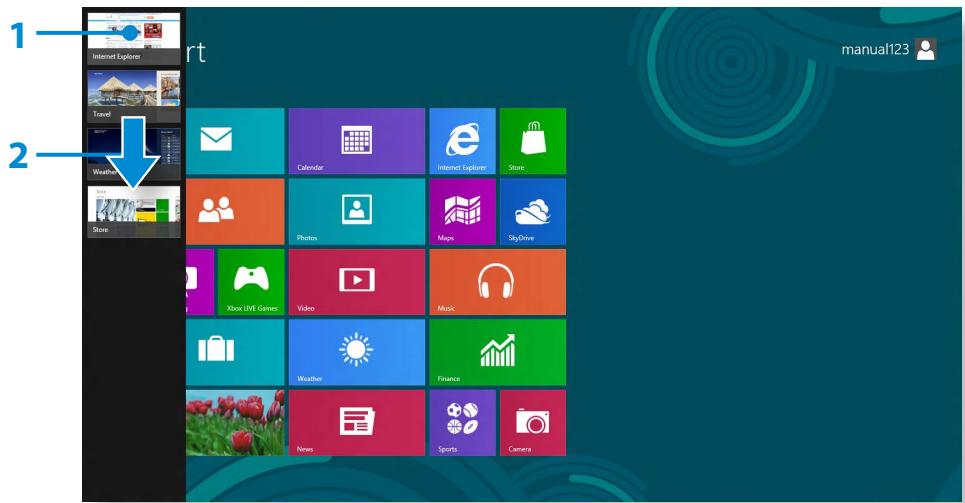

Displaying Currently Running App(s)

1 Move your mouse pointer to the top left corner of the screen to display the last run App.
2 Then, move your mouse pointer down to display a list of the currently running Apps in order.
3 Click on an App in that list or drag it to the center of the screen. Now, you can check the selected App which is currently running.

Right-click over the App in the list and click Close to exit the App.

1 Internet Explorer Travel Weather Store 2 rt Calendar Internet Explorer Store Photos Maps SkyDrive Kbox LIVE Games Video Music Weather Finance News Sports Camera manual123

Running Two Apps at the Same Time

1 Select the Apps in the Start screen.
2 Move your mouse pointer to the top of the screen. Your mouse pointer changes to a hand shape.
3 If you click and hold your mouse button and move left or right, you can split the screen to display multiple Apps.
4 Move the Screen Split Bar to change the screen split ratio. Supported screen split ratios are 3:7 or 7:3.

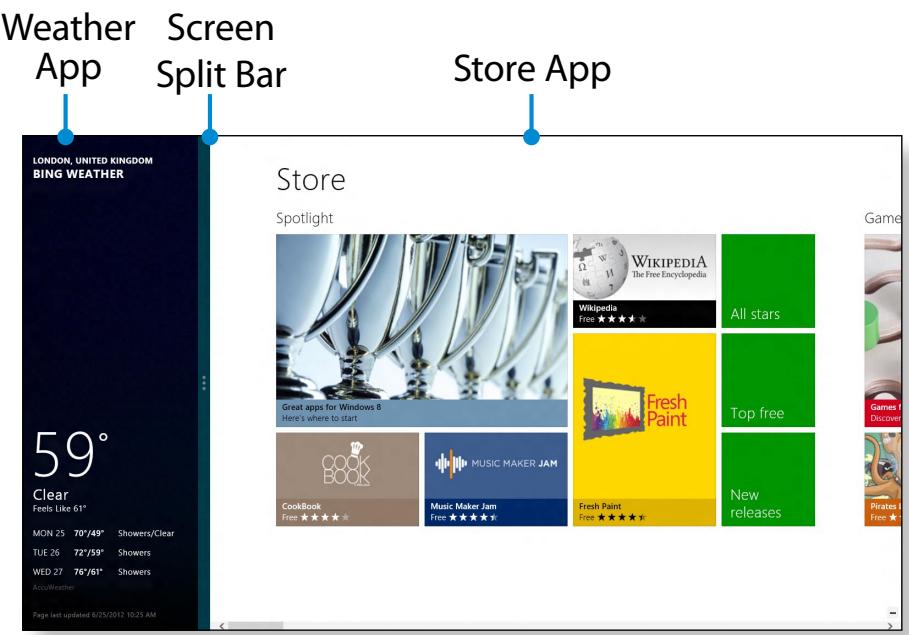

Weather App Screen Split Bar Store App LONDON, UNITED KINGDOM BING WEATHER 59° Clear Feels Like 61* MON 25 70"/49" Showers/Clear TUE 26 72"/59" Showers WED 27 76"/61" Showers Acc/Weather Page last updated 6/25/2012 10:25 AM Store Spotlight WIKIPEDIA The Free Encyclopedia Wikipedia Free ★★★★☆ All stars CookBook Free ★★★★☆ MUSIC MAKER JAM Music Maker Jam Free ★★★★☆ Fresh Paint Fresh Paint Free ★★★★★☆ Game Top free New releases Games Discover

Ex) If you run the Weather App and Store App at the same time

Adding/Removing an App to/from the Start Screen

Click Start screen > right-click your mouse button.

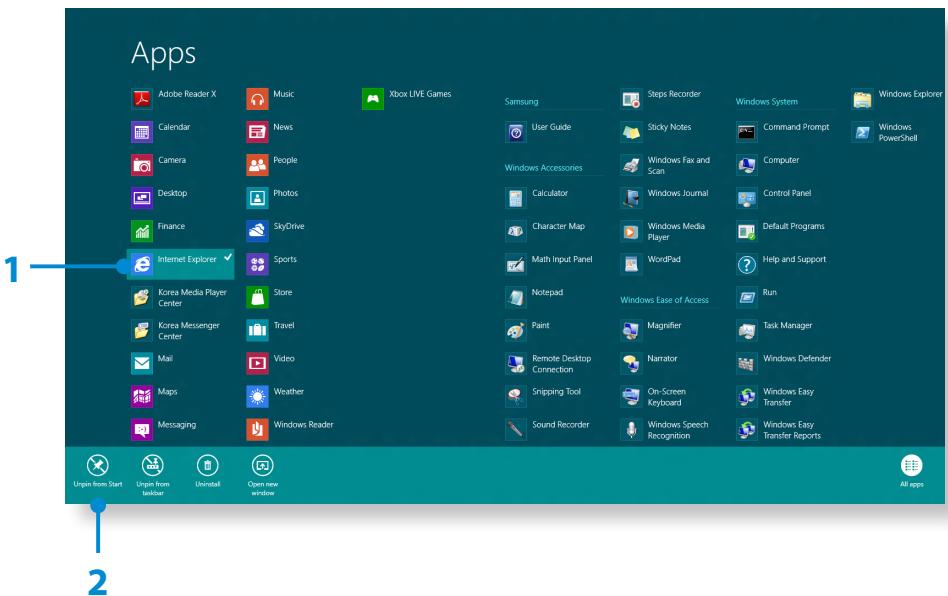

Click All Apps 📄 at the bottom of the screen to display all the Apps that are currently installed.

1 If you right-click over the App to be added, the relevant menu is activated at the bottom of your screen.

2 Click Pin to start 🔗 or Unpin from Start 🔗.

Apps Adobe Reader X Music Xbox LIVE Games Samsung Steps Recorder Windows System Windows Explorer Calendar News User Guide Sticky Notes Command Prompt Windows PowerShell Camera People Windows Accessories Windows Fax and Scan Computer Desktop Photos Calculator Windows Journal Control Panel Finance SkyDrive Character Map Windows Media Player Default Programs Internet Explorer ✓ Sports Math Input Panel WordPad Help and Support Korea Media Player Center Store Notepad Windows Ease of Access Run Korea Messenger Center Travel Paint Magnifier Task Manager Mail Video Remote Desktop Connection Narrator Windows Defender Maps Weather Snipping Tool On-Screen Keyboard Windows Easy Transfer Messaging Windows Reader Sound Recorder Windows Speech Recognition Windows Easy Transfer Reports Urgen from Start Urgen from Taskbar Uninstall Open new window All apps

Ex) When removing an App in the Start screen

Using the Windows Store

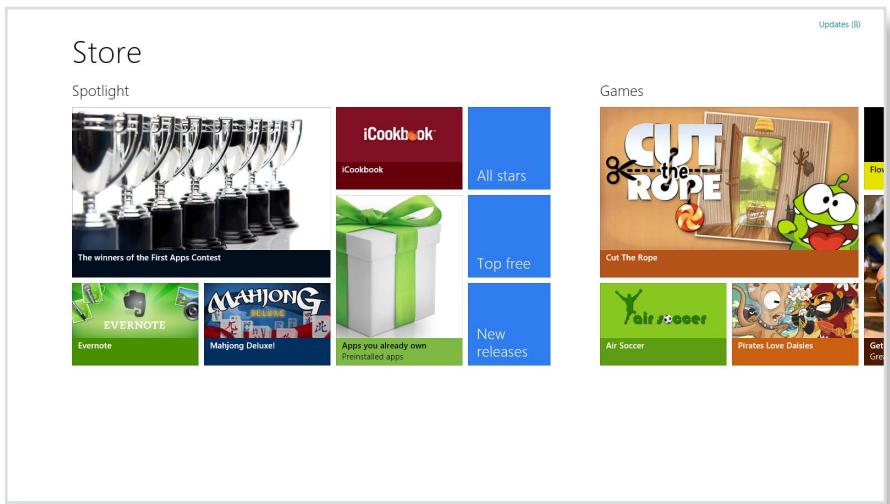

If you run the App Store in the Start screen, the Apps in the Windows Store are displayed.

However, a Microsoft account is required to purchase App(s) in the Windows Store.

Continue after registering your Microsoft Account in the Charms.

Store Spotlight The winners of the First Apps Contest EVERNOTE Mahjong Deluxe! iCookbook All stars Top free New releases Games Cut The Rope Air Soccer Pirates Love Daisies Get Green

Configuring your Microsoft Account

A Microsoft Account allows you to synchronize your settings with other device(s) running Windows 8 online allowing you to share file(s) or settings.

You should register a Microsoft Account to download or purchase App(s) from the Store.

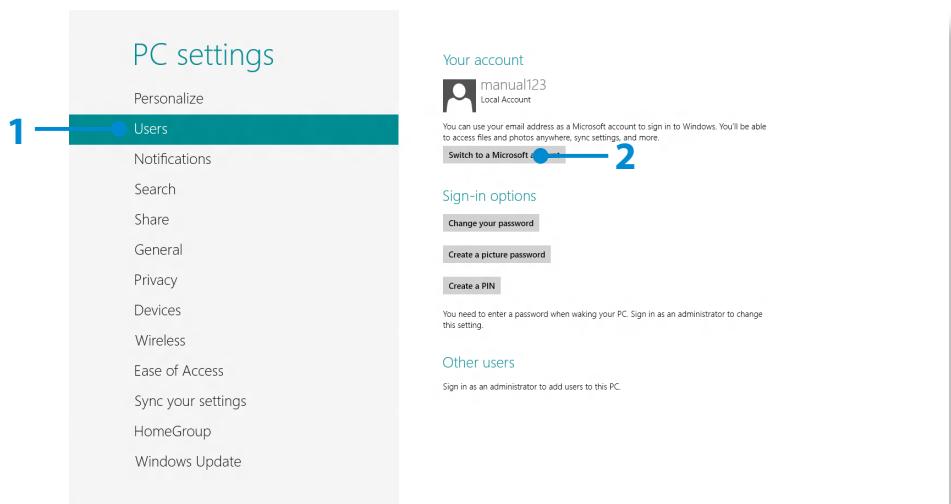

1 Run the Charms and click Settings > Change PC Settings.
2 Click Users > Your account > Switch to a Microsoft account.
3 Register your account through the following relevant procedures.

PC settings Personalize Users Notifications Search Share General Privacy Devices Wireless Ease of Access Sync your settings HomeGroup Windows Update Your account manual123 Local Account You can use your email address as a Microsoft account to sign in to Windows. You'll be able to access files and photos anywhere, sync settings, and more. Switch to a Microsoft account 2 Sign-in options Change your password Create a picture password Create a PIN You need to enter a password when waking your PC. Sign in as an administrator to change this setting. Other users Sign in as an administrator to add users to this PC.

Windows Hot Key Function

You can use the following convenient hot keys in Windows 8.

Function	Hot Keys	Function Description
Displaying the Start Screen	Windows Key	Switches to Start mode.
Displaying the Desktop	Windows Key + D	Switches to Desktop mode.
Running the Charms	Windows Key + C	Activates the Charms.
Locking the Screen	Windows Key + L	Locks the screen.
Opening the Ease of Access Center	Windows Key + U	Opens the Ease of Access Center configuration.
Opening the Second Screen Settings	Windows Key + P	Opens the External Monitor Settings menu.
Opening the Advanced Management Tool	Windows Key + X	Opens the Advanced Management Tool.
Exit App	Alt + F4	Exits the currently running App.

A touch screens allows you to use your computer without a keyboard or mouse.

The touch screen instructions also describe the functions which can be activated via the touch screen.

• If you are using your computer for a long period of time, it is recommended using a keyboard and mouse.
• Make sure to operate your touch screen using your finger. If you operate your touch screen with a hard object, it will not work.
• If there any foreign substances such as insects or water on the touch screen, your touch screen will not work properly.

Using a Touch Screening

• This function is supported by Windows 8 touch screen models and is activated by some applications.
• In addition, please note that supported functions may differ depending on the application.

Learning about Basic Touch Screen Operations

The touch screen interface is supported in Windows 8.

You can easily learn how to use the touch screen conveniently.

Touch Operation		Function Description

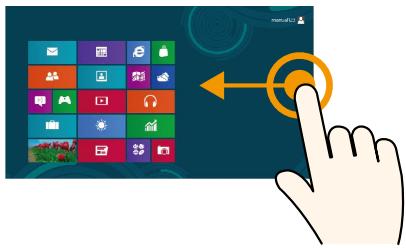

	Dragging from the right edge toward the center	Displays the Charms menu which is hidden at the right of the screen.
	Dragging from the left edge toward the center	Displays the last run App.

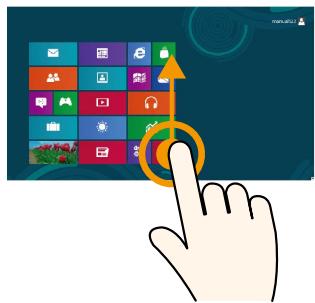

	Dragging from the bottom edge upward or from the top edge downward	Displays the options for the currently running application.
	Touching slightly (Clicking)	Slightly press with your finger to select an item.(If you slightly touch a specific menu, option, application icon, etc. on the screen, the corresponding capability is activated.)
	Touching twice (Double-clicking)	Slightly press twice with your finger to select an item.
	Touching and dragging	Moves the selected target or moves to the next page.You can draw a picture or write some letters with this operation.
	Rotating with more than 2 fingers	Rotates the selected target.
	Spreading 2 fingers widely or bringing them towards each other	Zooms in or out of the target.
	Touching and holding for a while (Right-clicking your mouse)	Provides the same function as right-clicking your mouse button.Displays the additional options which can be set for the selected target or more detailed information.
	Touching and dragging 2 fingers up/down, left/right (Scrolling)	Moves up/down, left/right. Provides the same function as scrolling your mouse.

Calibrating the Screen

If you are using the touch screen for the first time or the pointer is not aiming correctly and the accuracy has declined, calibrate your screen.

The screen calibration process may differ depending on the OS. It may not be supported by some operating systems.

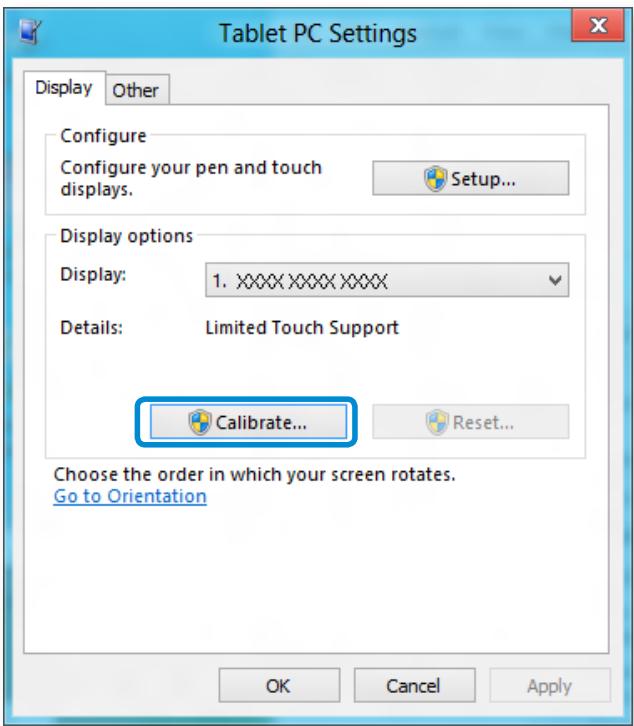

1 On the Desktop, press the Charms menu > Settings > Control Panel > Tablet PC Settings > Calibration. Then press OK.

Tablet PC Settings Display Other Configure Configure your pen and touch displays. Setup... Display options Display: 1. XXXX XXXX XXXX Details: Limited Touch Support Calibrate... Reset... Choose the order in which your screen rotates. Go to Orientation OK Cancel Apply

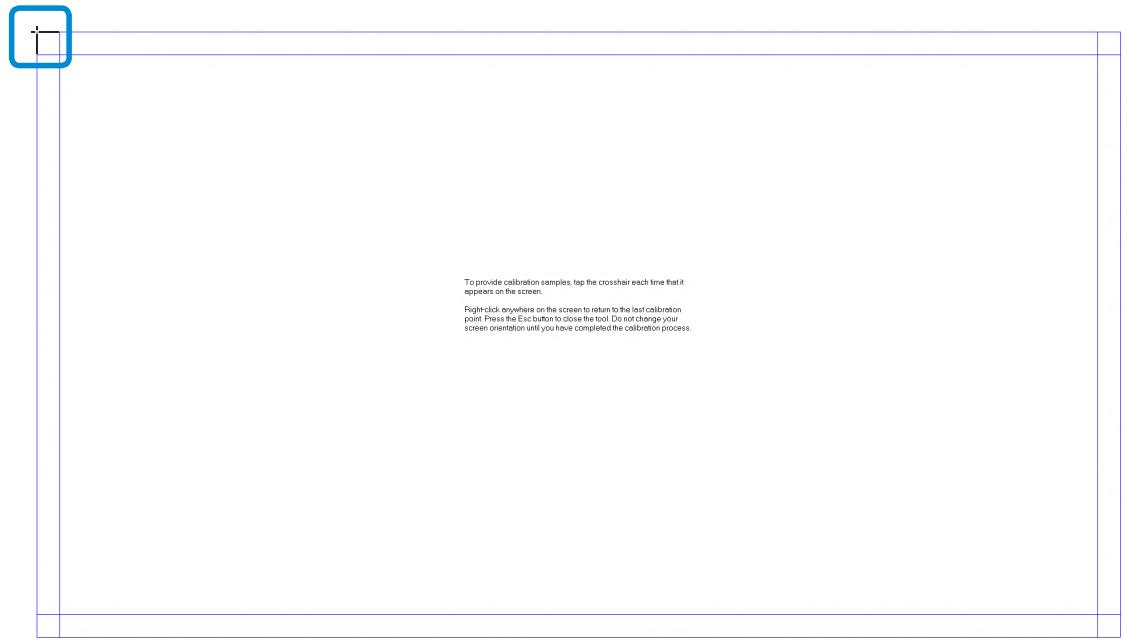

2 When the Calibration window appears, press the + mark by following the onscreen instructions.

To provide calibration samples, tap the crosshair each time that it appears on the screen. Right-click anywhere on the screen to return to the last calibration point. Please the Exit button to close the tool. Do not change your screen orientation until you have completed the calibration process.

3 The input location of your touch screen is calibrated.

Entering Characters

You can enter characters using the keyboard and the Tablet PC Input Panel.

Entering characters may differ depending on the operating system and is not supported by some operating systems.

If you are using your computer for a long period of time, it is recommended using the keyboard.

Entering characters is explained using an example with notepad.

Using the Tablet PC Input Panel

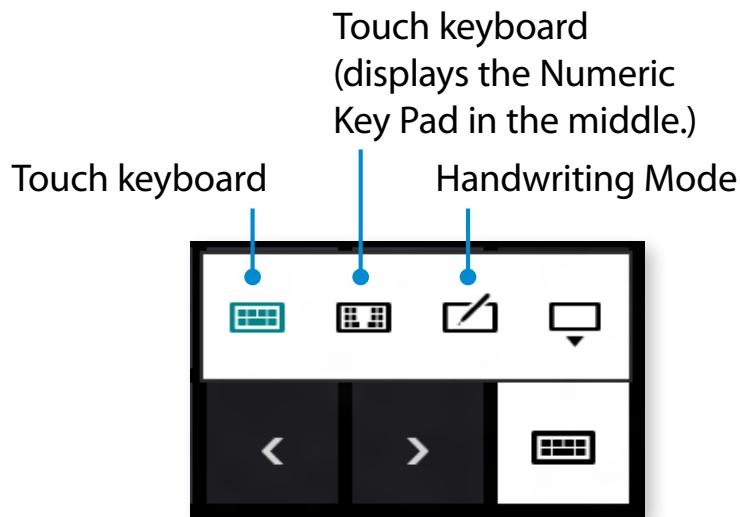

The Tablet PC Input Panel is an onscreen keyboard provided by Windows.

Follow the descriptions and illustrations on how to use the Touch keyboard and handwriting mode.

1 From the Start Screen, right-click any area and select All apps 📋 in the bottom right corner.

Then, click Notepad.

2 Put your hand on the Notepad screen to display the cursor.

3 On the Desktop, press the 📄 at the right of the taskbar to display the Tablet PC Input Panel.

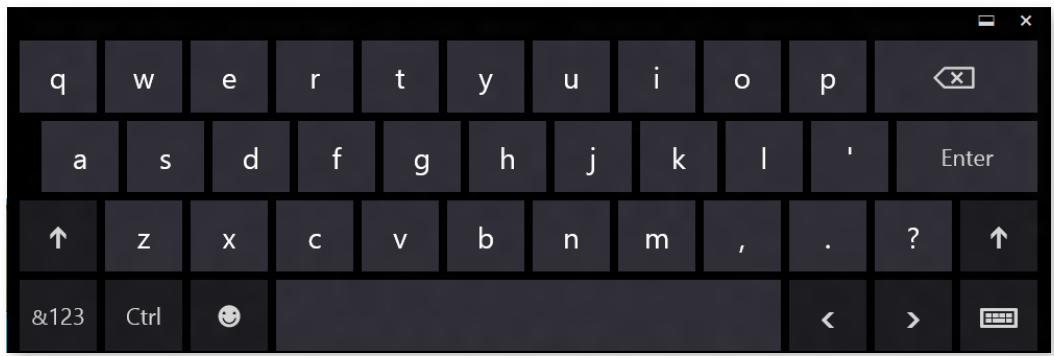

q w e r t y u i o p a s d f g h j k l ' Enter ↑ z x c v b n m , . ? ↑ &123 Ctrl < >

Touch keyboard Touch keyboard (dispays the Numeric Key Pad in the middle.) Handwriting Mode

[Input Mode]

Entering characters using the Touch keyboard

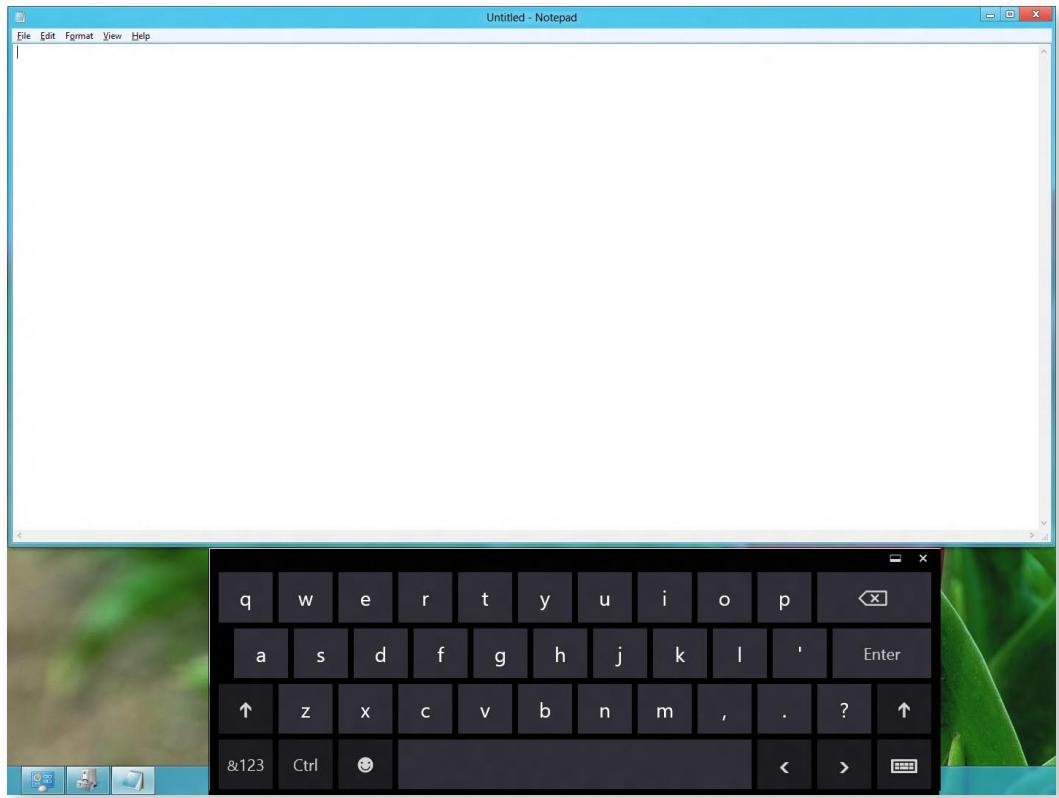

The Touch keyboard has the standard keyboard layout which allows you to select keys to enter characters.

1 Press the Touch keyboard icon 📄 in the Tablet PC Input Panel.
2 Press the keys to enter your characters.

Untitled - Notepad File Edit Format View Help q w e r t y u i o p a s d f g h j k l ' Enter ↑ z x c v b n m , . ? ↑ &123 Ctrl < >

Entering characters in Handwriting Mode

You can enter characters by writing them in the Handwriting Mode Input Panel on the touch screen.

1 Press the Handwriting Mode icon 📋 in Tablet PC Input Panel.
2 Write characters in the input area of the Handwriting Mode Input Panel on the touch screen.

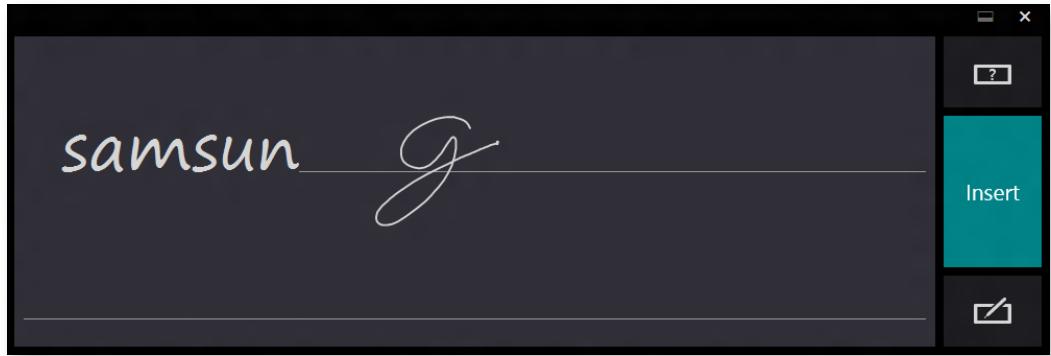

samsun g Insert

3 Press the Insert button to enter characters.

Note for Using the Touch Screen

• When using the touch screen, make sure to keep your hands clean and dry.
  In humid environments, dry off your hands and the surface of the touch screen before using the touch screen.
• Do not directly spray LCD display cleaner onto the touch screen. The cleaner may soak through the bottom of the touch screen. When using an LCD display cleaner, spray it onto a cloth to clean your touch screen.
  (If you use an abrasive cleaner or cloth, your touch screen may be damaged.)
• Do not apply severe shocks or impacts to the touch screen or press on it with a sharp object such as a pen.
  This may result in your touch screen being damaged.
• If your finger touches the screen too softly, the touch may not be recognized.
• When touching the screen, press on the item precisely with your finger and take care not to touch any other items.

• The touch screen sensors are located at the edges of the touch screen.
  When installing a protective cover and accessory, be careful not to cover the edges of the touch screen.

• Be careful not to damage the edges of the touch screen.
  If the edges of the touch screen are damaged, the touch screen may not work properly.

• If there any foreign substances such as insects or water on the touch screen, your touch screen will not work properly. Use your touch screen after removing all foreign substances.
• If you operate your touch screen with a hard object such as a nail, pen, etc., it will not work.

Abstract blue and white graphic of a computer mouse with a curved line, no text or symbols present.

Chapter 3.

Using the computer

Using a wireless keyboard/mouse (Optional) 47

Using hand gestures (Optional) 54

CD Drive (ODD, Optional) 57

Multi Card Slot (Optional) 59

Using the product as a monitor (Optional) 61

Adjusting the Volume 62

LCD Instruction 63

Wired Network 64

Wireless Network (Optional) 67

Using the TV (Optional) 69

Using the Remote Control (Optional) 75

Using the Multimedia App (Optional) 77

Sharing content using the AllShare Play app (Optional) 81

Samsung Software Update 90

Diagnosing the Computer Status and Troubleshooting 91

Using the Security Slot 92

Using a wireless keyboard/mouse (Optional)

The wireless keyboard and mouse are optional and the appearance and the color of the provided keyboard and mouse may differ depending on the model.

Installing the wireless receiver

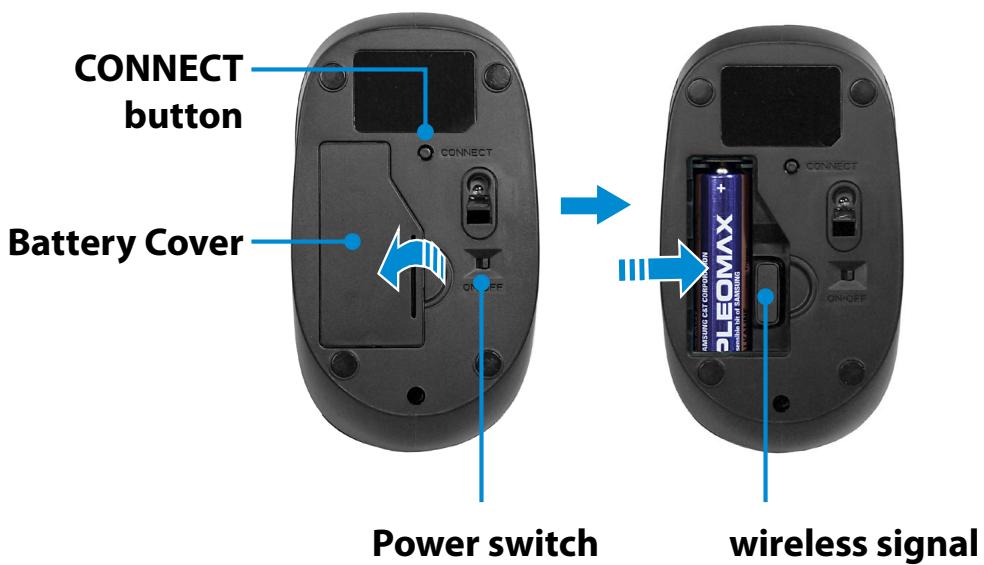

1 Open the Battery Cover at the bottom and insert the battery in the right polarity (+,-).

Example) Wireless mouse

CONNECT button Battery Cover CONNECT ON/OFF Power switch wireless signal

If you set this switch to the OFF position when not using the mouse, you can save battery power.

2 Insert the wireless signal receiver into the USB 2.0 port at the back of the computer.

SAMSUNG

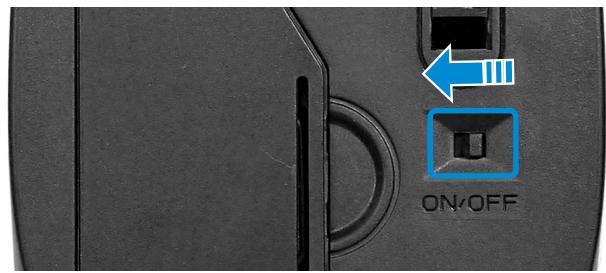

3 Slide the power switch at the bottom of the mouse to the ON position.

Example) Wireless mouse

ON/OFF

4 You can use the wireless keyboard and the mouse without additional settings.

• You can use the wireless keyboard and the wireless mouse within a 5m distance of the wireless signal sensor.
• The distance is subject to the surroundings and if there is interference nearby, in particular a wireless LAN AP, the distance may be decreased.

Wireless keyboard

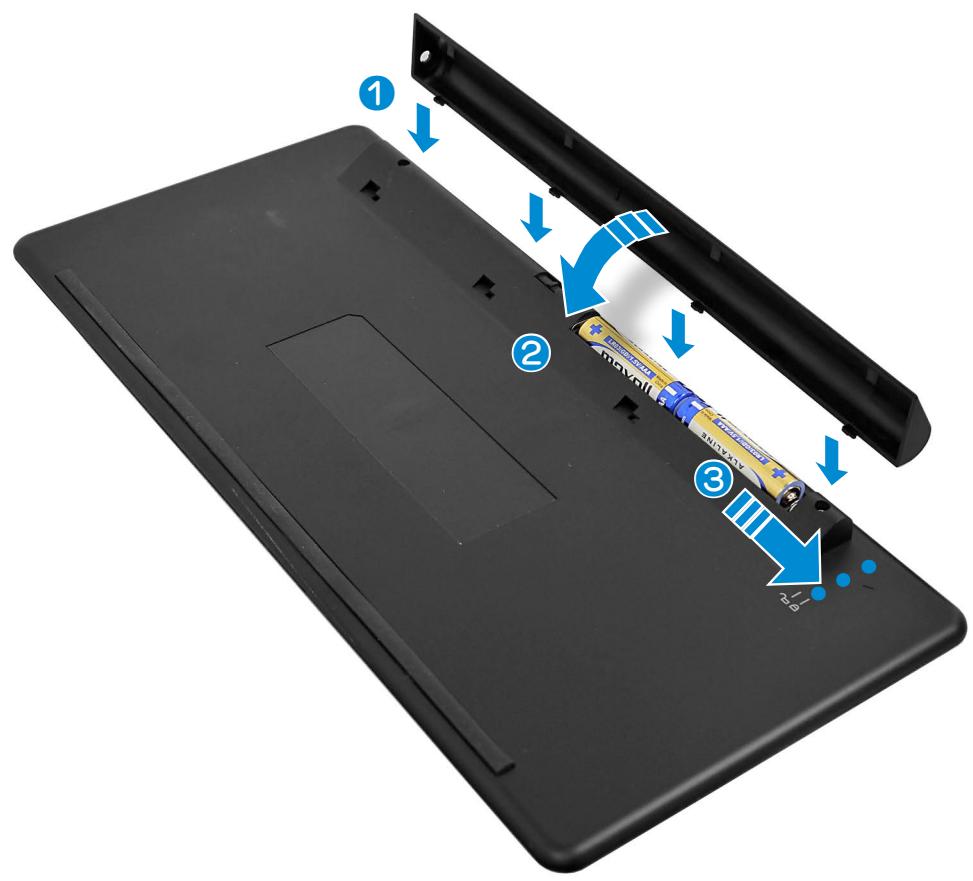

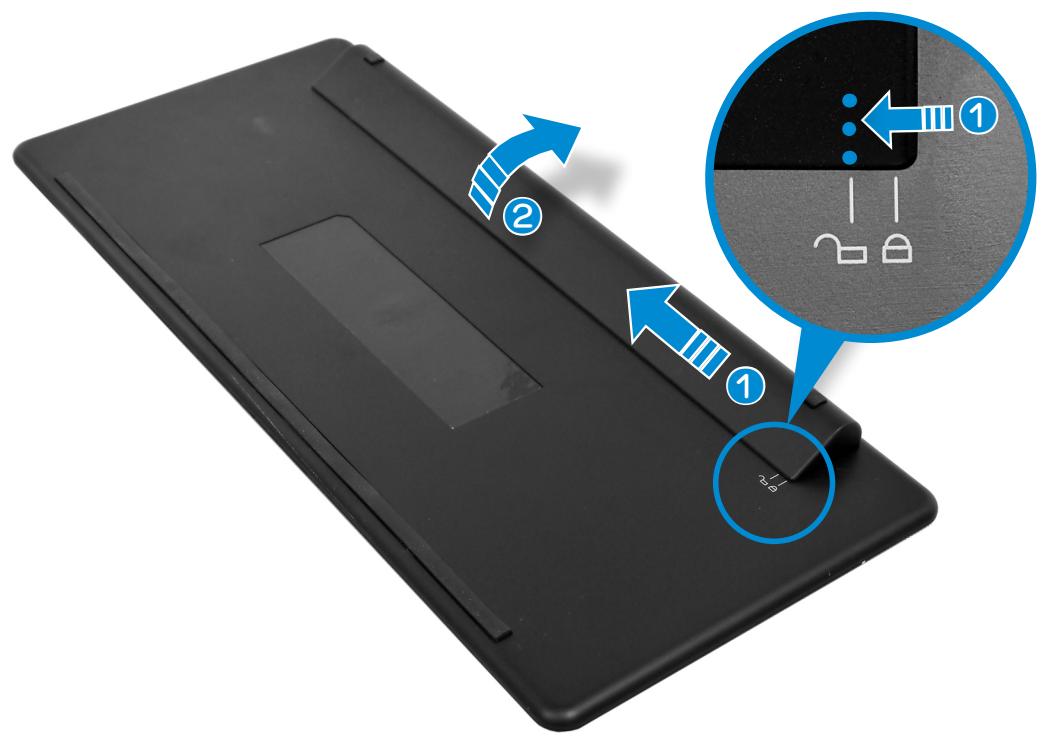

1 Slide the ① battery cover at the bottom of the keyboard from 🔒 to the 🔔 position and separate the ② battery cover.

Diagram showing a device with labeled parts and blue arrows indicating motion, including numbered annotations ① and ②.

2 Insert the batteries and then close the battery cover.

Diagram showing battery charging process with labeled components: battery, battery pack, and battery cover

• Be sure to confirm that the polarities (+ / -) of the batteries are correct.
• Do not recharge the batteries (AAA type) supplied with the product.

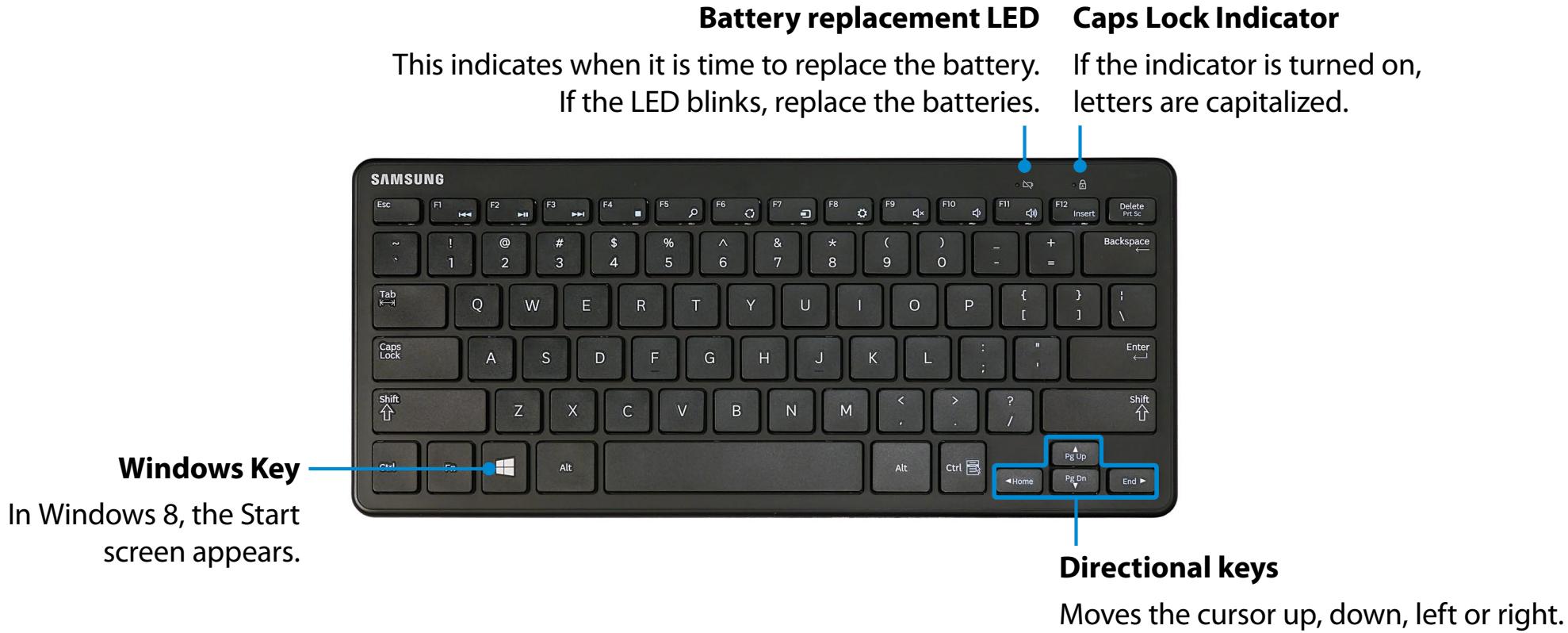

Battery replacement LED Caps Lock Indicator This indicates when it is time to replace the battery. If the LED blinks, replace the batteries. If the indicator is turned on, letters are capitalized. Windows Key In Windows 8, the Start screen appears. Directional keys Moves the cursor up, down, left or right.

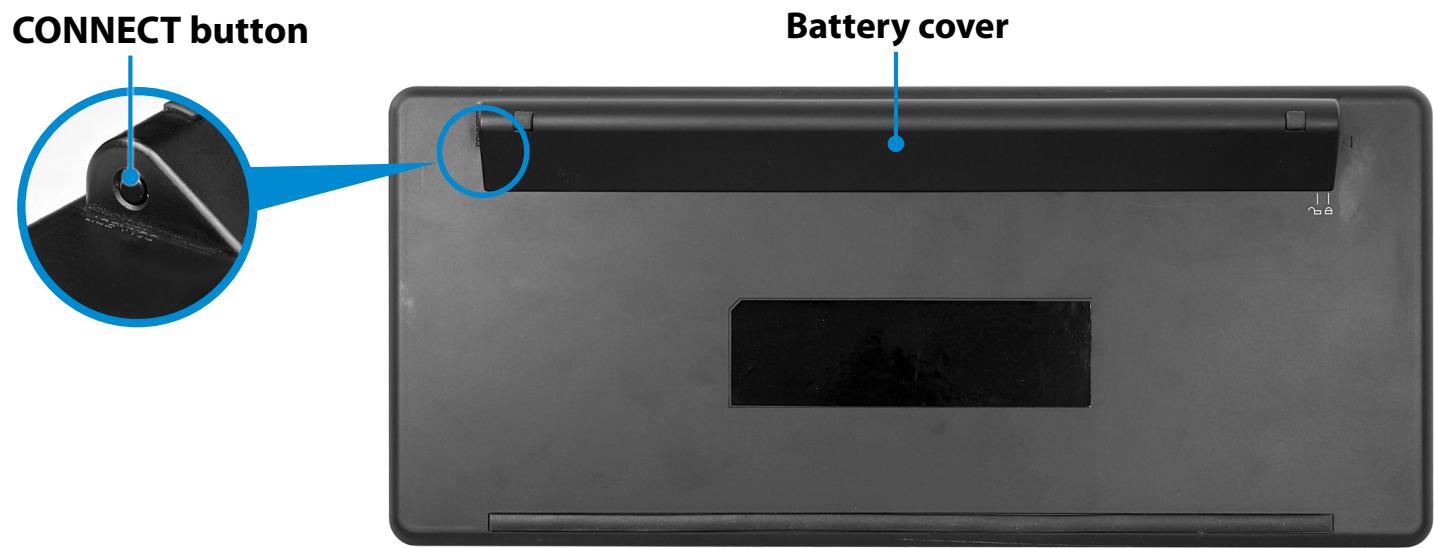

CONNECT button Battery cover

Using a wireless keyboard/mouse (Optional)

Windows 8 Charm Menu Key

(This function is only supported for Windows 8.)

F5 F6 F7 F8 SAMSUNG F5 F6 F7 F8 E5 C F1 F2 F3 F4 % ^ & ( ) + + Backspace 1 2 3 4 5 6 7 8 9 0 = Tab Q W E R T Y U I O P { } Cape Lock A S D F G H J K L : " Enter shift Z X C V B N M < , > Ctrl Fn Alt Alt Ctrl Home PG Up Pg Dn End ►

	Search	Runs the Search function in the Windows 8 menu.
	Share	Runs the Share function in the Windows 8 menu.
	Device	Launches the Device function in the Windows 8 menu.
	Settings	Launches the Settings in the Windows 8 menu.

The wireless keyboard automatically enters power-saving mode if there is no key input for a pre-determined period of time. Press any key to resume using the keyboard in power-saving mode.

However, a function to turn the keyboard off is not supported.

Wireless keyboard

Wheel button

Moves the pointer up and down.

Left button

Selects and launches an item.

Black Samsung computer mouse with blue indicator lines (no text or symbols on the mouse itself)

Right button

Shows the context-sensitive menus of programs.

Diagram illustrating computer mouse and Samsung monitor with directional arrows indicating data flow or interaction

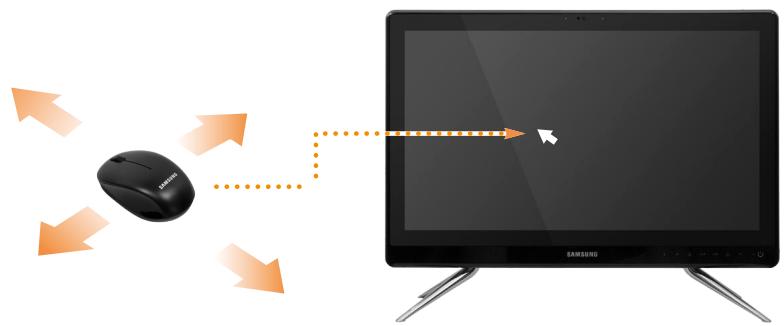

If you move the mouse, the pointer on the screen moves in the same direction.

Click function

Briefly press the left mouse button once.

If you click this mouse button once, the corresponding program is selected.

Double-click function

Quickly press the left mouse button twice.

The corresponding program is launched.

Right click function

If you click this mouse button once, the context-sensitive menu of the current program appears.

Drag function

Illustration of two computer mouse icons with an arrow indicating motion (no text or symbols)

Dragging refers to clicking an item and moving the item to another position while holding the mouse button down.

Click the left mouse button over an item to be dragged and move the item to the new position while holding the mouse button down.

Scroll function

If you turn the wheel button up or down, the screen moves up or down accordingly.

If the wireless keyboard does not work

▶ Check the batteries.

For the keyboard, check if the battery low indicator ☐ at the top right blinks.

If the indicator blinks, you need to replace the battery.

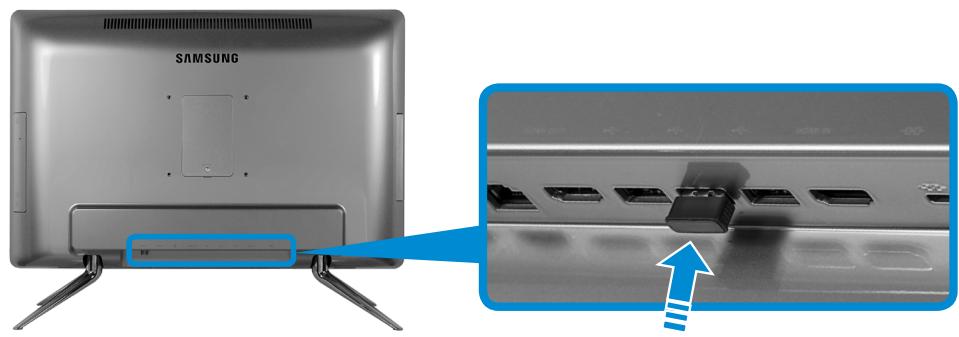

▶ Check the status of the wireless signal receiver.

1 Disconnect the wireless receiver from the main body and then reconnect it.

SAMSUNG

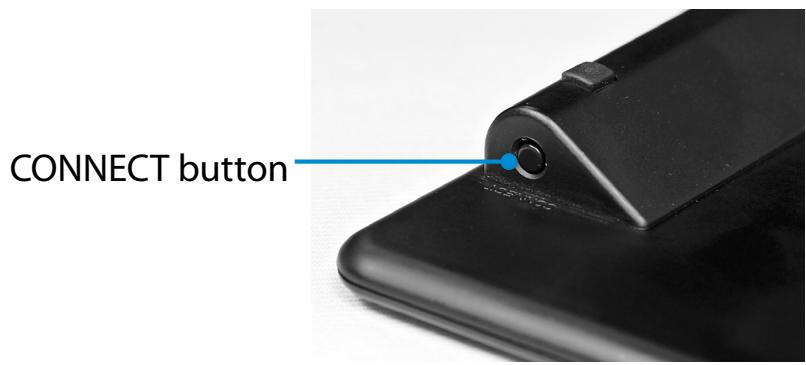

2 Within 30 seconds of reconnecting the receiver, press and hold the CONNECT button for 1 seconds near the receiver.

CONNECT button

3 Check if the device works properly.

If the wireless mouse does not work

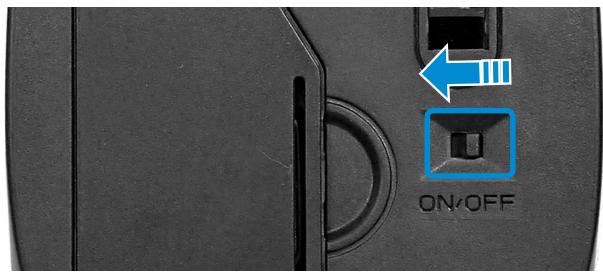

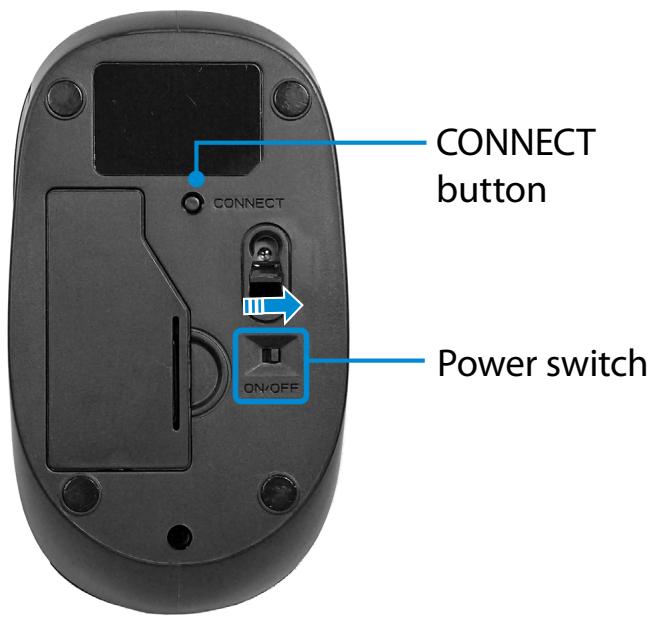

▶ When the power switch at the bottom of the mouse is in the OFF position, the mouse does not work. Turn the switch to the ON position.
▶ Check the batteries.
▶ Check the status of the wireless signal receiver.

1 Set the power switch at the bottom of the mouse to the OFF position.

CONNECT button ON/OFF Power switch

2 Disconnect and then reconnect the wireless signal receiver to the main body.

SAMSUNG

3 Set the power switch at the bottom of the mouse to the ON position.

ON/OFF

4 Within 30 seconds of reconnecting the receiver, press and hold the CONNECT button for 1 seconds near the receiver.
5 Check if the device works properly.

Using hand gestures (Optional)

You can turn the pages on the screen, and run and exit programs using hand gestures in front of the computer screen. In addition, you can turn the volume up or down and zoom in or out the screen.

1 Run the hand gesture program (Gesture Control).
From the Start Screen, right-click any area and select
all apps 📄 in the bottom right corner.
Then, click Gesture Control.

Recycle Bin SAMSUNG Place your palm code new 400 17:00 30.09.2012

Hand Gesture window

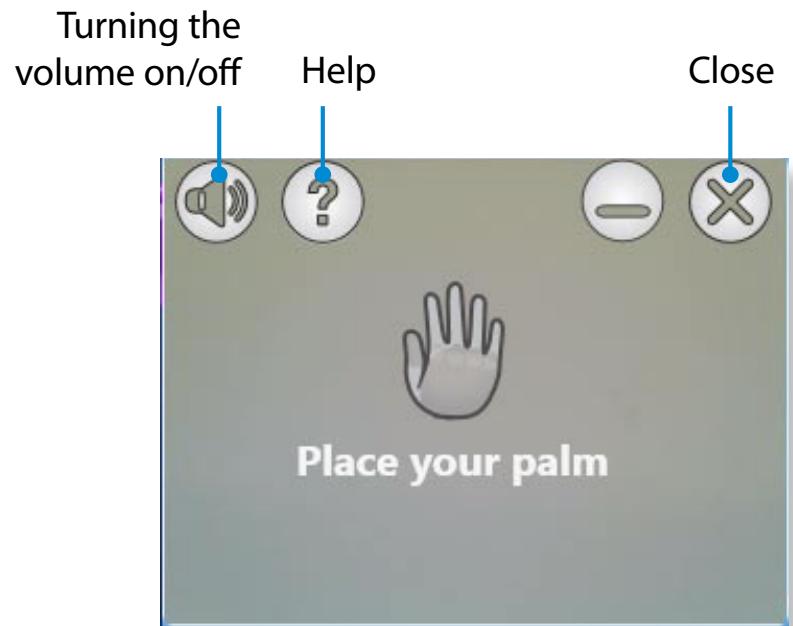

2 The Hand Gesture window appears on the right side of the screen.

Turning the volume on/off Help Close Place your palm

The actual window may differ from the picture in this User guide.

Using hand gestures (Optional)

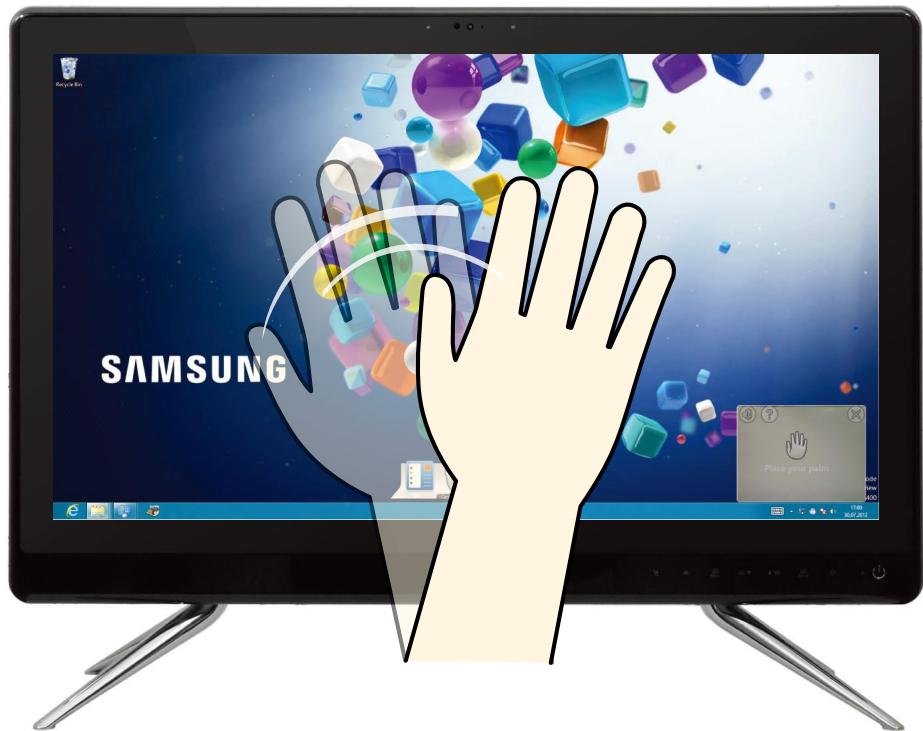

3 If you place your hand in front of the camera, your hand is recognized when the palm-shaped icon 🤨 appears on the screen.

The hand gesture function works within a 50cm\~100cm range from the camera.

Samsung Place your palm

Tips

• This function only works when a hand icon appears on the small window on the right side of the screen. If the function doesn't work properly, please try to move your hand so that the hand icon appears in the window.
• The function may not work properly depending on the angle of your hand movement.
• The function may not work properly when the ambient illumination is too bright or dim.
• You cannot run two camera programs at the same time. When you use the hand gesture function, please use only one program.

Using this function for an extended period of time may strain your arm.

Using hand gestures (Optional)

Try to run a function referring to the figure of the gesture below.

Gestures		Hand Motions	Operating descriptions
Move to the Left or Right	Move the palm to the left / Move the palm to the right		Previous screen / Next screen
Fist	Fist		Click
Rotate	Rotate the palm counter clockwise / Rotate the palm clockwise		Turn the volume down / Turn the volume up
Wave	Wave the palm 2~3 times		Exit the program
Make a fist and move it up	Make a fist and move it up (To the height of the camera)		Move to the start screen.Start Screen Mode: Move to the most recently executed application.

An optical disk drive is optional and may differ depending on your computer model. For detailed specifications, refer to the catalogue.

• Do not insert a cracked or scratched CD.
  Otherwise, the CD may break and damage the optical disk drive when the CD rotates at a high speed.
• When you clean a CD or DVD title, wipe with a soft cloth from inside to outside.
• Do not hold a CD by touching the bottom of the CD.
  Hold a CD by touching the center and the outer rim of the CD. A CD contaminated by a foreign substance may result in the CD not being recognized properly.
• Using a CD that is not in the shape of a circle is not recommended.

A CD drive's reading and writing speed may differ depending on the condition and type of the media.

Inserting and Ejecting a CD

1 Touch the Eject CD touch button ▲.
The CD drive opens.

2 Insert the disc into the CD Drive so that the top of the disc faces upwards.

When 90% of the disc is inserted into the drive, the disc is automatically loaded into the drive.

Exterior view of a modern flat-screen monitor with an open CD inside, showing its front panel and cable (no text or symbols visible)

• Do not pull or push the disc by force when the disc is being automatically ejected or inserted. This may cause a problem when ejecting or inserting a disc.
• To insert a disc, insert the disc into the center of the drive with the appropriate pressure. If you insert a disc and apply excessive force to one side of the tray, it may result in a problem.
• If you eject the disk before the disk is completely recognized, ejecting the disk may take longer.

3 To eject a disc, click Windows Explorer > Computer and right-click over the CD drive and select Eject.

Alternatively, press the Eject button ▲ of the CD drive.

The disc stops and is ejected from the CD drive.

Using the multi card slot, you can read and write data to cards.

You can use a card as a removable disk and conveniently exchange data with digital devices such as a digital camera, digital camcorder, MP3, etc..

• Supported Cards : SD Card, SDHC card, SDXC card
- You have to additionally purchase a multi card with the necessary capacity depending on your requirements.
- You can use a multi card just like any data storage device. A copyright protection function is not supported.
- Since you can lose a card when moving the computer, keep the card separately.
- The figures used for the description are of a representative model. Therefore the figures may differ from the real ones.

Using the card

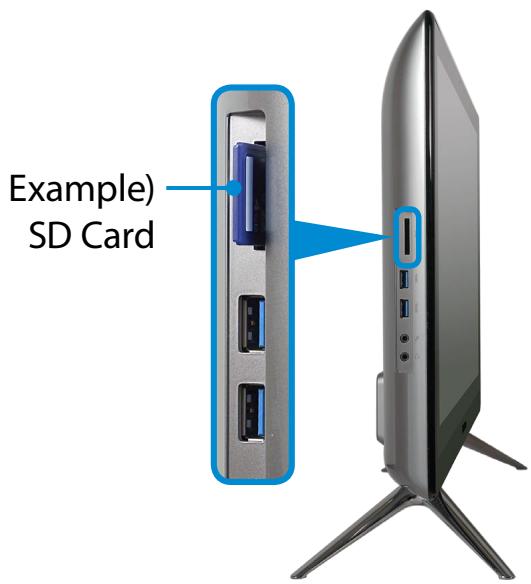

1 Insert the card into the multi card slot in the indicated direction.

Example) SD Card

2 The following message appears on the top right. Click to open the folder and click View Files.

Removable Disk (F:)

Tap to choose what happens with memory cards.

If a message appears to notify you of any problem, click the corresponding window > Continue without Scanning. You can perform the following process described in No. 3.

3 Windows Explorer runs on the Desktop. You can save, move and delete data on the corresponding drive.

Using a Mini SD

Since the above cards are too small, you cannot insert the cards into the slot directly.

Insert the card into the dedicated adapter (available from most electronic retailers) and then insert the adapter into the multi card slot.

To remove a memory card

Take hold of the end of the card and remove the card.

To format a memory card

When using the memory card for the first time, you must format the card before using it.

Formatting a card deletes all data saved on the card. If the card includes data, backup the data before formatting it.

1 Click the Windows Explorer Desktop.

icon in the taskbar on the

2 Right-click over a card drive with the touchpad and select Format.

3 Click Start to the formatting.

• To use a card to exchange data with a digital device such as a digital camera, formatting the data using the digital device is recommended.
• When you try to use a card, which is formatted in the computer, in another digital device, you may have to format the card again in the device.
• You cannot format, write or delete data from a SD, or SDHC card with a write protection tab when it is in the Lock position.
• Inserting and removing a memory card repeatedly may damage the memory card.

The LCD screen of this product can be used as a monitor using the Digital Video/Audio Input Port (HDMI-IN).

Try using this product as a monitor by connecting an HDMI device such as a computer, gaming console, DVD player and so on.

Using the product as a monitor

1 Connect the external device (HDMI output port) and this product (digital video/audio input port (HDMI-IN)) with the HDMI cable.
2 Press the touch button ↩/Source to switch this product to monitor mode.

SAMSUNG /Source

You can only use monitor mode by connecting the Digital Video/Audio Input Port (HDMI-IN). The Digital Video/Audio Out Port (HDMI-OUT) is for output only.

• As long as the power cord is connected, you can use the LCD of the product as a monitor even when the product is off.
• Even if the product is switched to monitor mode by pressing the /Source button during an operation, the operating system is not terminated. Press the /Source button again to return to PC mode.
• If the product is switched to monitor mode, the audio is also switched accordingly.
• If no picture is displayed on the LCD screen when the product is switched to monitor mode, disconnect and then reconnect the HDMI port.
• Source is used to switch between PC and Monitor modes when the system is in use.
• When the system is hibernating or shutdown, you can switch the mode using the LCD on/off button.

Returning to PC mode

To return to PC mode from monitor mode, press the ←/Source touch button.

You can control the volume with the volume control program.

Adjusting the Volume using the Volume Adjustment Program

Click the Charms menu > Settings ⚙️ > 📋 to adjust the control bar.

Mute

Using SoundAlive (Optional)

The SoundAlive function enables you to experience more stereophonic sound using stereo speakers.

• SoundAlive is only supported in Windows 8.
- The software programs provider may vary, depending on your computer model.
- In addition, some pictures may differ from actual product depending on the computer model and software version.

1 Right-click over the Volume 📋 in the taskbar on the Desktop and click Play Device.

(Alternatively, click the Charms menu on the Desktop > Settings > Control Panel > Hardware and Sound > Sound.)

2 Right-click over the Speakers and select Properties.
3 Select the SoundAlive tab and select one of the modes.

Samsung Computer's Defective LCD pixel management standard

Although Samsung Electronics, Co., Ltd. observes strict quality and confidence specifications for LCD manufacturing, the company must inevitably allow a few defective cells in panels due to a technological limitation of the manufacturing process.

Therefore Samsung observes and manages the following dot principles:

• Bright dot : 2 or less
• Black dot : 4 or less
• Combination of Bright and Dark : 4 or less

Instructions for Cleaning the LCD

Clean the LCD panel with a soft cloth lightly moistened with computer cleansing detergent moving in one direction.

Cleaning the LCD panel with excessive force can damage the LCD.

A wired network is a network environment used for a company network or broadband internet connection at home.

• Since these descriptions are written on the basis of the latest operating system, Windows 8, some of the content and the figures of the descriptions may differ depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.
• The figures used for the description are of a representative model. Therefore the figures may differ from the real ones.

Connecting to the Wired LAN

1 Connect the LAN cable to the wired LAN port.

SAMSUNG

2 Click Charms menu on the Desktop > Settings > Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in the left menu pane.

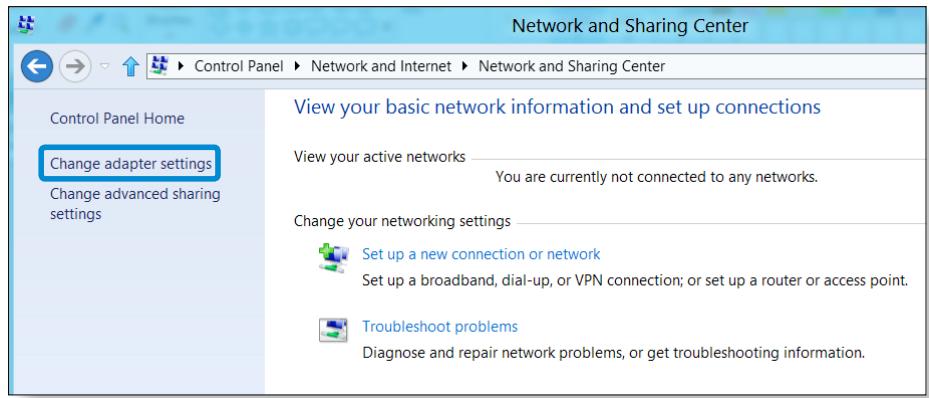

Network and Sharing Center Control Panel Home Change adapter settings Change advanced sharing settings View your basic network information and set up connections View your active networks You are currently not connected to any networks. Change your networking settings Set up a new connection or network Set up a broadband, dial-up, or VPN connection; or set up a router or access point. Troubleshoot problems Diagnose and repair network problems, or get troubleshooting information.

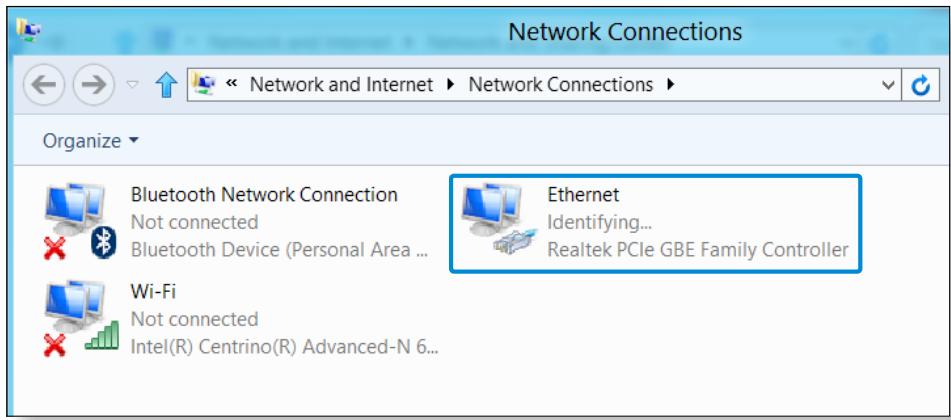

3 Select Ethenet and click the right button of the mouse and select Properties.

Network Connections Network and Internet ▶ Network Connections ▶ Organize ▼ Bluetooth Network Connection Not connected Bluetooth Device (Personal Area ... Ethernet Identifying... Realtek PCIe GBE Family Controller Wi-Fi Not connected Intel(R) Centrino(R) Advanced-N 6...

The LAN Device name may differ depending on your computer's Network Device.

4 Select Internet Protocol Version 4(TCP/IPv4) from the list of Network Components and click Properties.

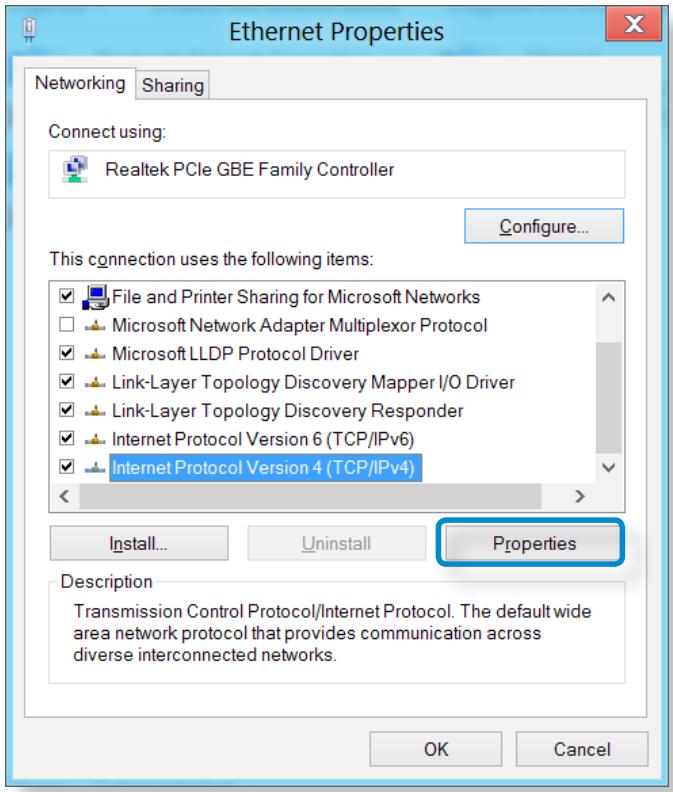

Ethernet Properties Networking Sharing Connect using: Realtek PCIe GBE Family Controller Configure... This connection uses the following items: File and Printer Sharing for Microsoft Networks Microsoft Network Adapter Multiplexor Protocol Microsoft LLDP Protocol Driver Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Internet Protocol Version 6 (TCP/IPv6) Internet Protocol Version 4 (TCP/IPv4) Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

• The Network Component name may differ depending on the Operating System Installed.
• To add a network component, click Install in the screen shown in the figure above. You can add clients, services, and protocols.

5 Configure the IP settings.

When using DHCP, select Obtain an IP address automatically. To use a static IP address, select Use the following IP address, and set the IP address manually.

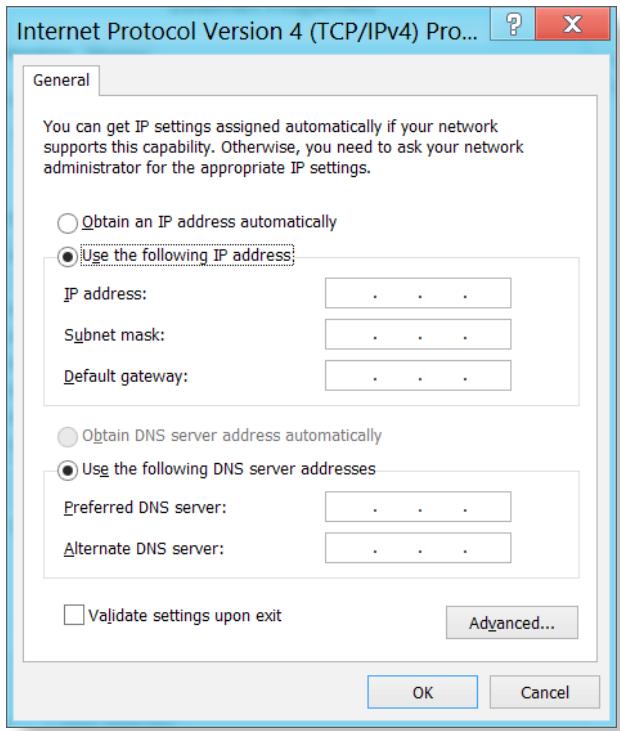

Internet Protocol Version 4 (TCP/IPv4) Pro... General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: . . . Subnet mask: . . . Default gateway: . . . Obtain DNS server address automatically Use the following DNS server addresses Preferred DNS server: . . . Alternate DNS server: . . . Validate settings upon exit Advanced... OK Cancel

When not using DHCP, ask your network administrator for the IP address.

6 When you have completed the settings, click the OK button. The network settings have been completed.

Using the WOL (Wake On LAN) function

is a function that activates the system from Sleep mode when a signal (such as a ping or magic packet command) arrives over the network (wired LAN).

1 Click Charms menu on the Desktop > Settings > Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in the left menu pane.
2 Right-click on the Wired Ethernet Connection and select Properties.
3 Click Configure > Power Management tab. Select Allow this device to wake the computer, then click OK. Restart the system.

• If the system wakes up from Sleep mode even though there is no received signal, use the system after disabling the function.
• The LAN LED may not be turned off if System is shutdown without disabling the WOL (Wake on LAN) option.
• Connecting a wired LAN while using a wireless LAN may not activate the function. Set the Wireless LAN to Disable to use the function.

- feature may not work while using Hybrid power saving feature. Hybrid sleep mode can be disabled from Power Options under Control Panel.

For Windows 7/8, Wake On LAN is not supported by Ping.

When connected to a 100Mbps/1Gbps wired LAN and the computer exits Sleep/hibernation mode, a message appears informing you of a connection to a 10Mbps/100Mbps wired LAN. This happens because when the computer exits standby/hibernate mode, restoring the network takes about 3 seconds. When the network is restored, it operates at 100Mbps/1Gbps.

A wireless network (Wireless LAN) environment is a network environment that enables communicating between multiple computers at home or a small-size office through wireless LAN devices.

• The screen figures and terms may differ depending on the model.
• Depending on the program version, some functions may not be provided or different functions may be provided.
• The descriptions below are for computer models with a Wireless LAN card or device. A Wireless LAN device is optional.
  The pictures in this manual may differ from the actual product depending on your wireless LAN device model.

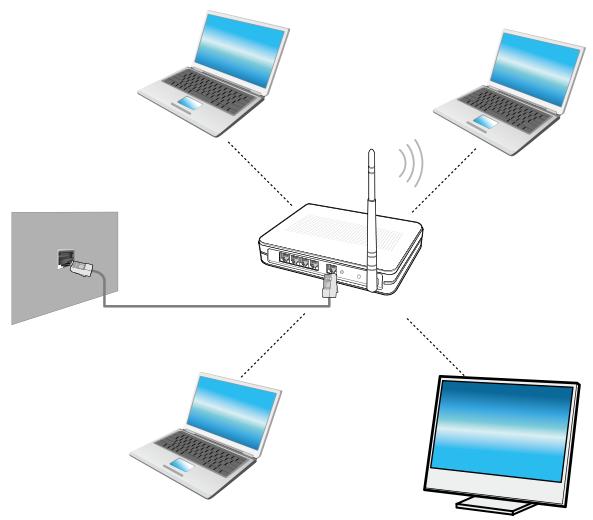

What is an Access Point (AP)?

An AP is a network device that bridges wired and wireless LANs, and corresponds to a wireless hub in a wired network. You can connect multiple wireless LAN installed computers to an AP.

Connecting to a Wireless LAN

If there is an AP, you can connect to the Internet via the AP using the Wireless LAN connection method provided by Windows.

1 If you click the Charms menu > Settings > Network Connections icon, a list of available APs appears.

If you select an AP to connect to, the Connect button appears.

Networks Airplane mode Off Wi-Fi ABCDEFG XXXXXXXXX XXXXXXXXX XXXXXXXXX XXXXXXXXX XXXXXXXXX XXXXXXXXX XXXXXXXXX XXXXXXXXX AP List

2 Click Connect.

If a network key is set for the AP, enter the network key and then click OK.

For the network key, please ask your network administrator.

Networks Airplane mode Off Wi-Fi uready ABCDEFG Connect automatically Connect XXXXXXXX XXXXXXXX XXXXXXXX XXXXXXXX XXXXXXXX XXXXXXXX XXXXXXXX XXXXXXXX

3 When the AP connection is completed, Connected is displayed next to the corresponding AP. You can now you can use the wireless network.

Products embedded with a TV tuner card (Optional) can use the TV function.

After connecting to the antenna, you can watch TV by using the corresponding TV program.

You can only use the TV function when the TV tuner card (Optional) is installed.

Connecting the TV Antenna

You must connect the TV tuner card (Optional) to the TV antenna. Connect the antenna cable to the TV antenna input port.

SAMSUNG

Configuring the TV

The screenshots and terms used in the user manual may differ from the actual ones.

1 Click Start Screen > TV programs (TV ArcSoft).
2 The configuration screen appears. Since the following procedures are displayed sequentially, configure your TV using the following onscreen instructions.

① Select Your Religion
② Select Video Device

• Digital Tuner
• Analog Tuner

③ Choose Your TV Signal

• Cable TV
• Antena TV

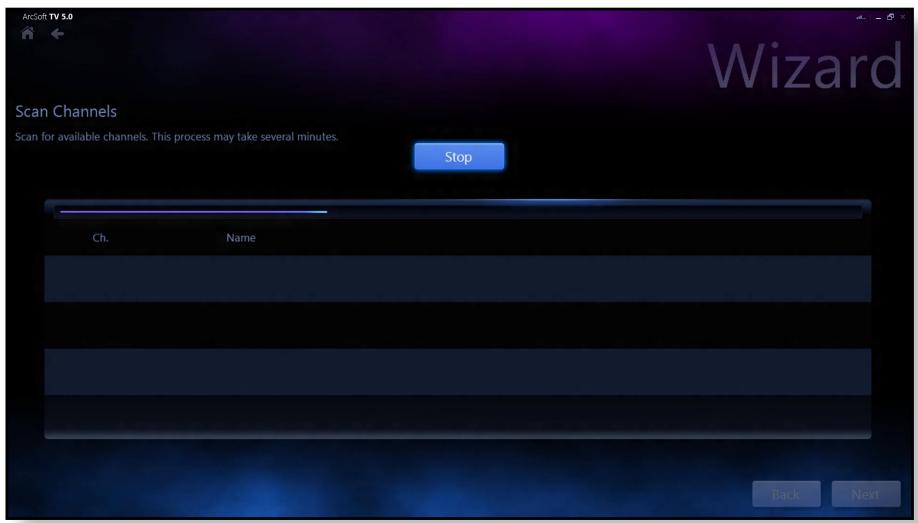

Scan Channels Scan for available channels. This process may take several minutes. Stop Ch. Name Back Next

Resetting the channels

Select Home > Settings > Channel. Then select Scan. The scanned channels are saved.

If you cannot scan channels easily, select the Reset TV Signal option in the Channel menu to reset the channels.

Note on Configuration

• The setup procedures may differ depending on the current type of your TV service.
• You should set the product to the region and postal code where your computer is currently installed.
• If the TV signal provider setup screen appears, select the correct provider. If the configured provider is not correct, not all of the channels will be received or the TV picture quality may be degraded.

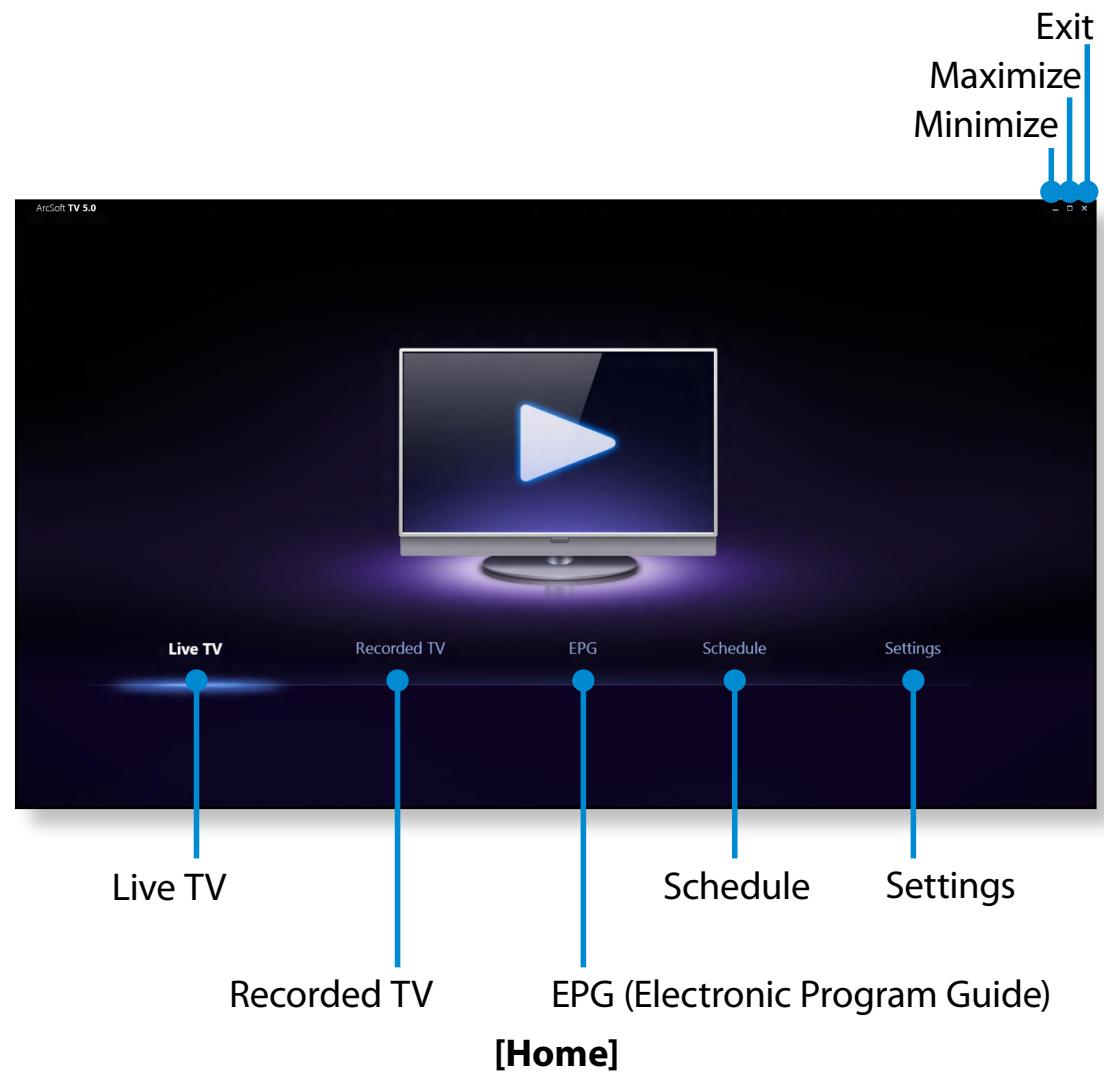

TV Program Menu

Live TV	You can watch a currently broadcast TV program.
Recorded TV	You can watch a recorded TV program.
EPG (Electronic Program Guide)	An electronic TV program guide which allows you to watch digital TV broadcasts.However, it may differ depending on the corresponding station and the reception. Also, some functions may not be provided.
Schedule	You can reserve a TV recording and watch a recorded TV program.
Settings	You can set the TV channels, parent controls, etc.

Watching TV

1 Start the TV program (ArcSoft TV).
2 Select Live TV from the menu.

The TV broadcast is displayed immediately. Switch to the channel you want.

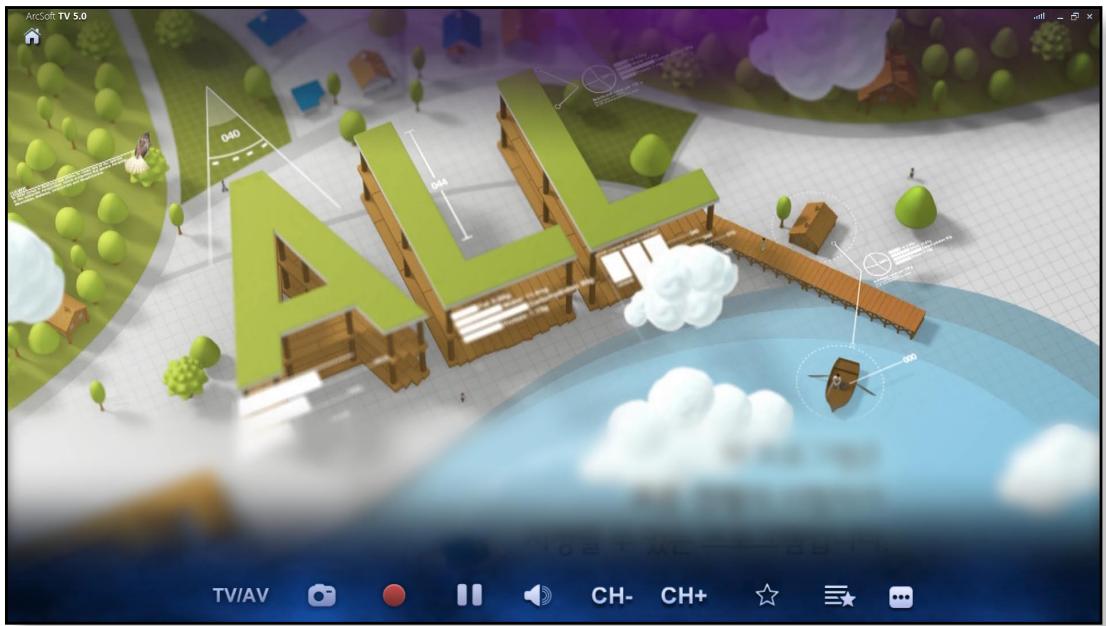

ALL TV/AV CH- CH+ ☆

Move your mouse to display the control bar as follows. Then select a function.

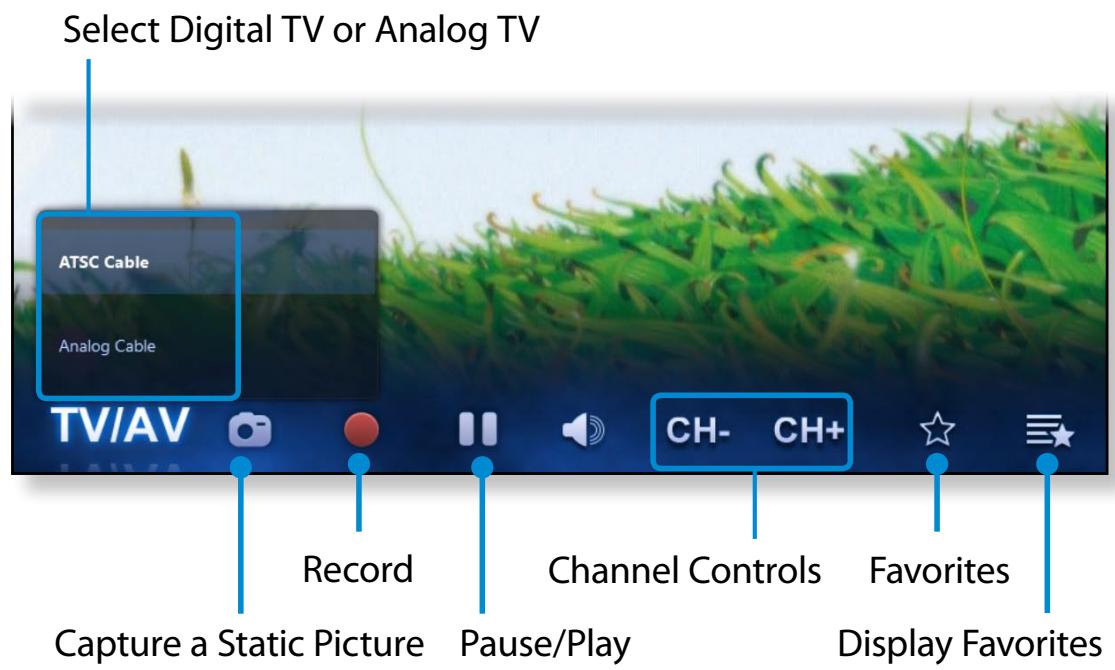

Select Digital TV or Analog TV ATSC Cable Analog Cable TV/AV Record Capture a Static Picture Pause/Play Channel Controls CH- CH+ Favorites Display Favorites

Recording TV

You can record a TV program on your computer.

Recording the current program

Move your mouse over the currently viewed screen.

When the control bar appears at the bottom, click

Record .

A red dot appears indicating that a recording is in progress and the recording begins.

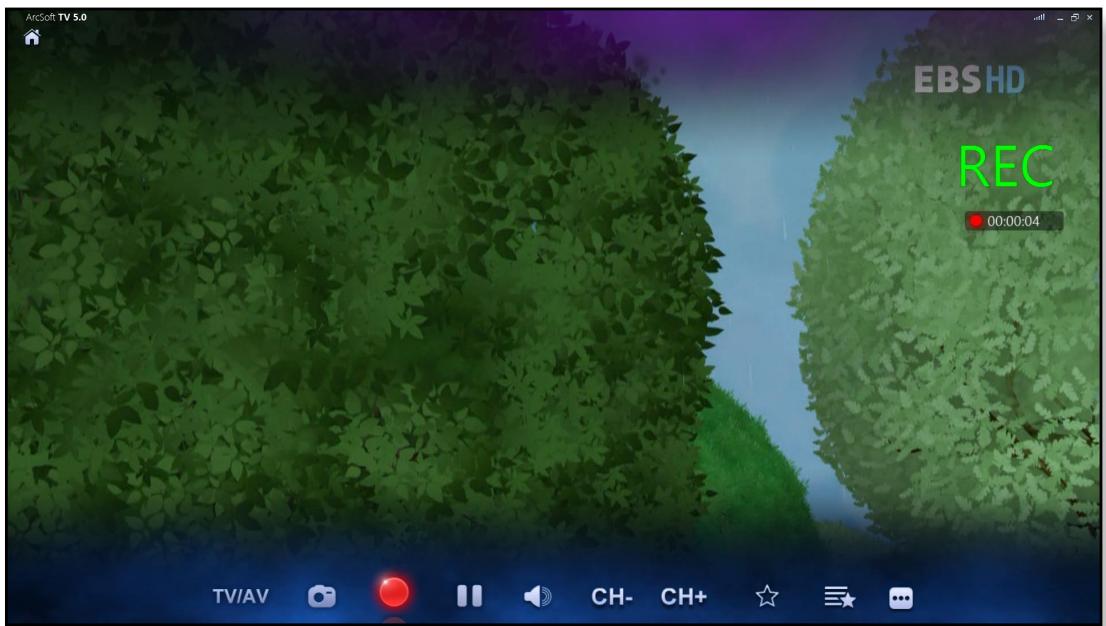

Aircraft TV 5.0 EBSHD REC 00:00:04 TV/AV CH- CH+ ☆

Creating a recording schedule

1 Click Home > Settings > Schedule > Add.
2 Set your program and the reservation time.

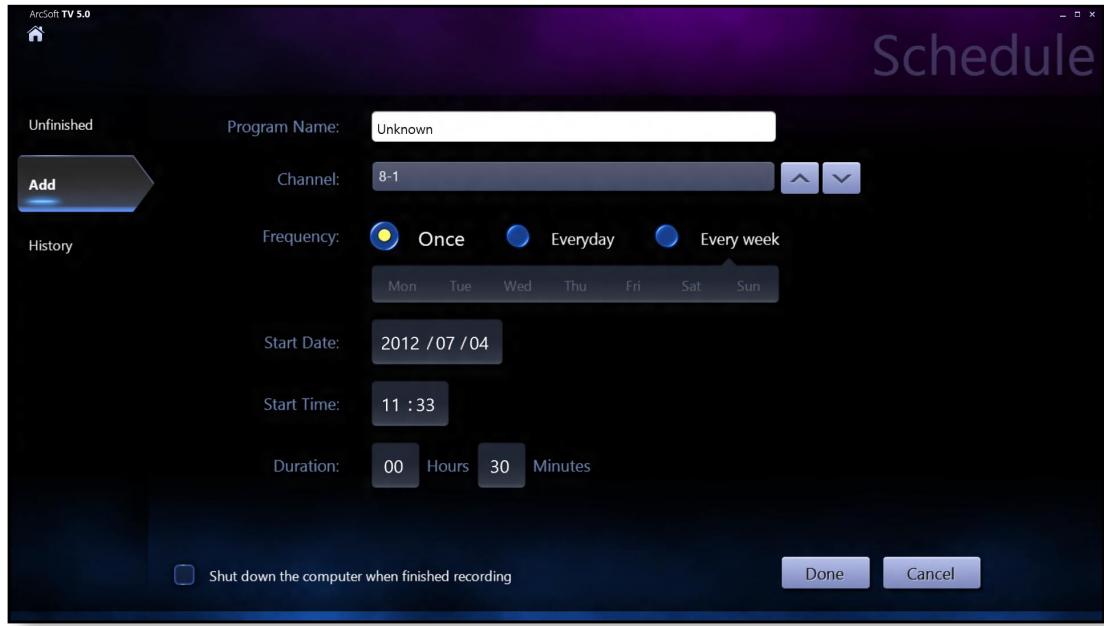

ArcSoft TV 5.0 Schedule Unfinished Add History Program Name: Unknown Channel: 8-1 Frequency: Once Everyday Every week Mon Tue Wed Thu Fri Sat Sun Start Date: 2012 /07 /04 Start Time: 11 :33 Duration: 00 Hours 30 Minutes Shut down the computer when finished recording Done Cancel

Even when the computer is in power-saving (standby) mode, if the recording reservation time is reached, the TV automatically wakes up from power-saving mode and performs the reserved recording.
- While recording a channel, you cannot record or watch another channel.

Playing a recorded program

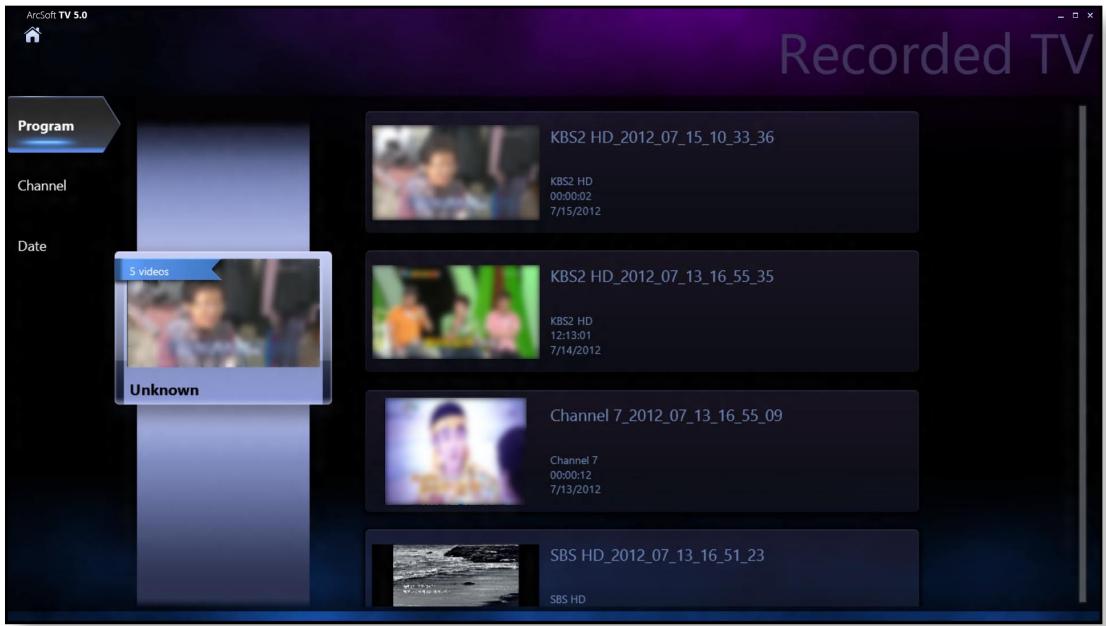

Click Home > Recorded TV.

The recorded programs are displayed. Select a program to watch. You can list the recorded programs by program, channel or date.

ArcSoft TV 5.0 Recorded TV Program Channel Date 5 videos Unknown KBS2 HD_2012_07_15_10_33_36 KBS2 HD 00:00:02 7/15/2012 KBS2 HD_2012_07_13_16_55_35 KBS2 HD 12:13:01 7/14/2012 Channel 7_2012_07_13_16_55_09 Channel 7 00:00:12 7/13/2012 SBS HD_2012_07_13_16_51_23 SBS HD

Recorded files are saved in the Computer > Local Disk (C:) > User > User Folder > My Video folder.

Using the Remote Control (Optional)

You can use the TV functions with the remote control.

You can run the Live TV program from the desktop.

Check the functions of each button.

• The appearance of the remote control may differ from the actual one. Some functions may not be provided depending on the system.
• You can turn this product on by pressing the Power button on the remote control. However, you cannot turn this product off with the Power button.
• Use your remote control by pointing it toward the remote control receiver.

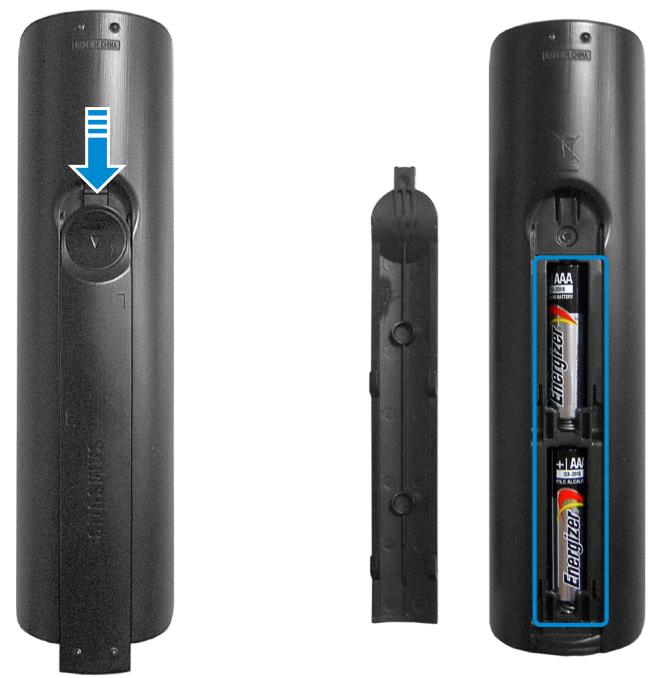

Installing the batteries

Open the cover at the bottom of the remote control and insert the batteries according to the correct polarities (+,-).

Three black remote control devices with visible battery and indicator lights, one showing a blue arrow pointing to a switch (no text or symbols on device body)

To turn the power on or wake the computer up by pressing the Power button ⏻, you have to change the settings in the BIOS Setup screen.

However, this feature can only be configured through the BIOS Setup menu for models equipped with a TV tuner card.

1. After booting up the computer, press the F2 key to enter the BIOS Setup.
2. Select Advanced > Advanced Environment Control > Remote Controller Boot from the BIOS Setup menu and set it to Enabled.

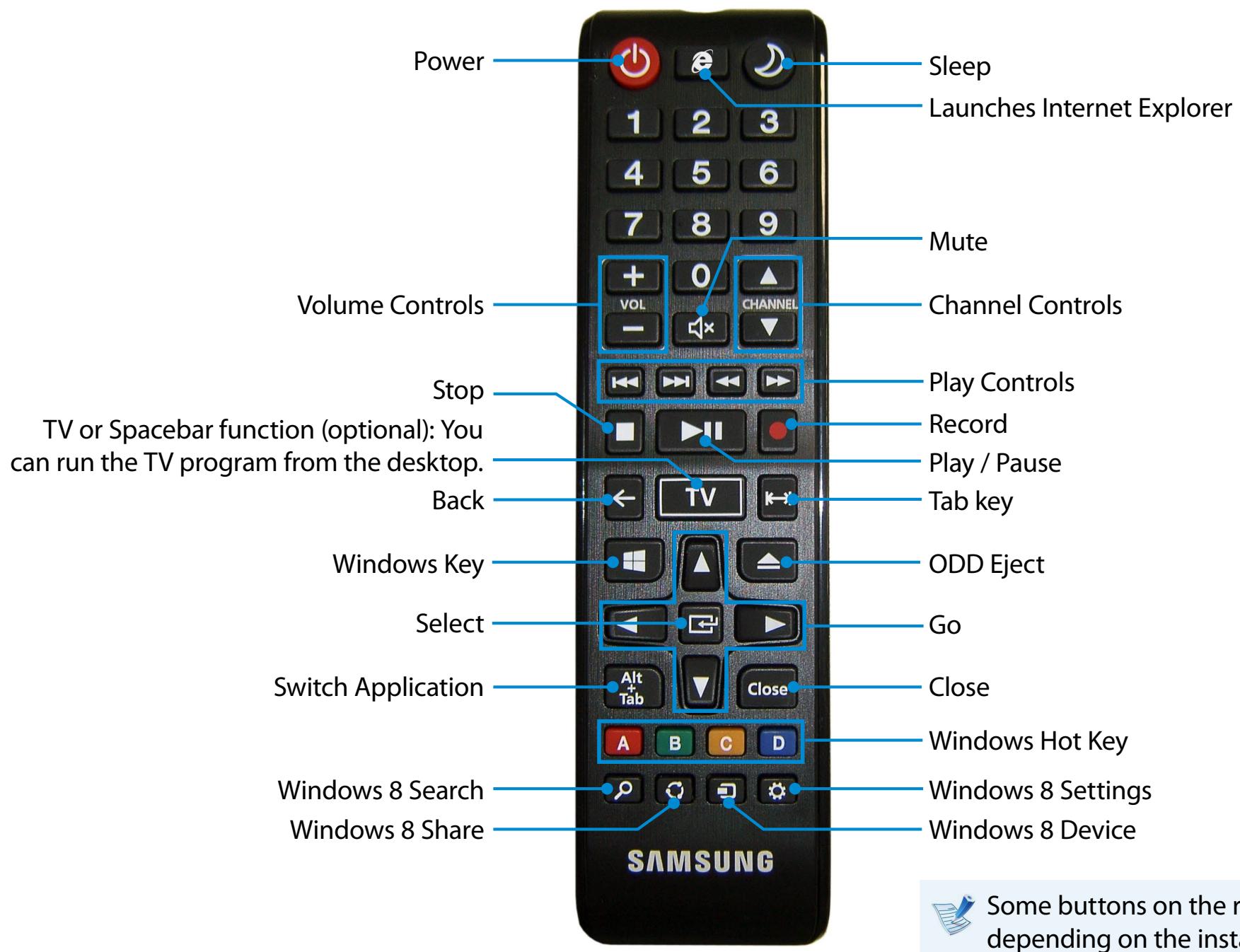

Power Sleep Launches Internet Explorer Mute Volume Controls Channel Controls Stop Play Controls Record TV or Spacebar function (optional): You can run the TV program from the desktop. Back Play / Pause Tab key Windows Key ODD Eject Select Go Switch Application Close Alt + Tab Close A B C D Windows Hot Key Windows 8 Settings Windows 8 Search Windows 8 Share Windows 8 Device SAMSUNG

Some buttons on the remote control may not work depending on the installed program.

Using the Multimedia App (Optional)

You can enjoy photo, video and music files with the S Camera, S Gallery and S Player apps.

S Camera	You can take photos and record videos with the S Camera app, and view them directly in this app.
S Gallery	Only photos or videos recorded with the S Camera app can be viewed with the S Camera app.
S Player	You can view the photo, video and music files saved on the computer.

Depending on the version of the program, some functions may not be provided or different functions may be provided.

Third-party software related services

• For descriptions about and service requests for third-party software, please contact the relevant manufacturer.
• Some troubleshooting actions in response to service requests may not work depending on the software manufacturer.

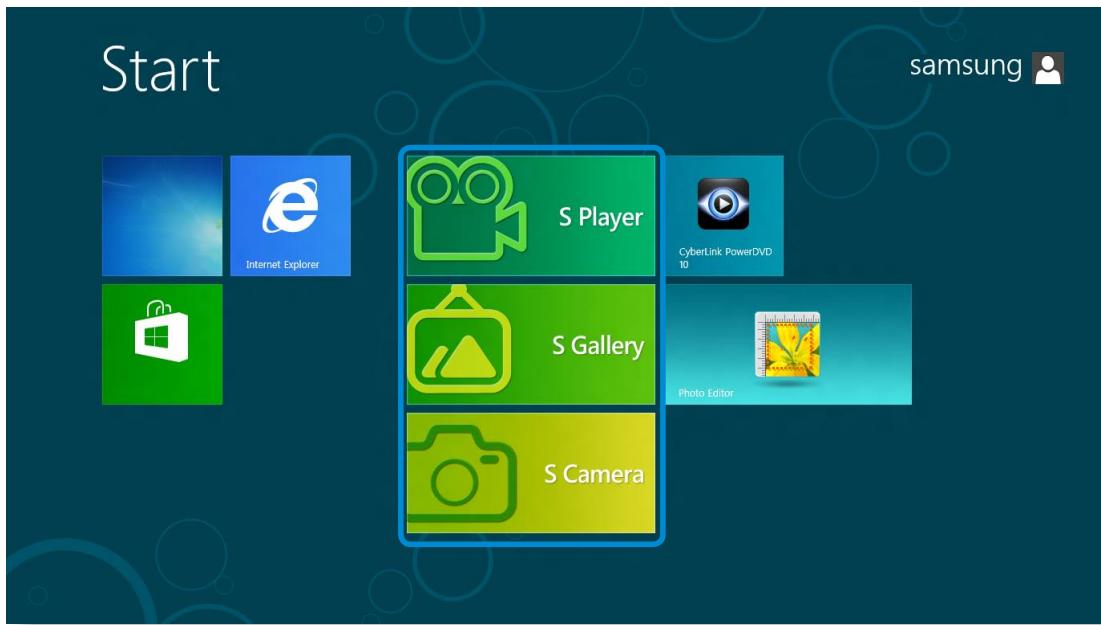

You can launch an app in the Start screen.

Start samsung Internet Explorer S Player CyberLink PowerDVD 10 S Gallery Photo Editor S Camera

Using the Multimedia App (Optional)

Using the S Camera app

1

Tap Charm menu > Start > S Camera.

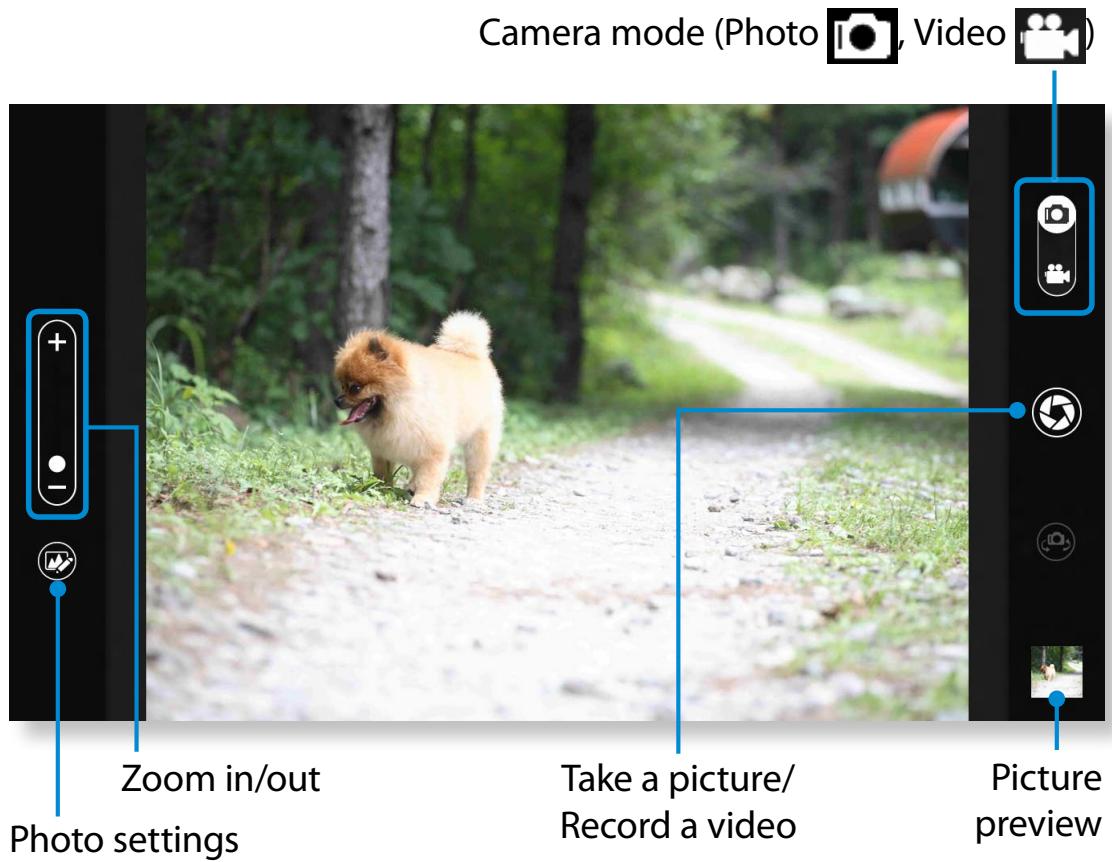

Camera mode (Photo Video Zoom in/out Photo settings Take a picture/ Record a video Picture preview

2 To take a picture, slide the camera mode bar into the Photo position.
To make a video recording, slide the camera mode bar to the Video position.
3 Tap on Take a picture/Record a video to take a picture or record a video.
4 You can view the picture or video using the Picture preview or S Gallery app.

The S Camera app is not available in Desktop mode.

Precautions while taking a picture or video

• Do not take a picture or video of others without their consent.
• Do not take a picture or video in locations where this is not allowed.
• Do not take picture or videos in locations where you may infringe on others' privacy or confidential information may be exposed.

Using the S Gallery app

1 Tap Charm menu > Start > S Gallery.
2 You can view the pictures and videos taken by the S Camera. In addition, you can apply special effects to the pictures using the photo editing function.

You can take a picture in the S Gallery app by tapping the Camera icon.

Editing a photo

1 Select Picture preview.

Drag it upward slightly from the bottom center.

If the options menu appears, select Edit .

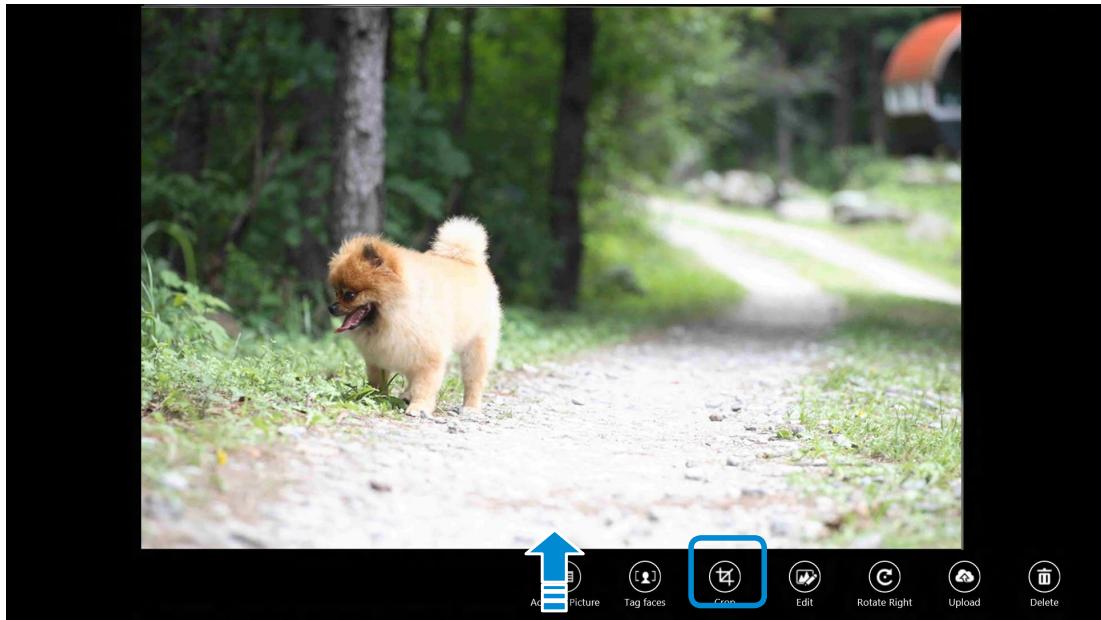

A small brown poodle walking on a dirt path in a forest, with no visible text or symbols.

Using the Multimedia App (Optional)

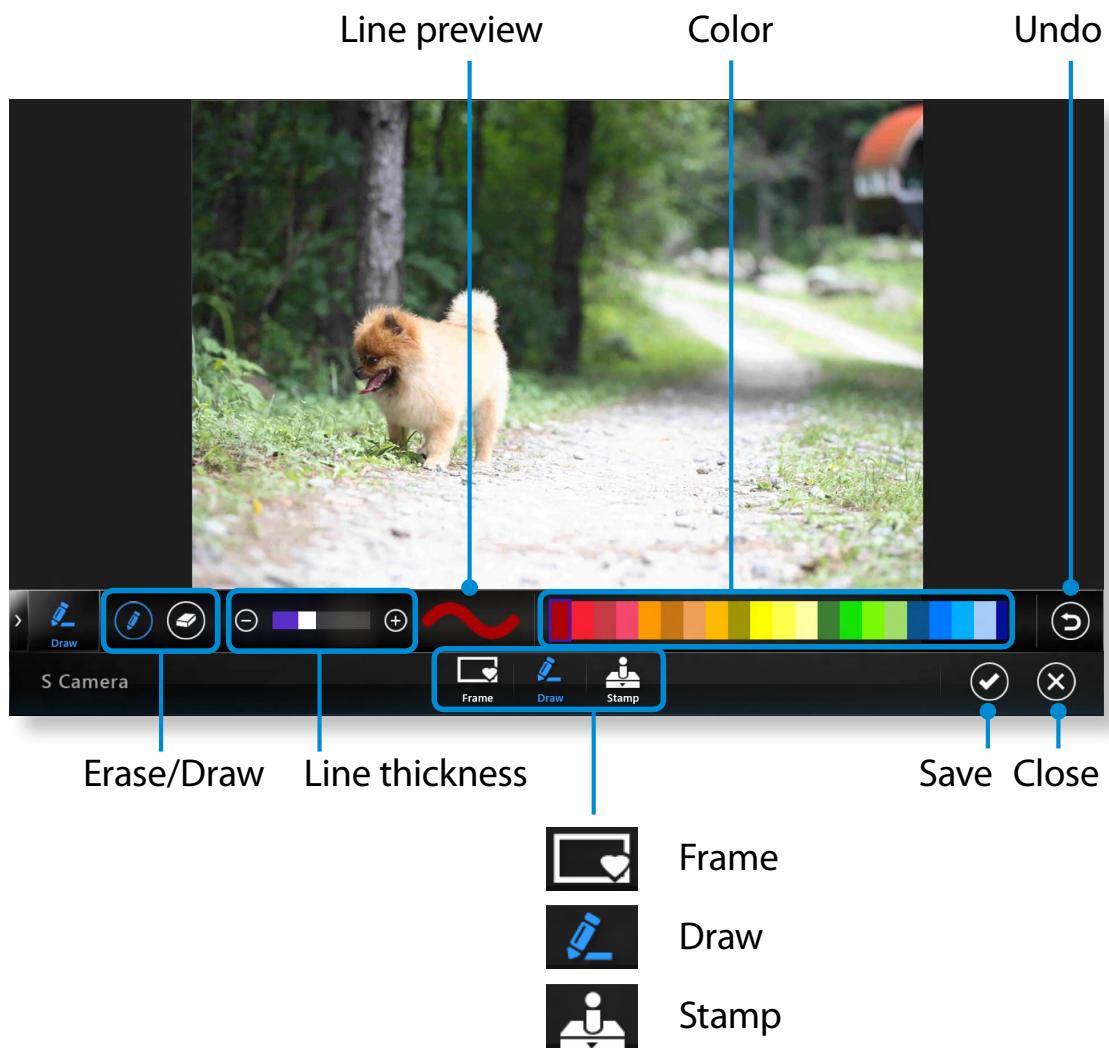

2 Select an effect to be applied to the photo.

E.g. If you select Draw

Line preview Color Undo S Camera Erase/Draw Line thickness Save Close Frame Draw Stamp

Using the S Player app

1 Tap Charm menu > Start > S Player.

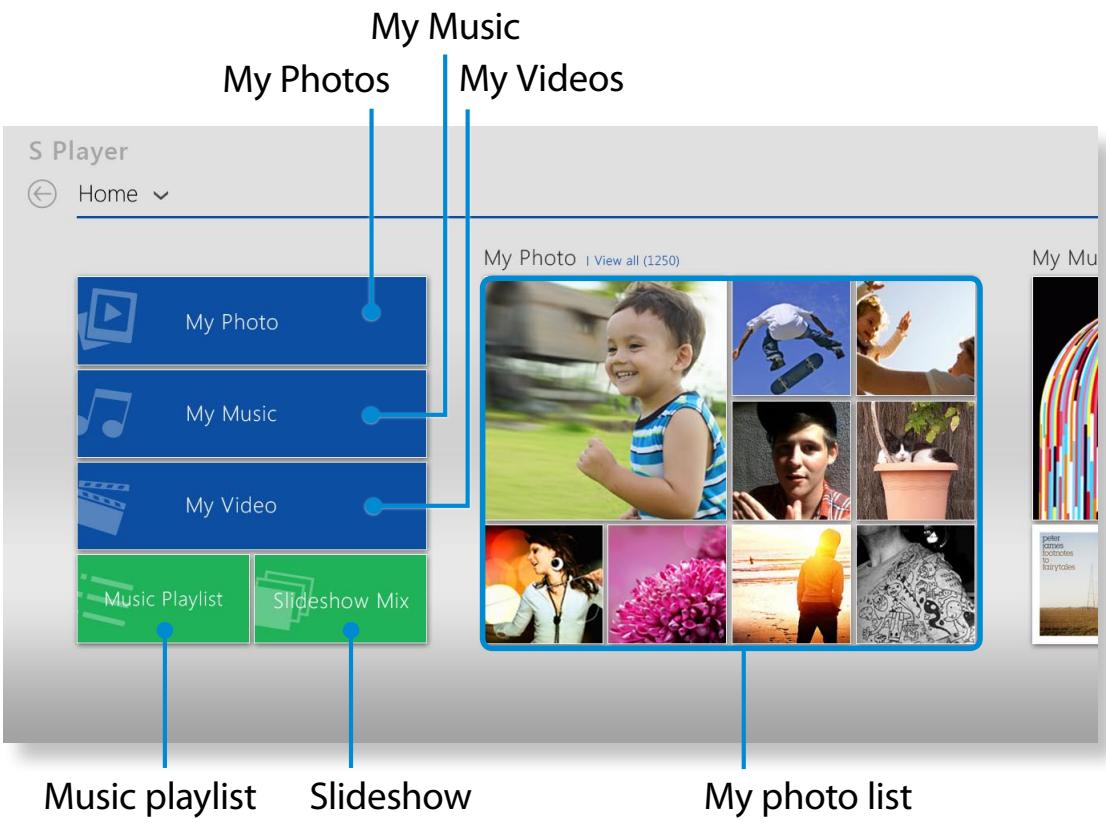

My Music My Photos My Videos S Player Home My Photo My Music My Video Music Playlist Slideshow Music playlist | Slideshow Mix My Photo I View all (1250) My Photo My Music My photo list

2 Select a menu to enjoy photo, video and music files.

Some files may not be played depending on their format.

Sharing content using the AllShare Play app (Optional)

AllShare Play is a content sharing service that enables users to share and view photos, and play videos and music files saved on digital devices via the Internet. You can use the web storage service and share data by registering the network-connected devices. If your home appliance supports DLNA (Digital Living Network Alliance), you can also connect it through the home network system.

Two laptops displaying a beach scene with sailboats on the screens, connected via wireless signal icons (no text or symbols)

• Since the descriptions in this manual are based on Windows 8, some of the descriptions may differ depending on the operating system or the device.
• Depending on the country or program version, some functions may not be provided or different functions may be provided.
• The content and images in this manual are subject to change for the purpose of performance enhancement.
• DLNA (Digital Living Network Alliance) is one of the home networking technologies based on an international standard that enables sharing of digital media between consumer devices such as computers, printers, digital cameras, cell phones, TVs, and other multimedia devices. You can easily share data between the DLNA-compliant digital devices in your house by connecting them.
• For information on whether your device supports DLNA, please refer to the user manual of the corresponding device.

Sharing content using the AllShare Play app (Optional)

You can learn about data sharing as well as view various tips through the lecture videos and FAQs provided on the AllShare Play website (www.allshareplay.com).

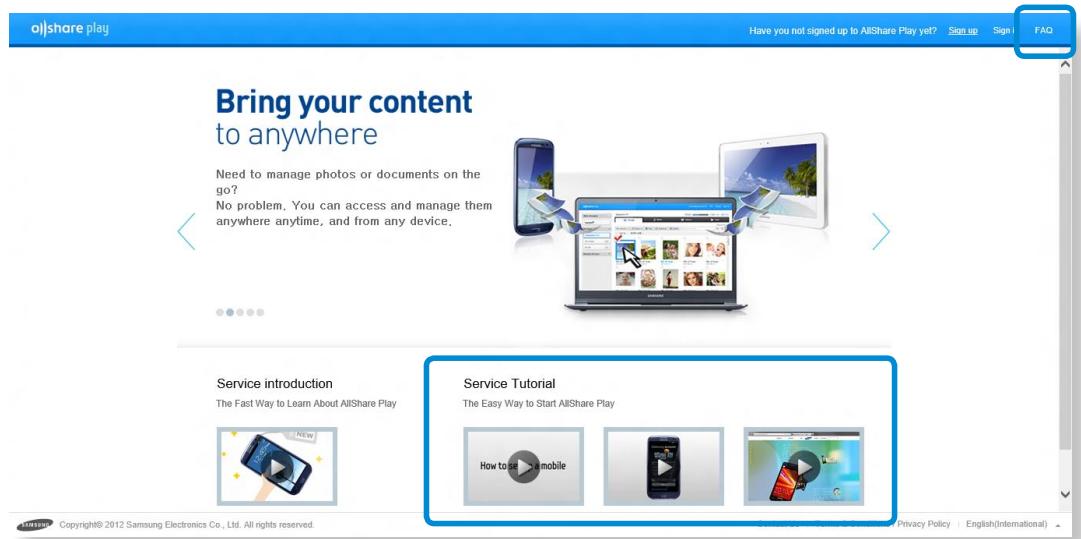

Allshare play Have you not signed up to AllShare Play yet? Sign up Sign FAQ Bring your content to anywhere Need to manage photos or documents on the go? No problem. You can access and manage them anywhere anytime, and from any device. Service introduction The Fast Way to Learn About AllShare Play Service Tutorial The Easy Way to Start AllShare Play How to use a mobile Privacy Policy English(International) Copyright© 2012 Samsung Electronics Co., Ltd. All rights reserved.

AllShare Play is especially useful if you want to

① View and play the content saved on your in-house PC with another PC or mobile device outside.
② Resume editing presentation documents you created at the office.
③ Play photos or videos saved on a PC on a TV's larger screen.
④ Copy files saved on a mobile device or digital camera to your PC

Sharing content using the AllShare Play app (Optional)

AllShare Play at a Glance

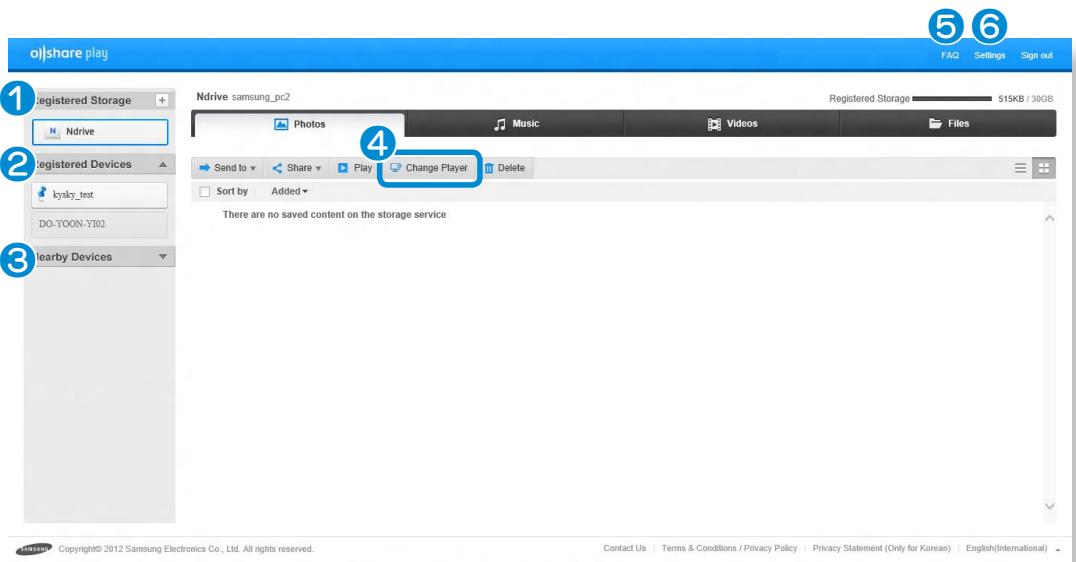

oilshare play 1 Registered Storage N drive Registered Devices kyaky_test DO-YOON-YI02 Nearby Devices 2 Registered Storage N drive samsung_pc2 Registered Storage 515KB / 30GB Photos Music Videos Files 4 Send to Share Play Change Player Delete Sort by Added There are no saved content on the storage service Copyright © 2012 Samsung Electronics Co., Ltd. All rights reserved. Contact Us | Terms & Conditions / Privacy Policy | Privacy Statement (Only for Korean) | English(International)

1	Registered storage	This is an online storage space where you can store and view files. You need to sign up to an online storage service in partnership and then enable it.
2	Registered device	This is a PC, laptop, smart phone or tablet that contains files to be shared. You can register a device to AllShare Play by running the AllShare Play app and signing in the service once. If the device is turned on without entering the power-saving mode, you can access the files on the device from a remote site.

3	Nearby devices	This is a device found on the home network connected to the same AP (access point). You can search for a DLNA-compliant device such as a smart phone or PC and retrieve and play the files saved on the device.
4	Change player	You can search for playing devices, such as a TV, using the Change player link.
5	FAQ	Frequently asked questions and answers are provided.
6	Settings	Provides additional settings for registering devices and services.

You can only search for a device when the device is connected to the AP (access point) and is turned on with the DLNA service running.

Sharing content using the AllShare Play app (Optional)

To use the AllShare Play app properly, you need to configure it as follows:

1. Sign up on the AllShare Play website.
2. Configure PC.
3. Use AllShare Play (Play / Transfer / Upload files)

Sign up on the AllShare Play website

Since AllShare Play is an Internet service, a samsung.com account is required to use the AllShare Play service.

1 Double-click AllShare Play app on the Windows Start screen to connect to www.allshareplay.com, or you can access it directly from the web browser by entering the AllShare Play address: www.allshareplay.com.

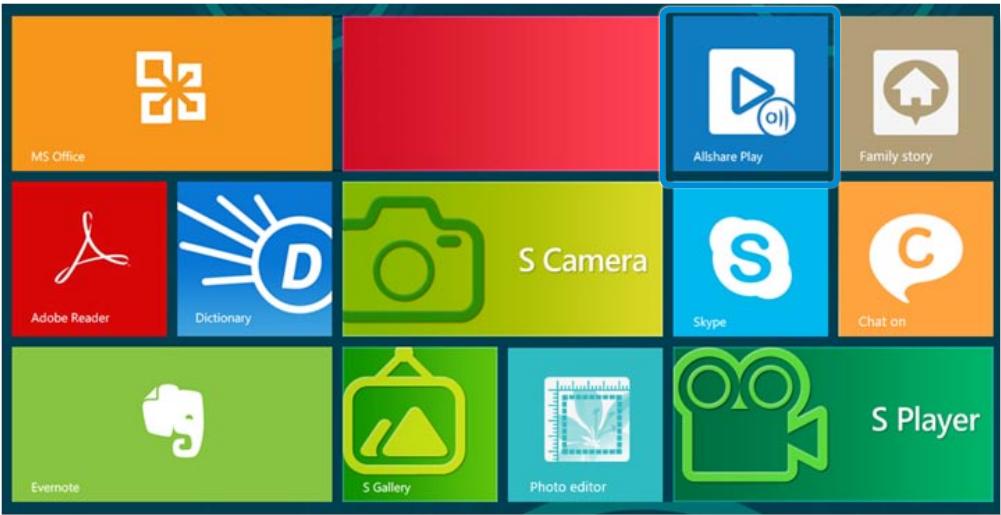

MS Office Allshare Play Family story Adobe Reader Dictionary S Camera Skype Chat on Evernote S Gallery Photo editor S Player

2 Select a language at the bottom right of the screen.

Български	Deutsch	Română
中文(简体)	Magyar	Русский
中文(繁体)	Italiano	Српскп
Hrvatski	日本語	Español(Europe)
Čeština	한국어	Español(Estados Unidos)
Dansk	Norsk (bokmål)	Svenska
Nederlands	Polski	Українська
English(International)	Português(Brazil)
Français	Português(Portugal)

3 Click on Sign in at the top right and sign-in to the service with your samsung.com account.

If you don't have a samsung.com account, click the Sign up button to create an account.

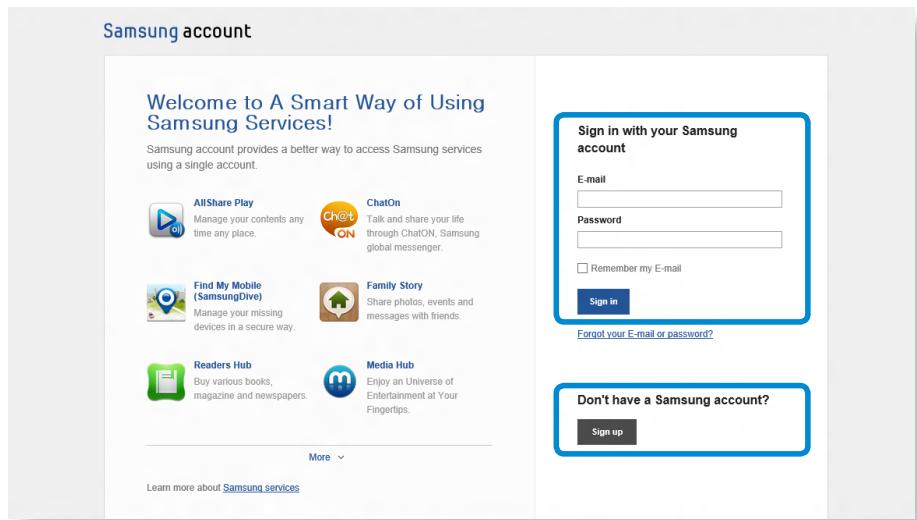

Samsung account Welcome to A Smart Way of Using Samsung Services! Samsung account provides a better way to access Samsung services using a single account. AllShare Play Manage your contents any time any place. ChatOn Talk and share your life through ChatON, Samsung global messenger. Find My Mobile (SamsungDive) Manage your missing devices in a secure way. Family Story Share photos, events and messages with friends. Readers Hub Buy various books, magazine and newspapers. Media Hub Enjoy an Universe of Entertainment at Your Fingertips. More Learn more about Samsung services Sign in with your Samsung account E-mail Password Remember my E-mail Sign in Forget your E-mail or password? Don't have a Samsung account? Sign up

Sharing content using the AllShare Play app (Optional)

4 If you are connecting to the website for the first time, the software installation screen appears.

To use the AllShare Play service, install the PC software.

5 Register the current PC with the AllShare Play website according to the instructions on the screen.

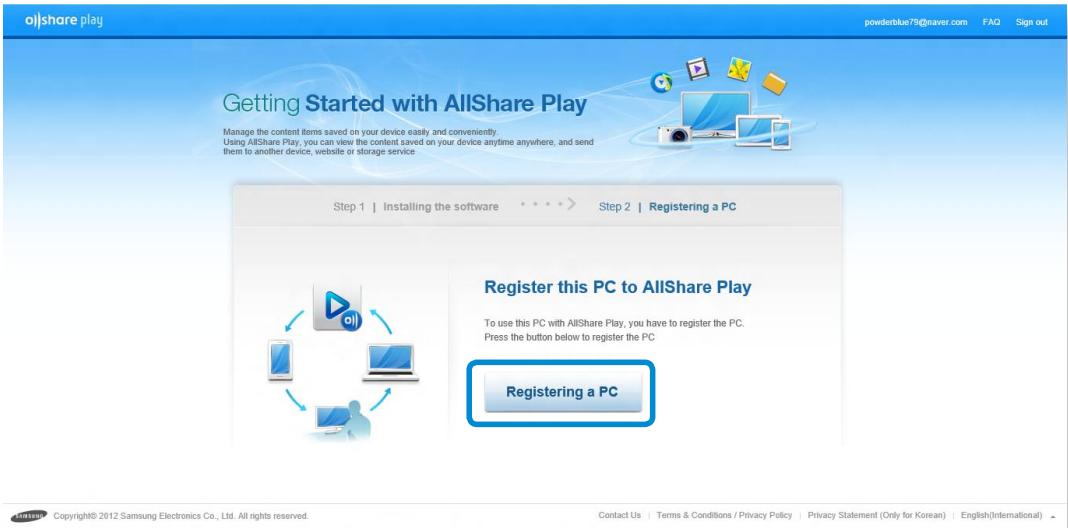

Allshare play [e-mail] FAQ Sign out Getting Started with AllShare Play Manage the content items saved on your device easily and conveniently. Using AllShare Play, you can view the content saved on your device anytime anywhere, and send them to another device, website or storage service Step 1 | Installing the software ••••> Step 2 | Registering a PC Register this PC to AllShare Play To use this PC with AllShare Play, you have to register the PC. Press the button below to register the PC Registering a PC Copyright© 2012 Samsung Electronics Co., Ltd. All rights reserved. Contact Us Terms & Conditions / Privacy Policy Privacy Statement (Only for Korean) English(International)

• Since up to 6 PCs can be registered, if 6 PCs have already been registered, you have to deregister one of the registered PCs in order to register a new one.
• Up to 5 users can be registered on one PC.

6 When the device registration process is completed, install the unified codec according to the instructions on the site.
7 To use a storage service, click the [+] button and register the storage to use.

You can register storage by signing up for a storage service, such as SugarSync, that is aligned with AllShare Play.

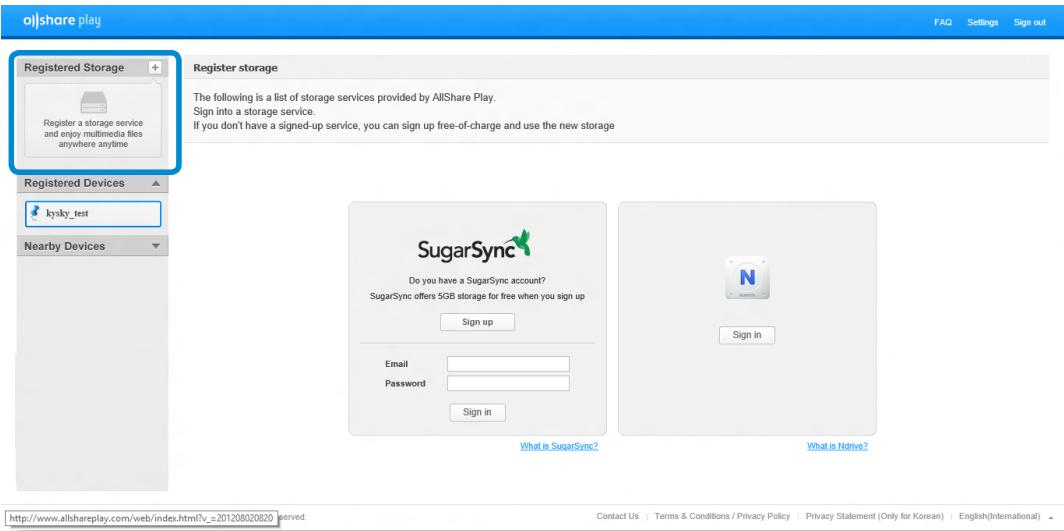

oI/share play Registered Storage + Register storage The following is a list of storage services provided by AlliShare Play. Sign into a storage service. If you don't have a signed-up service, you can sign up free-of-charge and use the new storage Registered Devices kysky_test Nearby Devices SugarSync Do you have a SugarSync account? SugarSync offers 5GB storage for free when you sign up Sign up Email Password Sign in What is SugarSync? Sign In What is Ndrive? http://www.allishareplay.com/web/index.html?v_=201208020820 served Contact Us | Terms & Conditions / Privacy Policy | Privacy Statement (Only for Korean) | English(International)

8 If you register a smart phone or tablet in the AllShare Play service, run AllShare Play on the device and sign in with your Samsung account. Whenever the device is turned on, you can access the files in the device.

Configure PC

Setting the device status

To remotely access the files saved on a device registered with AllShare Play,

1 Disable power-saving mode.

The PC must be turned on and should not enter the power-saving mode to use the service: click Settings at the top right of the screen and select the Disable the standby mode of the PC option.

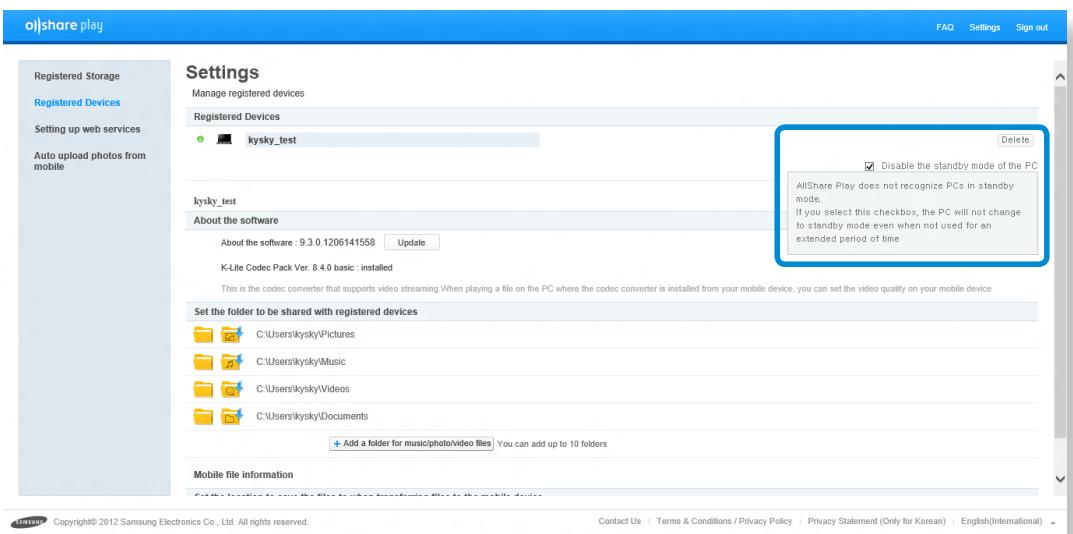

oishare play FAQ Settings Sign out Registered Storage Registered Devices Setting up web services Auto upload photos from mobile Settings Manage registered devices Registered Devices kysky_test Delete Disable the standby mode of the PC AllShare Play does not recognize PCs in standby mode. If you select this checkbox, the PC will not change to standby mode even when not used for an extended period of time kysky_test About the software About the software : 9.3.0.1206141558 Update K-Lite Codec Pack Ver. 8.4.0 basic : installed This is the codec converter that supports video streaming. When playing a file on the PC where the codec converter is installed from your mobile device, you can set the video quality on your mobile device Set the folder to be shared with registered devices C:\Users\kysky\Pictures C:\Users\kysky\Music C:\Users\kysky\Videos C:\Users\kysky\Documents Add a folder for music/photo/video files You can add up to 10 folders Mobile file information Copyright © 2012 Samsung Electronics Co., Ltd. All rights reserved. Contact Us Terms & Conditions / Privacy Policy Privacy Statement (Only for Korean) English(International)

2 Need to Keep AllShare Play in signed-in status.

Once you sign into AllShare Play on a PC, you can remotely access the PC for up to 15 days even after signing off.

If the AllShare Play icon 📄 appears in the system tray, it indicates that it is in the signed-in status. Since the AllShare Play service automatically logs out after 15 days, please sign in again. When the AllShare Play service is signed out, the icon will appear gray in color.

Sharing files

Click Settings at the top right of the screen to configure the folders to be shared with registered devices. Only the photos, videos, and music files in the folders specified as shared folders are listed in the file list of AllShare Play.

You can add up to 10 shared folders.

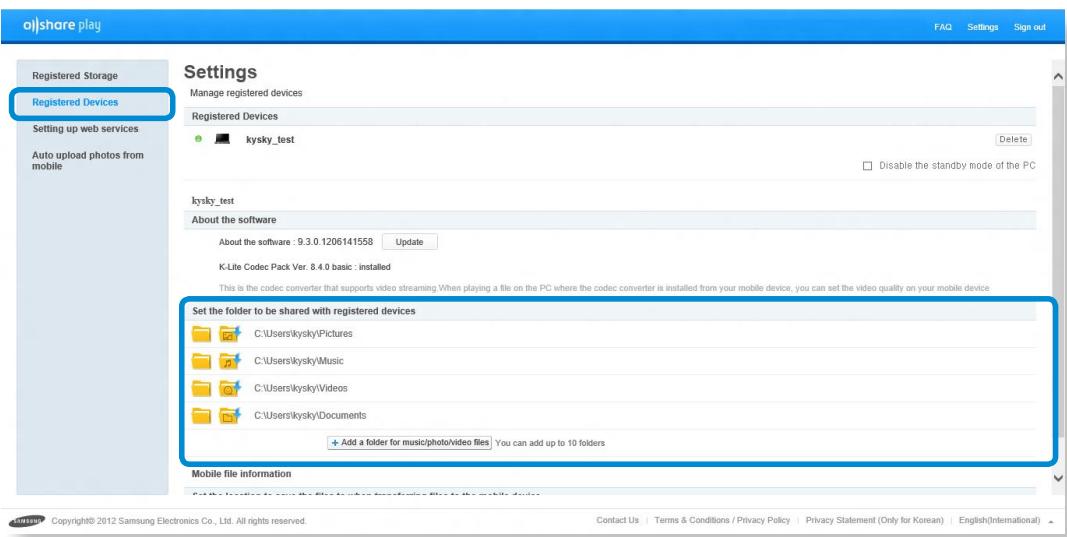

oilshare play FAQ Settings Sign out Registered Storage Registered Devices Registered Devices kysky_test Delete Disable the standby mode of the PC kysky_test About the software About the software : 9.3.0.1206141558 Update K-Lite Codec Pack Ver. 8.4.0 basic : installed This is the codec converter that supports video streaming. When playing a file on the PC where the codec converter is installed from your mobile device, you can set the video quality on your mobile device Set the folder to be shared with registered devices C:\Users\kysky\Pictures C:\Users\kysky\Music C:\Users\kysky\Videos C:\Users\kysky\Documents + Add a folder for music/photo/video files You can add up to 10 folders Mobile file information Copyright© 2012 Samsung Electronics Co., Ltd. All rights reserved. Contact Us Terms & Conditions / Privacy Policy Privacy Statement (Only for Korean) English(International)

Sharing content using the AllShare Play app (Optional)

Use AllShare Play (Play / Transfer / Upload Files)

Playing videos or viewing photos on a TV

With AllShare Play, you can play a file saved on a registered device, nearby device, or Storage on TV. You can search for TVs that satisfy the following 3 conditions:

• The TV must be connected to the same AP (access point).
• The TV must be turned on.
• The DLNA service must be running on the TV.

1 Select the checkbox of the video or photo to be displayed.

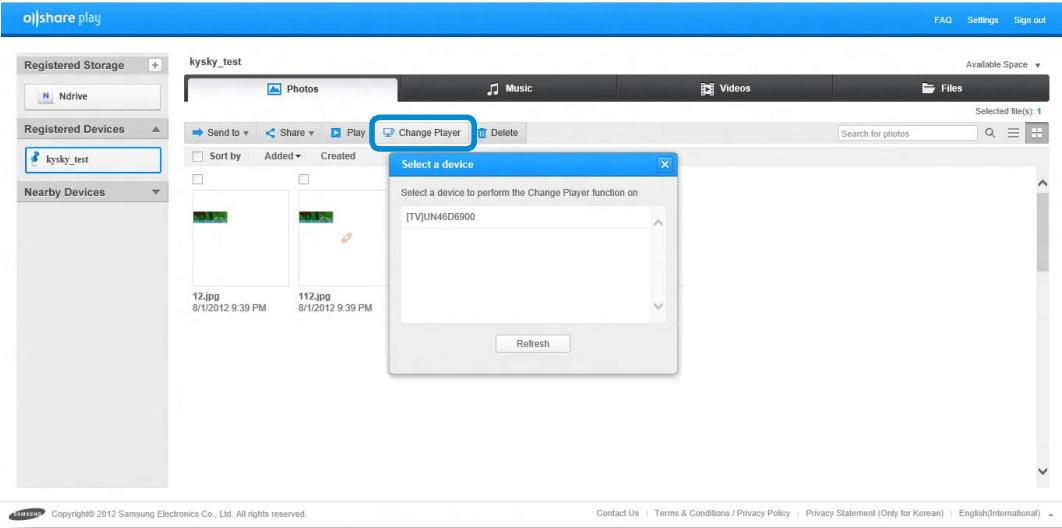

2 Click Change player at the top of the screen to search for a device.

oilshare play Registered Storage + NDrive Registered Devices kysky_test Nearby Devices kysky_test Photos Music Videos Files Available Space Send to Share Play Change Player Delete Search for photos Select a device Select a device to perform the Change Player function on [TV]UN46D6900 12.jpg 8/1/2012 9:39 PM 112.jpg 8/1/2012 9:39 PM Refresh

3 If the PC and TV are connected, a message asking you to allow access appears from the TV. Allow access.
4 The video or photo slideshow is played on the device.

If the files that you want to play are stored in Registered Devices or Registered Storage, playing videos or photo slideshows can be slow when the network connection is unstable.

Sharing content using the AllShare Play app (Optional)

Playing a file

In AllShare Play, you can play a file saved on a registered device, nearby device, or Storage.

1 Select the checkbox of the video or photo that you want to play.
2 Click Play at the top of the screen.

A player such as Windows Media Player is launched and the file is played.

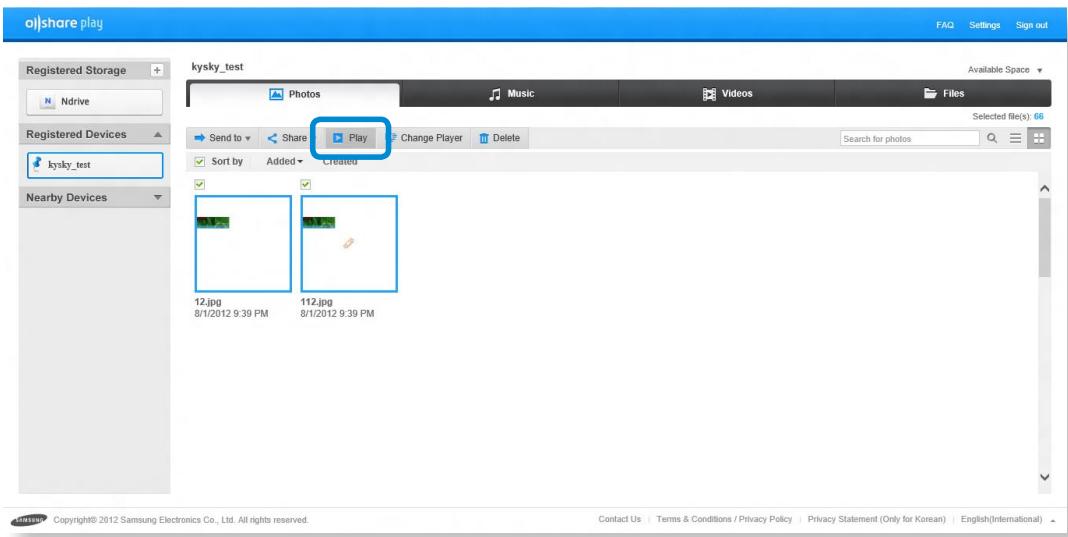

Share play Registered Storage + Ndrive Registered Devices kysky_test Nearby Devices kysky_test Available Space Photos Music Videos Files Send to Share Play Change Player Delete Search for photos Sort by Added Created 12.jpg 8/1/2012 9:39 PM 112.jpg 8/1/2012 9:39 PM Copyright © 2012 Samsung Electronics Co., Ltd. All rights reserved. Contact Us | Terms & Conditions / Privacy Policy | Privacy Statement (Only for Korean) | English(International)

Set the player settings in the options of Windows Media Player to keep the player on top of other windows to always view Windows Media Player on top of other windows.

Transferring a file

1 If you select a registered device or nearby device, the files saved on the device are displayed on the screen.
2 Select a file (or files), and select a destination from the Transfer menu.
You can then copy or move the file(s).

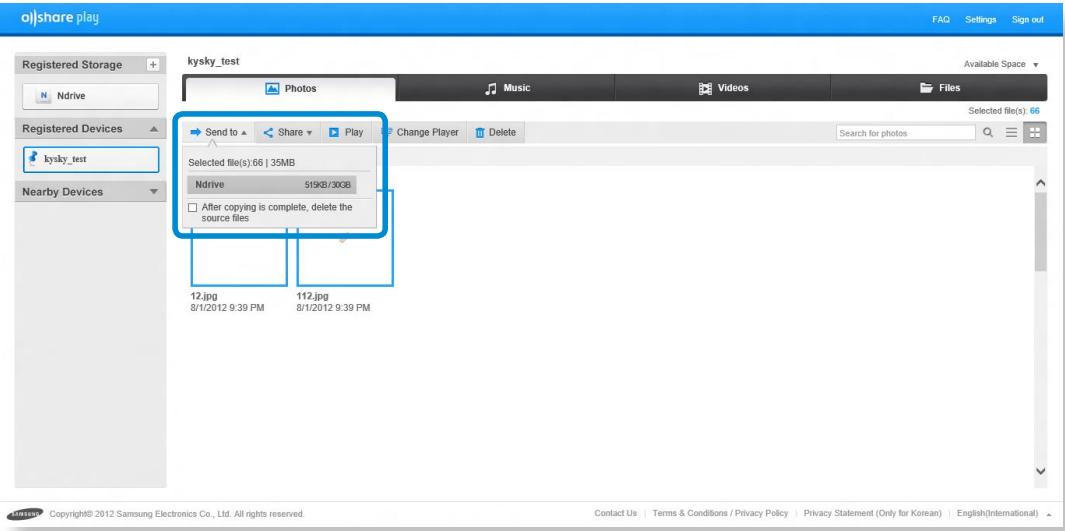

aishare play Registered Storage + Ndrive Registered Devices + kysky_test Nearby Devices kysky_test Photos Music Videos Files Available Space Selected file(s): 66 Send to Share Play Change Player Delete Selected file(s): 66 | 35MB Ndrive 519KB/30GB After copying is complete, delete the source files 12.jpg 8/1/2012 9:39 PM 112.jpg 8/1/2012 9:39 PM Search for photos Copyright© 2012 Samsung Electronics Co., Ltd. All rights reserved. Contact Us Terms & Conditions / Privacy Policy Privacy Statement (Only for Korean) English(International)

Sharing content using the AllShare Play app (Optional)

Uploading a file to a SNS

1 Select the checkbox of the file that you want to upload.
2 Click Share at the top of the screen and select a SNS (social networking site) website (Facebook, Twitter, Flickr, Picasa, etc.).

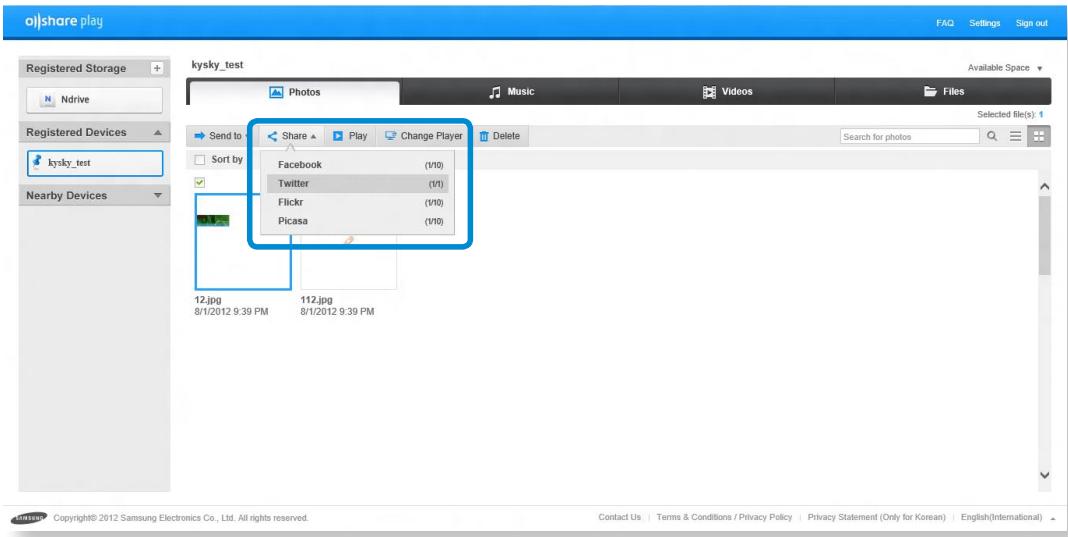

Share play Registered Storage + N Ndrive Registered Devices kysky_test Nearby Devices kysky_test Photos Music Videos Files Available Space Selected file(s): 1 Send to: Share Play Change Player Delete Facebook (1/10) Twitter (1/1) Flickr (1/10) Picasa (1/10) 12.jpg 112.jpg 8/1/2012 9:39 PM 8/1/2012 9:39 PM Copyright© 2012 Samsung Electronics Co., Ltd. All rights reserved. Contact Us | Terms & Conditions / Privacy Policy | Privacy Statement (Only for Korean) | English(International)

3 Sign in to the SNS.

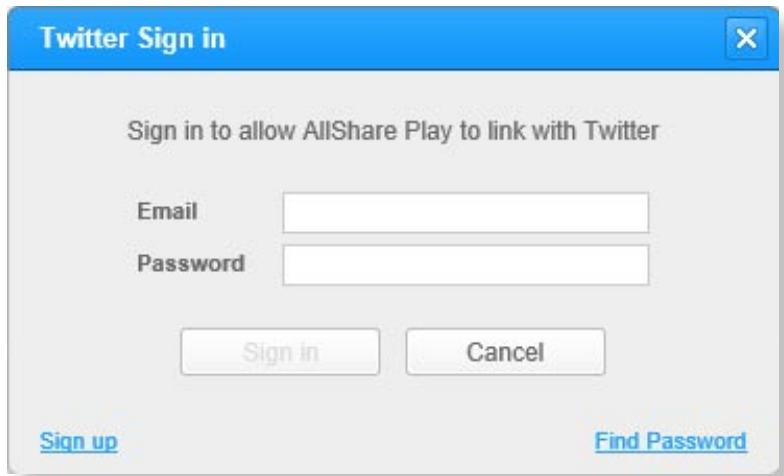

Twitter Sign in Sign in to allow AllShare Play to link with Twitter Email Password Sign in Cancel Sign up Find Password

4 Follow the onscreen instructions to upload the file.

Depending on the country, supported SNS services can vary.

Samsung Software Update

SW Update is a software program that searches for Samsung software programs and drivers installed when you purchased the computer and helps you update any drivers or programs.

• You can check updatable files before performing the update only when you are connected to the internet.
• SW Update does not provide any updates for device drivers or software programs installed separately by the user.

1 From the Start Screen, right-click any area and select All apps 📋 in the bottom right corner.

Then, click SW Update.

2 If the program is running for the first time, the User Agreement for personal information use appears. Click Agree.

3 The SW Update program runs.

Select the items that you want to update before proceeding with the update process.

SW Update Search Home All Software Update Software List Software Update Home Last Updated : 08/07/12 14:20:18 Total : 20 | Essential : 8 Update 0 Essential : 0 New Software : 0 Install 17 Essential : 7 New Software : 0 Install & Update One Click You can install software with just a single click Save Setup Files Help

Diagnosing the Computer Status and Troubleshooting

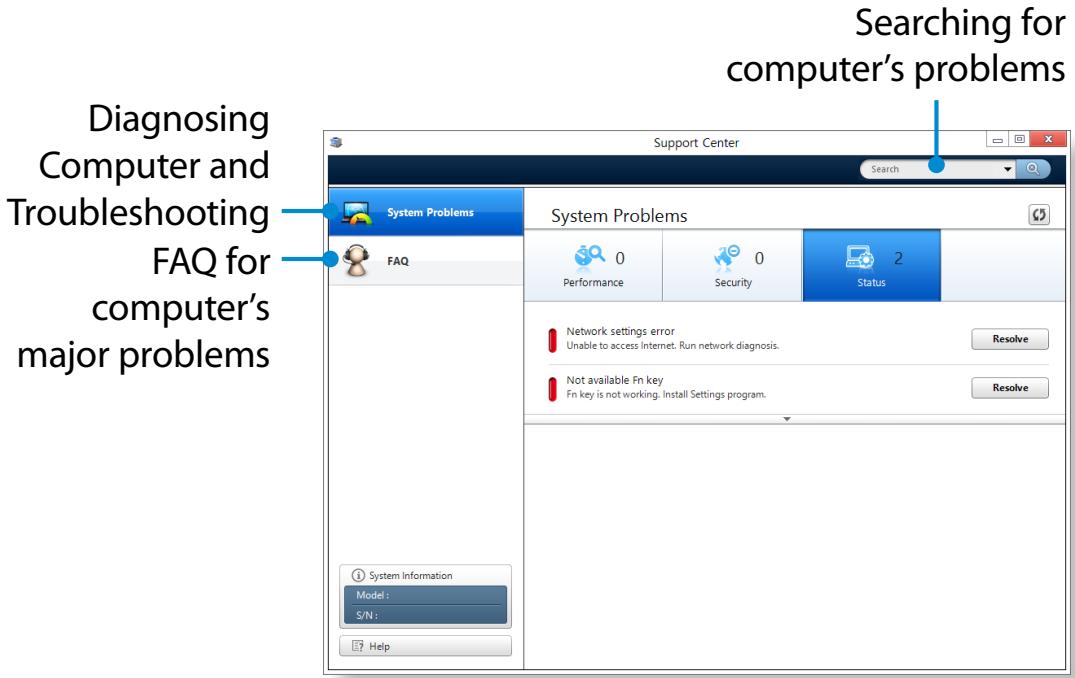

The Support Center program, which is Samsung's computer's troubleshooting guide, supports diagnosing the system and has a FAQ for frequently occurring problem(s).

Support Center may not be provided or may be a different version depending on the model.

1 From the Start Screen, right-click any area and select All apps 📋 in the bottom right corner. Then, click Support Center.

2 Support Center is activated and starts diagnosing your computer.

After the diagnosing process is finished, the System Status menu displays a list of the current problems to be solved as shown.

Searching for computer's problems Diagnosing Computer and Troubleshooting FAQ for computer's major problems Support Center Search System Problems FAQ System Problems 0 Performance 0 Security 2 Status Network settings error Unable to access Internet. Run network diagnosis. Not available Fn key Fn key is not working. Install Settings program. Resolve Resolve System Information Model: S/N: Help

3 You can solve a problem by clicking the Troubleshoot button for the problem.

Using the Security Slot

You can secure the computer by connecting a lock and cable to the Security Slot.

To use this feature, you have to purchase the lock and cable additionally. To use the lock and cable, refer to the product manual.

Tie the lock and cable to a fixed object and install the other end of the cable to the security slot.

SAMSUNG

Blue gear icon inside a white circle, no text or symbols present

Chapter 4. Settings and Upgrade

BIOS Setup 94

Setting a Boot Password 97

Changing the Boot Priority 100

Abstract illustration of interlocking gears in light blue on a dark blue gradient background (no text or symbols)

The BIOS Setup enables you to configure your computer hardware according to your needs.

• Use the BIOS setup to define a boot password, change the booting priority, or add a new device.
• Since incorrect settings may cause your system to malfunction or crash, take care when configuring the BIOS.
• The functions of the BIOS setup are subject to change for product function enhancement purposes.
• The BIOS Setup menus and items may differ depending on your computer model.

Entering the BIOS Setup

1 Turn the computer on. Immediately press the F2 key several times.
2 After a moment, the BIOS setup screen appears. The items in the BIOS setup may differ depending on the product.

The BIOS Setup Screen

The BIOS Setup menus and items may differ depending on your computer model.

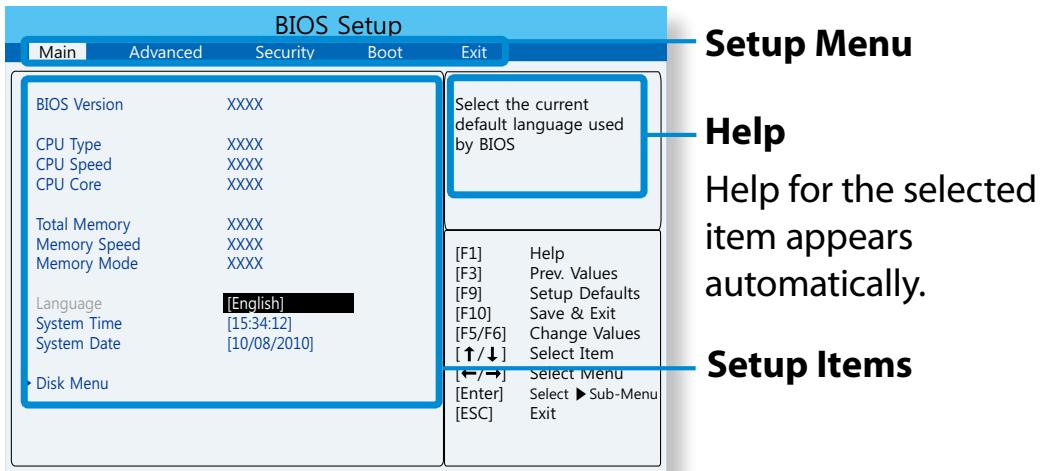

BIOS Setup Main Advanced Security Boot Exit BIOS Version XXXX CPU Type XXXX CPU Speed XXXX CPU Core XXXX Total Memory XXXX Memory Speed XXXX Memory Mode XXXX Language [English] System Time [15:34:12] System Date [10/08/2010] Disk Menu Select the current default language used by BIOS [F1] Help [F3] Prev. Values [F9] Setup Defaults [F10] Save & Exit [F5/F6] Change Values [↑/↓] Select Item [←/→] Select Menu [Enter] Select ▶ Sub-Menu [ESC] Exit Setup Menu Help Help for the selected item appears automatically. Setup Items

Setup Menu	Description
Main	This is a description about the basic specifications of the computer.
Advanced	Using this menu, you can configure the major chipsets and additional functions.
Security	Used to configure security functions, including passwords.
Boot	This menu enables you to configure peripherals and booting related settings such as the boot priority.
Exit	Used to exit the Setup either saving the changes or not.

System Setup Keys

In the Setup, you have to use the keyboard.

F1		Press to view the Setup Help.
Up & Down Keys		Press to move up and down.
F5/F6		Press to change the item value.
F9		Press to load the default Setup settings.
ESC		Press to return to a higher level menu or to move to the Exit menu.
Left & Right Keys		Press to move to another menu.

Enter		Press to select an item or to enter a sub menu.
F10		Press to save the changes and exit Setup.

The keyboard image may differ from the actual keyboard.

If you set a password, you have to enter the password when you turn the computer on or enter the BIOS Setup.

By configuring a password, you can restrict system access to authorized users only and protect data and files saved on the computer.

• The password setting provides the following 3 sub menus. (Supervisor Password, User Password and HDD Password)
• Do not lose or forget your password.
• Do not let others know your password.
• If you forget the Supervisor Password or HDD Password, you will need to request assistance from the service center. In this case, a service fee will be charged.
• When you forget the User Password, you can disable the Supervisor Password, and the User Password is also automatically disabled.
• The screen images and terms may differ from actual product depending on the computer model and driver version.

Setting a Supervisor Password

If you set a Supervisor Password, you need to enter the password when you turn the computer on or enter the BIOS Setup.

Setting only the Supervisor Password and User Password is not very secure. You can use an HDD Password as well to increase the security level.

1 Select the Security menu in the BIOS Setup.
2 In the Set Supervisor Password item, press .

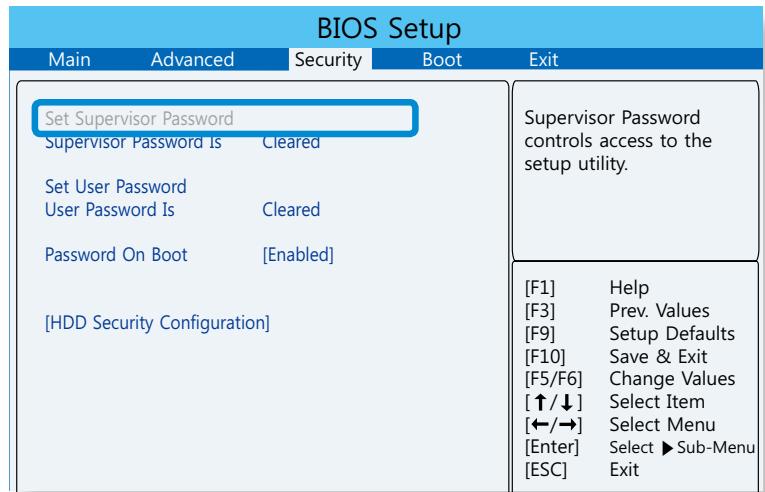

BIOS Setup Main Advanced Security Boot Exit Set Supervisor Password Supervisor Password Is Cleared Set User Password User Password Is Cleared Password On Boot [Enabled] [HDD Security Configuration] Supervisor Password controls access to the setup utility. [F1] Help [F3] Prev. Values [F9] Setup Defaults [F10] Save & Exit [F5/F6] Change Values [↑/↓] Select Item [←/→] Select Menu [Enter] Select ▶ Sub-Menu [ESC] Exit

3 Enter a password, press , re-enter the password for confirmation, and press again.

The password can be up to 8 characters long. You can use English letters, numbers and special characters.

4 The supervisor password has been set.

The supervisor password is required to turn the computer on or to enter the BIOS Setup.

For some models, if the password entered message appears in the Setup Notice window, the settings are not complete until the key is pressed.

Setting a User Password

Using the User Password, you can turn the computer on but you cannot change the major settings of the BIOS Setup because you cannot enter the BIOS Setup.

Before configuring a user password, a supervisor password must have been configured. Deactivating the supervisor password also deactivates the user password.

In the Set User Password item, press and complete the procedures from Step 3 of Setting a Supervisor Password.

Setting Up a Boot Password

To setup a boot password, the administrator password (Set Supervisor Password) should be set in advance.

Set the Password on boot item to Enabled.

Once a boot password is set, you have to enter a password to boot up the computer.

Be sure to remember the password for later use.

Setting up a Hard Disk Drive Password (Optional)

If you set a password for a hard disk drive, it cannot be accessed from another computer.

Press in the Set HDD Password item and define a password as described in Step 3 of the Setting up the Supervisor Password.

• The hard disk drive password setting function is not provided for some models.
• Changing the hard disk drive password

For security purposes, you can only change a hard disk drive password after restarting the computer by pressing the computer Power button.

If you cannot change the hard disk drive password or the HDD Password Frozen message appears when entering the BIOS Setup and then selecting Security > HDD

Password, press the Power button to turn the computer on again.

Deactivating the Password

1 Press on the password to be deactivated. For example, to deactivate a supervisor password in the Set Supervisor Password item, press .
To deactivate the hard disk drive password completely, you must restart the system.
2 In the Enter Current Password item, enter the currently configured password and press .
3 Leave the Enter New Password item field empty, and press .
4 Leave the Confirm New Password field empty, and press .
The password is deactivated.

For some models the password is only canceled if the key is pressed in the Setup Notice window.

Changing the Boot Priority

You can change the boot priority in the BIOS Setup.

1 Select the Boot menu in the BIOS Setup.
2 Press on the Set Boot Order item.

BIOS Setup
Main	Advanced	Security	Boot	Exit
				Select boot priority of boot devices.
Fast Boot		[Disabled]
Booting By LAN		[Disabled]
Secure Boot		[Enabled]
► Set Boot Order
				[F1] Help [F3] Prev. Values [F9] Setup Defaults [F10] Save & Exit [F5/F6] Change Values [↑/↓] Select Item [←/→] Select Menu [Enter] Select ►Sub-Menu [ESC] Exit

3 Press on the Boot Option #1 item. Select the drive to boot from.

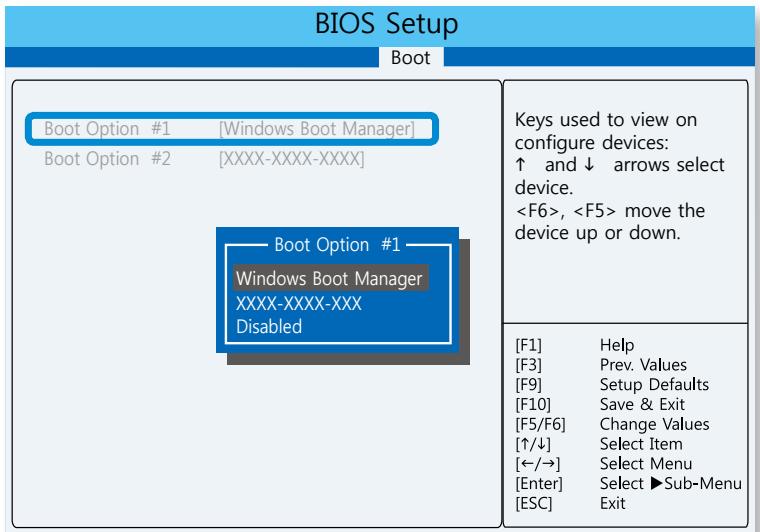

BIOS Setup Boot Boot Option #1 [Windows Boot Manager] Boot Option #2 [XXXX-XXXX-XXXX] Boot Option #1 Windows Boot Manager XXXX-XXXX-XXX Disabled Keys used to view on configure devices: ↑ and ↓ arrows select device. , move the device up or down. [F1] Help [F3] Prev. Values [F9] Setup Defaults [F10] Save & Exit [F5/F6] Change Values [↑/↓] Select Item [←/→] Select Menu [Enter] Select ▶Sub-Menu [ESC] Exit

4 Press the F10 key to save and exit the BIOS Setup. The boot priority will be changed.

Blue circular icon with a large blue question mark, set against a solid blue background (no text or symbols)

Chapter 5. Troubleshooting

Recovering/Backing up the Computer (Optional) 102

Reinstalling Windows (Optional) 109

Q&A 112

Abstract graphic with a large blue arrow and rows of question marks, no text or symbols present.

If a problem occurs with your computer, Recovery (recovery program) allows you to easily restore your computer to the default (factory) settings. Alternatively, you can back up your computer so that you can restore it to your preferred state at any time.

Recovery Introduction

Back Up Recover Backup This function saves the current status of C: drive to an image. If a problem occurs while the computer is in use, you can recover the system to the identical settings as the backup using the image. Stored drive Backup point : 07/14/2012 Backup size : 7.9GB Please select a drive for saving backup data. K:\ (931.3GB left) Create boot disk. Use the selected device to create boot disk. OFF ON Windows System Diagnostics Diagnoses Windows before backup. Requires additional time. Estimated time for backup 5 minutes + 2 minutes (diagnostics time) OFF ON Disk copy Factory image Run backup server Help Backup

• Recovery may not be provided or may be a different version depending on the model.
• For models whose hard disk or SSD capacity is less than 64 GB, the Recovery program is not provided.
• The instructions are provided based on Recovery 6.0 version. Some functions may differ slightly or be excluded depending on the version. Refer to the program's Help section for more information.
• An ODD (CD/DVD drive, etc.) is not supported by the Recovery program.

Function	Description
Back Up	You can back up your entire Windows drive.
Recover	Restores the entire Windows drive.

Recovering

You can recover your computer to the default (factory) status when your computer does not boot up.

1 - If Windows does not start

Turn your computer on and press the F4 key. Run recovery mode.

- If Windows is run

From the Start Screen, right-click any area and select All apps 📋 in the bottom right corner.

Then, click Recovery.

2 If the program is running for the first time, you need to agree to the User Agreement.
3 If the initial menu screen appears, click Recover.

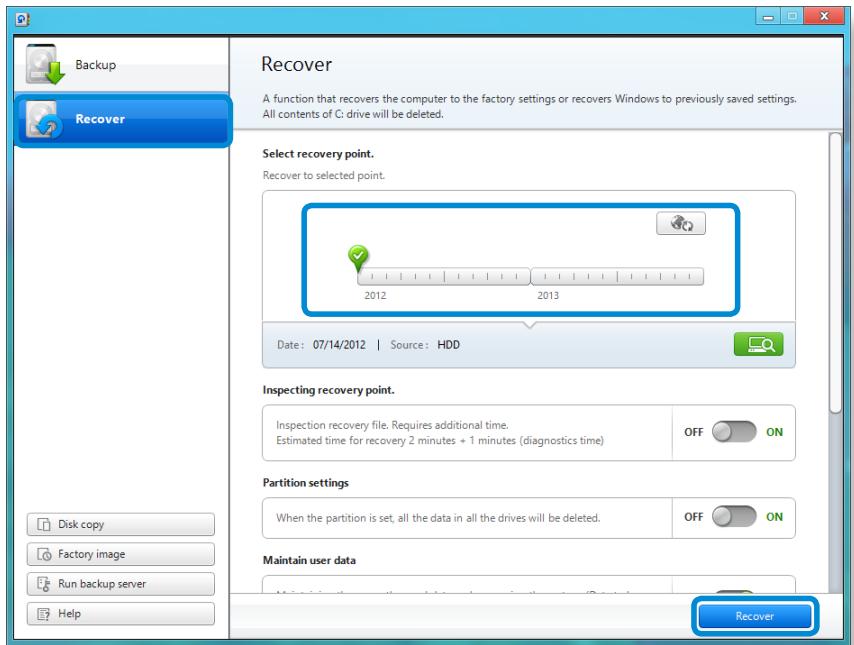

Select a recovery point and click Recover.

If you set the User Data Maintenance to ON, the computer is restored while maintaining the current user data.

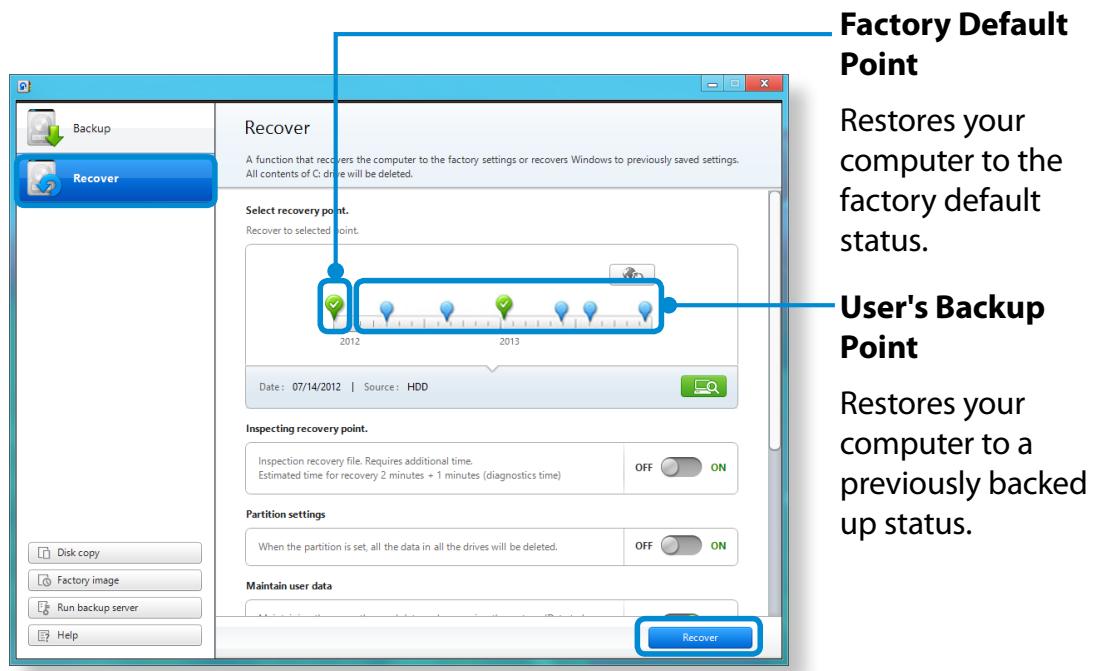

Factory Default Point Restores your computer to the factory default status. User's Backup Point Recover Recover A function that recovers the computer to the factory settings or recovers Windows to previously saved settings. All contents of C: drive will be deleted. Select recovery point. Recover to selected point. Date: 07/14/2012 | Source: HDD Inspecting recovery point. Inspection recovery file. Requires additional time. Estimated time for recovery 2 minutes + 1 minutes (diagnostics time) OFF ON Partition settings When the partition is set, all the data in all the drives will be deleted. OFF ON Maintain user data Disk copy Factory image Run backup server Help Recover

4 Recover is performed based on the screen instructions. If the recover is completed, you can use your computer normally.

Recovering after a Backup

You can recover your computer after you have backed up your computer to a separate drive or external storage device.

Backing up

1 To back up your computer to an external storage device, connect the external storage device and select the relevant drive.
2 Click Backup in the Recovery Home screen. Select the drive to save and click Backup.

You cannot select a DVD drive.

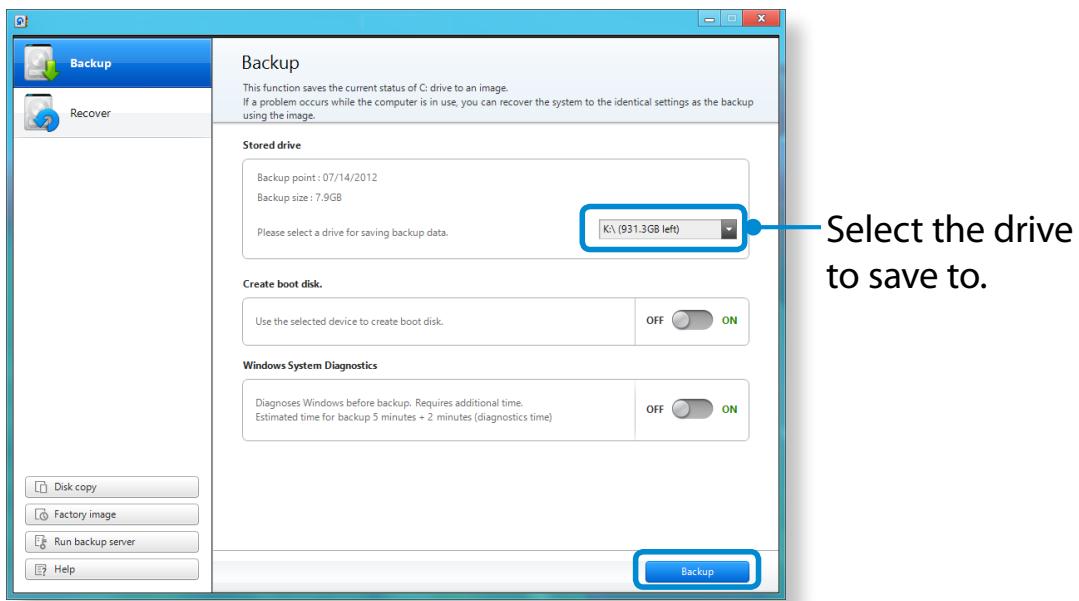

Backup This function saves the current status of C: drive to an image. If a problem occurs while the computer is in use, you can recover the system to the identical settings as the backup using the image. Stored drive Backup point : 07/14/2012 Backup size : 7.9GB Please select a drive for saving backup data. K:\ (931.3GB left) Create boot disk. Use the selected device to create boot disk. OFF ON Windows System Diagnostics Diagnoses Windows before backup. Requires additional time. Estimated time for backup 5 minutes + 2 minutes (diagnostics time) OFF ON Disk copy Factory image Run backup server Help Backup

3 The backup process is performed based on the instructions.

Recovering

You can recover your computer using the backup from the above process.

1 If the backup image is saved to an external storage device, connect the device.
2 Start Recovery and click Recover.
3 Select a Recover Option and click Recover. Select a point to recover.

Backup Recover Recover A function that recovers the computer to the factory settings or recovers Windows to previously saved settings. All contents of C: drive will be deleted. Select recovery point. Recover to selected point. Date: 07/14/2012 | Source: HDD Inspecting recovery point. Inspection recovery file. Requires additional time. Estimated time for recovery 2 minutes + 1 minutes (diagnostics time) OFF ON Partition settings When the partition is set, all the data in all the drives will be deleted. OFF ON Maintain user data Disk copy Factory image Run backup server Help Recover

4 The recover is performed based on the screen instructions. You can use your computer after the recover is completed.

To copy the external storage disk

When you replace a storage device such as the HDD, SSD, etc. (hereafter referred to as a hard disk) built into your computer, you can move your existing data to the new storage device easily and safely.

The new storage device must have sufficient capacity to save your existing data.

You need to purchase an external hard USB connector separately to connect the hard disk and your computer.

1 You need to purchase an external hard USB connector separately to connect the hard disk and your computer.
2 Start Recovery and click Disk copy.
3 Select an option in Disk recovery Point and click Disk copy.

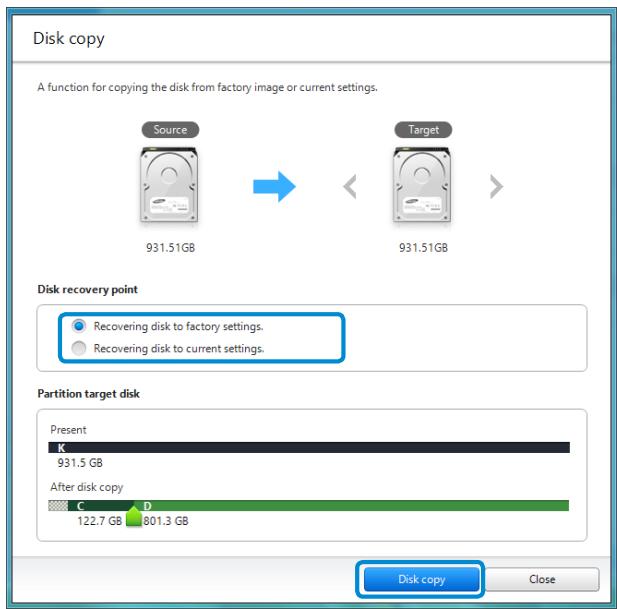

Disk copy A function for copying the disk from factory image or current settings. Source 931.51GB Target 931.51GB Disk recovery point ● Recovering disk to factory settings. ○ Recovering disk to current settings. Partition target disk Present K 931.5 GB After disk copy C D 122.7 GB 801.3 GB Disk copy Close

4 The data on the current hard disk is saved to the new hard disk.
5 If the data is completely saved, open the hard disk cover at the bottom of your computer and replace the existing hard disk with the new one.

If you cannot open the cover at the bottom of the computer, contact the Samsung Service Center to request assistance. In this case, you may be charged for the relevant service.

6 Your computer is now equipped with a new hard disk. You can use your computer with a larger hard disk capacity with the same configuration as the old one.

Export Disk Image Function

If you frequently recover your computer to the default (factory) settings, you can conveniently recover your computer after exporting the default (factory) status disk image to an external storage device.

1 Connect the external storage device, and then select a drive to save to.
2 Click Run.
3 Perform the process by following the instructions to completely save the default (factory) status disk image to the external storage device.

Now disconnect the saved external storage device and store it separately.

4 If your computer needs to be restored to the default (factory) settings, connect the external storage device with the saved image.
5 Start Recovery and click Recover. Select Factory Default Point and click Recover. The Recover process is started.

When the recover process is finished, you can use your computer with the default (factory) settings.

Computer Recovery Function in Windows 8

If you need to install Windows 8 again due to an unexpected error, use the following function.

For models of which the storage device capacity is less than SSD 64 GB, use the system recovery feature provided by Windows instead of the Recovery program.

1 Click the Charms menu > Settings > Change PC Settings > General.
2 Click the Start button for PC Recovery or Remove All Items and Reinstall Windows.

PC Recovery	If your PC does not work properly, you can restore your PC while keeping your media files such as your photo, video and music files, etc. as well as your personal documents.
Remove All Items and Reinstall Windows	If you want to return your PC to the default settings, or start from scratch, you can reset your PC to the factory default.

You should back up the files in the following folders before using the PC Recovery function since these files are not kept.

\Windows, \Program files, \Program files(x86), \ProgramData, OEM Folder (ex) c:\samsung), \User\\AppData

3 Follow the onscreen instructions to proceed with the recovery process.

If the recovery is complete, you can use your computer normally.

You can reinstall Windows using the SYSTEM RECOVERY MEDIA for Windows when Windows is no longer working properly. (For models supplied with a SYSTEM RECOVERY MEDIA.)

These descriptions are for Windows 7/8 and Windows Vista and for supported models only.

• A SYSTEM RECOVERY MEDIA may not be supplied depending on your computer model.
• If you cannot start Windows, or if you want to delete all existing data and reinstall Windows, install Windows according to the descriptions in [Reinstalling when Windows does not start].
• Some pictures may differ from actual product.
• These descriptions may differ depending on the operating system.

• Reinstalling Windows may delete data (files and programs) saved on the hard disk drive.
• Make sure to backup all important data. Samsung Electronics shall not be held liable for any loss of data.

Reinstalling in Windows

1 Insert the SYSTEM RECOVERY MEDIA into the DVD drive.
2 If the Select Windows Installation window appears, click Install Now. When the Select Update window appears, click on the relevant item.

• If you select Go online to get the latest updates for installation in the Select Update window, the latest updates are installed and Step 4 follows. At this time, the computer must be connected to the Internet.
• For Windows 7/8, the screen asking for the operating system to be installed may appear depending on the version. If you click the Next button, the screen of Step 3appears.

3 If the User Agreement screen appears, select I accept the license terms and then click Next.

For Windows 7/8, this screen may not appear depending on the version.

4 The following window appears, select an installation option.

If you click Custom, the procedures from Step 5 continue sequentially.

If you click Upgrade, the procedures from Step 6 continue sequentially.

• For Windows 7/8, this screen may not appear depending on the version.
• Custom

Select this option to Reinstall Windows. You have to reinstall all necessary device drivers and programs after the Custom installation. In addition, unnecessary folders and files may remain on the hard disk drives after the installation (e.g. C:\ Windows.old, etc.).

- Upgrade

Select this option to Upgrade Windows while maintaining current files, configurations and programs. Although you therefore do not need to reinstall the device drivers and programs, some programs may not work properly after the upgrade.

5 When a window appears asking for the location to install the operating system to, select a disk drive partition and click the Next button.

Drive D includes an area to save the backup image used by Samsung Recovery Solution. Installing Windows to drive C is recommended.

When previous Windows installation files are in the selected partition, a message appears informing you that the files and folders will be moved to the Windows. old folder. Click the OK button.

6 The Windows installation continues.

The computer will restart 3 times during the installation. If the Press any key to boot from CD or DVD... message appears after a restart, do not press any button.

7 Register a user according to the instructions on the Windows screen.

8 When the registration is complete, the Windows Desktop screen appears.

For a smooth computer operation, installing the necessary software installation is recommended.

Reinstalling when Windows does not start

When Windows does not start, boot up with the SYSTEM RECOVERY MEDIA and from there you can reinstall Windows.

1 Insert the SYSTEM RECOVERY MEDIA into the DVD drive and restart the computer.
2 If the Press any key to boot from CD or DVD... message appears while booting, press any key on the keyboard.

Press any key to boot from CD or DVD.....

3 After a while, the Options windows such as Language, Time, Keyboard, etc. appear. Confirm the settings and click the Next button.

4 If the Select Windows Installation window appears, click Install Now.

For Windows 7/8, the screen asking for the operating system to be installed may appear depending on the version. If you click the Next button, the screen of Step 5 appears.

5 If the User Agreement screen appears, select I accept the license terms and then click Next.

For Windows 7/8, this screen may not appear depending on the version.

6 When the window asking for the installation type appears, click Custom.

For Windows 7/8, this screen may not appear depending on the version.

7 When a window appears asking for the location to install the operating system to, select the partition of the disk drive and then click the Next button.

Drive D includes an area to save the backup image used by Samsung Recovery Solution. Installing Windows to drive C is recommended.

- A If you click Drive Options (Advanced), you can delete, format, create or expand a partition. Click on a function and proceed according to the instructions on the screen. - When previous Windows installation files are in the selected partition, a message appears informing you that the files and folders will be moved to the Windows.old folder. Click the OK button.

8 The subsequent steps are the same as those from Step 7 of Installing in Windows.

You can look for potential problems that may occur with the system and view the relevant solutions. Also, you may look up any reference(s) required while operating the computer.

Recovery Related

Q1 What is a Recovery Area?

A Samsung computers have an additional partition to recover computers or save backup files. (Only for models with the Recovery.) This partition is called a Recovery Area and it includes a recovery image that comprises of the OS and application programs.

Q2 The capacity representation of the hard disk drive(HDD) in Windows is different from the product specifications.

A The capacity of the storage device (HDD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes. However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity.

The capacity representation in Windows may be smaller

than the actual capacity because some programs occupy a certain area of the HDD outside of Windows.

For models with Recovery, the HDD capacity representation in Windows may be smaller than the actual capacity because Recovery uses a hidden area of about 5\~20GB of the HDD to save the recovery image, and that hidden area is not counted towards the total size available to Windows.

The size of Recovery varies by models because of the different size of applied programs.

Q3 What is a recovery image?

A This refers to the computer status (including operating system, specific driver(s), software(s), etc.) which is converted to a data image. It is required to recover your computer and is embedded in the computer's hard disk. However, this is not provided for storage devices where the capacity is less than 64 GB due to the small capacity.

Q4 How can I restore a computer that does not have the Recovery program?

A You can restore the computer using the system recovery function provided by Windows.

Refer to the Restore Functionality item in the Help section for more details.

Windows 8 Related

Q1 I cannot find the Start button on the Desktop.

A There's no Start button in Windows 8.

You can use the Control Panel, PC-running menu(s), etc. by activating the Charms menu.

Q2 I cannot find the computer's Shutdown button.

A Click the Charms menu > Settings > Power to display the Power Options menu.

Click Shutdown.

Q3 The App disappeared in the Start screen.

A Click the Charms menu > Search to display all installed Apps. Right-click over the corresponding App to select in a Tile in the Start Screen.

Q4 Since I'm familiar with Windows 7, I would like the Desktop screen to appear as it does in Windows 7.

A Currently, there is no way to set the Desktop to appear by default.

Press the Windows key + D key simultaneously to reveal the Desktop when the Start screen appears. This is currently the only workaround.

Q5 How can I install a printer driver?

A Run your driver installation file and follow the corresponding instructions. You can install it in the same method as the existing OS.

Refer to your printer manual for detailed instructions for each model.

Q6 How can I uninstall the driver?

A On the Desktop, click Charms menu > Settings > Control Panel > Programs and Features.

Click the program. Then click uninstall.

How can I change the screen settings, environment settings, type size, color, and so on?

A

Click Charms menu > Settings > Change PC Settings > Personalization. You can set the OS settings such as the screen design, etc.

To configure your computer in detail, click the Charms menu in Desktop > Settings > Control Panel.

You can configure your computer in the same way as existing Windows systems.

Active X does not run in Internet Explorer on the Start screen.

A

Since Internet Explorer on the Start screen complies with the HTML5 web standards, it does not support Active X. However, Internet Explorer on the Desktop supports Active X.

▶ How to activate Active X:

If you right-click over the Internet Explorer, the following window appears. Press the ⏻ button and click View on the Desktop. Active X is now enabled.

I want to remove the pre-installed Windows 8 operating system and install a different OS.

A

If you want to install a different operating system on your PC, you need to change the BIOS settings first.

For more information, visit http://www.samsung.com and go to Customer Support > Troubleshooting. Search for Windows 8 and look through the list of search results for the relevant issue.

Blue icon of a spiral-bound notebook inside a white circle (no text or symbols)

Chapter 6. Appendix

Important Safety Information 116

Replacement Parts and Accessories 118

Regulatory Compliance Statements 120

WEEE Symbol Information 136

Samsung Packaging Take-Back Program 137

Product Specifications 138

Glossary 140

Index 144

Safety Instructions

Your system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.

Always follow these instructions to help guard against personal injury and damage to your system.

Setting Up your System

• Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use.
• Do not use this product near water or a heat source such as a radiator.
• Set up the system on a stable work surface.
• The product should be operated only with the type of power source indicated on the rating label.

• Ensure that the electrical outlet you are using to power your equipment is easily accessible in case of fire or short circuit.

• If your computer has a voltage selector switch, make sure that the switch is in the proper position for your area.

• Openings in the computer case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the computer ventilation openings.
• Ensure that the fan vents on the bottom of the casing are clear at all times. Do not place the computer on a soft surface, doing so will block the bottom vents.
• If you use an extension cord with this system, make sure that the total power rating on the products plugged into the extension cord does not exceed the extension cord power rating.

Care During Use

• Do not walk on the power cord or allow anything to rest on it.
• Do not spill anything on the system. The best way to avoid spills is to not eat or drink near your system.
• Some products have a replaceable CMOS battery on the system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturers instructions. If the CMOS battery requires replacement insure that a qualified technician performs the task.

- When the computer is turned off, a small amount of electrical current still flows through the computer. To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system.

- Unplug the system from the wall outlet and refer servicing to qualified personnel if:

• The power cord or plug is damaged.
  – Liquid has been spilled into the system.
• The system does not operate properly when the operating instructions are followed.
• The system was dropped or the casing is damaged.
• The system performance changes.

The Instruction On Safety Operation of NotePC

1. When installing and operating devices please refer to safety requirements in the user guide.
2. Devices can be used only with the equipment specified in the technical specifications of the devices.
3. If any smell of burning or smoke is detected from the computer the unit should be switched off and battery removed. The unit should be checked by a qualified technician before reuse.
4. Service and repair of devices should be carried out by authorized service centers.
5. Do not allow your portable computer to operate with the base resting directly on exposed skin for extended periods of time. The surface temperature of the base will rise during normal operation (particularly when AC Power is present). Allowing sustained contact with exposed skin can cause discomfort or eventually a burn.

Replacement Parts and Accessories

Use only replacement parts and accessories recommended by manufacturer.

To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord.

Do not use this product in areas classified as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas.

Battery Disposal

Do not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage.

Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer.

Follow all local regulations when disposing of old batteries.

THERE IS A RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Laser Safety

All systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 60825-1. The laser devices in these components are classified as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location.

- Laser Safety Note:

Use of controls or adjustments or performance of procedures other than those specified in this manual may result in hazardous radiation exposure. To prevent exposure to laser beams, do not try to open the enclosure of a CD or DVD drive.

• Class 1M laser radiation when operating part is open. Do not view directly with optical instruments.
• Class 3B invisible laser radiation when open. Avoid exposure to the beam.

Connect and Disconnect the AC adapter

The socket-outlet shall be installed near the equipment and shall be easily accessible.

Do not unplug the power cord by pulling the cable only.

Power Cord Requirements

The power cord set (wall plug, cable and AC adapter plug) you received with your computer meets the requirements for use in the country where you purchased your equipment.

Power cord sets for use in other countries must meet the requirements of the country where you use the computer. For more information on power cord set requirements, contact your authorized dealer, reseller, or service provider.

General Requirements

The requirements listed below are applicable to all countries:

• All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country where the power cord set will be used.
• The power cord set must have a minimum current capacity of 7 A and a nominal voltage rating of 125 or 250 volts AC, as required by each country's power system. (USA ONLY)
• The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C7 (or C5) connector, for mating with appliance inlet on the computer.

Wireless Guidance

(If fitted with 2.4G band or 5G band)

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.

The RF field strength of the wireless device or devices that may be embedded in your notebook are well below all international RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed on the next page:

• Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane.
  802.11ABGN (also known as wireless Ethernet or Wifi) and Bluetooth communication devices are examples of devices that provide wireless communication.
• In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.
• Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.
• If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.

Regulatory Compliance Statements

• Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Please contact manufacturer for service.
• Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

United States of America

USA and Canada Safety Requirements and Notices

Do not touch or move antenna while the unit is transmitting or receiving.

Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting.

Do not operate the radio or attempt to transmit data unless the antenna is connected; if not, the radio may be damaged.

Use in specific environments:

The use of wireless devices in hazardous locations is limited by the constraints posed by the safety directors of such environments.

The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA).

The use of wireless devices in hospitals is restricted to the limits set forth by each hospital.

Explosive Device Proximity Warning

Do not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modified to be qualified for such use.

Regulatory Compliance Statements

Use On Aircraft Caution

Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments.

Other Wireless Devices

Safety Notices for Other Devices in the Wireless Network:

Refer to the documentation supplied with wireless Ethernet adapters or other devices in the wireless network.

The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Intel could void the user's authority to operate this device.

Unintentional Emitter per FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Regulatory Compliance Statements

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet helpful: "Something About Interference."

This is available at FCC local regional offices. Our company is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system.

Intentional emitter per FCC Part 15

(If fitted with 2.4G band or 5G band)

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.

This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this device.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Wireless devices are not user serviceable. Do not modify them in any way.

Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

Health and safety information

Exposure to Radio Frequency (RF) Signals

Certification Information (SAR)

This product can be embedded a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Council on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.

The exposure limit set by the FCC for wireless devices employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless devices to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.

SAR tests are conducted using standard operating positions accepted by the FCC with the wireless transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual

SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.

Before a new model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model are performed in positions and locations (e.g. at the bottom on the body) as required by the FCC.

For body worn operation, this model has been tested and meets the FCC RF exposure guidelines when used with a Samsung accessory designated for this product. Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines.

SAR information on this and other model can be viewed on-line at http://www.fcc.gov/oet/ea/fccid/. This site uses this product FCC ID number on the outside of the product. Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID number for a particular product, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular product.

Regulatory Compliance Statements

FCC Part 68 (If fitted with a modem device.)

This equipment complies with part of the FCC rules. On the back of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

This equipment uses the following USOC jacks : RJ11C

An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or promises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.

The REN is used to determine the quantity of devices which may be connected to telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by total RENs, contact the local telephone company to determine the maximum REN for the calling area.

If the terminal equipment causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities,

equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advanced notice in order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with this equipment (Modem) for repair or warranty information, please contact your local distributor. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

The user must use the accessories and cables supplied by the manufacturer to get optimum performance from the product.

No repairs may be done by the customer.

This equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs.

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be any number for which charges exceed local or long-distance transmission charges.)

In order to program this information into your fax machine, refer to your communications software user manual.

Canada

Unintentional Emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.

This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device."

The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

(If fitted with 2.4G band or 5G band)

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in Canada if an Industry Canada ID number is on the system label.

Regulatory Compliance Statements

When using IEEE 802.11a wireless LAN, this product is restricted to indoor use due to its operation in the 5.15- to 5.25-GHz frequency range. Industry Canada requires this product to be used indoors for the frequency range of 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar stations can cause interference with and/or damage to this device.

The maximum allowed antenna gain for use with this device is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to 5.35 and 5.725 to 5.85 GHz frequency range in point-to-point operation.

The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

To prevent radio interference to licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

Regulatory Compliance Statements

Telecommunications per DOC notice (for products fitted with an IC-compliant modem)

The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users' satisfaction.

Before installing this equipment, users should make sure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the inside wiring associated with a single-line individual service may be extended by means of a certified connector assembly. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should make sure, for their own protection, that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Regulatory Compliance Statements

To avoid electrical shock or equipment malfunction do not attempt to make electrical ground connections by yourself. Contact the appropriate inspection authority or an electrician, as appropriate.

The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

European Union CE Marking and Compliance Notices

Products intended for sale within the European Union are marked with the Conformité Européenne (CE) Marking, which indicates compliance with the applicable Directives and European standards and amendments identified below. This equipment also carries the Class 2 identifier.

The following information is only applicable to systems labeled with the CE mark C€.

European Directives C€

This Information Technology Equipment has been tested and found to comply with the following European directives:

• EMC Directive 2004/108/EC
• Low Voltage Directive 2006/95/EC
• R&TTE Directive 1999/5/EC

Manufacturer Information

Samsung Electronics Co., Ltd.

416, Maetan-3Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, 443-742, Korea

Samsung Electronics Suzhou Computer Co., Ltd.

No. 198, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province, 215021, China

Tel: [phone]

For the web or the phone number of Samsung Service Centre, see the Warranty or contact the retailer where you purchased your product.

Regulatory Compliance Statements

European Radio Approval Information (for products fitted with EU-approved radio devices)

This Product is a Notebook computer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz band, may be present (embedded) in your notebook system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

CE!

Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark C€ with a Notified Body Registration Number and the Alert Symbol is on the system label.

The power output of the wireless device or devices that may be embedded in you notebook is well below the RF exposure limits as set by the European Commission through the R&TTE directive.

The low band 5.15 - 5.35 GHz is for indoor use only.

See 802.11b and 802.11g restrictions for specific countries or regions within countries under the heading “European Economic Area Restrictions” below.

EU R&TTE Compliance Statements

	Česky [Czech]	Samsung tímto prohlašuje, že tento Notebook PC je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
	Dansk [Danish]	Undertegnede Samsung erklærer herved, at følgende udstyr Notebook PC overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
	Deutsch [German]	Hiermit erklärt Samsung, dass sich das Gerät Notebook PC in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
	Eesti [Estonian]	Käesolevaga kinnitab Samsung seadme Notebook PC vastavust direktiivi 1999/5/ EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
	English	Hereby, Samsung, declares that this Notebook PC is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
	Español [Spanish]	Por medio de la presente Samsung declara que el Notebook PC cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Regulatory Compliance Statements

el.	Ελληνική [Greek]	ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Samsung ΔΗΛΩΝΕΙ ΟΤΙ Notebook PC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
fr	Français [French]	Par la présente Samsung déclare que l'appareil Notebook PC est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
it	Italiano [Italian]	Con la presente Samsung dichiara che questo Notebook PC è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
lw	Latviski [Latvian]	Ar šo Samsung deklarē, ka Notebook PC atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
lt	Lietuvių [Lithuanian]	Šiuo Samsung deklaruoja, kad šis Notebook PC atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
nl	Nederlands [Dutch]	Hierbij verklaart Samsung dat het toestel Notebook PC in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
mt	Malti [Maltese]	Hawnhekk, Samsung, jiddikjara li dan Notebook PC jikkonforma mal-ħtiāijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.

hu	Magyar [Hungarian]	Alulírott, Samsung nyilatkozom, hogy a Notebook PC megfelel a vonatkozó alapvető követelményeknek és az 1999/5/EC irányelv egyéb előírásainak.
pl	Polski [Polish]	Niniejszym Samsung oświadcza, Še Notebook PC jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
pt	Português [Portuguese]	Samsung declara que este Notebook PC está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
sl	Slovensko [Slovenian]	Samsung izjavlja, da je ta Notebook PC v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
sk	Slovensky [Slovak]	Samsung týmto vyhlasuje, že Notebook PC spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
fi	Suomi [Finnish]	Samsung vakuuttaa täten että Notebook PC tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
sy	Svenska [Swedish]	Härmed intygar Samsung att denna Notebook PC står l överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Regulatory Compliance Statements

To view the EU Declaration of Conformity for this product (in English only), go to: http://www.samsung.com/uk/support/download/supportDownMain.do then search the model number of the product.

If the Declaration of Conformity for the model you are interested in is not available on our web-site, please contact your distributor.

European Economic Area Restrictions

Local Restriction of 802.11b/802.11g Radio Usage

[Note to integrator: The following statements on local restrictions must be published in all end-user documentation provided with the system or product incorporating the wireless product.]

Due to the fact that the frequencies used by 802.11b/802.11g wireless LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are designed for use only in specific countries or regions, and are not allowed to be operated in countries or regions other than those of designated use.

As a user of these products, you are responsible for ensuring that the products are used only in the countries or regions for which they were intended and for verifying that they are configured with the correct selection of frequency and channel for the country or region of use. Any deviation from permissible settings and restrictions in the country or region of use could be an infringement of local law and may be punished as such.

Regulatory Compliance Statements

The European variant is intended for use throughout the European Economic Area. However, authorization for use is further restricted in particular countries or regions within countries, as follows:

General

European standards dictate maximum radiated transmit power of 100 mW effective isotropic radiated power (EIRP) and the frequency range 2400 – 2483.5 MHz.

The low band 5.15 - 5.35 GHz is for indoor use only.

Belgium

The product may be used outdoors, but for outdoor transmissions over a distance of 300m or more, a license from the BIPT is required.

This restriction should be indicated in the manual as follows:

For Metropolitan departments:

2.400 - 2.4835 GHz for indoor use.

2.400 - 2.454 GHz (channels 1 to 7) for outdoor use.

For Guadeloupe, Martinique, St Pierre et Miquelon, Mayotte:

2.400 - 2.4835 GHz for indoor and outdoor use.

For Reunion, Guyane:

2.400 - 2.4835 GHz for indoor use.

2.420 - 2.4835 GHz for outdoor use (channels 5 to 13)

The low band 5.15 - 5.35 GHz is for indoor use only.

Regulatory Compliance Statements

European Telecommunication Information (for products fitted with EU-approved modems)

Marking by the symbol C€ indicates compliance of this equipment to the Radio and Telecom Terminal Equipment Directive 1999/5/EC. Such marking is indicative that this equipment meets or exceeds the following technical standards:

CTR 21 - Attachment requirements for pan-European approval for connection to the analogue Public Switched Telephone Networks (PSTNs) of TE (excluding TE supporting voice telephony services) in which network addressing, if provided, is by means of Dual Tone Multi-Frequency (DTMF) signaling.

Although this equipment can use either loop disconnect (pulse) or DTMF (tone) signaling, only the performance of the DTMF signaling is subject to regulatory requirements for correct operation.

It is therefore strongly recommended that the equipment is set to use DTMF signaling for access to public or private emergency services. DTMF signaling also provides faster call setup.

This equipment has been approved to Council Decision 98/482/EEC - "CTR 21" for Pan-European single terminal connection to the Public Switched Telephone Network (PSTN).

However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact manufacturer Technical Support.

RTC CAUTION

CAUTION : Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the Manufacturer's instruction.

Correct disposal of this product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

India Only

For more information on safe disposal and recycling visit our website www.samsung.com/in or contact our Helpline numbers - 18002668282, 180030008282.

Pb

Correct disposal of batteries in this product

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material re-use, please separate batteries from other types of waste and recycle them through your local, free battery return system.

USA ONLY

This Perchlorate warning applies only to primary CR (Maganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.

"Perchlorate Material- special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate."

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, [phone]

For battery recycling go to call2recycle.org; or call 1-877-723-1297

Samsung Packaging Take-Back Program

In partnering with select recyclers, Samsung offers packaging take-back at no cost to you.

Simply call the following number for the locations nearest you.

CRT Processing, LLC

[phone]

Kathy Severson – Logistics contact

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website:

www.samsung.com/recyclingdirect Or call, [phone]

Product Specifications

The system specifications may differ depending on the derived models.

For detailed system specifications, refer to the product catalogue.

CPU (Optional)	Intel Pentium DualCore ProcessorIntel Core i3/i5 Processor
Main Memory	DDR3 SODIMM
Main Chipset	Intel H61
Storage Device	S-ATA2 HDD
Graphics(Optional)	Intel HD Graphics (Internal)Nvidia GT 620M (External)
OperatingEnvironment	Temperature: -5~40°C for storage,10~32°C when operatingHumidity: 5~90% for storage,20~80% when operating
AC/DC Rating(Optional)	Input) 100-240VAC, 50/60HzOutput) 19VDC 4.74A, 19VDC 6.32A
PC Rating(Optional)	19VDC 4.74A(90W), 19VDC 6.32A(120W)

• Optional components may not be provided or different components may be provided depending on the computer model.
• The system specifications are subject to change without notice.
• The Storage device capacity of a computer in which Recovery is installed, is represented as smaller than the product specification.
• For the replacement or upgrade of the memory for this product, please ask for assistance from your service center.
• To replace the storage device (HDD) of this product, please ask for assistance from the service center.
• The amount of memory that Windows can use may be smaller than the actual amount of memory available.

Registered Trademarks

Samsung is a registered trademark of Samsung Co., Ltd.

Intel, Core™ i5/i3 are registered trademarks of the Intel Corporation.

Microsoft, MS-DOS, and Windows are registered trademarks of the Microsoft Corporation.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

All other product or company names mentioned herein are registered trademarks of their respective companies.

ENERGY STAR® Partner

ENERGY STAR

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

HDMI

HDMI®

HIGH-DEFINITION MULTIMEDIA INTERFACE

The Glossary lists the terminologies used in this User Guide. For terminologies other than these, look in Windows Help.

Backup

A way to save the current data to restore it later if necessary. A backup is a way to restore computer data when the data or computer is damaged.

Chargeable USB

This program enables supplying power to a specific USB port when the system is in power saving mode, hibernation mode or off.

Client

This refers to a computer that uses a shared network resource provided by a server.

DDR SDRAM

(Double Data Rate Synchronous Dynamic Random Access Memory)

DRAM is a memory type whose cells consist of a capacitor and transistor manufactured at a low price. SDRAM is a memory type whose performance has been improved by synchronizing the clock with the external CPU clock. DDR SDRAM is a memory type whose performance has been improved by doubling the operating speed of the SDRAM and is widely used nowadays. This computer uses DDR SDRAM.

Device Manager

An administrative tool used to manage computer devices. You can add or remove hardware or update a device driver using the Device Manager.

DHCP (Dynamic Host Configuration Protocol)

This refers to automatically allocating IP addresses to the users on the network by the network administrators.

Direct X

An application interface developed to enable Windows application programs to access hardware devices at a very high speed. Since the operating speed of graphics, memory and sound cards must be very fast to provide high quality video and sound for games, Direct X enables faster control and interaction between applications and hardware devices. By using Direct X, the multimedia performance of Windows has been hugely improved.

Driver

Software that interacts between the hardware and the operating system. An operating system knows the hardware information and controls the hardware. In general, a driver is supplied with the corresponding hardware device.

D-sub (D-subminiature)

This is the cable connecting a general CRT monitor and the computer. Analog video is output through this cable.

DVD (Digital Versatile Disk)

DVD was developed to replace CD (compact disk). Although the shape and size of the disc are the same as that of a CD, the capacity of a DVD is at least 4.7GB while the capacity of a CD is 600MB. DVD video is digital unlike VHS (analog) video and supports MPEG2 compression and digital audio. To play a DVD, a DVD drive is required.

Firewall

A security system used to protect an internal network or intranet from external networks through an authentication procedure.

HDMI

This is a digital video / audio interface specification that transmits video and audio signals over a single cable.

Hibernation Mode

A power mode that saves all data in memory to the hard disk and turns the CPU and hard disk off. When canceling Hibernation Mode, all application programs that were running are restored to their last state.

Icon

This refers to a small image that represents a file that users can use.

IEEE802.XX

This is a set fo specifications developed by the 802 committee of IEEE for the LAN connection method called XX.

LAN (Local Area Network)

A communications network connecting computers, printers and other devices within a local area such as within a building. A LAN enables all connected devices to interact with other devices on the network. The current LAN uses the Ethernet media access control method developed in the early 1980s. To connect to an Ethernet, a network card called a LAN card, Ethernet card or network interface card is required. To exchange data between computers, a protocol is required besides the hardware equipment. Windows uses TCP/IP as the default protocol.

LCD (Liquid Crystal Display)

There are Passive Matrix and Active Matrix LCD types. This computer uses the Active Matrix type LCD called a TFT LCD. Since an LCD is implemented by transistors instead of a cathode-ray tube unlike a CRT, its size can be slim. And because it does not blink, it reduces eye strain.

Network

A group of computers and devices, such as printers and scanners, connected by a communications link. A network can be either small or large and can be connected permanently through cables or temporarily through telephone lines or wireless links. The biggest network is the Internet, a worldwide network.

Network Administrator

A user who plans, configures and manages network operations. Sometimes, a network administrator is called a system administrator.

Notification Area

This refers to the right area of the Taskbar including program icons such as the volume control, the power options and the time.

Partition

This refers to the act or practice of dividing the storage space of a hard disk drive into separate data areas known as partitions. If a 100GB hard disk drive is partitioned into 2 x 50GB partitions, the hard disk drive can be used as if there are 2 hard disk drives.

Protocol

A protocol is a set of rules used by computers to communicate with each other across a network. A protocol is a convention or standard that controls or enables the connection, communication, and data transfer between computing endpoints. It defines the data transmission procedures and the transmission medium for more efficient network functions.

Quick Launch

This refers to a toolbar that can be configured so that you can launch a program such as Internet Explorer or display the Windows Desktop with one click. You can add any icon to the quick launch area of the Taskbar and launch frequently used program by clicking that icon.

SDHC (Secure Digital High Capacity) card

This is the extension of the SD card that supports over 2GB bytes.

Server

In general, a server refers to a computer that provides shared resources for network users.

Share

This refers to setting a resource of a computer such as a folder or printer so that other users can also use it.

Shared Folder

A folder that can be used by other users on the network.

Sleep Mode

A power mode that enables computers to save power consumption when they are not being used. When a computer is in Sleep Mode, the data on the computer memory is not saved to the hard disk. If the power is turned off, the data in memory will be lost.

System File

System Files refer to files that are read and used by the Windows operating system. In general, system files must not be deleted or moved.

TCP/IPv4

This is a 4 byte (32 bit) address system separated into each byte (8 bits) by a dot and each byte is represented as a decimal number.

USB (Universal Serial Bus)

This refers to a serial interface standard developed to replace the conventional interface standards such as Serial and PS/2.

The data transmission specifications are one of the interface standards used to connect a computer to peripheral devices. These specifications include USB 1.0, 1.1, 2.0 and 3.0.

It is appropriate to support peripheral devices that require high data rates such as an AV device, secondary HDD or CD-RW. The higher the version (e.g. USB 3.0), the higher the data rate provided.

Windows Media Player

A multimedia program included with Windows. Using this program, you can play a media file, create an audio CD, listen to a radio broadcast, search and manage media files, and copy files to a portable device, etc.

A AP 67
B BIOS Setup 94 Booting Priority 100
C CD Drive 57 Click 51
D Double-Click 51 Drag 51
M Multi Card Slot 59

Overview 21
P Password 97 Product Specifications 138
R Recovery 102
S Safety Precautions 6 Scroll 51 Supervisor Password 97 Support Center 91 SW Update 90

T Touch button 22
U User Password 98
V Volume Control 62
W Wired Network 64 Wireless Network 67
