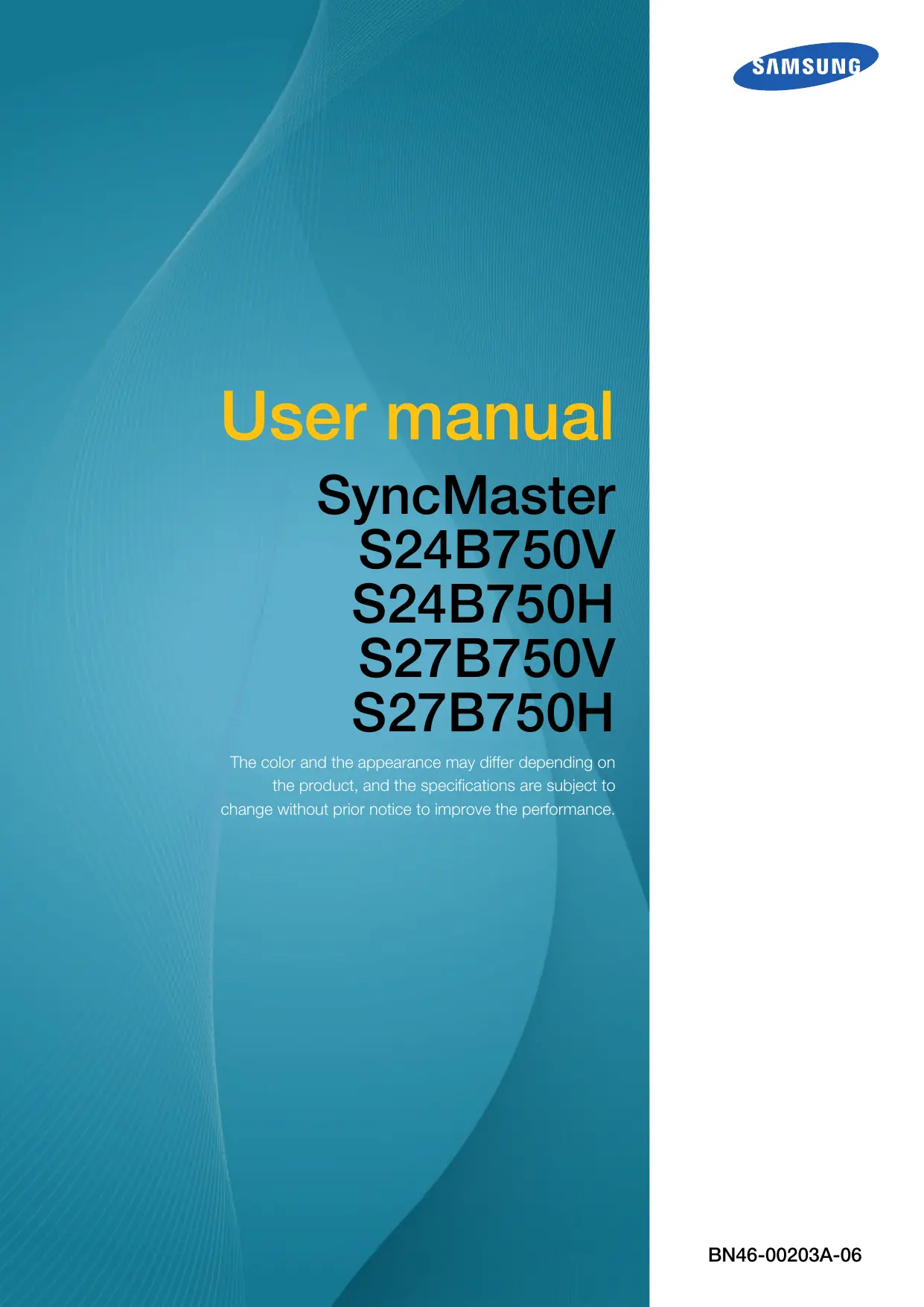

USER MANUAL SYNCMASTER S27B750H SAMSUNG

The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance

Before Using the Product Copyright The contents of this manual are subject to change without notice to improve quality. © 2011 Samsung Electronics Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. The SAMSUNG and SyncMaster logos are registered trademarks of Samsung Electronics. Microsoft and Windows are registered trademarks of Microsoft Corporation. VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association...< An administration fee may be charged if either o a) an engineer is called out at your request and there is no defect in the product i.e. where you have failed to read this user manual). (b) you bring the unit to a repair centre and there is no defect in the product i.e. where you have failed to read this user manual). -< The amount of such administration charge will be advised to you before any work or home visit is carried out. Icons used in this manual The following images are for reference only. Real-life situations may differ from what is shown in the images. Symbols for safety precautions À Warning A serious or fatal injury may result if instructions are not followed. Personal injury or damage to properties may result if instructions are À Caution not followed. © Activities marked by this symbol are prohibited. O0 Instructions marked by this symbol must be followed.

Before Using the Product Cleaning Cleaning Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. Take the following steps when cleaning.

1. Power off the monitor and computer.

2. Disconnect the power cord from the monitor.

B£ Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.

8. Wipe the monitor screen using a clean, soft and dry cloth.

. Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor. -< Do not spray water or detergent directly on the product.

4. Wet a soft and dry cloth in water and wring thoroughly to clean the

exterior of the monitor.

5. Connect the power cord to the product after cleaning the product.

6. Power on the monitor and computer.

Before Using the Product Securing the Installation Space .< Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Be sure to allow the amount of space as shown below or greater when installing the product. The exterior may differ depending on the product. Precautions for storage High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used nearby. Be sure to contact Samsung Customer Service Center (page 84) if the inside of the monitor needs cleaning. (Service fee will be charged.)

Before Using the Product Safety Precautions Electricity and Safety The following images are for reference only. Real-life situations may differ from what is shown in the images. À Warning Do not use a damaged power cord or plug, or a loose power socket. . Anelectric shock or fire may result. Do not plug many products into the same power socket. + Otherwise, the socket may overheat and cause a fire. Do not touch the power plug with wet hands. + Otherwise, an electric shock may result. Insert the power plug all the way in so it is not loose. -< An unstable connection may cause a fire. Ensure you connect the power plug to a grounded power socket. (type 1 insulated devices only). . An electric shock or injury may result. Do not bend or pull the power cord with force. Do not weigh the power cord down with a heavy object. . À damaged power cord may cause an electric shock or fire. Do not place the power cord or product near heat sources. . Anelectric shock or fire may result. Remove foreign substances such as dust around the plug pins and power socket With a dry cloth. + Otherwise, a fire may result.

Before Using the Product À Caution Do not unplug the power cord when the product is in use.

— fa .< The product may become damaged by an electric shock. cs. Do not use the power cord for products other than authorized products supplied by Samsung. © . Anelectric shock or fire may result. nu f Keep the power socket where the power cord is connected unobstructed.

-< _lfany problem occurs in the product, unplug the power cable to completely © — cut the power to the product. Power to the product cannot be completely cut off with the power button. Hold the plug when disconnecting the power cord from the power socket. . Anelectric shock or fire may result. Installation and Safety À Warning hi DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP rt OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES. \u) 3 © == Q « _ Otherwise, a fire may result. Avoid installing the product in a narrow space with bad ventilation, such as a bookshelf or wall closet. + Otherwise, a fire may result due to an increased internal temperature. Keep the plastic packaging bag for the product in a place that cannot be reached by children. + Children may suffocate.

Before Using the Product Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.). .< The product may fall and break or cause a personal injury.

• Using the product in an area with excess vibration may damage the product or cause a fire. Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.) oil, or smoke. . Anelectric shock or fire may result. Do not expose the product to direct sunlight, heat, or a hot object such as a stove. + Otherwise, the product lifespan may be reduced, or a fire may result. Do not install the product within the reach of young children. .< The product may fall and injure children. Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen or near a kitchen counter. Take care not to drop the product when moving it. + Otherwise, product failure or personal injury may result. Do not set down the product on its front. .< The screen may become damaged. When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding. .< The product may fall and break or cause a personal injury. - Install the product only on cabinets or shelves of the right size.

Before Using the Product Put down the product carefully. .< The product may fall and break or cause a personal injury. Installing the product in an unusual place (a place exposed to a lot of fine particles, chemical substances or extreme temperatures, or an airport or train station where the product should operate continuously for an extended period of time) may seriously affect its performance. . Be sure to consult Samsung Customer Service Center (page 84) before installation if you want to install the product at such a place. Operation and Safety À Warning High voltage runs through the product. Do not attempt to disassemble, repair, or modify the product on your own. . Anelectric shock or fire may result. + Contact Samsung Customer Service Center (page 84) for repair. Before you move the product, be sure to turn off the power switch and remove all the cables connected to the product, including the power cord and the antenna cable. + Otherwise, the power cord may be damaged and a fire or electric shock may result. If the product generates a strange noise, a burning smell, or smoke, remove the power cord immediately and contact Samsung Customer Service Center (page 84). . Anelectric shock or fire may result. Do not let children hang from the product or climb on top of it. -< The product may fall, and your child may become injured or seriously harmed. If the product falls or the exterior is damaged, power off the product, remove the power cord, and contact Samsung Customer Service Center (page 84). + Otherwise, an electric shock or fire may result.

Before Using the Product Do not put a heavy object, toy, or sweets on top of the product. -< The product or heavy objects may fall as children try to reach for the toy or sweets resulting in a serious injury. During a lightning or thunderstorm, remove the power cord and do not touch the antenna cable. . Anelectric shock or fire may result. Do not drop objects on the product or apply impact. . Anelectric shock or fire may result. Do not move the product by pulling the power cord or any cable. + Otherwise, the cable may be damaged and product failure, an electric shock or fire may result. If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately. + Sparks can cause an explosion or fire. Do not lift or move the product by pulling the power cord or any cable. + Otherwise, the cable may be damaged and product failure, an electric shock or fire may result. Do not use or keep combustible spray or an inflammable substance near the product. - An explosion or fire may result. Ensure the vents are not blocked by tablecloths or curtains. .< Otherwise, a fire may result from an increased internal temperature.

Before Using the Product

Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable object (paper, match, etc.) into the vent or ports of the product. . If water or any foreign substance enters the product, be sure to power off the product, remove the power cord, and contact Samsung Customer Service Center (page 84). -< Product failure, an electric shock or fire may result. Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product. . If water or any foreign substance enters the product, be sure to power off the product, remove the power cord, and contact Samsung Customer Service Center (page 84). -< Product failure, an electric shock or fire may result. Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels. . If you are not going to use the product for an extended period of time, activate power-saving mode or a moving-picture screen saver. Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time (vacation, etc..). + Otherwise, a fire may result from accumulated dust, overheating, an electric shock, or electric leakage. Use the product at the recommended resolution and frequency. + Your eyesight may deteriorate. Do not put DC power adapters together. + Otherwise, a fire may result. Remove the plastic bag from the DC power adapter before you use it. + Otherwise, a fire may result.

Before Using the Product Do not let water enter the DC power adapter or get the adapter wet. . Anelectric shock or fire may result. . Avoid using the product outdoors where it can be exposed to rain or snow. . Be careful not to get the DC power adapter wet when you wash the floor. Do not put the DC power adapter near to any heating apparatus. + Otherwise, a fire may result. Keep the DC power adapter in a well-ventilated area. Looking at the screen too close for an extended period of time can deteriorate your eyesight. Do not hold the monitor upside-down or move it by holding the stand. .< The product may fall and break or cause a personal injury. Do not use humidifiers or stoves around the product. . Anelectric shock or fire may result. Rest your eyes for more than 5 minutes for every 1 hour of product use. . Eye fatigue will be relieved. Do not touch the screen when the product has been turned on for an extended period of time as it will become hot. Store the small accessories used with the product out of reach of children. Exercise caution when adjusting the product angle or stand height. .< Otherwise, children's fingers or hands may become stuck and injured. -__ Tilting the product excessively may cause it to fall and result in personal injury.

Before Using the Product Do not place heavy objects on the product. + Product failure or personal injure may result. When using headphones or earphones, do not turn the volume too high. + Having the sound too loud may damage your hearing. Exercise caution when adjusting the angle of the product. + Your fingers may get caught and injured when folding the product. Ensure you take extra caution.

Before Using the Product Correct posture to use the product Use the product in the correct posture as follows. + Straighten your back. L + Allow a distance of 45 to 50cm between your eye and the screen, and look slightly downward at the screen. Keep your eyes directly in front of the screen. .< Adjust the angle so light does not reflect on the screen. + Keep your forearms perpendicular to your upper arms and level with the back of your hands. + Keep your elbows at about a right angle. .< Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels attached to the floor, and your arms lower than your heart.

PRODUCT PREPARATIONS

G © O O1 O1 À À &© © N ND ND Copyright Icons used in this manual Symboils for safety precautions Cleaning Cleaning Securing the Installation Space Precautions for storage Safety Precautions Electricity and Safety Installation and Safety Operation and Safety Correct posture to use the product Checking the Contents Removing the Packaging Checking the Components Parts Frontal Buttons Reverse Side Adjusting the Product Tilt Anti-theft Lock "MHL" (Mobile High-Definition Link) Using "MHL" Disabling "MHL" Before Connecting Pre-connection Checkpoints Connecting the Power

Table Of Contents APPENDIX INDEX Standard Signal Mode Table Contact SAMSUNG WORLDWIDE Correct Disposal Correct Disposal of This Product (Waste Electrical & Electronic Equipment) Terminology

1.1.1 Removing the Packaging

1 Open the packaging box. Be careful not to damage the product when you open the packaging with a sharp instrument.

2 Removethe styrofoam from the product. Check the components and remove the styrofoam and plastic bag.

Æ This image is for reference only.

4 Store the box in a dry area so that it can be used when moving the product in the future.

E + Contact the dealer from whom you purchased the product if any item is missing. + The appearance of the components and items sold separately may differ from the image shown. Components 7 = Quick setup guide Warranty card User manual (Not available in some locations) Power cable DC power adapter Cleaning cloth HDMI cable (optional) MHL Cable (S24B750V / S27B750V) Stereo Cable Cable Holder (S24B750V / S27B750V) E Components may vary depending on the country. Items sold separately The following items can be purchased at your nearest retailer.

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. CZCIEN'ER IT Key guide MENU AUTO S24B750H / S27B750H EG MENU MSUNG 3 6 J S24B750V / S27B750V MENU MHL/Y A/Ÿ Q/cs AUTO (] e )

Preparations Icons Description MENU -< Open or close the onscreen display (OSD) menu, or return to the parent menu. -< _ OSD control lock: Maintain the current settings, or lock the OSD control to prevent unintended changes to settings. Enable: To lock the OSD control, press the [MENU] button for 10 seconds. Disable: To unlock the locked OSD control, press the [MENU] button for more than 10 seconds. the OSD control is locked, + Brightness and Contrast, A GieBright can be adjusted, and INFORMATION can be viewed. + The Customized Key function can be used by pressing the (C16248750H / S27B750H) button. (The Customized Key function specified before the OSD control was locked is available even when the OSD control is locked.) MHL (824B750V / S27B750V) Pressing the [MHL] (624B750V / S27B750V) button when your smartphone is connected to [HDMI IN 2 / MHL] on the product enables the MHL function, which allows you to import data from the smartphone to the product. K For further details on the MHL function, refer to " Using "MHL(Mobile High-Definition Link)""

(S24B750H / S27B750H) When the Key guide is displayed, the [[4)] button activates the function assigned to Customized Key. Configure Customized Key and press [[4J]. The following options will be enabled. MaAgicAngle - ÿagieBright - Eco Saving - Image Size To configure Customized Key, go to SETUP&RESET — Customized Key and select the mode you want.

Preparations Icons Description Confirm a menu selection. Pressing the [t/C] button when the OSD menu is not displayed will change the input source (Analog/HDMI IN 1(DVI)/HDMI IN 2/MHL) (624B750V / S27B750V) (Analog/HDMI IN) (624B750H / S27B750H). If you power on the product or change the input source by pressing the [7/1] button, a message that shows the changed input source will appear at the top left corner of the screen. AUTO Press the [AUTO] button to automatically adjust the screen settings. WZ Changing the resolution in Display Properties will activate the Auto Adjustment function. Turn the screen on or off.

(Power lamp) The power indicator will be lit when the product is operating normally. To reduce power consumption, it is best to remove the power cable when you will not be using the product for an extended period of time. Key guide When a control button on the product is pressed, the Key guide will be displayed before the onscreen menu opens. (The guide shows the function of the button pressed.) To access the onscreen menu when the guide is displayed, press the corresponding button again. The Key guide may vary depending on the function or product model. Refer to the actual product.

4 The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. S24B750V / S27B750V S24B750H / S27B750H

Port Ports © Connect to the DC power adapter. > Connect to a source device using an HDMI cable. HDMI IN2/MHL Connect to a source device that has the MHL function using the = MHL cable. (S24B750V / S27B750V) Connect to a source device using an HDMI cable. Connect to a PC using the D-SUB cable. a D

(824B750V / S27B750V) Connect to an audio-input source using an stereo cable. ouT/ (824B750V / S27B750V) Connect to an audio output device such as headphones.

1.2.3 Adjusting the Product Tilt

EZ The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. [ à Dep 2er,

L J + You can adjust the tilt of your monitor. + Hold the lower part of the product and adjust the tilt carefully.

1.2.4 Anti-theft Lock

An anti-theft lock allows you to use the product securely even in public places. The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details. The lock device is sold separately. N 4 fé The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. To lock an anti-theft locking device: 1 Fixthe cable of your anti-theft locking device to a heavy object such as a desk. 2 Put one end of the cable through the loop on the other end. 3 Insertthe locking device into the anti-theft lock slot at the back of the product. 4 Lock the locking device. + An anti-theft locking device can be purchased separately.

• Refer to the user guide provided with your anti-theft locking device for details. + Anti-theft locking devices can be purchased at electronics retailers or online.

Using "MHL(Mobile High-Definition Link)" The "MHL'" function is available on the S24B750V / S27B750V model only.

2.4 "MHL" (Mobile High-Definition Link)

This feature allows you to enjoy videos and photos (imported from a connected mobile device that supports MHL) on the screen of the product. MHL + Touse the MHL function, you need an MHL-certified mobile device. You can check if your mobile device is MHL certified on the device manufacturer's website. To find a list of MHL-certified devices, visit the official MHL website (http:/mww.mhlconsortium.org). + To use the MHL function, the latest version of software must be installed on the mobile device. + On some mobile devices, the MHL function may not be available depending on the device's performance or functionality. + Since the display size of the product is larger than those of mobile devices, the picture quality may degrade. + This product is officially MHL-certified. If you encounter any problem when using the MHL function, please contact the manufacturer of the mobile device. *< The picture quality may degrade when content (imported from the mobile device) with a low resolution is played on the product.

Using "MHL(Mobile High-Definition Link)"

1 Connect the USB port on the mobile device to the [HDMI IN 2 / MHL] port on the product using the MHL cable. F LL VE

° _ Whenthe MHL cable is used, [HDMI IN 2 / MHL] is the only port on the product that supports the MHL function. + A mobile device should be purchased separately. 2 Connect the DC power adapter to the product and a power outlet. (For details, refer to "3.2 Connecting the Power".) 3 Pressthe [MH] button to activate MHL mode. S24B750V / S27B750V A/@ Qc AUTO 0) “ ) 4 Ifthe following message appears, MHL mode is activated. After about 3 seconds, the MHL screen will be displayed. 3 sec later IMHL)

F4 The indicated time "3 sec later" may vary depending on the mobile device.

Using "MHL(Mobile High-Definition Link)" When the mobile device is in power-saving mode EZ When the mobile device is in power-saving mode, the following message will appear in place of the MHL screen. To display the MHL screen, deactivate power-saving mode. When the mobile device is not connected or does not support MHL

+ When the mobile device is not connected to the product or does not support the MHL function, the following message will appear. + IfMHL modeis not activated, check the connection of the mobile device: + fMHL modeis not activated, check if the mobile device supports MHL. + fMHL modeis not activated even though the mobile device supports MHL, update the firmware of the mobile device to the latest version The indicated time "3 sec later" may vary depending on the mobile device. 2 Using "MHL(Mobile High-Definition Link)"

Using "MHL(Mobile High-Definition Link)"

2.1.2 Disabling “MHL"

Disabling MHL by using the [MHL] button When MHL is active, press the [MHL] button. The MHL function will be disabled.

ma Dsuemo E The input source changes automatically only when a cable is connected to a port other than [HDMI IN 2 /MHL. When the cable is disconnected or the mobile device is powered off Ifthe MHL cable is disconnected or the mobile device is powered off when MHL is active, the MHL function will be disabled. 4 + lfthe MHL cable is disconnected, the product will display the message Check Signal Cable and remain in MHL mode. + Theindicated time "3 sec later" may vary depending on the mobile device. 2 Using "MHL(Mobile High-Definition Link)" FE

Connecting and Using a Source Device

3.1 Before Connecting

S24B750V / S27B S24B750H / S27B750H N mannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn] 4 N RU 7

3.1.1 Pre-connection Checkpoints

. Before connecting a source device, read the user manual provided with it. The number and locations of ports on source devices may differ from device to device. + Do not connect the power cable until all connections are completed. Connecting the power cable during connection may damage the product. -< Check the types of ports at the back of the product you want to connect.

3.2 Connecting the Power

+ Connect the power adapter to [DC 14V] on the rear of the product. Connect the power cord to the adapter and wall socket. (The input voltage is switched automatically.) DC 14V

Connecting and Using a Source Device Connecting and Using a PC

3.3.1 Connecting to a PC

+ Select a connection method suitable for your PC. E Connecting parts may differ in different products. Connection Using the D-SUB Cable (Analogue Type)

RGB IN 1 Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the PC. Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC. (For details, refer to "3.2 Connecting the Power".) 3 Press [7/1] to change the input source to Analog. + The S24B750H / 827B750H model does not support sound. + To enable the sound on an S24B750V / S27B750V model, connect an stereo cable. Connection Using an HDMI Cable F A /

1 Connect the HDMI cable to the HDMI port on the back of the product and the HDMI port on the PC. Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC. (For details, refer to "3.2 Connecting the Power".) 3 Pressthe [7/1] button to change the input source to HDMI IN 1(DVI)/HDMI IN 2/ MHL(S24B750V / S27B750V) / HDMI IN(S24B750H / S27B750H). E The $24B750H / 827B750H model does not support sound.

Connecting and Using a Source Device Connection Using an HDMI-DVI Cable

DS nn HDMI IN 1 Connect the HDMI-DVI cable to the HDMI port on the back of the product and the DVI port on the PC. 2 Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC. (For details, refer to "3.2 Connecting the Power".) 3 Pressthe [@/@1] button to change the input source to HDMI IN 1(DVI)/HDMI IN 2/ MHL(S24B750V / S27B750V) / HDMI IN(S24B750H / S27B750H). S24B750V/S27B750V E + The S24B750H / S27B750H model does not support sound. + To enable the sound on an S24B750V / S27B750V model, connect the stereo cable and select DVI PC in PC/AV Mode. 3 Connecting and Using a Source Device EA

Connecting and Using a Source Device

1 Connect an audio output device such as headphones or speakers to [{] on the product. E To enable the audio, connect the stereo cable.

Connecting and Using a Source Device

3.3.3 Driver Installation

E + You can set the optimum resolution and frequency for this product by installing the corresponding drivers. + Aninstallation driver is contained on the CD supplied with the product. + Ifthe file provided is faulty, visit the Samsung homepage (http:/Avww.samsung.com) and download the file. Insert the user manual CD provided with the product into the CD-ROM drive. Click "Windows Driver". Follow the instructions given on the screen to proceed with installation. B W NH Select your product model from the list of models. Selecthe display aaptar on which you went intl ne montor Selectthe motor ich you emo instl

5 Go to Display Properties and check that the resolution and refresh rate are appropriate. Refer to your Windows OS manual for further details.

Connecting and Using a Source Device

3.3.4 Setting Optimum Resolution

An information message about setting optimum resolution will appear if you power on the product for the first time after purchase. Select a language and change the resolution to the optimum value. The optimal r 1 Press [A /w] to move to the language you want and press [1/1]. 2 Tohide the information message, press [MENU]. E + lfthe optimum resolution is not selected, the message will appear up to three times for a specified time even when the product is turned off and on again + The optimum resolution can also be selected in Control Panel on your PC. 3 Connecting and Using a Source Device E3

Connecting and Using a Source Device

3.3.5 Changing the Resolution Using a PC

quality. Changing the Resolution on Windows XP Adjust the resolution and refresh rate in Control Panel on your PC to obtain optimum picture The picture quality of TFT-LCDs may degrade if the optimum resolution is not selected. Go to Control Panel — Display — Settings and change the resolution. roy D

Connecting and Using a Source Device Changing the Resolution on Windows 7 Go to Control Panel — Display — Screen Resolution and change the resolution. fau Programs ep and Support

Screen Setup Configure the screen settings such as brightness and color tone. Brightness You can adjust the general brightness of the picture. (Range: 0-100) A higher value will make the picture appear brighter. E + This menu is not available when FX @iéBright is set to Dynamic Contrast mode. + Not available if Eco Saving is set to On.

4.1.1 Configuring Brightness

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to Picture and press [1/1] on the product. 3 Press [A/w] to move to Brightness and press [1/0] on the product. The following screen will appear. 4 Adjust the Brightness using the [A / w] buttons. 4 Screen Setup

Screen Setup Contrast Adijust the contrast between the objects and background. (Range: 0-100) A higher value will increase the contrast to make the object appear clearer. E + This menu is not available when FX SiéBright is in Cinema or Dynamic Contrast mode.

+ This menu is not available when SXSeColor is in Full or Intelligent mode.

4.2.1 Configuring Contrast

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to Picture and press [1/1] on the product. 3 Press [A/w] to move to Contrast and press [H/cæ] on the product. The following screen will appear. 4 Adjust the Contrast using the [A / w] buttons.

Screen Setup Sharpness Make the outline of objects more clear or blurry. (Range: 0-100) A higher value will make the outline of objects clearer. E + This menu is not available when FX SiéBright is in Cinema or Dynamic Contrast mode.

+ This menu is not available when SXSeColor is in Full or Intelligent mode.

4.8.1 Configuring Sharpness

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to Picture and press [1/1] on the product. 3 Press [A/w] to move to Sharpness and press [t/cæ] on the product. The following screen will appear. 4 Adjust the Sharpness using the [A / W] buttons.

Screen Setup SAMSUNG MAGIC Bright This menu provides an optimum picture quality suitable for the environment where the product will be used. E - Not available if Eco Saving is set to On. + This menu is not available when jX@igAngle is enabled. You can customize the brightness to suit your preferences.

44.1 Configuring SAMSUNG MAGIC Bright

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/W] to move to Picture and press [t3/cæ] on the product. 3 Press [A/w]to move to MAGIeBright and press [Q/cæ:] on the product. The following screen will appear. Dynamie Contrast ENT Li] LA] a Ô + Custom: Customize the contrast and brightness as required. + Standard: Obtain a picture quality suitable for editing documents or using Internet. .< Game: Obtain a picture quality suitable for playing games that involve many graphic effects and dynamic movements. + Cinema: Obtain the brightness and sharpness of TVSs suitable for enjoying video and DVD content. + Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment. 4° Press [A/w] to move to the option you want and press [n/c&]. 5 The selected option will be applied.

Screen Setup SAMSUNG MAGIC Angle MAgIeAngle allows you to configure the settings to obtain the optimum picture quality according to your viewing angle. E + This menu is not available when FX SiéBright is in Cinema or Dynamic Contrast mode. + This menu is not available when {Si éColor is enabled. You can customize the angle to suit your preferences.

4.5.1 Configuring SAMSUNG MAGIC Angle

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to Picture and press [t1/cæ] on the product. 3 Press [A/w]to move to MAgIeAngle and press [t/c&] on the product. The following screen will appear.

+ Off (D): Select this option to view directly in front of the product. . Lean Back Mode 1 (2): Select this option to view from a place slightly lower than the product. < Lean Back Mode 2 (8): Select this option to view from a place lower than Lean Back Mode 1. + Standing Mode @): Select this option to view from a place higher than the product. + Side Mode &): Select this option to view from either side of the product. + Group View: Select this option for more than one viewer to view from places ©, @), and ®. + Custom: Lean Back Mode 1 will be applied by default if Custom is selected. 4° Press [A / w] to move to the option you want and press [t2/c&]. 5 The selected option will be applied. 4 Screen Setup EA

Screen Setup Coarse Adijust the screen frequency. E This menu is available in Analog mode only.

Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. Press [A / w] to move to Picture and press [t1/cæ] on the product. Press [A / w] to move to Coarse and press [1/01] on the product. The following screen will appear. Adjust the Coarse using the [A / w] buttons.

Screen Setup Fine Fine-adjust the screen to obtain a vivid picture. E This menu is available in Analog mode only.

4.7.4 Adjusting Fine

Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. Press [A / w] to move to Picture and press [t1/cæ] on the product. Press [A / w] to move to Fine and press [1/1] on the product. The following screen will appear. Adjust the Fine using the [A / W] buttons.

Screen Setup Response Time Accelerate the panel response rate to make video appear more vivid and natural. E + __Itis best to set Response Time to Normal or Faster when you are not viewing a movie. + The functions available on the monitor may vary depending on the model. Refer to the actual product.

4.8.1 Configuring Response Time

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to Picture and press [1/1] on the product. 3 Press [A/w] to move to Response Time and press [t1/cæ] on the product. The following screen will appear. 4° Press [A /w] to move to the option you want and press [t2/c&]. 5 The selected option will be applied. 4 Screen Setup

Screen Setup 49 HDMI Black Level 1f a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/ color degradation, black level, etc.) may occur, depending on the connected source device. In such case, HDMI Black Level can be used to adjust the image quality. If this is the case, correct the degraded picture quality using HDMI Black Level.

4.9.1 Configuring the HDMI Black Level Settings

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to Picture and press [2/1] on the product. 3 Press [A/w]to move to HDMI Black Level and press [t3/c] on the product. The following screen will appear. +. Normal: Select this mode when there is no contrast ratio degradation. + Low: Select this mode to reduce the black level and increase the white level when there is a contrast ratio degradation. Press [A / w] to move to the option you want and press [R/cæ1]. The selected option will be applied. HDMI Black Level may not be compatible with some source devices. RW =:

Configuring Tint Adjust the tint of the screen. This menu is not available when fjXéréBright is set to Cinema or Dynamic Contrast mode. SAMSUNG MAGIC Color MAgIeColor is a new picture-quality improvement technology developed independentiy by Samsung, which delivers vivid natural colors without picture quality degradation. E This menu is not available when ffK&réAngle is enabled.

5.1.1 Configuring SAMSUNG MAGIC Color

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to COLOR and press [/cæ] on the product. 3 Press [A/w] to move to MAgIeColor and press [t/cæ] on the product. The following screen will appear. Intelligent <__ Off: Disable FAGicColor. + Demo: Compare normal screen mode with ÿX&ieColor mode. -< Full: Obtain a vivid picture quality for all areas including the flesh colors in the picture. .< Intelligent: Improve the chroma for all areas except the flesh colors in the picture. 4° Press [A/w] to move to the option you want and press [t2/c&]. 5 The selected option will be applied. 5 Configuring Tint EZ

Configuring Tint Red Adijust the value of the color red in the picture. (Range: 0-100) A higher value will increase the intensity of the color. E This menu is not available when FX @éColor is in Full or Intelligent mode.

5.2.1 Configuring Red

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to COLOR and press [1/1] on the product. 3 Press [A/w] to move to Red and press [3/0] on the product. The following screen will appear. COLOR 4 Adjust the Red using the [A / W] buttons. 5 Configuring Tint EX

Configuring Tint Green Adijust the value of the color green in the picture. (Range: 0-100) A higher value will increase the intensity of the color. E This menu is not available when FX @éColor is in Full or Intelligent mode.

5.3.1 Configuring Green

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to COLOR and press [1/1] on the product. 3 Press [A/w]to move to Green and press [1/0] on the product. The following screen will appear. ET «a 4 Adjust the Green using the [A / w] buttons. 5 Configuring Tint Eu

Configuring Tint Blue Adijust the value of the color blue in the picture. (Range: 0-100) A higher value will increase the intensity of the color. E This menu is not available when FX @éColor is in Full or Intelligent mode.

5.4.1 Configuring Blue

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to COLOR and press [1/1] on the product. 3 Press [A/w] to move to Blue and press [2/0] on the product. The following screen will appear. 4 Adjust the Blue using the [A / #] buttons. 5 Configuring Tint EA

Configuring Tint Color Tone Adijust the general color tone of the picture. E + This menu is not available when ÿX@ieColor is in Full or Intelligent mode. + This menu is not available when jXSieAngle is enabled.

5.5.1 Configuring the Color Tone Settings

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to COLOR and press [3/0] on the product. 3 Press [A/w]to move to Color Tone and press [3/02] on the product. The following screen will appear. + Cool 2: Set the color temperature to be cooler than Cool 1. + Cool 1: Set the color temperature to be cooler than Normal mode. -< Normal: Display the standard color tone. + __ Warm 1: Set the color temperature to be warmer than Normal mode. + Warm 2: Set the color temperature to be warmer than Warm 1. + Custom: Customize the color tone. 4 Press [A/w] to move to the option you want and press [t2/c&]. 5 The selected option will be applied. 5 Configuring Tint ES

Configuring Tint Gamma Adijust the mid-range brightness (Gamma) of the picture. E This menu is not available when ff X@iéAngle is enabled

5.6.1 Configuring Gamma

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to COLOR and press [t3/cæ] on the product. 3 Press [A/w] to move to Gamma and press [t/cæ] on the product. The following screen will appear. 4 Press [A / w] to move to the option you want and press [3/1]. 5 The selected option will be applied. 5 Configuring Tint EA

Resizing or Relocating the Screen H-Position & V-Position H-Position: Move the screen to the left or right. V-Position: Move the screen up or down. C4 - Available only when Image Size is set to Screen Fit. + This menuis available in Analog mode only.

6.1.1 Configuring H-Position & V-Position

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to SIZE&POSITION and press [Q/cæ] on the product. 3 Press [A/w] to move to H-Position or V-Position, and press [1/1]. The following screen will appear. À Press [A/w]to configure H-Position or V-Position. 6 Resizing or Relocating the Screen EA

Resizing or Relocating the Screen Image Size Change the picture size.

6.2.1 Changing the Image Size

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w]to move to SIZE&POSITION and press [Q/c] on the product. 3 Press [A/w]to move to Image Size and press [A/cæ1] on the product. The following screen will appear. . Auto: Display the picture according to the aspect ratio of the input source. Wide: Display the picture in full screen regardless of the aspect ratio of the input source. . _4:3: Display the picture with an aspect ratio of 4:8. Suitable for videos and standard broadcasts. Wide: Display the picture in full screen regardless of the aspect ratio of the input source. . Screen Fit: Display the picture with the original aspect ratio without cutting off. F4 Changing the screen size is available when the following conditions are satisfied. - A digital output device is connected using the DVI cable. The input signal is 480p, 576p, 720p, 10801, or 1080p. 4 Press [A/ w] to move to the option you want and press [2/1]. 5 The selected option will be applied. 6 Resizing or Relocating the Screen EA

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to SIZE&POSITION and press [Q/cæ] on the product. 3 Press [A/W]to move to Menu H-Position or Menu V-Position, and press [1/07]. The following screen will appear. À Press [A/w]to configure Menu H-Position or Menu V-Position. 6 Resizing or Relocating the Screen EA

Setup and Reset Reset Return all the settings for the product to the default factory settings.

71.1 Initializing Settings (Reset)

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/W] to move to SETUP&RESET and press [t3/æ] on the product. 3 Press [A/w]to move to Reset and press [Q/cæ] on the product. The following screen will appear. SETUPSRESET all settings? 4 Press [A / w] to move to the option you want and press [12/1]. 5 The selected option will be applied.

Setup and Reset Language Set the menu language. E + À change to the language setting will only be applied to the onscreen menu display It will not be applied to other functions on your PC.

7.2.1 Changing the Language

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to SETUP&RESET and press [t2/cæ] on the product. 3 Press [A/w] to move to Language and press [Q/cæ] on the product. The following screen will appear. Français Italiano 4 Press [A/W] to move to the language you want and press [H/cæ]. 5 The selected option will be applied.

Setup and Reset Eco Saving The Eco Saving function reduces power consumption by controlling the electric current used by the monitor panel. SAMSUNG] E This menu is not available when KG ieBright is in Dynamic Contrast mode.

Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. Press [A / w] to move to SETUP&RESET and press [2/0] on the product. Press [A / w] to move to Eco Saving and press [t/cæ] on the product. The following screen will appear. + 75% : Change the monitor power consumption to 75% of the default level. + __ 50% : Change the monitor power consumption to 50% of the default level. - Off: Deactivate the Eco Saving function. Press [A / w] to move to the option you want and press [R/æ1]. The selected option will be applied. 7 Setup and Reset

Setup and Reset Off Timer On/Off You can set the product to automatically turn off. 7AA Configuring Off Timer On/Off

Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. Press [A / w] to move to SETUP&RESET and press [Q1/cæ] on the product. Press [A / w]to move to Off Timer On/Off and press [Q/cæ1] on the product. The following screen will appear. - Off: Deactivate the off timer so that the product does not power off automatically. + On: Activate the off timer so that the product powers off automatically. Press [A / w] to move to the option you want and press [Q/c1. The selected option will be applied. 7 Setup and Reset | 61 |

Setup and Reset Off Timer Setting The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the specified number of hours. E This menu is available only when Off Timer On/Off is set to On.

7.5.4 Configuring Off Timer Setting

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/W] to move to SETUP&RESET and press [2/1] on the product. 3 Press [A / W] to move to Off Timer Setting and press [t1/cæ] on the product. The following screen will appear. SETUP8RESET Z Press [A/W] to configure Off Timer Setting. E For products for the market in Europe, the Off Timer On/Off is set to automatically activate 4 hours after the product powers on. This is done in accordance with power supply regulations. If you do not want the timer to activate, go to MENU — SETUP&RESET and set Off Timer On/Off to Off. 7 Setup and Reset 62 |

Setup and Reset PC/AV Mode Set PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie. E PC/AV Mode is available in HDMI mode only.

7.6.1 Configuring PC/AV Mode

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/W] to move to SETUP&RESET and press [t3/æ] on the product. 3 Press [A/w]to move to PC/AV Mode and press [/cæ1] on the product. The following screen will appear. English

S24B750V/S27B750V S24B750H/S27B750H 4 Press [A/ W]to move to the option you want and press [2/2]. 5 The selected option will be applied.

Setup and Reset Key Repeat Time Control the response rate of a button when the button is pressed.

7.71 Configuring Key Repeat Time

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/W] to move to SETUP&RESET and press [t3/cæ] on the product. 3 Press [A / W]to move to Key Repeat Time and press [2/0] on the product. The following screen will appear. . Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds only once when a button is pressed. 4 Press [A/w] to move to the option you want and press [t2/c&]. 5 The selected option will be applied. 7 Setup and Reset | 64 |

Setup and Reset Customized Key (S24B750H / S27B750H) You can customize Customized Key as follows.

7.8.1 Configuring Customized Key

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/W] to move to SETUP&RESET and press [t3/cæ] on the product. 3 Press [A /W] to move to Customized Key and press [t2/cæ] on the product. The following screen will appear. Image Size <__ Macicangle - ÿacicBright - Eco Saving - Image Size 4° Press [A/w] to move to the option you want and press [t2/c&]. 5 The selected option will be applied.

Setup and Reset Auto Source You can activate Auto Source.

Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. Press [A / w] to move to SETUP&RESET and press [Q1/cæ] on the product. Press [A / w] to move to Auto Source and press [/c&1] on the product. The following screen will appear. Auto Manual . Auto: The input source is automatically recognized. + Manual: Manually select an input source. Press [A / w] to move to the option you want and press [Q/c1. The selected option will be applied.

Setup and Reset 710 Display Time Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified period of time. Display Time can be used to specify the time after which you want the OSD menu to disappear.

710.1 Configuring Display Time

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to SETUP&RESET and press [2/1] on the product. 3 Press [A/w]to move to Display Time and press [H/cæ] on the product. The following screen will appear. ET © © © 4 Press [A /w] to move to the option you want and press [t2/c&]. 5 The selected option will be applied. 7 Setup and Reset 67 |

Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. Press [A / w] to move to SETUP&RESET and press [Q1/cæ] on the product. Press [A / w] to move to Menu Transparency and press [Q/C&] on the product. The following screen will appear. Press [A / W] to move to the option you want and press [&/cæ]. The selected option will be applied.

INFORMATION Menu and Others INFORMATION View the current input source, frequency and resolution.

8.1.1 Displaying INFORMATION

1 Press any button on the front of the product to display the Key guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w] to move to INFORMATION. The current input source, frequency and resolution will

appear. SETUPBRESET INFORMATION The displayed menu items may vary depending on the model. 8 INFORMATION Menu and Others 69 |

4 The volume can be adjusted in the initial screen on the S24B750V / S27B750V model only. Adijust the Volume by pressing the CO) button when the Key guide is displayed. 1 Press any button on the front of the product (when no menu screen is displayed) to display the Key guide. Next, press [1(}]. 2 Press [A/w] to move to Volume and press [Q/cæ] on the product. The following screen will appear. Volume 3 Adjust the Volume using the [A / W] buttons.

Select a picture mode (Mode) suitable for the environment where the product will be used. 1 Press any button on the front of the product (when no menu screen is displayed) to display the Key guide. Next, press [1(}]. 2 Press [A/w]to move to Sound Mode and press [t2/cæ] on the product. The following screen will appear. Volume + Standard: Provides sound suitable for any type of content. . Music: Provides sound close to the original experience. + Movie: Provides a grand sound experience. 8 INFORMATION Menu and Others ET

INFORMATION Menu and Others + Clear Voice: Hear voices clearly. 3 Press [A/w] to move to the option you want and press [1/1]. 4 The selected option will be applied. Configuring Brightness in the Initial Screen (S24B750H / S27B750H) E The brightness can be adjusted in the initial screen on the S24B750H / S27B750H model only. Adjust the Brightness using the [] buttons when the initial screen (that displays no menu screen) is displayed. 1 Press any button on the front of the product (when no menu screen is displayed) to display the Key guide. Next, press [ff]. The following screen will appear. 2 Adjust the Brightness using the [A / #] buttons. 8 INFORMATION Menu and Others J4

9.1.1 What is MagicTune?

MagicTune” MagicTune is a software program that helps with monitor adjustments by providing comprehensive descriptions of monitor functions and easy-to-understand guidelines. You can adjust the product with the mouse and the keyboard without using the operating buttons of the product.

9.1.2 Installing the Software

1 Insert the installation CD into the CD-ROM drive. Select the MagicTune setup program. BW !fthe pop-up screen for the software installation does not appear on the main screen, find and double-click the MagicTune setup file on the CD-ROM. 3 Select the installation language and click [Next]. 4 Complete the remaining software installation steps according to the instructions displayed on the screen. EZ + The software may not work properly if you do not restart the computer after the installation. + The MagicTune icon may not appear depending on the computer system and the product specifications. + Ifthe shortout icon does not appear, press the F5 key. Restrictions and Problems with the Installation (MagicTuneT") The installation of MagicTuneTM may be affected by the graphics card, motherboard and the networking environment. System Requirements

You can only remove MagicTuneT" through [Add or Remove Programs] in Windows. To remove MagicTuneT", complete the following steps.

OO U1 & WW N Click [Start] select [Settings], and select [Control Panel] from the menu. For Windows XP, click [Start], and select [Control Panel] from the menu. Double-click the [Add or Remove Programs] icon in the Control Panel. In the [Add/Remove] window, find and select MagicTuneTM 50 that it is highlighted. Click [Change or Remove Programs] to remove the software. Select [Yes] to start removing MagicTuneTM. Wait until a message box appears informing you that the software has been removed completely. For technical support, the FAQ (frequently asked questions) or information about the software upgrade for MagicTuneT", please visit our website(http:/vmw.samsung.com/us/consumer/ learningresources/monitor/magetune/pop_intro.html).

10.1 Requirements Before Contacting Samsung Customer

fé Before calling Samsung Customer Service Center, test your product as follows. If the problem persists, contact Samsung Customer Service Center. Check if your product is operating normally by using the product test function. If the screen is turned off and the power indicator blinks even though the product is properly connected to a PC, perform a self-diagnosis test. 1 Power off both the PC and product. 2 Disconnect the cables from the product. 3 Poweronthe product.

Ifthe message Check Signal Cable appears, the product is working normally. If the screen remains blank, check the PC system, video controller and cable.

10.1.2 Checking the Resolution and Frequency

For a mode that exceeds the supported resolution (refer to "11.3 Standard Signal Mode Table"), the message Not Optimum Mode will appear for a short time.

10.1.3 Check the following.

Installation issue (PC mode) The screen keeps switching on and off. Check the cable connection between the product and PC, and ensure the connectors are locked. (Refer to "3.3 Connecting and Using a PC") Screen issue The power LED is off. The screen will not switch Check that the power cable is connected on. properly. (Refer to "3.3 Connecting and Using a PC") The message Check Signal Cable appears. Check that the cable is properly connected to the product. (Refer to "3.8 Connecting and Using a PC") Check that the device connected to the product is powered on.

y Troubleshooting Guide Screen issue “Not Optimum Mode" is displayed. This message appears if the signal from the graphics card exceeds the maximum resolution or frequency for the product. Change the maximum resolution and frequency to suit the product performance, referring to Standard Signal Mode Table (page 82). The images on the screen look distorted. Check the cable connection to the product (Refer to "3.3 Connecting and Using a PC") The screen is not clear. The screen is blurry. Adijust Coarse (page 45) and Fine (page 46). Remove any accessories (video extension cable, etc.) and try again. Set the resolution and frequency to the recommended level. (Refer to "11.1 General") The screen appears unstable and shaky. There are shadows or ghost images left on the screen. Check that the resolution and frequency for the PC are within the range of resolution and frequency compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode Table (page 82) in this manual and the INFORMATION menu on the product. The screen is too bright. The screen is too dark. Adijust Brightness (page 40) and Contrast (page 41). Screen color is inconsistent. Change the COLOR settings. (Refer to " Configuring Tint") The colors on the screen have a shadow and are distorted. Change the COLOR settings. (Refer to " Configuring Tint") White does not really look white. Change the COLOR settings. (Refer to " Configuring Tint") There is no image on the screen and the power LED blinks every 0.5 to 1 second. The product is operating in power-saving mode. Press any key on the keyboard or move the mouse to return to normal operating mode. Sound issue (S24B750V / S27B750V) There is no sound. Check the connection of the audio cable or adjust the volume. Check the volume. 10 Troubleshooting Guide

y Troubleshooting Guide Sound issue (S24B750V / S27B750V) The volume is too low. Adijust the volume. If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software program. Source device issue A beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is booting, have your PC serviced.

Question Answer How can | change the frequency? Set the frequency on your graphics card. Windows XP: Go to Control Panel — Appearance and Themes — Display — Settings — Advanced — Monitor, and adjust Refresh rate under Monitor settings. Windows ME/2000: Go to Control Panel — Display — Settings — Advanced — Monitor, and adjust Refresh rate under Monitor settings. Windows Vista: Go to Control Panel — Appearance and Personalization — Personalization — Display Settings — Advanced Settings — Monitor, and adjust Refresh rate under Monitor settings. Windows 7: Go to Control Panel — Appearance and Personalization — Display — Screen Resolution — Advanced settings — Monitor, and adjust Refresh rate under Monitor settings.

y Troubleshooting Guide Question Answer How can | change the resolution? Windows XP: Go to Control Panel — Appearance and Themes — Display — Settings, and adjust the resolution. Windows ME/2000: Go to Control Panel — Display — Settings, and adjust the resolution. Windows Vista: Go to Control Panel — Appearance and Personalization — Personalize — Display Settings, and adjust the resolution. Windows 7: Go to Control Panel — Appearance and Personalization — Display — Adjust Resolution, and adjust the resolution. How do | set power-saving mode? Windows XP: Set power-saving mode in Control Panel — Appearance and Themes — Display — Screen Saver Settings or BIOS SETUP on the PC. Windows ME/2000: Set power-saving mode in Control Panel — Display — Screen Saver Settings or BIOS SETUP on the PC. Windows Vista: Set power-saving mode in Control Panel — Appearance and Personalization — Personalize — Screen Saver Settings or BIOS SETUP on the PC. Windows 7: Set power-saving mode in Control Panel — Appearance and Personalization — Personalize — Screen Saver Settings or BIOS SETUP on the PC. EZ Refer to the user manual for your PC or graphics card for further instructions on adjustment.

Synchronization | Horizontal 30-81 KHz 30-81 KHz Frequency Vertical 24-60 Hz 24-60 Hz 24-60 Hz 24-60 Hz Frequency (24 Hz/30 Hz - (24 Hz/30 Hz - MHL) MHL) Display Color 16.7M (6 bit with Hi-FRC) Resolution Optimum 1920 x 1080 @ 60 Hz Resolution Maximum 1920 x 1080 @ 60 Hz Resolution Maximum Pixel Clock 164MHZz (Dsub/HDM1/HDMI2) Power Supply This product uses 100 to 240V. Refer to the label at the back of the product as the standard voltage can vary in different countries. Signal connectors D-Sub, HDMH, | D-Sub, HDMI | D-Sub, HDMH, | D-Sub, HDMI

Environmental Operating Temperature : 50°F — 104°F (10°C — 40°C) considerations Humidity : 10 % — 80 %, non-condensing Storage Temperature : -4°F — 113°F (-20°C - 45°C) Humidity : 5 % — 95 %, non-condensing Plug-and-Play This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels) Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance.

Specifications E The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. (USA only) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call, (877) 278 - 0799

Specifications PowerSaver The power-saving function of this product reduces power consumption by switching off the screen and changing the color of the power LED if the product is not used for a specified period of time. The power is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move the mouse. Power-saving mode functions only when the product is connected to a PC that has a power-saving function. S24B750V Normal operation h Power off PowerSaver mode Power saving mode (Power button) Power Indicator On Blinking Off Power Consumption 30W Less than 0.5 W Less than 0.5 W S27B750V Normal operation h Power off PowerSaver mode Power saving mode (Power button) Power Indicator On Blinking Off Power Consumption 42W Less than 0.5 W Less than 0.5 W S24B750H Normal operation h Power off PowerSaver mode Power saving mode (Power button) Power Indicator On Blinking Off Power Consumption 27W Less than 0.5 W Less than 0.5 W S27B750H Normal operation h Power off PowerSaver mode Power saving mode (Power button) Power Indicator On Blinking Off Power Consumption 38W Less than 0.5 W Less than 0.5 W *< The power consumption level can var in different operating conditions or when settings are changed. + To reduce the power consumption to O watts, turn off the power switch on the back of the product or disconnect the power cable. Be sure to disconnect the power cable when you will not be using the product for an extended period of time. To reduce the power consumption to 0 watts when the power switch is not available, disconnect the power cable: 11 Specifications E4

Specifications Standard Signal Mode Table E + This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Therefore, a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for the screen size of your product. + Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor. If the LCD monitor does not support 85Hz, change the vertical frequency to 60Hz using the CDT monitor before you exchange it with the LCD monitor. If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual. D-Sub, HDMI, HDMI2/MHL Resolution Horizontal Vertical Pixel Clock Sync Polarity Frequency (kHz) | Frequency (Hz) (MHz) (HA) IBM, 640 x 480, 60Hz 31.000 59.940 25.170 —- VESA, 800 x 600, 56Hz 35.156 56.000 36.000 +/+ VESA, 800 x 600, 60Hz 37.879 60.000 40.000 +/+ VESA, 1024 x 768, 60Hz 48.363 60.000 40.000 —- VESA, 1280 x 720, 60Hz 45.000 60.000 74.250 +/+ VESA, 1280 x 800, 60Hz 37.879 60.317 65.000 +/+ VESA, 1280 x 1024, 60Hz 63.981 60.000 108.000 +/+ VESA, 1440 x 900, 60Hz 55.935 59.887 106.500 + VESA, 1600 x 900, 60Hz 60.000 60.000 108.000 +/+ VESA, 1680 x 1050, 60Hz 65.290 59.954 146.250 + VESA, 1920 x 1080, 60Hz 67.500 60.000 148.500 +/+

Specifications + Horizontal Frequenc: E quency The time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in KHz. + Vertical Frequency Repeating the same picture dozens of times per second allows you to view natural pictures. The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.

Appendix Correct Disposal Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of With other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Appendix Terminology OSD(On Screen Display) On screen display (0SD) allows you to configure on-screen settings to optimize the picture quality as required. lt allows you to change the screen brightness, tint, size and many other settings using menus displayed on the screen. Gamma The Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness. Grey scale Scale refers to levels of color intensity that show variations of color change from darker areas to brighter areas on the screen. Changes to the screen brightness are expressed with black and white variation, and grey scale refers to the medium area between black and white. Changing the grey scale through Gamma adjustment will change the medium brightness on the screen. Scanning rate Scanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of screen refreshes is called scanning rate and is measured in Hz. À scanning rate of 60Hz means that the screen refreshes 60 times per second. The screen scanning rate depends on the performance of the graphics cards in your PC and monitor. Horizontal Frequency Characters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal frequency is measured in KHz and represents how many times horizontal lines per second are transmitted and displayed on the monitor screen. À horizontal frequency of 85 means that the horizontal lines that make up an image are transmitted 85 000 times per second, and the horizontal frequency is indicated in 85kHz. Vertical Frequency One image is made of numerous horizontal lines. The vertical frequency is measured in Hz and represents how many images can be created per second by those horizontal lines. À vertical frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is also called "refresh rate" and affects screen flicker.

Appendix Resolution Resolution is the number of horizontal pixels and vertical pixels that form a screen. It represents the level of display detail. A higher resolution displays a greater amount of information on the screen and is suitable for performing multiple tasks at the same time. E.g. A resolution of 1920 x 1080 consists of 1,920 horizontal pixels (horizontal frequency) and 1,080 vertical lines (vertical resolution). Plug & Play The Plug & Play feature allows the automatic exchange of information between a monitor and PC to produce an optimum display environment. The monitor uses VESA DDC (international standard) to execute Plug & Play. MHL (Mobile High-Definition Link) This feature allows you to enjoy videos and photos (imported from a connected mobile device that supports MHL) on the screen of the product.
