INSTALLING THE PRODUCT

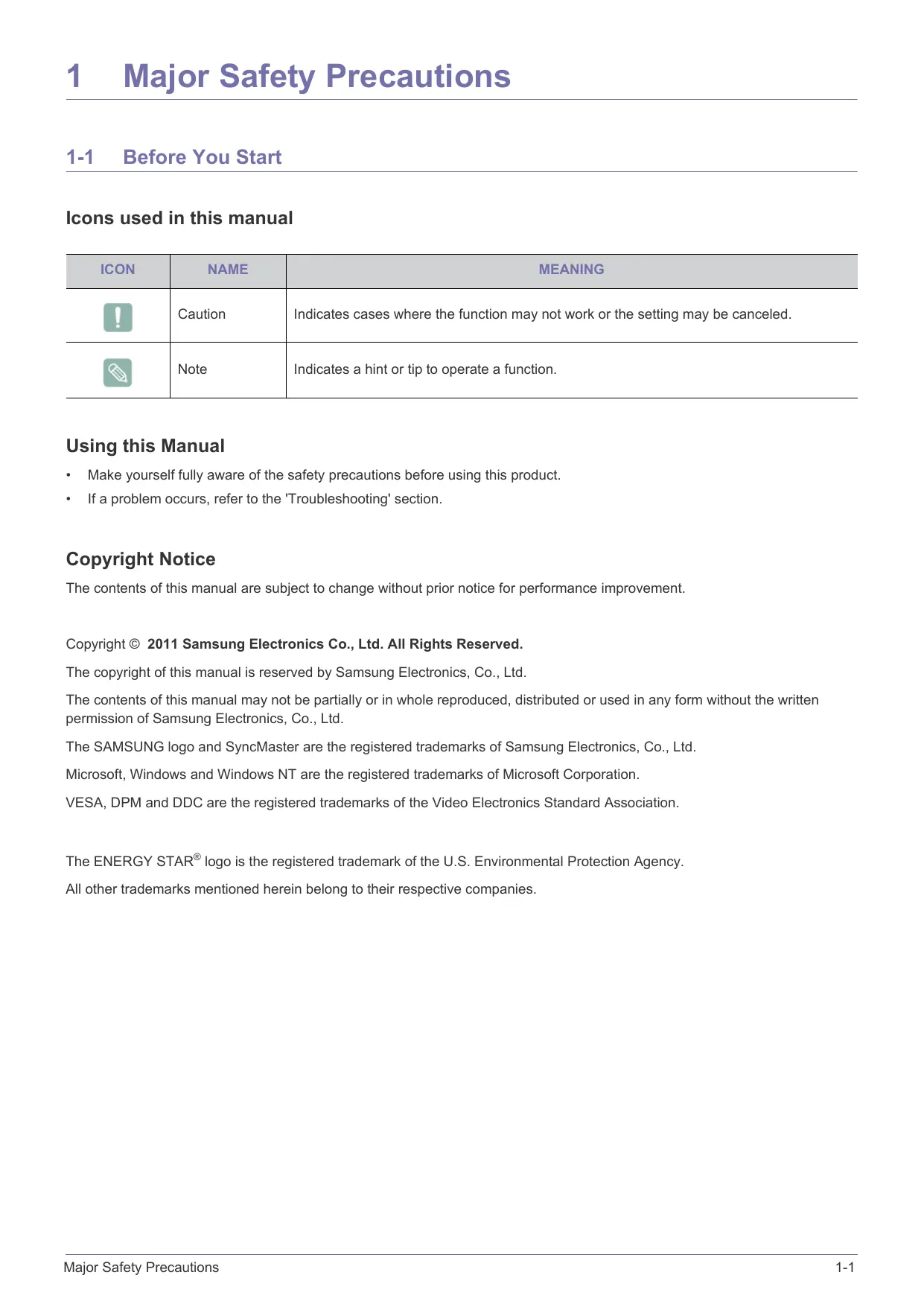

1 Major Safety Precautions 1-1 Before You Start Icons used in this manual

[1] Caution Indicates cases where the function may not work or the setting may be canceled. Note Indicates a hint or tip to operate a function. Using this Manual + Make yourself fully aware of the safety precautions before using this product. +__ fa problem occurs, refer to the Troubleshooting' section. Copyright Notice The contents of this manual are subject to change without prior notice for performance improvement. Copyright © 2011 Samsung Electronics Co., Ltd. All Rights Reserved. The copyright of this manual is reserved by Samsung Electronics, Co., Ltd. The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written permission of Samsung Electronics, Co., Ltd. The SAMSUNG logo and SyncMaster are the registered trademarks of Samsung Electronics, Co., Ltd. Microsoft, Windows and Windows NT are the registered trademarks of Microsoft Corporation. VESA, DPM and DDC are the registered trademarks of the Video Electronics Standard Association. The ENERGY STARS logo is the registered trademark of the U.S. Environmental Protection Agency. All other trademarks mentioned herein belong to their respective companies. Major Safety Precautions

1-2 Custody and Maintenance External Surface and Screen Maintenance Clean the product with a soft dry cloth. Do not clean the product with an inflammable substance such as benzene or thinner or with a wet cloth. This may result in a problem with the product. Do not scratch the screen with your fingernails or a sharp object. This may result in scratches or damage to the product. Do not clean the product directly by spraying water onto the product. If water enters the product, it may result in fire, electric shock or a problem with the product. A white stain may be generated on the surface of the high- glossy model due to the inherent characteristics of the material, if a supersonic humidifier is used. The appearance and the color may differ depending on the model. Securing the Installation Space Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature. Install the product so the required distances shown in the figure are kept. The appearance may differ depending on the product. When installing the product with a stand About persistent images Displaying a still image for a long time may create a persistent image or stain on the screen. If you do not use the product for a long time, set the power-saving mode or screen saver. Due to technological constraints of the panel manufacturer, the images generated by this product may appear either brighter or darker than normal for approximately 1 ppm (parts per million) pixels. The number of sub-pixels by panel type: The number of Sub-Pixels = Max. Horizontal Resolution x Max. Vertical Resolution x

Example) If the maximum resolution is 1920 x 1080, the number of sub-pixels is 1920 x 1080 x 3 = 6,220,800. Major Safety Precautions

1-3 Cleaning the Monitor Cleaning the Monitor + The panel and exterior of the cutting-edge monitor scratch easily and require careful attention. Clean the monitor according to the following steps.

1. Power off the monitor and PC.

2. Disconnect the power cable from the monitor.

To avoid electric shock, be sure you disconnect the cable by gripping the plug and do not touch the cable with wet hands.

3. Wipe the monitor using a soft, slightly damp cloth that has been squeezed .

+ Do not use a cleaning agent that contains alcohol or solvents, or that is surface active. Otherwise, the exterior may discolor or crack or the panel coating may come off. + Do not spray water or cleaning agent directly onto the monitor. EN Otherwise, the liquid may sink into the monitor and cause a fire, electric shock, or = failure.

4. Clean the exterior of the monitor using a soft cloth dampened with a small amount of water.

5. Connect the power cable to the monitor after you have finished cleaning.

6. Power on the monitor and PC.

Precautions for Storage + Using an ultrasonic humidifier may cause white stains on a highly glossy product. Be sure you contact the nearest service center (paid service) for cleaning the inside of the monitor. Major Safety Precautions 1-3

1-4 Safety Precautions Icons used for safety precautions

: Failing to follow the precautions marked with this sign, may result in a serious injury or

VAN even a fatality. : Failing to follow the precautions marked with this sign, may result in a personal injury or Caution À property damage. Meaning of Signs O Do not perform. O a Do not disassemble. & © Do not touch. [1] Power Related Must be followed. The power plug must be unplugged from the wall outlet. Must be grounded to prevent electric shock. The product image used in the following pictures for your reference may look different from the actual product. A Warning Avoid using a damaged power cord or plug or a fire. © Avoid plugging in or unplugging the power supply with wet hands. + Otherwise, it may result in electric shock. Make sure to connect the power cord to a grounded wall outlet (for insulation class 1 equipment only). __. @ À + Otherwise, it may result in electric shock or (© injury. Keep the power cord and the product away 5 D fromaheater. « = + Otherwise, it may result in electric shock or © fire loose power outlet. A + Otherwise, it may result in electric shock or Avoid connecting multiple electric appliances to a single wall outlet. + Otherwise, it may result in fire due to overheating of the wall outlet. Plug the power plug in firmly. + Otherwise, it may result in fire. Avoid bending or twisting the power cord excessively and avoid placing heavy objects on the cord. + Otherwise, it may result in electric shock or fire due to a damaged power cord. If the pins of the power plug or the wall outlet are covered in dust, clean it using a dry cloth + Otherwise, it may result in fire. Major Safety Precautions

A Caution Avoid unplugging the power plug while the product is operating. + Otherwise, it may damage the product due to electric shock. When unplugging the power plug from the wall outlet, make sure to hold it by the plug and not by the cord. + Otherwise, it may result in electric shock or fire. Installation Related A Warning Avoid placing burning candies, mosquito- repellent or cigarettes on the product and installing the product near a heater. + Otherwise, it may result in fire. Avoid installing the product in a badly-ventilated location such as inside a bookshelf or closet. + Otherwise, it may result in fire due to internal over-heating. Keep the plastic bags used to pack the product away from children. + lfchildren place the plastic bags over their heads, they may suffocate. Avoid installing the product in a location exposed to dust, moisture (sauna), oil, smoke or water (rain drops) and installing it within a vehicle. + This may result in electric shock or fire. Avoid installing the product at an easily reachable height where children may reach it. +__ fa child touches the product, the product may fall and this may result in injury. + Since the front part is heavier, install the product on a flat and stable surface. Make sure to use only the power cord supplied by our company. In addition, do not use the power cord of another electric appliance. + Otherwise, it may result in electric shock or fire. Connect the power plug to a wall outlet that can be easily reached. + When a problem occurs with the product, you must unplug the power plug to cut the power off completely. You cannot cut the power off completely using only the power button on the product. Ask an installation engineer or relevant company to install the product onto the wall. + Otherwise, it may result in injury. + Make sure to use the specified wall mount. Keep a distance of at least 10 cm from the wall when installing the product for ventilation. + Otherwise, it may result in fire due to internal over-heating. Avoid installing the product in a location that is unstable or exposed to excessive vibrations such as on an unstable or slanted shelf. + The product may fall and this may result in damage to the product or injury. + lfyou use the product in a location exposed to excessive vibrations, it may result in a problem with the product or fire. Avoid installing the product in a location exposed to direct sunlight and installing the product near a heat source such as a fire or heater. + This may shorten the product life cycle or cause fire. Major Safety Precautions 1-4

A Caution Do not let the product drop while moving it. + This may result in a problem with the / Tr W À product or injury. —

When installing the product on a console or shelf, make sure that the front of the product does not protrude out of the console or shelf. + Otherwise, this may cause the product to fall off and result in a malfunction or injury. + Make sure to use a cabinet or shelf suitable to the size of the product. Ifthe product is installed in a location where the operating conditions vary considerably, a serious quality problem may occur due to the surrounding environment. In this case, install the product only after consulting one of our service engineers about the matter. + Places exposed to microscopic dust, chemicals, too high or low temperature, high humidity, such as airports or stations where the product is continuously used for a long time and so on. Usage Related VAN Warning Since a high voltage runs through the product, never disassemble, repair or modify the product yourself. + Otherwise, it may result in fire or electric shock. + lfthe product needs to be fixed, contact a service center. If the product generates a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact a service cen- ter. + Otherwise, it may result in electric shock or fire. If you drop the product or the case is dam- aged, turn the power off and unplug the power cord. Contact a service center. + Otherwise, it may result in fire or electric shock. When thunder or lighting occurs, unplug the power cord and under no circumstance touch the antenna cable as this is dangerous. + Otherwise, it may result in electric shock or fire. Do not place the product face down on the floor. + This may damage the panel of the product. When putting the product down, handle it gently. + Otherwise, it may result in a problem with the product or injury. When cleaning the product, do not spray water directly over the product parts. + Make sure that water does not enter the product. + Otherwise, it may result in fire, electric shock or a problem with the product. Avoid letting children to hang or climb onto the product. + Otherwise, it may result in the product falling and this may result in injury or death. Avoid placing objects such as toys and cookies on top of the product. + lfa child hangs over the product to grab an object, the object or the product may fall and this may result in injury or even death. Avoid dropping an object over the product or cause impact to the product. + Otherwise, it may result in electric shock or fire. Major Safety Precautions

Avoid moving the product by pulling the power cord or antenna cable. + Otherwise, it may result in electric shock, fire or a problem with the product due to damage to the cable. Avoid lifting up or move the product by holding only the power cord or signal cable. + Otherwise, it may result in electric shock, fire or a problem with the product due to damage to the cable. Take care not to block the vent by a table cloth or curtain. + Otherwise, it may result in fire due to internal overheating. Avoid placing a liquid container such as a vase, flowerpot, beverage, cosmetics or drugs, or a metal object over the product. + Ifwater or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center. + Otherwise, it may result in a problem with the product, electric shock or fire. A Caution Displaying a still image for a long time may create a persistent image or stain on the screen. + lfyou do not use the product for a long time, use the power-saving mode or set the screensaver to the moving picture mode. Set the appropriate resolution and frequency for the product. + Otherwise, it may result in eye strain. Do not place the adapter on top of another adapter. + Otherwise, it may result in fire. Remove the vinyl cover of the adapter before using the adaptor. A + Otherwise, it may result in fire. When a gas leak occurs, do not touch the product or the power plug and ventilate immediately. + A spark may result in an explosion or fire. + During a thunder or lighting storm, do not touch the power cord or antenna cable. Avoid using or placing inflammable spray or objects near the product. + This may result in an explosion or fire. Avoid inserting metal objects such as a chopsticks, coins or hairpins, or inflammable objects into the product (the vents, ports, etc). + lfwater or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center. + Otherwise, it may result in a problem with the product, electric shock or fire. When not using the product for a long time such as leaving your home, unplug the power cord from the wall outlet. + Otherwise, it may cause dust accumulation and result in fire caused by overheating or short circuit or result in an electric shock. Avoid turning the product upside down or move the product holding only the stand. + This may cause the product to fall resulting in damage to the product or injury. Keep power adaptor away from any other heat source. + Otherwise, it may result in fire. Always keep power adaptor in well-venti- lated area. Major Safety Precautions 1-4

Be careful that adaptor should not be in contact with water and therefore not be wet. < F AT + + This may cause a malfunction, electric ) shock or fire. Do not use adaptor by the (J waterside or outside particularly when it rains or snows. Be careful that adaptor should not be wet while cleaning floor with Watching the product from too close a distance continuously may damage your eyesight. water. Avoid using a humidifier or cooker near the Itis important to give your eyes some rest (5 product. minutes every hour) when viewing the product screen for long periods of time. + Otherwise, it may result in electric shock or fire. + This will alleviate any eye strain. Since the display panel is hot after using it for a long time, do not touch the product. Keep small accessories away from the children. Take care when adjusting the angle of the product or the height of the stand. Avoid placing a heavy object over the product. + Otherwise, it may result in a problem with + lfyour hand or finger is caught, you may be the product or injury. injured. + lfthe product is tilted excessively, the product may fall and this may result in injury. Maintaining the Correct Posture when Using this Product Maintain the correct posture when using this product. + Straighten your back. + Keep a distance of 45-50 cm from your eyes to the screen. Look down at the screen and face the screen forwards. + Adjust the angle of the product so that light is not reflected onto the screen. + Keep your elbow at a right angle and keep your arm level with the back of your hand. + Keep your elbow at a right angle. + Place your heels flat on the ground while keeping your knees at an angle of 90 degrees or higher and maintain the position of your arm so that your arm is below your heart. 1-4 Major Safety Precautions

2 Installing the Product 2-1 Package Contents + Unpack the product and check if all of the following contents have been included. + Store the packaging box in case you need to move the Product at a later stage Monitor Contents

HDMI Cable HDMI to DVI Cable D-Sub Cable DVI Cable The cables provided may vary depending on the product you purchase. Installing the Product

2-2 Installing the Stand Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards. Insert the Stand Connector into the Stand in the direction shown by the figure. Check if the Stand Connector is firmly connected. Turn the connecting screw at the bottom of the stand fully so that it is completely fixed. > Place a soft cloth over the table to protect the product and place the product onto the o cloth so that the front of the product is facing downwards. 2-2 Installing the Product

Hold the main body of the product with your hand as shown by the figure. [5] Push the assembled stand into the main body in the direction of the arrow as shown in the figure. “nt - Caution Avoid lifting the product holding only the stand. Disassembly is in the reverse order of the assembly. Installing the Product 2-2

2-3 Connecting with a PC Æ The connecting part may differ depending on the product model.

1. Connect the product to a PC depending on the video output supported by the PC.

+ When the graphics card provides D-Sub (<Analog>) output + Connect the [RGB IN] port of the product to the [D-Sub] port of the PC with the D-Sub cable. + When the graphics card provides DVI(<Digital>) output + Connect the [DVI IN] port of the product to the [DVI] port of the PC with the DVI cable. E The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only. Connect the [HDMI IN] port of the product to the [DVI] port on your PC using the HDMI to DVI cable. HDMI IN 2-3 Installing the Product

& The [HDMI IN] terminal is supplied for the HDMI-dedicated models only. 2. Connect the power adapter to [DC] jack on the rear of the product. Connect the power cord to the adapter and wall socket. (The input voltage is switched automatically.) & When the product is connected to a PC, you can turn the product on and use it. Installing the Product 2-3

2-4 Connecting a HDMI cable Connect the HDMI output port of your digital output device to the [HDMI IN] port of the product using the HDMI cable. [a] The [HDMI IN] terminal is supplied for the HDMI-dedicated models only 2-4 Installing the Product

2-5 Kensington Lock A Kensington Lock is an anti-theft device that enables users to lock the product so that they can safely use it in public locations. Since the shape and usage of the locking device may differ depending on the model and the manufacturer, for more information, refer to the User Manual supplied with the locking device for more information. Æ You must purchase the Kensington Lock separately. To lock the product, follow these steps:

1. Wrap the Kensington lock cable around a large, stationary object such as a desk or chair.

2. Slide the end of the cable with the lock attached through the looped end of the Kensington lock cable.

3. Insert the locking device into the Kensington slot on the Monitor(@) .

4. Lock the lock(@ÿ).

Æ + These are general instructions. For exact instructions, see the User Manual supplied with the locking device. + You can purchase the locking device from an electronics store, an online shop, or our service center. Installing the Product 2-5

3 Using the product 3-1 Setting the Optimal Resolution If you turn the power on after purchasing the product, a message regarding the optimal resolution setting appears on the screen. Select a language and the optimal resolution. A/Y : You can select a language with these buttons. MENU : If you press this button, the message disappears. + The message appears up to 3 times if the resolution has not been set to the optimal resolution. +__ To set the resolution to the optimal resolution +. Whenthe PC is turned off, connect the product and the PC and turn the power on. + Right-click over the Desktop and select ‘Properties' from the pop-up menu. + __Inthe ‘Settings’ tab, set the resolution to the optimal resolution. 3-1 Using the product

3-2 Standard Signal Mode Table This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S19B300N DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - VESA, 640 x 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1280 x 720 45.000 60.000 74.250 ++ VESA, 1366 x 768 47.712 59.790 85.500 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. Using the product 3-2

3-3 Standard Signal Mode Table This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S19B300B DISPLAY MODE HORIZONTAL VERTICAL PIXEL CLOCK (MHZ)

FREQUENCY (KHZ) FREQUENCY (HZ) V) IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 4 MAC, 832 x 624 49.726 74.551 57.284 + VESA, 640 x 480 31.469 59.940 25.175 4 VESA, 640 x 480 37.861 72.809 31.500 + VESA, 640 x 480 37.500 75.000 31.500 4 VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 4 VESA, 1024 x 768 56.476 70.069 75.000 4 VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1280 x 720 45.000 60.000 74.250 ++ VESA, 1366 x 768 47.712 59.790 85.500 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. Using the product

3-4 Standard Signal Mode Table & This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S19B300NW DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - MAC, 1152 x 870 68.681 75.062 100.000 - VESA, 640 x 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1152 x 864 67.500 75.000 108.000 ++ VESA, 1280 X 720 45.000 60.000 74.250 ++ VESA, 1280 x 800 49.702 59.810 83.500 + VESA, 1440 x 900 55.935 59.887 106.500 + VESA, 1440 x 900 70.635 74.984 136.750 + VESA, 1600 X 900 60.000 60.000 108.000 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. Using the product 3-4

3-5 Standard Signal Mode Table [a] This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S20B300N DISPLAY MODE HORIZONTAL VERTICAL PIXEL CLOCK (MHZ)

3-6 Standard Signal Mode Table & This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S20B300B DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - MAC, 1152 x 870 68.681 75.062 100.000 - VESA, 640 x 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1152 x 864 67.500 75.000 108.000 ++ VESA, 1280 X 720 45.000 60.000 74.250 ++ VESA, 1280 x 800 49.702 59.810 83.500 + VESA, 1440 x 900 55.935 59.887 106.500 + VESA, 1440 x 900 70.635 74.984 136.750 + VESA, 1600 X 900 60.000 60.000 108.000 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. Using the product 3-6

3-7 Standard Signal Mode Table & This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S22B300N DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - MAC, 1152 x 870 68.681 75.062 100.000 - VESA, 640 X 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1152 x 864 67.500 75.000 108.000 ++ VESA, 1280 X 720 45.000 60.000 74.250 ++ VESA, 1280 x 800 49.702 59.810 83.500 + VESA, 1280 x 1024 63.981 60.020 108.000 ++ VESA, 1280 x 1024 79.976 75.025 135.000 ++ VESA, 1440 x 900 55.935 59.887 106.500 + VESA, 1600 X 900 60.000 60.000 108.000 ++ VESA, 1680 X 1050 65.290 59.954 146.250 + VESA, 1920 X 1080 67.500 60.000 148.500 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. 3-7 Using the product

3-8 Standard Signal Mode Table & This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S22B300B DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - MAC, 1152 x 870 68.681 75.062 100.000 - VESA, 640 X 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1152 x 864 67.500 75.000 108.000 ++ VESA, 1280 X 720 45.000 60.000 74.250 ++ VESA, 1280 x 800 49.702 59.810 83.500 + VESA, 1280 x 1024 63.981 60.020 108.000 ++ VESA, 1280 x 1024 79.976 75.025 135.000 ++ VESA, 1440 x 900 55.935 59.887 106.500 + VESA, 1600 X 900 60.000 60.000 108.000 ++ VESA, 1680 X 1050 65.290 59.954 146.250 + VESA, 1920 X 1080 67.500 60.000 148.500 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. Using the product 3-8

3-9 Standard Signal Mode Table & This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S22B300H DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - MAC, 1152 x 870 68.681 75.062 100.000 - VESA, 640 X 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1152 x 864 67.500 75.000 108.000 ++ VESA, 1280 X 720 45.000 60.000 74.250 ++ VESA, 1280 x 800 49.702 59.810 83.500 + VESA, 1280 x 1024 63.981 60.020 108.000 ++ VESA, 1280 x 1024 79.976 75.025 135.000 ++ VESA, 1440 x 900 55.935 59.887 106.500 + VESA, 1600 X 900 60.000 60.000 108.000 ++ VESA, 1680 X 1050 65.290 59.954 146.250 + VESA, 1920 X 1080 67.500 60.000 148.500 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. 3-9 Using the product

3-10 Standard Signal Mode Table & This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S23B300N DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - MAC, 1152 x 870 68.681 75.062 100.000 - VESA, 640 x 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1152 x 864 67.500 75.000 108.000 ++ VESA, 1280 X 720 45.000 60.000 74.250 ++ VESA, 1280 x 800 49.702 59.810 83.500 + VESA, 1280 x 1024 63.981 60.020 108.000 ++ VESA, 1280 x 1024 79.976 75.025 135.000 ++ VESA, 1440 x 900 55.935 59.887 106.500 + VESA, 1600 X 900 60.000 60.000 108.000 ++ VESA, 1680 X 1050 65.290 59.954 146.250 + VESA, 1920 X 1080 67.500 60.000 148.500 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. Using the product 3-10

3-11 Standard Signal Mode Table & This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S23B300B DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - MAC, 1152 x 870 68.681 75.062 100.000 - VESA, 640 x 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1152 x 864 67.500 75.000 108.000 ++ VESA, 1280 X 720 45.000 60.000 74.250 ++ VESA, 1280 x 800 49.702 59.810 83.500 + VESA, 1280 x 1024 63.981 60.020 108.000 ++ VESA, 1280 x 1024 79.976 75.025 135.000 ++ VESA, 1440 x 900 55.935 59.887 106.500 + VESA, 1600 X 900 60.000 60.000 108.000 ++ VESA, 1680 X 1050 65.290 59.954 146.250 + VESA, 1920 X 1080 67.500 60.000 148.500 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. 3-11 Using the product

3-12 Standard Signal Mode Table & This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S23B300H DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - MAC, 1152 x 870 68.681 75.062 100.000 - VESA, 640 x 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1152 x 864 67.500 75.000 108.000 ++ VESA, 1280 X 720 45.000 60.000 74.250 ++ VESA, 1280 x 800 49.702 59.810 83.500 + VESA, 1280 x 1024 63.981 60.020 108.000 ++ VESA, 1280 x 1024 79.976 75.025 135.000 ++ VESA, 1440 x 900 55.935 59.887 106.500 + VESA, 1600 X 900 60.000 60.000 108.000 ++ VESA, 1680 X 1050 65.290 59.954 146.250 + VESA, 1920 X 1080 67.500 60.000 148.500 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. Using the product 3-12

3-13 Standard Signal Mode Table & This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S24B300BL DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - MAC, 1152 x 870 68.681 75.062 100.000 - VESA, 640 x 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1152 x 864 67.500 75.000 108.000 ++ VESA, 1280 x 720 45.000 60.000 74.250 ++ VESA, 1280 x 800 49.702 59.810 83.500 + VESA, 1280 x 1024 63.981 60.020 108.000 ++ VESA, 1280 x 1024 79.976 75.025 135.000 ++ VESA, 1440 x 900 55.935 59.887 106.500 + VESA, 1600 X 900 60.000 60.000 108.000 ++ VESA, 1680 X 1050 65.290 59.954 146.250 + VESA, 1920 X 1080 67.500 60.000 148.500 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. 3-13 Using the product

3-14 Standard Signal Mode Table & This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S24B300HL DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - MAC, 1152 x 870 68.681 75.062 100.000 - VESA, 640 x 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1152 x 864 67.500 75.000 108.000 ++ VESA, 1280 x 720 45.000 60.000 74.250 ++ VESA, 1280 x 800 49.702 59.810 83.500 + VESA, 1280 x 1024 63.981 60.020 108.000 ++ VESA, 1280 x 1024 79.976 75.025 135.000 ++ VESA, 1440 x 900 55.935 59.887 106.500 + VESA, 1600 X 900 60.000 60.000 108.000 ++ VESA, 1680 X 1050 65.290 59.954 146.250 + VESA, 1920 X 1080 67.500 60.000 148.500 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. Using the product 3-14

3-15 Standard Signal Mode Table & This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S24B300N DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - MAC, 1152 x 870 68.681 75.062 100.000 - VESA, 640 x 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1152 x 864 67.500 75.000 108.000 ++ VESA, 1280 x 720 45.000 60.000 74.250 ++ VESA, 1280 x 800 49.702 59.810 83.500 + VESA, 1280 x 1024 63.981 60.020 108.000 ++ VESA, 1280 x 1024 79.976 75.025 135.000 ++ VESA, 1440 x 900 55.935 59.887 106.500 + VESA, 1600 X 900 60.000 60.000 108.000 ++ VESA, 1680 X 1050 65.290 59.954 146.250 + VESA, 1920 X 1080 67.500 60.000 148.500 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. 3-15 Using the product

3-16 Standard Signal Mode Table & This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S24B300B DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - MAC, 1152 x 870 68.681 75.062 100.000 - VESA, 640 x 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1152 x 864 67.500 75.000 108.000 ++ VESA, 1280 x 720 45.000 60.000 74.250 ++ VESA, 1280 x 800 49.702 59.810 83.500 + VESA, 1280 x 1024 63.981 60.020 108.000 ++ VESA, 1280 x 1024 79.976 75.025 135.000 ++ VESA, 1440 x 900 55.935 59.887 106.500 + VESA, 1600 X 900 60.000 60.000 108.000 ++ VESA, 1680 X 1050 65.290 59.954 146.250 + VESA, 1920 X 1080 67.500 60.000 148.500 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. Using the product 3-16

3-17 Standard Signal Mode Table & This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. lt is recommended setting the resolution to the optimal resolution of the product. Ifthe signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on. Therefore, configure it as follows referring to the User Manual of the graphics card. S24B300H DISPLAY MODE EE CUEN CN RES AE PIXEL CLOCK (MHZ) Os dns ( IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 30.240 - MAC, 832 x 624 49.726 74.551 57.284 - MAC, 1152 x 870 68.681 75.062 100.000 - VESA, 640 x 480 31.469 59.940 25.175 - VESA, 640 x 480 37.861 72.809 31.500 - VESA, 640 x 480 37.500 75.000 31.500 - VESA, 800 x 600 35.156 56.250 36.000 ++ VESA, 800 x 600 37.879 60.317 40.000 ++ VESA, 800 x 600 48.077 72.188 50.000 ++ VESA, 800 x 600 46.875 75.000 49.500 ++ VESA, 1024 x 768 48.363 60.004 65.000 - VESA, 1024 x 768 56.476 70.069 75.000 - VESA, 1024 x 768 60.023 75.029 78.750 ++ VESA, 1152 x 864 67.500 75.000 108.000 ++ VESA, 1280 x 720 45.000 60.000 74.250 ++ VESA, 1280 x 800 49.702 59.810 83.500 + VESA, 1280 x 1024 63.981 60.020 108.000 ++ VESA, 1280 x 1024 79.976 75.025 135.000 ++ VESA, 1440 x 900 55.935 59.887 106.500 + VESA, 1600 X 900 60.000 60.000 108.000 ++ VESA, 1680 X 1050 65.290 59.954 146.250 + VESA, 1920 X 1080 67.500 60.000 148.500 ++ Horizontal Frequency The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz. Vertical Frequency A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz. 3-17 Using the product

3-18 Installing the Device Driver If you install the device driver, you can set up the appropriate resolution and frequency for the product. The device driver is included on the CD-ROM supplied with the product. If the supplied drive file is corrupted, please visit a service center or Samsung Electronics website(http://{www.samsung.com/), and download the driver. Click on "Windows Driver". » & ND = - Insert the driver installation CD-ROM into the CD-ROM drive. . Complete the remaining installation steps according to the instructions displayed on the screen. . Select the model of your product from the model list. Selectthe display adapter on whnch you want ina te mot Selectthe montor nhch you onto tal 5. Check if the appropriate resolution and screen refresh rate are displayed in the Control Panel settings. For more information, refer to the document about the Windows operating system. Using the product

3-19 Product Operating Buttons Product Operating Buttons OSD Guide + Press one of the buttons on the monitor. OSD Guide will appear on the screen. + If you press a button on the front of the monitor, an OSD Guide will display showing the function of the button before the menu for the pressed button appears. + To go to the menu, press the button on the front of the monitor again. + When pressing a button, please press the bottom of a "e" displayed below its button label. + OSD Guide may vary according to functions and models. Please refer to actual product. ICON DESCRIPTION Press this button to view the On Screen Display (OSD). This button is also used to exit the OSD or to return to a higher-level OSD menu

• OSD Adjustment Lock This function locks the OSD in order to maintain the current settings or to prevent the settings from being changed by another person MENU On: If you press and hold the MENU button down for 10 seconds, the OSD Adjustment Lock function is activated. Off: If you press and hold the MENU button down for 10 seconds again, the OSD Adjustment Lock function is disabled. Even if the OSD Adjustment Lock function is activated, users can adjust the brightness and contrast and can set up the adjustment function assigned to the [rt] Users can set the <Customized Key> to one of the following functions. If the user presses the Customized Key [rx] after setting it, the configured function will be performed = … <Agigangle> - < MAI Bright> - <Eco Saving> - <Image Size> You can set the function of the Customized Key by selecting <SETUP&RESET > -> <Customized Key> in the OSD. AIY Use these buttons to navigate the menu or to adjust a value in the OSD. Le! Use this button to control the brightness of the screen. 3-19 Using the product

ICON DESCRIPTION Use this button to select a function. If you press the [{)/[& ] button when there is no OSD, the input signal (Analog/DVI or Ana- log/HDMI) is switched. When the input signal is switched by pressing [{3/[=1] button or the EE product is turned on, a message displaying the selected input signal appears at the top left of the screen. This function is not available for products with an Analog interface only. Press [AUTO] button to adjust the screen settings automatically AUTO This function is only available in Analog mode. If the resolution settings are changed in the Display Properties, the AUTO adjustment func- tion is performed. Press this button to turn the product on or off + The buttons on the right of the product are touch-type buttons. + Touch the buttons lightly with your finger. O0) Power LED This LED is turned on when the product works normally. For more information on the power-saving function, refer to the power saving function in More Information. When not using the product for a long time, unplugging the power cord is recommended to minimize power consumption. Using the product

3-20 Using the Screen Adjustment Menu (OSD: On Screen Display) The Screen Adjustment Menu (OSD: On Screen Display) Structure Top Menus Sub Menus Brightness Contrast Sharpness SAMSUNG SAMSUNG [1 PICTURE gl PI MAGIG Bright MAGIGAnglIe Coarse Fine HDMI Black Level EZ COLOR FLE Color Red Green Blue Color Tone Gamma Des & POSI- H-Position V-Position Image Size Menu H-Position Menu V-Position Reset Language Eco Saving Off Timer On/Off_ | Off Timer Setting SETUP&RESET PC/AV Mode Key Repeat Time | Customized Key Auto Source Display Time Menu Transpar- ency C2 INFORMA- TION Æ Monitor functions may vary according to models. Please refer to actual product. 1 PICTURE PICTURE Brightness COLOR SIZE&POSITION SETUP&RESET INFORMATION Menu Description Controls the screen brightness. Brightness © . This menu is unavailable when <MABIGBrighE> is set to <Dynamic Contrast> mode + This menu is unavailable when <Eco Saving> is set. Controls the contrast of the pictures displayed on the screen _—_ + This menu is unavailable when <MSBBright> is set to <Dynamic Contrast> or <Cinema> mode. + This menu is unavailable when <MABÉColor> is set to <Full> mode or <intelligent> mode. 3-20 Using the product

Menu Description Controls the clarity of details of pictures displayed on the screen Steiees . Te men is unavailable when <HBBBright> is set to <Dynamic Contrast> or <Cinema> + This menu is unavailable when <MMColor> is set to <Full> mode or <intelligent> mode. Provides preset picture settings optimized for various user environments such as editing a document, surfing the Internet, playing games,or movies and so on. + <Custom> If the preset picture modes are not sufficient, users can configure the <brightness> and <Contrast> directly using this mode. + <Standard> This mode provides the picture setting appropriate for editing a document and surfing the Internet (text + picture). + <Game> This mode provides the picture setting appropriate for playing games that include lots of graphics and that require a fast screen refresh rate. + <Cinema> This mode provides brightness and sharpness settings similar to those of a TV for the best entertainment environment (movie, DVD, etc.). + <Dynamic Contrast> MAGIGBrignt Controls the picture contrast automatically so that bright and dark pictures are balanced overall. When the external input is connected through HDMI and <PC/AV Mode> is set to <AV>, <HAGICBright> has four automatic picture settings (<Dynamic>, <Standard>, <Movie> and <Cus- tom>) that are preset at the factory. You can activate either Dynamic, Standard, Movie or Custom. You can select Custom which automatically recalls your personalized picture settings. + <Dynamic> Select this mode to view a sharper image than in Standard mode. + <Standard> Select this mode when the surroundings are bright. This also provides a sharp image. + <Movie> Select this mode when the surroundings are dark. This will save power and reduce eye fatigue. + <Custom> Select this mode when you want to adjust the image according to your preferences. This menu is unavailable when <MAB{GAngle> or <Eco Saving> is set. Using the product

Menu Description HEEAngIe This feature allows you to see optimal screen quality according to your viewing position. When viewing the screen at an angle from below, above or the side of the monitor, by setting the appropriate mode for each position you can obtain a similar picture quality as viewing the screen directly from the front. Set to <Off> when viewing directly in front of the screen. + __<Off> @ - Select when viewing from the front position. + <Lean Back Mode1> @ - Select when viewing from a slightly lower position. + <Lean Back Mode2> © - Select when viewing from the lower position. + <Standing Mode> @ -Select when viewing from the upper position. + <Side Mode> © - Select when viewing from the left or right position. + <Group View> - Select when two or more persons view among @,@,®© position at the same time. + <Custom> -When <Custom> is selected, settings for <Lean Back Mode 1> is applied by default. Users can set suitable picture quality as needed. + This menu is unavailable when <MSBBright> is set to <Dynamic Contrast> or <Cinema> mode. + This menu is unavailable when <MBÉColor> is set. Coarse Removes vertical noise lines (line pattern) from the screen. The location of the screen may be changed after the adjustment. In this case, move the screen so that the screen is displayed at the center of the display panel using the <H-Position> menu. This function is only available in Analog mode. Fine Removes horizontal noise lines (line pattern) from the screen. If you cannot remove the noise completely with the <Fine> function, adjust the <Coarse> and then use the <Fine> function again. This function is only available in Analog mode. HDMI Black Level When watching with a DVD or set-top box connecting to the product via HDMI, image quality deterio- ration (black level, lower-quality contrast, lighter color tone, etc.) may occur depending on the con- nected external device. +. <Normal> + <Low> This function is active only when the external device is connected via <HDMI>. The <HDMI Black Level> function may not be compatible with all external devices. 3-20 Using the product

52 COLOR Blue Color Tone Menu Description Expresses natural colors more clearly without changing the picture quality using proprietary digital picture quality improvement technology developed by Samsung Electronics. + <Off> - Turns the < MA BfGColor> function off. SAME Color + <Demo> - You can compare the pictures processed by < Agé Color> with the original pictures. + __<Full> - Provides a clearer picture including areas corresponding to skin color. + _<intelligent> - Improves the chroma of pictures except for areas corresponding to skin color. & This menu is unavailable when <HAMÉAngle> is set. You can adjust the red color value of pictures according to your preference. RES SAMSUNG & This menu is unavailable when <MAGIC Color is set to <Full> mode or <intelligent> mode. You can adjust the green color value of pictures according to your preference. EEE SAMSUNG This menu is unavailable when < MAT Color> is set to <Full> mode or <intelligent> mode. You can adjust the blue color value of pictures according to your preference. Blue This menu is unavailable when < ME Color> is set to <Full> mode or <intelligent> mode. You can set the color temperature according to your preference. + <Cool 2> - Sets the color temperature of the screen to very cool. + <Cool 1>- Sets the color temperature of the screen to cool. +__<Normal> - Sets the color temperature of the screen to the standard color temperature. + _<Warm 1> - Sets the color temperature of the screen to warm. + _<Warm 2> - Sets the color temperature of the screen to very warm. Color Tone + <Custom> - Select this menu to set the color temperature manually. If you do not like the preset color temperatures, you can manually adjust the value of RGB. When the external input is connected through HDMI and <PC/AV Mode> is set to <AV>,<Color Tone> has four color temperature settings (<Cool>, <Normal>, <Warm> and <Custom>). © «This menu is unavailable when <MÆBEColor is set to <Full> mode or <intelligent> mode. + This menu is unavailable when <MABBAngle> is set Using this menu, you can change the intensity of the colors of medium brightness. & + __<Mode1> - <Mode2> - <Mode3> amma © This menu is unavailable when <HMBAngle> is set. Using the product

(This is unavailable when <MA4RfGBright> is set to <Dynamic Contrast> and <Cinema> mode.)

Menu Description Moves the position of the display area on the screen horizontally. H-Position + This function is only available in Analog mode. + When a 720P or 1080P signal is input in AV mode ,select <Screen Fit>to adjust horizontal position in 0-6 levels. Moves the position of the display area on the screen vertically. Moon + This function is only available in Analog mode. + When a 720P or 1080P signal is input in AV mode ,select <Screen Fit >to adjust vertical position in 0-6 levels. Supplied for the wide models only such as 16:9 or 16:10. PC signals + <Auto> - The picture is displayed at the aspect ratio of the input signal. +__<Wide> - The picture is displayed in full screen regardless of the aspect ratio of the input signal. Æ + A signal not in the standard mode table is not supported + Ifthe resolution is set to the optimal resolution, the aspect ratio does not change whether the ñ <Image Size> is set to <Auto> or <Wide>. Image Size AV signals + __<4:3> - Displays pictures at the 4:3 aspect ratio. + __<16 : 9> - Displays pictures at the 16:9 aspect ratio. + <Screen Fit> - If a 720P or 1080P signal is input in HDMI/DVI input mode, the picture is displayed as is without truncation. Æ This can only be set when the external input is connected through HDMI/DVI and <PC/AV Mode> is set to <AV> Menu H-Position You can adjust the horizontal position of the OSD. Menu V-Position You can adjust the vertical position of the OSD. 3-20 Using the product

Menu Description Use this function to restore the visual quality and color settings to the factory defaults. + _<Yes> - <No> Reset Reset all settings? Select a language for the OSD. + Deutsch, English,Español,Françaisltaliano Magyar, Polski, Language Português Pyccxnä, Svenska, Türkçe, FE, &-#0] UE Æ The selected language is only applied to the product OSD. This setting does not affect the other functions of the PC. This function provides user a low power mode which is realized by lowering the current of the display panel. + <75%> When <75%> is selected, the power consumption is about 75% of default setting. Eco Saw + <50%> co Saving When <50%> is selected, the power consumption is about 50% of default setting. + <Of> When <Off> is selected, the function is turned Off . © This menu is unavailable when <F#%MBright> is set to <Dynamic Contrast> mode MAGIC : You can turn the Off Timer on or off. Off Timer On/Off + <Off> - <On> Turns the power off automatically when the configured time is reached. Off Timer Setting E When <On> of <Off Timer On/Off> is selected, This function is available only. Set to PC when connected to a PC. Set to AV when connected to an AV device. & + This function does not support Analog mode. PC/AV Mode + Supplied for the wide models only such as 16:9 or 16:10. +__Ifthe monitor (when set to DVI or HDMI) is in power saving mode or is displaying the message <Check Signal Cable>, press the MENU button to display the On Screen Display (OSD). You can select <PC> or <AV> Using the product

Menu Description Controls the repeat delay of a button. Key Repeat Time | You can set to <Acceleration>, <1 sec> or <2 sec>. If <No Repeat> is selected, the button only responds once. You can set the function of the Customized Key to one of the following. Customized Key . <MAgIGAngle> - <MABICBright> - <Eco Saving> - <image Size> + <Auto> - The monitor automatically selects an input signal. + __<Manual - Users have to manually select an input signal. Auto Source & Not applicable to analog (D-SUB)-or-digital (DVI)-dedicated models. The OSD automatically disappears if no action is taken by the user. Display Time You can determine the time to wait before the OSD is hidden. + <5 sec> - <10 sec> - <20 sec> - <200 sec> You can select the transparency of the OSD. Menu Transparency of 0 + <Off>-<On> [2 INFORMATION PICTURE INFORMATION Menu Description Shows the frequency and resolution set on the PC. INFORMATION Æ For models with an Analog interface only, <Analog/DVI/HDMI> is not shown in the <Information>. 3-20 Using the product

4 Installing the Software 4-1 Natural Color What is Natural Color ? This software works only for Samsung products and enables adjusting the displayed colors on the product and matches the colors on the product with the colors of the printed pictures. For more information, refer to the online help of the software (F1). The Natural Color is provided online. You can download it from the website below and install; http:/www.samsung.com/us/consumer/learningresources/monitor/naturalcolorexpert/pop_download.html Installing the Software

4-2 MagicTune What is MagicTune? MÉactune” MagicTune is a software program that helps with monitor adjustments by providing comprehensive descriptions of monitor functions and easy-to-understand guidelines. Users can adjust the product with the mouse and the keyboard without using the operating buttons of the product. Installing the Software

1. Insert the installation CD into the CD-ROM drive.

2. Select the MagicTune setup program.

If the pop-up screen for the software installation does not appear on the main screen, find and double-click the MagicTune setup file on the CD-ROM.

3. Select the installation language and click [Next].

4. Complete the remaining software installation steps according to the instructions displayed on the screen.

+ The software may not work properly if you do not restart the computer after the installation. The MagicTune icon may not appear depending on the computer system and the product specifications. -If the shortcut icon does not appear, press the F5 key. Restrictions and Problems with the Installation (MagicTune'") The installation of Magic Tune "may be affected by the graphics card, motherboard and the networking environment. System Requirements

Windows 2000 Windows XP Home Edition Windows XP Professional Windows Vista 32Bit Windows 7 32Bit For MagicTune"", Windows 2000 or later is recommended. Hardware -At least 32MB of memory -At least 60MB of free space on the hard disk drive For more information, refer to the website. Removing the Software You can only remove MagicTune "through [Add or Remove Programs ] in Windows. To remove MagicTune", complete the following steps.

1. Click [Start] select [Settings], and select [Control Panel] from the menu.

In the [Add/Remove] window, find and select MagicTune "so that it is highlighted. Click [Change or Remove Programs] to remove the software. Select [Yes] to start removing MagicTune". p n 8 Wait until a message box appears informing you that the software has been removed completely. Œ& For technical support, the FAQ (frequently asked questions) or information about the software upgrade for MagicTuneT", please visit our website. Installing the Software 4-2

4-3 MultiScreen What is MultiScreen ? ia) MultiScreen MultiScreen enables users to use the monitor by partitioning multiple sections. Installing the Software

1. Insert the installation CD into the CD-ROM drive.

2. Select the MultiScreen setup program.

If the pop-up screen for the software installation does not appear on the main screen, find and double-click the MultiScreen setup file on the CD-ROM.

3. When the Installation Wizard appears, click [Next].

4. Complete the remaining software installation steps according to the instructions displayed on the screen.

+ The software may not work properly if you do not restart the computer after the installation. The MultiScreen icon may not appear depending on the computer system and the product specifications. -If the shortcut icon does not appear, press the F5 key. Restrictions and Problems with the Installation (MultiScreen) The MultiScreen installation may be affected by the graphics card, motherboard and the networking environment. Operating System

Windows 2000 Windows XP Home Edition Windows XP Professional Windows Vista 32Bit Windows 7 32Bit For MultiScreen, the operating systems Windows 2000 or later is recommended. Hardware -At least 32MB of memory -At least 60MB of free space on the hard disk drive Removing the Software Click [Start], select [Settings]/[Control Panel], and then double-click [Add or Remove Programs]. Select MultiScreen from the program list and click the [Add/Delete] button. 4-3 Installing the Software

5 Troubleshooting 5-1 Monitor Self-Diagnosis E + You can check if the product is working properly using the Self-Diagnosis function. + __Ifa blank screen is displayed and the Power LED blinks even if the product and the PC are properly connected, perform the self-diagnosis function according to the procedures below. Turn the product and the PC off. Separate the signal cable from the product . Turn the product on. BYSN > If the product is working properly, the <Check Signal Cable> message appears. In this case, if a blank screen is displayed again, make sure that there is no problem with the PC and the connection. The product is working properly. Troubleshooting 5-1

5-2 Before Requesting Service Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest Samsung Electronics Service Center. A blank screen appears / 1 cannot turn the product on Is the power cord connected properly? Check the connection status of the power cord. Is the <Check Signal Cable> message displayed on the screen? (Connected using the D-sub cable) Check the cable connecting the PC and the product. (Connected using the DVI cable) Ifthe message appears on the screen even if the cable is properly connected, recheck the input signal by pressing the [ {/Ce 1 button of the product. Is the <Not Optimum Mode> message displayed on the screen? This occurs when the signal from the graphics card exceeds the maximum resolution or the maximum frequency of the product. In this case, set up the appropriate resolution and the fre- quency for the product. Is a blank screen displayed and does the power LED blink at a 1 second interval?

1. This occurs when the power saving function is running.

If you click the mouse or press any key, the screen will be turned on.

2. lfthe <Check Signal Cable > condition persists for more

than five minutes, the power saving function will be activated. Did you connect with a DVI cable? If you connect the DVI cable when the PC has booted up or if you reconnect the DVI cable after disconnecting the cable while using a PC, the screen may not be displayed because some graphics cards do not output the video signal. In this case, reboot the PC while the DVI cable is connected. Blank spaces are found at the top and bottom of the screen when an [HDMI] or [HDMI-DV!] cable is connected to the monitor and PC. Blank spaces on the screen are not caused by the monitor. The cause of the problem is the PC or graphics card, and can be fixed by adjusting the screen size in the HDMI or DVI option of the graphics card settings menu. Ifthe graphics card settings menu has no option to adjust the screen size, update the graphics card driver to the latest ver- sion. (Please contact the graphics card or computer manufacturer for details on how to adjust the screen settings.) THE IMAGE IS TOO LIGHT OR TOO DARK. Adjust the <Brightness> and <Contrast>. (Refer to the <Brightness>, <Contrast>) SAMSUNG. The display brightness can differ according to the mode set for < MaGiGAngle>. 1f <SaHsune) MAGICBright> is set to <Dynamic Contrast>, the display brightness can differ according to the input signal. The on screen adjustment menu (OSD) does not appear. Did you cancel the screen adjustment? Check if the OSD Adjustment Lock function is set to Off. Troubleshooting

The color is weird / The picture is displayed in black and white Is the entire screen displayed in the same color as if viewing the screen through a cellophane paper? Check the cable connection to the computer. Reinsert the graphics card into the computer completely. Is the graphics card configured correctly? Set up the graphics card referring to the user manual. The display area suddenly moves to an edge or to the center. Did you change the graphics card or the driver? Please press the [AUTO] button to run the auto adjustment function. Did you change the resolution and frequency appropriate to the product? Set the resolution and the frequency to the appropriate values in the graphics card refer to the (Standard Signal Mode Table) Is the graphics card configured correctly? Set up the graphics card referring to the user manual. The pictures are out-of-focus. Did you change the resolution and the frequency appropriate to the product? Set the resolution and the frequency to the appropriate values in the graphics card refer to the (Standard Signal Mode Table) The color is displayed in 16 bit (16 colors). The color has been changed after changing the graphics card. Did you install the device driver for the product? Windows XP : Set the color again by selecting Control Panel — Appearance and Themes — Display — Settings. Windows ME/2000 : Set the color again by selecting Control Panel — Display — Settings. Windows Vista : Change the color settings by selecting Con- trol Panel — Appearance and Personalization — Personaliza- tion — Display settings. Windows 7 : Change the color settings by selecting Control Panel — Appearance and Personalization — Display — Adjust resolution — Advanced settings — Monitor. (For more information, refer to the Windows user manual for the computer.) Is the graphics card configured correctly? Configure the color again in accordance with the new graph- ics card driver. When | connect the monitor, the ‘Unknown monitor, Plug, J&Play (VESA DDC) monitor found' message is displayed. Did you install the device driver for the product? Install the device driver referring to the descriptions about the driver installation. Check if all the Plug&Play (VESA DDC) functions are sup- ported referring to the User Manual of the graphics card. Install the device driver referring to the descriptions about the driver installation. When I look at the exterior edges of the product, small alien substances appear on it. Since this product is designed so that the color has a soft appe: edges, such things may be seen. This is not a defect of the pro: arance by coating it with a transparent material over the black duct. A “beep, beep” sound is heard when booting the computer. If the beep sound is generated 3 or more times when booting u Ip the computer, please request service for the computer. Troubleshooting

5-3 FAQ FAQ! PLEASE TRY THE FOLLOWING! How can | change the frequency (refresh rate) of the video signal? You have to change the frequency of the graphics card. Windows XP : Change the frequency by selecting Control Panel — Appearance and Themes — Display — Settings — Advanced — Monitor, and then change the refresh rate under Monitor Settings. Windows ME/2000 : Change the frequency by selecting Con- trol Panel — Display — Settings — Advanced — Monitor, and then change the refresh rate under Monitor Settings. Windows Vista : Change the frequency by selecting Control Panel — Appearance and Personalization — Personalization — Display settings — Advanced settings — Monitor, and then change the refresh rate under Monitor Settings. Windows 7 : Change the frequency by selecting Control Panel — Appearance and Personalization — Display — Adjust reso- lution — Advanced settings — Monitor, and then change the refresh rate under Monitor Settings. (For more information, refer to the User Manual of the com- puter or the graphics card.) How can | change the resolution? Windows XP : Change the resolution by selecting Control Panel —> Appearance and Themes — Display —> Settings. Windows ME/2000 : Change the resolution by selecting Con- trol Panel — Display — Settings. Windows Vista : Change the resolution by selecting Control Panel — Appearance and Personalization — Personalization — Display settings. Windows 7 : Change the resolution by selecting Control Panel — Appearance and Personalization — Display — Adjust reso- lution. (For more information, refer to the User Manual of the com- puter or the graphics card.) How can | use the power saving function? Windows XP : Configure it by selecting Control Panel — Appearance and Themes — Display — Screen Saver Setting or configure it in the BIOS Setup of the computer. Windows ME/2000 : Configure it by selecting Control Panel — Display — Screen Saver Setting or Configure it in the BIOS Setup of the computer. Windows Vista : Change settings by selecting Control Panel — Appearance and Personalization — Personalization — Screen Saver. You can also use the BIOS SETUP menu on the PC. Windows 7 : Change settings by selecting Control Panel — Appearance and Personalization — Personalization — Screen Saver. You can also use the BIOS SETUP menu on the PC. (For more information, refer to the Windows user manual for the computer.) Troubleshooting

separate H/V sync, Composite, SOG TTL level (V high > 2.0V, V low < 0.8V) Maximum Pixel Clock 89MHZ (Analog) Power Supply This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product. Signal Cable 15pin-to-15pin D-sub cable, Detachable Dimensions (WxHxD) / Weight 445 x 273 x 53 mm (17.5 x 10.7 x 2.1 inches) (Without Stand) 445 x 348 x 177 mm (17.5 x 13.7 x 7.0 inches) (With Stand) / 2.3 kg (5.1 lbs) Operating Temperature : 50°F - 104°F (10°C — 40°C) Envi Operating AMIONMENS Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(42.0°) -20.0°(#2.0°) Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information

6-2 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 20 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. More Information

separate H/V sync, Composite, SOG TTL level (V high > 2.0V, V low < 0.8V) Maximum Pixel Clock 89MHZ (Analog, Digital) Power Supply This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product. Signal Cable 15pin-to-15pin D-sub cable, Detachable DVI-D to DVI-D connector, Detachable Dimensions (WxHxD) / Weight 445 x 273 x 53 mm (17.5 x 10.7 x 2.1 inches) (Without Stand) 445 x 348 x 177 mm (17.5 x 13.7 x 7.0 inches) (With Stand) / 2.3 kg (5.1 lbs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information

6-4 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 20 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. 6-4 More Information

MODEL NAME S19B300NW

separate H/V sync, Composite, SOG TTL level (V high > 2.0V, V low < 0.8V) Maximum Pixel Clock 137MHZz (Analog) Power Supply This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product. Signal Cable 15pin-to-15pin D-sub cable, Detachable Dimensions (WxHxD) / Weight 444 x 299 x 53 mm (17.5 x 11.8 x 2.1 inches) (Without Stand) 444 x 373 x 177 mm (17.5 x 14.7 x 7.0 inches) (With Stand) /2.6 kg (5.7 Ibs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Design and specifications are subject to change without prior notice. & Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information

6-6 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 20 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. More Information

Input Signal, Terminated separate H/V sync, Composite, SOG TTL level (V high z 2.0V, V low < 0.8V) Maximum Pixel Clock 150MHZz (Analog) Power Suppl This product supports 100-240 V.Since the standard voltage may differ from PPy country to country, please check the label on the back of the product. Signal Cable 15pin-to-15pin D-sub cable, Detachable 478 x 291 x 53 mm (18.8 x 11.5 x 2.1 inches) (Without Stand) Dimensions (WxHxD) / Weight 478 x 365 x 177 mm (18.8 x 14.4 x 7.0 inches) (With Stand) / 2.1 kg (4.6 lbs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Æ Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information

6-8 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. More Information

separate H/V sync, Composite, SOG TTL level (V high > 2.0V, V low < 0.8V) Maximum Pixel Clock 150MHZz (Analog.Digital) Power Supply This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product. Signal Cable 15pin-to-15pin D-sub cable, Detachable DVI-D to DVI-D connector, Detachable Dimensions (WxHxD) / Weight 478 x 291 x 53 mm (18.8 x 11.5 x 2.1 inches) (Without Stand) 478 x 365 x 177 mm (18.8 x 14.4 x 7.0 inches) (With Stand) / 2.1 kg (4.6 lbs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information

6-10 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. 6-10 More Information

separate H/V sync, Composite, SOG TTL level (V high > 2.0V, V low < 0.8V) Maximum Pixel Clock 164MHZz (Analog) Power Supply This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product. Signal Cable 15pin-to-15pin D-sub cable, Detachable Dimensions (WxHxD) / Weight 512 x 311 x 53 mm (20.2 x 12.2 x 2.1 inches) (Without Stand) 512 x 385 x 197 mm (20.2 x 15.2 x 7.8 inches) (With Stand) / 3.0 kg (6.6 lbs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Æ Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information

6-12 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. 6-12 More Information

Input Signal, Terminated separate H/V sync, Composite, SOG TTL level (V high z 2.0V, V low < 0.8V) Maximum Pixel Clock 164MHZz (Analog/Digital) Power Suppl This product supports 100-240 V.Since the standard voltage may differ from PPy country to country, please check the label on the back of the product. : 15pin-to-15pin D-sub cable, Detachable Signal Cable DVI-D to DVI-D connector, Detachable 512 x 311 x 53 mm (20.2 x 12.2 x 2.1 inches) (Without Stand) Dimensions (WxHxD) / Weight 512 x 385 x 197 mm (20.2 x 15.2 x 7.8 inches) (With Stand) / 3.0 kg (6.6 lbs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information 6-13

6-14 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. 6-14 More Information

Input Signal, Terminated separate H/V sync, Composite, SOG TTL level (V high z 2.0V, V low < 0.8V) Maximum Pixel Clock 164MHz (Analog,HDMI) This product supports 100-240 V.Since the standard voltage may differ from Power Supply country to country, please check the label on the back of the product. 15pin-to-15pin D-sub cable, Detachable Signal Cable HDMI to DVI Cable, Detachable HDMI Cable, Detachable 512 x 311 x 53 mm (20.2 x 12.2 x 2.1 inches) (Without Stand) Dimensions (WxHxD) / Weight 512 x 385 x 197 mm (20.2 x 15.2 x 7.8 inches) (With Stand) / 3.0 kg (6.6 lbs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information 6-15

6-16 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. 6-16 More Information

separate H/V sync, Composite, SOG TTL level (V high > 2.0V, V low < 0.8V) Maximum Pixel Clock 164MHZz (Analog) Power Supply This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product. Signal Cable 15pin-to-15pin D-sub cable, Detachable Dimensions (WxHxD) / Weight 547 x 330 x 53 mm (21.5 x 13.0 x 2.1 inches) (Without Stand) 547 x 405 x 197 mm (21.5 x 16.0 x 7.8 inches) (With Stand) / 2.9 kg (6.4 Ibs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Æ Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information

6-18 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. 6-18 More Information

Input Signal, Terminated separate H/V sync, Composite, SOG TTL level (V high z 2.0V, V low < 0.8V) Maximum Pixel Clock 164MHZz (Analog.Digital) Power Suppl This product supports 100-240 V.Since the standard voltage may differ from PPy country to country, please check the label on the back of the product. : 15pin-to-15pin D-sub cable, Detachable Signal Cable DVI-D to DVI-D connector, Detachable 547 x 330 x 53 mm (21.5 x 13.0 x 2.1 inches) (Without Stand) Dimensions (WxHxD) / Weight 547 x 405 x 197 mm (21.5 x 16.0 x 7.8 inches) (With Stand) / 2.9 kg (6.4 Ibs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information 6-19

6-20 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. 6-20 More Information

Input Signal, Terminated separate H/V sync, Composite, SOG TTL level (V high z 2.0V, V low < 0.8V) Maximum Pixel Clock 164MHz (Analog,HDMI) This product supports 100-240 V.Since the standard voltage may differ from Power Supply country to country, please check the label on the back of the product. 15pin-to-15pin D-sub cable, Detachable Signal Cable HDMI to DVI Cable, Detachable HDMI Cable, Detachable 547 x 330 x 53 mm (21.5 x 13.0 x 2.1 inches) (Without Stand) Dimensions (WxHxD) / Weight 547 x 405 x 197 mm (21.5 x 16.0 x 7.8 inches) (With Stand) / 2.9 kg (6.4 Ibs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information 6-21

6-22 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. 6-22 More Information

Input Signal, Terminated separate H/V sync, Composite, SOG TTL level (V high z 2.0V, V low < 0.8V) Maximum Pixel Clock 164MHZz (Analog.Digital) Power Suppl This product supports 100-240 V.Since the standard voltage may differ from PPy country to country, please check the label on the back of the product. : 15pin-to-15pin D-sub cable, Detachable Signal Cable DVI-D to DVI-D connector, Detachable 569 x 342 x 53 mm (22.4 x 13.5 x 2.1 inches) (Without Stand) Dimensions (WxHxD) / Weight 569 x 416 x 197 mm (22.4 x 16.4 x 7.8 inches) (With Stand) / 3.8 kg (8.4 Ibs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information 6-23

6-24 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. 6-24 More Information

Input Signal, Terminated separate H/V sync, Composite, SOG TTL level (V high z 2.0V, V low < 0.8V) Maximum Pixel Clock 164MHz (Analog,HDMI) Power Suppl This product supports 100-240 V.Since the standard voltage may differ from PPy country to country, please check the label on the back of the product. : 15pin-to-15pin D-sub cable, Detachable Signal Cable HDMI to DVI Cable ,Detachable 569 x 342 x 53 mm (22.4 x 13.5 x 2.1 inches) (Without Stand) Dimensions (WxHxD) / Weight 569 x 416 x 197 mm (22.4 x 16.4 x 7.8 inches) (With Stand) / 3.8 kg (8.4 Ibs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information 6-25

6-26 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. 6-26 More Information

separate H/V sync, Composite, SOG TTL level (V high > 2.0V, V low < 0.8V) Maximum Pixel Clock 164MHZz (Analog) Power Supply This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product. Signal Cable 15pin-to-15pin D-sub cable, Detachable Dimensions (WxHxD) / Weight 569 x 342 x 53 mm (22.4 x 13.5 x 2.1 inches) (Without Stand) 569 x 416 x 197 mm (22.4 x 16.4 x 7.8 inches) (With Stand) / 3.4 kg (7.5 lbs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Æ Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information

6-28 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. 6-28 More Information

Input Signal, Terminated separate H/V sync, Composite, SOG TTL level (V high z 2.0V, V low < 0.8V) Maximum Pixel Clock 164MHZz (Analog.Digital) Power Suppl This product supports 100-240 V.Since the standard voltage may differ from PPy country to country, please check the label on the back of the product. : 15pin-to-15pin D-sub cable, Detachable Signal Cable DVI-D to DVI-D connector, Detachable 569 x 342 x 53 mm (22.4 x 13.5 x 2.1 inches) (Without Stand) Dimensions (WxHxD) / Weight 569 x 416 x 197 mm (22.4 x 16.4 x 7.8 inches) (With Stand) / 3.4 kg (7.5 lbs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information 6-29

6-30 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. 6-30 More Information

Input Signal, Terminated separate H/V sync, Composite, SOG TTL level (V high z 2.0V, V low < 0.8V) Maximum Pixel Clock 164MHz (Analog,HDMI) Power Suppl This product supports 100-240 V.Since the standard voltage may differ from PPy country to country, please check the label on the back of the product. : 15pin-to-15pin D-sub cable, Detachable Signal Cable HDMI to DVI-D connector, Detachable 569 x 342 x 53 mm (22.4 x 13.5 x 2.1 inches) (Without Stand) Dimensions (WxHxD) / Weight 569 x 416 x 197 mm (22.4 x 16.4 x 7.8 inches) (With Stand) / 3.4 kg (7.5 lbs) Operating Temperature : 50°F - 104°F (10°C — 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Storage Temperature : -4°F - 113°F (-20°C - 45°C) Storage Humidity : 5 % - 95 %, non-condensing Tilt -1.0°(+2.0°) -20.0°(+2.0°) Design and specifications are subject to change without prior notice. Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) (USA ONLY) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799 More Information 6-31

6-32 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected. 6-32 More Information

6-34 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please sepa- rate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of mate- rial resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. More Information 6-34
