Product Type	Door Closer
Brand	Draper
Model	DC40/65
Door Weight Capacity	40 kg to 65 kg (88 lb to 143 lb)
Mounting Type	Surface mounted (standard arm)
Body Dimensions (approx.)	250 mm x 55 mm x 45 mm (9.84 in x 2.17 in x 1.77 in)
Weight (approx.)	1.2 kg (2.65 lb)
Power Source	None (mechanical spring)
Adjustable Closing Speed	Yes (via valves)
Adjustable Latching Speed	Yes (via valves)
Backcheck Function	Yes (prevents door from slamming open)
Delay Action	Adjustable delay before closing
Operating Temperature Range	-20°C to +60°C (-4°F to +140°F)
Material	Aluminum alloy body, steel arm
Finish	Silver or white (depending on variant)
Installation	For left-hand or right-hand doors (reversible)
Maintenance	Periodic lubrication of moving parts recommended
Safety Notes	Keep fingers away from moving arms; do not disassemble spring
Spare Parts Available	Replaceable arm, screws, and valve caps
Compliance	EN 1154 (European standard for door closers)

Frequently Asked Questions - DC40/65 Draper

How do I adjust the closing speed of the Draper DC40/65 door closer?

Use the two adjusting valves on the closer body. Turn the valve labelled CLOSING SPEED clockwise to slow down or counter-clockwise to speed up the overall closing motion. The second valve adjusts the LATCHING SPEED (final few degrees). Always make small adjustments (quarter turns) and test.

What is the maximum door weight for the DC40/65?

The DC40/65 is designed for doors weighing between 40 kg and 65 kg (88-143 lbs). Using it on heavier doors may cause premature wear or failure.

Can I install this door closer on both left-hand and right-hand doors?

Yes, the closer is reversible. The standard arm can be mounted on the push side or pull side. Follow the template and instructions for your door hand. The closer body can be mounted on the door or frame depending on preference.

Does the DC40/65 have a backcheck feature?

Yes, it includes an adjustable backcheck which cushions the door if it is opened forcefully, preventing damage to the door or wall.

How do I maintain the door closer?

Periodically check for oil leaks and tighten mounting screws. Lubricate the pivot points with a light oil. Clean the body with a damp cloth. Do not paint over the valves or moving parts.

What are the dimensions of the DC40/65 closer body?

The body is approximately 250 mm x 55 mm x 45 mm (9.84 in x 2.17 in x 1.77 in). The arm length adds about 300 mm when fully extended.

The door closer is making a hissing noise. Is that normal?

A faint hissing sound is normal as hydraulic fluid passes through valves. However, if it is loud or accompanied by oil leaks, the seals may be damaged and the closer should be replaced.

Can I use the DC40/65 on fire doors?

Yes, Draper DC40/65 is tested and certified to EN 1154 for use on fire doors. Ensure it is installed correctly to maintain the fire rating.

The door does not close fully. What can I do?

First, check that the closer is properly sized for the door weight. Then try increasing the CLOSING SPEED and LATCHING SPEED by turning the respective valves counter-clockwise. Also ensure the arm is not obstructed.

What spare parts are available for the DC40/65?

Common spare parts include the arm assembly, mounting screws, and valve caps. Contact Draper or an authorized dealer for replacement parts.

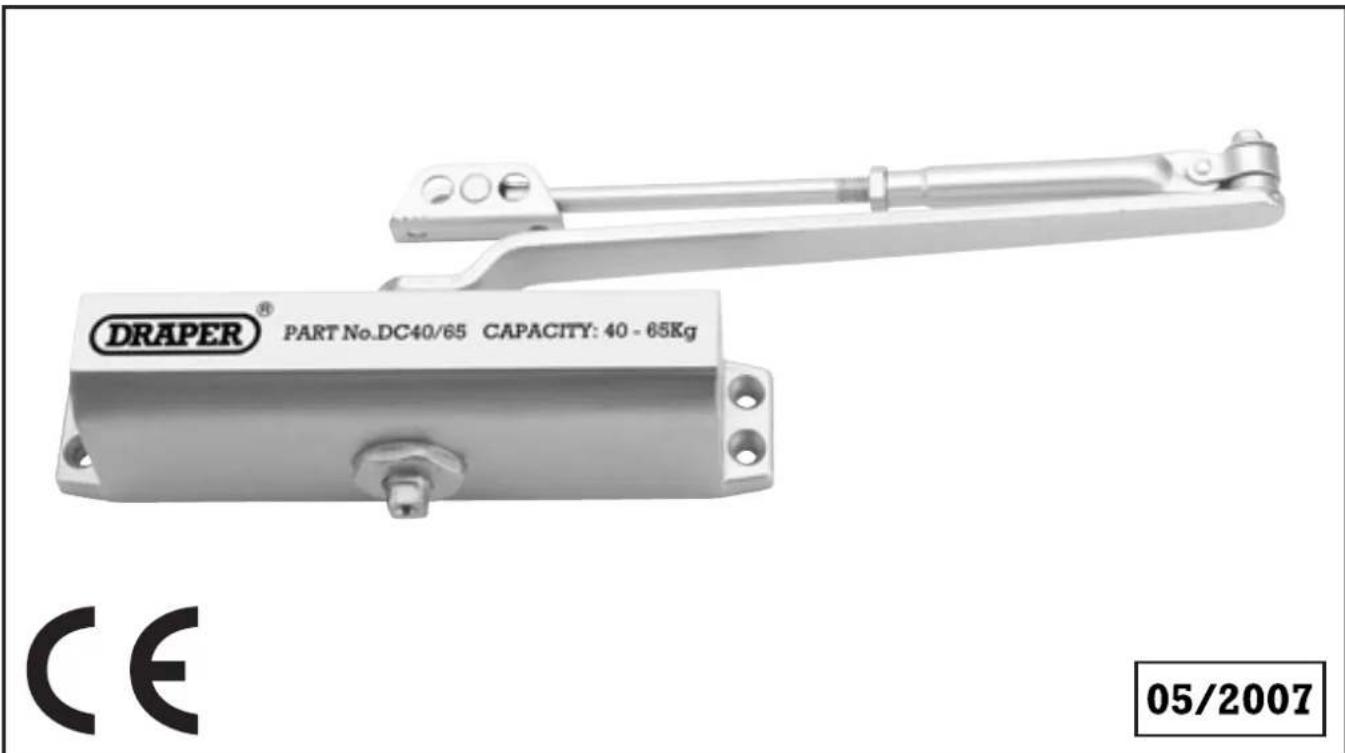

USER MANUAL DC40/65 Draper

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL.

GENERAL INFORMATION

This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed and should be kept with it for future references.

This manual describes the purpose for which the product has been designed and contains all the necessary information to ensure its correct and safe use. We recommend that this manual is read before any operation or, before performing any kind of adjustment to the product and prior to any maintenance tasks. By following all the general safety instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the tool itself.

All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tools policy of continuous improvement determines the right to make modifications without prior warning.

INSTALLATION INSTRUCTIONS FOR REGULAR ARM (PULL SIDE) MOUN TING

This installation process covers regular arm installations up to 180° openings.

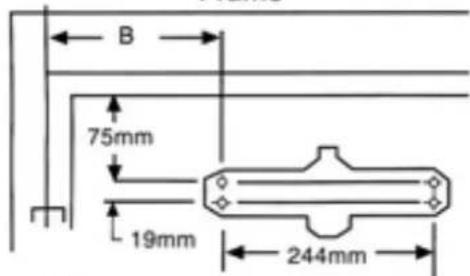

1. Select the door opening angle and use the dimensions shown opposite. Mark four holes on the door for the door closer and two holes on the frame for the arm shoe.
2. Drill 4mm∅ pilot holes in the door and frame for the fixings supplied.
3. Fix the forearm/arm shoe assembly to the door frame using the fixings supplied.
4. Attach the closer to the door using the fixings supplied.

Note: The speed adjusting valve must be positioned towards the hinged edge of the door.

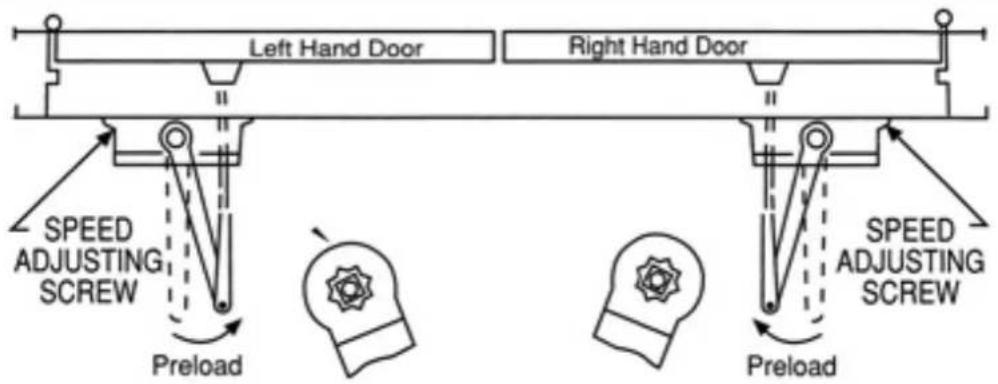

1. Install the main arm onto the top pinion shaft, perpendicular to the door as illustrated below. Tightly secure it in place using the screw/washer assembly supplied.
2. Adjust the length of the forearm so that it is perpendicular to the door frame when assembled to preloaded main arm (see 'top view' illustration below). Secure the forearm to the main arm using the screw/washer assembly provided.
3. Snap the pinion cap over the pinion shaft at the bottom of the closer unit.
4. Adjust the closing speed of the door using the procedure detailed on page 5.

■ STOCK No.62892

PART No.DC40/65

OPENING TO 120°
DIMENSION A = 120mm
OPENING FROM 120° TO 180°
■ DIMENSION A = 80mm

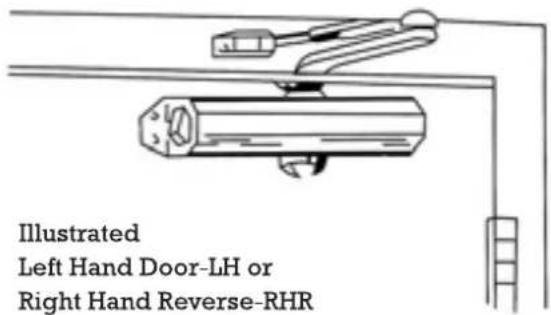

REGULAR ARM INSTALLATION

Closer installs on PULL/HINGE side of door

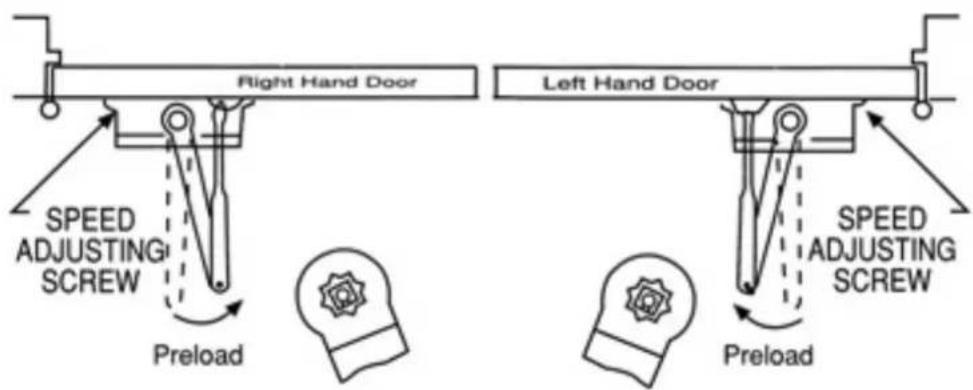

TYPICAL TOP VIEW INSTALLATION

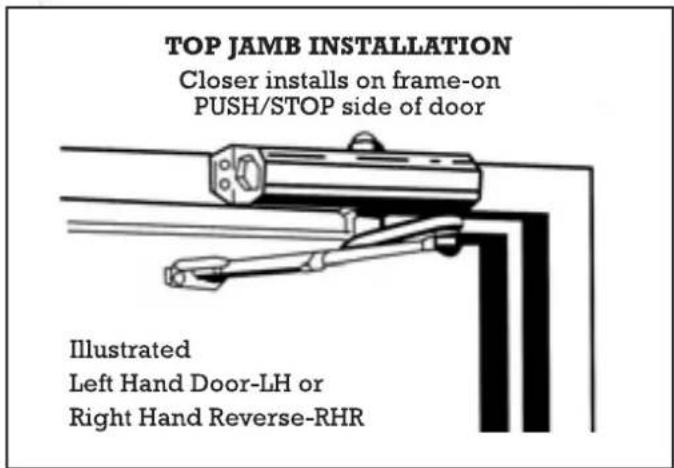

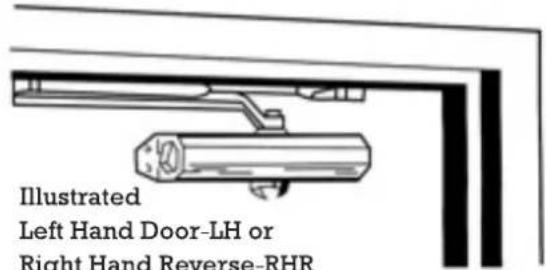

INSTALLATION INSTRUCTIONS FOR TOP JAMB (PUSH SIDE) MOUNTING

This installation process covers top jamb installations up to 180° openings.

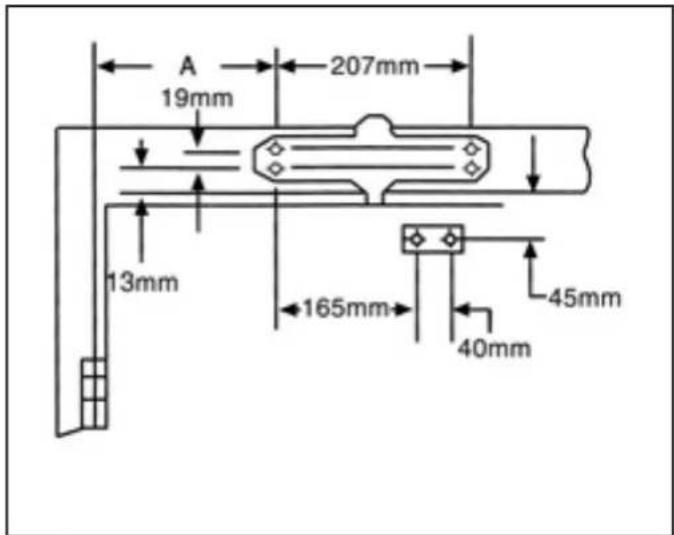

1. Select the door opening angle and use the dimensions shown opposite. Mark four holes on the frame for the door closer and two holes on the door for the arm shoe.
2. Drill 4mm∅ pilot holes in the door and frame for the fixings supplied.
3. Fix the forearm/arm shoe assembly to the door using the fixings supplied.
4. Attach the closer to the door frame using the fixings supplied.

Note: The speed adjusting valve must be positioned towards the hinged edge of the door.

1. Install the main arm onto the top pinion shaft, perpendicular to the door as illustrated below. Tightly secure it in place using the screw/washer assembly supplied.
2. Adjust the length of the forearm so that it is perpendicular to the door frame when preloaded with the main arm (see 'top view' illustration below). Secure the forearm to the main arm using the screw/washer assembly provided.
3. Snap the pinion cap over the pinion shaft at the bottom of the closer unit.
4. Adjust the closing speed of the door using the procedure detailed on page 5.

■ STOCK No.62892

PART No.DC40/65

OPENING TO 120°
DIMENSION A = 120mm
OPENING FROM 120° TO 180°
DIMENSION A = 80mm

TYPICAL TOP VIEW INSTALLATION

INSTALLATION INSTRUCTIONS FOR PARALLEL ARM (PUSH SIDE) MOUNTING

This installation process covers parallel arm installations up to 180° openings.

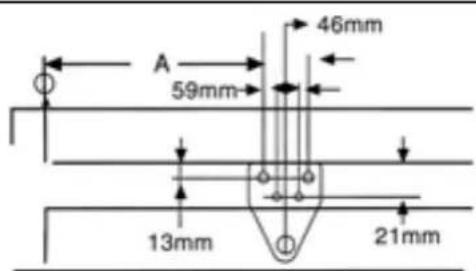

1. Select the door opening angle and use the dimensions shown opposite. Mark four holes on the door for the door closer and four holes on the underside of the frame for the parallel bracket.
2. Drill 4mm∅ pilot holes in the door and frame for the fixings supplied.
3. Attach the closer to door using screws provided, speed adjusting valve must be positioned away from hinge edge.
4. Fix parallel arm bracket to the frame using screws provided.

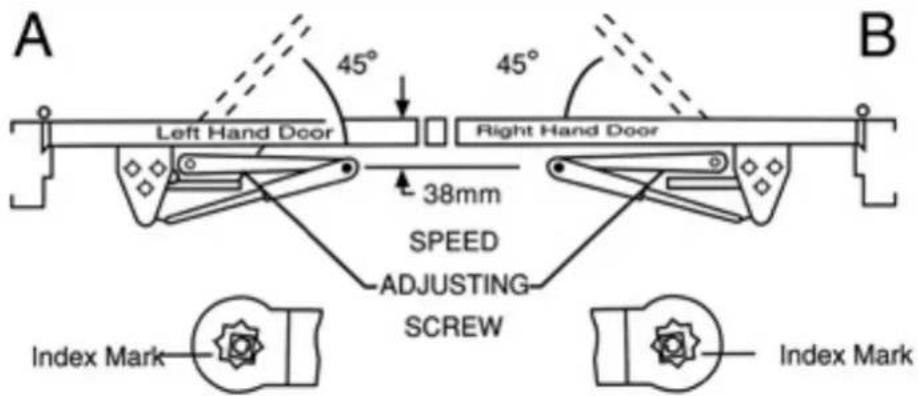

5. Using a wrench on the square shaft at the bottom of the closer, rotate the shaft 100mm to 125mm towards the hinged edge of door. Hold and place the main arm of the shaft on top of the closer at the index mark, as on "top view" illustration below.

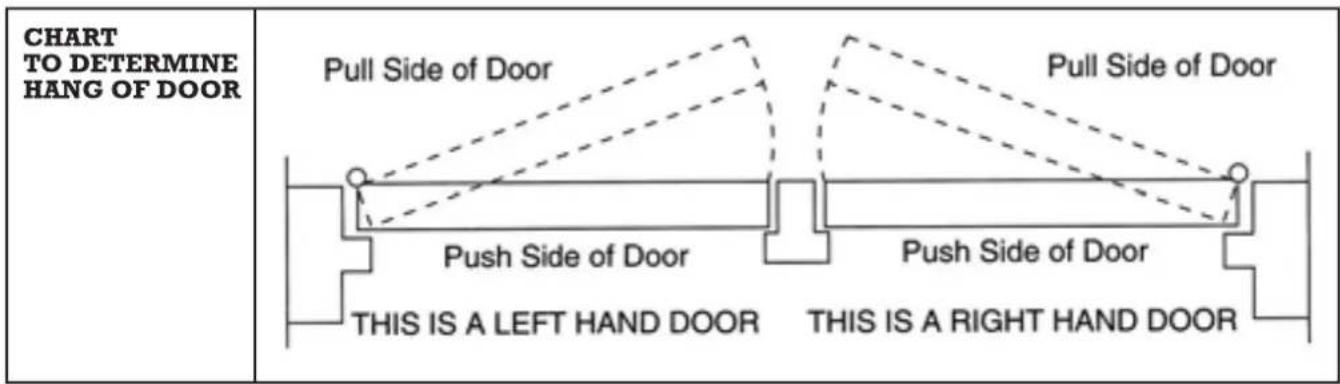

For left hand door illustration A For right hand door illustration B Tighten arm screw with lockwasher securely.

1. Remove arm shoe from forearm and discard. Install rod end of forearm to bracket using the screw/washer assembly provided.
2. Adjust forearm length so that adjustable forearm is parallel to the frame.
3. Adjust the closing speed of the door using the procedure detailed on page 5.

■ STOCK No.62892

PART No.DC40/65

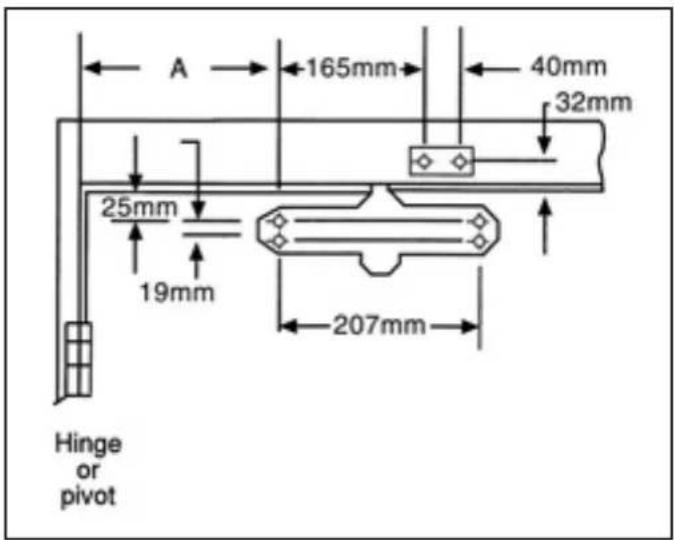

OPENING TO 120°

DIMENSION A = 200mm DIMENSION A = 170mm
OPENING FROM 120° TO 180°
DIMENSION A = 170mm DIMENSION A = 140mm

Frame

Hinge or pivot

PARALLEL ARM INSTALLATION
Closer installs on PUSH/STOP side of door

TYPICAL TOP VIEW INSTALLATION

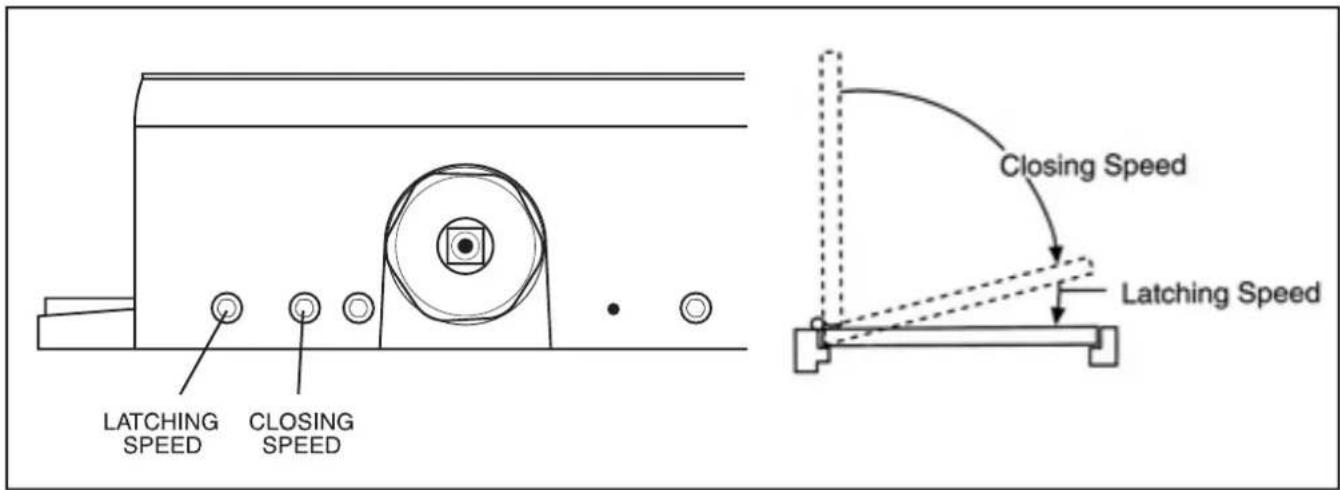

DOOR CLOSING CYCLE

CLOSING SPEED

Closing arcs are controlled by two separate speed adjusting valves. Adjust the closing speed first then adjust the latching speed.

Turn the speed adjusting valve a full rotation clockwise for a slower closing speed.

Turn the speed adjusting valve a full rotation anticlockwise for a faster closing speed.

LATCHING SPEED

Turn the speed adjusting valve a full rotation clockwise for a slower latching speed.

Turn the speed adjusting valve a full rotation anticlockwise for a faster latching speed.

CAUTION: Do not turn speed adjusting valve more than two full turns anticlockwise from its factory set position, as the speed adjusting valves could become dislodged from the door closer body, resulting with the loss of internal fluid and failure of the device.
