Product Type	Door Closer
Brand	Draper
Model	DC15/30
Adjustable Closing Speed	Yes (0° to 180°)
Latching Speed	Adjustable via valve
Backcheck	Yes
Spring Strength	Adjustable (EN 2-4)
Mounting Options	Push side, pull side, parallel arm
Material	Steel body
Finish	Silver powder coated
Dimensions (approx.)	250 mm x 60 mm x 45 mm
Weight (approx.)	1.5 kg
Temperature Range	-20°C to +40°C
Safety Compliance	EN 1154
Maintenance	Lubricate pivot points annually
Spare Parts Availability	Arm, valve kit, screws
Max Door Width (approx.)	1100 mm
Max Door Weight (approx.)	80 kg

Frequently Asked Questions - DC15/30 Draper

How do I adjust the closing speed?

Use a hex key to turn the adjustment valves on the body. Turn clockwise to slow down, counter-clockwise to speed up.

Can I install this door closer on a lightweight screen door?

Not recommended. The DC15/30 is designed for standard interior or exterior doors up to 80 kg. For lightweight doors, consider a smaller model.

What is the maximum door weight for this closer?

The maximum door weight is approximately 80 kg (176 lbs). Verify the spring size adjustment accordingly.

How do I install the DC15/30?

Refer to the included installation template. Typically, mount the closer on the door or frame using screws. Adjust the arm length as needed.

The door does not close fully. What could be wrong?

Check closing speed adjustment (valves). Also verify the arm is correctly attached and the door's hinges are aligned.

Is this closer suitable for fire doors?

Yes, the DC15/30 complies with EN 1154 and can be used on fire doors if installed per regulations.

How often should I lubricate the closer?

Lubricate pivot points with light oil annually to ensure smooth operation.

What tools are needed for installation?

You will need a screwdriver, a hex key (usually 4 mm), a drill with appropriate bits, and a tape measure.

What is the warranty period?

Draper typically offers a 2-year warranty against manufacturing defects. Proof of purchase required.

Where can I buy spare parts?

Spare parts are available through authorized Draper dealers. Contact customer support for assistance.

USER MANUAL DC15/30 Draper

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL.

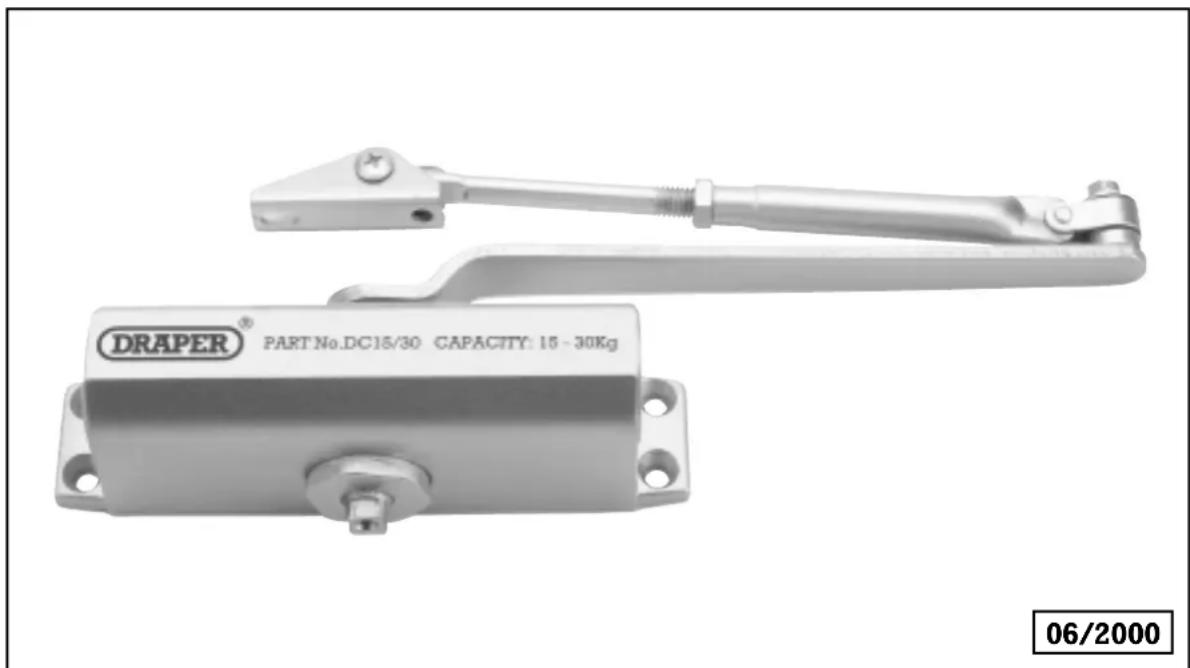

Draper assembly device with attached handle and mounting base (no visible text or symbols on main body)

GENERAL INFORMATION

This manual has been compiled by Draper Tools and is an integrated part of the product, which should be kept with the product. This manual describes the purpose for which this product has been designed and contains all the necessary information to ensure its correct and safe use. We recommend that this manual is read before any operation of the product, before performing any kind of adjustment to the product, and prior to any maintenance tasks. By following all the general safety instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.

All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tool policy of continuous improvement determines the right to make modifications without prior warning.

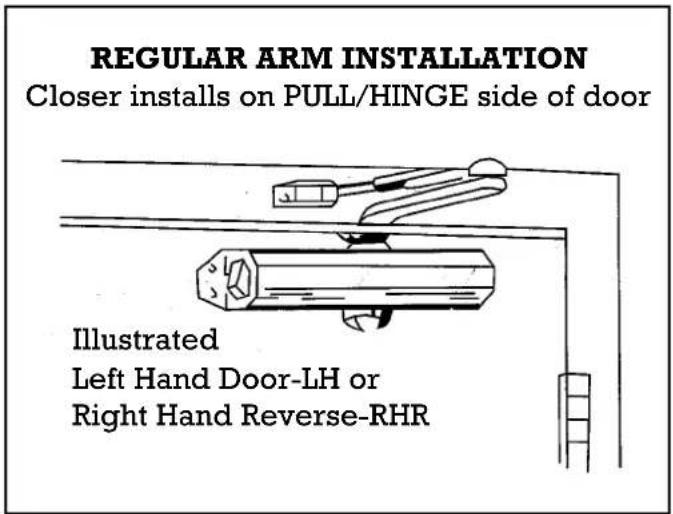

INSTALLATION INSTRUCTIONS FOR REGULAR ARM (PULL SIDE) MOUNTING

This installation process covers regular arm installations up to 180° openings.

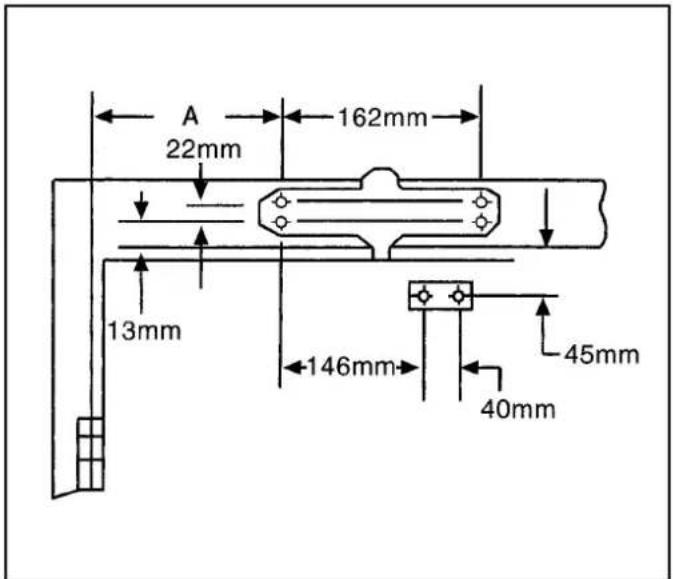

1. Select the door opening angle and use the dimensions shown opposite. Mark four holes on the door for the door closer and two holes on the frame for the arm shoe.
2. Drill 4mm∅ pilot holes in the door and frame for the fixings supplied.
3. Fix the forearm/arm shoe assembly to the door frame using the fixings supplied.
4. Attach the closer to the door using the fixings supplied.

Note: The speed adjusting valve must be positioned towards the hinged edge of the door.

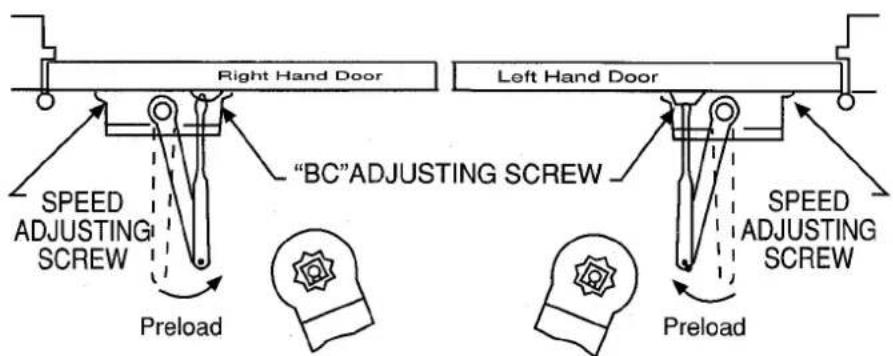

1. Install the main arm onto the top pinion shaft, perpendicular to the door as illustrated below. Tightly secure it in place using the screw/washer assembly supplied.
2. Adjust the length of the forearm so that it is perpendicular to the door frame when assembled to pre-loaded main arm (see 'top view' illustration below). Secure the forearm to the main arm using the screw/washer assembly provided.
3. Snap the pinion cap over the pinion shaft at the bottom of the closer unit.
4. Adjust the closing speed of the door using the procedure detailed on page 5.

■STOCK No.62894 ■PART No.DC15/30 OPENING TO 120°

■DIMENSION A = 95mm
OPENING FROM 120° TO 180°
■DIMENSION A = 65mm

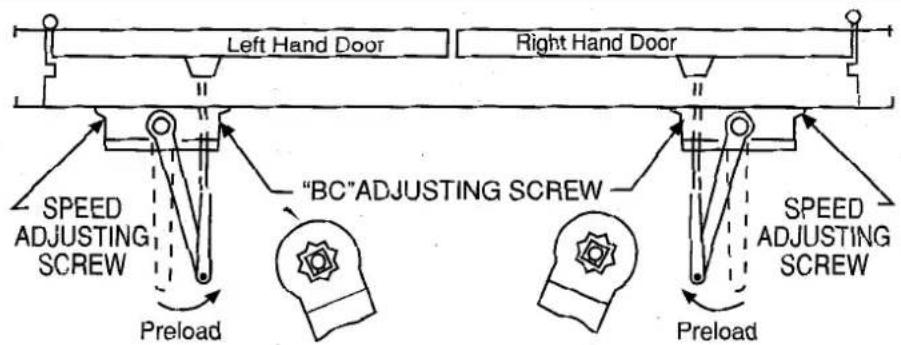

TYPICAL TOP VIEW INSTALLATION

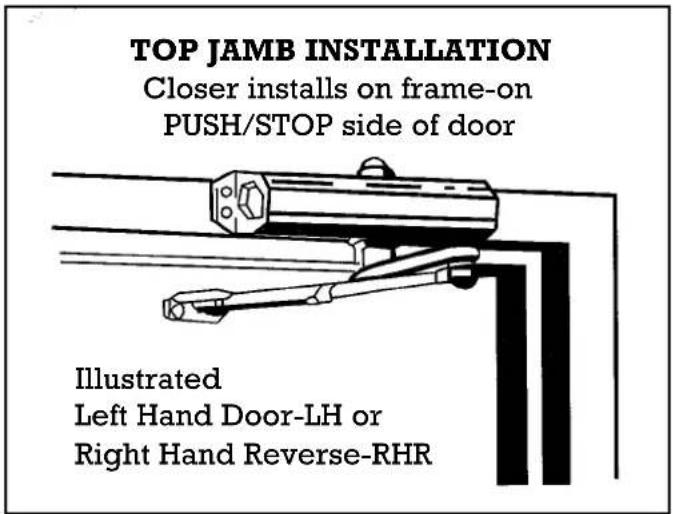

INSTALLATION INSTRUCTIONS FOR TOP JAMB (PUSH SIDE) MOUNTING

This installation process covers top jamb installations up to 180° openings.

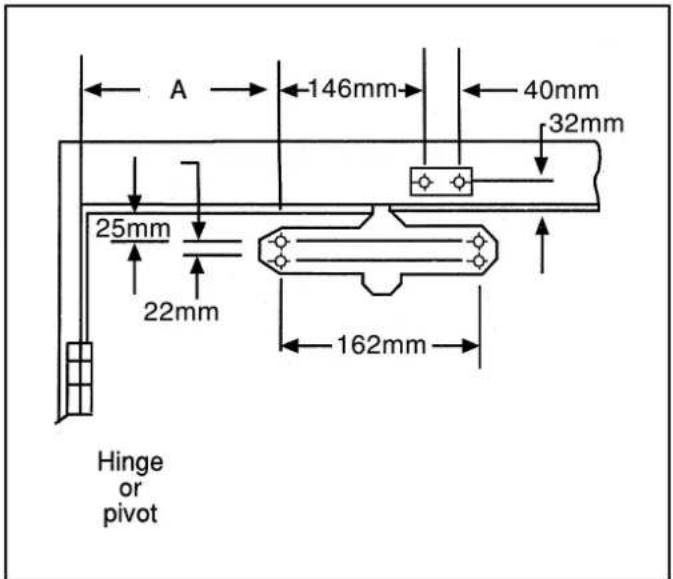

1. Select the door opening angle and use the dimensions shown opposite. Mark four holes on the frame for the door closer and two holes on the door for the arm shoe.
2. Drill 4mm∅ pilot holes in the door and frame for the fixings supplied.
3. Fix the forearm/arm shoe assembly to the door using the fixings supplied.
4. Attach the closer to the door frame using the fixings supplied.

Note: The speed adjusting valve must be positioned towards the hinged edge of the door.

1. Install the main arm onto the top pinion shaft, perpendicular to the door as illustrated below. Tightly secure it in place using the screw/washer assembly supplied.
2. Adjust the length of the forearm so that it is perpendicular to the door frame when preloaded with the main arm (see 'top view' illustration below). Secure the forearm to the main arm using the screw/washer assembly provided.
3. Snap the pinion cap over the pinion shaft at the bottom of the closer unit.
4. Adjust the closing speed of the door using the procedure detailed on page 5.

■STOCK No.62894

■ PART No.DC15/30

OPENING TO 120°

■DIMENSION A = 95mm
OPENING FROM 120° TO 180°
■DIMENSION A = 65mm

TYPICAL TOP VIEW INSTALLATION

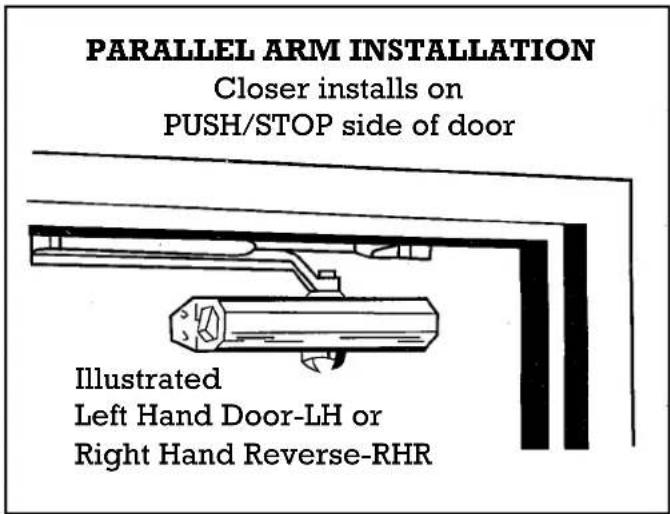

INSTALLATION INSTRUCTIONS FOR PARALLEL ARM (PUSH SIDE) MOUNTING

This installation process covers parallel arm installations up to 180° openings.

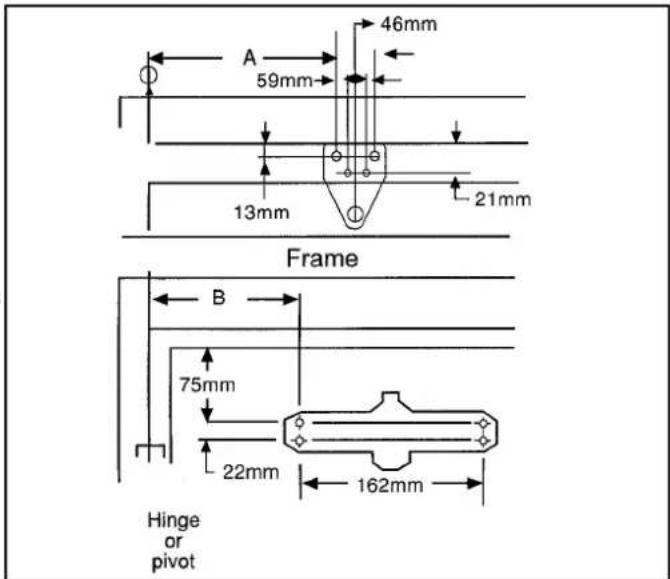

1. Select the door opening angle and use the dimensions shown opposite. Mark four holes on the door for the door closer and four holes on the underside of the frame for the parallel bracket.
2. Drill 4mm∅ pilot holes in the door and frame for the fixings supplied.
3. Attach the closer to door using screws provided, speed adjusting valve must be positioned away from hinge edge.
4. Fix parallel arm bracket to the frame using fixings provided.

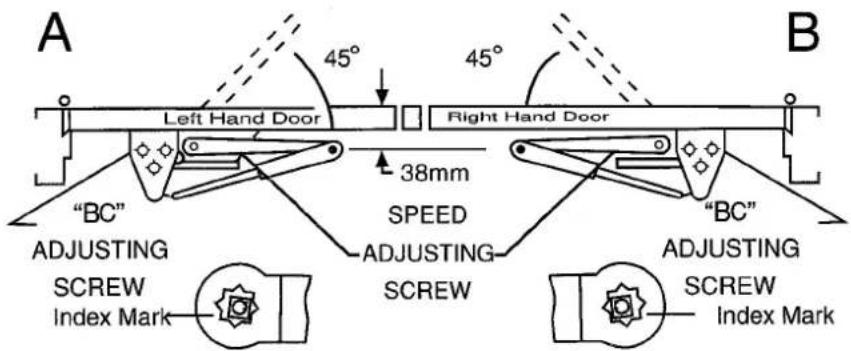

5. Using a wrench on the square shaft at the bottom of the closer, rotate the shaft 100mm to 125mm towards the hinged edge of the door. Hold and place the main arm of the shaft on top of the closer at the index mark, as on "top view" illustration below.

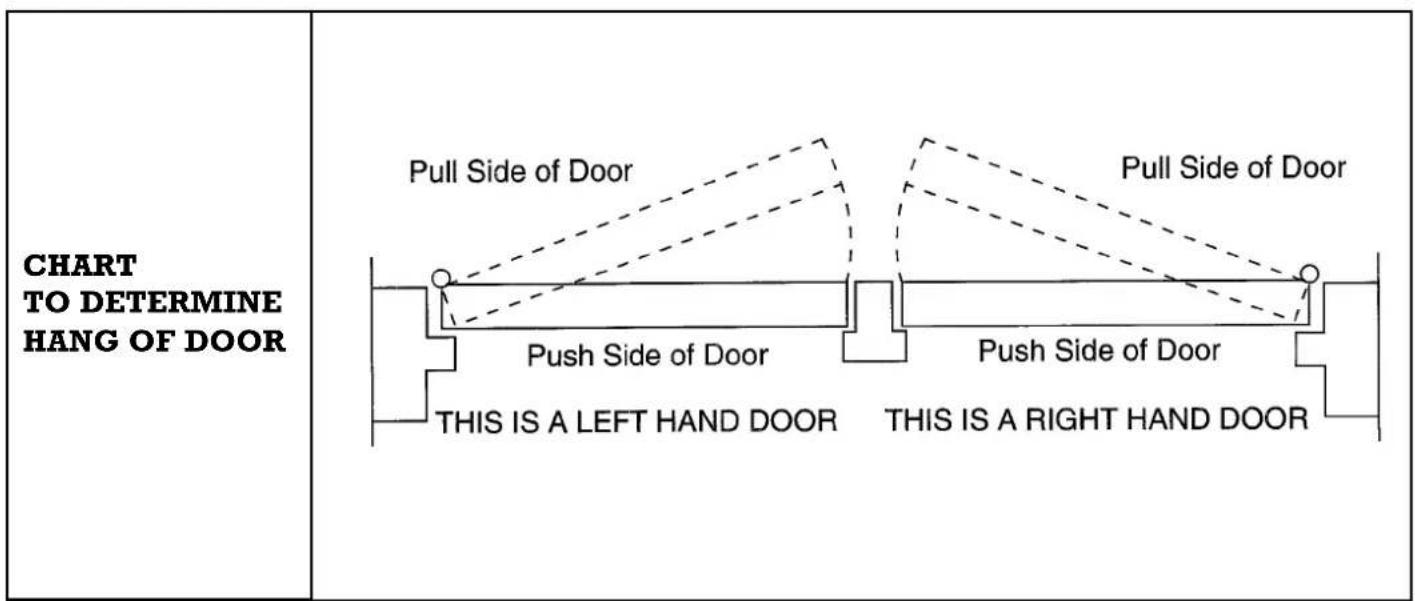

For left hand door illustration A

For right hand door illustration B

Tighten arm screw with lockwasher securely.

1. Remove arm shoe from forearm and discard. Install rod end of forearm to bracket using the screw/washer assembly provided.
2. Adjust forearm length so that adjustable forearm is parallel to the frame.
3. Adjust the closing speed of the door using the procedure detailed on page 5.

■STOCK No.62894
■ PART No.DC15/30
OPENING TO 120°
■DIMENSION A = 149mm ■ DIMENSION B = 119mm
OPENING FROM 120° TO 180°
■DIMENSION A = 119mm ■ DIMENSION B = 89mm

TYPICAL TOP VIEW INSTALLATION

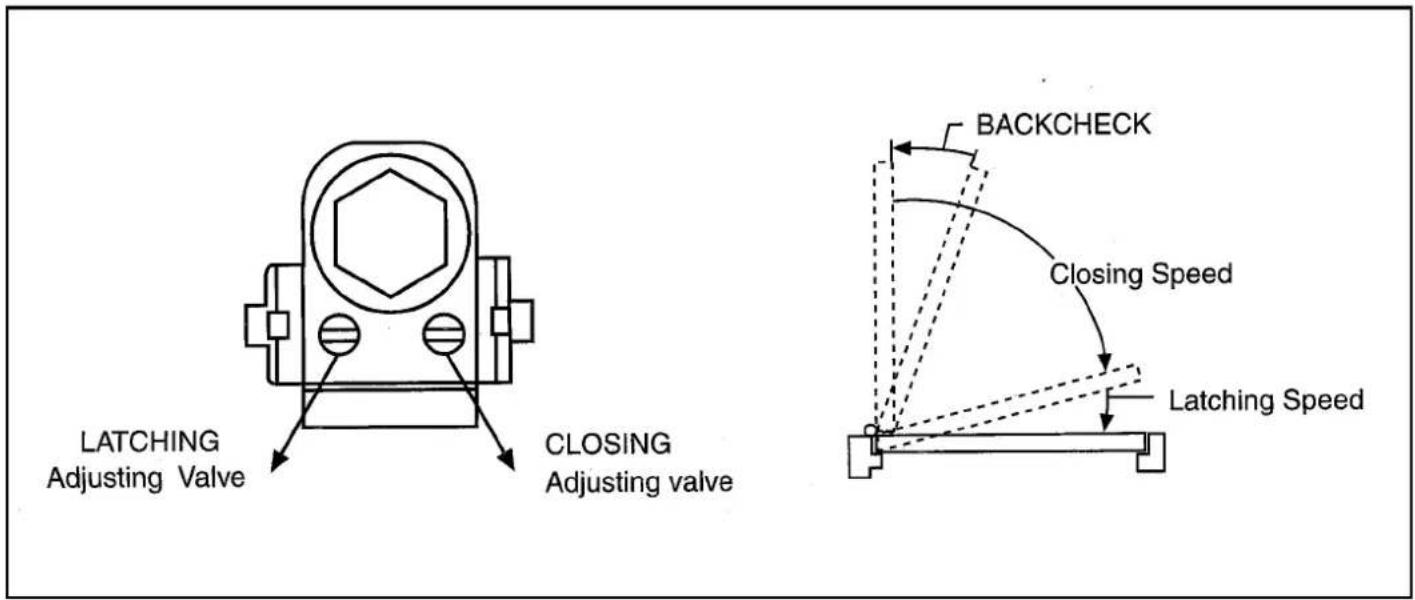

DOOR CLOSING CYCLE

CLOSING SPEED

Closing arcs are controlled by two separate speed adjusting valves. Adjust the closing speed first then adjust the latching speed.

Turn the speed adjusting valve a full rotation clockwise for a slower closing speed.

Turn the speed adjusting valve a full rotation anticlockwise for a faster closing speed.

LATCHING SPEED

Turn the speed adjusting screw a full rotation clockwise for a slower latching speed.

Turn the speed adjusting screw a full rotation anticlockwise for a faster latching speed.

CAUTION: Do not turn speed adjusting valve more than two full turns anticlockwise from its factory set position, as two speed adjusting valves could become dislodged from the door closer body, resulting with the loss of internal fluid and failure of the device.
