PhonePad Duo G501 - Smartphone Mediacom - Free user manual and instructions

Product Type	Smartphone
Brand	Mediacom
Model	PhonePad Duo G501
Display Size	5.0 inches
Resolution	1280 x 720 pixels (HD)
Processor	Quad-core 1.3 GHz
RAM	1 GB
Internal Storage	8 GB (expandable via microSD)
Operating System	Android 6.0 Marshmallow
SIM Support	Dual SIM (Micro-SIM, dual standby)
Rear Camera	8 MP with autofocus and LED flash
Front Camera	5 MP
Battery Capacity	2500 mAh (removable)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, GPS, 3G
Sensors	Accelerometer, proximity, light
Dimensions	145 x 72 x 9.5 mm
Weight	150 g
Power Input	5V/1A via microUSB
Main Functions	Phone calls, SMS, internet browsing, camera, music player, video playback, FM radio
Care & Cleaning	Wipe with soft dry cloth; avoid liquids and abrasives
Safety	Use only approved chargers; avoid extreme temperatures; keep away from water
Spare Parts & Repairability	Battery and back cover replaceable; other repairs by authorized service
General Information	Manual available in PDF; support via Mediacom website

Frequently Asked Questions - PhonePad Duo G501 Mediacom

How do I insert the SIM and microSD cards?

Turn off the device, remove the back cover, and insert the SIM cards into the slots with the gold contacts facing down. Insert the microSD card into the dedicated slot.

How do I perform a factory reset?

Go to Settings > Backup & reset > Factory data reset. Confirm to erase all data. Alternatively, turn off the device, press Volume Up + Power button to enter recovery mode, and select wipe data/factory reset.

Why is my battery draining quickly?

Check for apps running in background, reduce screen brightness, turn off Wi-Fi/Bluetooth when not in use, and disable location services for unused apps. Also, calibrate the battery by fully discharging and recharging.

How do I take a screenshot?

Press and hold the Power button and Volume Down button simultaneously for a few seconds. The screenshot will be saved in the Gallery.

Can I use the phone as a Wi-Fi hotspot?

Yes. Go to Settings > More > Tethering & portable hotspot > Portable Wi-Fi hotspot and configure the network name and password.

How do I update the software?

Go to Settings > About phone > System updates. If an update is available, follow on-screen instructions. Ensure battery is above 50% and connect to Wi-Fi.

What should I do if the device freezes?

Press and hold the Power button for 10-15 seconds until the device restarts. If the problem persists, perform a factory reset after backing up data.

How do I transfer files from the phone to a computer?

Connect the phone to your computer via USB cable. On the phone, swipe down the notification panel and select File transfer or MTP mode. The phone will appear as a drive on your computer.

Is the battery removable?

Yes, the battery is removable. Turn off the phone, remove the back cover, and lift the battery out. Use only original Mediacom batteries.

How do I enable or disable dual SIM functions?

Go to Settings > SIM cards or Dual SIM settings. Here you can activate/deactivate each SIM, set default SIM for calls/data, and assign ringtones.

USER MANUAL PhonePad Duo G501 Mediacom

Quick User Guide

Picture 1

Picture 2

Picture 3

Phone PAD

Quick Start Guide Safety precautions

For safe and efficient operation of your device please observe the following rules:

• Keep the phone away from extreme heat, cold, moisture and dust.
• Do not spill any liquids on the device as it may damage the device or cause a fire.
• Do not use liquids and chemical cleaners for cleaning the device.
• Do not insert any objects in the phone air vents or other slots.
• Do not keep the device near magnetic sources, heaters, microwave ovens, heating up kitchen appliances, or in high pressure containers, as it may cause the battery leaking, the device overheating and inflammation.
• Do not disassemble the device, only a certified service technician should perform repairs on your computer.
• Use only the AC adapters, power cords and batteries that are approved for use with this device. Use of another type of battery or AC adapter may cause fire or explosion.

Note: The device pictures, as well as data on the device appearance, color and design features are given in the manual for reference only. Mediacom reserves the right to change the appearance and technical parameters of its products without prior notice.

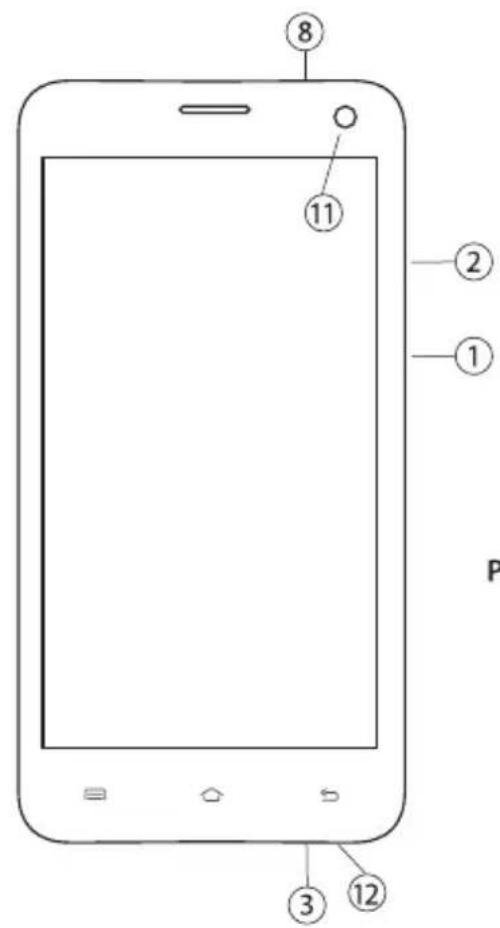

About your device (Picture 1)

1. Power button
2. Speaker
3. Volume button
4. Headset port
5. USB port/charging
6. "Reset" (if available)
7. SIM 1 slot
8. Rear camera
9. SIM 2 slot
10. Front camera
11. Micro-SD card slot
12. Microphone

Switching on/off

To switch on the device, press and hold the Power button. When startup window appears, release the button. The system initialization may take several minutes. Please wait patiently.

To switch off the device, press and hold the Power button. When "Power off" message appears, release the button. Touch the message, then press OK.

Recommendation: To save the battery charge, the device is set to sleep mode: the screen is locked and sensor functions become inactive (in accordance with the settings of screen lock time). To "wake up" the device, short press the power button.

Unlocking the screen (Picture 2)

If you do not use the screen during certain period of time, the screen will be locked. To unlock the screen, press the power button once and drag "Lock" image right.

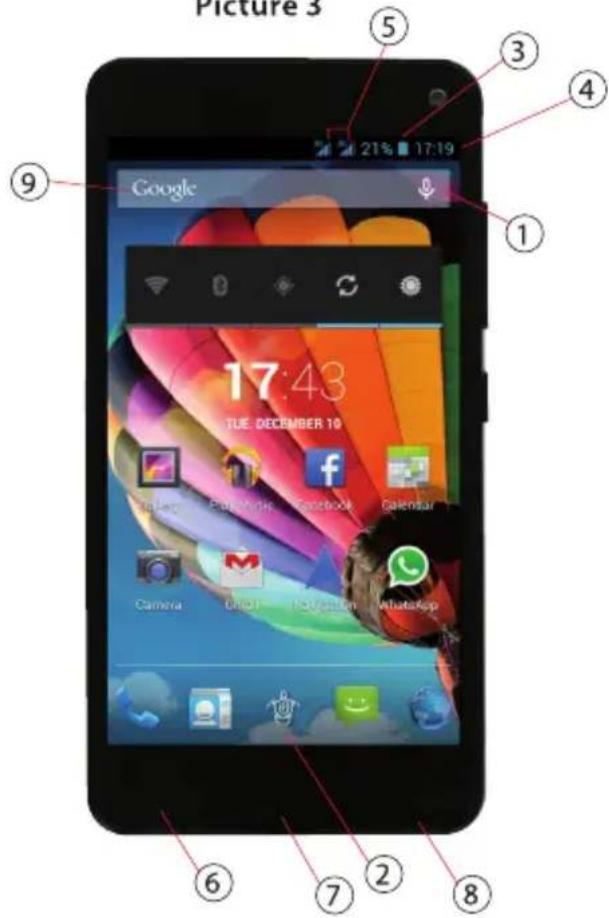

Main screen (Picture 3)

1. Voice search
2. Application menu
3. Battery indicator
4. Time
5. SIM 1 - SIM 2
6. Submenu
7. Home/Recent used applications
8. Back
9. Google search

Restarting the device

If the screen does not response to key press or tap, restart your device by keeping power button depressed for long time.

Factory reset

To delete all data and restore your device to factory defaults, touch Settings > > Recovery and reset; touch menu item Reset > Reset to factory defaults.

Contents

Phone, USB Cable, Power adapter AC / DC, Quick Guide, Headset

Charging the battery

Device is provided with built in rechargeable battery.

Important: The battery must be charged before using it for the first time. When related Icon or warning message alerts you please charge the battery using porper adapter (do not use diefferent adapter from original one).

Opening of the phone

To open the phone insert your fingernail into the slot (Fig. 1) and then slide to the rest of Corver (fig. 2), remove the entire cover to insert the SIM (Fig. 3)

(fig. 1)

(fig. 2)

(fig. 3)

3G networks

Note that your device will only have signal if you are in an area covered by your 3G provider's 3G or EDGE network.

Before inserting a SIM card, you must turn off the device.

A Pin number may be requested. Enter the SIM card pin number.

Your device will attempt to connect to the 3G network of your provider.

This screen will appear when turning on device with new SIM.

Please confirm selection or make your change if required.

NOTE: If your device does not connect to your 3G provider's network

1. Contact your 3G provider to obtain the connection parameters.

2. On your device, tap the Menu icon, then settings.

3. Select Wireless & networks > Mobile networks > Select your operator.

In Access Point Names, select the correct access point name and enter the exact connection parameters.

Wireless networks

Prior to starting an Internet-application, activate Wi-Fi connection and set up Wi-Fi network.

1. Touch the icon "Applications" > "Settings" > "Wireless connections". Select Wi-Fi item and set the switch to On position.

2. The device will automatically start searching for available networks and will display them on the right panel.

3. Select any network from the list and press "Connect". If the network you selected is protected by WEP-protocol, type the security key, then press "Connect" button.

When the connection is successfully created, "Connected to" (Network name) message will appear on the screen.

Bluetooth

Tap "Settings" > Select "Wireless connections/Bluetooth" > Tap "On" to switch on the Bluetooth function. The device will automatically search for available Bluetooth device.

Select the Bluetooth device and start data transmission.

Phone PAD ^DUO

(fig. 1)

(fig. 2)

(fig. 3)

Redes 3G

(слика 1)

(слика 2)

(слика 3)

ЗГ мреже

(fig. 1)

(fig. 2)

(fig. 3)

Reti 3G
