Product Type	Solo Microwave
Brand	IFB
Model	20PM2S
Capacity	20 Liters
Dimensions (W x D x H)	450 mm x 350 mm x 260 mm
Weight	11.5 kg
Power Supply	230 V ~ 50 Hz
Power Output	700 W
Display Type	LED Digital
Control Type	Touch Panel with Rotary Dial
Functions	Defrost, Timer, Auto Cook, Multi-Stage Cooking
Number of Power Levels	10
Turntable Diameter	270 mm
Interior Light	Yes
Child Lock	Yes
Door Interlock System	3-Layer Safety
Cleaning Instructions	Wipe interior with damp cloth; avoid abrasive cleaners
Spare Parts Availability	Turntable, Glass Plate, Waveguide Cover
Repair Service	Authorized IFB service centers
Warranty	1 year standard

Frequently Asked Questions - 20PM2S IFB

How do I set the cooking time on the IFB 20PM2S microwave?

Turn the rotary dial to select the desired time after pressing the Time Cook button. Press Start to begin.

Can I use metal containers in this microwave?

No, metal containers can cause arcing and damage. Use only microwave-safe glass, ceramic, or plastic.

How do I defrost food using the microwave?

Press the Defrost button, enter the weight of the food, and press Start. The microwave will automatically set time and power.

What does the 'Child Lock' do and how to activate it?

The child lock prevents accidental operation. Press and hold the Stop/Cancel button for 3 seconds to lock/unlock.

Why is my microwave not heating food properly?

Ensure the door is fully closed, the turntable is rotating, and you have selected adequate power level. If issue persists, contact service.

How to clean the interior of the microwave?

Wipe with a damp cloth and mild detergent. Avoid harsh chemicals. For odors, place a bowl of water with lemon slices and heat for 2 minutes.

What is the maximum cooking time I can set?

The maximum cook time is 99 minutes 59 seconds.

Can I use the microwave without the turntable?

No, the turntable ensures even cooking. Operate only with the glass tray and roller ring properly placed.

How do I change the power level?

Press the Power Level button repeatedly to cycle through levels (PL10 to PL0). Then set time and start.

Where can I find replacement parts for my IFB 20PM2S?

Contact IFB customer care or visit an authorized service center. Common parts include the turntable glass plate and waveguide cover.

USER MANUAL 20PM2S IFB

PLEASE READ THESE OWNER'S MANUAL INSTRUCTIONS CAREFULLY BEFORE OPERATION AND KEEP IT FOR FUTURE REFERENCE

Please record the details of your microwave oven below for future reference:

Serial no: ....

Purchase Date: ....

Content

Precautions to Avoid Possible Exposure to Excessive Microwave Energy....2

Important Safety Instructions....2

Specifications....4

Installation Guide....5

Grounding Instructions....5

Radio Interference....6

Before Calling For Service....6

Cooking Techniques....6

Cooking Utensils Guide....7

Product Diagram....8

Control Panel....9

Operation Instructions....10

Setting Clock....10

Microwave Cooking....10

Weight Defrost....11

Express Cook....11

Power Save....11

Steam Clean....11

Deodorise....11

Multistage Cooking....11

Setting Child Lock....12

Auto Cook....12

Cleaning and Care....22

Precautions to Avoid Possible Exposure to Excessive Microwave Energy

1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is very important that the oven door close properly and that there is no damage to the a) Door (including any dents), b) Hinges and latches (broken or loosened), c) Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except qualified service personnel.

Important Safety Instructions

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. Drying of food or clothing and heating, warming pads, slippers, sponges, sponges, damp cloth, and similar may lead to risk of injury, ignition or fire. The microwave oven is intended for defrosting, cooking and steaming of food only.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5. WARNING!--Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

6. To reduce the risk of fire in the oven cavity:

When heating food in plastic or paper container, check the oven frequently to the

possibility of ignition.

➢Remove wire twist-ties from paper or plastic bags before placing bag in oven.
If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
➢ Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

1. WARNING!--Liquid or other food must not be heated in sealed containers since they are liable to explode.
2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken while handling the container.
3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
5. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
6. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
7. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
8. Utensils should be checked to ensure that they are suitable for use in microwave oven.
9. WARNING!--It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
10. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.
11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
12. Children should be supervised to ensure that they do not play with the appliance.
13. The microwave oven is only used in freestanding.
14. WARNING!--Do not install oven over a range cook top or other heat-producing appliance. if installed could be damaged and the warranty would be avoid.
15. The accessible surface may be hot during operation.
16. The microwave oven shall not be placed in a cabinet.
17. The door or the outer surface may get hot when the appliance is operating.
18. The temperature of accessible surfaces may be high when the appliance is operating.

19. The appliance shall be placed against a wall.

20. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

21. Children being supervised not to play with appliance.
22. WARNING!--If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
23. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.
24. The microwave oven is for household use only and not for commercial use.
25. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
26. Please secure the turn table before you move the appliance to avoid damages.
27. CAUTION!--It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
28. The microwave oven is intended for defrosting, cooking and steaming of food only.
29. Use gloves if you remove any heated food.
30. Caution! Steam will escape, when opening lids or wrapping foil.
31. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
32. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle.

Specifications

Rating 230V~50Hz
Power Consumption (Microwave) 1200W
Microwave Output 800W
Operation Frequency 2450MHz
Outside Dimensions 262mm(H)×452mm(W)×365mm(D)
Oven Capacity Compact 20Litres
Cooking Uniformity	Turntable System

Installation Guide

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING!--Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven. It is not built in oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

Grounding Instructions

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING!--Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Radio Interference

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

Before Calling For Service

Before asking for service, please check each item below:

• Check to ensure the oven is plugged in securely. If not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
• Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
• Check to ensure the control panel is programmed correctly and the timer is set.
• Check to ensure the door is securely closed, engaging the door lock system. If the door is not properly closed, the microwave energy will not flow inside. IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

Cooking Techniques

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and

from the center of the dish to the outside.

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware Microwave	Cooking
Heat-Resistant Glass Yes
Non Heat-Resistant Glass No
Heat-Resistant Ceramics Yes
Microwave-Safe Plastic Dish Yes
Kitchen Paper Yes
Metal Tray No
Metal Rack No
Aluminum Foil & Foil Containers	No

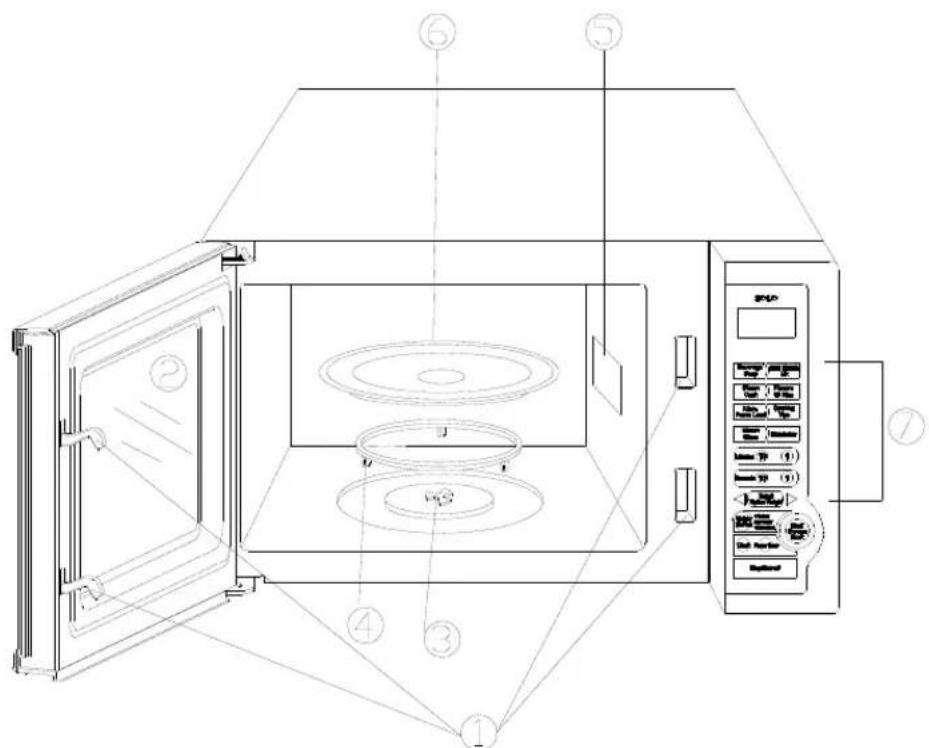

Product Diagram

• Door Safety Lock System
• Oven Window
  ○ Shaft
  ○ Roller Ring
  ○ Wave Guide (Please do not remove the mica plate covering the wave guide)
• Glass Tray
  ○ Control Panel

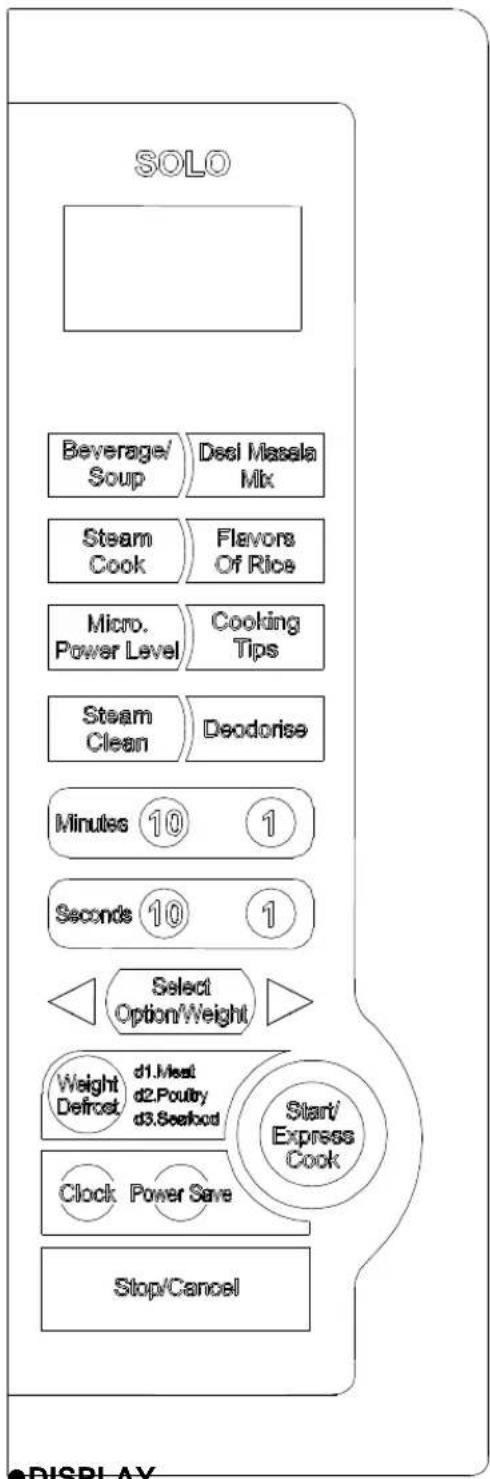

Control Panel

Cooking time, power, indicators and clock time are displayed.

●AUTO COOK MENUS

There are 5 nos. of auto cook menus. Use to set auto cook program. Can be used to cook 51menus as instructed in the manual.

●POWER

Use to select microwave power level.

●STEAM CLEAN

Use to set steam clean program.

- DEODORISE

Use to fresh the oven cavity.

●NUMBER PADS (10/1 Minutes 10/1Seconds)

Use to enter time.

●DIRECTION PADS(

Use to select food weight.

●WEIGHT DEFROST

Use to set weight defrost program.

●CLOCK

Use to set the current time.

●POWER SAVE

Use to set power save program.

●START/EXPRESS COOK

Use to start the oven or set express cook program.

- STOP/CANCEL

Use to cancel all settings or set child lock.

Operation Instructions

- During cooking, if press STOP/CANCEL pad once or open the door, the program will be paused, then press START/EXPRESS COOK pad to resume, but if press STOP/CANCEL pad twice, the program will be cancelled.

●After ending cooking, the system will sound beeps to remind user every two minute until user press STOP/CANCEL pad or open the door.

Setting Clock

This is a 12 or 24 hour clock, and you can select it by pressing CLOCK pad. During cooking, the current time can be seen by touching CLOCK pad.

1. Touch CLOCK pad once or twice.
2. Use the number pads to enter the correct time.
3. Touch CLOCK pad again to confirm.

Microwave Cooking

During cooking, the current power level can be seen by touching POWER pad.

1. Touch POWER pad repeatedly to select microwave power level (from 100% to 0%).
2. Use the number pads to enter cooking time. The longest time is 99 minutes 99 seconds.
3. Touch START/EXPRESS COOK pad.

Press MICRO pad Power Level		Display
Once 100%		P100
Twice 80% P-80
Thrice 60% P-60
4 times 40% P-40
5 times 20% P-20
6 times 00% P-00

Weight Defrost

The defrosting time and power level are adjusted automatically once the weight is programmed. During defrosting program, the system will pause and sound beeps to remind user to turn food over, and then press START/EXPRESS COOK pad to resume.

1. Touch WEIGHT DEFROST pad repeatedly to select food type.
2. Use the direction pads of SELECT OPTION/WEIGHT to select food weight.
3. Touch START/EXPRESS COOK pad.

The maximum allowable weight for each category is shown below:

Food Type	Minimum Weight	Maximum Weight Display
Meat 100g 1800g d1
Poultry 100g 1800g d2
Seafood 100g 1800g d3

Express Cook

In standby mode, press START/EXPRESS COOK pad repeatedly to enter cooking time, the longest time is 10 minutes, and the oven will start automatically at 100% high power level. During cooking, you can add the cooking time by pressing START/EXPRESS COOK pad.

Power Save

When the oven isn't used, you can set power save mode.

In standby state, press POWER SAVE pad, then the display will be black. The system enters into power save mode until you press any pad or open the door.

Steam Clean

It helps you to clean the oven easily. The default setting is microwave working for 5 minutes at full power level.

1. Place a microwave container with 200ml water into the oven.
2. Touch STEAM CLEAN pad.
3. Press START/EXPRESS COOK pad.
4. After program ends, move the microwave container and glass tray away.
5. Use a soft and dry cloth to clean the oven cavity and door.

Deodorise

This function can fresh the air in the oven.

1. Place a microwave container with 100ml lemon water into the oven.
2. Touch DEODORISE pad.
3. Touch START/EXPRESS COOK pad.

Multistage Cooking

First stage	Microwave cooking (Power level 100)
Second stage	Microwave cooking(Power level 40)
Third stage	Microwave cooking(Power level 20)

1. Set the first stage cooking program. DO NOT TOUCH START/EXPRESS COOK.
2. Set the second stage cooking program. DO NOT TOUCH START/EXPRESS COOK.
3. Set the third stage cooking program.
4. Touch START/EXPRESS COOK pad.

Note: If you need a two-stage cooking program, omit the third step.

Setting Child Lock

The lock prevents unsupervised operation by children.

• To set the child lock: In standby mode, press STOP/CANCEL pad for 3 seconds, then a beep will sound. In the lock state, the oven can't be operated.
  ●To cancel the child lock: Press STOP/CANCEL pad for 3 seconds, then a beep will sound, and the oven can be operated.

Auto Cook

It is not necessary to program the cooking time and power level.

1. According to the cooking food, press BEVERAGE/SOUP / DESI MASALA MIX / STEAM COOK / FLAVORS OF RICE or COOKING TIPS pad.
2. Use the direction pads of SELECT OPTION/WEIGHT to select food weight.
3. Touch START/EXPRESS COOK pad.

Auto cook menus:

Menu/Weight	Note:●For Beverage/Soup menu, press the menu pad once to choose beverage with “1”、“AUTO”、“200” showing in the displayer, press twice to choose soup with “2”、“AUTO”、“200” showing in the displayer.●The result of auto cooking depends on factors such as fluctuation of voltage, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.●Steam accumulation in cavity is normal process during cooking, kindly wipe cavity with cloth after use
Beverage/Soup (200ml, 400ml, 600ml)
Desi Masala Mix (30g,50g,80g)
Steam Cook (200g,300g)
Flavors Of Rice (100g,200g,300g) (The proportion of water and rice is 1: 1.6)
Cooking Tips (100g,200g)

Sr. no	BEVERAGE	COOKWA RE	INGREDIENTS METHOD
1 S	mple milk tea	1/2 cupMicrowave proof tea cup/microwave safe kettle	Water- 3⁄4 cup; Milk-1⁄4 cupTea leaves- 1 tspSugar-1tsp	Mix all the ingredients and keep it in the microwave and then select the menu,select the weight and press start.
2	Ginger tea		Water-1/2 cup; Milk-1/2 cup; Tea leaves- 1 tsp;3⁄4 inch crushed ginger Sugar-1tsp
3 M	Masala tea Water-		Whole Milk-1/2 cupSugar-1tsp; Tea leaves- 1 tspMasala (crush with mortar and pestle or coffee/spice grinder) :1 pod cardamom,2 pea size fresh ginger (mulched),1-2 big size whole black pepper,1/8 to 1/6 cinnamon stick	NOTE: Amount of ingredients may differ as per individual preferences.
4 N	on Fat Masala tea		Water-1/2 cupSkimmed Milk-1/2 cupSugar-1tsp; Tea leaves- 1 tspMasala (crush with mortar and pestle or coffee/spice grinder) :1 pod cardamom,2 pea size fresh ginger (mulched),1-2 big size whole black pepper,1/8 to 1/6 cinnamon stick
5	Cardamom tea		Water-3⁄4 cup; Milk-1⁄4 cupCrush two pieces of cardamom, add to it little SaffronSugar-1tsp; Tea leaves- 1 tsp

Sr.no SOUP (ready soup mix powder)		COOKWARE IN GREDIENTS METHOD
6 Tomato Soup Microwave safe bowl			Ready to Cook Soup mix	Mix as per the instructions given on the packaging and cook as per the quantity selected.
7 Spinach Soup
8 Mix veg. Soup
9 Sweet corn veg. soup
10 Chicken Soup

Sr.no

DESIMASALA CO

OKWA INGREDIENTS METHOD

	MIX RE
11	Maharashtran Goda Masala	Microwave safe flat glass dish	Coriander seeds-1cupCumin seeds-1⁄4 cupTil (white sesame seeds)- 1/3 cupLavang (cloves) -2 tbspBadi elaichi (big cardamom)- 2 tbspDalchini (cinnamon sticks)- 2 tbspKaale mire(black peppercorns)- 2 tbspDagalphool (lichen)- 2 tbspTamalpatra (Bay leaf)- 1/2 cupOil to roast the spices-1-2 tsp	Roast all the ingredients using the menu except masala powders and salt.Stir in between during the programme.Roast till they turn aromatic and brown.Cool and grind the roasted ingredients in an electric blender.Mix in the remaining masala powders if mentioned and store in airtight containers.
12	Panch Phoron		Aniseed-1⁄4 cup,Cumin-1⁄4 cup,Fenugreek seeds-1⁄4 cup,Mustard seeds-1⁄4 cup, Nigella (fennel) / kalonji-1⁄4 cup.
13	Chat Masala		Coriander seeds- 2 tbspCumin seeds- 1 tbspAjwain seeds- 1⁄2 tspRed chillies- 2Amchur powder -1⁄2 tspSalt -2 tbsp or to tasteGaram masala1- tspPepper corns-1⁄2 tsp
14	Curry Leaves Powder		Curry leaves-washed and dried2 cups, Cumin seeds1-tbsp,Coriander seeds-2 tbsp,Red chillies-6 or to taste,Fenugreek-1⁄2 tsp,Salt- to taste,Pepper corns-1 tsp,Garlic flakes-6 (optional)
15	Garam Masala		Coriander-2 tsp,Cumin -2 tsp,Peppercorns- 15,Cardamom-8,Cinnamon-8 ,Cloves -8,Mace flower- 1, Bay leaf-2.
16	Pappula Podi		Split chick peas-1⁄2 cupCumin seeds-1⁄2 tspGarlic flakes-2Red chillies-4 or to tasteDry coconut powder-2 tsp (optional)Salt- To taste	Roast Split chick peas using the programme, stir in between. Cool and grind along with the other ingredients in an electric blender. Serve with plain white rice and ghee.
17	Rasam Powder	Microwave safe flat glass dish	Red chillies8Coriander seeds1 cupToor dal 1⁄4 cupFenugreek (methi seeds) 1⁄2 tspPeppercorns 1⁄4 cupCumin seeds 1⁄4 cupMustard seeds1⁄2 tbspTumeric powder1⁄2 tbsp	Roast all the ingredients using the menu except masala powders.Stir in between during the programme.
18	Sambar Powder		Red chillies 2 cupsCoriander seeds 3⁄4 cupChana dal1⁄2 tbspUrad dal (black gram dal) 1⁄2 tbspPeppercorns 1⁄2 tspCumin seeds1⁄4 tbspMethi seeds 1⁄2 tspAsafoetida1⁄2 tspMustard seeds 1⁄2 tspCurry leaves (washed and dried) 1⁄4 cup	Roast till they turn aromatic and brown.Cool and grind the roasted ingredients in an electric blender.Mix in the remaining masala powders if mentioned and store in airtight containers.
19	Tandoori Masala Powder		Coriander seeds-1⁄2 cupCumin seeds-1⁄2 cupAmchur powder- 2 tspDried mint leaves-1 tspDeep red colour- 3 tspChilli powder1- tsp
20	Fish Masala		Chilly powder 75 gms, Pepper powder 50 gms.Coriander seeds 150 gmsJeera 2 tbspMustard 1 tspFenugreek 2 tspTurmeric 2 tsp.Curry leaves a few

Sr. no	STEAM COOK COOKE	KWAR	INGREDIENTS METHOD
21	Sprouts Steamer – microwave safe		Sprouts -200 gms Place sprouts in a microwave-safe Steamer; Add 1⁄4 cup water at the bottom.Select the sprouts programme and steam.
22	Dhokla Steamer	/microwave safe dish which can be placed in the steamer.	Dhokla batter-200 gms, Dhokla seasonings.	Pour the dhokla batter in microwave safe flat dish (small 3 dishes) and place it in a steamer with 1⁄4 cup water at the bottom, steam by selecting the menu ,pour the tempering on the steamed dhokla and serve with chopped coriander.
23	Idli Microwave	safe idli maker	Idli batter -200 gms Put the	batter in the moulds of microwave proof idli maker. Steam the idlis by selecting the idli programme. Allocate 5 minutes standing time. Serve hot with chutney or sambhar.
24	Mix Vegetables	Microwave safe steamer	Mix vegetables-200 gms Place vegetables in a microwave-safe bowl, add 1⁄4 cup . Cover the bowl with microwave safe plastic wrap, leaving one corner open to vent or place the vegetables in a steamer and steam.
25	Kofta Microwave	safe Steamer	200gms cabbage (grated ), 1tsp baking powder, 2 cloves garlic (crushed) or ginger 1⁄4 tsp crushed,onion finely chopped -1 small,2-3 green chillies -very finely chopped, 1 tbsp coriander leaves-finely chopped,100gms besan flour,salt as per taste.2tsp oil and 1⁄4 tsp garam	Sift gram flour /besan and baking powder together in a bowl .Add all other ingredients. Add little water if required to make a stiff batter.Place spoonful of batter on a microwave steamer. Cook by selecting the menu steam cook.
26	Fish	Microwave safe dish with a bit of depth	Fish (1 piece) -200gms, 1 thick stalk spring onion,5 slices ginger -cut into strips,1 chilli-chopped,1/2 tomato-cut into small wedges,2 mushrooms-cut into strips,1 sour plum (salted),1/2 tbsp light soysauce, 1 tbsp water . over the	Place fish (skin side down) in a plate with a bit of depth. Drizzle light soy sauce and water over it and keep in fridge (covered) for atleast 30 minutes .Scatter the rest of the ingredients evenlyfish. Steam byselecting the menu.
27	Muthiya Microw	wave safe Steamer V	Wheat flour-1cup,Suji-1tbsp,Besan (gram flour)-2tbsp,Doodhi (grated) ormethi (chopped),corianderleaves-1tbsp,oil 3tbsp,sugar-1 tsp,lemonjuice-1tsp,haldi-1/4 tsp,redchilli powder-1/2 tsp,Dhaniapowder-1tsp,salt-1 1⁄2tsp,soda bi carb-1/4 tspGrind to paste-Greenchillies-2,Ginger-1/4 inchIngredients fortempering:Oil-2tsp,mustard-1tsp,til-1tsp	Mix wheat flour, suji,besan in a bowl. Addgrated doodhi and gingerchilli paste. Add all theother ingredients exceptthe ingredients fortempering.Bind the mixturetogether.Add water (1-2 tbsp) ifrequired.Apply oil to the handsand roll the dough into athich roll of 6-8 incheslength.Cover and steam cook byselecting the menu.Cool and cut the roll into1⁄2 inch thick slices.
28	Corn Microwave	safe Steamer	1 corn (husked)Salt to taste2 tsp butter1/4 tsp lemon juice1/2 tsp kasuri methi	Add water to the base ofthe steamer and add thecorn in the upper portion.Steam the corn byselecting the menu.Remove from microwavecarefully. Corn will still bevery hot. Allow to cooagain slightly..Add salt,butter or garlic for flavor.

Sr.no	FLAVORS OF RICE	COOKWARE	(Rice: water ratio is 1:1.6 for plain rice),other recipes of rice include 1:2 ratio, you can adjust the water if required.)	METHOD
29	Plain rice	Microwave safe bowl/microwave safe rice cooker	Rice 100gmsWater 160ml	Wash and soak the rice for about half an hour. Drain water from the rice and add 160ml water, cover and cook,selecting the menu. Allow it tostand for 5 to 10 minutes and then serve hot.
30 PrawnBiryani	Microwave safe bowl/microwave safe rice cooker	Uncooked rice (Soaked for 30 minutes)-1 cup, peeled and deveined tiger prawns-100gms,ginger garlic paste-1 tbsp, Garam masala-1 tbsp, black pepper -1 tbsp,cloves-4,cardamom seeds-4,cinnamon stick, salt-to taste, plain yogurt- 12 cup, vegetable oil- 14 cup, water 2 cup, Chicken bouillon cube-5	Stir together the prawns, ginger garlic paste, garam masala, black pepper, cloves, cardamom seeds, cinnamon sticks, salt, yogurt, and oil in a microwave safe bowl until well mixed. Stir the rice, water, and chicken bouillon cubes and mix well. Add water and cook by selection the menu prawn biryani.Discard cinnamon stick, cloves, and cardamom seeds before serving.
31 Rajasthan Pulao	Microwave safe bowl/microwave safe rice cooker	114 cup long grain rice 1 tablespoons ghee or oil, 2 medium onions-finely sliced ,2 sticks cinnamon, 3 cardamom pods, bruised, 5 whole cloves,8 whole black pepper, 212 cups hot stock or water ,Salt to taste.Note:Serves 2	If the rice needs washing, wash well in several changes of cold water and leave to soak for 1 hour.Then drain in a colander for at least 30 minutes.Mix all the ingredients, add water or stock and cook by selecting the menu.Serve hot with curry.
32 Rice with Peas	Microwave safe bowl/microwave safe rice cooker	1 12 cups long grain rice,1 tablespoon ghee,4 whole cloves,1 small cinnamon stick,3 or 4 cardamom pods, bruised,1 teaspoon cumin seeds, 12 teaspoon ground turmeric ,1 12 cups shelled green peas and diced carrots ,2 12 teaspoons salt,3 14 cups hot water	Wash the rice well and leave to soak in cold water for 30 minutes, then drain well.Mix all the ingredients, add water or stock and cook by selecting the menu.Remove whole spices, fork rice grains lightly and serve not with meat or vegetable curries.
33 Rice in coconut milk	Microwave safe bowl/microwave safe rice cooker	Coconut milk-2 cupRice -1 cupCarrot-50 gmsBeans-50 GmsGhee-1 tbspBay leafCloves-4Salt to taste	Wash and soak rice for 10 minutes. Mix all the ingredients, and cook by selecting the menu.Poppy seeds-1/4 tsp
34 Namkin Chawal		Microwave safe bowl/microwave safe rice cooker	1 cup long grain rice ,2 cups hot water, 2 teaspoons ghee ,2 1/2 teaspoons salt	Wash rice well and soak l hour in cold water. Mix all the ingredients, and cook by selecting the menu.Lift lid to allow steam to escape for about 5 minutes, and then lightly fluff up rice with fork, taking care not to mash the grains, which will be firm, separate and perfectly cooked. Dish up using a slotted metal spoon rather than a wooden spoon, which will crush the grains. Serve with curries or other spiced dishes.
35 Veg Pulao Microwave safe bowl/microwave safe rice cooker			1 cup Rice ,2 cups Water, 1/4 cup chopped Vegetables,1/2"Cinnamon stick,2 Cloves,2 Cardamom, Salt as per taste,1/4 teaspoon turmeric powder,1 teaspoon coriander powder ,2 Chillies ,4 tomatoes, 1⁄2 cup Coconut (grated),1 bunch Coriander leaves,2 pieces Garlic,1/2" piece Ginger (made into a paste),2 tablespoons Butter,1 onion cut lengthwise	Mix all the ingredients, and cook by selecting the menu.Serve Hot with Raitha.
36 Spiced Rice		Microwave safe bowl/microwave safe rice cooker	1 cup Rice, 2 cups Water, Cinnamom, Cloves.Salt to taste.	Mix all the ingredients, and cook by selecting the menu.
37 Pongal Microwave safe bowl			Rice (soaked for 30 minutes) -1 cup, green gram dal-4tbsp,ginger (finely chopped)-1tbsp,curry leaves-few, broken cashewnuts-4tbsp,black pepper-1 1⁄2 tsp, cumin seeds-1tsp,ghee-3-4tbsp,water 3 1⁄2 cup,	Drain soaked rice and dal, add ginger and cook by selecting the menu.Tip to serve: Microwave cashew nuts, pepper and cumin seeds in ghee for 2 1⁄2 minutes and add it to rice-dal mixture. Mix well and serve steaming hot with ghee on top.
			salt as per taste.
38 Khichdi Microwave	wave safe bowl/ microwave safe rice cooker	Rice -1 cup, tur dal (arhar dal-1/2 cup, Ghee or oil- 1tbsp, Hing powder-1/4 tsp, Laung-3-4 , Dalchini (cinnamon)-2 inch stick, Jeera-1/2 tsp, Dry red chillies (broken to 2-3 pieces) -2 no ,groundnuts roasted-25 gms , Turmeric powder-1⁄4 tsp, salt as per taste, water 3 cups.	Wash and soak dal and rice for 30 minutes.Mix all the ingredients, and cook by selecting the menu.Serve hot with ghee and kadhi.
39 Indian Sticky Rice	Microwave safe bowl/ microwave safe rice cooker	Sticky Rice-1 cup Milk-2 cup Water-1 cup Sugar-1/2 cup Coconut Grated-1/4 cup Cashewnuts-1/4 cup Ghee-2 tbsp	Wash and soak dal and rice for 30 minutes.Mix all the ingredients, and cook by selecting the menu.Serve hot with ghee .
40 Jeera Rice	Microwave safe bowl/ microwave safe rice cooker	1 cup basmati rice ,1 tsp shahjeera or caraway seeds ,1 black cardamom ,1 green cardamom ,2-3 black peppercorns ,2 cloves ,1 inch cinnamon ,2 tsp ghee ,2 cups water .	Wash and soak dal and rice for 30 minutes.Mix all the ingredients, and cook by selecting the menu.Once done, the remove the cooker and let it stand for 5 minutes.
41 Methi Pulao	Microwave safe bowl/ microwave safe rice cooker	Methi ( Fenugreek leaves) 1 cup chopped ( you can use the frozen one) 1 cup Basmati rice ,2 to 4 black Peper ( Kali Mirch), 2 Cloves 1 Cinnamon stick, 2 Green Elaichi ( Cardamom), 1 Medium sized sliced Onion, 1/2 Cup sweet corn kernels 1/4 Teaspoon turmeric powder (haldi) ,1 Tablespoon butter 1 Tablespoon oil ,Water 2 cups	Wash the rice well and leave to soak in cold water for 30 minutes, then drain well.Mix all the ingredients, and cook by selecting the menu.Salt to taste
42 Carrot rice	Microwave safe bowl/ microwave safe rice cooker	1cup Basmati Rice2 medium onions chopped 2 cups water 3 carrots grated 2 tsp fried groundnuts cinnamon sticks 14 tsp cloves Oil -1 tbsp Salt as per taste	Wash the rice well and leave to soak in cold water for 30 minutes, then drain well. Mix all the ingredients, and cook by selecting the menu.
43 Mint Rice Microwave safe bowl/ microwave safe rice cooker	1 Thinly sliced Onions 1 chopped Tomatoes 1/4 Bunch of Mint Leaves 1 Cups of Basmati 12 tsp Red Chili Powder 14 tsp Turmeric Powder 14 tsp Fresh Ginger Paste 14 tsp Fresh Garlic Paste 1Green Chilies slit into half 2 Bay leaves 1 inch cinnamon stick 14 tsp cloves Fried Cashews -2tbsp Ghee 1tbsp Salt (As required)	Wash the rice well and leave to soak in cold water for 30 minutes, then drain well. Mix all the ingredients, and cook by selecting the menu.
44 Sweet Corn Rice	Microwave safe bowl/ microwave safe rice cooker	1 Cup Basmati Rice 12 cup Fresh corn 1 finely chopped Onion 12 tsp Grated ginger 2 cloves 14 tsp Black Pepper Powder Chopped Coriander leaves Oil -1tbsp Salt to taste	Wash the rice well and leave to soak in cold water for 30 minutes, then drain well. Mix all the ingredients, and cook by selecting the menu.
45 Palak Pulao	Microwave safe bowl/ microwave safe rice cooker	1 cup Rice , 12 bunch palak ( washed & chopped),2 cups Water, 1/4 cup chopped Vegetables,1/2"	Mix all the ingredients, and cook by selecting the menu. Serve Hot with Raitha.Cinnamon stick,2Cloves,2 Cardamom,Salt as per taste,1/4 teaspoon turmeric powder,1 teaspoon coriander powder ,2 Chillies ,4 tomatoes, 1⁄2 cup Coconut (grated),1/4 bunch Coriander leaves,2 pieces Garlic,1/ 2" piece Ginger (made into a paste),2 tablespoons Butter,1 onion cut lengthwise

Note: while cooking rice, soak the rice for 30 minutes before cooking or add 14 cup extra water, to get moist cooked rice.

Sr.no	COOKING TIPS COOKWARE	OKWARE	INGREDIENTS METHOD
46 Garlic peeling		Microwave safe flat plate	Garlic cloves Spread garlic cloves on microwave proof plate and select cooking tips, it is easier to clean garlic
47 Blanch tomato		Microwave proof bowl	Tomatoes Place100gms	tomatoes in 1⁄2 cup ml water and select the function, let it stand for 5 minutes after the programme ends.
48 Almonds planch		Microwave proof bowl	Unroasted almonds-as per the programme weight selected	Place 100gms almonds in 1⁄2 cup water and select the function, let it stand for 5 minutes after the programme ends. Peel almond and use as desired in any recipe.
49 Chocolate sauce		Heat resistant glass bowl	1⁄4 cup cocoa1⁄2 cup sugar1⁄2 cup waterVanilla essence -1/2 tsp	Mix all the ingredients except vanilla essence and microwave by selecting cooking tips. As the sauce cools, add vanilla essence.
			Pinch of salt
50 Tamarind pulp		Microwave proof bowl	Tamarind-50gmsWater -1/4 cups or just to cover tamarind.	Add 50 gms of tamarind in a microwave safe container, pour over water just to cover and heat by selecting cooking tips programme. Stand 5 minutes, then sieve and use as desired.
51 Coconut milk extract		Microwave proof bowl	Coconut grated-100gmsWater -100ml	Mix grated coconut and water in microwave safe bowl. Select Cooking tips and Leave the contents to infuse for 5 minutes before straining.

Cleaning and Care

1. Turn off the oven and unplug the power cord from the wall when cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergents may be used if the oven gets very dirty. Avoid using spray or other harsh cleaners. They may stain, streak or dull the door surface.
3. The outside of the oven should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild, soapy water or in a dishwasher. When removing the roller ring, be sure to replace it in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. If the light bulb burns out, please contact customer service to have it replaced.
11. The oven should be cleaned regularly and any food deposits should be removed. Failure to maintain the oven in a clean condition could lead to deterioration of surface that could adversely affect the life of the unit and could possibly result in a hazardous situation.
12. Please do not dispose of this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

WARRANTY

IFB Industries Limned. ("The Company") warrants to the original domestic purchase of this microwave oven ("Appliance") that it is free from defects in workmanship & materials. During 12 months from the date of purchase of the new microwave oven model, all the parts of the microwave oven and 36 months on Magnetron & Cavity, shall be replaced or repaired free of charge, on intimation to the Company I Company's authorized service centre nearest to the place where the appliance is installed This warranty is subject to Limitations of Warranty.

LIMITATIONS OF WARRANTY

This warranty is not valid in case of the following events.

If the warranty card is not fully and properly filled in and signed at the time of purchase I installation by the company's authorised dealer I service engineer.

If the completed warranty card is not presented to the authorised personnel at the time of service I repair.

If the appliance is not used in accordance with manufacturer's instructions given in the Operating Manual.

If the appliance has been serviced, repaired, opened or tampered by any unauthorized personnel.

If defects arise I caused by accidents, alteration, misuse, neglect, abuse, substitution of original components with spurious I non-genuine components, attack by household pests I rodents, fire, flood, earth-quake, lightning and I or any other acts of God I natural calamities.

f) If damages occur by improper electrical, circuit outside the appliance or by any defective electrical supply thereof.

g) If the machine serial number on the appliance is defaced, missing or altered.

h) If the appliance is taken out of India.

This warranty does not cover any type of painting, plating including rusting etc or defects thereof.

This warranty does not cover normal wear and tear of parts.

Liability for consequential damages is neither accepted nor implied.

Parts replaced or repaired under this warranty are warranted throughout the remaining of the original warranty period.

Company is not liable for any delay in servicing due to reasons beyond the control of the company or any of its authorised service center.

This warranty is not applicable, if the microwave oven is used for commercial purpose of at places like Institutions, Hotels, Hostels, Hospitals, Community Halls and other similar applications.

For any service under this warranty beyond city I town I municipal limits from the Company I authorized service centre, a fixed charge of Rs. 250 /- will be collected from the customer in addition to the actual to and fro charges by the shortest route.

Alternatively the customer can bring the appliance to the nearest service centre for carrying out the neccassary repairs, at customer's own cost.

During the warranty period whenever the appliance is shifted from the original city of purchase to another cny I town where service is provided by the company's authorized service agent, a warranty transfer charge of Rs. 300 /- will be collected from the customer by the company's authorized service agent. The above charges also include the reinstallation of the appliance. However in case of transfer to a city where the company provides direct service, a nominal charge of Rs. 250 /- only will be collected from the customer towards reinstallation. The Company, however, shall not undertake the responsibility of shifting I transferring the appliance from the location where the appliance was originally installed.

This warranty is issued subject to the jurisdiction of Kolkata courts, and I or other judicial/ quasi judicial forums having jurisdiction over the registered office of the Company.

Note: For all types of repairs I maintenance under warranty, the appliance shall be brought to the nearest Company service centre or its authorised service agent.

CUSTOMER COPY

Mr./Mrs./Ms

Address

Telephone No.:

Model Name:

Serial No.: Date of

Purchase:

Cash Memo No.:

Dealer Name and:

Address stamp:

Service Station Copy

Mr./Mrs./Ms

Address

Pin code :

Products Owned by the customer:(Please tick in the appropriate box.)

Washing Machine

Refrigerator

□ ColorTV

100% Clothes Dryer Car

Dishwasher Air Conditioner

Music System

□ oven Toaster Grtll

2Wheeler

IFB Industries Limited Regd.off.: 14 Taratolla Road Kolkata - 700088
