Product Type	LED Television
Brand	Manta
Model	LED3205
Screen Size	23 inches (58.4 cm)
Display Resolution	1920 x 1080 (Full HD)
Backlight Type	LED
Aspect Ratio	16:9
Power Supply	AC 100-240V, 50/60Hz
Power Consumption (Typical)	30 W
Standby Power Consumption	< 0.5 W
Weight (approx.)	3.5 kg (with stand)
Dimensions (with stand, approx.)	530 x 340 x 80 mm
Video Inputs	HDMI x3, VGA, Component (YPbPr), Composite (AV), SCART
Audio Output	Headphone, Coaxial (SPDIF)
USB Port	1 x USB 2.0 (500 mA max)
CI Slot	1 x Common Interface
TV Tuner	DVB-T/T2 (Digital), Analog

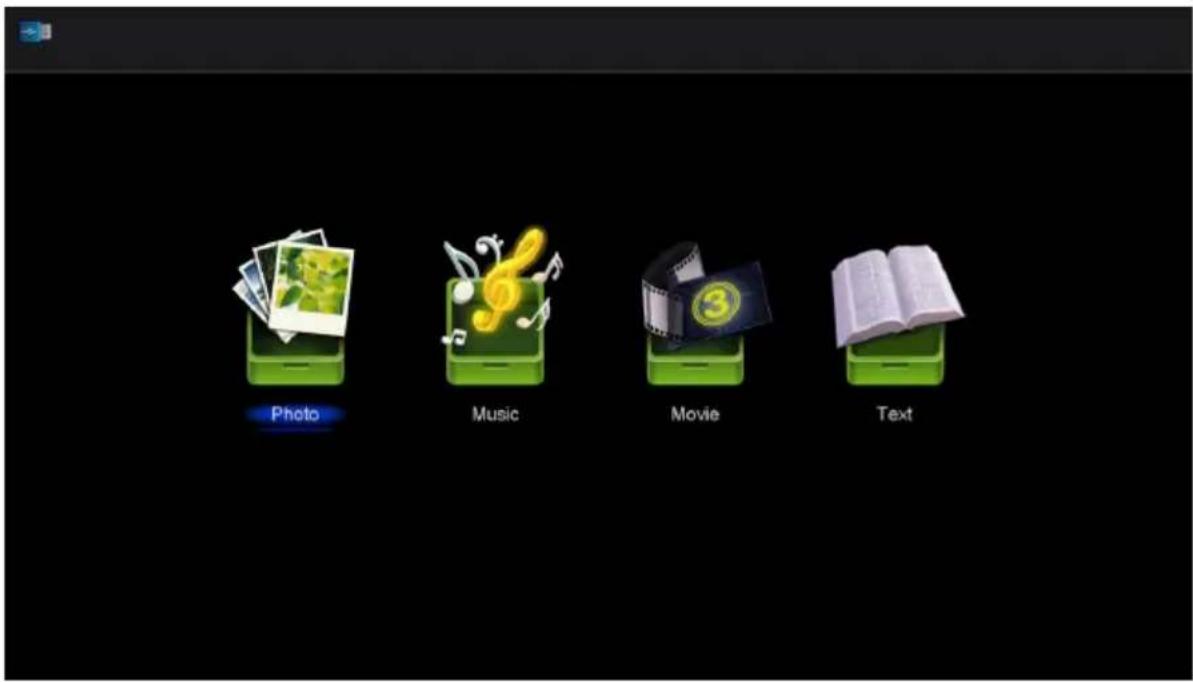

Media Playback	USB: Photo, Music, Movie, Text

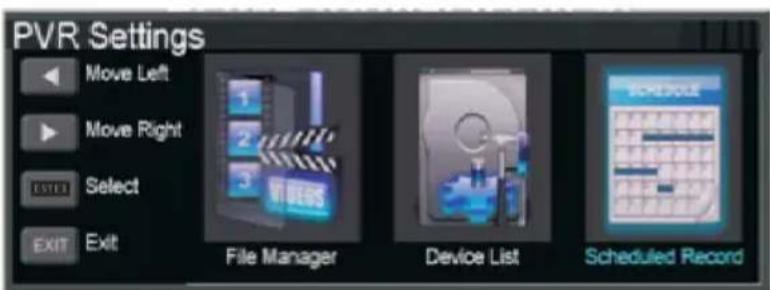

PVR Function	USB recording (DTV mode)
EPG	Electronic Program Guide (DTV)
Teletext	Yes
Child Lock	Yes (password protected)

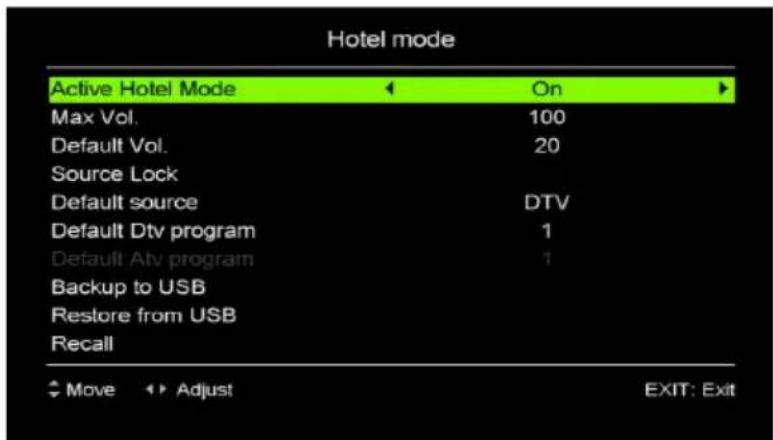

Hotel Mode	Yes
Remote Control	Included
Energy Efficiency Class	A+ (estimate)

Frequently Asked Questions - LED3205 Manta

How do I connect external devices to the Manta LED3205 TV?

You can connect devices using the available inputs: HDMI (3 ports), VGA, Component (YPbPr), Composite (AV via mini-jack), SCART, and USB. Select the corresponding input source using the SOURCE button on the remote.

What is the maximum USB storage capacity supported?

The TV supports USB drives with a capacity up to 2 TB, formatted in FAT or FAT32. Maximum file size is 4 GB for FAT and 2 TB for FAT32. The USB port provides up to 500 mA current.

Can I record TV programs with this TV?

Yes, in DTV mode you can record programs to a USB drive. Press the ● (record) button on the remote. Note that the USB drive will be formatted when used for recording, so back up important files first.

How do I perform a channel scan?

Press MENU, select CHANNEL, then Auto Scan. Choose your country and scan mode (DTV+ATV, DTV, or ATV). The TV will search for available channels. Scanning may take some time.

What should I do if the TV does not turn on?

Check that the power cord is securely plugged into a working outlet. Ensure the indicator light goes out after power off (wait about 30 seconds). If using the remote, replace the batteries. If still not working, contact service.

How do I adjust picture settings?

Press MENU, select PICTURE. You can adjust Picture Mode, Brightness, Contrast, Sharpness, Saturation, Hue (NTSC only), Color Temp, and Aspect Ratio. For HDMI, Screen Mode is also available.

Does the TV have a child lock?

Yes, under LOCK SYSTEM. The default password is 0000 (administrator password is 8899). You can enable the lock, lock specific channels, set parental rating, or lock the keypad (Hotel Mode).

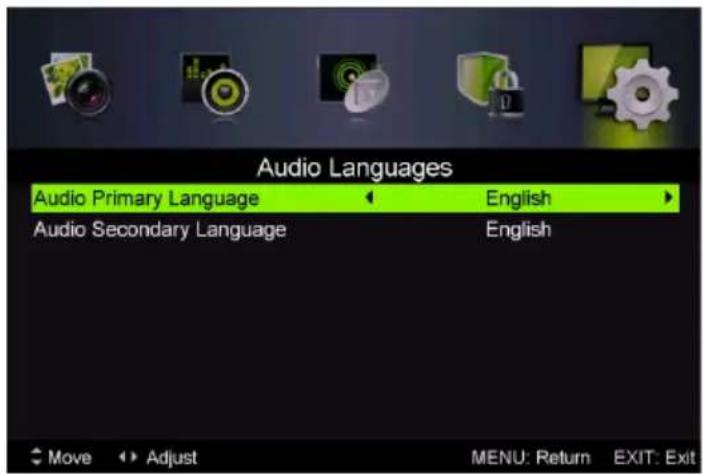

What audio options are available?

Go to SOUND menu. You can select Sound Mode (Standard, etc.), adjust Treble, Bass, Balance, enable Surround Sound, set Equalizer, AVL (auto volume), SPDIF output, Audio Description, and Sound Type (Stereo, etc.).

Can I use the TV as a computer monitor?

Yes, connect your PC via VGA or HDMI. Select PC mode via SOURCE. In MENU under PC Setting, you can Auto Adjust, H-Position, V-Position, Phase, and Clock. Supported resolutions up to 1920x1080.

How do I clean the TV screen?

Use a soft, dry cloth. Do not use any liquids or cleaners. Avoid touching the screen directly. For ventilation, do not block the back cover openings. Keep away from heat sources and direct sunlight.

USER MANUAL LED3205 Manta

Abstract black-and-white circular logo with interlocking curved shapes (no text or symbols)

MANTA

LED TV 23"

LED3205

Instrukcja Obsługi

User's Manual

Instalacja

Illustration of a computer monitor with warning symbols and a crossed-out airplane (no text or labels)

Uwaga

Simple line drawing of a computer monitor with a blue X mark and a hanging sheet of clothes (no text or symbols)

Uwaga

Illustration of a computer monitor with a blue X symbol and decorative stars above it (no text or symbols present)

Uwaga

Simple line drawing of a box with a cross symbol and wavy roof, mounted on a base (no text or symbols)

Uwaga

Uwaga

Illustration of a computer monitor with a blue X mark and blue lightning bolts, positioned on a table (no text or symbols)

Uwaga

Illustration of a person standing next to a computer monitor and a small icon with a bug (no text or symbols)

Uwaga

Simple line drawing of a hammer striking a computer monitor with radiating lines (no text or symbols)

Uwaga

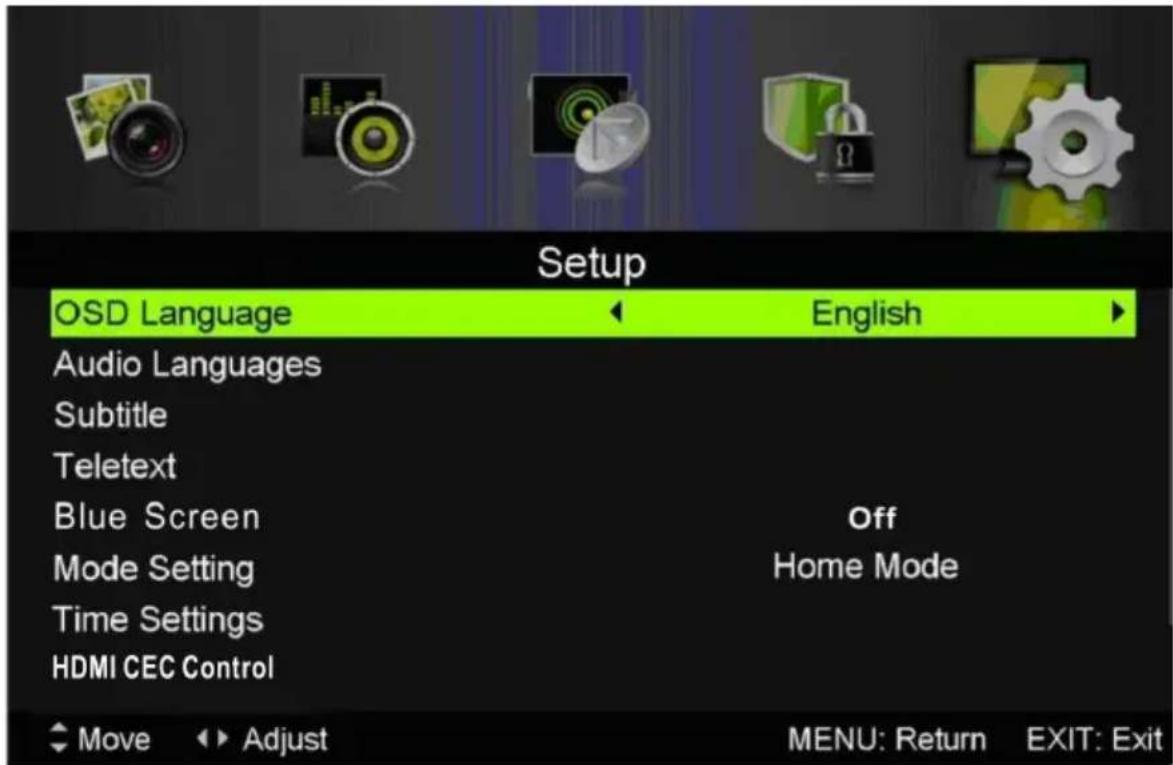

USTAWIENIA

Audio

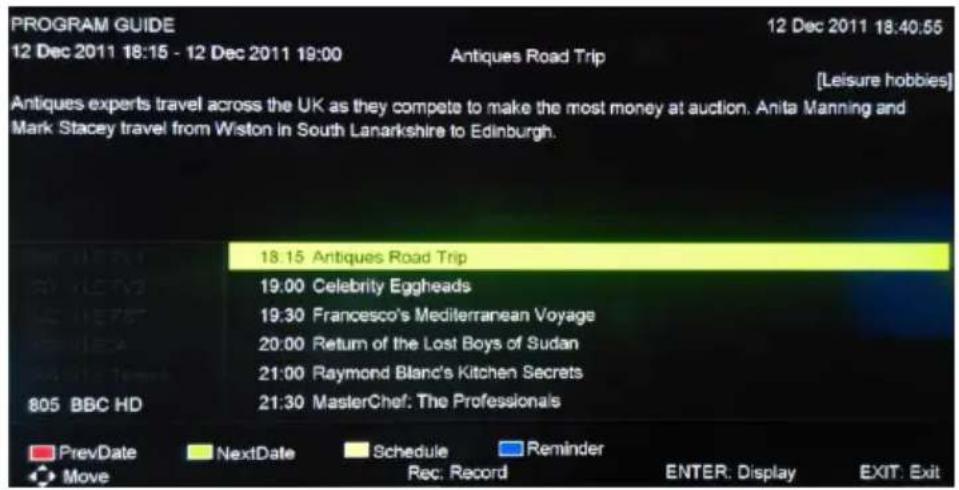

ELEKTRONICZNY PRZEWODNIK UŻYTKOWNIKA (EPG)

Wspólny interfejs

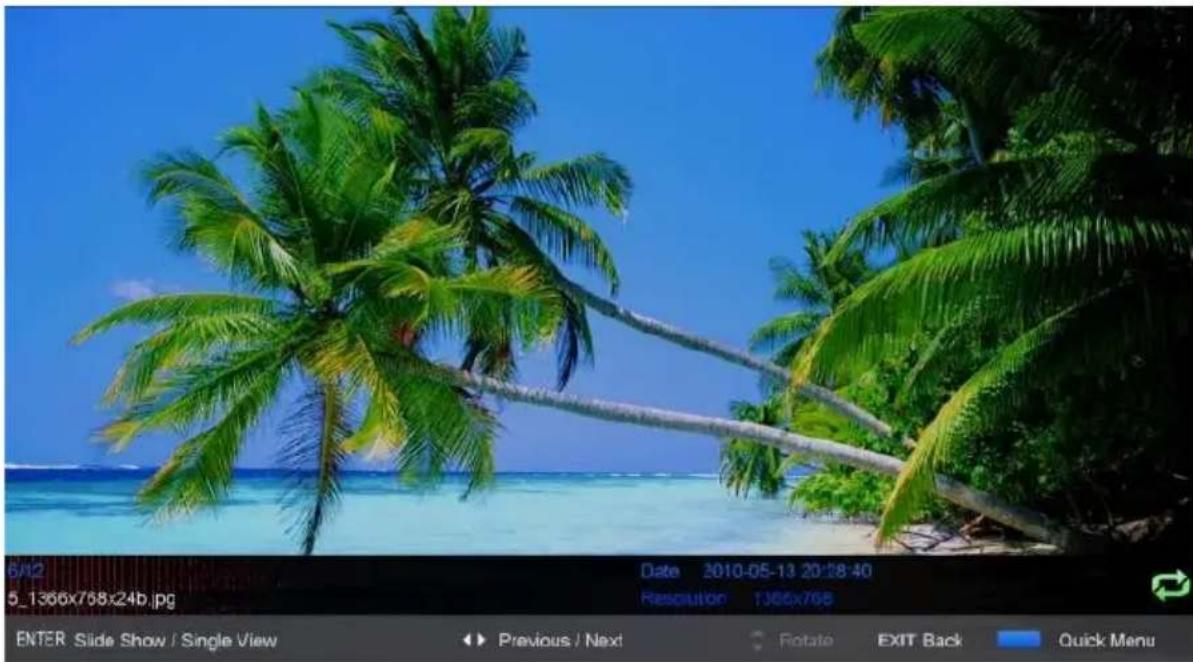

Tropical beach scene with lush green palm trees and clear blue sky (no text or symbols visible)

River scene with a ferry and city skyline under a cloudy sky (no visible text or symbols)

Uwaga:

Symbol of a trash bin crossed with no text or labels

① Locate the TV in a room where direct light does not strike the screen.
Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
② Allow enough space between the receiver and the wall to permit ventilation.
③ Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.
④ This TV can be connected to 100-240V\~50/60HZ.
⑤ Do not install the TV in a location near heat sources such as radiator, air ducts, direct sunlight, or in a place somewhere like close compartment and close area. Do not cover the ventilation openings when using the TV.
⑥ The indicator light will last about 30 seconds to go out after cutting off the electricity, during this period, you cannot repower it on until the indicator light goes out, thanks a lot for your attention!

Warnings

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER- SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to avoid the risk of electric shock, do not disassemble this equipment by anyone except a qualified service personnel.

This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the equipment.

Class I structures of equipment should be connected to the grid power output with a protective earth connection on the socket.

Power plug as a broken appliance, broken installations should be easy to operate.

Illustration of a computer monitor with a warning symbol and lightning bolts, no text or symbols present.

High voltages are used in the operation of this product. Do not open the product's casing. Refer servicing to qualified service personnel.

Simple line drawing of a computer monitor with a blue X mark and a hanging sheet of clothes (no text or symbols)

To prevent fire or electrical shock hazard, do not expose the main unit to rain or moisture, do not place objects filled with liquids, such as vases, on the apparatus.

Illustration of a computer monitor with a blue X symbol and a flower above it, no text or symbols present.

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Simple line drawing of a computer monitor with a 'X' symbol and wavy lines, no text or labels present.

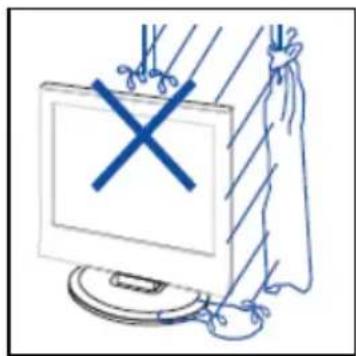

Avoid exposing the main unit to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat. E. g. video cassette players, Audio amplifiers. Do not block the ventilation holes in the back cover. Ventilation is essential to prevent failure of electrical component. Do not squash power supply cord under the main unit or other heavy objects.

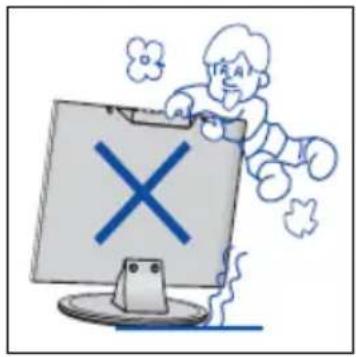

Never stand on, lean on, push suddenly the pro or its stand. You should Pay special attention to children.

Illustration of a computer monitor with a blue X mark and blue lightning bolts, positioned on a table (no text or symbols)

Do not place the main unit on an unstable cart stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

Illustration of a person standing next to a computer monitor and a small icon with a bug (no text or symbols)

When the product is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Simple line drawing of a hammer striking a computer monitor with radiating lines (no text or symbols)

The LED panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LED panel breaks.

Control Panel Button Function

VOL+ : Volume up.

VOL ^- : Volume down.

CH+: TV channel up.

CH- : TV channel down.

MENU : Press to select the main menu.

SOURCE : Select the input signal.

POWER: Turn the TV on or off.

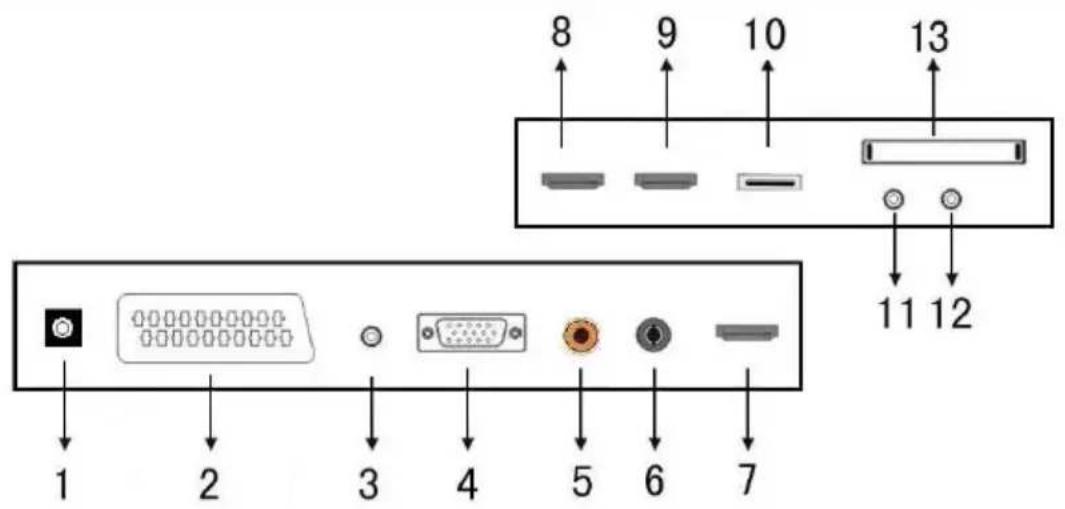

TV Terminal Connections

1. HEADPHONE output terminal.
2. SCART input terminal.
3. PC AUDIO input terminal.
4. VGA input terminal.
5. COAX output terminal.
6. TV antenna.
7. HDMI 1 input terminal.
8. HDMI 2 input terminal.
9. HDMI 3 input terminal.
10. USB input terminal.
11. Mini-AV&AUDIO input terminal.
12. Mini-YPBPR input terminal.
13. CI slot

Optional Configuration as below:

Connect the USB to the USB jack on the set.

NOTE

• It is only 500 mA MAX of DC current output when you connect with USB jack
• To ensure the Mobile HD works well, you should use other power supply for the Mobile HD. And do not use the USB jack in the same time.
• It supports Mobile HD by connecting with USB jack (must more than 2 GB). The partitions of the Mobile HD can't be more than 4 partitions. The max partition is 2TB. It supports FAT/FAT32 document. The max FAT document is 4GB and the max FAT32 document is 2TB.

Remote control

: Press this button to Turn the TV on or off.
: Press this button to mute or restore sound.

NICAM/A2: In the TV condition, press this key to select the stereo mode.

ASPECT: Press to adjust picture ratio.

PMODE: Select picture mode.

SMODE: Select sound mode.

0-9: Select and switch to a channel using 0 - 9.

-/----: Switch the program digit.

: Switch back and front between the current and previous channels. Repeat the program in MEDIA

DISPLAY: Display TV information.

FREEZE: Press to hold the picture.

: Start to record.

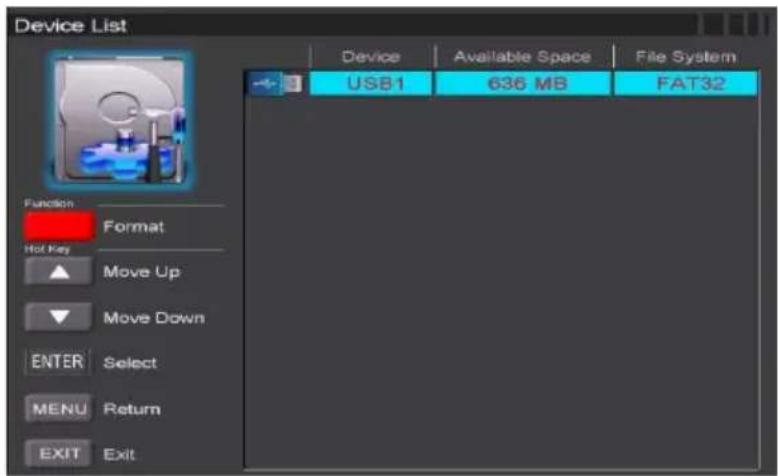

( The U disk will be formatted when in burning, please do not store important files in the U disk )

AUTO: Adjust the picture automatically in pc mode.

RED, GREEN, YELLOW, BLUE: Correspond to the different colored subjects.

SLEEP: Set the sleep timer.

SOURCE: Press to change signal source.

ENTER: Enter the selected option or execute the selected operation. NOTE: press this button to display "channel list" in TV source.

MENU: Press this button to enter the main menu for various optional adjustable setting.

EXIT: Exit the OSD (On-screen display).

CH▼/CH▲: Change the channel up and down.

VOL▼/VOL▲: Adjust the volume.

SUBTITLE: Open or close subtitle.

(Used for models with DTV function only)

T.SHIFT: Press the button to pause current DTV program and start record background

(Used for models with DTV function only)

HOLD: Freeze a multi-page passage on screen in Teletext mode.

(Used for European region only)

: Press to start playing the MEDIA, or to pause playing.

(Used for models with MEDIA function only)

REVEAL: Press this button to reveal the hidden information in Teletext page. Press again to hide the information.

: Press to play backward

(Used for models with MEDIA function only)

SIZE: Display the top, bottom or all of page to read easily in Teletext mode.

: Press to play forward.

(Used for models with MEDIA function only)

INDEX: Press this button to go to the index page in Teletext.

☐: Stop playing the Media.

(Used for models with MEDIA function only)

: Skip to previous chapter

(Used for models with MEDIA function only)

S.PAGE: Carry out the function of SUBCODE in the text while enter the text display mode.

: Skip to next chapter

(Used for models with MEDIA function only)

TEXT: Press to enter the Teletext mode.

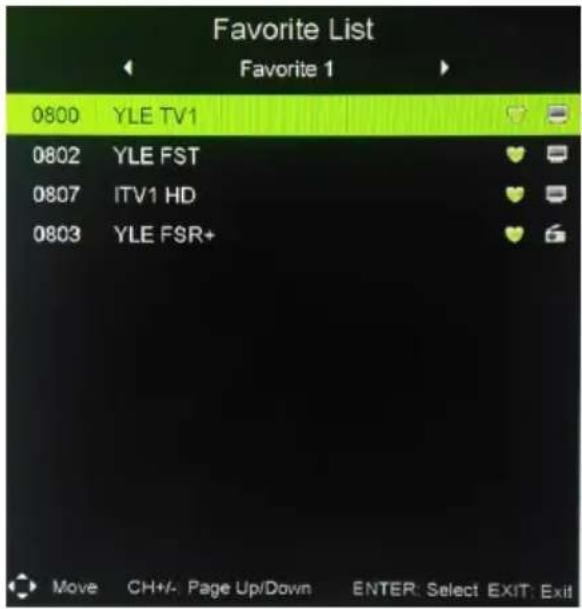

FAV: Switch between customer set " Favorite List"

AUDIO: Press to select the DTV audio.

(Used for models with DTV function only)

DTV: Press to switch to DTV (Digital TV) mode.

NOTE: press this button to display "Record list" in DTV

EPG: Enter electronic program guide.

(Used for models with DTV function only)

TV/RADIO : Switch between TV and RADIO

(Used for models with DTV function only)

Installation Guide

If this is the first time you are turning on the TV and there are no programs in the TV memory, the installation Guide menu will appear on the screen.

1. Press the “▲/▼/◄/►” button to select the local language.
2. Press the “▲/▼/◄/►” button to select energy mode.
3. Press the “▲/▼/◄/►” button to select the local country you want to
4. Press the “▲/▼/◄/►” button to select Air or cable.
5. Press the “▲/▼/◄/►” button to select mode :DTV+ATV,DTV,ATV.
6. Press the “▲/▼/◄/►” button to select LCN “ON” or “OFF”.

Note: Searching for platform will take a long time, please be patient!

Channel

Press MENU button to display the main menu. Press ◀ / ▶ button to select CHANNEL in the main menu

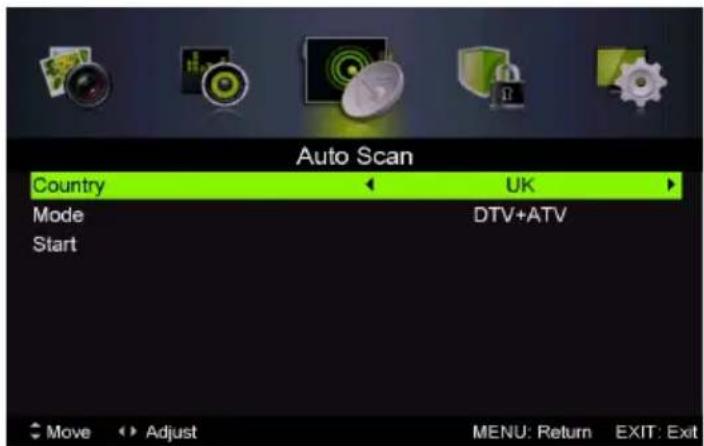

1. Auto Scan

Press “▲/▼” button to select “Auto Scan”

Press “▲/▼” button to select country and press the“▲/▼” button to select mode.

Press “▲/▼”button and then press “▶”button to start scanning. Press “MENU” or “EXIT”button to stop

Note: Searching for platform will take a long time. Please be patient!

2. Analog Manual Scan

Press “▲/▼” button to select “Manual scan” and press the “▶” button to Analog manual scan.

Press "MENU" button to return the previous menu. Press "EXIT" button to exit the menu.

3. Digital Manual Tuning

Press “▲/▼” button to select “Diigital Manual Scan” and press the “▼” button to start.

Press "MENU" button to return the previous menu.

Press "EXIT" button to exit the menu.

4. Channel Edit

Press “▲/▼” button to select “Channel Edit” and press the “ENTER” button to enter.

a. DELETE

Press “▲/▼” button to select the program and press “RED” button once to delete the program.

b. SKIP

Press “▲/▼” button to select the channel which you want to skip and press the “GREEN” button to skip. Press “GREEN” button again to cancel the setting.

c. MOVE

Press “▲/▼” button to select the channel and press the “BLUE” button to move. Then press the “▲/▼” button to select the channel with which you want to move. Press “BLUE” button again to confirm.

5. Signal information (only use in DTV)

Press “▲/▼” button to select “Signal information” and press the “ENTER” button. Press “MENU” button to return the previous menu. Press “EXIT” button to exit the menu.


You can select the type of picture, which best corresponds to your viewing.

Press the “MENU” button to enter the OSD menu. Then press “◀/▶” button to select the “PICTURE” menu. Press “▲/▼” button to select “Picture Mode” and press the “◀/▶” button to select.

1. Press “▲/▼” button to select “Brightness” and press the “◀/▶” button to enter brightness adjustment menu to adjust brightness.
2. Press “▲/▼” button to select “Contrast” and press the “◀/▶” button to enter contrast adjustment menu to adjust contrast.
3. Press “▲/▼” button to select “Sharpness” and press the “◀/▶” button to enter sharpness adjustment menu to adjust sharpness.
4. Press “▲/▼” button to select “Saturation” and press the “◀/▶” button to enter Saturation adjustment menu to adjust saturation.
5. Press “▲/▼” button to select “Hue” and press the “◀/▶” button to enter hue adjustment menu to adjust hue.

Note: The 'hue' item is used in NTSC mode only.

1. Press “▲/▼” button to select “Color Temp” and press the “◀/▶” button to select mode: Standard, Cool, Warm..
2. Press “▲/▼” button to select “Aspect Ratio” and press the “◀/▶” button to select.
3. Press “▲/▼” button to select “Screen Mode” and press the “◀/▶” button to select. Note: The 'Screen Mode' item is used in HDMI mode only.
4. Press “▲/▼” button to select “Advanced Settings” and press the “▶” button to enter Advanced Settings adjustment menu to adjust.

SOUND

You can select the type of sound, which best corresponds to your listening.

Press the "MENU" button to enter the OSD menu. Then press "◀/▶" button to select the "SOUND" menu.

1. Press “▲/▼” button to select “Sound Mode” and press the “◀/▶” button to select mode.
2. Press “▲/▼” button to select “Treble” and press the “◀/▶” button to adjust.
3. Press “▲/▼” button to select “Bass” and press the “◀/▶” button to adjust.
4. Press “▲/▼” button to select “Balance” and press the “◀/▶” button to adjust.
5. Press “▲/▼” button to select “Surround sound” and “◀/▶” button to select “ON” or “OFF”.
6. Press “▲/▼” button to select “EQ Setting” and “◀/▶” button to enter EQ Setting adjustment menu to adjust EQ..
7. Press “▲/▼” button to select “AVL” and press the “◀/▶” button to select “On” or “Off”.
8. Press “▲/▼” button to select “SPDIF” and press the “◀/▶” button to select.
9. Press “▲/▼” button to select “Audio Description” and press the “▶” button to enter sub-menu to select.
10. Press “▲/▼” button to select “Sound Type” and press the “◀/▶” button to select.

LOCK SYSTEM

Press the "MENU" button to enter the OSD menu. Then press "◀/▶" button to select the "Lock System" menu. The default password is "0000".

Note: The administrator password is "8899".

1. Press “▲/▼” button to select “Enable” and then press “◀/▶” button to select “On” or “Off”
2. Press “▲/▼” button to select “channel locks” and press the “▶” button to select channel (s) to lock.
3. Press “▲/▼” button to select “Parental Rating” and press the “◀/▶” button to set.
4. Press ▼ / ▲ button to select "Lock Keypad", then press button to select "On" or "Off", The key board will be invalid if you set Lock Keypad "On".
5. Press ▼ / ▲ button to select "Hotel Mode" and press the "▶" button to enter the sub-menu to set.

1. Press ▼ / ▲ button to select "New Password" and set your new password.
2. Press ▼ / ▲ button to select "Clear Lock" and then press the "▶" button to clear.

SETUP

Press the “MENU” button to enter the OSD menu. Then press“◀/▶” button to select the “SETUP” menu.

1. Press “▲/▼” button to select “OSD Language” and press the “◀/▶” button to select the OSD language which you desire.
2. Press “▲/▼/” button to select “Audio Language” and press the “▶” button to enter the Audio language adjustment menu to select the Audio language which you desire.
3. Press “▲/▼” button to select “Subtitle” and press the “▶” button to select “On” or “Off”. Note: This function is only used for DTV source.
4. Press “▲/▼” button to select “Teletext” menu and press the “▶” button to enter sub-menu.
5. Press “▲/▼” button to select “Blue Screen” and press the “◀/▶” button to select “On” or “Off”.
6. Press "▲/▼ /◄/►" button to select Mode Setting.
7. Press “▲/▼/◄/►” button to select “Time Setting”.
8. Press “▲/▼/◄/►” button to select “HDMI CEC Control”.
9. Press “▲/▼/◄/►” button to select “PVR Settings”.
10. Press “▲/▼” button to select “First Time Installation”, then press “ENTER” button to set relevant options including OSD language, country and tuning.
11. Press “▲/▼” button to select “Reset”, then press “ENTER” a dialogue. Press “◀” button selecting “Yes” to restore all setting to default setting.

PC

Press the “MENU” button to enter the OSD menu. Then press “◀/▶” button to select the “PC Setting” menu. (Only available in PC mode).

1. Press “▲/▼” button to select “Auto Adjust” menu and press the “▶” button to auto adjustment.
2. Press “▲/▼” button to select “H Position” and press the “◀/▶” button to adjust.
3. Press “▲/▼” button to select “V-Position” and press the “◀/▶” button to adjust.
4. Press “▲/▼” button to select “Phase” and press the “◀/▶” button to adjust.
5. Press “▲/▼” button to select “Clock” and press the “◀/▶” button to adjust.

Favorite List

When the source is selected as DTV, users can enter Favorite List by pressing "FAV" button. The "Favorite List" window is illustrated as follows:

You can press the “◀/▶” button to select the favorite list number

Program Information

When the source is selected as DTV, you can press "display" button to display the channel's information. The program information window is illustrated as follows:

Audio

When the source is selected as DTV, users can enter the Setup menu to enter the "Audio Language" menu. The "audio language" window is illustrated, and press "▲/▼" button to select the

"audio language" menu.

Electronic Program Guide (EPG)

Electronic Program Guide (EPG) provides program information which will be broadcasted now or in the future. The system will display EPG window by pressing “EPG” button. DATE and TIME information is displayed on the right of the window. The left side shows all channels. The right side shows the programs in the channel. The selected program is also displayed on the top of the screen.

1. Press the “▲/▼” button to select the “program”. You can press “RED” button to enter record mode. Press “GREEN” button to display the program’s detail. Press “YELLOW” button to Check details at PVR’s Schedule List introduction. Press “Blue” button to enter remind setting.
2. Press the “▲/▼” button to select “CH” and press the “◀/▶” button to select the channel number to see the current channel’s program forecast.

Note: The U disk will be formatted when in burning, please do not store important files in the U disk.

Subtitle

When the source is selected as DTV, users can go to the menu to set.

Note: The pictures in regard to function are provided for reference purposes only.

Common interface

Press the “◀/▶” button to select Common interface, then press ENTER button to enter sub menu. Only available when there is CI card under DTV.

USB Features

Press the "SOURCE" button to change to the "MEDIA" source.


Tropical beach scene with lush green palm trees and clear blue sky (no text or symbols visible)

1. Press the “◀ / ▶” button enter the “PHOTO” option, and press enter button to enter
2. Press ◀ / ▶ button to select drive disk you want to watch, then press enter button to enter.
3. Press "BLUE" button to enter the sub menu to set.
4. Press the "EXIT" button to back to the previous menu.

Music

1. Press ◀ / ▶ button to select MUSIC in the main menu, then press enter button to enter
2. Press ◀ / ▶ button to select drive disk you want to watch, then press enter button to enter
3. Press "BLUE" button to enter the sub menu to set.
4. Press the "exit" button to back to the previous menu

Movie

City skyline with a boat on calm water under a cloudy sky, no visible text or symbols

1. Press ◀ / ▶ button to select MOVIE in the main menu, then press enter button to enter
2. Press ▲/▼ button to select drive disk you want to watch, then press enter button to enter
3. Press "BLUE" button to enter the sub menu to set.
4. Press the "exit" button to back to the previous menu.

Text

1. Press ◀ / ▶ button to select TEXT in the main menu, then press enter button to enter.
2. Press ▲/▼ button to select drive disk you want to watch, then press enter button to enter
3. Press "BLUE" button to enter the sub menu to set.
4. Press the "EXIT" button to back to the previous menu.

PVR Operation

In DTV source, press the "MENU" button to enter the OSD menu. Then press“◀ / ▶” button to select the "Setup" menu.

1. Press “▲/▼” button to select “PVR Settings” and press the “ENTER” or “▶” button to enter.

a) Press “◀ / ▶” button to select “File Manager” and press the “ENTER” button to check PVR file system.

b) Press “◀ / ▶” button to select “Device List” and press the “ENTER” button to the sub menu.

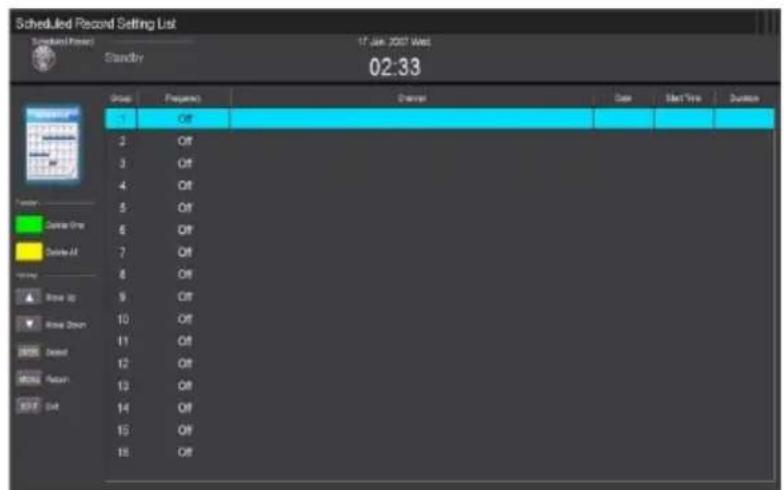

c) Press “▲/▼” button to select “Scheduled Record” and press the “ENTER” button to set.

Note:

1. The U disk will be formatted when in format, please do not store important files in the U disk.
2. Press “●” button for the first time to start recording, for the second time, the sign of recorder will be slimmed down, but it's still under recording.

SPECIFICATIONS

RGB INPUT

Mode Resolution	Horizontal Frequency (KHz)	Vertical Frequency (HZ)
DOS 720x400 31.5 70
VGA 640x480 31.5 60
SVGA 800x600 37.9 60
XGA 1024x768 48.4 60
WXGA 1360x768	47.7 60

HDMI INPUT

Mode	Resolution	Horizontal Frequency (KHz)	Vertical Frequency (HZ)
VGA 640	x 480	31.47	59.94
480i	720 x480i	15.73	59.94/60
576i	720 x 576i	15.63	50
480p 720	x480p	31.47	59.94/60
576p	720 x 576p	31.26	50
720p	1280 x 720p	37.50	50
		44.96	59.94/60
1080i	1920 x 1080i	28.13	50
		33.75	59.94/60
1080p	1920 x 1080p	56.25	50
		67.5	59.94/60

COMPONENT (YPbPr) INPUT

Mode Resolution		Horizontal Frequency (KHz)	Vertical Frequency (HZ)
480i	720 x480i	15.73	59.94/60
576i	720 x 576i	15.63	50
480p 720	x480p	31.47	59.94/60
576p	720 x 576p	31.26	50
720p	1280 x 720p	37.50	50
		44.96	59.94/60
1080i	1920 x 1080i	28.13	50
		33.75	59.94/60
1080p	1920 x 1080p	56.25	50
		67.5	59.94/60

Trouble Shooting

Before consulting service personnel, check the following chart for possible solutions.

PROBLEM	SOLUTION
TV will not turn on	●Make sure the power cord is plugged in.●The batteries in the remote control may be Exhausted; replace the batteries.
No picture, no sound	●Check the cable between TV and antenna/ external AV device.●Press the power button on the remote.●Press the SOURCE button the remote, then press the “▲/▼”button repeatedly to select the TV source.
Poor picture, sound OK	●Check the cable between TV and antenna/ external AV device.●Try another channel, the station may have broadcast difficulties.●Adjust the brightness/contrast in the Video menu. Check that the unit is set to PAL
Audio noise ●Move any infrared equipment away from the TV.

The TFT LED panel uses a panel consisting of sub pixels which requires sophisticated technology to produce. However, there may be a small number of bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Symbol of a waste bin with no text or labels, crossed by diagonal lines and a solid black rectangle below (no readable text or symbols)

Correct Disposal of this product.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Note!

Product design and Technical parameters may be change without notice. This mainly concerns parameters technical, software and user manual present. User's Manual is a general orientation on service product. Manufacturer and distributor do not assume any responsibility as compensation for any inaccuracies errors in the descriptions appearing in this user manual.

Abstract black-and-white circular logo design with interlocking curves (no text or symbols)

MANTA

INFOLINIA SERWISOWA

The manufacturer reserves the right to make changes to product specifications without notice.

Home: www.manta.com.pl Home support: www.manta.info.pl

Made in P.R.C. FOR MANTA EUROPE
