EBM-9179 - Blender Elba - Free user manual and instructions

Product Type	Blender
Brand	Elba
Model	EBM-9179
Capacity	1.5 liters
Power Consumption	600 W
Voltage	220-240 V, 50/60 Hz
Material of Jar	Glass
Blade Material	Stainless steel
Number of Speed Settings	2 speeds + pulse
Dimensions (W x D x H)	17.5 x 17.5 x 40 cm
Weight	2.5 kg
Functions	Blending, pureeing, mixing, crushing ice
Cleaning and Maintenance	Detachable jar and blades; hand wash recommended
Safety Features	Non-slip feet, safety lock lid, overload protection
Spare Parts Availability	Replacement jar and blade assembly available
Warranty	2 years

Frequently Asked Questions - EBM-9179 Elba

How do I clean the blender jar?

Disassemble the jar from the base. Wash the jar and lid with warm soapy water and rinse thoroughly. Blades can be cleaned with a brush. Do not immerse the motor base in water.

Can I blend hot liquids?

No, do not blend hot liquids as pressure may build up and cause the lid to blow off. Allow liquids to cool below 60°C before blending.

What is the maximum capacity for dry ingredients?

For dry ingredients like grains or nuts, fill no more than half of the jar capacity to ensure proper blending and avoid motor strain.

Why does the blender stop working during use?

The blender has an overload protection feature. If it stops, unplug and let it cool for 15-20 minutes. Reduce the load and restart.

Can I crush ice with this blender?

Yes, the blender is suitable for crushing ice. Use the pulse function for best results and avoid overfilling the jar.

How do I replace the blender blade assembly?

Turn the jar upside down, unscrew the blade base nut, remove the old blade assembly, and install the new one. Tighten securely.

Is the blender jar dishwasher safe?

The glass jar is dishwasher safe, but lid and blade assembly are recommended for hand washing to preserve their lifespan.

What should I do if the blender leaks?

Check the jar seal and ensure it is properly seated. Tighten the blade base nut. If the seal is damaged, replace it.

Can I use the blender for grinding coffee beans?

This blender is not designed for grinding dry coffee beans. Use a dedicated coffee grinder for that purpose.

How should I store the blender?

Clean and dry all parts before storing. Keep the blender on a flat surface, with the jar assembled upside down to prevent dust entry.

USER MANUAL EBM-9179 Elba

Exterior view of a Elba blender with green and white casing (no text or symbols visible)

ELBA

BLENDER

MODEL: EBM-9179

Owner's Manual

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the set and quote this information to your dealer when you require service.

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate.

IMPORTANT SAFEGUARDS

When using this appliance, basic precautions should always be followed, including the following:

1. Read all instructions before using.
2. Do not use the appliance if the plug, the mains cord or other parts are damaged, or if it is dropped or damaged in any manner. Return the appliance to the nearest authorized dealer or after-sales service center for examination, repair, electrical or mechanical adjustment.
3. Do not let the power cord hang over edge of table or counter or hot surface, hot gas or electric burner, or in a heated oven.
4. Do not leave the appliance unattended while operating.
5. Do not touch the cutting edges of the blender blade unit when you clean it. They are very sharp and you could easily cut your fingers on them.
6. In order to maintain good performance of the unit, there should be a 3-minute break between every 3 minutes of operation and 1-hour rest for the motor after 5 successive operations.
7. To prevent failure of the appliance, make sure that no food or liquids enter the connection point between the blade unit interface and the motor base.
8. Never reach into the plastic blender with your fingers or an object while the appliance is running.
9. Never use any accessories or parts from other manufacturers or that ELBA does not specifically recommended.
10. Oversized foods or metal utensils must not be inserted into the appliance as they may cause fire or risk of electric shock.
11. If foods stick to the wall of the blender, switch off the appliance and unplug it. Use a spatula to remove the foods from the wall.
12. Always make sure the jar cover is properly closed / assembled on the plastic jar and the lid is inserted properly in the jar cover before you switch on the appliance.
13. Do not use the blender or grinder as an utensil to keep foods or drinks.
14. Wash all removable parts (except motor base) in warm water and dry them before storage. None of the parts should be washed in an automatic dishwasher.
15. Never immerse motor base of the blender in water or any other liquids nor rinse it under the tap. Use only a moist cloth to clean the motor base.
16. Close supervision is necessary when your appliance is being used near children or infirm persons.
17. Always unplug the appliance before you assemble, dissemble or make adjustment to any of the parts.
18. Do not operate the appliance for other than its intended use.
19. Do not use this blender outdoors.
20. This appliance is for domestic use only.
21. This appliance is not intended for used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
22. Children should be supervised to ensure that they do not play with the appliance.
23. Save these instructions for future reference.

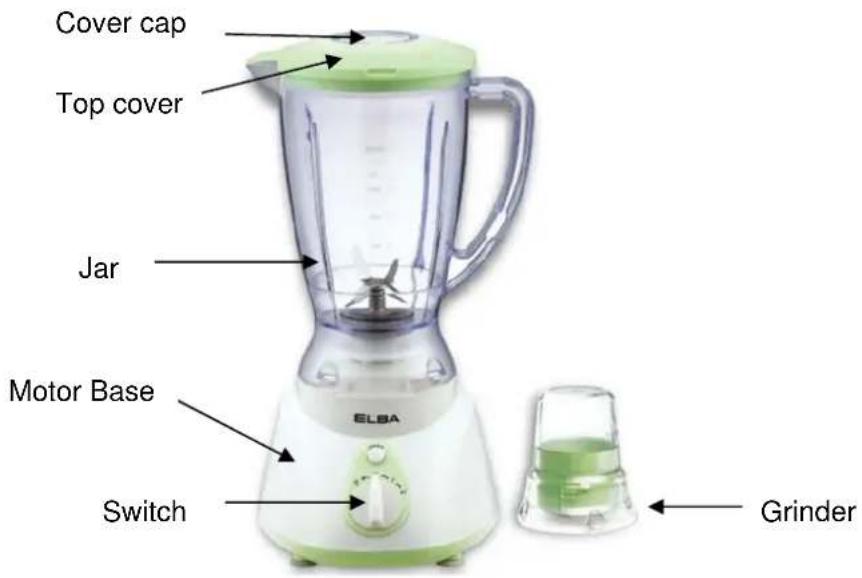

PRODUCT DESCRIPTION

FEATURES:

1. Artistic and durable: with important quality plastics used.
2. Multi-purpose: blending and grinding two in one.
3. Safe: with an elaborate safety device employed.
4. Convenient: with dual-speed adjustment and short-time operation selectable.

HOW TO USE BLENDER

1. Wash the foods (fruits, vegetables etc.) that are to be blended (peel skin or remove pits when necessary). Cut them into pieces to fit for blending.
2. Put the sliced foods into the transparent plastic jar and put on the top cover. Each time of blending, do not put more than half of the cup scale (approx. 0.5 liter) of foods in it. Too small of a quantity is not preferable either. Proper quantity of water should be added into during blending.
3. Plug power cord to a power source and adjust the switch to speed 1 (low speed) or speed 2 (high speed) position, the blender begins working. It only takes a few minutes to blend foods into small pieces. Then adjust the switch to "0" position to turn off the whole unit, detach the blender and pour out blended foods.
4. The blender will also operate when the switch is held on "Pulse" position. When the switch is loosened, it will return to "0" position and shut down automatically. This function is designed for short-time blending (a few seconds), which makes it easy to control the blending time.

HOW TO USE THE GRINDER

1. The foods (bean, rice, peanut, broad bean and coffee bean etc.) that are to be milled must be sun dried with foreign materials removed.
2. Put foods into the grinder and lock it onto the motor base. Do not add in water when milling.
3. Plug the power cord to a power source and adjust the switch to speed 1 or speed 2 position. Thus the foods can be ground into powder in minutes. Adjust the switch back on "0" position to turnoff the unit. Then remove the grinder and pour out the foods that have been ground.
4. The grinder will also operate when the switch is held on "Pulse" position. When the switch is loosened, it will return to "0" position and shut down automatically. This function is designed for short-time dry milling (a few seconds), which makes it easy to control the milling time.

SPECIFICATIONS

Model No: EBM-9179

Power supply: AC220-240 50/60Hz

Power: 300-327W

ENVIRONMENT-FRIENDLY DISPOSAL

You can help to protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

ELBA
