EBL-A1812G - Blender Elba - Free user manual and instructions

Product Type	Blender
Model Number	EBL-A1812G (SS)
Brand	Elba
Power Consumption	1200 W
Voltage	220-240 V ~ 50/60 Hz
Maximum Liquid Capacity	1.0 liters
Jar Material	Glass
Blade Material	Stainless steel
Speed Control	Variable knob (min to max) with illuminated ring
Quick-Select Buttons	Smoothie, Auto-clean, Ice-crush
Safety Lock	Built-in: prevents operation unless jar is properly assembled
Maximum Continuous Operation	3 minutes; then 1 minute rest; after 10 cycles, 30 minutes cooldown
Dimensions (Approx.)	40 cm (height) x 16 cm (width) x 16 cm (depth)
Weight (Approx.)	3.5 kg
Cord Length (Approx.)	1.0 m
Color	Stainless steel / Black
Cleaning Instructions	Removable parts (jar, lid, blade unit) washable; motor base wiped with damp cloth only; do not immerse base
Accessories Included	Lid, jar cover, glass jar, blade unit, sealing ring, motor base
Intended Use	Domestic only; not for outdoor or commercial use
Warranty	Refer to warranty certificate

Frequently Asked Questions - EBL-A1812G Elba

How do I use the smoothie function?

Turn the control knob to the ON position, then press the Smoothie button. The blender will run through an optimal speed profile. To stop, press the Smoothie button again.

What is the maximum capacity for blending?

Do not fill the glass jar with more than 1.0 liter of liquid to prevent spillage, especially at high speeds.

How should I clean the blender?

Unplug and disassemble all removable parts. Wash the glass jar, lid, and blade unit with warm soapy water (be careful of sharp blades). Wipe the motor base with a damp cloth only; never immerse it in water.

Can I blend hot liquids?

No, the manual does not recommend blending hot liquids. Allow them to cool before placing in the glass jar to avoid pressure buildup and damage.

How does the built-in safety lock work?

The blender will only operate if the glass jar is correctly assembled on the motor base. The jar seating pushes a safety lock that unlocks the motor.

What should I do if the blender stops during use?

The blender has a 3-minute continuous operation limit. If it stops, switch to OFF, unplug, and let it cool for at least 1 minute. After 10 cycles, allow a 30-minute cooldown.

How do I use the ice-crush function?

Turn the control knob to ON, then press the Ice-crush button. The blender will crush ice quickly into small, regular pieces. Press the button again to stop.

Can I put the glass jar in the dishwasher?

The manual does not specify dishwasher safety. For best results, wash removable parts by hand with mild detergent and a soft cloth to avoid damage.

What is the auto-clean function?

Empty the jar, add water, and place it on the base. Press the Auto-clean button. The blender runs a cleaning cycle. Afterward, empty and rinse the jar.

Why does the blender have an illuminated ring?

The illuminated ring around the control knob lights up when the blender is connected to power, indicating it is ready to use.

USER MANUAL EBL-A1812G Elba

Exterior view of a modern stainless steel blender with control panel and handle (no visible text or symbols)

ELBA

BLENDER

MODEL: EBL-A1812G(SS)

Owner's Manual

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the set and quote this information to your dealer when you require service.

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate.

IMPORTANT SAFEGUARDS

When using this appliance, basic precautions should always be followed, including the following:

1. Read all instructions before using.

2. Do not operate the appliance with damaged power cord or plug, after the appliance malfunction, or if it is dropped or damaged in any manner. Return the appliance to the nearest authorized dealer or after-sales service center for examination, repair, electrical or mechanical adjustment.

3. Do not use the appliance if the plug, the mains cord or other parts are damaged.

4. Do not let the power cord hang over edge of table or counter or hot surface.

5. Do not place the appliance on or near hot gas or electric burner, or in a heated oven.

6. Do not leave the appliance unattended while operating.

7. Do not touch the cutting edges of the blender blade unit when you clean it. They are very sharp and you could easily cut your fingers on them.

8. Do not operate the appliance for more than 3 minutes continuously at a time. If you have not finished processing after 3 minutes, switch off the appliance and let it cool down before you operate it again.

9. To prevent failure of the appliance, make sure that no food or liquids enter the connection point between the blade unit interface and the motor base.

10. To prevent spillage, do not put more than 1.0 liters of liquid in the glass jar, especially when you process at a high speed.

11. Never reach into the glass blender with your fingers or an object while the appliance is running.

12. Never use any accessories or parts from other manufacturers or that ELBA does not specifically recommended.

13. Oversized foods or metal utensils must not be inserted into the glass jar as they may cause fire or risk of electric shock.

14. If foods stick to the wall of the glass jar, switch off the appliance and unplug it. Use a spatula to remove the foods from the wall.

15. Always make sure the jar cover is properly closed/assembled on the glass jar and the lid is inserted properly in the jar cover before you switch on the appliance.

16. Never immerse motor base in water or any other liquids nor rinse it under the tap. Use only a moist cloth to clean the motor base.

17. Close supervision is necessary when your appliance is being used near children or infirm persons.

18. Always unplug the appliance before you assemble, dissemble or make adjustment to any parts of the blender.

19. Do not operate the appliance for other than its intended use.

20. Do not use this blender outdoors.

21. This appliance is for domestic use only.

22. This appliance is not intended for used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

23. Children should be supervised to ensure that they do not play with the appliance.

24. Save these instructions for future reference.

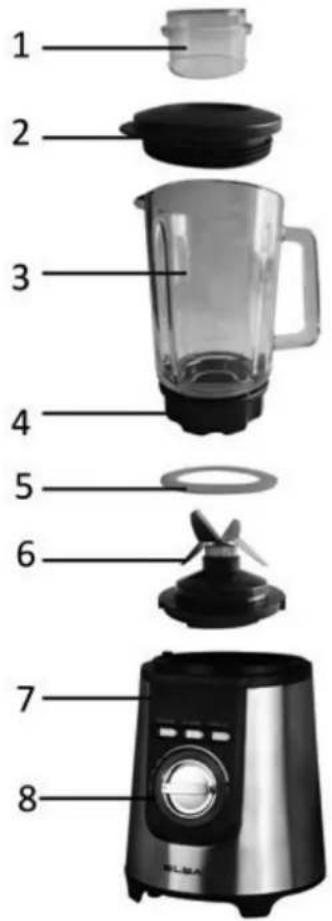

PRODUCT DESCRIPTION

1. Lid
2. Jar cover
3. Glass jar
4. Blade unit interface
5. Sealing ring
6. Blade unit
7. Motor base
8. Control knob

BUILT-IN SAFETY LOCK

This feature ensures that you can only switch on the appliance if you have properly assembled the glass jar on the motor base. When the glass jar is correctly assembled on the motor base, the jar seating will push the built-in safety lock on the motor base and the safety lock be unlock.

* When moving or handling the blender, the whole unit cannot be tilted in order to prevent the glass jar from falling down.

ASSEMBLE AND OPERATING THE APPLIANCE

1. Unpack the appliance and place it on a flat horizontal counter top. Check all the parts whether all in good condition.
2. Clean the removable parts before using.
3. Make sure that the control knob is switched to "OFF" position.
4. Put the ingredients into the glass blender.
5. Mount the lid onto the jar cover. Close the glass jar with jar cover.
6. Insert the glass jar onto the motor base and secure it tightly.
7. Power on the appliance and select the desired power level or press the quick-select button.
8. Always switch off the appliance by setting the control knob to "OFF" position before you open the jar cover.
9. Unplug the plug from wall outlet after use.

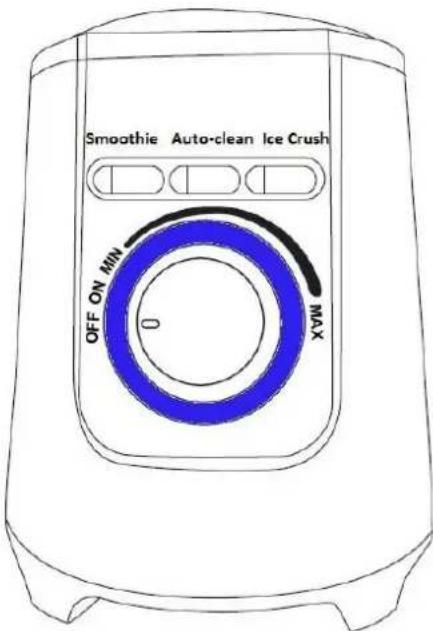

CONTROL KNOB AND BUTTONS

Control knob and buttons Description
	This blender is equipped with illuminated ring that lights up when it is connected to power.You can set the control knob to any speed from min to max level or, even easier, use one of three quick-select buttons: smoothie, auto-clean and ice-crush.
To use a quick-select button	If you want to use the quick-select button, first turn the control knob to position to ON. Then press desired quick-select button.

Smoothie function ➢ Use this function to prepare delicious smoothies. For example, fruit and yogurt or fruit and milk based drinks; fruit or vegetable drinks. ➢ When you press this button, the appliance starts mixing the ingredients according to the appropriate speed profile. ➢ To stop the process, press the smoothie button again.

Auto-clean function ➢ Empty the glass jar and fill it with water. ➢ Place the glass jar on the motor base and pressed the auto-clean button. ➢ Empty the glass jar and rinse until clean.

Ice-crush function ➢ When you press the ice-crush button, the appliance starts crushing the ice according to the appropriate speed profile. ➢ To stop the ice-crushing process, press the ice-crush button again. The ice will be crushed within few seconds and the result is tiny, regular pieces of ice.

TIPS

To achieve the best results when pureeing solid ingredients, place small portions into the glass jar one by one instead of placing a large quantity all at once.
If you are processing solid ingredients, cut them into small pieces (2-3cm) first before putting them into the glass jar.
When mixing solid ingredients start off first with a small amount of liquid. Gradually add more and more liquid through the opening in the jar cover.
Always place your hand on top of the blender when you operating the appliance.
Do not operate the appliance for more than 3 minutes continuously at a time. If you have not finished processing after 3 minutes, switch off the appliance and let it cool down before you operate it again.

CLEANING AND MAINTENANCE

1. Unplug the appliance.
2. Dissemble all removable parts before cleaning.

Note: Do not rinse the motor base under water tap. Do not use abrasive cleaning agents, sources, etc. to clean the motor base!

1. When cleaning the glass jar, be careful of the blades as it is very sharp.
2. Clean the motor base with a moist cloth.
3. Clean the removable parts immediately after use.

SPECIFICATIONS

1. Voltage : 220V-240V, 50/60Hz
2. Power :1200W
3. Short time operation: maximum 3 minutes stop 1 minute, operate 10 times and need to let the appliance cool down for 30 minutes.

ENVIRONMENT-FRIENDLY DISPOSAL

You can help to protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.
