EBM-9181 - Blender Elba - Free user manual and instructions

Product Type	Blender
Brand	Elba
Model	EBM-9181
Power Consumption	350 W
Power Supply	220-240 V, 50/60 Hz
Jar Capacity	Approx. 0.5 L (half of cup scale)
Jar Material	Transparent plastic (imported quality)
Motor Base Material	Plastic
Speeds	2 speeds (Low and High) plus Pulse function
Functions	Blending, grinding, ice crushing
Included Accessories	Grinder attachment
Safety Features	Automatic shut-off when pulse released; safety device; keep hands away from blades
Duty Cycle	Max 3 min continuous operation, then 3 min rest; after 5 cycles, 1 hour rest
Cleaning	Wash removable parts in warm water; do not immerse motor base; do not use dishwasher
Dimensions (estimated)	Height: 35 cm, Width: 15 cm, Depth: 15 cm
Weight (estimated)	1.5 kg
Intended Use	Domestic use only
Repairability	Refer to authorized dealer or after-sales service center for repair

Frequently Asked Questions - EBM-9181 Elba

How do I use the blender?

Wash and cut fruits or vegetables into small pieces. Place them in the jar (do not exceed half of the cup scale, about 0.5 L). Add a proper amount of water. Plug in and select speed 1 (low) or speed 2 (high). The blender will start. After blending, turn the switch to '0' and detach the jar. For short bursts, use the Pulse function.

How do I use the grinder attachment?

Ensure the foods (e.g., beans, rice, peanuts) are sun-dried and free of foreign materials. Place them in the grinder and lock it onto the motor base. Do not add water. Plug in and select speed 1 or 2. The grinder will mill the foods into powder. For short bursts, use the Pulse function.

What is the maximum operating time?

Operate the blender or grinder for a maximum of 3 minutes continuously. Then let it rest for at least 3 minutes. After 5 consecutive operations, let the motor rest for 1 hour.

Can I wash the parts in a dishwasher?

No. Wash all removable parts (jar, lid, grinder) in warm water and dry them. Do not wash in an automatic dishwasher. Never immerse the motor base in water; clean it with a moist cloth.

How do I clean the blender?

Unplug the appliance. Remove the jar and lid. Wash them in warm water with mild detergent. Use a spatula to remove stuck food. Dry thoroughly. Wipe the motor base with a damp cloth. Do not use abrasive cleaners.

What safety precautions should I take?

Always unplug before assembling or cleaning. Do not touch the sharp blades. Never reach into the jar while it is operating. Do not let the cord hang over edges. Use only original accessories. Keep out of reach of children.

What is the Pulse function for?

The Pulse function allows short bursts of operation (a few seconds). Hold the switch on 'Pulse' to run; release it to stop automatically. This helps control blending or milling time precisely.

Can I blend hot liquids?

The manual does not recommend blending hot liquids. Allow foods to cool before blending to avoid pressure buildup and potential lid ejection or burns.

What is the jar capacity?

The jar should not be filled more than half of the cup scale, which is approximately 0.5 liters. Do not process too small quantities either.

What should I do if the appliance stops working?

Check if the power cord is plugged in. Ensure the jar and lid are properly assembled. If it still does not work, contact an authorized dealer or after-sales service center. Do not attempt to repair it yourself.

USER MANUAL EBM-9181 Elba

White ElBA blender with two smaller side dishes (no visible text or symbols on the main body)

ELBA

BLENDER

MODEL: EBM-9181

Owner's Manual

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the set and quote this information to your dealer when you require service.

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate.

IMPORTANT SAFEGUARDS

When using this appliance, basic precautions should always be followed, including the following:

1. Read all instructions before using.
2. Do not use the appliance if the plug, the mains cord or other parts are damaged, or if it is dropped or damaged in any manner. Return the appliance to the nearest authorized dealer or after-sales service center for examination, repair, electrical or mechanical adjustment.
3. Do not let the power cord hang over edge of table or counter or hot surface, hot gas or electric burner, or in a heated oven.
4. Do not leave the appliance unattended while operating.
5. Do not touch the cutting edges of the blender blade unit when you clean it. They are very sharp and you could easily cut your fingers on them.
6. In order to maintain good performance of the unit, there should be a 3-minute break between every 3 minutes of operation and 1-hour rest for the motor after 5 successive operations.
7. To prevent failure of the appliance, make sure that no food or liquids enter the connection point between the blade unit interface and the motor base.
8. Never reach into the plastic blender with your fingers or an object while the appliance is running.
9. Never use any accessories or parts from other manufacturers or that ELBA does not specifically recommended.
10. Oversized foods or metal utensils must not be inserted into the appliance as they may cause fire or risk of electric shock.
11. If foods stick to the wall of the blender, switch off the appliance and unplug it. Use a spatula to remove the foods from the wall.
12. Always make sure the jar cover is properly closed / assembled on the plastic jar and the lid is inserted properly in the jar cover before you switch on the appliance.
13. Do not use the blender or grinder as an utensil to keep foods or drinks.
14. Wash all removable parts (except motor base) in warm water and dry them before storage. None of the parts should be washed in an automatic dishwasher.
15. Never immerse motor base of the blender in water or any other liquids nor rinse it under the tap. Use only a moist cloth to clean the motor base.
16. Close supervision is necessary when your appliance is being used near children or infirm persons.
17. Always unplug the appliance before you assemble, dissemble or make adjustment to any of the parts.
18. Do not operate the appliance for other than its intended use.
19. Do not use this blender outdoors.
20. This appliance is for domestic use only.
21. This appliance is not intended for used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
22. Children should be supervised to ensure that they do not play with the appliance.
23. Save these instructions for future reference.

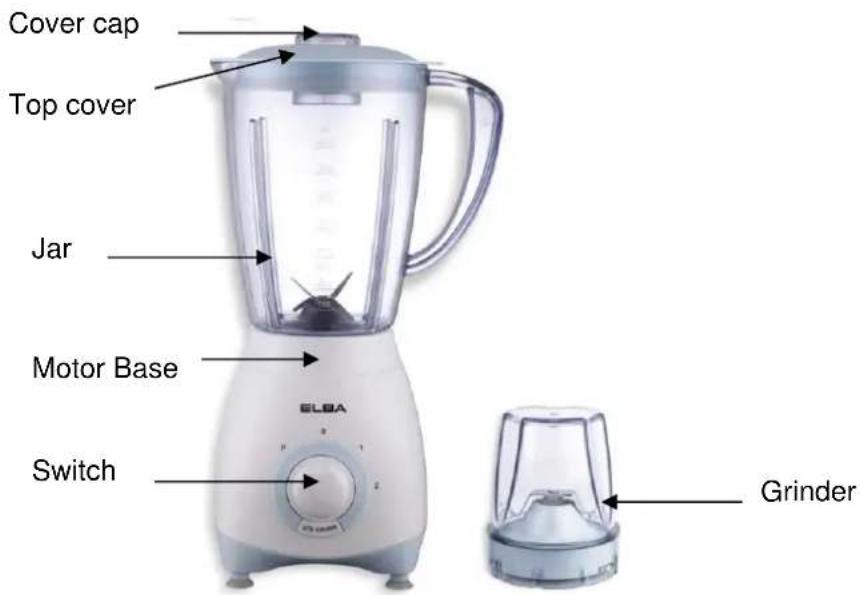

PRODUCT DESCRIPTION

FEATURES:

1. Artistic and durable: with imported quality plastics used.
2. Multi-purpose: blending, grinding and ice crushing three in one.
3. Safe: with and elaborate safety device employed.
4. Convenient: with 2 speeds adjustment and short-time operation selectable.

HOW TO USE BLENDER

1. Wash the foods (fruits, vegetables, etc.) that are to be blended (peel skin or remove pits when necessary). Cut them into pieces to fit for blending.
2. Put the sliced foods into the transparent plastic jar and put on the top cover. Each time of blending, do not put more than half of the cup scale (approx. 0.5 liter) of foods in it. Too small of a quantity is not preferable either. Proper quantity of water should be added into during blending.
3. Plug power cord to a power source and adjust the switch to speed 1 (low speed) or speed 2 (high speed) position, the blender begins working. It only takes a few minutes to blend foods into small pieces. Then adjust the switch to "0" position to turn off the whole unit, detach the blender and pour out blended foods.
4. The blender will also operate when the switch is held on "Pulse" position. When the switch is loosened, it will return to "0" position and shut down automatically. This function is designed for short-time blending (a few seconds), which makes it easy to control the blending time.

HOW TO USE THE GRINDER

1. The foods (bean, rice, peanut, broad bean and coffee bean, etc.) that are to be milled must be sun dried with foreign materials removed.
2. Put foods into the grinder and lock it onto the motor use. Do not add in water when milling.
3. Plug the power cord to a power source and adjust the switch to speed 1 or speed 2 position. Thus the foods can be ground into powder in minutes. Adjust the switch back on "0" position to turnoff the unit. Then remove the grinder and pour out the foods that have been ground.
4. The grinder will also operate when the switch is held on "Pulse" position. When the switch is loosened, it will return to "0" position and shut down automatically. This function is designed for short-time dry milling (a few seconds), which makes it easy to control the milling time.

SPECIFICATIONS

Model No: EBM-9181

Power supply: 220-240V 50/60Hz

Power: 350W

Short time operation: max 3 minutes and then stop for 3 minutes, run 5 times and rest for 1 hour.

ENVIRONMENT-FRIENDLY DISPOSAL

You can help to protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

ELBA
