EBL-9180 - Blender Elba - Free user manual and instructions

Product Type	Blender
Brand	Elba
Model	EBL-9180
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	300-327W
Speed Settings	2 speeds (Low/High) + Pulse
Jar Capacity	Approx. 1 liter (max fill 0.5 liter per use)
Jar Material	Transparent plastic
Blade Material	Stainless steel (sharp)
Dimensions (approx.)	Height: 35 cm, Width: 15 cm, Depth: 15 cm
Weight (approx.)	1.5 kg
Operation Limit	3 minutes on, 3 minutes rest; 5 successive cycles then 1 hour rest
Safety Features	Auto shut-off on pulse release; lid must be properly closed
Cleaning	Hand wash removable parts; do not immerse motor base; do not use dishwasher
Accessories Included	Plastic jar, lid, blade unit, motor base
Intended Use	Domestic only; blend fruits, vegetables, etc.
Environmental Disposal	Dispose at appropriate waste centre per local regulations

Frequently Asked Questions - EBL-9180 Elba

How do I use the Elba EBL-9180 blender?

Wash and cut foods into small pieces. Place in jar (max 0.5 liter). Add water as needed. Plug in, select speed 1 (low) or 2 (high). To pulse, hold the switch on 'Pulse'; release to stop. After blending, set to '0' and unplug.

What is the maximum capacity for blending?

Do not fill more than half of the cup scale, which is approximately 0.5 liter per batch. Overfilling may cause spillage or motor strain.

Can I wash the blender parts in a dishwasher?

No. All removable parts except the motor base should be washed by hand in warm water and dried. The motor base must only be wiped with a damp cloth. Do not immerse in water or use a dishwasher.

What should I do if food sticks to the jar wall?

Switch off and unplug the blender. Use a spatula to remove the stuck food from the wall. Avoid using metal utensils to prevent damage.

Is there a break requirement between uses?

Yes. For every 3 minutes of continuous operation, allow a 3-minute break. After 5 successive operations, let the motor rest for 1 hour to prevent overheating.

How does the pulse function work?

Hold the switch on 'Pulse' for short blending bursts (a few seconds). When released, the switch returns to '0' and the blender stops automatically. Ideal for controlled chopping.

Can I blend hot liquids?

The manual does not recommend blending hot liquids. Allow hot ingredients to cool before blending to avoid pressure buildup and potential lid ejection.

What safety precautions should I take?

Always read instructions. Do not use with damaged cord or plug. Never reach into the jar while running. Keep children and infirm persons supervised. Unplug before assembling or cleaning.

How do I clean the blade unit?

Use caution as blades are very sharp. Wash the blade unit separately by hand in warm soapy water. Do not touch the cutting edges directly. Dry thoroughly before reassembling.

Where can I find the warranty terms?

Refer to the Warranty Certificate included with the product. For service, contact an authorized dealer or after-sales center with the model and serial number.

USER MANUAL EBL-9180 Elba

White and green Elba blender with a plastic lid and control knob (no visible text or symbols on the device body)

ELBA

BLENDER

MODEL: EBL-9180

Owner's Manual

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the set and quote this information to your dealer when you require service.

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate.

IMPORTANT SAFEGUARDS

When using this appliance, basic precautions should always be followed, including the following:

1. Read all instructions before using.
2. Do not use the appliance if the plug, the mains cord or other parts are damaged, or if it is dropped or damaged in any manner. Return the appliance to the nearest authorized dealer or after-sales service center for examination, repair, electrical or mechanical adjustment.
3. Do not let the power cord hang over edge of table or counter or hot surface, hot gas or electric burner, or in a heated oven.
4. Do not leave the appliance unattended while operating.
5. Do not touch the cutting edges of the blender blade unit when you clean it. They are very sharp and you could easily cut your fingers on them.
6. In order to maintain good performance of the unit, there should be a 3-minute break between every 3 minutes of operation and 1-hour rest for the motor after 5 successive operations.
7. To prevent failure of the appliance, make sure that no food or liquids enter the connection point between the blade unit interface and the motor base.
8. Never reach into the plastic blender with your fingers or an object while the appliance is running.
9. Never use any accessories or parts from other manufacturers or that ELBA does not specifically recommended.
10. Oversized foods or metal utensils must not be inserted into the appliance as they may cause fire or risk of electric shock.
11. If foods stick to the wall of the blender, switch off the appliance and unplug it. Use a spatula to remove the foods from the wall.
12. Always make sure the jar cover is properly closed / assembled on the plastic jar and the lid is inserted properly in the jar cover before you switch on the appliance.
13. Do not use the blender or grinder as an utensil to keep foods or drinks.
14. Wash all removable parts (except motor base) in warm water and dry them before storage. None of the parts should be washed in an automatic dishwasher.
15. Never immerse motor base of the blender in water or any other liquids nor rinse it under the tap. Use only a moist cloth to clean the motor base.
16. Close supervision is necessary when your appliance is being used near children or infirm persons.
17. Always unplug the appliance before you assemble, dissemble or make adjustment to any of the parts.
18. Do not operate the appliance for other than its intended use.
19. Do not use this blender outdoors.
20. This appliance is for domestic use only.
21. This appliance is not intended for used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
22. Children should be supervised to ensure that they do not play with the appliance.
23. Save these instructions for future reference.

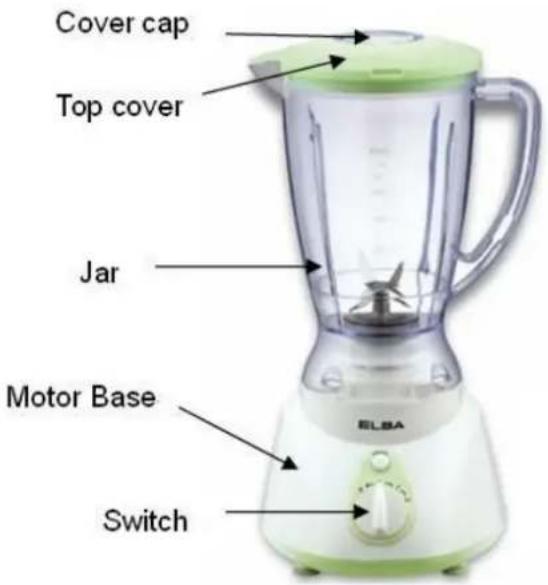

PRODUCT DESCRIPTION

HOW TO USE BLENDER

1. Wash the foods (fruits, vegetables etc.) that are to be blended (peel skin or remove pits when necessary). Cut them into pieces to fit for blending.

2. Put the sliced foods into the transparent plastic jar and put on the top cover. Each time of blending, do not put more than half of the cup scale (approx. 0.5 liter) of foods in it. Too small of a quantity is not preferable either. Proper quantity of water should be added into during blending.

3. Plug power cord to a power source and adjust the switch to speed 1 (low speed) or speed 2 (high speed) position, the blender begins working. It only takes a few minutes to blend foods into small pieces. Then adjust the switch to "0" position to turn off the whole unit, detach the blender and pour out blended foods.

4. The blender will also operate when the switch is held on "Pulse" position. When the switch is loosened, it will return to "0" position and shut down automatically. This function is designed for short-time blending (a few seconds), which makes it easy to control the blending time.

SPECIFICATIONS

Model No: EBL-9180

Power supply: AC220-240V 50/60Hz

Power: 300-327W

ENVIRONMENT-FRIENDLY DISPOSAL

You can help to protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

ELBA
