Type of Product	Television
Brand	AKAI
Model	ALED2201
Screen Size	22 inches (55.9 cm)
Display Technology	LED
Resolution	1366 x 768 (HD Ready)
Aspect Ratio	16:9
Dimensions (W x H x D) without stand	50.5 x 30.5 x 8.0 cm
Weight without stand	2.5 kg
Power Consumption (typical)	30 W
Power Supply	AC 100-240V, 50/60 Hz
Input Ports	HDMI, USB, VGA, AV Composite, RF
Output Ports	Headphone jack, Digital Audio Out (optical)
Tuner	DVB-T/T2/C/S2
Remote Control	Included
Wall Mount VESA Pattern	100 x 100 mm
Built-in Speakers	2 x 3 W
Energy Efficiency Class	A+
OSD Language Support	Multiple languages

Frequently Asked Questions - ALED2201 AKAI

How do I clean the screen of my AKAI ALED2201 TV?

Use a soft, dry microfiber cloth. Dampen slightly with distilled water if needed. Avoid using any chemicals, alcohol, or paper towels.

Can I mount the AKAI ALED2201 on a wall?

Yes, it supports VESA 100x100 mm wall mounts. Ensure the wall can support the weight and use appropriate screws.

What is the resolution of this TV?

The AKAI ALED2201 has a native resolution of 1366 x 768 pixels (HD Ready).

How do I connect external devices to my TV?

You can connect devices via HDMI, USB, VGA, or AV composite inputs. Select the corresponding source using the Source button on the remote.

My TV does not turn on. What should I do?

Check that the power cable is securely connected and the outlet is working. Try unplugging for 1 minute, then plug back in. If still not working, contact support.

How do I scan for TV channels?

Go to Menu > Channel > Auto Scan. Make sure the antenna is connected. The TV will search for available DVB-T/T2/C/S2 channels.

Can I use a USB drive to watch movies?

Yes, insert a USB drive with supported formats (e.g., MP4, AVI, MKV) into the USB port. Use the Media Player function to browse and play files.

What should I do if there is no sound?

Check if the volume is muted or set too low. Verify that the correct audio source is selected. If using external speakers, ensure they are properly connected.

How do I reset the TV to factory settings?

Go to Menu > Settings > System > Factory Reset. Enter the default password (usually 0000) and confirm. All settings will be erased.

Is the remote control included?

Yes, the AKAI ALED2201 comes with a remote control. Batteries are not included (requires 2 x AAA).

USER MANUAL ALED2201 AKAI

LED television / DVD Combi

ALED2201

User manual

Gebruiksaanwijzing

Afstandsbediening3.5

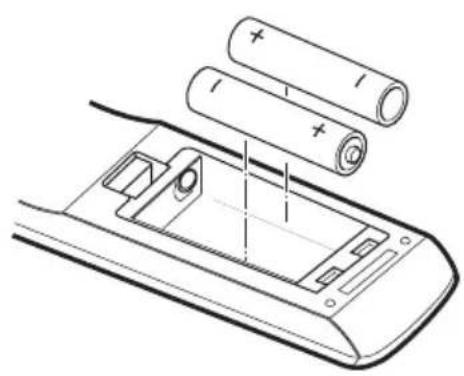

Batterijen plaatsen

Diagram of a device's internal structure with an arrow indicating direction (no text or symbols)

Diagram of a car interior showing battery arrangement and battery stack (no text or symbols)

Functions4.

LED TV/DVD Combi4.1

1 Afstandsbedieningssensor / Standby-indicator
2 Open/close-toets (DVD)
3 DVD-sleuf

Bovenpaneel
