Product Type	LED Television with Integrated DVD Player
Brand	AKAI
Model	ALED1901
Screen Size	19 inches (diagonal)
Display Resolution	1366 x 768 pixels
Aspect Ratio	16:9
Tuner	DVB-T/T2
DVD Player	Integrated, supports CD and DVD playback
Remote Control	Included, requires 2 AAA batteries
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	30W (typical)
Standby Power	< 1W
Dimensions (W x H x D)	450 x 300 x 80 mm (without stand)
Weight	2.5 kg
Inputs	HDMI, USB, AV (composite)
Outputs	Headphone jack (3.5mm)
Audio	Built-in stereo speakers, 2 x 3W
Top Panel Controls	Standby/IR sensor, Open/Close (DVD), DVD slot
Cleaning	Wipe with a soft, dry cloth; do not use liquids
Safety	Do not block ventilation openings; keep away from moisture
Repairability	Contact AKAI authorized service center for repairs

Frequently Asked Questions - ALED1901 AKAI

How do I insert batteries into the remote control?

Open the battery compartment cover on the back of the remote. Insert two AAA batteries with correct polarity (+/-) as indicated inside the compartment. Close the cover securely.

Why is there no picture or sound?

First, ensure the TV is powered on and the power cord is connected. Check that the input source (e.g., TV, HDMI, AV) is selected correctly. Verify cable connections are secure. If using an external device, ensure it is turned on.

How do I play a DVD?

Press the Open/Close button on the top panel to open the DVD tray. Place the DVD with the label side up into the tray, then press Open/Close again to close. The DVD should start playing automatically. Use the Play button on the remote to start if not.

Can I connect my laptop to this TV?

Yes, you can connect a laptop using an HDMI cable. Plug one end into the laptop's HDMI output and the other into the TV's HDMI input. Then use the remote to select the corresponding HDMI source.

How do I clean the TV screen?

Turn off the TV and unplug it. Use a soft, dry, lint-free cloth to gently wipe the screen. Do not apply pressure. Avoid using water, cleaning fluids, or abrasive materials, as they may damage the screen.

How do I change channels?

Use the CH +/- buttons on the remote control or the top panel to change channels. You can also directly enter the channel number using the numeric keypad on the remote.

What should I do if the remote control does not work?

First, check the batteries and replace if necessary. Ensure there are no obstacles between the remote and the TV's IR sensor. If still not working, try pairing (if applicable) or contact support.

How do I set up TV channels?

Go to the Menu and select Channel Setting or Auto Tuning. Choose your country and signal type (e.g., DVB-T). Select Auto Scan to search and store available channels. The process may take a few minutes.

Does this TV have a USB port? What can I do with it?

Yes, there is a USB port on the side. You can connect a USB flash drive to play media files such as photos, music, and videos. Use the Media Player option in the menu to access files.

How do I reset the TV to factory settings?

Press the Menu button on the remote. Navigate to Settings or System. Select Factory Reset or Restore Defaults. Confirm the action. Note that all user settings, including channels, will be erased.

USER MANUAL ALED1901 AKAI

LED television / DVD Combi

ALED1901

User manual

Gebruiksaanwijzing

Afstandsbediening3.5

Batterijen plaatsen

Line drawing of a device interior with a handle and arrow indicator (no text or symbols)

Diagram of a car interior showing battery arrangement and battery stack (no text or symbols)

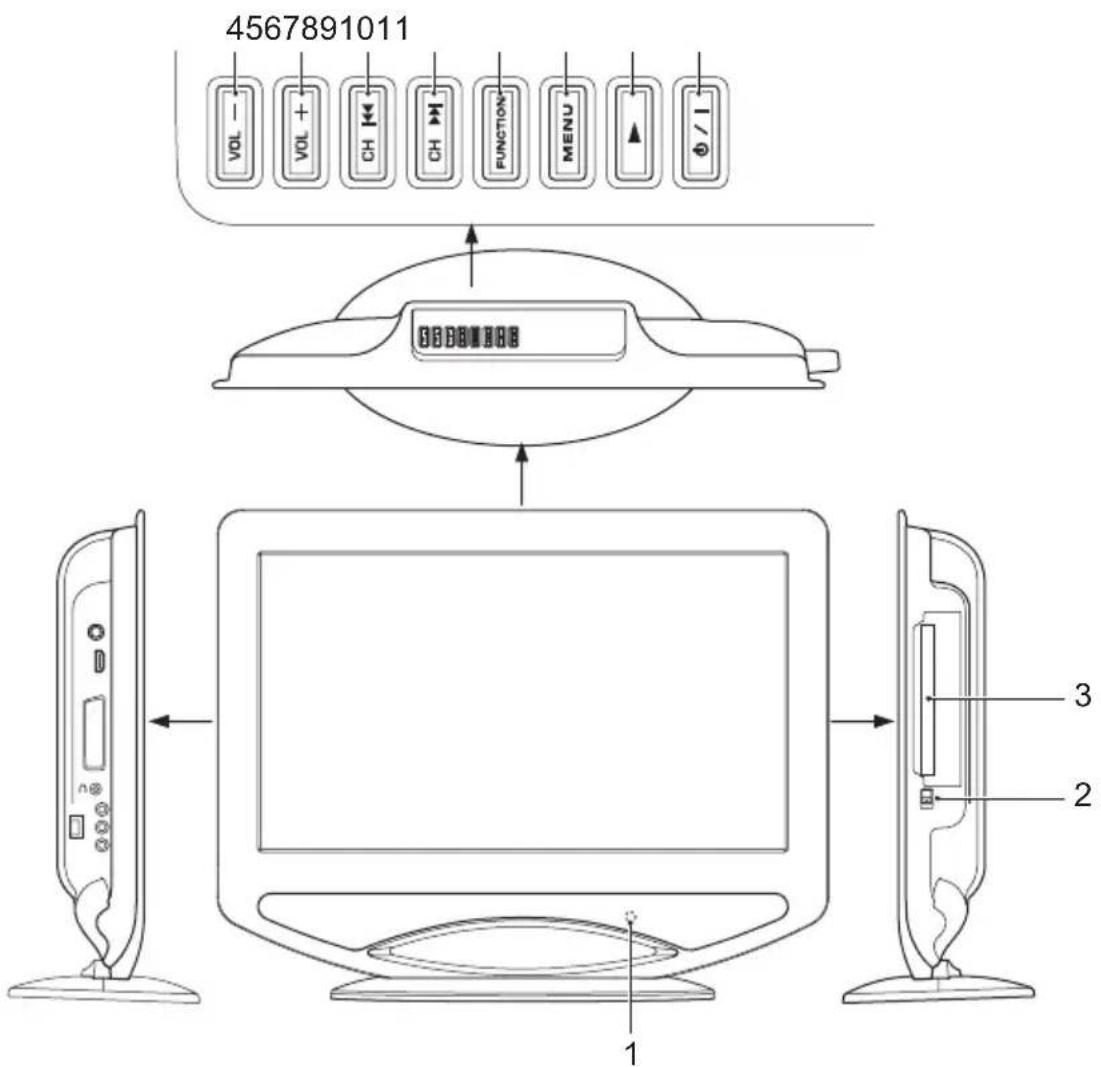

Functions4.

LED TV/DVD Combi4.1

1 Afstandsbedieningssensor / Standby-indicator
2 Open/close-toets (DVD)
3 DVD-sleuf

Bovenpaneel
