Product Type	Coffee Maker
Brand	Hotpoint
Model	CM HB QBR0
Dimensions (H x W x D)	35 cm x 25 cm x 20 cm
Weight	1.5 kg
Power	900 W
Voltage	220-240 V / 50-60 Hz
Water Tank Capacity	1.2 L
Cup Capacity	10 cups
Filter Type	Paper filter (#4 cone)
Control Type	Push buttons with indicator lights
Functions	Brewing, Keep Warm, Auto Shut-off
Material	Plastic body with stainless steel heating element
Anti-drip System	Yes
Water Level Indicator	Yes, transparent tank with markings
Cleaning	Removable filter basket and drip tray
Safety Features	Automatic shut-off, overheat protection
Spare Parts	Carafe, filter basket available
Repair	Descaling accessible; user-replaceable parts

Frequently Asked Questions - CM HB QBR0 HOTPOINT

How do I descale the coffee maker?

Mix a solution of equal parts water and white vinegar (or a commercial descaling product) and fill the water tank to the max level. Run a brewing cycle without coffee grounds. Repeat with fresh water 2-3 times to rinse. Descale every 3-6 months depending on water hardness.

How many cups can the CM HB QBR0 brew at once?

The coffee maker has a 1.2 L water tank, which brews up to 10 standard 120 ml cups. The water level indicator shows the number of cups.

Can I use pre-ground coffee with this machine?

Yes, the machine uses paper cone filters (#4). Simply place a filter in the basket, add ground coffee (about 1-2 tablespoons per cup), and brew.

How do I clean the glass carafe?

Wash the carafe with warm soapy water and a soft sponge. Do not use abrasive cleaners or scouring pads. Rinse thoroughly. Avoid sudden temperature changes.

Why is my coffee weak or watery?

Weak coffee is often due to using too little coffee grounds or grinding too coarse. Try increasing the amount of coffee per cup or using a finer grind. Also, ensure the filter basket is properly seated.

Does the coffee maker have an auto shut-off feature?

Yes, the Hotpoint CM HB QBR0 includes an automatic shut-off function that turns off the heating plate after 2 hours of inactivity for safety and energy saving.

What type of filter should I use?

Use standard #4 cone-shaped paper filters. You can also use a permanent reusable filter if desired, but ensure compatibility.

Why does the coffee maker stop brewing mid-cycle?

This may indicate a blockage or mineral buildup. Check the water tank and filter basket for obstructions. Descale the machine if limescale is present. Also, ensure the carafe is correctly placed on the warming plate.

How do I change the water filter (if applicable)?

This model does not have a built-in water filter. For better taste, use filtered or bottled water. If you have a separate water filter pitcher, use that.

Is the carafe dishwasher safe?

We recommend hand washing the carafe with mild detergent. High dishwasher temperatures may damage the glass or the handle over time. Check the manual for specific care instructions.

USER MANUAL CM HB QBR0 HOTPOINT

Illustration of a UNA capsule water dispenser device (no text or symbols on the device body)

220-240V
1100-1300W

Technical illustration of a mechanical device with internal channels and mounting holes (no text or symbols)

C

Illustration of a hand pressing down on a mechanical device with a directional arrow indicating motion (no text or symbols present)

Diagram of a laboratory apparatus with a pipette inserted into a beaker containing a vertical tube (no text or labels visible)

Illustration of a hand using a handheld device to press or install a component, showing internal structure and a downward arrow (no text or symbols)

D

Illustration of a modern water dispenser with a cup and lid (no text or symbols)

Illustration of a hand pressing down on a circular component with a rotating top (no text or symbols)

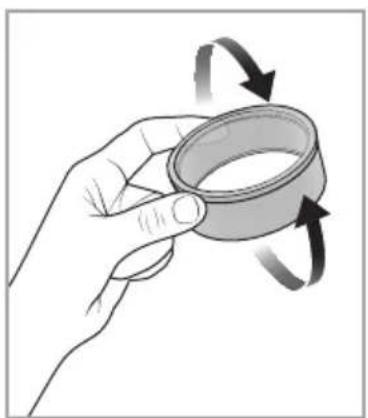

Hand holding a ring with circular arrows indicating rotation (no text or symbols)

Illustration of a hand pressing down on a circular component with a downward arrow (no text or symbols)

3D rendering of a cylindrical container with a curved line above it, no text or symbols present

Illustration of a coffee maker with a cup and lid (no text or symbols visible)

E

Illustration of a coffee maker with a glass lid and control panel, showing a rotating arm (no text or symbols)

Line drawing of a modern hand mixer device with open lid and control panel (no text or symbols)

Illustration of a coffee maker with a hand gesture indicating compression (no text or symbols)

F

Illustration of a hand washing machine (no text or symbols visible)

Illustration of a mechanical device with a fan and base mount (no text or symbols)

Illustration of a hand using a digital device to clean or store items on a kitchen sink (no text or symbols visible)

INFORMAZIONI PER LA SICUREZZA IMPORTANTE, DA LEGGERE E OSSERVARE

• Before using the appliance carefully read the Health and Safety, and Use/Care guides.
• Keep these instructions close at hand for future reference.
• YOUR SAFETY AND SAFETY OF OTHERS IS VERY IMPORTANT
• This manual and the appliance itself provide important safety warnings, to be read and observed at all times
• All safety warnings give specific details of the potential risk presented and indicate how to reduce risk of injury, damage and electric shock resulting from improper use of the appliance. Carefully observe the following instructions.
• Failure to observe these instructions may lead to risks. The Manufacturer declines any liability for injury to persons or animals of property if these advices and precautions are not respected.
• This product should not be used by children under 8 years old, unless supervised by an adult.
• Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and can use this appliance only if they are supervised. Alternatively these people can use if have been given instructions on safe appliance use and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

INTENDED USE OF THE PRODUCT

• This appliance is designed solely for domestic use. This product is not intended for commercial use. The manufacturer declines all responsibility for innapropiate use or incorrect setting of the controls.
• CAUTION: The appliance is not intended to be operated by means of an external timer or separate remote control system.
• Do not use the appliance outdoors.

en

• Do not store explosive or flammable substances such as aerosol cans and do not place or use gasoline or other flammable near the appliance: a fire may break out if the appliance is inadvertently switched on.
• Do not use accessories or attachments that are not recommended by the appliance manufacturer.
• Do not immerse the appliance body in water since this would give rise to electric shock.

INSTALLATION

• Repairs must be carried out by a qualified technician, in comp with the manufacturer's instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically stated in the user manual.
• Children should not perform installation operations. Keep children away during installation of the appliance. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, during and after the installation of the appliance.
• After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or our After Sales Service Dept.
• Keep children away during installation of the appliance.
• The appliance must be disconnected from the power supply before carrying out any installation operation.
• During installation, make sure the appliance does not c power cable.
• Only activate the appliance when the installation procedure has been completed.
• Do not let the supply cord hang over the edge of a table / counter or contact any hot surfaces.
• Do not place the appliance on or near a gas or electric cooktop (hob) or in a heated oven.
• Remove any protective wrapping or plastic bag before operating the appliance.
  • Use the appliance on a level stable work surface.

ELECTRICAL WARNINGS

• Make sure the voltage specified on the rating plate corresponds to that of your home.
• Regulation require that the appliance is connected to an earthed supply outlet.
• For appliances with a fitted plug, if the plug is not suitable for you socket outlet, contact a qualified technician.
• Do not use extension leads, multiple sockets or adapte connect the appliance to a socket which can be operated by remote control.
• The power cable must be long enough for connecting the appliance, once fitted in its housing, to the main power supply.
• Do not pull the power supply cable.
• If the power cable is damaged it must be replaced with an identical one. The power cable must only be replaced by a qualified technician in compliance with the manufacturer instruction and current safety regulations. Contact an authorised service center.
• Do not operate this appliance if it has a damaged mains cord or plug, if it is not working properly, or if it has been damaged or dropped. Do not immerse the mains cord or plug in water. Keep the cord away from hot surfaces.
• Do not touch the appliance with any wet part of the body and do not operate it when barefoot.
• If the power supply is cut, the appliance stays ON and starts again operating as soon as the power supply is restored.

CORRECT USE

• Turn the appliance off and unplug from the supply outlet when not in use, before cleaning, assembly, disassembly or interacting with any accessory.
• Do not leave the appliance unattended while is operating.
• The appliance is exclusively designed and must only be used to make espresso coffee with “Uso Capsule System” capsules.
  • Any other use shall be held improper and potentially dangerous.

en

• The manufacturer shall not be held responsible for any damage due to improper, incorrect or unreasonable use.
• Always disconnect the plug from the electrical socket before filling the tank.
• Use only cold tap water to fill the water tank. Use fresh water, only. Do not use sparkling mineral water or other fluids. Always ensure that the tank is filled with water.
• Running the water pump with no water will cause the pump to overheat.

CLEANING AND MAINTENANCE

• The appliance must be disconnected from the power supply before carrying out any cleaning or maintenance operation.
  • Never use steam cleaning equipment.
• Before use, and specially recommended before very first use, carefully wipe the outside of the appliance to remove any dust that may have accumulated, then dry it with a soft cloth. Do not use any harsh abrasive cleaners, alkaline cleaning agents or scouring agents.
• Wash the accessories in warm soapy water and then dry with a dry towel.
• To prevent any damage to the appliance do not use harsh solvents, alkaline cleaning agents, abrasive cleansers or scouring agents of any kind when cleaning. Do not immerse the main unit or supply cord in water.
• Wash the tank using a hard brush, water and washing-up liquid, then clean it thoroughly, dry it and put it back to place.

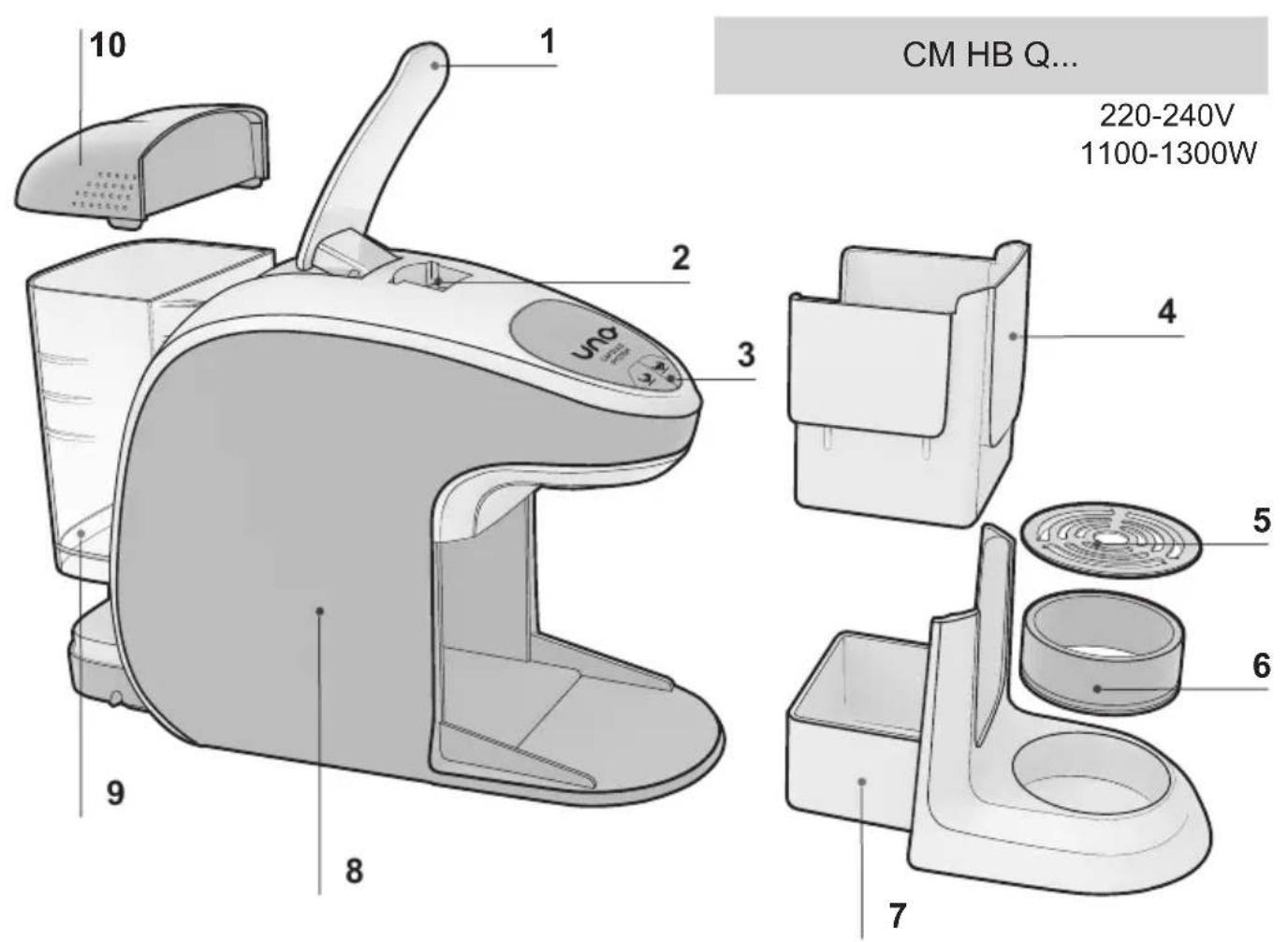

PARTS AND FEATURES

1. Capsule loading lever
2. Capsule insertion door
3. Short and long coffee buttons
4. Used-capsules container
5. Drip grid
6. Espresso cup support
7. Drip drawer
8. Main body
9. Removable water tank
10. Water tank lid

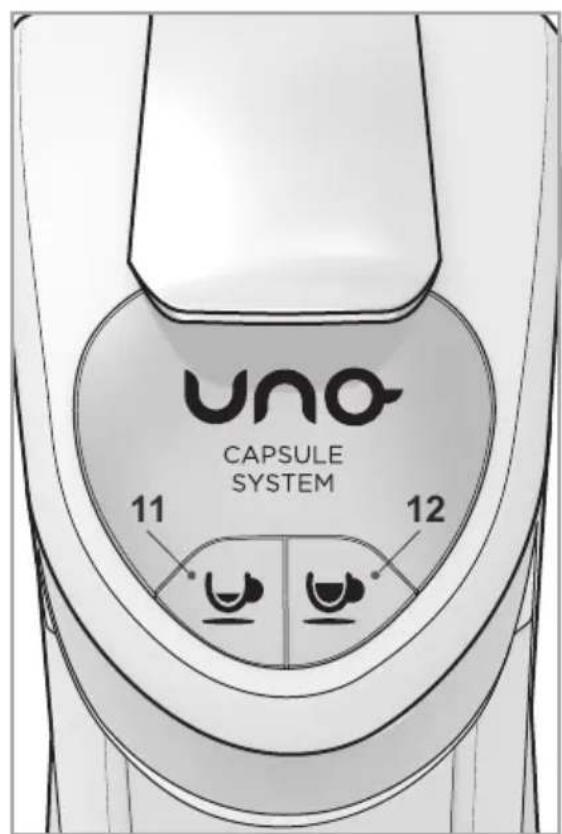

11. Short long coffee button
12. Long coffee button

INTRODUCTION

Thank you for purchasing our product.

In doing so, you have opted for an effective high-performance appliance.

If the instructions on the correct use of this appliance are not observed, the manufacturer shall assume no responsibility for any resulting damage.

The operating instructions may refer to different models: any difference is clearly identified.

Before you assemble the coffee maker, ensure the power cord is unplugged and take care that main body and all other parts are clean. See other 6. details in “Cleaning and Maintenance” section.

To assemble the coffee maker:

1. Fit the power cord on the cable rack on bottom of the machine based on its distance from the outlet (PICTURE A).
2. Remove the tank by lifting it upwards. In case it is not easy to take out, turn it slightly outwards.
3. O Fill the tank with water until maximum level Reinstall the tank by leaning it in place and press the top part until the complete joint. Make sure that the tank is securely fastened in order prevent water spill. Place the lid (PICTURE C).
4. Connect the plug to the socket. Switch coffee maker pressing the ON/OFF button on the back. The product turns on and the buttons flash together during the heating up of the machine. When the correct temperature is reached, the buttons light stops blinking.
5. Place a cup or a glass under the supplying spout. With the appliance heated up, and without

inserting any capsule, press the short coffee button (PICTURE B) and supply water for 10 seconds, then press the button again to stop. Repeat this procedure 3 times.

In case the coffee maker does not supply water, remove and plug the water tan checking the correct positioning. Repeat the operation until the machine dispenses water.

Use this procedure also in case the appliance has not been used for long time.

PREPARING THE COFFEE

Use UNO CAPSULE SYSTEM capsules, only.

1. Check the water level inside the water Make sure the water is greater than level and enough to brew the coffee.
2. Connect the plug to the socket, switch ON/OFF button and wait until the buttons light stops blinking.
3. Adjust the cup height. Both small espresso cups and large cappuccino cups can be used with this appliance. When supplying an espresso coffee remove the drip grid support from the drawer and place it upside-down on the drip container. Place the drip grid above the support. When supplying a cappuccino, place the drip grid support inside the drip container (PICTURE D).
4. Place the cup on the drip grid and center it under the supplying spout.
5. Slowly lift the loading lever back, until it put the capsule into the dedicated compartment that and place its outer edges in the guides. Fully at the lower the lever (PICTURE E).
6. Push dispensing button (PICTURE B). The machine automatically stops dispensing beverages with two configurations for short on the long coffee. Push the button again to stop it beforehand. The amount of brewed coffee in the cup may vary depending on the coffee blend used.
7. Once completed the supply, slowly lift the lever level back until it stops to remove the used capsule. It is recommended to not leave the used capsule in the brewing unit, but discharge it in the used capsules container as soon as the end of the supply.
8. Once supply 10 coffees, the buttons lights start blinking alternately. This alert indicates that were dispensed 10 coffees and consequently the used-capsules-container may be full and it necessary to empty it. If the coffee maker is switch off or unplug from power supply, the warning could be reset.

en

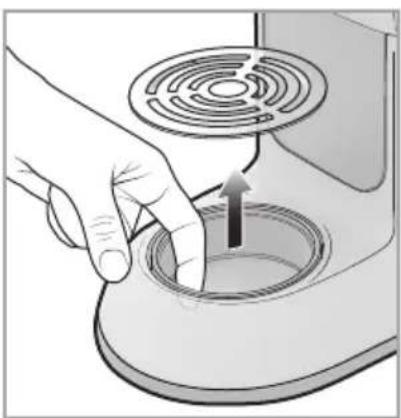

1. Slightly lift the drip tray up and pull it out of the appliance. Remove the container from the tray, empty it and rinse it. Clean the tray and the grid from water and coffee residues. Reassemble all the components and put the drip tray place, together with the container (PICTURE F).
2. Push one of the coffee supply buttons to eliminate the warning of "full used-capsules-container".

The unit enters standby mode after 10 minutes of inactivity. To turn it on, press the one of the two coffee supply buttons.

TIPS

Use thick, preheated cups when preparing Espresso: this will keep your coffee warm for longer.

• Daily, wash the supplying unit pressing the long coffee button without inserting any capsule and supply water for 10 seconds, then press the button again to stop. Place a cup to collect the water dispensed.
• Use a wet cloth to clean the unit, do not use abrasive detergents.
• After using the appliance, slightly lift the drip tray up slightly and pull it out of the appliance. Wash the components with lukewarm water and normal washing-up liquid. Empty the water from the tank, rinse it and dry it.

DESCALING

Lime scale built-up is a natural consequence of appliance use. Descaling must be performed once every 4 weeks; if the water is very high, it is needed more often. Descaling frequency may be reduced with soft waters. To descale your appliance, use any commercially available non-toxic product.

1. Unplug the appliance from main supply, remove the tank and empty it.
2. Fill the tank with the descaling solution and follow the instructions on the product package.
3. Plug the appliance and wait until it heats up. Press the long coffee button without inserting any capsule and supply water for 10 seconds, then press the button again to stop. Place a cup to collect the water dispensed.

4. Unplug the appliance from main supply and leave the descaling solution in for about 10-15 minutes, with the appliance off.

5. Repeat the procedure of point 3 and 4 until there is no more descaling solution in the tank.

6. Remove the water tank, rinse it thoroughly and fill it again with fresh drinkable water.

7b Back the appliance and wait until it heats up. Press the long coffee button without inserting any capsule and supply water for 10 seconds, then press the button again to stop. Repeat the procedure until the tank is emptied. Place a cup to collect the water dispensed.

1. When the tank is empty, Unplug the ap from main supply and fill the water ta and repeat the procedure from point 6.
2. When the second rinsing cycle is complete up the tank again. The appliance will ready for use.

LONG PERIODS WITHOUT USING THE APPLIANCE

• If the appliance is not used for longer periods of time, switch it off and unplug it from the wall.
• Store the appliance in a dry place, away from dust and out of the reach of children.
• It is recommended to store the appliance in its original packaging.
• Temperatures in the storage area should not be lower than 5^ircC , in order to avoid any damage to the inner parts of the appliance due to water freezing.

SAFEGUARDING THE ENVIRONMENT

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol (*). The various parts of the packaging must therefore be disposed of responsibility and in full compliance with

local authority regulations governing waste disposal.

SCRAPPING OF HOUSEHOLD APPLIANCES

When scrapping the appliance, make it unusable by cutting off the power cable and delete and removing the doors and shelves, so that children cannot easily climb inside and become trapped.

This appliance is manufactured with recyclable (*) or reusable materials. Dispose of it in accordance with local waste disposal regulations.

For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchased the appliance.

This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol (*) on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical

and electronic equipment.

DECLARATION OF CONFORMITY

This appliance has been designed, constructed and distributed in compliance with the safety requirements of European Directives:

• 2006/95/EC Low Voltage Directive
• 2004/108/EU Electromagnetic Compatibility Directive

Indesit Company SpA Viale Aristide Merloni, 47 60044 Fabriano (AN), Italy

www.indesitcompany.com

CM HB Q... - BASIC 12/2015 - ver.3.0
