Product Type	Freezer
Brand	Nevir
Model	NVR-4441 CV-235
Energy Class	F
Annual Energy Consumption	250 kWh
Freezer Net Capacity	200 L
Freezer Star Rating	4 stars
Freezing Capacity	10 kg/24h
Storage Time in Power Failure	12 h
Noise Level	42 dB(A)
Climate Class	SN, N, ST, T
Defrost Type	Manual
Door Hinge Side	Left, reversible
Adjustable Shelves	Yes
Interior Light	No
Lock	Yes
Dimensions (H x W x D)	85.0 x 60.0 x 60.0 cm
Weight	35 kg
Power Supply Voltage	220-240 V, 50 Hz
Power Cord Length	1.5 m
Refrigerant Type	R600a
Spare Parts Availability	7 years

Frequently Asked Questions - NVR-4441 CV-235 NEVIR

What is the ideal temperature setting for the Nevir NVR-4441 CV-235 freezer?

The recommended temperature for long-term storage is -18°C. Use the thermostat dial to adjust; higher numbers mean colder settings.

How do I defrost the freezer?

This model requires manual defrosting. When ice thickness exceeds 5 mm, unplug the freezer, remove food, and let ice melt. Do not use sharp tools to remove ice.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to change the hinge side. You will need a screwdriver.

How do I clean the freezer?

Unplug the unit and remove all food. Use a mild detergent with warm water to clean the interior and exterior. Rinse and dry thoroughly before plugging back in.

What should I do if the freezer is not cooling enough?

Check that the temperature dial is set correctly. Ensure the door seals tightly and the condenser coils at the back are clean. Also allow adequate ventilation around the unit.

Is the freezer suitable for garage use?

This model has a climate class of SN, N, ST, T, meaning it can operate in ambient temperatures from 10°C to 43°C. Avoid placing it in unheated spaces below 10°C.

How long does the freezer keep food cold in a power failure?

The storage time under power failure is approximately 12 hours, provided the door remains closed. Do not open unnecessarily.

Where can I find replacement parts?

Contact Nevir customer service or check online spare parts retailers. The manufacturer guarantees spare parts availability for at least 7 years after purchase.

How do I install the freezer?

Place the freezer on a level, stable surface. Allow at least 10 cm clearance at the back and sides for ventilation. Plug into a grounded socket. Wait 4 hours after installation before loading food.

What is the noise level of this freezer?

The noise level is approximately 42 dB(A), which is normal operation. Some sounds from the compressor and refrigerant are expected.

USER MANUAL NVR-4441 CV-235 NEVIR

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

Line drawing of a server rack with multiple drawers and a front panel (no text or symbols)

X1 X1 X3 X2

Line drawing of a rectangular drawer with internal compartments (no text or symbols)

Line drawing of a rectangular drawer or drawer box with two side drawers (no text or symbols)

Simple line drawing of a rectangular box with two side slots (no text or symbols)

Pure technical line drawing of a rectangular component with internal slots and a central slot (no text or symbols)

X1 X1

Diagram of a dual-chamber server rack with multiple drive bays and indicator lights (no text or labels)

Simple line drawing of a hand holding a tool near a small cartoon character (no text or symbols)

Pure electrical circuit lines without any symbols

White refrigerator with open door showing front shelves filled with food items including fish and snacks (no visible text or labels)

Consejos generales

Thanks you for purchasing single door upright freezer NVR-4441 CV-235. This product has been designed by our engineering team following the quality requirement at each development step.

For a beer use of your new device, we recommend you to read carefully this user manual and keep it for record.

Unpacking

Illustration of a desktop computer tower with multiple drive bays (no text or labels visible)

MANUAL

Line drawing of a rectangular drawer with internal compartments (no text or symbols)

Line drawing of a rectangular drawer or drawer box (no text or symbols)

X1 X1 X3 X2

Line drawing of a rectangular drawer with handle and side slots (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

X1 X1

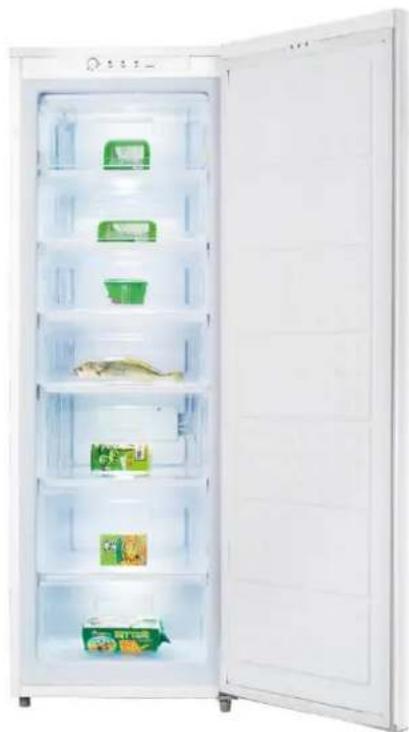

Presentaon of your new freezer (check pict. page 2)

1- Thermostat knob
2-Flap

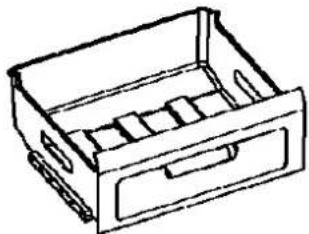

3- Middle drawer

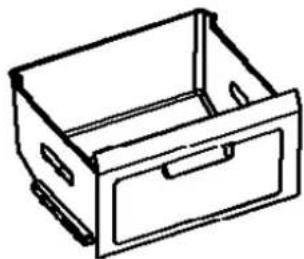

4-Big drawer
5-Lower drawer
6-Adjustable feet

IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Important warning:

• DO NOT REMOVE GROUND PRONG
• DO NOT USE AN ADAPTOR
• DO NOT USE WITH AN EXTENSION CORD
- Failure to follow these instrucons can result in death, re or electrical shock.
- Before you move your freezer into its nal locaon, it is important to make sure you have the proper electrical conncon.

Gas warning:

Cauon: risk of re!

• Due to the ammable refrigerant (R600a) and/or the ammable insulaon blowing gas used, this gas is natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.
• Refrigerant and/or insulaon blowing gas squirng/leaking out of the pipes or body of appliance could ignite or cause an eye injury. If eak is detected, avoid any naked ames or potenal sources of ignition and air the room in which the appliance is standing for several minutes.
  • Servicing and repair of R600 are frigerant shall be done by qualified service technicians.
• Do not damage the refrigerant circuit.

Storage warning:

• Do not store or use gasoline, ether, benzene, LP gas, and glue or any other ammable vapors and liquids in the vicinity. Failure to do so can result in death, explosion, re or burns.
• Do not store boiled drink in the freezer to prevent from being broken and damaging the freezer.
• Do not place heavy, pointed or corrosion objects in the compartment.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Child warning:

- Risk of child entrapment. To avoid possibility of child entrapment, please take the following precautions before recycling :

a. Remove the door from the unit
b. Leave the shelves in place so that children many not easily climb inside.

• Children should be supervised to ensure that they do not play with the appliance.

Cleaning warning:

• The appliance has to be unplugged aer use and before carrying out user maintenance on the appliance.
- Never clean freezer parts with ammable uids. The fumes can create a re hazard or explosion.
- When defrosng, never use any sharp or metallic objects to remove the frost on the surface of the evaporator as it will damage the evaporator.
- Do not splash water on the freezer; it may cause malfuncon and electric shock.

Use warning:

• Do not pull on the conneccon cord, but rather on the plug, to separate the appliance from the mains.
• Do not touch food or containers in the freezing compartment with your wet hands so as to prevent from being frostbien.
• Bulb is hot when lighng, do not aempt to touch.
• Do not touch the compressor as the surface may be come hot.
• Before plugged in, check in the electric voltage to be used t is the same as the rated voltage. The power plug should have its independent socket.
• A220-240V\~50Hz10A fused and properly earthed electrical supply is required.
  • Is recommended to use a separate circuit or separate receptacle for the freezer.
• This appliance is not intended for use by person(including children)with reduced physical, sensory, mental capabilities, or lack of experience and knowledge, unless they have been give supervision to ensure that they do not play with the appliance.

Quick start guide

Install your freezer

Warning:

• Use two or more people to move freezer. Failure to do so can result in back or other injury
• This appliance is designed for domesc use only. Do not use outdoor.
• Keep venlaon openings, in the appliance enclosure or in the built-in structure, clear of obstrucon.
  • Stand the appliance on a stable or at surface.
• When moving the freezer, do not lt the freezer beyond 45° from upright posion
• Never install your freezer near heat source or direct sunlight

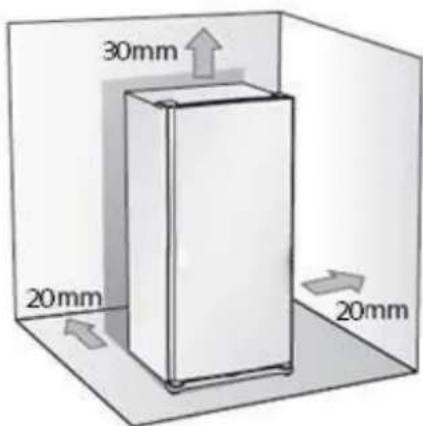

Install the freezer in a venlated locaon and respect the minimum space distance

Level your freezer

If the freezer is not correctly level during installaon, the doors may not well close or seal properly which will cause cooling, frost or moisture problems.

Diagram of a dual-chamber office rack with multiple drawers and a central control panel (no text or labels)

Turn the right and / or le adjustable legs to level the freezer horizontally

Clockwise screwing to Decrease the height

Diagram of a server rack with three drawers and a grid-patterned cabinet, connected to two labeled devices (no text or symbols present)

Anclockwise screwing to increase the height

Use your freezer

Important:

When operang the freezer for the rst me, set the thermostat to 1 without loading any food and let it operated during 3 hours.

The posion of the thermostat depends on the room ambient temperature and also about the quantity of food stores in the freezer. For more details please read carefully the chapter "Storage advices"

Plug it to a socket outlet

Seng the temperature using the knob located inside the freezer compartment: MIN for less cold to MAX for colder

Simple line drawing of a hand holding a small object with a smiley face, no text or symbols present

Pure electrical circuit lines without any symbols

Food storage advices

General advices

Before placing food items in the freezer, wrap them carefully. This prevents food odor and taste transfer throughout freezer.

Also let enough space at the front so the door can close ghtly.

Keep the seal clean and so in order to don't lose cold air.

If there is some power interrupon, please do not open the doors in order to keep inside the cold air.

Frozen food storage

The freezer compartment is designed for storing frozen food and for freezing food at home.

Aer defrost, never freeze another me the food.

Put in adapted protecve bag or container all foods.

We advise you to split the food in small quantity.

Energy savings

By removing carton and package before pung food in the freezer, you reduce the power consumption because freezer cools down quickly the food.

By overlling your appliances, you push the compressor to work during a longme: so you increase your power consumpon.

Never put warm food in the freezer: let it be cooldown until the room temperature before storing.

When you defrost some frozen food, put it in the freezer: the defrosng energy is used to cool down other food instead of use compressor power.

Keep the seal clean and so in order to don't lose cold air.

Keep the door close and open the freezer only when necessary. Remember that each time you open the door, the cold air is lost and you over work the compressor.

For best performance, leave enough space in the freezer for air to circulate around the packages.

Defrost

Important:

Do not use knives or metal objects to defrost

To defrost parally the freezer compartment, you can remove the frost with a scraper (provided with the appliance).

If the frost thickness is more than 10mm, you need to do a fully defrost. Please follow the below process to do it:

1. Remove all foods, ice cube tray and shelf of the freezer and freezer compartment( store them in other cold place)
2. Turn the thermostat knob to OFF and leave the freezer door opened.
3. Clean and wipe out the melted frost with a cloth.
4. Aer defrosng, you knob the thermostat the origin posion the turn.

Troubleshoong

PROBLEMS	VERIFICATION	SOLUTIONS
The freezer does not operate	The power supply cord is unplugged.	Plug on the cable
	The thermostat knob is set to OFF posion.	Modify the thermostat knob seng
	The household fuse or circuit breaker has blown out.	Replace the fuse
The freezer makes some unusual noises	Verify that the freezer is correctly leveled	Follow our advices to level your freezer
	The freezer body touches the wall	Respect the space requirement
	Gurgling noises are produced by the circulaon of the refrigerant in the pipes and should not be considered like a problem.
The doors cannot close correctly	Verify that the freezer is correctly leveled	Follow our advices to level your freezer
	Food package are blocking the door	Remove the package of food and sort the Food in the freezer
	The gaskets are dirty	Clean your freezer totally
	The shelve are out of posion	Replace correctly the shelve

Requesng assistance or service

If the problem is not due to one of the items listed in these trouble shoong, contact your dealer or authorized Service Company. Please never repair by yourself.

Technical specicaons

Protecon class	I
Climate type	N/ST
Volume	235L
Rated Voltage	220-240V
Rated Frequency	50Hz
Power consumpon	0.7 kWh / 24H
Frozen power	12 Kg / 24H
Classicaon	****
Rate Current	0.65A
Refrigerant	R600a 95g
Foaming Agent	Cyclopentane
Size(width/depth/height):	596x595x1744mm

Recycling

This product bears the selecve sorng symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment.

For further informaon, please contact your local or regional authorities.

Electronic products not included in the selective sorng process are potentially dangerous for

The environment and human heath due to the presence of hazardous substances.

Netweight: 61 Kg
