Product Type	Wine Cellar
Brand	Kelvinator
Model	KI150WCSS
Total Capacity	150 bottles (standard Bordeaux)
Temperature Range	5°C - 18°C (41°F - 64°F)
Cooling System	Compressor
Noise Level	< 42 dB
Interior Light	LED
Door Type	Double-pane tempered glass, reversible
Shelves	5 sliding wooden shelves
Lock	Yes
Defrost	Automatic
Power Supply	115 V ~ 60 Hz
Power Consumption	0.8 kWh/24h (approx)
Dimensions (H x W x D)	84.3 x 59.5 x 57.3 cm (33.2 x 23.4 x 22.6 in)
Weight	49.5 kg (109 lb)
Energy Class	A
Climate Class	SN, N, ST
Refrigerant	R600a
Installation Type	Freestanding
Warranty	1 year parts and labor

Frequently Asked Questions - KI150WCSS KELVINATOR

How do I set the temperature on the Kelvinator KI150WCSS?

Use the digital control panel on the front. Press the '+' or '-' buttons to adjust the temperature. The display shows the current set temperature.

What is the ideal temperature for storing different types of wine?

Red wine: 12°C-18°C (54°F-64°F), white wine: 8°C-12°C (46°F-54°F), sparkling wine: 5°C-8°C (41°F-46°F). The wine cellar allows precise adjustments.

Why is my wine cellar making noise?

Normal sounds include the compressor and circulating fan. If noise is excessive, ensure the unit is level and not touching walls or cabinets. The noise level is below 42 dB.

How should I clean the inside of the wine cellar?

Unplug the unit first. Use a soft damp cloth with mild detergent. Do not use abrasive cleaners or solvents. Rinse with clean water and dry thoroughly.

Can I store drinks other than wine in this cellar?

Yes, you can store other beverages, but the temperature range is optimized for wine. For soda or beer, adjust temperature accordingly. Avoid storing food with strong odors.

How does the automatic defrost function work?

The cellar defrosts automatically. Frost melts and water evaporates. No manual defrosting required. Ensure the drainage hole is not blocked.

What should I do if the door does not seal properly?

Check if the unit is level. Clean the door gasket with warm water. If damage, contact support. A proper seal is crucial for temperature stability.

Is this wine cellar suitable for long-term aging?

Yes, the compressor cooling maintains a stable temperature, ideal for aging. The UV-protected glass door and vibration-reducing compressor help preserve wine.

How many standard bottles fit in the KI150WCSS?

It holds up to 150 standard Bordeaux bottles (750 ml). Shelves are designed to maximize capacity while allowing proper air circulation.

Does the wine cellar have UV protection?

Yes, the tempered glass door has UV protection to shield wine from harmful light that can cause premature aging.

USER MANUAL KI150WCSS KELVINATOR

WINE CELLAR

Model: KI150WCBS KI150WCSS

INSTRUCTION MANUAL

- Plug the appliance into an exclusive properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and or grounding should be directed toward a certified electrician or an authorized Kelvinator Products service center. - Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Kelvinator Products service center.

G_m = p - w

Important Safety Instructions

- Read all instructions before using the appliance. - Child entrapment and suffocation are not problems of the abandoned appliances are still dangerous... even if the the garage a few days."

Before you throw away your old wine cellar:

• Take off the door, leave the shelves in place, so that children may not easily climb inside.

- Never allow children to operate, play with, or crawl inside the appliance. - Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion. - Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire or explosion.

INSTALLATION INSTRUCTIONS Before Using Your Wine Cooler

- Remove the exterior and interior packing, including protective foam on door panels.

- Check to be sure the following parts are included:

- 3 slide out shelves

* 1 wine rack

- 1 Instruction manual

- Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

- Clean the interior surface with lukewarm water using a soft cloth.

Installation of Your Wine Cooler

- Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the legs at the front of the appliance.

- Allow 5 inches of space between the back and sides of the appliance, which allows the proper air circulation to cool the compressor. - Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance not to perform properly. - Avoid locating the appliance in moist areas. Too much moisture in the air will cause frost to form quickly on the evaporator.

Reversing the Door Swing of Your Wine Cooler

This wine cooler has the capability of either opening the door from the left or right side. The unit is delivered to you with the door opening from the right side. Should you desire to reverse the opening direction, please follow these instructions.

NOTE:

Before Reversing the door ,the power must be shut off.

All parts removed must be saved to do the reinstallation of the door.

This wine cooler has been built with the door hinges on the right. If you wish to change the opening direction, follow the instructions below:

1. Remove the upper hinge cover(6) first.

2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame. Take away the upper hinge (5).

3. Lift the door and place it on a padded surface to prevent scratching it.

4. Remove the two screws (10) that hold the handle (11) (on the right sid

Change the handle to the left side frame.

1. Remove the two screws(8) that hold the lower hinge(2) and Make sure to Remove the lower hinge(2).

2. Remove the left front leg (4) and transfer it to the right side.

3. Remove the hole cover plate(7) to the right side.

4. Before placing this lower hinge(2), remove the bolt-pin (9) and reverse the direction of the lower hinge(2). Then install the lower hinge (2) onto the left side of the lower frame with two screws (8).

5. Insert the bolt-pin(9) to the lower hinge (2).

6. Set the door to its place making sure the door seat at the lower hinge(2).

7. While holding the door in the closed position secure the upper hinge (5) in the

top frame of left side with two screws (1). Please remember that do not tighten the two screws(1) until the top of the door is leveled with the counter top.

1. Install the upper hinge cover(6) on the upper hinge.

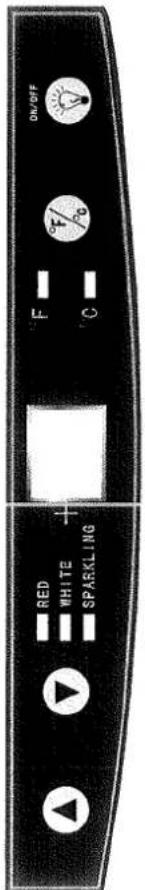

HOW TO USE THE BUTTONS ON THE DISPLAY PANEL:

You can set the temperature as you desire by pushing the button Ⓐ or Ⓥ. When you push the two buttons for first time, the LED readout will show the original temperature set at previous time (the temperature preset at the factory is 50°F). The temperature that you desire to set will increase 1°F or 1°C if you push the Ⓐ once, on the contray the temperature will decrease 1°F or 1°C if you push the Ⓥ once.

FIGURE 2

Door opening from right side

FIGURE 1

Door opening from left side

When you store mostly red wines, the temperature which you control by pushing the above two buttons needs to be set between 15.5 to 18.5°C and the LED lamp beside "RED" will be lit red.

When you store mostly white wines, the temperature needs to be set at between 10 to 15°C and the RED lamp beside "WHITE" will be lit green. When you store mostly sparkling wines the temperature needs to be set at between 7.2 to 9.5°C and the LED lamp beside "SPARKLING" will be lit amber. You can select temperature display setting from Fahrenheit to Celsius degree by pushing the button marked F/C.Fahrenheit degree indicator will appear in red color in the display marked F and the Celsius degrees indicator will appear in yellow color in the display marked °C. You can turn the interior light on or off by pushing the button marked ON/OFF symbol.

Shelves

Shelving is chrome plated. To accommodate different size bottles, they can be moved up or drown by sliding them out of the tracks. The shelves are designed to accommodate the maximum amount of bottles.

Wine Rack

There is an additional wine rack at bottom section of the unit where you can store up to 6 wine bottles. This rack is removable for cleaning purpose.

NOTE:

When you use the wine cooler for the first time or restart the wine cooler after it has been turned off for long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the wine cooler is running for a few hours everything will be back to normal.

Also, there is a 4 to 6°C variance between the top and bottom shelves of the wine cellar. Therefore, if you have set the wine cooler for red wine only and the temperature reads 16°C and you want to place a mix of white and red wines, you should place the wine bottles on the bottom shelves and the red wines on the top shelves.

CARE AND MAINTENANCE

CHANGING THE LIGHT BULB

Note: All parts removed must be saved to do the replacement of the light bulb. Before removing the light bulb, either unplug the refrigerator or disconnect the electricity leading into the refrigerator at the main power supply. Failure to do so could result in electrical shock or personal injury. Light bulb should not exceed 5 watts.

Cleaning Your Wine Cooler

• Unplug the wine cooler, and remove the bottles.

- Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water. - Wash the shelves and trays with a mild detergent solution. - The outside of the wine cooler should be cleaned with mild detergent and warm water. - It may also be necessary to periodically wipe the bottom part of the storage area, as the wine cooler is designed to retain humidity, and condensation may collect there.

Maintenance of Your Wine Cooler

- Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your wine cooler if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your conte

Vacation Time

During long absences, remove all the bottles; unplug your wine cooler, clean your wine cooler, and leave the door open slightly to avoid possible formation of condensation, mold, or odors.

Moving Your Wine Cooler

- Remove all the bottles.

- Securely tape down all loose items inside your wine cellar. - Turn the leveling screws up to the base to avoid damage. - Tape the doors shut.

- Be sure the wine cooler stays in the upright position during transportation.

Troubleshooting
You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE

Vibrations.	Check to assure that the wine cooler is level.
The wine cooler seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your wine cooler.Contraction and expansion of the inside walls may cause popping and crackling noises.The wine cooler is not level.
The door will not close properly.	The wine cooler is not level.The doors were reversed and not properly installed.The gasket is dirty.The shelves are out of position.

Technical Specifications:
For detailed specifications, please refer to the nameplate at the back of the wine cellar. The specifications are subject to change without prior notice due to products improvement.

PROBLEM	POSSIBLE CAUSE
Wine cooler does not operate.	Not plugged in.The circuit breaker tripped or blown fuse.
Wine cooler is not cold enough.	Check to be sure the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.The wine cooler does not have the correct clearances.
Compressor turns on and off frequently	The room temperature is hotter than normal.A large amount of warm wine has been added to the wine cooler.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The wine cooler does not have the correct clearances.
The light does not work.	The home circuit breaker or fuse has tripped.The wine cooler is unplugged.The bulb has burned out(see maintenance section for the replacement procedure).The switch is in the "OFF" position.
