VSC4507 - Wine cellar Saivod - Free user manual and instructions

Product Type	Wine Cellar
Brand	Saivod
Model	VSC4507
Capacity	Approximately 45 bottles
Dimensions (HxWxD)	840 x 530 x 560 mm
Weight	Approximately 38 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption	Approximately 100 kWh/year
Temperature Range	5-18°C
Control Type	Digital thermostat with LED display
Cooling System	Compressor-based, vibration-free
Interior Light	LED, on/off switch
Shelves	5 wooden shelves, slide-out
Door Lock	Yes, key-lockable
UV Protection	Yes, tinted glass door
Humidity Control	Passive, via interior lining
Noise Level	< 42 dB
Installation Type	Freestanding
Climate Class	N/ST (16-38°C ambient)
Cleaning	Mild soap and water, avoid abrasives
Spare Parts Availability	Cooling unit, shelf rails, door gasket
Safety Features	Automatic defrost, overload protection
Warranty	2 years manufacturer warranty

Frequently Asked Questions - VSC4507 Saivod

What is the ideal temperature for storing red and white wines?

For red wines, set the temperature between 12-18°C, and for whites, between 8-12°C. The VSC4507 allows precise digital control within 5-18°C.

How do I clean the wine cellar?

Unplug the unit. Use a soft cloth with mild soap and water. Avoid abrasive cleaners or solvents. Clean the condenser grille every 6 months for efficiency.

Why is my wine cellar making noise?

Normal sounds include the compressor running and refrigerant flow. Check if the unit is level. An uneven floor can cause vibrations. If noise is excessive, contact service.

How many bottles does the VSC4507 hold?

It holds approximately 45 standard Bordeaux bottles. Shelves are adjustable and can accommodate larger bottles.

Can I install this wine cellar inside a cabinet?

No, the VSC4507 is a freestanding model. It requires adequate ventilation around the back and sides (at least 10 cm clearance).

How do I set the temperature?

Press the '+' or '-' buttons on the control panel to adjust the desired temperature. The display shows the set temperature; actual temperature may vary slightly.

Does the wine cellar have a lock?

Yes, it comes with a key-lockable door. The keys are included in the accessory bag. Keep them in a safe place.

What should I do if the interior light is not working?

Check the power supply. If the unit is on and the light still doesn't work, the LED may need replacement. Contact customer service for assistance.

How do I defrost the wine cellar?

The VSC4507 features automatic defrost. No manual defrosting is needed. Ice may form temporarily but will melt and drain automatically.

Is the wine cellar energy efficient?

Yes, it consumes about 100 kWh per year. To save energy, place it in a cool, well-ventilated area away from direct sunlight and heat sources.

USER MANUAL VSC4507 Saivod

- FUNCIONAMIENTO

VSC4507

Technical line drawing of a mechanical assembly with two views: top shows horizontal beams and circular features, bottom shows a close-up of a component (no text or symbols)

NOTA:

MANUAL DE INSTRUÇÕES

VSC4507

Technical line drawing of a mechanical assembly with two views: top shows a vertical panel with horizontal bars, bottom shows a circular component inserted into a housing (no text or symbols)

NOTA:

• To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.
• The appliance must be positioned so that the plug is accessible. Release the electric cord. Move your cabinet to its final location. Do not move your Cabinet while loaded with wine. You might distort the body. The wine cellar should be installed in a suitable place in order to avoid Touching the compressor with the hand.
• If the supply cord is damaged, it must be replaced by manufacturer of its Service agent or a similarly qualified person in order to avoid a hazard.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

Read all instructions before using the Wine cooler.DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.Before you throw away your old Wine cooler: Take off the door. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the appliance.Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Wine cooler

• Remove the exterior and interior packing.
• Before connecting the Wine cooler to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
  • Install the handle on the left side of the door.
• When replace the illuminating lamp, please select the lamp which comply with the rated power input of lamp according to the rating label. Shut off the power supply before replacing the lamp.
• When disposing your appliance, please choose an authorized disposal site.

Installation of Your Wine cooler

• This appliance is designed to be for free standing installation only.

• Place your Wine cooler on a floor that is strong enough to support it when it is fully loaded. To level your Wine cooler, adjust the front leveling leg at the bottom of the Wine cooler.
• Locate the Wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
• Avoid locating the unit in moist areas.
• Plug the Wine cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Products service center.

Reversing the Door Swing of Your Appliance

This appliance has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please call service for reversal instructions.

Attention

• Store wine in sealed bottles.
• Do not overload the cabinet.
• Do not open the door unless necessary
• DO not cover shelves with aluminum foil or any other shelf material which may prevent air circulation.
• Should the Wine cooler be stored without use for long periods it is suggested, after a careful cleaning, to leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible formations of condensation, mold or odors.

The Wine cooler should be placed in where the ambient temperature is between 5-35°C. If the ambient temperature is above or below this range, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 5-18°C(40-65 degrees Fahrenheit) may not be reached.

The controls of your Wine cooler

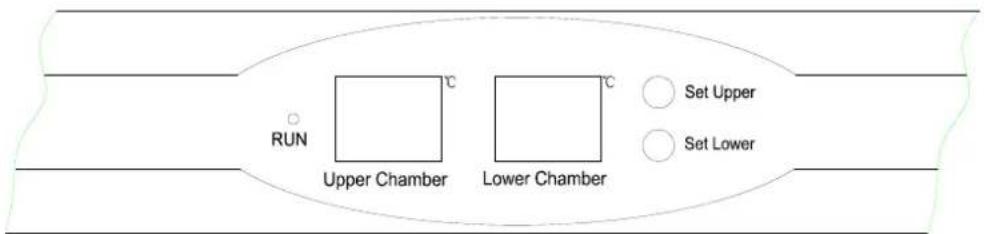

VSC4507

• RUN

Indicator light illuminates to signify the cooling mode is currently in operation.

- "Set Upper" Button

Used to set temperature in upper zone.

- "Set Lower" Button

Used to set temperature in lower zone.

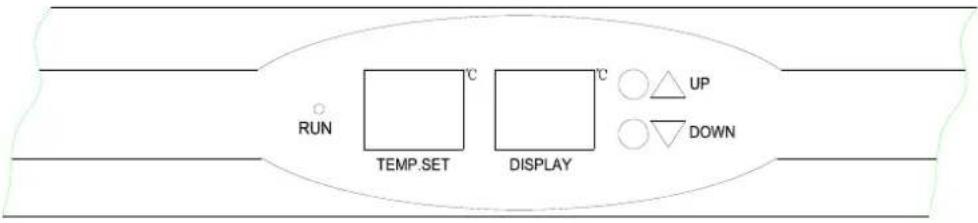

VSC3207 VAC0732

• RUN

Indicator light illuminates to signify the cooling mode is currently in operation.

- "UP" Button

Used to raise(warm) the temperature in 1°C.

- "DOWN" Button

Used to lower(cool) the temperature in 1°C.

Setting the Temperature Control

VSC4507

• The Wine cooler has two temperature zones.

• Upper zone – temperature range 5°C to 10°C

- Lower zone – temperature range 10°C to 18°C

- You can set the required temperature either zone by pushing the Set Upper or Set Lower button. When you push the two buttons for the first time, the LED readout will show the previously set temperature set for that zones.

• The temperature preset at the factory are:

Upper zone:: 6°C

Lower zone: 12°C

- To set the temperature in the Upper zone press Set Upper button once. The present temperature will flash. The temperature will decrease by every time the button is pressed until minimum temperature is reached, at which point it will then revert back to its maximum setting and start again.

- To set the temperature in the Lower zone press the Set Lower button and follow the instructions above.

- To view the temperature set in either zone at any time, press the corresponding "Set Upper" or "Set Lower" button, the "Set" temperature will temporarily flash in the LED display for 5 seconds.

VSC3207 VAC0732

• The Wine cooler has one temperature zone.

• Temperature range 5°C to 18°C

- You can set the temperature as you desire by pushing the UP or DOWN button. When you push the two buttons for the first time, the LED readout will show the original temperature set at previous time.

• The temperature preset at the factory is 12^ C ( 54^ F)

- The temperature that you desire to set will increase 1^ C if you push the UP button once, on the contrary the temperature will decrease 1^ C if you push the DOWN button once.

How to remove the shelf

VSC3207 VAC0732

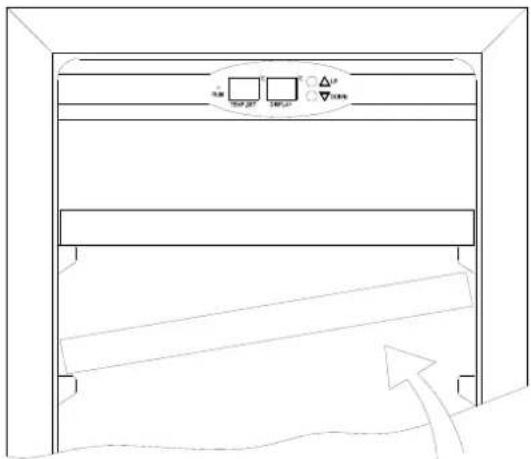

To fit or remove the shelf, tilt the shelf as per the diagram and simply pull out, or push in the shelf until it sits on the support brackets securely.

VSC4507

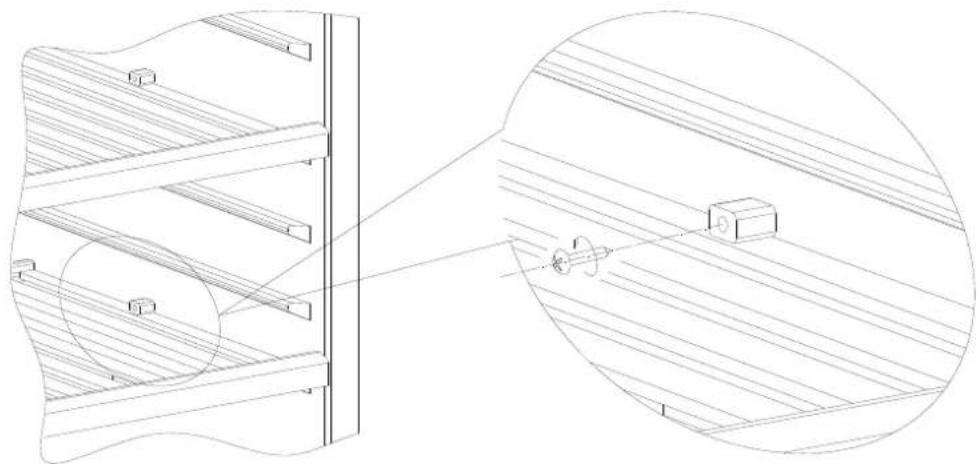

Firstly remove both of the plastic posts with the Phillips screwdriver, then pull on onward direction to remove the shelf.

Technical line drawing of a mechanical assembly with two views: top shows a vertical panel and circular component, bottom shows a close-up of a mechanical component (no text or symbols)

NOTE:

• If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine cooler will not start.
• When you use the Wine cooler for the first time or restart the Wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the Wine cooler is running for a few hours everything will be back to normal.

CARE AND MAINTENANCE

▶ Cleaning Your Wine cooler

• Turn off the power, unplug the appliance, and remove all items including shelves and rack.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

Power Failure

- Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

▶ Vacation Time

- Short vacations: Leave the Wine cooler operating during vacations of less than three weeks.

- Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

▶ Moving Your Wine cooler

• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.

Energy Saving Tips

- The Wine cooler should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.

PROBLEMS WITH YOUR WINE COOLER?

You can solve many common Wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Wine cooler does not operate.	Not plugged in.The appliance is turned off.The circuit breaker tripped or a blown fuse.
Wine cooler is not cold enough.	Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.
Turns on and off frequently.	The room temperature is hotter than normal.A large amount of contents has been added to the Wine cooler.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse.The bulb has burned out.The light button is “OFF”.
Vibrations.	Check to assure that the Wine cooler is level.
The Wine cooler seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine cooler.Contraction and expansion of the inside walls may cause popping and crackling noises.The Wine cooler is not level.
The door will not close properly.	The Wine cooler is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves are out of position.
