ST550_ST-560 - Camera SAMSUNG - Free user manual and instructions

Product Type	Digital Camera
Brand	SAMSUNG
Model	ST550 / ST-560
Sensor	CCD 1/2.33" (7.79 mm), 12.2 effective megapixels
Lens	Schneider-KREUZNACH f = 4.9 - 22.5 mm (equiv. 27 - 124.2 mm in 35 mm)
Aperture Range	F3.5 (W) - F5.9 (T)
Main Screen	3.5" (8.9 cm) touchscreen, 1,152,000 dots
Front Screen	1.5" (3.8 cm) TFT LCD, 61,000 dots
Focus	Auto TTL: multi-zone, center, face, touch, one-touch
Shutter Speed	Auto: 1/8 - 1/2000 s; Program: 1 - 1/2000 s; Night: 8 - 1/2000 s; Fireworks: 2 s
Storage	Internal memory ~55 MB, microSD card (up to 4 GB guaranteed)
Battery	Lithium-ion SLB-07A, 720 mAh
Dimensions (W x H x D)	99.8 x 59.8 x 18.6 mm
Weight	165.7 g (without battery or memory card)
Operating Temperature	0 - 40 °C
Operating Humidity	5 - 85%
Connectivity	USB, Audio/Video, HDMI (via adapter)
Main Features	Self-portrait with front screen, smile detection, digital steady, Intelli-studio software
Power Supply	Rechargeable battery via USB charger or AC adapter
Safety	Do not use near flammable materials, keep out of reach of children, do not point flash at eyes closer than 1 m
Maintenance and Cleaning	Avoid dust, water, shocks; clean with a soft, dry cloth
Spare Parts and Repairability	Battery SLB-07A, charger, USB/Audio/Video cables, HDMI adapter; repair by a Samsung authorized service center

Frequently Asked Questions - ST550_ST-560 SAMSUNG

How to turn on the camera?

Press the Power switch on top of the camera. The screen turns on and displays the shooting interface.

How to insert the battery and memory card?

Open the battery compartment cover on the bottom of the camera. Insert the lithium-ion battery (SLB-07A) with the Samsung logo facing up. For the microSD card, insert it with the contacts facing up, then push until it clicks into place.

How to take a photo in Auto mode?

Make sure the camera is in Auto mode. Frame the subject, press the shutter button halfway to focus (a green frame confirms), then press fully to take the photo.

How to use the front screen for a selfie?

In shooting mode, press the front screen to turn it on. The camera automatically detects faces and can even trigger by detecting a smile. Then press the shutter button as usual.

How to record a video?

Select the video mode (camcorder icon) from the menu. Frame the subject and press the shutter button to start recording. Press again to stop.

How to transfer photos to a computer?

Connect the camera to the computer via the USB cable. Turn on the camera. On Windows, select 'Run Intelli-studio' in the AutoPlay window. Follow the instructions to copy files. Make sure 'PC Software' is enabled in the settings.

What to do if the touchscreen does not respond?

Make sure your fingers are clean and dry. Do not use sharp objects. If the problem persists, turn the camera off and on again. If the problem continues, contact Samsung customer service.

What is the maximum memory card capacity?

The camera accepts microSD cards up to 4 GB guaranteed. Higher capacity cards may not be compatible.

How to set the date and time?

When first turning on the camera, the setup screen appears. Select Date & Time and set the date, time, and time zone. You can modify these settings later in the Settings menu.

What safety precautions should be observed?

Do not use the camera near flammable gases or liquids. Keep it out of reach of children. Do not point the flash at eyes within 1 m. Use only Samsung-approved batteries and chargers. Avoid extreme temperatures and humidity.

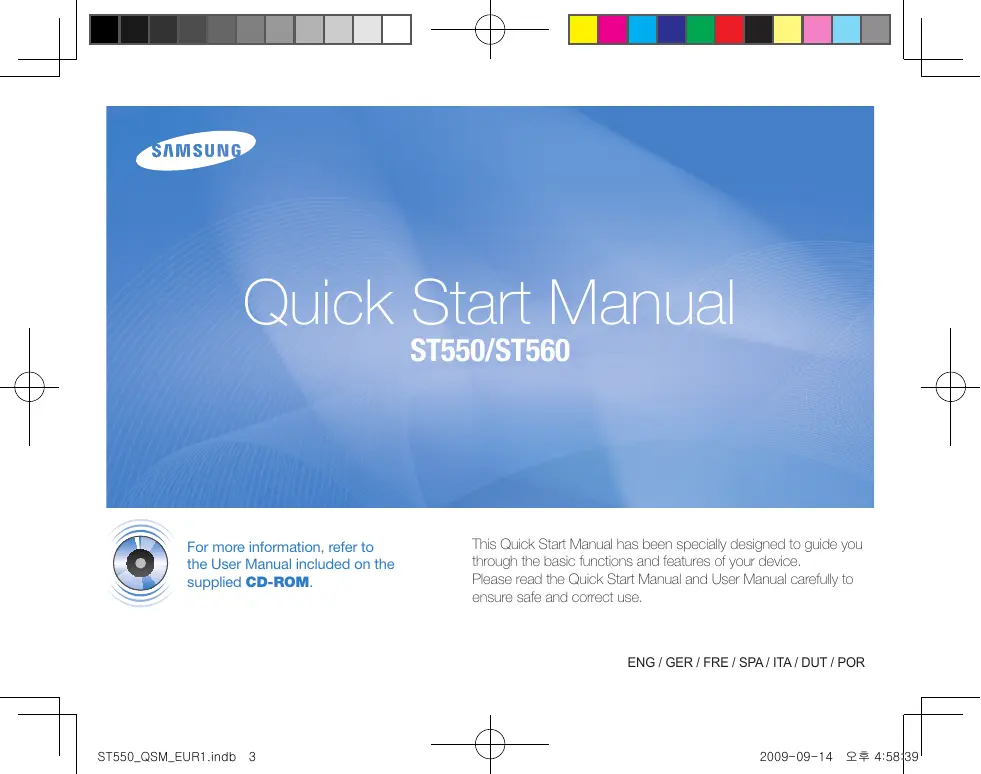

USER MANUAL ST550_ST-560 SAMSUNG

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device.

Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

ENG/GER/FRE/SPA/ITA/DUT/POR

Contents

Health and safety
information. 2
Camera layout 4 13
Setting up your camera 5 11
Unpacking 5
Inserting the battery and
memory card 6
Charging the battery 6
Turning on your camera. 7
Using the touch screen 7
Capturing photos or videos 8 29
Playing files 9 61
Transferring files to a PC
(Windows) 10 80
Specifications 11 102

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ / 32^ or above 40^ / 104^ ). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Do not allow liquids, dirt, or foreign substances to come in contact with memory cards or the memory card slot. Doing so may cause memory cards or the camera to malfunction.
• Do not use memory cards that have been formatted by other cameras or by a computer. Reformat the memory card with your camera.

Camera layout

1 Speaker
2 AF-assist light/timer lamp
3 Lens
USB, A/V, and HDMI port (Accepts USB cable, A/V cable, or HDMI adapter)
5 Battery chamber cover
6 Front display
7 Flash

3 Microphone
9 POWER button
10 Shutter button
1 Zoom button
12 Playback button
Status lamp
14 Main display (Referred to "Touch screen" in this manual)
15 Tripod mount

Setting up your camera

Unpacking

Camera

AC adapter/ USB cable

Rechargeable battery

Strap

Quick Start Manual

User Manual CD-ROM

Optional accessories

Camera case

Memory card (microSDTM)

AV cable

Sold as a set

HDMI cable/
HDMI adapter

Remote control

Setting up your camera

Inserting the battery and memory card

3 With the Samsung logo facing up
2 With the gold-coloured contacts facing up

Removing the battery

Removing the memory card
Push gently until the card disengages from the camera and then pull it out of the slot.

Charging the battery

Before using the camera for the first time, you must charge the battery.

Indicator light

Red:Charging
- Green: Fully charged

Turning on your camera

1 Press [POWER] to turn your camera on or off.

• The initial setup screen appears when you turn on your camera for the first time.

2 Select a language, set the date and time, and select a time zone.

Language	: English
Date & Time	: 2009/07/01
Time Zone	: London

Using the touch screen

Use your finger to touch or drag on the touch screen.

Caution

Do not use other sharp objects, such as pens or pencils, to touch the screen. Doing so may damage the screen.

Touching

Touch an icon to open a menu or set an option.

Dragging

Drag left or right to scroll horizontally.

7

Capturing photos or videos

Taking a photo

1 Make sure that the camera is in the mode (Auto mode).
2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically.

• A green frame means the subject in focus.

4 Press [Shutter] all the way down to take the photo.

Taking a photo using the front display

Take photos of yourself conveniently using the front display.

1 In Shooting mode, tap the front display to turn it on.

• Your camera will detect your face automatically.
• The camera automatically releases the shutter when it detects a smiling face.

2 Press [Shutter] halfway down to focus.
3 Press [Shutter] all the way down to take the photo.

Recording a video

1 Select 92.
2 Align your subject in the frame.
3 Press [Shutter].

• To pause, select!.
• To resume, select .

4 Press [Shutter] again to stop recording.

Number of photos by resolution (for 1 GB microSDTM)

Resolution		Super fine	Fine	Normal
12m	4000 X 3000	145	281	399
10m	3984 X 2656	166	310	436
7m	3840 X 2160	200	363	522
8m	3264 X 2448	209	357	531
5m	2560 X 1920	339	630	860
3m	2048 X 1536	526	885	1,198
2m	1920 X 1080	873	1,455	1,909
1m	1024 X 768	1,697	2,037	2,350

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [O].
2 Draw a horizontal bar left or right, or select or to scroll through photos.

• You can also view files by tilting your camera.

Viewing videos

1 Press [ ] and select 0.
2 Use the following icons to control playback.

Scan backward

Pause or resume playback

Stop playback

Scan forward

Adjust volume or mute sound

Transferring files to a PC (Windows)

1 Connect the camera to your computer with the USB cable.

Note

Make sure that the PC Software option is set to On in the settings menu.

2 Turn on the camera.

• The computer recognises the camera automatically.
• For Windows Vista, select Run iStudio.exe from the AutoPlay window.

3 Select a folder on your computer to save new files.

• If your camera has no new files, the pop-up window for saving new files will not appear.

4 Select Yes.

• New files will be transferred to your computer. You can now use the Intelli-studio program.

Note

About Intelli-studio

Intelli-studio is a built-in program that allows you to play back and edit files. You can also upload files to websites, such as Flickr or YouTube.

Specifications

Image sensor	• Type: 1/2.33" (Approx. 7.79 mm) CCD • Effective pixels: approx. 12.2 mega-pixels • Total pixels: approx. 12.4 mega-pixels
Lens	• Focal length: Schneider-KREUZNACH lens f = 4.9 - 22.5 mm (35 mm film equivalent: 27 - 124.2 mm) • F-stop range: F3.5 (W) - F5.9 (T)
Display	• Main Display: 3.5" (8.9 cm) Wide 1,152 K Full Touch LCD • Front Display: 1.5" (3.8 cm) 61 K TFT LCD
Focusing	TTL auto focus (Multi AF, Center AF, Face Recognition AF, Face Detection AF, Smart Touch AF, One Touch Shooting)
Shutter speed	• Auto: 1/8 - 1/2,000 sec. • Program: 1 - 1/2,000 sec. • Night: 8 - 1/2,000 sec. • Fireworks: 2 sec.
Storage	• Internal memory: approx. 55 MB • External memory (Optional): microSDTM card (up to 4 GB guaranteed) Internal memory capacity may not match these specifications.
DC power input connector	34 pin, 4.2 V
Rechargeable battery	Lithium-ion battery (SLB-07A, 720 mAh)
Dimensions (W x H x D)	99.8 x 59.8 x 18.6 mm
Weight	165.7 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %

Inhalt

Info zu Intelli-studio

Batterie rechargeable

Dragonne

Specifications 11 102

NL-2

Please refer to the warranty that came with your product or visit our website http://www.samsungcamera.com/ for after-sales service or inquiries.

AD68-04212A (1.2)
