Product Type	Portable Air Conditioner
Model	AN-PAC12D1
Brand	Aconatic
Cooling Capacity (BTU)	12000
Power Supply	115V / 60Hz
Power Consumption (Cooling)	1100W
Amperage	10A
Dimensions (W x D x H)	18 x 15 x 30 inches
Net Weight	70 lbs
Refrigerant	R410A
Noise Level (High Speed)	56 dB
Air Flow (CFM)	250
Functions	Cool, Fan, Dehumidify, Sleep Mode, Timer
Control Type	Remote Control + Touch Panel
Air Filter	Washable, Reusable
Drain Method	Self-Evaporation (Auto) or Continuous Drain
Window Kit Included	Yes (Exhaust Hose, Window Bracket)
Certifications	ETL, Energy Star Compliant
Warranty	1 Year Limited
Recommended Room Size	Up to 550 sq. ft.

Frequently Asked Questions - AN-PAC12D1 Aconatic

How do I install the AN-PAC12D1 air conditioner?

Install the exhaust hose and window bracket as per the manual. Ensure the unit is level and the hose is not kinked. Plug into a dedicated 115V outlet.

How often should I clean the air filter?

Clean the washable filter every two weeks under normal use. Rinse with water and dry completely before reinstalling.

Why is my AC not cooling properly?

Check if the air filter is dirty, the exhaust hose is blocked, or the room is too large. Also ensure the unit is in cool mode and the set temperature is lower than room temperature.

What does error code E1 mean?

E1 indicates a room temperature sensor failure. Unplug the unit, wait 10 minutes, and restart. If it persists, contact customer support.

My remote control is not working. What should I do?

Replace the batteries (2 x AAA) and ensure the remote sensor on the unit is not blocked. Point directly at the unit.

How does the self-evaporation system work?

Under normal humidity, the unit evaporates condensate automatically. In high humidity, you may need to connect a drain hose to the continuous drain port.

Is the AC noisy?

The noise level is around 56 dB, similar to a conversation. Use sleep mode for quieter operation at night.

Can I set a timer to turn the unit on/off?

Yes, you can set a timer via the remote or control panel. Press TIMER and adjust hours (1-24) for auto-on or auto-off.

What are energy saving tips for this unit?

Keep doors/windows closed, use curtains to block sunlight, clean the filter regularly, and set the thermostat to 78°F (25°C) for optimal efficiency.

Does the unit come with a warranty?

Yes, the Aconatic AN-PAC12D1 has a 1-year limited warranty covering manufacturing defects. Proof of purchase is required.

USER MANUAL AN-PAC12D1 Aconatic

Simple line drawing of an open book with no text or symbols visible

Simple line drawing of a rectangular box with a circular button on the right side (no text or symbols)

แผ่นยืดหน้าต่าง

รีโมทคอนโทรล

ฝากรอบท่อ

ฝากอปลายท่อ

การติดตั้งท่อ

Technical line drawing of a car air conditioner unit (no text or symbols)

Line drawing of a car air conditioner unit with airflow arrows indicating airflow direction (no text or symbols)

Line drawing of a portable air conditioner unit with a hose and vent, mounted on a wall (no text or symbols)

Line drawing of an air conditioner unit with a coiled hose and ventilation grille (no text or symbols)

Technical line drawing of a mechanical component with a circular component and a checkmark (no text or symbols)

Diagram of a pipe with a stopper and a prohibition symbol (no text or labels)

Technical line drawing of a car air conditioner unit (no text or symbols)

Technical line drawing of a car air conditioner unit (no text or symbols)

โหมดลดความชั้น

Technical line drawing of a portable air conditioner unit with a close-up view of its internal components (no text or symbols)

SAFETY INSTRUCTIONS 3

FEATURES AND PARTS LIST 5

INSTALLATION 6

CONTROL PANEL AND SETTINGS 9

OPERATION MODE 13

WATER-DRAINAGE 15

MAINTENANCE 16

TROUBLESHOOTING 17

APPENDIX 18

SAFETY INSTRUCTIONS

Important!

• Carefully read the instructions before operating the unit.
- This Air Conditioner has an IP. 0 rating. It is designed mainly for indoor use but will stand up to outdoor use being protected against light rain and splashing.

- Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet.

Simple line drawing of an open book with no text or symbols visible

• Installation must be in accordance with regulations of the country where the unit is used.

- If you are in any doubt about the suitability of your electrical supply have it checked and, if necessary, modified by a qualified electrician.

- This air conditioner has been tested and is safe to use. However, as with any electrical appliance - use it with care.

- Disconnect the power from the unit before dismantling, assembling or cleaning.

- Avoid touching any moving parts of the appliance.

• Never insert fingers, pencils or any other objects through the guard

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities. It is also not intended for use by those with a lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Do not leave children unsupervised with this appliance.

• Do not clean the unit by spraying it or immersing it in water.

- Never connect the unit to an electrical outlet using an extension cord. If an outlet is not available, one should be installed by a qualified electrician.

- Never operate this appliance if the cord or plug is damaged. Ensure the power cord is not stretched or exposed to sharp objects or edges.

• The power cord must not be immersed in water, as this could result in electric shock.

- A damaged supply cord should be replaced by the manufacturer or a qualified electrician in order to avoid a hazard.

- Any service other than regular cleaning or filter replacement should be performed by an authorized service representative. Failure to comply could result in a voided warranty.

• Do not use the appliance for any other purposes than its intended use.

- The air conditioner unit must always be stored and transported upright, otherwise irreparable damage may be caused to the compressor; if in doubt we suggest waiting at least 24 hours before starting the unit.

- Avoid restarting the air conditioning unit unless 3 minutes have passed since being turned off. This prevents damage to the compressor.

- Never use the mains plug or an external plug in timer as a switch to start and turn off the air conditioning unit. Use the provided ON/OFF switch located on the control panel.

• Always place the unit on a dry and stable surface.

• The appliance should not be installed in laundry or wet rooms

• R290 refrigerant gas complies with European environmental directives.

• R290 has a low GWP (Global Warming Potential) of 3.

• The air conditioner contains about 235 g of R290 refrigerant gas.

• Do not use or store in an unventilated space with an area smaller than 11.3m^2 per unit. The room must be such as to prevent stagnation of possible leaks of refrigerant gas as there could be a danger of fire or explosion hazard should the refrigerant come into contact with electric heaters, stoves or other sources of ignition.
• If the appliance is installed, used or stored in an unventilated room, the room must be such as to prevent stagnation of possible leaks of refrigerant gas as there could be a danger of fire or explosion should the refrigerant come into contact with electric heaters, stoves or other sources of ignition.
• Do not use the product and contact the retailer for advice, if damage has occurred to the unit which may have compromised the refrigerant system.
• Any repairs or maintenance must only be carried out on the unit by a suitably qualified engineer. Before opening and servicing the unit the authorized engineer must be in possession of a copy of the manufacturer's service manual and must follow the safety information contained within it to ensure all hazards are minimized.
  • The refrigerant system should not be perforated or punctured.
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (For example: open flames, an operating gas appliance or an operating electric heater)
  • Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.

Energy Saving and Unit Safety Protection Tips

• Do not cover or restrict the airflow from the outlet or inlet grills.
• For maximum performance the minimum distance from a wall or objects should be 50cm. The unit is fitted with a thermal cut off sensor that will prevent overheating.

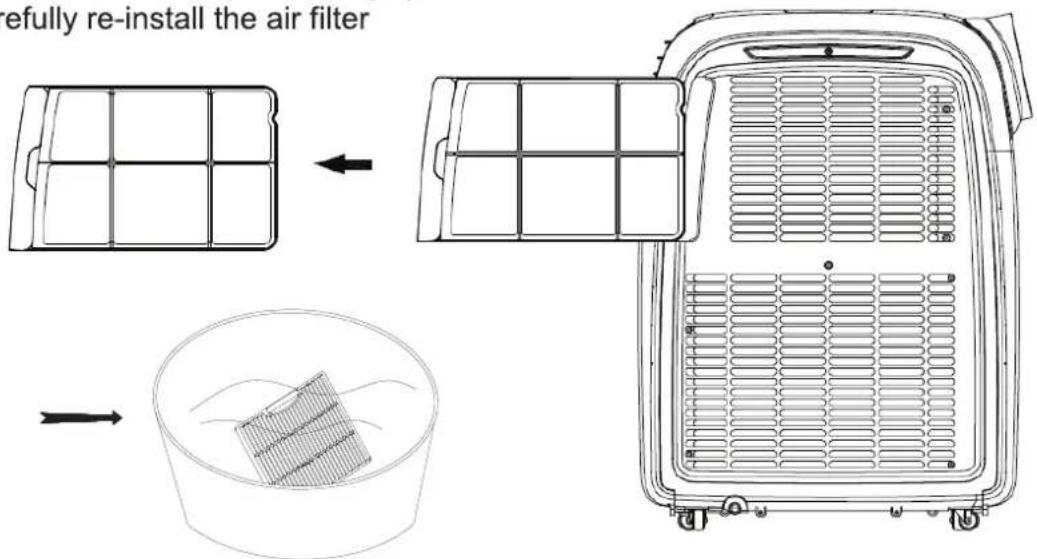

• Keep the filters clean. Under normal conditions, filters should only need cleaning once every three weeks (approximately). Since the filters remove airborne particles, more frequent cleaning maybe necessary, depending on the air quality.
• For the initial startup set the fan speed to maximum and the thermostat to 4-5 degrees lower than the current temperature. After, set the fan switch to low and set the thermostat to your desired setting.
• To protect the unit we recommend not using the cooling function when the ambient temperature is higher than 35^ C.

FEATURES AND PARTS LIST

FEATURES

● Cooling, Heating and Dehumidifying for use all year round.
● Powerful and Flexible for both Domestic and Commercial use
- Both pipes can be connected to gravity flaps, allowing the unit to be situated outside the room, making it ideal for use in server rooms, offices, military tents or barracks, marquees
● Improves comfort and indoor air quality
● Self-evaporative system - No external water tank needed
- Compact, robust design
● Digital Control Panel with IP 24 splash proof protection
● Bright LED screen, indicates desired temperature and error codes
- Remote control and 24 hours start / stop timer that can be used both in cooling / heating or dehumidifier mode
- On/Off timer function – allows you to choose when the unit operates both in air conditioning or dehumidifying mode
● Advanced compressor protection technology
- On castors for improved portability

PARTS LIST

1	Control Panel	5	Filter
2	Cold Air Outlet	6	Cold air inlet
3	Hot Air Outlet	7	Hot air inlet
4	Drain Hole

INSTALLATION

Warning: Before using this unit, please keep it upright for at least 3-4 hours.

This unit can easily be moved from one room to another.

While moving the unit please note that it must always be kept upright and then placed on an even surface.

UNPACKING YOUR NEW AIR CONDITIONER

Open the box and remove the outer carton by sliding it upwards from the base.

Grip the unit by the carry handles located on either sides of the unit and carefully lift until it slides out of the foam base

Install the exhaust hose on the unit before operating.

CONTENTS

Exhaust hose

Simple geometric diagram with a rectangle and a circle, no text or symbols present

Mounting plate

Remote control

Fuselage connectors

Air outlet connector

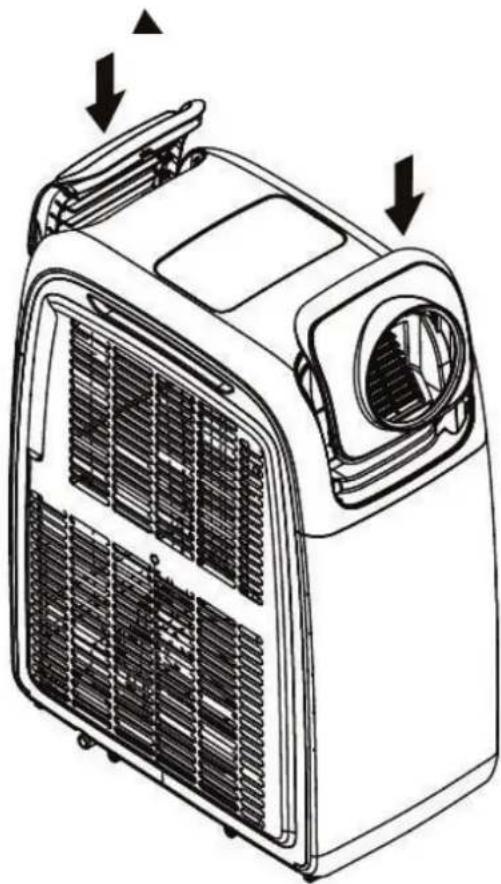

ATTACHING THE HOSE

1. Clip the hose connector and front vent to the sides of the unit (after removing the hose from storage)
2. Insert the hose and rotate it firmly into the adapter
3. To remove the hose twist it in the opposite direction.

Technical line drawing of a car air conditioner unit (no text or symbols)

Line drawing of a car air conditioner unit with airflow arrows indicating airflow direction (no text or symbols)

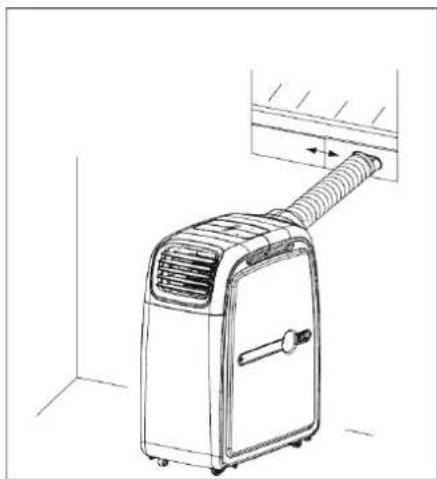

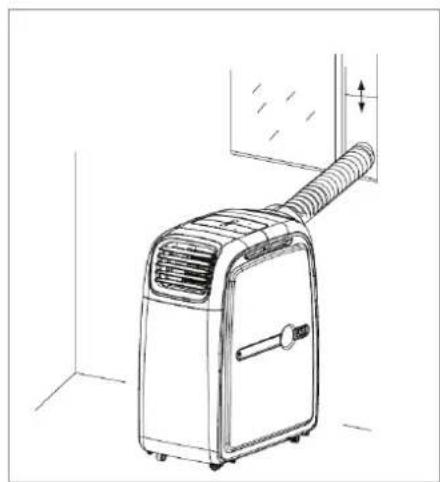

INSTALLATION OF WINDOW KIT

Partially open the window and then fix the window kit to the window horizontally or vertically. Keep at least 50 cm from any objects and the air inlets grills on the side of the unit.

Clip the other end of the hose with the fishtail adapter to the air outlet of the window slider. Make sure the unit is upright and there are no obstructions to the air inlet and outlet grills.

Line drawing of an air conditioner unit with a hose and ventilation slots, mounted on a wall (no text or symbols)

Line drawing of an air conditioner unit with a coiled hose and ventilation grille (no text or symbols)

The window kit is only designed to be installed with sliding or sash windows and doors. The window kit is not made to be used with any other style of window. However the fish tail adaptor can be used without the slide bar on most windows and doors, but without sealing the rest of the window opening the efficiency of the unit will be reduced. Ensure that the opening left is as small as possible.

The best form of installation is through a wall duct.

Please note that the unit will still need to be vented in heating and cooling modes, ideally through the wall.

Technical line drawing of a mechanical component with a circular checkmark indicating a detail (no text or symbols present)

Diagram of a pipe with a stop sign, showing pipe connection and no text labels

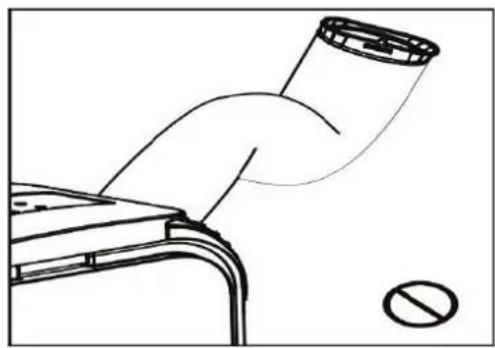

Note: Avoid bending the air hose more than 30 degrees!

IMPORTANT SAFEGUARDS

The soft hose will extend from 28 cm to 150 cm, and the unit will support hoses of upto 300cm. If hose is extended above this length the unit may malfunction and this can invalidate the warranty. The shorter the hose the better the results; ideally for best performance, do not extend the hose by more than 40 cm. The outlet vent must be well ventilated and not obstructed as this will cause the unit to overheat.

CONTROL PANEL AND SETTINGS

This portable air conditioner boasts the functions: cooling, heating, and dehumidify.

The fan has three speeds: high, medium and low

Temperature range settings are: 16 - 31°C.

The LED screen is able to display the temperature set, fault codes, diagnostic and protective codes.

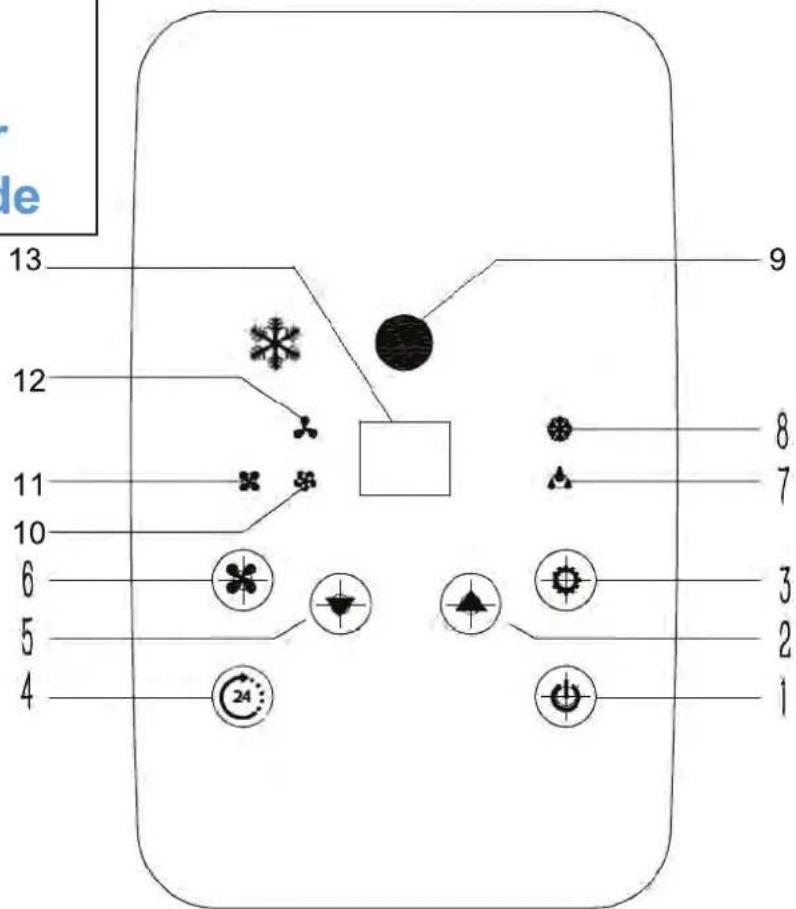

Cold air outlet side

1	Standby Button	9	IR Remote Sensor
2	Temp + Button	10	High Fan Speed Indicator
3	Function Button	11	Medium Fan Speed Indicator
4	Timer Button	12	Low Fan Speed Indicator
5	Temp - Button	13	LED Display Panel
6	Fan Speed Button
7	Dehumidify Indicator
8	Cooling Indicator

When plugged in the unit will automatically enter standby status

(1) STANDBY Button

Press this button to turn the unit on and enter cooling mode. Press again and the unit will switch off.

(2) TEMP + Button

These are used to increase the desired temperature In cooling mode, the temperature can be set between 16 – 31°C

(3) FUNCTION Button

Press this button to choose between the Cooling, and Dehumidifying modes. Please note when changing between heating and cooling modes, the exhaust hose needs moving onto the appropriate air outlet. In dehumidifying mode, the exhaust hose should not be connected, but the unit should be set up for continuous drainage.

(4) TIMER Button

The inbuilt timer will allow you to set the unit to turn on or turn off after a set period of time, Please note only one timer can be used at any time.

ON TIMER – The timer will turn on the unit automatically after the time set has elapsed.

1. When on standby, press the TIMER button, then set the number of hours time you desire the unit to start by pressing the TEMP+ and TEMP- buttons.
2. Once the set time has elapsed, the unit will turn on automatically.
3. Press the POWER button before the time has elapsed and the unit will turn on as normal and the timer will be cancelled
4. The function and fan speed can be set whilst setting the timer.

OFF TIMER – The timer will turn off the unit automatically after the time set has elapsed.

1. While the unit is operating, press the TIMER button then set the number of hours time you desire the unit to stop by pressing TEMP+ and TEMP- buttons.
2. Once the set time has elapsed, the unit will turn off automatically.
3. Press the POWER button before the time has elapsed, the timer will be cancelled and the unit will turn off.

(5) TEMP - Button

This are used to reduce the desired temperature In cooling mode, the temperature can be set between 16-31°C

(6) FAN SPEED Button

Allows the fan speed to be changed between the following options: HIGH→MEDIUM→LOW

• In Dehumidifying mode, the fan is pre-set to low speed

(7) to (8) FUNCTION INDICATORS

An LED will illuminate to show which mode the unit is currently in. This can be changed between Dehumidify (7), Cooling (8) using the Function Button (3)

(9) IR REMOTE SENSOR

Receives infra red signals from the supplied remote control

(10) to (12) FAN SPEED INDICATORS

An LED will illuminate to show which fan speed the unit is currently set to. This can be changed between High (10), Medium (11), and Low(12) using the fan speed button (6).

(13) LED DISPLAY

Shows the set temperature or timer settings while in normal operation. When the set temperature or the timer is adjusted, the new setting is shown on the display.

• When the TEMP+ or TEMP- buttons are pressed, the display will show the desired temperature currently set.
• When the [TIMER] button is pressed the number of hours remaining will be shown until function is achieved or deactivated.
• In the dehumidification function, temperature will be shown in the display.

The LED display is also used to show error codes should a fault occur

E0	The room temperature sensor is open or of short circuit, but it does not affect the normal use.
E2 OR E4	Water is full, needS manual drainage
E3	The coil sensor is open or short circuited, but this should not affect the normal operation.

MULTI PROTECTIVE FUNCTION

ANTI-FREEZE PROTECTION CONTROL:

When the ambient temperature is low while in Cooling Mode, the compressor and water pump will stop working if the copper coil temperature is too low. When the copper coil temperature increases, the protection will be stopped automatically. While in this mode "Df" will be displayed on the unit.

WATER-FULL PROTECTION:

When the water level in the internal water tank is above the maximum level, the unit will alert automatically and E4 will be displayed on the LED screen. Please discharge the water from the water tank by following the instructions in the "Water Drainage" section.

COMPRESSOR PROTECTION

The compressor has overheat protection which may stop the compressor to prevent damage. The compressor also has a 3 minute delay protection function which delays the start of the compressor, to help protect the compressor against repeated loss of power.

REMOTE CONTROL

Power	To enter / exit standby Mode.
Speed	Fan speed selection (N/A in dehumidification mode)
Temp +	Increase desired temperature in 1 degree increments
Temp -	Decrease desired temperature in 1 degree increments
Mode	Change between Cooling, Dehumidifying, fan modes.
Timer	Set the timer. For more information see the Timer section on Page 10.

OPERATION MODES

COOLING

On very warm days we recommend programming the unit to start early, before direct sunlight hits the room, set it to a comfortable 20-22°C in cooling mode.

The electriQ Airflex 15 is a self-evaporating air conditioner, so under normal use there is usually no need to empty the internal tank. However if there is a high amount of humidity in the air or if the unit is not vented correctly, water will be collected in the internal tank.

If the unit operates in cooling mode for a longer period and especially at a time of year with higher air humidity, the internal condensation tank may fill and an error E4 will be displayed on the LED panel, which means the unit will require emptying as per the water drainage section. In such instances it is recommended to use the permanent drainage.

COOLING WHEN THE AIR CONDITIONER IS PLACED INDOORS (NORMAL OPERATION)

The unit is placed in the room to be cooled.

Connect the hose to the hot air outlet of the air conditioner, after exchanging the grills if necessary. The air hose will expel the hot air from the room outside while the front grills produce cold air, to cool the room.

Technical line drawing of a car air vent (no text or symbols)

The hose can be vented via a tilted window, a door or wall aperture. Make sure that no warm air from outside can enter the room. Set the function to "COOLING". Set the target temperature using

the temperature control. The target temperature range is selectable between 16^ and 31^ . The unit must only be used in an ambient temperature of up to 32^ .

Note: After switching on, the compressor will only start after a 3 minute delay. For full cooling effect please allow a further 10 minutes of operation.

COOLING WHEN THE AIR CONDITIONER IS PLACED OUTDOORS (DUCTING THE COLD AIR INTO THE ROOM)

Connect the hose to the cold air outlet of the air conditioner, after exchanging the grills if necessary. The air hose will send cold air into the room, while the front grills will expel hot air.

DEHUMIDIFICATION

The Airflex 15 is a powerful commercial grade dehumidifier with an extraction rate of 70 litres per day at 80% RH. Humidity is extracted from the air, collected in the water tank and discharged via a condensation drain pipe. We recommend using a large bucket or running the condensate drain pipe to an external drain. Please note the condensate drain is gravity fed, and so the pipe must run downhill for drainage to occur. Alternatively it is possible to connect an inline pump for sending the condensate longer distances or uphill.

When using the air conditioner in dehumidify mode, the exhaust hose is not required. Set the function to "Dehumidify". As the unit does not have a humidistat we recommend using the inbuilt timer to control the length of operation.

WATER-DRAINAGE

This model is an advanced self-evaporative air conditioner, which reduces the need to empty the water tank in cooling mode. If the unit is vented correctly most of the water is reused to cool the condenser coils and any excess is evaporated. As such for cooling mode, to ensure the unit runs at maximum efficiency, we would advise for continuous drainage not to be used.

MANUAL

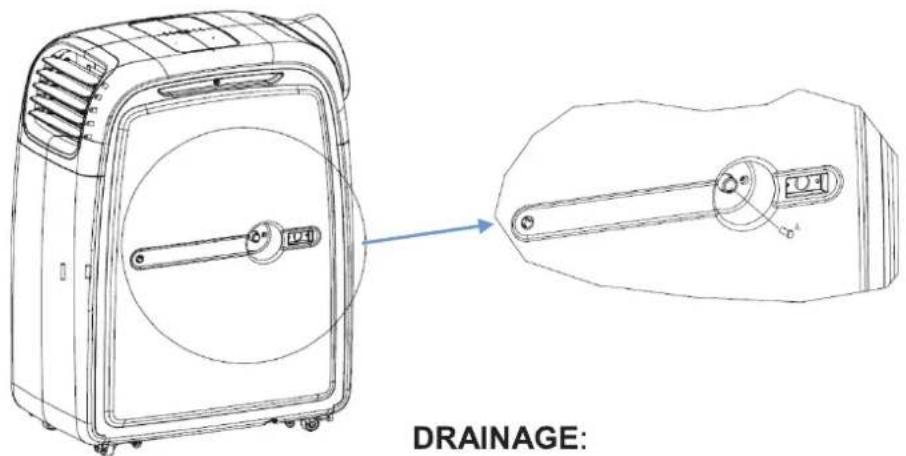

DRAINAGE:

• When the internal water tank is full the unit will stop working, and the unit will display "E2" or "E4"
• Shut off the unit and unplug. Try not to move the model abruptly as this may cause water to spill out from the internal water tank.
• Place a tray under the water plug.
• Remove the water plug and attach a drain pipe running to the water container - water will drain from the internal container.
  • Put the water plug back securely.

CONTINUOUS DRAINAGE:

• Remove the water plug
• Connect a water pipe to the water outlet.
• You can plumb this pipe into your current plumbing system, lead it outside or use a water pump.

NOTE:

• Please make sure that the rubber bung or a drain pipe is in place when the unit is running.
- When operating the heating function, a drain pipe should be installed in order to improve the heating effect.
- When operating the dehumidifying function the unit must be used with a drain hose.
- When the water tank is full,"E2" or "E4" will be displayed on the display panel. Please remove the rubber bung from the drain port and remove the water collected. After the drainage is completed, please restart the unit and then the unit can operate normally.

MAINTENANCE

CLEANING

Please shut off the unit and unplug from the mains before cleaning or performing any maintenance

CLEAN THE SURFACE

Clean the plastic housing with a duster or a soft wet cloth.

Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage.

AIR FILTER CLEANING

a) Clean the air filter every 2 weeks. If the air filter is blocked with dust, the unit's performance will be significantly affected.
b) Pull out lightly the filter as shown below
c) Wash the air filter by immersing it in warm (about 40°C) water with a neutral detergent.
d) Rinse it and then dry it thoroughly.
e) Carefully re-install the air filter

END OF SEASON MAINTENANCE:

1. Pull out the plug from the drainage hole and empty the internal tank. You can also drain the water by leaning the unit.
2. Then switch the unit to low fan mode in cooling mode with the desired room temperature set above the rooms temperature.
3. Keep the unit in this mode for half day - until the conduit is dried. Doing this helps to keep the inside of the unit dry and prevents mould developing
4. Turn off the unit and pull out the plug.
5. Separate the vent pipe and store it safely.
6. Cover the unit and keep it in a dry place.
7. Take the batteries out of remote control and store, or dispose of them safely

TROUBLESHOOTING

Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate the warranty and may cause bodily harm.

Problem	Reason	Solution
The unit does not work	No power supply	Ensure the unit is plugged in and attempt to turn on the unit.
	Water-full indicator (E4)	Drain the internal water tank
	Timer function is active	Cancel the Timer function
	Room temperature too low or too high	Use only in ambient temperatures between 7 – 32°C
The unit does not seem to perform.	In direct sunlight	Draw the curtains, UV affects RC
	Windows or doors open.Large amount of people or a heat source in the room.	Close windows and turn on another air conditioner
	Filter is very dirty	Clean or change the air filter
	Air inlet or air outlet is blocked	Clear out debris
	Room temperature is lower than the temperature set	Change the set temperature
The unit is loud	The unit is not on flat surface.	Put the unit on a flat surface. Carpet is best for reducing vibrations from the compressor
Compressor does not work	Overheating protection is active	Check the vent is straight and unrestrictedRestart the unit after 5 minutes when the compressor has cooled
Remote control doesn’t work	Operating distance is too far.	Move remote control closer to the unit and make sure it is aimed at the IR sensor
	Control panel has not received the signal from remote control.
	The batteries are flat	Replace the batteries

Note: The mobile air conditioner is equipped with a 3 minute compressor-delay system to protect the compressor and prolong the life of the unit. This affects the switching on of the unit (POWER) as well as switching over from one function to the next, e.g. dehumidify to cooling or heating.

SELF DIAGNOSTIC CODES

DISPLAY	AUTOMATIC DIAGNOSTICS
E0	The room temperature sensor is open or short circuited. This should not affect the normal use.
E2/E4	Water is full, need to be manually drained
E3	The room temperature sensor is open or short circuited. This should not affect the normal use.

If the above solutions do not resolve the problem please contact the service centre.

APPENDIX

Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary.

Recycling facilities are now available for all customers at which you can deposit your old electrical products. Customers will be able to take any old electrical equipment to participating civic amenity sites run by their local councils. Please remember that this equipment will be further handled during the recycling process, so please be considerate when depositing your equipment. Please contact the local council for details of your local household waste recycling centres.

APPENDIX

Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary.

Recycling facilities are now available for all customers at which you can deposit your old electrical products. Customers will be able to take any old electrical equipment to participating civic amenity sites run by their local councils. Please remember that this equipment will be further handled during the recycling process, so please be considerate when depositing your equipment. Please contact the local council for details of your local household waste recycling centres.
