Product Type	Passive In-Wall Subwoofer
Brand	OSD Audio
Model	NERO FS800
Woofer Size	8 inches
Impedance	8 Ohms
Power Handling (RMS)	200 Watts
Frequency Response	60 Hz - 500 Hz
Enclosure Type	Sealed Tuned Enclosure
Overall Dimensions (H x W x D)	18.7" x 17.2" x 4.3"
Cutout Dimensions (H x W)	17.5" x 14.5"
Mounting Depth	3.9 inches
Grille	Magnetic, paintable
Recommended Wire Gauge	18 AWG (up to 10 ft), 16 AWG (10-50 ft), 14 AWG (50-100 ft)
Installation Tools Required	Drywall saw, drill, Phillips screwdriver, tape measure, utility knife, sandpaper, pencil, wire cutter, safety eyewear, gloves
Warranty	10 years limited (against defects in materials and workmanship)

Frequently Asked Questions - NERO FS800 OSD Audio

What type of amplifier is recommended for the NERO FS800?

The NERO FS800 is a passive subwoofer with 200W power handling and 8 ohm impedance. Use an external amplifier rated between 100W and 200W RMS at 8 ohms for best performance.

Can the NERO FS800 be installed in a wall or ceiling?

It is designed for in-wall installation into a standard stud bay. Ensure no obstructions exist behind the mounting area before cutting.

What are the cutout dimensions for the NERO FS800?

The required cutout is 17.5 inches high by 14.5 inches wide. The total depth needed is 3.9 inches (mounting depth).

Does the subwoofer come with a grille?

Yes, it includes a magnetic grille that simply lays into place for a clean, flush finish. The grille can be painted to match your decor.

How do I wire the NERO FS800?

Use at least 18 AWG speaker wire for distances up to 10 ft, 16 AWG for 10-50 ft, and 14 AWG for 50-100 ft. Connect to an external amplifier's subwoofer output.

Is the NERO FS800 suitable for use as a full-range speaker?

No, it is a dedicated subwoofer with a frequency response of 60 Hz to 500 Hz. It should be paired with main speakers for bass reinforcement.

What is the warranty on the OSD Audio NERO FS800?

It comes with a 10-year limited warranty covering defects in materials and workmanship. Proof of purchase is required, and the warranty is void if purchased from an unauthorized dealer.

Can I paint the grille?

Yes, the magnetic grille is paintable. Use a thin, even coat of spray paint for best results. Ensure the grille is clean and dry before painting.

What tools do I need for installation?

You will need: drywall saw or rotary drill, Phillips screwdriver, tape measure, utility knife, sandpaper, pencil, wire cutter, safety eyewear, and gloves.

How do I obtain warranty service?

Contact OSD Audio customer service at [e-mail] to receive a Returned Merchandise Authorization (RMA) number. Ship the product at your expense with a note describing the issue.

USER MANUAL NERO FS800 OSD Audio

• Pencil - Wire Cutter - Safety Eye Wear
• Drill - Phillips Screwdriver - Gloves
• Tape Measure - Utility Knife - Sandpaper

18AWG minimum - for distances up to 10 ft

16AWG - from 10 to 50 ft

14AWG - from 50 to 100 ft

Installation:

Cut Out

NOTE: This is the most important part of the entire installation. If you are not certain whether any obstructions exist behind the desired mounting area, you should start by cutting a small hole in the center of your penciled mounting hole with a drywall saw.

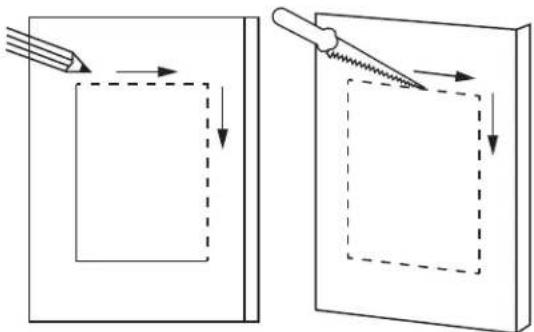

Using the Cut Out dimensions measure and trace a template on the wall in the desired location. Cut along the traced line using a drywall saw or rotary drill. Use a piece of sandpaper to sand down the cut out edge for a smoother contour. (See Diagram 1.)

Diagram 1

Isometric line drawing of a door with a circular vent and grid pattern, no text or symbols present

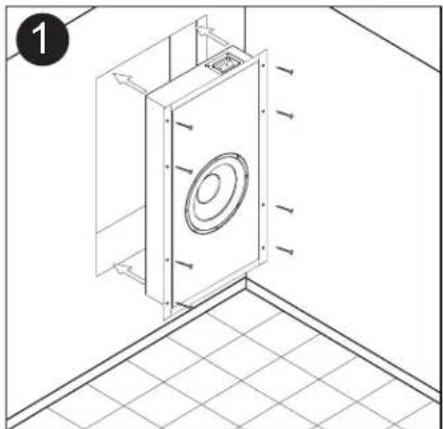

Cut and prepare a hole to install the NERO FS800 into a stud bay where it can be securely mount to both wall studs.

Isometric view of a room corner with a circular vent and grid pattern (no text or symbols)

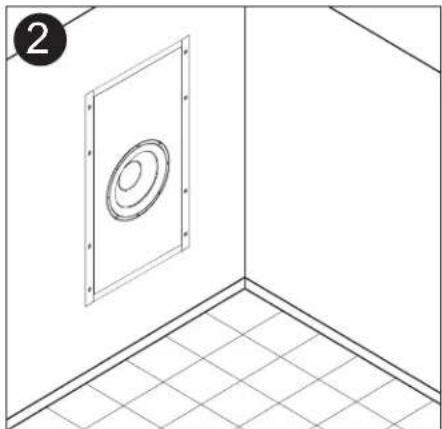

Once in place the NERO FS800 should be tested before securely mounting and moving onto step 3.

Simple 3D diagram showing a wall with a black panel and a grid-patterned floor, no text or symbols present.

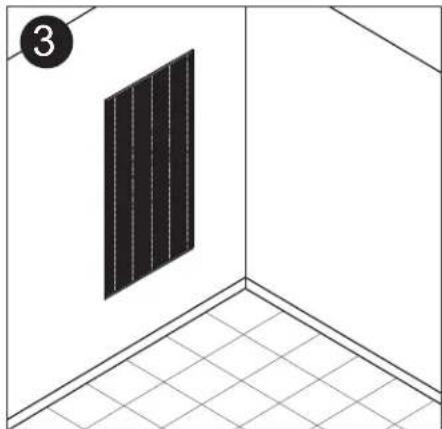

Final step, install the magnetic grille system by simply laying it into place.

Specifications

• Single In-Wall Subwoofer
  • Power Handling: 200W
• Woofer: 8" 8 Ohm
• Sealed Tuned Enclosure
  • Freq Response: 60Hz - 500Hz
  • Overall Dimensions: H 18.7" x W 17.2" x D 4.3"
  • Cut Out Dimensions: H17.5 x W 14.5"
• Mounting Depth: 3.9"

Warranty Information

All OSD AUDIO speaker products have (10) year Limited Warranty against defects in materials and workmanship. Proof of purchase must accompany all warranty claims. During the warranty period OSD AUDIO will replace any defective part and correct any defect in workmanship without charge for either parts or labor OSD AUDIO may replace returned speakers with a product of equal value and performance. In such cases, some modifications to the mounting may be necessary and are not OSD AUDIO's responsibility.

For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD AUDIO. The unit must be returned to OSD AUDIO at the owner's expense and with prior written permission. Accidental damage and shipping damage are not considered defects, nor is damaged resulting from abuse or from servicing performed by an agency or person not specifically authorized in writing by OSD Audio. OSD AUDIO sells products only through authorized dealers and distributors to ensure that customers obtain proper support and service. Any OSD AUDIO product purchased from an unauthorized dealer or other source, including retailers, mail order dealers and online sellers will not be honored or serviced under existing OSD AUDIO warranty policy.

Any sale of product by an unauthorized source or other manner not authorized by OSD AUDIO shall void the warranty on the applicable product. Damage to, or destruction of components due to application of excessive power voids the warranty on those parts. In these cases, repairs will be made on the basis of the retail value of the parts and labor. To return for repairs, you must email customer service at [e-mail] for a Returned Merchandise Authorization (RMA) number# then the unit must be shipped to OSD AUDIO at the owner's expense, along with a note explaining the nature of service required. Be sure to pack the speaker(s) in a corrugated container with at least 3 inches of resilient material to protect the unit from damage in transit.

This Warranty Does Not Cover: Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) • Any products that have been altered or modified • Any product whose identifying number of decal, serial #, etc. has been altered, defaced or removed • Normal wear and maintenance.
