LX8 - Professional audio equipment Radial Engineering - Free user manual and instructions

Product Type	Eight-Channel Balanced Line Splitter
Channels	8
Input Connectors	Front panel XLR female (x8), Rear panel DB-25 (TASCAM pinout), Rear panel Euroblock socket (12-pin, terminals sold separately)
Output Connectors	Direct output (DB-25 & Euroblock), Auxiliary output with ground lift (DB-25 & Euroblock), Isolated output (Euroblock) – all paralleled
Isolation Transformer	Jensen™ bridging transformer on each channel for isolated output
Ground Lift Switch	Front panel switch per channel for auxiliary output; internal chassis ground lift switch (all channels)
Frequency Response	Not specified; designed for line-level audio, typical 20Hz-20kHz
Distortion (THD)	Not specified; transformer isolated output minimizes distortion
RF Filtering	RF network filter on input ground paths
Chassis Construction	14-gauge steel, welded corners, baked enamel finish
Dimensions (approx)	1RU height, 19" wide, depth approx. 6.75 inches (172 mm)
Weight (approx)	6.5 lb (2.95 kg)
Power Supply	None (passive device)
Warranty	3 years transferable limited warranty
Application	Sound reinforcement, recording, broadcast, multi-zone audio systems

Frequently Asked Questions - LX8 Radial Engineering

What is the Radial LX8 used for?

The Radial LX8 is an eight-channel balanced line splitter used to distribute a single line-level audio signal to three separate outputs: a direct output, an auxiliary output with ground lift, and a transformer-isolated output. It eliminates hum and buzz caused by ground loops.

How do I connect the LX8 to my system?

You can connect inputs via front panel XLR (female), rear DB-25, or Euroblock terminals. Outputs are available on DB-25 and Euroblock for direct, auxiliary, and isolated feeds. Follow the TASCAM pinout for DB-25. Use balanced audio cables.

What does the ground lift switch do?

The front panel ground lift switch disconnects the signal ground (pin-1) on the auxiliary output, helping to eliminate ground loop noise. The internal chassis ground lift connects all pin-1 shields to the chassis for system grounding schemes.

Does the LX8 require external power?

No, the LX8 is a passive device. It uses Jensen transformers to isolate outputs and does not need any power supply.

What type of transformer is used?

Each channel uses a high-performance Jensen bridging audio isolation transformer on the isolated output to decouple the signal and prevent ground loops.

Can I use the LX8 for microphone-level signals?

The LX8 is designed for line-level signals. For microphone splitting, consider a dedicated mic splitter like the Radial JS series.

What are the Euroblock terminals for?

Euroblock sockets accept optional 12-pin screw terminals (Radial order # R800 8050) for bare wire termination, allowing custom cabling or multi-pin disconnects.

How do I access the internal chassis ground lift switch?

The switch is accessible through a small hole on the side of the steel chassis. Use a small tool to toggle it. By default, it is set to 'lifted' (open).

What is the warranty on the LX8?

Radial Engineering offers a 3-year transferable limited warranty covering defects in materials and workmanship. The original invoice is required for service.

How do I clean the LX8?

Use a dry, lint-free cloth to wipe the chassis. Avoid liquids or solvents. The front panel label zones can be marked with dry-erase markers or wax pencils.

USER MANUAL LX8 Radial Engineering

Eight Channel • Transformer Isolated • Line Splitter

LX8 User Guide

Eight Channel • Transformer Isolated • Line Splitter

Table of Contents Page

LX8 Introduction ....1
Signal Flow 2
Features ....3
Connecting the LX8 4
Applications 5
Internal Chassis Ground Lift 5
Warranty Back

INTRODUCTION

Congratulations on your purchase of a the Radial LX8 line splitter. We recommend that you take a few minutes to read through this manual in order to familiarize yourself with the many innovative features that are built in.

Should you have questions or applications not covered in this manual, we invite you to log onto the Radial web site at www.radialeng.com to check the FAQ section for the latest updates. Of course, you can also send us an email at [e-mail].

LX8 DESIGN CONCEPT

The Radial LX8 is an eight channel, balanced line splitter in a compact 1RU package that divides the signals three ways; to a direct output; a direct output with ground lift; and an isolated output. A high performance Jensen™ bridging transformer is used on the isolated output to eliminate hum and buzz caused by ground loops.

Splitting line level signals is a straight forward concept. It's most common in sound reinforcement when a single set of outputs needs to be fed to two separate destinations simultaneously. When done improperly, splitting a signal can dull frequency response, lower the output and worst of all, cause ground loops that produce buzz and hum. To avoid these pitfalls, sound reinforcement companies have been building custom "splitter-snakes" for many years.

The LX8 is an off-the-shelf splitter for the rest of us allowing virtually anyone to design and assemble a splitter-snake with plug-n-play simplicity and professional audio quality without the need for custom metal work or complex soldering.

SIGNAL FLOW

Take a moment to follow the signal path through the block diagram below.

① Parallel Inputs

For flexibility, the LX8 has three paralleled inputs.

• Female XLR connectors on the front panel
• 25 pin D-SUB (DB-25) on the rear panel
- Euroblocks screw terminals on the rear panel (Set of eight Euroblocks terminals sold separately, Order # R800 8050).

② Direct Output

The DIRECT output is the primary "straight through" output. It is paralleled to DB-25 and Euroblocks terminals for flexibility.

③ Auxiliary Direct Output with Ground Lift

The AUXILLARY outputs uses eight front panel switches to lift the ground. This output may be patched to another audio system that may or may not be transformer isolated itself. The DIRECT WITH GROUND LIFT output is paralleled to DB-25 and Euroblocks terminals.

④ Isolated Output

The ISOLATED outputs uses eight precision Jensen audio isolation transformers to decouple the signals from the DI-RECT outputs. This output may be patched to a separate audio system without creating ground loops. The ISOLATED output is paralleled to DB-25 and Euroblocks terminals.

Transformer

After the PAD the signal is fed to the isolation transformer where the mic signal is decoupled to eliminate noise from ground loops. For the most flexibility when designing technical ground systems, each transformer features an internal switch allowing the signal ground to connect around the transformer.

RF Filter (not shown in the diagram)

The three paralleled inputs employ a RF network filter on their ground paths to prevent unused inputs from acting like antennas when the ground is lifted. Any radio frequencies picked up by an open pin will be shunted to ground.

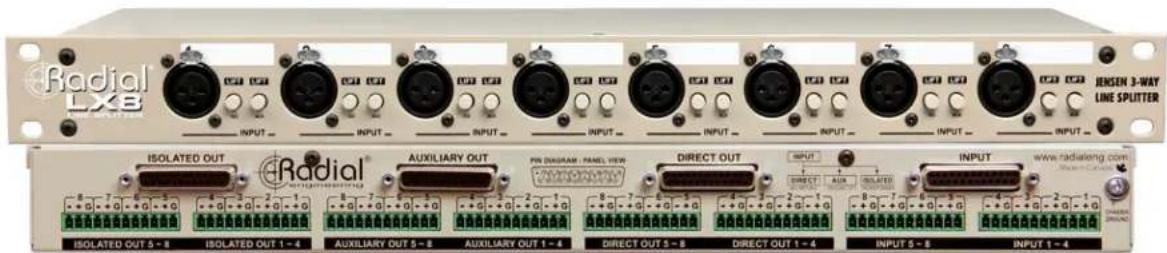

FEATURES

1. Locking XLR Inputs - Front panel female XLR jacks allow easy connection of individual signals. Rugged, glass-reinforced nylon construction for reliable connections.
2. Front Panel Lift Switch - Disconnects the ground path at the auxiliary and isolated outputs. Using the front panel ground lift can eliminate ground loop noise between equipment connected to the LX8 outputs.
3. Easy ID Label Zones - For dry-erase markers or wax pencil identification. Handy when using several LX8 at a time.
4. Military Grade PCB - The dual layer circuit board is manufactured with plated through holes and secured with 8 standoffs.
5. Transformers - Each transformer is mounted directly on the PCB in close proximity to the input for the shortest possible signal path.
6. Heavy-duty Switches - Front panel switches are metal encased and rated at 20,000 operations.
7. Internal Chassis Ground Lift - Input connectors are 100% isolated from the chassis, but an internal switch is provided to connect signal ground (pin-1) to the chassis without modifying the LX8. By default, this switch is factory set to "lifted" allowing the chassis to "float" ungrounded and should remain this way unless a specific grounding scheme requires the signal ground to be tied to the chassis.

8. 14-Gauge Chassis - Made extra tough with heavy gauge steel and welded corners to provide excellent shielding and durability. Finished in baked enamel.

9. Isolated Output - This output is transformer isolated to block noise caused by ground loops and is wired in parallel to DB-25 and Euroblocks terminals.

10. Auxiliary Output - This is a direct output wired in parallel with the DIRECT output. The signal grounds may be disconnected using the front panel LIFT switch. This output is wired parallel to the DB-25 and Euroblock terminals.
11. DB-25 Pin-out Diagram - The pin-out for the female DB-25 connector is diagramed on the rear panel. All DB-25 connectors follow the Tascam standard for eight channel analog signal interface.
12. Direct Output - This output passes signal through the LX8 and is wired parallel to the DB-25 and Euroblocksterminals.
13. Euroblock Sockets - These panel sockets receive 12-pin Euroblock screw terminals. Each Euroblock connects four channels with bare wire termination and facilitate custom options like interfacing a connector panel or multi-pin disconnect. Euroblock screw terminals are optional and must be ordered separately. (Radial order # R800 8050)
14. Rear Inputs - The rear panel DB-25 and Euroblock inputs connect all eight channels and are wired parallel to the front XLR connectors.
15. Chassis Ground - Ground screw connection point used in conjunction with the internal chassis lift switch to bond the LX8 to earth.

CONNECTING THE LX8

LX8 Inputs

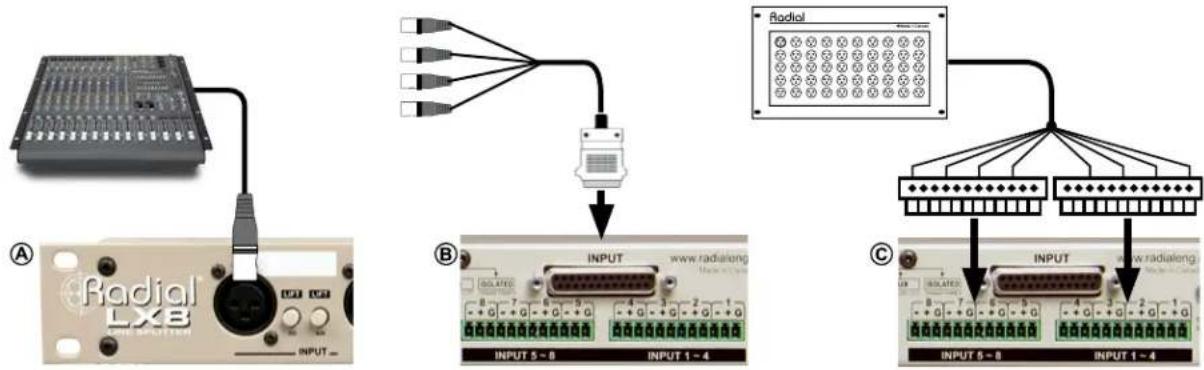

You can connect to the LX8 using the front panel XLR inputs, or the rear panel DB-25 and Euroblock terminals. Which input you choose to use will depend where the LX8 is located and what you are connecting to it. For instance, individual channels may be connected directly via the front panel XLRs A, or a multi-channel snake may be used to connect to the DB-25 inputs B. Finally, a wall-mounted panel of XLRs may be connected to the Euroblock inputs with a multi-channel snake cable C

Connecting the DB-25 I/O

The DB-25 connectors on the rear panel use the TASCAM pin-out standard for analog audio. Connecting the LX8 to devices equipped with DB-25 connectors like recording interfaces is simply a matter of using compatible DB-25 audio cables. Radial balanced DB-25 cables are a perfect match for the LX8 and can be ordered in standard or custom lengths.

The pin-out diagram is silk-screened on the rear panel for reference and represents the panel-mount female pin-out. To make your own interface DB-25 cables follow the pin-outs below for male and female connectors.

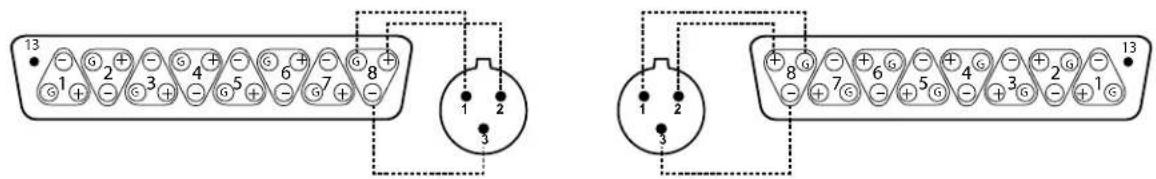

Female DB-25 Pin-out (Panel View) Male DB-25 Pin-out (Cable View)

Connecting the Euroblock Terminals

Euroblock, or European style terminal blocks, also called Phoenix blocks, are removable screw terminal connectors. The Euroblock connector requires no soldering to terminate. Instead, the wire is stripped, inserted into slots in the connector and locked into place with a standard screwdriver. The connector then mates with the socket. Pin termination for the Euroblock terminals are clearly marked on the rear panel.

Referring to the pins on an XLR connector:

• Connect pin-1 (GROUND) to the G terminal.
• Connect pin-2 (HOT) to the + terminal.
• Connect pin-3 (COLD) to the - terminal.

Using the LX8 to split line levels on stage

Recording live using high quality preamps delivers the best results. Connect your preamps to the LX8 and split the signal to the recorder and the PA using the isolation to eliminate hum & buzz caused by ground loops.

Using the LX8 to feed two different audio systems

Running audio around various environments such as large venues, multi-function rooms or broadcast facilities can often lead to noise polluting the audio system. The LX8 eliminates noise problems due to ground loops.

The Radial LX8 features an internal grounding option that will be of interest to system engineers when integrating the LX8 into complex audio-visual systems.

Internal Chassis Ground Lift - All Channels

All connectors are 100% isolated from the steel chassis allowing chassis and signal ground to be kept separate. However, a single internal switch is provided to connect the pin-1 cable shields to the chassis without modifying the LX8. By default, this switch is factory set to open or "lifted" allowing the chassis to "float" ungrounded.

Should a specific grounding scheme require the cable shields to be bonded to the chassis simply set this switch to closed (pushed in position). The switch may be accessed through a small hole in the side of the steel chassis or by removing the top cover. The chassis ground switch does not effect the isolation provided by the transformer at the ISOLATED output.

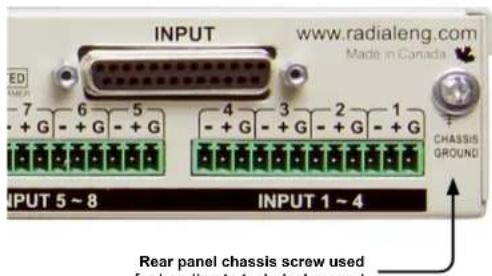

On the rear panel a ground screw provides a convenient point to bond the chassis. Use a heavy gauge solid copper wire to bond the LX8 chassis to your technical ground.

Close-up of a computer interface showing a cable being inserted into a device, with a magnified inset highlighting a component (no visible text or symbols)

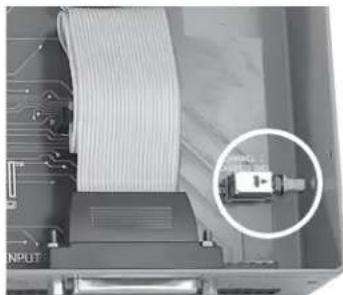

Access the internal chassis ground lift switch through a small hole in the side of the chassis.

RADIAL ENGINEERING LTD. 3 YEAR TRANSFERABLE WARRANTY

RADIAL ENGINEERING LTD. ("Radial") warrants this product to be free from defects in material and workmanship and will remedy any such defects free of charge according to the terms of this warranty. Radial will repair or replace (at its option) any defective component(s) of this product (excluding finish and wear and tear on components under normal use) for a period of three (3) years from the original date of purchase. In the event that a particular product is no longer available, Radial reserves the right to replace the product with a similar product of equal or greater value. To make a request or claim under this limited warranty, the product must be returned prepaid in the original shipping container (or equivalent) to Radial or to an authorized Radial repair center and you must assume the risk of loss or damage. A copy of the original invoice showing date of purchase and the dealer name must accompany any request for work to be performed under this limited warranty. This limited warranty shall not apply if the product has been damaged due to abuse, misuse, misapplication, accident or as a result of service or modification by any other than an authorized Radial repair center.

THERE ARE NO EXPRESSED WARRANTIES OTHER THAN THOSE ON THE FACE HEREOF AND DESCRIBED ABOVE. NO WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL EXTEND BEYOND THE RESPECTIVE WARRANTY PERIOD DESCRIBED ABOVE OF THREE YEARS. RADIAL SHALL NOT BE RESPONSIBLE OR LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS ARISING FROM THE USE OF THIS PRODUCT. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY DEPENDING ON WHERE YOU LIVE AND WHERE THE PRODUCT WAS PURCHASED.
