ep730 - Headphones HARMAN KARDON - Free user manual and instructions

Product Type	Over-ear headphones
Brand	Harman Kardon
Model	EP730
Driver Diameter	40 mm
Frequency Response	20 Hz - 20 kHz
Impedance	32 Ω
Sensitivity	108 dB
Connection Type	Wired, 3.5 mm audio jack
Cable Length	1.2 m
Weight	180 g
Dimensions (HxWxD)	170 x 150 x 70 mm
Color Options	Black
Ear Cushion Material	Leather-like synthetic
Headband Padding	Memory foam with leatherette
Foldable	Yes, for portability
Controls	In-line remote with microphone
Microphone	Built-in, omnidirectional
Power Source	Passive (no battery required)
Cleaning Instructions	Wipe with a soft, dry cloth
Safety Warnings	Avoid high volumes to prevent hearing damage
Spare Parts Availability	Replacement ear cushions available
Repairability	User-replaceable cable and ear pads
Warranty	1 year (depending on region)
Compatibility	Smartphones, tablets, computers with 3.5 mm jack

Frequently Asked Questions - ep730 HARMAN KARDON

How do I connect the Harman Kardon EP730 headphones to my device?

Simply plug the 3.5 mm audio jack into the headphone port of your device. The headphones are wired and do not require pairing or batteries.

Can I use the built-in microphone for calls?

Yes, the EP730 features an in-line remote with a microphone, allowing you to take calls and control playback on compatible devices.

Are the ear cushions replaceable?

Yes, the ear cushions are replaceable. Contact Harman Kardon support or check the user manual for compatible spare parts.

How should I clean my EP730 headphones?

Use a soft, dry cloth to wipe the surfaces. Avoid using liquids or abrasive cleaners to prevent damage.

What is the frequency response of the EP730?

The frequency response is 20 Hz to 20 kHz, covering the full range of human hearing.

Do the headphones fold for storage?

Yes, the EP730 headphones are foldable, making them convenient for travel and storage.

Is there a warranty on the Harman Kardon EP730?

Warranty terms vary by region. Typically, Harman Kardon offers a 1-year limited warranty. Check your local documentation for details.

Can I use the EP730 with devices without a headphone jack?

You may need a USB-C or Lightning to 3.5 mm adapter (not included) to connect to modern smartphones or laptops without a dedicated jack.

What type of cable does the EP730 use?

The EP730 uses a standard 3.5 mm audio cable with an in-line remote. The cable is detachable and replaceable.

Are the headphones suitable for use with audio interfaces?

Yes, the 32-ohm impedance makes them easy to drive with most audio interfaces, smartphones, and portable players.

USER MANUAL ep730 HARMAN KARDON

Technology By ETYMÔTIC RESEARCH:

ep730

headphones

User Guide

English 2

Deutsch 5

Français 9

Español.... 13

Italiano 17

Dutch 21

Korean 25

Danish 29

Norwegian 33

Japanese 37

Simplified Chinese .. 41

Safety Instructions

Headphone/earphone listening at high volume levels may cause permanent damage to your hearing. Always set the volume control to the lowest level before switching to different sources (tuner, CD player, MP3 player, etc.) or before plugging in the headphones/earphones. For your safety, do not use headphones/earphones while driving or cycling.

Earphone Removal

• To avoid discomfort, use a slow twisting motion to gradually break the seal.
- Open the jaw slightly to equalize pressure, because suction can occur when the eartip is removed.

Headphone Regulatory Requirements

U.S., Europe (+TUV), UK, Japan, China, Singapore, Taiwan, Mexico, Korea, Australia, New Zealand

Headphone Language Requirements

English, French, Spanish, German, Korean, Chinese, Japanese, Norwegian, Dutch, Danish, Italian

Welcome

Thank you for purchasing the Harman Kardon® EP 730 noise-isolation earphone system. This system has been designed to meet Harman Kardon's highest audio-performance standards. The Harman Kardon EP 730 will meet all your listening and travel needs, and enable you to immerse yourself in your favorite music, wherever you are.

Introduction

Acoustically advanced Harman Kardon 700 Series earphones deliver clear, accurate sound from any portable music or DVD player. Their lightweight, in-ear design blocks out ambient noise better than many bulky battery-powered sound-canceling headphones. You can enjoy the full dynamic range of your favorite music and movies without cranking up the volume to unnatural – or even unsafe – listening levels.

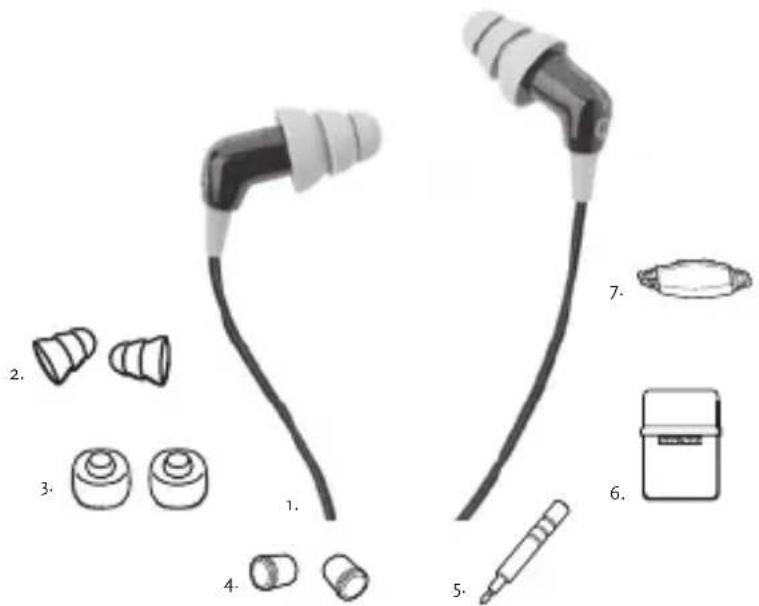

Package Contents

1. EP 730 Earphones
2. Flange ear tips (one pair)
3. Foam ear tips (one pair)
4. Replacement filters 1 pair
5. Filter-changing tool
6. Carrying case
7. Bass Boost/ Volume control

2

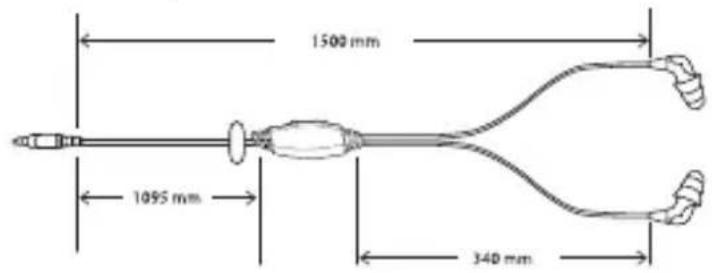

Dimensional Layout

Bass Boost/Volume Control

HF - High Fidelity
Most accurate
B- Bass Boost
Bass and loudness
boost-No VC
VC-Volume Control

response + VC
Construction

1. 3.5mm Stereo input plug
2. Shirt clip
3. Bass Boost / Volume control
4. Earphone

Technical Specification

Manufacturer: Harman Consumer Group, Inc.

Model: EP 730

Available in: Black or White

Input Requirement: Main connection - 3.5mm mini stereo jack

Max Power Input: 45 mW (HF mode)/16 mW (B mode)

Dimensions: Wire length - 150cm

Compatibility: All audio output devices with a 3.5mm or stereo phono audio jack

Sensitivity (@ 1kHz): 95dB SPL (max VC) for a 0.1V RMS input in HF position

105dB SPL (fixed) for a 0.1V RMS input in B position

Impedance: 48 Ohms (HF mode); 16 ohms (B)

Noise Isolation: 35 dB (three-flange ear tip deeply seated)

40 dB (foam ear tip deeply seated)

Frequency Response: 20 Hz - 15 kHz

Weight: 20.0 Grams (1.5m cable included)

Proper Care

• Do not expose earphones to extreme temperatures.
• Avoid dropping or strong impact. Extreme shock can damage the earphones.
  • Always leave an ear tip on the earphone for shock protection.
• Perspiration entering the nozzle may cause the earphone to temporarily stop working. Normal operation usually resumes after the earphone dries out.
• Do not pull on the cord to remove it from the jack or the ear.
• Clean or replace the ear tips prior to use and following by others.
• Replace disposable foam ear tips regularly.

- Earwax buildup can reduce the earphone output. When the filters become clogged, they should be replaced. See Changing Filters.

Caution

Consult a physician or audiologist if you have excessive cerumen, difficulty inserting the ear tips, or discomfort after prolonged use. It is unsafe to use insert earphones while driving a motorized vehicle, operating machinery, bicycling or jogging, because you may not be alerted to potential danger. Do not use the earphones at excessively loud levels. Noise-induced hearing loss is a result of exposure time, the average sound level and the peak of very loud sounds. Decreased listening levels allow for longer periods of safe listening time.

Changing Filters

1. Remove eartip.

2. Firmly push the sharp tip of the filter tool into the center of the filter.

3. Pull out the entire filter and plastic ring.

Filter Replacement

1. With your fingers, put the narrow end of a new filter into the end of the earphone. Be careful to put the open end in first so that the filter can be seen at the tip of the earphone. Gently push on the filter and snap it into the earphone. You should feel and hear it snap in place.

2. Add the eartip back onto the earphone.

A Harman International Company

Harman Consumer Group, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

1.516.255.4545

www.jbl.com

Made in China. Fabriqué en Chine.

© 2006 Harman International Industries, Incorporated. All rights reserved. Tous droits réservés.

Harman Kardon and Harman International are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries.

Harman Kardon's model 730 earphones, are covered by,

design patents no. 452313-0002, and other patents pending.

Document Number: 950-0167-001
