CL - Headphones HARMAN KARDON - Free user manual and instructions

Product Type	Over-ear headphones
Brand	Harman Kardon
Model	CL
Driver Size	40 mm
Frequency Response	16 Hz – 22 kHz
Impedance	32 Ω
Weight	240 g
Cable Length	1.2 m
Connector	3.5 mm stereo jack
Microphone	Built-in, omni-directional
Controls	In-line remote with volume and track control
Ear Cushions	Soft leatherette, over-ear
Headband	Adjustable, padded
Foldable Design	Yes, for portability
Compatibility	Smartphones, tablets, laptops, audio players
What's in the Box	Headphones, audio cable, user manual
Maintenance	Wipe with dry cloth; store in dry place
Safety	Keep away from water and heat sources
Spare Parts Availability	Replacement ear cushions and cables available
Repairability	Repair service via authorized centers

Frequently Asked Questions - CL HARMAN KARDON

How do I connect the Harman Kardon CL headphones to my phone?

Simply plug the 3.5 mm jack into your phone's headphone port. The built-in microphone and controls will work automatically.

Are the ear cushions replaceable?

Yes, the ear cushions are replaceable. You can purchase genuine replacements from Harman Kardon or authorized dealers.

Do these headphones have noise cancellation?

No, the CL model does not feature active noise cancellation. It provides passive noise isolation through its over-ear design.

Can I use the microphone with a PC?

Yes, the microphone works with PCs that have a combined headphone/mic jack. For separate ports, you may need a splitter cable.

What is the cable length?

The included audio cable is 1.2 meters long, providing ample reach for most devices.

How do I clean the headphones?

Use a soft, dry cloth to wipe the headband and ear cups. Avoid using liquid cleaners, as they may damage the materials.

Are these headphones compatible with iPhone?

Yes, they work with all iPhones that have a 3.5 mm headphone jack. For newer iPhones without a jack, you need a Lightning to 3.5 mm adapter.

What is the impedance? Can I use them with high-end audio equipment?

The impedance is 32 Ω, making them easy to drive with smartphones and portable devices. They also work well with amplifiers.

How should I store the headphones when not in use?

Fold the headphones and store them in a dry, cool place. Avoid exposing them to extreme temperatures or direct sunlight.

Where can I find the user manual?

The user manual is available for free download on our website or in the box. You can also request a translated version via email.

USER MANUAL CL HARMAN KARDON

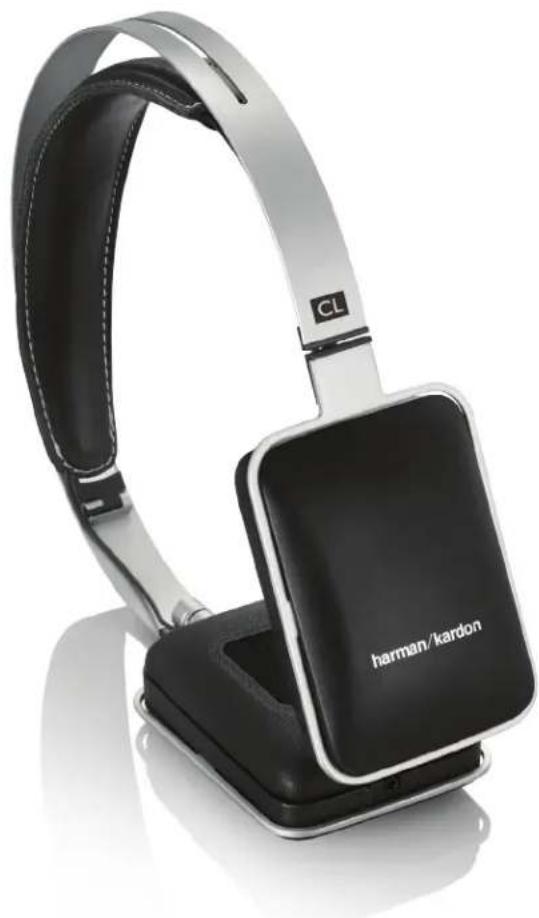

Introducing the CL model on-ear headphones, part of the first-ever line of Harman Kardon® headphones. Blending sophistication and simplicity, acoustics and aesthetics, CL headphones embody the essence of "Beautiful Sound."

Product photo of a Harman/kardon branded headband with black and silver design (no visible text or symbols on the device itself)

Beautiful sound. To go.

Harman Kardon® CL headphones feature an exclusive acoustic system that integrates superb mechanical design, materials and electronics. User-exchangeable bows, self-adjusting housings, soft leather cups and slow-retention ear-cup foam ensure a comfortable fit and an optimal acoustic seal around the ear. Uniquely baffled 1-5/8-inch (40-millimeter) drivers enable the CL to outperform other headphones in extended bass response. Lightweight and comfortable, CL headphones let you take Beautiful Sound with you wherever you go.

From high-quality materials to exceptional acoustic performance, these new headphones reflect the Harmon Kardon commitment to innovative industrial design and uncompromising sound quality.

Highlights

• Sophisticated, modern design
• Optimized driver system

• Sonic clarity and accuracy even at low volume levels
  • Apple compatible remote with mic

• User-exchangeable metal bows
  • Dual axis self-adjusting housings

• Slow-retention premium foam
• Closed back design

Black car hood with a silver handle and 'CL' logo, no visible text or symbols on the body

HARMANKARDON® HEADPHONES CL

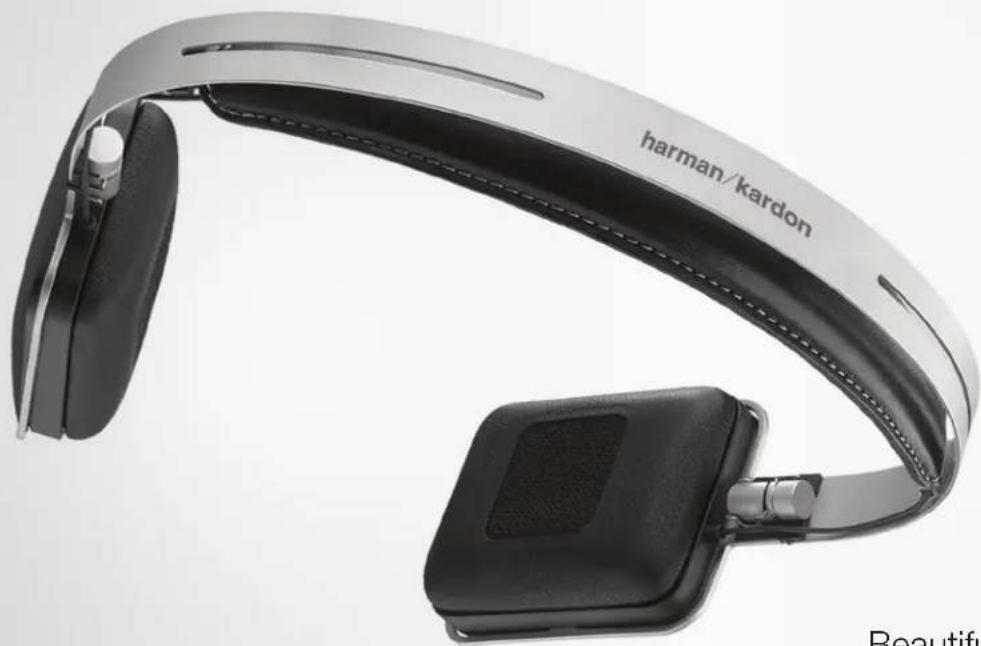

A triumph of craftsmanship and audio engineering, Harman Kardon headphones are designed for those with an eye for style and an ear for sound.

Harman Kardon CL headphones offer high-tech performance wrapped in an elegant package and interface. With their blend of sandblasted steel and black matte housings, the CLs' design and function complement Apple products while reinforcing the sophisticated elegance of the Harman Kardon brand.

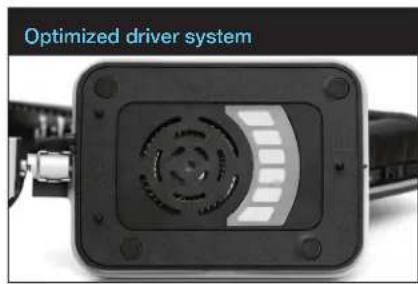

High-performance 1-5/8-inch (40-millimeter) drivers produce an excellent frequency response (16Hz – 20kHz) for a natural tone. A unique baffle creates air flow that extends low frequencies. As a result, CL headphones provide better bass response than other headphones in their class.

CL headphones incorporate the Harman Kardon closed-back design that keeps outside noise out while keeping your music from leaking out and distracting others. Which means your listening experience is undisturbed, immersive – and private.

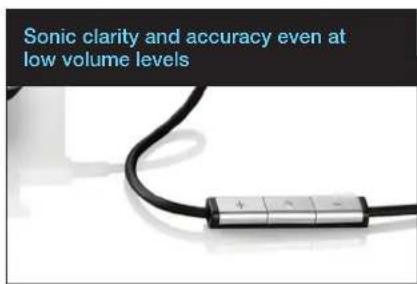

The CL headphones' acoustic engineering and passive noise reduction mean that you can hear music and other audio content clearly at low volume levels, so you can enjoy all the music definition without all the volume – and that's safer for your ears.

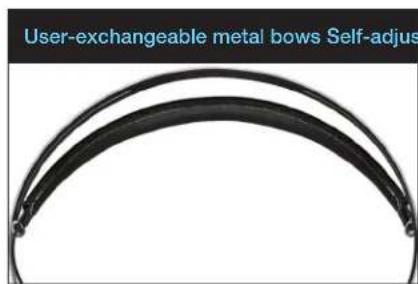

To facilitate the optimal positioning of the ear cup on the head – and improve acoustic performance – CL headphones come with headband bows in two different sizes: small and large. Users can easily swap the headbands to determine which size maximizes comfort and fit.

Close-up of a black USB cable connector attached to a device (no visible text or symbols)

The rugged steel hinges connecting the CL's housings to its headband enable the housings to swivel in two dimensions. This structure maintains an ideal fit and acoustic seal around the ear, enhancing comfort and maximizing the rejection of outside noise for superior sound.

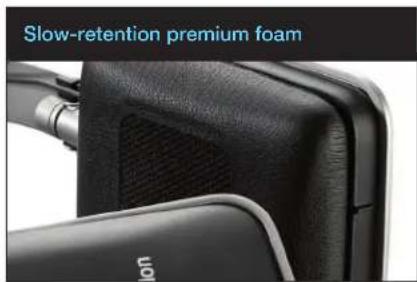

Premium foam in the ear pads contributes to the CL headphones' excellent passive noise reduction and extended bass response. The slow-retention foam helps maintain an acoustic seal around the ear, which keeps outside noises out and also keeps the listener's music from disturbing others.

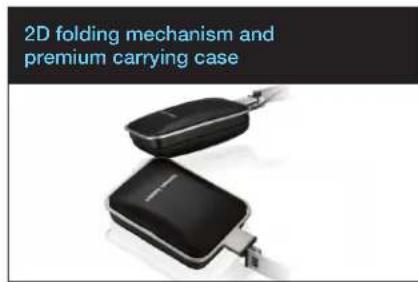

The CL ear cups fold flat when they're not in use, making the headphones easier to transport and store. The flat-folding headphones and included carrying case slip easily into bags or briefcases – which makes the CLs especially convenient for travelers.

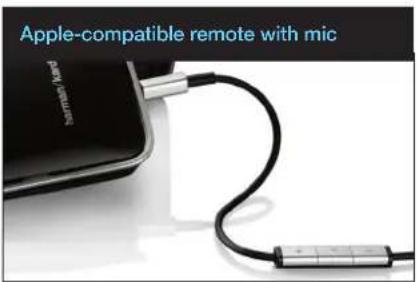

The CL headphones' cable integrates an Apple-compatible remote and microphone that let you accept and end phone calls without removing the headphones. Wrapped in tightly woven nylon fabric, the heavy-gauge cable resists tangling and includes highly finished connectors on both ends.

HARMANKARDON® HEADPHONES CL

Harman Kardon has always engineered uncompromising audio for the ears. Now it's closer than ever.

What's included:

• 1 set of Harman Kardon CL Headphones
• 2 user-exchangeable Headbands (small, large)
• 1 4' 7" (1.4m) Cable with remote/mic
• 1 Premium Carrying Case
- Owner's Manual
- Warranty Card

HARMAN KARDON CL HEADPHONES

• Type: On-ear style
  • High-performance driver: 1-5/8" (40mm)
  • Frequency response: 16Hz – 20kHz
  • Cable: 4' 7" (1.4m)
  • Remote: Apple three-button (MFI)
  • Case: Premium carrying case

Go online to register your purchase and access tips that will show you just how beautiful sound can be.

www.harmankardon.com/registermyproduct

Black hardcover headphones with 'harman/kardon' branding, no visible text or symbols on the device itself
