Product Type	Over-ear headphones
Brand	Harman Kardon
Model	ep720
Driver Diameter	40 mm
Frequency Response	20 Hz - 20 kHz
Impedance	32 ohms
Sensitivity	115 dB
Connector	3.5 mm stereo jack
Cable Length	1.2 m
Weight	200 g
Battery	None (wired)
Microphone	Yes, inline with answer/end button
Foldable Design	Yes
Ear Cushion Material	Leatherette
Headband Padding	Soft foam
Adjustable Headband	Yes
Finishes	Black with metallic accents
Cleaning Instructions	Wipe with a dry, soft cloth; avoid liquids
Storage	Store in a cool, dry place; use the included pouch
Accessories	Carrying pouch, audio cable with microphone
Warranty	1 year limited

Frequently Asked Questions - ep720 HARMAN KARDON

How do I connect the Harman Kardon ep720 headphones to my device?

Plug the 3.5mm jack into the headphone port of your device. The inline remote can be used for play/pause and call answer/end.

Can I replace the cable on the ep720?

Yes, the cable is detachable. To replace, gently pull the connector from the left earcup. Use a compatible 2.5mm to 3.5mm cable with inline mic.

Are the earpads replaceable?

Yes, the earpads are attached via a snap-on mechanism. You can purchase replacement earpads from Harman Kardon or third-party sellers.

How do I clean the headphones?

Wipe the exterior with a dry, soft cloth. For the earpads, use a slightly damp cloth with mild soap if needed, but avoid soaking. Do not use harsh chemicals.

Why is the sound only coming from one side?

First, check if the cable is fully inserted. If the issue persists, try a different cable. If the problem remains, the driver may be faulty; contact support.

Do the ep720 headphones have a microphone?

Yes, they feature an inline microphone with a button for answering calls and controlling music playback.

Are these headphones compatible with gaming consoles?

Yes, they work with any device that has a 3.5mm audio jack, including PlayStation, Xbox, and Nintendo Switch (with adapter).

How do I adjust the headband for a better fit?

Gently extend or retract the headband arms until the headphones sit comfortably over your ears. The headband is adjustable on both sides.

Can I use the headphones during exercise?

They are not specifically designed for sports use. The leatherette earpads may cause sweating, and the cable can be cumbersome. Consider them for casual or home use.

What is the warranty period?

The Harman Kardon ep720 headphones come with a 1-year limited warranty. Retain your proof of purchase for warranty claims.

USER MANUAL ep720 HARMAN KARDON

Technology By ETYMÔTIC RESEARCH:

ep720

headphones

Close-up of a white and black electric plug with a black cable, no visible text or symbols.

User Guide

English 2

Deutsch 5

Français 9

Español.... 13

Italiano 17

Dutch 21

Korean 25

Danish 29

Norwegian 33

Japanese 37

Simplified Chinese .. 41

Safety Instructions

Headphone/earphone listening at high volume levels may cause permanent damage to your hearing. Always set the volume control to the lowest level before switching to different sources (tuner, CD player, MP3 player, etc.) or before plugging in the headphones/earphones. For your safety, do not use headphones/earphones while driving or cycling.

Earphone Removal

• To avoid discomfort, use a slow twisting motion to gradually break the seal.
- Open the jaw slightly to equalize pressure, because suction can occur when the eartip is removed.

Headphone Regulatory Requirements

U.S., Europe (+TUV), UK, Japan, China, Singapore, Taiwan, Mexico, Korea, Australia, New Zealand

Headphone Language Requirements

English, French, Spanish, German, Korean, Chinese, Japanese, Norwegian, Dutch, Danish, Italian

Welcome

Thank you for purchasing the Harman Kardon® EP 720 noise-isolation earphone system. This system has been designed to meet Harman Kardon's highest audio-performance standards. The Harman Kardon EP 720 will meet all your listening and travel needs, and enable you to immerse yourself in your favorite music, wherever you are.

Introduction

Acoustically advanced Harman Kard on 700 Series earphones deliver clear, accurate sound from any portable music or DVD player. Their lightweight, in-ear design blocks out ambient noise better than many bulky battery-powered sound-canceling headphones. You can enjoy the full dynamic range of your favorite music and movies without cranking up the volume to unnatural – or even unsafe – listening levels.

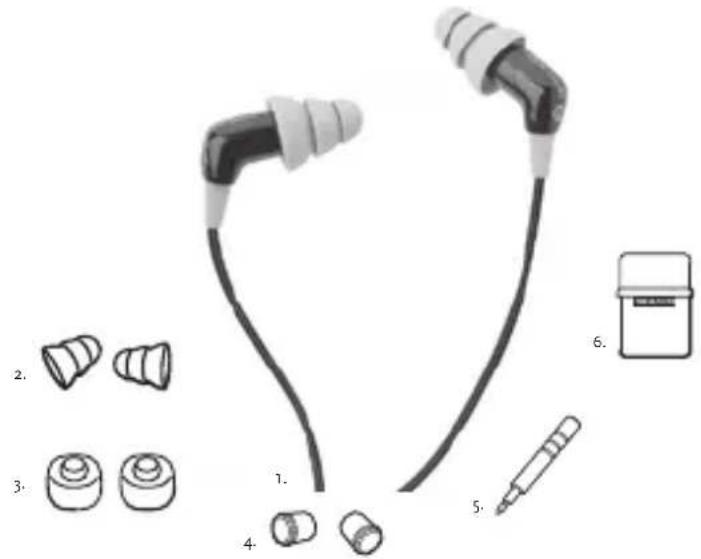

Package Contents

1. EP 720 Earphones
2. Flange ear tips (one pair)
3. Foam ear tips (one pair)
4. Replacement filters 1 pair
5. Filter-changing tool
6. Carrying case

2

Construction

1. 3.5mm Stereo input plug
2. Shirt clip
3. Earphon e

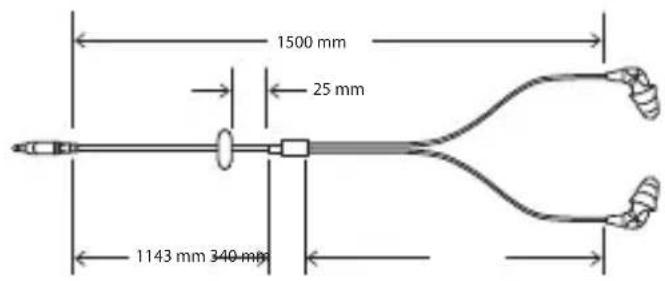

Dimensional Layout

Technical Specification

Manufacturer: Harman Consumer Group, Inc.

Model: EP 720

Available in: Black or White

Input Requirement: Main connection - 3.5mm mini stereo jack

Max Power Input: 16 mW

Dimensions: Wire length - 150cm

Compatibility: All audio output devices with a 3.5mm or stereo phono audio jack

Sensitivity (@ 1kHz): 105dB SPL for a 0.1V RMS input

Maximum Output: 120dB SPL

Impedance: 16 ohms (nominal)

Noise Isolation: 35 dB (three-flange ear tip deeply seated)

Frequency Response: 20Hz - 15kHz

Weight: 13.2 Grams (1.5m cable included)

Proper Care

• Do not expose earphones to extreme temperatures.
• Avoid dropping or strong impact. Extreme shock can damage the earphones.
  • Always leave an ear tip on the earphone for shock protection.
• Perspiration entering the nozzle may cause the earphone to temporarily stop working. Normal operation usually resumes after the earphone dries out.
• Do not pull on the cord to remove it from the jack or the ear.
• Clean or replace the ear tips prior to use and following by others.
• Replace disposable foam ear tips regularly.

- Earwax buildup can reduce the earphone output. When the filters become clogged, they should be replaced. See Changing Filters.

Caution

Consult a physician or audiologist if you have excessive cerumen, difficulty inserting the ear tips, or discomfort after prolonged use. It is unsafe to use insert earphones while driving a motorized vehicle, operating machinery, bicycling or jogging, because you may not be alerted to potential danger. Do not use the earphones at excessively loud levels. Noise-induced hearing loss is a result of exposure time, the average sound level and the peak of very loud sounds. Decreased listening levels allow for longer periods of safe listening time.

Changing Filters

1. Remove eartip.

2. With a slow twisting motion, firmly push the sharp tip of the filter tool into the center of the filter.

3. Pull out the entire filter and plastic ring.

Filter Replacement

1. With your fingers, put the narrow end of a new filter into the end of the earphone. Be careful to put the open end in first so that the filter can be seen at the tip of the earphone. Gently push on the filter and snap it into the earphone. You should feel and hear it snap in place.

2. Add the eartip back onto the earphone.

A Harman International Company

Harman Consumer Group, Inc.

8500 Balboa Boulevard, Northridge, CA 91329 USA

1.516.255.4545

www.jbl.com

Made in China. Fabriqué en Chine.

© 2006 Harman International Industries, Incorporated. All rights reserved. Tous droits réservés.

Harman Kardon and Harman International are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries.

Harman Kardon's model 720 earphones, are covered by,

design patents no. 452313-0002, and other patents pending.

Document Number: 950-0167-001
