USER MANUAL M 960 Microtech Gefell
extreme dynamic range
low noise floor
large membrane capsule
advanced circuit design
transformerless output
high sensitivity
compact design
price right
STUDIO CONDENSER MICROPHONE
M 960
STUDIO CONDENSER MICROPHONE M 960 High output level and low noise

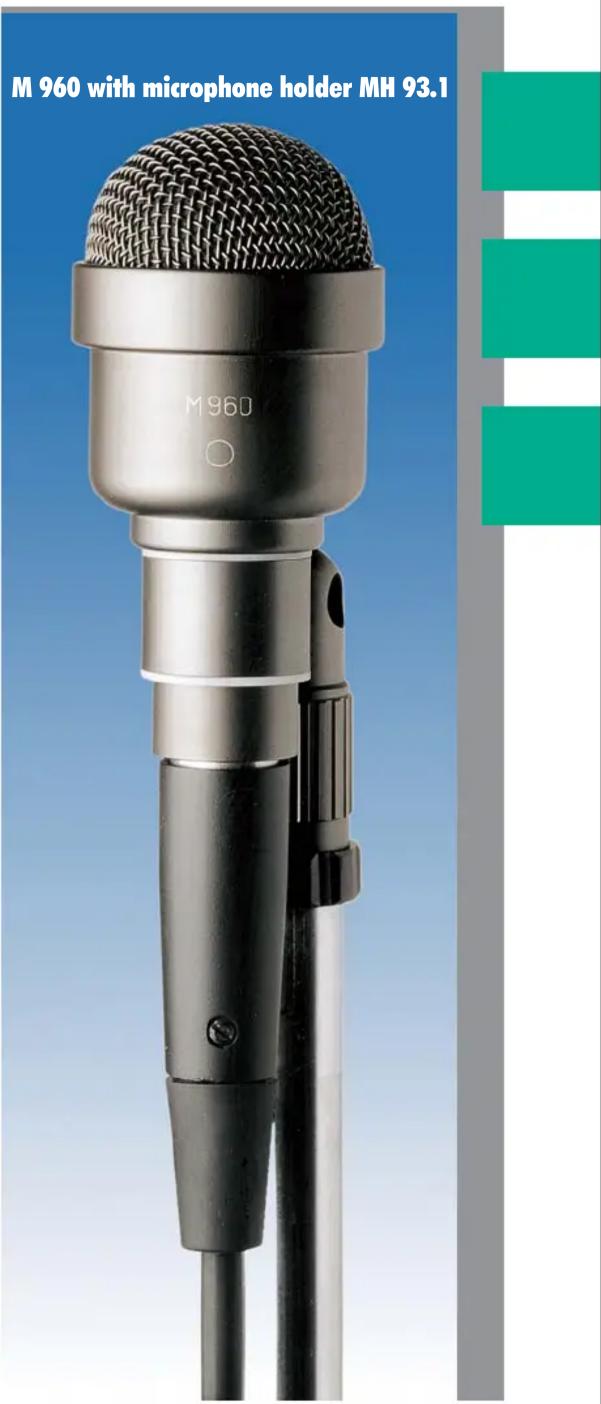

M 960 with omni-directional pattern diffuse field
The M 960 studio condenser microphone combines well-proven large diaphragm capsule technology with the latest in semiconductor circuit topology.
It is specifically designed to meet the needs of professional and semi-professional users who demand the highest performance.
The M 960 is ideally suited for miking applications in broadcast and sound studios.
Applications include recordings outside the diffuse field distance during choir or orchestra performances, e.g. in concert halls, churches and theatres.
The pick-up pattern of the microphone is axial.
The condenser capsule is designed for a diffuse field. It exhibits a presence boost in the 4 to 12 kHz range.
The electronic impedance converter uses a newly perfected circuit topology. This design reduces the noise floor to an extremely low level while also raising the maximum output capability. As a result, this microphone has a clean, distortion-free sound over an extremely wide dynamic range.
The M 960 is either mounted by means of the microphone stand holder MH 93.1, which is included or the optional swivel mount MH 93. If necessary the microphone stand holder can be exchanged for the elastic suspension EH 93 to further attenuate noise (in extreme situations).
The M 960 connects to the microphone cable with a standard 3-pin XLR plug. Powering must be provided by an external 48 V phantom supply according to DIN EN 61938 and IEC 1938.
The microphone is finished in dark bronce.
ACCESSORIES, optional
Windscreen, anthracite W 96
Elastic suspension, dark bronze EH 93 202328
Microphone holder, dark bronze Order-No.
Power supply N 200
Microphone cable C 70 202212
MH 93 202326
Order-No. 202412
Order-No.
Order-No. 202101
Order-No.
TECHNICAL SPECIFICATIONS
CE Certificate M 960
| Polar pattern | Omni-directional for diffuse field | ||
| Acoustic operating principle | Pressure transducer | ||
| Frequency range, free field | 20...20000 | Hz | |
| Sensitivity at 1 kHz | 16 | mV/Pa | |
| Output impedance | 100 | Ω | |
| Equivalent loudness level | CCIR 468-4 | 19 | dB |
| due to inherent noise | DIN EN 60 651 | 9 | dB-A |
| Signal-to-noise ratio | CCIR-weighted | 75 | dB |
| (re at 1 Pa at 1 kHz) | A-weighted | 85 | dB |
| Max. SPL for THD < 0,5% | 145 | dB | |
| Max. Output level | RL= 1 k Ω | 17 | dBu |
| RL= 10 k Ω | 18 dBu | ||
| Dynamic range of electronics | dB135 | ||
| Current consumption ( P 48, DIN 45596, IEC 268-15 ) | 3,6 | mA | |
| Output connector | 3-pin XLR connector gold-plated contacts | ||
| Weight without MH 93.1 | 220 | g | |
| Dimensions ( L x )∅ | 90 x 45 | mm | |
| Finish | Dark bronce | ||
DELIVERY
The microphone is delivered in a wooden case Order-No. 211171
with microphone stand holder MH 93.1 L x B x H 180 x 106 x 78 mm
Ordering example:
POLAR PATTERNS POLAR PATTERNS
FREQUENCY RESPONSE
POLAR PATTERNS
diffuse field
free field
M 960
radar
| Angle | 1 kHz | 2 kHz | 4 kHz | 6 kHz | |-------|-------|-------|-------|-------| | 0° | -5 | -7 | -9 | -11 | | 30° | -8 | -10 | -12 | -14 | | 60° | -10 | -12 | -14 | -16 | | 90° | -12 | -14 | -16 | -18 | | 120° | -14 | -16 | -18 | -20 | | 150° | -16 | -18 | -20 | -22 | | 180° | -18 | -20 | -22 | -24 | | 210° | -20 | -22 | -24 | -26 | | 240° | -22 | -24 | -26 | -28 | | 270° | -24 | -26 | -28 | -30 | | 300° | -26 | -28 | -30 | -32 | | 330° | -28 | -30 | -32 | -34 |
radar
| Angle | 1 kHz | 8 kHz | 10 kHz | 16 kHz | |-------|-------|-------|--------|--------| | 0° | -5 | -7 | -9 | -12 | | 30° | -4 | -6 | -8 | -11 | | 60° | -3 | -5 | -7 | -10 | | 90° | -2 | -4 | -6 | -9 | | 120° | -1 | -3 | -5 | -8 | | 150° | 0 | -2 | -4 | -7 | | 180° | 1 | -1 | -3 | -6 | | 210° | 2 | 0 | -2 | -5 | | 240° | 3 | 1 | -1 | -4 | | 270° | 4 | 2 | 0 | -3 | | 300° | 5 | 3 | 1 | -2 | | 330° | 6 | 4 | 2 | -1 |
Brand : Microtech Gefell
Model : M 960
Category : Microphone
