MD 300 - Microphone Microtech Gefell - Free user manual and instructions

Type	Dynamic microphone
Polar Pattern	Cardioid
Acoustic Operating Principle	Pressure gradient transducer
Electrical Operating Principle	Moving-coil
Frequency Range	50 Hz – 16 kHz
Sensitivity	1.6 mV/Pa
Rated Impedance	220 Ω
Load Impedance	≥1 kΩ
Output Connector	3-pin XLR male
Weight	330 g
Length	173 mm
Diameter (Protection Grid)	47 mm
Diameter (Housing)	40 mm
Surface Finish	NEXTEL® S139
Included Accessories	Microphone holder MH80
Optional Accessories	Elastic suspensions EA30/EA92, turnable holder MH30, connection cable C70
Special Features	Optimized speech presence (2 dB boost 2–8 kHz), balanced low-impedance output, elastic capsule suspension, internal thread for mounts

Frequently Asked Questions - MD 300 Microtech Gefell

What type of microphone is the MD 300?

The MD 300 is a dynamic microphone using a moving-coil principle with a cardioid polar pattern.

What is the frequency response of the MD 300?

The frequency response ranges from 50 Hz to 16 kHz, with a subtle presence boost of approximately 2 dB between 2 kHz and 8 kHz to enhance speech clarity.

Does the MD 300 exhibit proximity effect?

Yes, but it is well-balanced to avoid excessive low-frequency emphasis at close distances, making it suitable for close-talking applications.

Can I use long cables with the MD 300?

Yes, thanks to its balanced low-impedance output (220 Ω), the MD 300 can drive long cable runs with negligible signal degradation.

What accessories are included in the box?

The standard delivery includes the MD 300 microphone and a microphone holder MH80, all in a carton box.

Are shock mounts available for the MD 300?

Yes, optional elastic suspensions EA30 and EA92 are available to reduce handling noise and vibrations.

What is the weight of the MD 300?

The microphone weighs 330 g (without accessories), making it comfortable for handheld use over extended periods.

What polar pattern does the MD 300 use?

It uses a cardioid polar pattern, which rejects sound from the rear and sides, ideal for focused pickup in live and studio settings.

Can I mount the MD 300 on a stand?

Yes, the microphone has an internal thread at the base for attaching standard microphone holders or stands, either elastic or rigid.

What output connector does the MD 300 use?

It uses a standard 3-pin XLR male connector, wired according to DIN 60268-4 for balanced audio.

USER MANUAL MD 300 Microtech Gefell

Black cylindrical device with mesh grille and ventilation slots, labeled 'MD 300' at bottom (no other text or symbols visible)

DynamicmicrophoneMD300

TheMD300isahigh-qualitydynamicmicrophonewithafrequencyresponseofthetransmissionfactorthathasbeen optimizedforintelligibility.Itisfeaturedwithanespecially accurateresolutionathighfrequenciesandawell-balanced low-frequencytransmission.Itisinsensitivetomovementsof therecordedsoundsourcechankstothecardioidpolarpattern.

The MD300 is useful as close to talking microphone for an announcer of broadcasting services as well as for high-quality recording of vocalists and instrumentals soloists during live performances.

Acousticalspecifications

Adynamiccapsulewithacardioidpolarpatternisinserted intheMD300assoundtransducer. The frequency response has been optimized for low recording distances with an accentuation of approximately 2dB between 2kHz and 8kHz to raisethespeech and high-frequency presence. The change of the low end frequency response caused by the proximity effect is well-balanced without a very strong overemphasis at small microphonedistances.

Electricalspecifications

ThesoundtransducerinsertedintotheMD300runsaccordingtothemoving-coilprinciple.Themicrophoneisconnectedbyastandard3-pinXLR-maleplugwithasymmetricconnectionassignment.Becauseofthebalancedlow-impedanceoutput,theMD300canbeusedforlongercablelengthwithnegligibledistortion.ThepolarityofthemicrophoneisinaccordancewithDIN60268-4.

Mechanicalspecifications

Thehousingofthemicrophoneisequippedwithanintegratedinternalthreadattheplugsidethatallowsfixingelasticorinflexibleholders,whichareavailableasaccessories. Thisallowsusingthemicrophonewithmicrophonearmsor standmountingsandashandheldmicrophone. Thecapsule ismountedelasticallyinthehousingtoattenuatesolid-borne soundsandimpulses. Ifahigherattenuationofsuchinfluencesisrequired, itcanbeachievedbyelasticholdersand suspensions, whichareavailableasaccessories. Because of theweightof330gwithoutaccessories, theMD300can beusedforlongerperiodsashandheldmicrophonewithnegligibledistortion.

Black cylindrical device with ventilation grille and attached mechanical base (no visible text or symbols)

Black adjustable microphone with attached clasp and ventilation slots (no text or symbols visible)

Delivery

ThestandarddeliveryoftheMD300includes

DynamicmicrophoneMD300

MicrophoneholderMH80

incarton

NEXTEL® S139Order-No.2111155

Accessories

The following accessories are available optionally

MicrophoneholderMH80

NEXTEL® S139Order-No.202387

Microphoneholder,turnableMH30

NEXTEL® S139Order-No.202388

ElasticsuspensionEA30

NEXTEL® S139Order-No.202389

ElasticsuspensionEA92

blackmattOrder-No.202359

ConnectioncableC70Order-No.202212

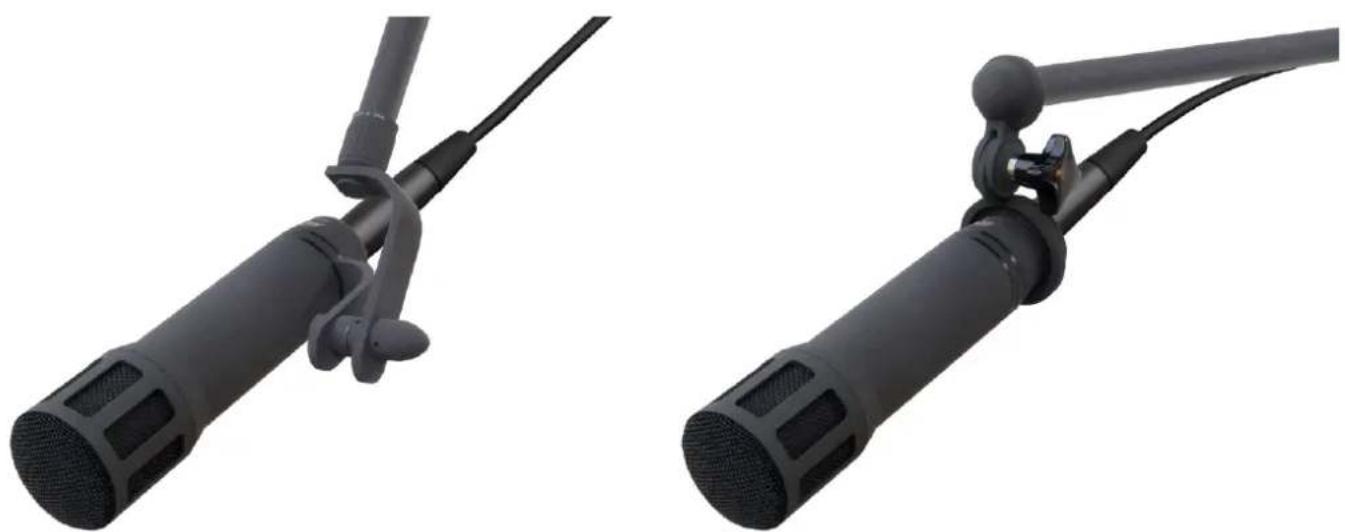

Two black microphones with attached cables, shown from different angles (no text or symbols visible)

PolarpatternCardioid
AcousticoperatingprinciplePressuregradienttransducer
ElectricaloperatingprincipleMoving-coilprinciple
Frequencyrange50-16000Hz
Sensitivity1,6mV/Pa
Ratedimpedance220Ohm
Loadimpedance≥1kOhm
Magneticfielddisturbingfactorat50Hz≤1V/T
OutputconnectorXLR3M
Weight330g
Length173mm
Diameter	Protectiongrid	47mm
	Housing	40mm
SurfaceNEXTEL		® S139

Frequency response and Polar pattern
