Product TypeCaravan
BrandSwift
ModelEccles SE (2013)
Number of Berths4
Number of Axles1
Internal Length (bed box height)5.60 m (18 ft 4 in)
Overall Width2.25 m (7 ft 5 in)
Overall Height (including TV aerial)2.65 m (8 ft 8 in)
Overall Length7.25 m (23 ft 9 in)
Mass in Running Order (MRO)1400 kg (27.6 cwt)
Maximum Technical Permissible Laden Mass (Lower)1553 kg (30.6 cwt)
Maximum Technical Permissible Laden Mass (Upper)1600 kg (31.5 cwt)
Total User Payload153 kg (3.0 cwt)
Tyre Size185 R14C 102C
Tyre Pressure (Lower MTPM)62 psi (4.3 bar)
Static Load on Coupling Head100 kg
Thermal Insulation GradeGrade 3 (THREE)
Front Double Bed Size202 cm x 156 cm (6 ft 8 in x 5 ft 1 in)
Electrical System12V DC / 230V AC with PSU C440/448/445/449
Bulb TypesLED and halogen (see bulb chart)
User Manual10 pages PDF available at notice-facile.com

Frequently Asked Questions - Eccles SE (2013) Swift

How do I replace a bulb in the rear light cluster?
Release the four screws around the perimeter of the lens, withdraw the lamp from the rear of the caravan. Twist the relevant bulb holder to release it. Bulbs are bayonet fitting: push and twist to remove. Take care when replacing stop/tail light to ensure correct orientation so brake light is brighter.
What are the correct tyre pressures for my Swift Eccles SE?
For lower MTPM (1553 kg) use 62 psi (4.3 bar); for upper MTPM (1600 kg) use 64 psi (4.4 bar). Tyre size: 185 R14C 102C.
What is the maximum payload of the caravan?
The total user payload is 153 kg (3.0 cwt), including personal effects. Any dealer-fit options will reduce the available payload.
How can I access the number plate light bulb?
Remove the two screws in the lens, then lever the bulb out of retaining clips. Alternatively, if the rear is accessible inside, twist the bulb holder to release. Bulbs are push fit.
What type of electrical system does the caravan use?
It uses a 12V DC system with a Sargent Electrical Services PSU (part numbers C440, 448, 445, 449) and a 230V AC circuit for appliances like a refrigerator and heater.
How do I interpret the Mass in Running Order (MRO) and payload information?
The MRO includes essential equipment like gas cylinders now. The payload is the remaining capacity for personal effects. The overall effect of the new calculation method is that the available payload remains the same as before.
What are the bed sizes in the Eccles SE?
The front double bed is 202 cm x 156 cm (without chest of drawers). Side single beds vary by layout: offside single 190 cm x 62 cm, nearside single 183 cm x 73 cm. Rear double beds are also available.
How do I change a bulb in the awning lamp?
The awning lamp is an LED unit (FEM0945) with no user-serviceable parts. Replacement should be done by your dealer as the lamp is sealed.
What is the correct awning size for my caravan?
Awning sizes are approximate. For the Eccles SE, the A/A dimension is about 9.36 m (32 ft 8 in). Confirm with your dealer or awning manufacturer before purchase.
Where can I download the full user manual?
The manual is available for free download in PDF format at notice-facile.com. Search for 'Swift Eccles SE 2013'. It includes wiring diagrams and bulb replacement instructions.

User questions about Eccles SE (2013) Swift

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Caravan in PDF format for free! Find your manual Eccles SE (2013) - Swift and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Eccles SE (2013) by Swift.

USER MANUAL Eccles SE (2013) Swift

email enquiry@swiftgroup.co.uk

For more information visit

www.swiftgroup.co.uk

Issued July 2012

Swift Eccles SE (2013) - 1

Challenger SE - Conqueror Eccles SE - Elite Technical Handbook

Swift Eccles SE (2013) - 2

Swift Eccles SE (2013) - 3

1099978

Contents

Challenger SE - Eccles SE Specifications .... 2

Conqueror - Elite Specifications 4

Wiring Diagrams 6

Bulb Chart 13

Bulb Replacement....14

Specification

Challenger Challenger 480 Challenger 530 Challenger 565 Challenger 570 Challenger 574 Challenger 580 Challenger 625
Eccles Eccles Topaz Eccles Moonstone Eccles Solitaire Eccles Ruby Eccles Jade Eccles Quartz Eccles Amethylyst
Berths 2 4 4 4 4 4 6
Axles1 1 1 1 1 1 2
Internal Length (bed box height)4.40m/14'5"5.29m/7'4"5.60m/15'4"
Overall Width2.25m/7'5"2.26m/7'5"2.25m/7'5"
Overall Height (Inc. IV Aerial"2.64m/8'8"2.65m/8'8"2.65m/8'8"
Maximum internal Headroom1.95m/8'5"1.95m/8'5"1.95m/8'5"
Overall Length6.06m/19'11"6.94m/22'9"7.25m/23'9"
Awing A/A dimension†8.77m/28'9"9.65m/31'8"9.96m/32'8"
Mass in Running Order (Inc. tolerance)1161kg/22.9xwt1324kg/26.1xwt1400kg/27.6xwt
Maximum Technical Permissible LaderMass (over limit)1282kg/25.2xwt1474kg/29.0xwt1553kg/30.6xwt
Maximum Technical Permissible LaderMass Upper limit1350kg/26.6xwt1500kg/29.5xwt1600kg/31.5xwt
Total user Payload121kg/2.4xwt150kg/3.0xwt153kg/3.0xwt
Personal Effects121kg/2.4xwt150kg/3.0xwt153kg/3.0xwt
OptionsOkg/0xwtOkg/0xwtOkg/0xwt
Tyra Size185 R14C 102C185 R14C 102C195/70 R1'5C 104R
Tyra pressure at Lower limit MTPM M52 psi/3.6bar62 psi/4.3bar62 psi/4.3bar
Tyra pressure at Upper limit MTPM M55 psi/3.8bar64 psi/4.4bar64 psi/4.4bar
Static Load on Coupling Head100kg100kg100kg
Thermal Insulation GraceTHREETHREETHREE
Bed Sizes
Front Double202cm x 176cm/6'3" x 5'0"202cm x 178cm/6'9" x 5'9"202cm x 156cm/8'8" x 5'1"
or Front Narasda Single186cm x 72cm/6'1" x 2'4"176cm x 72cm/5'3" x 2'4"156cm x 72cm/5'1" x 2'4"
and Front Offside Single176cm x 72cm/5'3" x 2'4"186cm x 72cm/6'1" x 2'4"156cm x 72cm/5'1" x 2'4"
Gear Double
Slee Single (offside)190cm x 62cm/5'11" x 2'0"192cm x 68cm/6'4" x 2'3"
Slee Single (nearside)183cm x 73cm/6'0" x 2'5"
Slee Bunk (offside)176cm x 59cm/5'9" x 1'11"
Slee Bunk (nearside)
Slee Fixed Lower Bunk
Slee Fixed Mid Bunk
Slee Fixed Upper Bunk

** Estimated

5.80m/18'4"5.80m/18'4"5.83m/19'2"6.27m/20'7"
2.25m/7'5"2.25m/7'3"2.26m/7'5"2.26m/7'5"
2.65m/8'8"2.65m/8'8"2.65m/8'8"2.62m/8'7"
1.95m/6'5"1.95m/6'5"1.95m/6'5"1.95m/6'5"
7.25m/23'9"7.25m/23'9"7.48m/24'8"7.93m/26'0"
9.36m/32'8"9.36m/32'8"10.19m/33'5"10.64m/34'11"
134.2kg/26.4cwt134.7kg/26.5cwt141.0kg/27.8cwt159.5kg/31.4cwt
149.5kg/29.4cwt150.0kg/29.5cwt156.6kg/30.8cwt177.5kg/34.9cwt
150.0kg/29.5cwt150.0kg/29.5cwt160.0kg/31.5cwt190.0kg/37.4cwt
153kg/3.0cwt153kg/3.0cwt156kg/3.1cwt180kg/3.5cwt
153kg/3.0cwt153kg/3.0cwt156kg/3.1cwt180kg/3.5cwt
0kg/0cwt0kg/0cwt0kg/0cwt0kg/0cwt
185 R14C 1020185 R14C 1020195/70 R15C 1043185/70 R14 88T
64 psi/4 bar64 psi/4 bar69 psi/4 bar30 psi/2 bar
64 psi/4 bar64 psi/4 bar64 psi/4 bar32 psi/2 bar
100kg100kg100kg100kg
THREETHREETHREETHREE
202cm x 156cm/6'8" x 5'1"202cm x 156cm/6'8" x 5'1"202cm x 156cm/6'8" x 5'1"202cm x 176cm/6'8" x 5'0"
156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"176cm x 72cm/5'3" x 2'4"
156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"186cm x 72cm/6'1" x 2'4"
192cm x 130cm/8'4" x 4'3"192cm x 130cm/8'4" x 4'3"185cm x 130cm/8'1" x 4'4"190cm x 130cm/8'4" x 4'3"
190cm x 89cm/5'11" x 2'3"
176cm x 59cm/5'9" x 1'1"

Weights: The method of canceling the Mass in Running Order (MRC) and user paypal figures has changed in order to bring it in line with European Vehicle Directives.

Allowance for essential equipment (e.g. gas cylinders) previously allowed for in the user payback are now contained within the MFC. A provision for a regular level of width used to be within the essential

equipment payned has now been included within the personal effects payment allowance. Although the method of calculation has changed, the overall effect is that the amount of payned available to the customer has remained the same, it is and calculated in a different manner.

Bed Sizes: Please note that the 1st double bed sizes quoted are for sealing configurations without chest of drawers. The first double bed with a layout with a chest of drawers filled will be receded by 0.4m(1.4) from that slot.

Awning sizes: Due to varying awning designs and sizes, the awning sizes given are approximately only. Specific awning sizes must be continued by your dealer or awning manufacturer prior to purchase.

* The time is one year are approximate due to eight variations in suspension rule heights, leading conditions and eye pressures. Customers should verify the actual dimensions of their current tension before controlling it anything that could be impacted by these dimensions.

Please note: Any dealer fit options will reduce the overall payment available to the use of the customer. If you require additional payload it is possible to upgrade the ATHI M to the upper limit. Please contact your Sall customer cleaner for more information.

Specification

Conqueror Conqueror 480 Conqueror 530 Conqueror 565 Conqueror 570 Conqueror 630 Conqueror 645
Elite Elite Diamond Elite Emerald Elite Opal Elite Amber Elite Searcher Elite Explorer
Berths 2 4 4 4 4 4
Axes 1 1 1 2 2
Internal Length (bed box height)4.74m/13'7"6.50m/18'1"6.60m/18'4"
Overall Width2.31m/7'7"2.31m/7'7"2.31m/7'7"
Overall Height (inc. IV Aerial)2.62m/8'7"2.67m/8'9"2.67m/8'9"
Maximum Internal Headroom1.95m/6'5"1.95m/6'5"1.95m/6'5"
Overall Length6.46m/21'2"7.22m/23'8"7.32m/24'0"
Awing A/A dimension†9.12m/20'11"9.88m/32'5"9.98m/32'9"
Mass in Running Order (inc. tolerance)135kg/26.7cwt1517kg/29.9cwt1516kg/29.8cwt
Maximum Technical Permissible Lader Mass Lower Limit1480kg/29.1cwt1670kg/32.9cwt1670kg/32.9cwt
Maximum Technical Permissible Lader Mass Upper Limit1500kg/29.5cwt1750kg/34.4cwt1750kg/34.4cwt
Total user Payload123kg/2.5cwt153kg/3.0cwt154kg/3.0cwt
Personal Effects123kg/2.5cwt153kg/3.0cwt154kg/3.0cwt
Options0kg/0cwt0kg/0cwt0kg/0cwt
Tyre Size185 R14C 1020195/70 R15C 104R195/70 R15C 104R
Tyre pressure at Lower limit MTPM62 psi/4.3bar65 psi/4.5bar65 psi/4.5bar
Tyre pressure at Upper limit MTPM64 psi/4.4bar65 psi/4.5bar65 psi/4.5bar
Static Load on Coupling Head100kg100kg100kg
Thermal Insulation GraceTHREETHREETHREE
Bed Sizes
Front Double207cm x 186cm/6'9" x 6'1"207cm x 176cm/6'9" x 5'0"207cm x 156cm/6'9" x 6'1"
or Front Nearside Single186cm x 72cm/6'1" x 2'4"176cm x 72cm/6'8" x 2'4"156cm x 72cm/5'1" x 2'4"
and Front Offside Single186cm x 72cm/6'1" x 2'4"186cm x 72cm/6'1" x 2'4"156cm x 72cm/5'1" x 2'4"
Rear Double
Rear Bunk
Side Single (offside)180cm x 69cm/5'11" x 2'3"192cm x 72cm/6'4" x 2'4"
Side Single (nearside)183cm x 73cm/6'0" x 2'5"
Side Bunk (offside)176cm x 59cm/5'9" x 1'1"
5.60m/18'4"6.27m/20'7"6.27m/22'7"
2.31m/7'7"2.31m/7'7"2.31m/7'7"
2.67m/8'9"2.62m/8'7"2.82m/8'7"
1.95m/6'5"1.95m/6'5"1.95m/6'5"
7.32m/24'0"7.99m/26'3"7.99m/26'3"
9.98m/32'0"10.65m/34'11"10.65m/34'11"
1516kg/29.8cwt1674kg/33.0cwt1644kg/32.4cwt
1673kg/32.9cwt1834kg/36.1cwt1804kg/35.6cwt
1750kg/34.4cwt1900kg/37.4cwt1900kg/37.4cwt
154kg/3.0cwt160kg/3.1cwt160kg/3.1cwt
154kg/3.0cwt160kg/3.1cwt160kg/3.1cwt
Okg/0cwtOkg/0cwtOkg/0cwt
195/70 R15C 104R185/70 R14 88T185/70 R14 88T
65 psi/4.5ber32 psi/2.2ber32 psi/2.2ber
65 psi/4.5ber33 psi/2.2ber33 psi/2.2ber
100kg100kg100kg
THREETHREETHREE
207cm x 156cm/6'0" x 3'1"207cm x 156cm/6'0" x 5'1"207cm x 156cm/6'0" x 5'1"
156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"
156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"
132cm x 134cm/6'4" x 4'3"192cm x 134cm/6'4" x 4'3"186cm x 133cm/6'1" x 4'4"

Weights: The method of calculating the Waste in Burning Order (MRC) and more pay-out figures has changed in order to bring it in line with European Vehicle Directives.

Advances for essential equipment (e.g. gas cylinders previously allowed for in the user payed are now contained within the MFG. A provider for a ensure facility which used to be within the essential

equipment payned has now been included within the personal effects payment allowance. Although the method of calculation has changed, the overall effect is that the amount of payned available to the customer has remained the same, it is and calculated in a different manner.

Bed Sizes: Please note that the front double back sizes quoted are for sealing configurations without chest of drawers. The front double bed width for a layout with a chest of drawers filled will be receded by 0.4m(1.4") from that slot.

Awing sizes: Due to varying seating designs and sizes the seating sizes given are approximately only. Specific seating sizes must be confirmed by your order or starting manufacturer prior to purchase.

* The time is one year are approximate due to eight variations in suspension rule heights, leading conditions and eye pressures. Customers should verify the actual dimensions of their current tension before controlling it anything that could be impacted by these dimensions.

Please note: Any dealer fit options will reduce the overall payment allowance to be used at the customer. If you require additional payload it is possible to upgrade the MTFM to the upper limit. Please contact your SaaS customer dealer for more information.

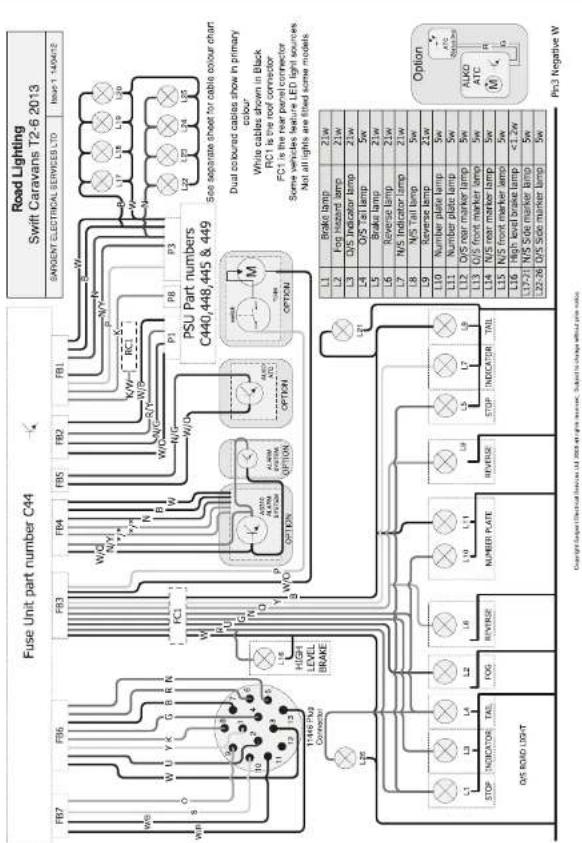

Challenger - Conqueror - Eccles - Elite - Road lighting circuits
Fuse Unit part number C44 FB7 FB6 FB3 FB4 FB5 FB2 FB1 W6 W L Y K G B R N W8 W U V W 11 12 13 14 15 16 17 18 19 High Level Brake L16 L17 L18 L19 L20 FSU Part numbers C440,448,445 & 449 SARGENT ELECTRICAL SERVICES LTD Issue-1 1404h12 See separate sheet for cable colour chart Dual coloured cables show in primary colour White cables shown in Black RC1 is the roof connector FC1 is the rear panel connector Some vehicles feature LED light sources. Not all lights are filled some models. L1 Brake lamp 21w L2 Fog Hazard lamp 21w L3 O/S Indicator lamp 21w L4 O/S Tail lamp 5w L5 Brake lamp 21w L6 Reverse lamp 21w L7 N/S Indicator lamp 21w L8 N/S Tail lamp 5w L9 Reverse lamp 21w L10 Number plate lamp 5w L11 Number plate lamp 5w L12 O/S rear marker lamp 5w L13 O/S front marker lamp 5w L14 N/S rear marker lamp 5w L15 N/S front marker lamp 5w L16 High level brake lamp <1.2w L17 N/S Side marker lamp 5w L18 O/S Side marker lamp 5w Option ALKO ATC M P D QYS ROAD LIGHT Pin3 Negative W Copyright@Sargent Electrical Services Ltd. 2005 all rights reserved. Subject to change without price noise.

Wiring DiagramsV

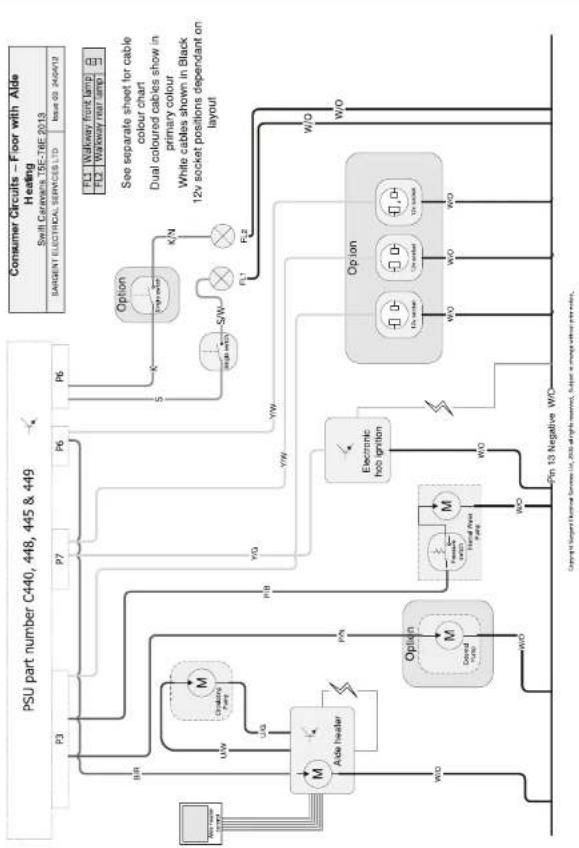

Challenger - Conqueror - Eccles - Elite - Floor circuits with Alde
Swift Eccles SE (2013) - Wiring DiagramsV - 1


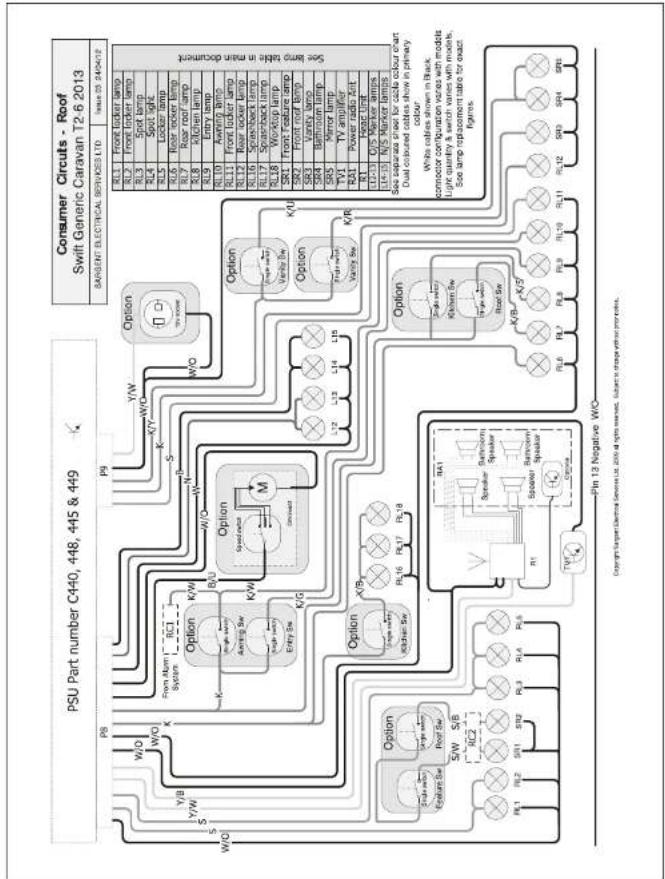

Challenger - Conqueror - Eccles - Elite - Consumer circuits roof
Swift Eccles SE (2013) - Wiring DiagramsV - 2

Wiring Diagrams

Challenger - Conqueror - Eccles - Elite - Power circuits

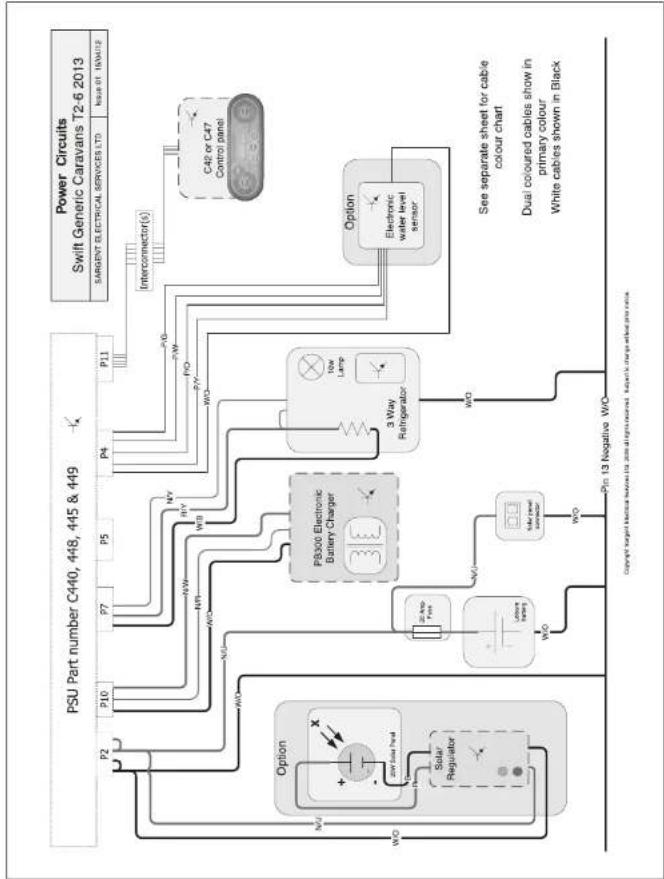

Swift Eccles SE (2013) - Wiring Diagrams - 1

Challenger - Conqueror - Eccles - Elite 230V circuits Challenger - Conqueror - Eccles - Elite - 13 Pin Circuits

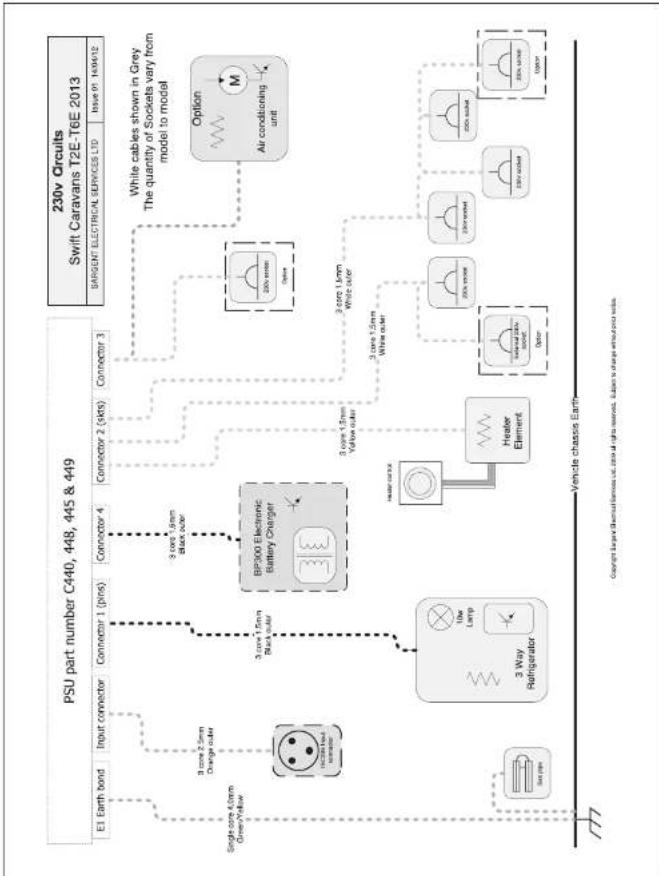

Swift Eccles SE (2013) - Wiring Diagrams - 2


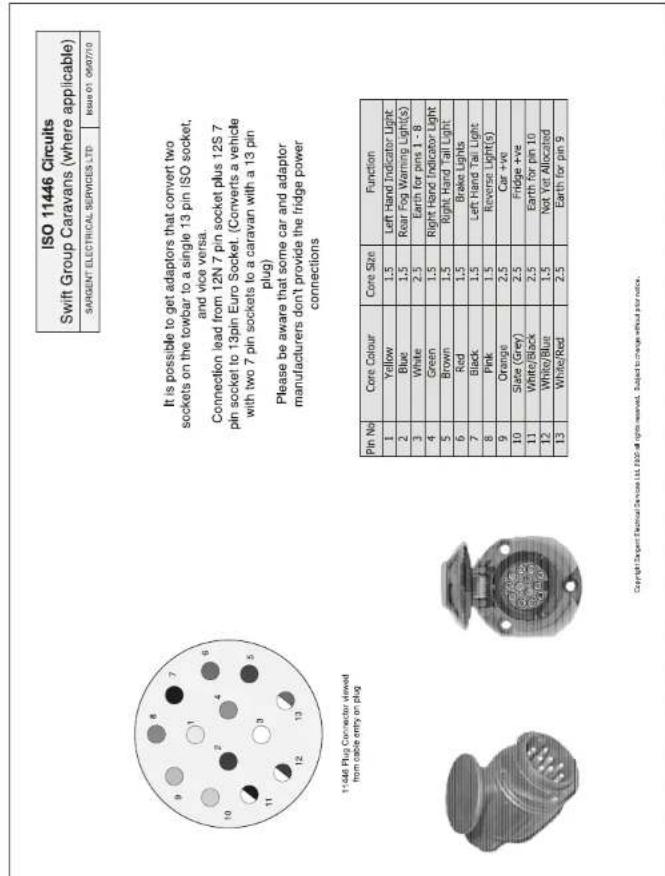

ISO 11446 Circuits Swift Group Caravans (where applicable) SARGENT ELECTRICAL SERVICES LTD Issue 01 05/07/19 It is possible to get adaptors that convert two sockets on the towbar to a single 13 pin ISO socket, and vice versa. Connection lead from 12N 7 pin socket plus 12S 7 pin socket to 13pin Euro Socket. (Converts a vehicle with two 7 pin sockets to a caravan with a 13 pin plug) Please be aware that some car and adaptor manufacturers don't provide the fridge power connections Pin No Core Colour Core Size Function 1 Yellow 1.5 Left Hand Indicator Light 2 Blue 1.5 Rear Fog Warming Light(s) 3 White 2.5 Earth for pins 1 - 8 4 Green 1.5 Right Hand Indicator Light 5 Brown 1.5 Right Hand Tail Light 6 Red 1.5 Brake Lights 7 Black 1.5 Left Hand Tail Light 8 Pink 1.5 Reverse Light(s) 9 Orange 2.5 Car +ve 10 Slate (Grey) 2.5 Fridge +ve 11 White/Black 2.5 Earth for pin 10 12 White/Blue 1.5 Not Yet Allocated 13 White/Red 2.5 Earth for pin 9 Copyright Descent Electrical Services Ltd, 2000 all rights reserved. Subject to change without prior notice. 11446 Plug Connector viewed from cable entry on plug Copyright Descent Electrical Services Ltd, 2000 all rights reserved. Subject to change without prior notice.

Wiring Diagrams

Bulb Chart

Challenger - Conqueror - Eccles - Cable colour chart

Yellow cable with Blue stripe

England

Cable Colour ChartSwift range 2011
SANDEN ELECTRICAL SERVICES LTDHalo: 069/710
Exterior Lights Bulb type Bulb rating
Front marker lights Complete lamp 12v LED
Side marker - Low level W6W 12v 5W
Side marker - High level R5W 12v 5W
Reversing light P21 12v 21W
Rear indicator light P21 12v 21W
Rear indicator light PY21W Orange Bulb 12v 21W
Brako / tail light P21/5W 12v 21W/5W
Fog light P21 12v 21W
Number plate lightC5W12v 5W
High level brake lightJokon ZHBL 12 REDLED
Interior / Other LightsBulb type Bulb rating
Awning lamp (LED)FEM0945 complete lamp12v 2.2W LED
Locker spot lights (LED)FEM0854 complete lamp12v LED
Down lightors (LED)FEM0850 complete lamp, Silver12v LED
Worktop feature light15358 complete lamp (500mm/1000mm)12v LED
Kitchen light (solash back)FEM1048 complete lamp, surface mount12v LED
Kitchen lightF25577 complete lamp, flush mount12v CCFL
Over locker lightingFluorescent 300mm12v 8W
Over locker lightingFluorescent 525mm12v 13W
Feature light over front seatingFEM0937 complete lamp12v LED
Wardrobe lampHalogen capsule bulbOU4 12v 5W

Note: Not all lights and cubs feature on all models within a range

Bulb replacement

2011 T5D / T6D CHALLENGER / ECCLES / CONQUEROR / ELITE ROAD LIGHT BULB ACCESS

REAR LIGHT CLUSTERS (CONTAINING INDICATOR, TAIL / STOP, REVERSE AND FOG LAMPS)

All of the bulbs within the clusters are accessed from the rear of the cluster.

To remove the cluster, release the four screws that can be seen around the perimeter of the lense of the lamp. The whole lamp can then be withdrawn from the rear of the caravan.

The relevant bulb holder can now, from the rear of the lamp, be twisted relative to the body of the lamp to release it.

The bulbs are then a bayonet fitting into the bulb holder - push the bulb lightly toward the holder, and twist, to release.

Please take additional care replacing stop/tail light in correct orientation. When fitted correctly brake light illumination will be brighter than tail lamp illumination.

Re-fit the bulb holder into the lamp body.

FRONT LOW LEVEL MARKER / POSITION LAMPS (CLEAR LENSE)

These lamps are LED and have no user serviceable parts inside.

Replacements should be undertaken by your dealer, as the lamps are sealed onto the mounting panel.

This lamp is single piece and has no user serviceable parts inside.

Replacements should be undertaken by your dealer, as the lamps are sealed onto the mounting panel.

NUMBER PLATE LAMPS

Bulb access is from via the front lense of each lamp.

Remove the two screws in the lens of the lamp, and remove.

Lever the bulb out of retaining clips.

Reverse the procedure to re-fit a new bulb and the light lens.

Bulb access is from rear of lamp.

If rear of lamp is visible from inside the caravan:

  • Depending on the location, a small brown plastic cover may be present covering the connections to the lamp. Remove the screws in the cover to release and access the rear of the lamp.
  • The harness plugs directly into the bulb holder - twist the bulb holder relative to the lamp body to release, and withdraw the bulb holder and bulb.
  • Bulbs are push fit into bulb holder - pull bulb directly away from holder to release
  • Reverse the procedure to replace the bulb in the holder, holder in the lamp and the lamp onto the caravan body. Replace plastic cover.

If rear of lamp is not visible from inside the caravan:

  • Remove the 2 screws from the front of the light fitting, and withdraw the whole fitting from the caravan body
  • The harness plugs directly into the bulb holder - twist the bulb holder relative to the lamp body to release, and withdraw the bulb holder and bulb.
  • Bulbs are push fit into bulb holder - pull bulb directly away from holder to release
  • Reverse the procedure to replace the bulb in the holder, holder in the lamp and the lamp onto the caravan body.
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Swift

Model : Eccles SE (2013)

Category : Caravan
