Eccles Sport (2013) - Caravan Swift - Free user manual and instructions

Product Type	Caravan
Brand	Swift
Model	Eccles Sport (2013)
Berths	4
Overall Length	6.5 m (21.3 ft)
Overall Width	2.3 m (7.5 ft)
Overall Height	2.6 m (8.5 ft)
Unladen Weight	1100 kg (2425 lbs)
Maximum Load	300 kg (661 lbs)
Power Supply	12V DC, 230V AC hook-up
Gas System	Propane/butane, 2-burner hob, grill, heater
Water System	Fresh water tank 40 L, waste water tank 30 L
Main Features	Fixed bed, dinette, kitchen, washroom, heating
Security Features	Fire extinguisher, smoke alarm, carbon monoxide detector
Cleaning & Maintenance	Exterior wash with mild soap, interior wipe down, gas system check annually
Spare Parts & Repairability	Contact Swift dealer for genuine parts; DIY possible for basic items
Manual Language	English
Number of Pages in Manual	8
Warranty	3 years manufacturer warranty (subject to terms)

Frequently Asked Questions - Eccles Sport (2013) Swift

What are the dimensions of the Swift Eccles Sport (2013) caravan?

The overall length is approximately 6.5 m (21.3 ft), width 2.3 m (7.5 ft), and height 2.6 m (8.5 ft). Always check your specific unit for exact measurements.

How much does the Eccles Sport weigh?

The unladen weight is around 1100 kg (2425 lbs) with a maximum payload of 300 kg (661 lbs). Refer to your vehicle registration for the exact weight.

What type of gas system does it use?

It operates on propane or butane gas, powering a 2-burner hob, grill, and space heater. The system includes a regulator and pipework; ensure annual safety checks.

How do I maintain the exterior of the caravan?

Wash the exterior with mild soap and water, avoiding abrasive cleaners. Check seals and seams regularly to prevent water ingress.

Can I get spare parts for the Eccles Sport?

Yes, contact your local Swift dealer or authorised supplier for genuine parts. Many consumables like bulbs and fuses are standard and easily replaced.

What safety equipment is included?

The caravan comes with a fire extinguisher, smoke alarm, and carbon monoxide detector. Test these devices before each trip.

How do I connect to mains electricity?

Use a standard 230V hook-up cable with a suitable connector. Plug into the caravan's inlet and connect to the site supply, ensuring the circuit breaker is off first.

What is the fresh water capacity?

The fresh water tank holds 40 litres, and the waste water tank 30 litres. Use a suitable hosepipe for filling and empty waste at designated points.

How many people can sleep in the caravan?

The Eccles Sport typically sleeps 4 people using a fixed bed and a dinette conversion. Check your layout for specific arrangements.

What should I do if the gas alarm sounds?

Turn off the gas supply at the bottle immediately, ventilate the caravan by opening windows, and do not operate electrical switches. Leave the caravan if safe to do so and seek professional help.

USER MANUAL Eccles Sport (2013) Swift

email [e-mail]

For more information visit

www.swiftgroup.co.uk

Issued July 2012

Challenger Sport - Eccles Sport Technical Handbook

1099732

Contents

Specifications 2

Wiring Diagrams 4

Bulb Chart 11

Bulb Replacement....12

Specification

Challenger Sport 442 514 524 544 554 564 584 585 586 636
Eccles Sport 442 514 524 544 554 564 584 585 586 636
Berths	2.4.4.4.4.4.6.6.6
Axes	1.1.1.1.1.1.2
Internal Length (bed box height)	4.43m/14.5"	5.23m/17.2"	5.29m/17.4"	5.60m/18.4"
Overall Width	2.25m/75"	2.25m/75"	2.25m/75"	2.25m/75"
Overall Height (inc. IV Aerol)*	2.64m/88"	2.65m/88"	2.65m/88"	2.65m/88"
Maximum Internal Headroom	1.05m/95"	1.05m/95"	1.05m/95"	1.05m/95"
Overall Length	6.06m/19'11"	6.68m/22'7"	6.94m/22'9"	7.25m/23'9"
Avering A/A dimension†	8.79m/28'10"	9.62m/31'7"	9.68m/31'9"	9.99m/32'9"
Mass in Running Order (inc. tolerance)	1114kg/21.0xwt	1230kg/24.2xwt	1265kg/24.3xwt	1292kg/25.2xwt
Maximum Technical Penmissible Lacer Mass Lower Limit	1235kg/24.3xwt	1380kg/27.2xwt	1415kg/27.9xwt	1435kg/28.2xwt
Maximum Technical Penmissible Lacer Mass Upper Limit	1350kg/26.6xwt	1500kg/29.5xwt	1500kg/29.5xwt	1500kg/29.5xwt
Total User Payload	121kg/2.4xwt	150kg/3.0xwt	150kg/3.0xwt	153kg/3.0xwt
Personal Effects	121kg/2.4xwt	150kg/3.0xwt	150kg/3.0xwt	153kg/3.0xwt
Options	3kg/0xwt	3kg/0xwt	3kg/0xwt	3kg/0xwt
Tyre Size	185 R14C 1020	185 R14C 1020	185 R14C 1020	195 R14C 1020
Tyre pressure at Lower limit MIPLM	3.4 bar / 49 ps	4.0 bar / 58 ps	4.1 bar / 59 ps	4.1 bar / 59 ps
Tyre pressure at Upper limit MIPLM	3.8 bar / 55 ps	4.4 bar / 64 ps	4.4 bar / 64 ps	4.4 bar / 64 ps
Static Load on Coupling Head	100kg	100kg	100kg	100kg
Thermal Insulation Grade	THREE	THREE	THREE	THREE
Bed Sizes
Front Double	202cm x 180cm 63 × 13^11	202cm x 193cm/63 x 30'	202cm x 180cm/88" x 5711"	202cm x 180cm/63 x 30'
or Front Mearhole Single	180cm x 72cm/53" x 24"	150cm x 75cm/50" x 24"	180cm x 75cm/51" x 24"	180cm x 75cm/53" x 24"
and Front Offside Single	180cm x 72cm/51" x 24"	180cm x 78cm/53" x 24"	180cm x 78cm/53" x 24"	180cm x 78cm/53" x 24"
Rear Double		180cm x 100cm/68" x 24"		180cm x 100cm/68" x 24"
Rear Bunk
Side Single (offside)			180cm x 80cm/51" x 24"
Side Single (nearside)
Side Bunk (offside)			176cm x 59cm/59" x 111"
Side Bunk (nearside)
Rear Fixed Lower Bunk
Rear Fixed Min Bunk
Rear Fixed Upper Bunk
Side Fixed Lower Bunk
Side Fixed Min Bunk
Side Fixed Upper Bunk

5.60m/18.4"	5.63m/18.4"	5.93m/9.2"	5.00m/18.4"	5.83m/19.2"	6.27m/20.7"
2.25m/7.5"	2.25m/7.5"	2.25m/7.5"	2.25m/7.5"	2.25m/7.5"	2.25m/7.5"
2.65m/8.8"	2.65m/8.8"	2.65m/8.8"	2.65m/8.8"	2.65m/8.8"	2.62m/8.7"
1.65m/6.5"	1.95m/6.5"	1.95m/6.5"	1.95m/6.5"	1.95m/6.5"	1.95m/6.5"
7.25m/23.9"	7.25m/23.9"	7.48m/24.9"	7.25m/23.9"	7.48m/24.6"	7.93m/26.0"
9.60m/32.9"	9.99m/32.9"	10.22m/33.9"	9.69m/32.9"	10.22m/33.6"	10.66m/35.0"
-277kg/25.1cwt	1200kg/25.1cwt	1308kg/25.7cwt	1312kg/25.8cwt	1361kg/27.2cwt	1470kg/28.6cwt
-430kg/28.1cwt	1443kg/28.4cwt	1464kg/28.6cwt	1485kg/29.2cwt	1557kg/30.6cwt	1650kg/32.5cwt
-500kg/29.5cwt	1500kg/29.5cwt	1500kg/29.5cwt	1500kg/29.5cwt	1600kg/31.5cwt	1800kg/35.4cwt
153kg/3.0cwt	153kg/3.0cwt	156kg/3.1cwt	-73kg/3.4cwt	176kg/3.5cwt	180kg/3.5cwt
153kg/3.0cwt	153kg/3.0cwt	156kg/3.1cwt	-73kg/3.4cwt	176kg/3.5cwt	180kg/3.5cwt
3kg/0cwt	3kg/0cwt	0g/0cwt	3kg/0cwt	0g/0cwt	0g/0cwt
-185 R14C 1020	185 R14C 1020	185 R14C 1020	185 R14C 1020	195/70 R15C 104R	185/70 R14 8RT
4.1 bar / 50 psi	4.2 bar / 61 psi	4.2 bar / 61 psi	4.3 bar / 62 psi	4.3 bar / 62 psi	2.0 bar / 20 psi
4.4 bar / 64 psi	4.4 bar / 64 psi	4.4 bar / 64 psi	4.4 bar / 64 psi	4.4 bar / 64 psi	2.2 bar / 32 psi
100kg	100kg	100kg	100kg	100kg	100kg
THREE	THREE	THREE	THREE	THREE	THREE
202cm x 10cm/6.8 x 5.3"	202cm x 10cm/6.8 x 5.3"	202cm x 10cm/6.8 x 5.3"	202cm x 10cm/6.8 x 5.3"	202cm x 10cm/6.8 x 5.3"	202cm x 10cm/6.8 x 5.3 "
160cm x 70cm/5.5" x 2.4"	160cm x 70cm/5.5" x 2.4"	160cm x 70cm/5.5" x 2.4"	160cm x 70cm/5.5" x 2.4"	160cm x 70cm/5.5" x 2.4"	160cm x 70cm/5.5"x 2.4"
160cm x 70cm/5.3" x 2.4"	160cm x 70cm/5.3" x 2.4"	160cm x 70cm/5.3" x 2.4"	160cm x 70cm/5.3" x 2.4"	160cm x 70cm/5.3" x 2.4"	160cm x 70cm/5.3"x 2.4"
161cm x 70cm/6.3" x 4.4"		165cm x 70cm/6.1" x 4.4"
	190cm x 71cm/6.4" x 4.4"				190cm x 82cm/6.1" x 2.6"
	185cm x 70cm/5.1" x 2.6"		180cm x 65cm/5.1" x 2.6"	180cm x 67cm/5.1" x 2.6"
					176cm x 59cm/6.9" x 1.1"
			178cm x 58cm/5.9" x 1.1"	176cm x 59cm/5.9" x 1.1"
			180cm x 57cm/6.0" x 1.10"	180cm x 57cm/6.0" x 1.10"	181cm x 57cm/5.1" x 1.10"
			183cm x 57cm/6.1" x 1.10"	183cm x 57cm/6.0" x 1.10"	181cm x 57cm/5.1" x 1.10"

Weights: The method of calculating the Mass in Turning Order (VAC) and over paypal figures has changed in order to bring it in line with European Vehicle Directives.
Allowance for essential equipment (e.g. gas cylinders) previously allowed for in the user payback are now contained within the MFC. A provision for a regular level is required to be within the essential
equipment payned has now been included within the personal effects payment allowance. Although the method of calculation has changed, the overall effect is that the amount of payned available to the customer has remained the same, it is and calculated in a different manner.
Bed Sizes : Please note that the 'not double bed sizes quoted are for sealing configurations without chest or drawers. The limit double bed width for a layout with a chest of drawer's filled will be receded by 0.4m(1.4") from that stated.
Aiming sizes: Due to varying starting designs and does the starting sizes differ are approximate only. Specific starting sizes must be confirmed by your dealer or starting manufacturer prior to purchase.
* The distance given are approximate due to eight variations in suspension rule heights, leading condiments and eye pressures. Customers should verify the actual dimensions of their current tension before controlling it anything that could be impacted by these dimensions.
Please note: Any dealer fit options will reduce the normal payment allowance to be used at the customer. If you require additional payload it is possible to upgrade the MTFLM to the upper limit. Please contact your Small customer dealer for more information.

Challenger Sport - Eccles Sport Road lighting circuits

Wiring DiagramsV

Challenger Sport - Eccles Sport - Consumer Circuits - Floor circuits


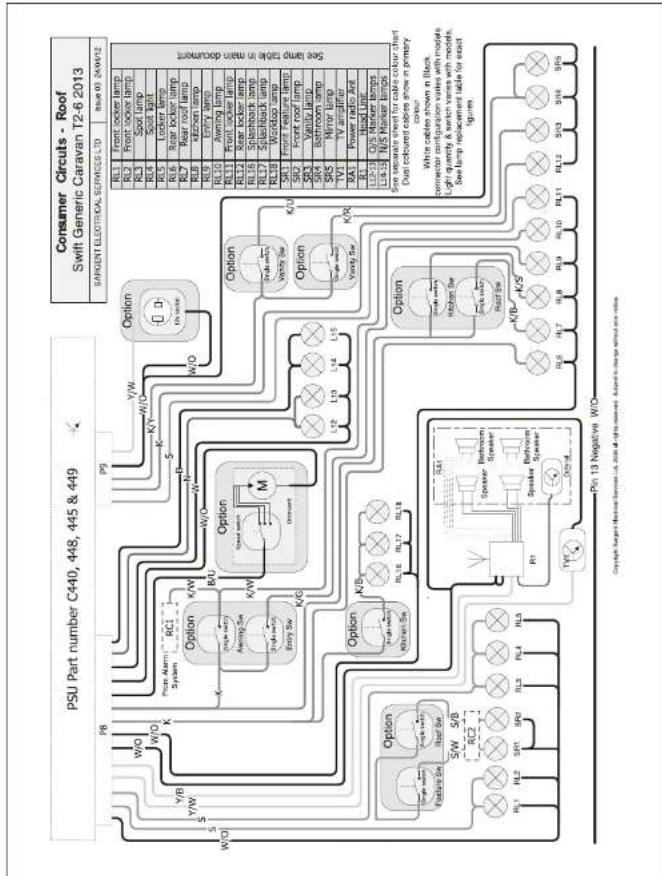

Challenger Sport - Eccles Sport - Roof lighting circuits

Wiring Diagrams

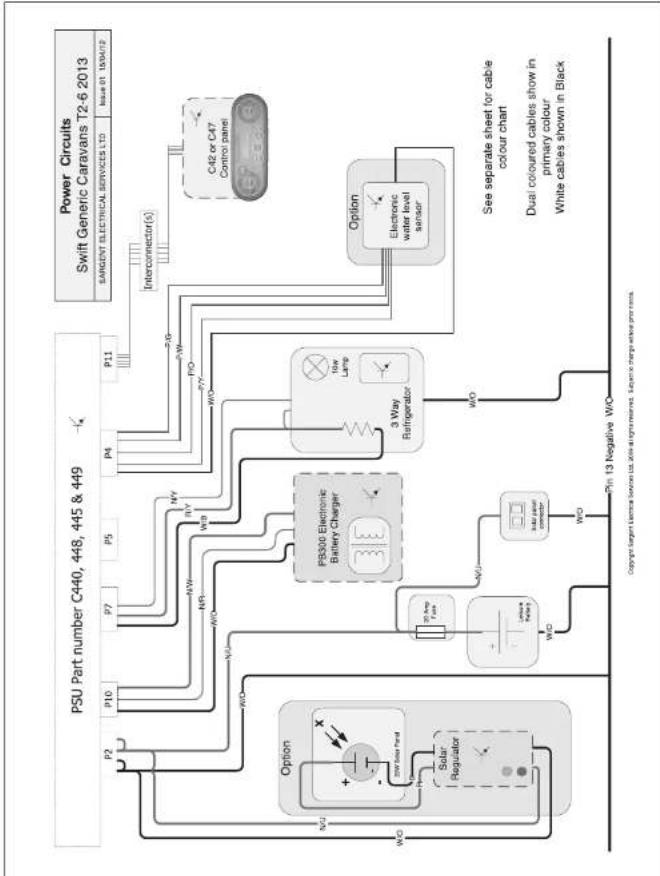

Challenger Sport - Eccles Sport - Power circuits

Wiring Diagrams

Bulb Chart

Challenger Sport - Eccles Sport - Cable Colour Chart

The following table provides the original text: "The English input of the text is a series of words. The OCR result is an empty string.

X	PINK
W	WHITE
S	STATE GREY
p	PURPLE
U	BLUE
G	GREEN
Y	YELLOW
O	ORANGE
R	RED
N	BROWN
B	BLACK

12V Cable Colors

	BLUE
N	GREEN
Y	YELLOW
O	ORANGE
W	WHITE
N	BROWN
B	BLACK

230V Cable Colors

Cable Colour ChartSwit range 2011
SANDEN ELECTRONAL SERVICES 110	MWD 089740
Yellow cable with Blue stripe

Exterior Lights Bulb type Bulb rating
Front marker lights W5W 12v 5W
Side marker - Low Level W5W 12v 5W
Side marker - High Level R6W 12v 5W
Reversing light P21 12v 21W
Rear indicator light P21 12v 21W
Brake / tail light P21/5W 12v 21W/5W
Fog light P21 12v 21W
Number plate light C5W 12v 5W
High level brake light T5/13.5 12v 2.3w
Interior / Other Lights	Bulb type Bulb rating
Awning lights	FEM0945 complete unit	12v 20W
Ceiling light, triple LED (Kitchen area)	FEM0858 complete lamp	12v LED
Ceiling light, halogen (Bathroom area)	Halogen capsule bulb	12v 10W
Ceiling light, halogen (White, shower area)	Halogen capsule bulb	12v 10W
Locker spotlights, LED	FEM0854 complete lamp	12v LED
Downlights, LED	FEM0856 (Silvor, FEM0856 (Nickel)complete lamp	12v LED
Downlighter, Halogen	Halogen capsule bulb	12v 10W G4
Eyeshe Bunk light	T10 (13%) wedge	12v 5W
Kitchen light	F25577 complete lamp, flush mount	12v CCFL
Over locker lighting	Fluorescent 300mm	12v BW
Over locker lighting	Fluorescent 500mm	12v 13W
Feature light over front seating FEV0937 complete lamp 12v LED

Note: Not all bulbs and lights feature on all models within a range

Bulb replacement

CHALLENGER SPORT/ ECCLES SPORT ROAD LIGHT BULB ACCESS

STOP / TAIL / INDICATOR AND REVERSE LAMPS

• Bulb access is from front / via lense of each lamp
• Remove 2x screws from each light lens and withdraw lens
• Bulbs are a bayonet fitting – apply slight pressure on bulb towards light fitting, and twist to release
• Reverse procedure to re-fit bulb and lens.
• Take care when replacing stop/tail lamp bulb, that orientation of bulb is correct – to check, brake light operation should be brighter than tail lamp operation.

REAR CENTRAL FOG LIGHT

• Bulb access is from front / via lense of lamp
• Remove 2x screws from light lens and withdraw lens
• Bulb is a bayonet fitting – apply slight pressure on bulb towards light fitting, and twist to release
• Reverse procedure to re-fit bulb and lens.

UPPER REAR SIDE POSITION LAMPS (RED / CLEAR LENSE)

• Lense is removed from base to access bulb
• Carefully insert small flat bladed screwdriver into recess in lower edge of lamp base. Apply pressure to release locking barb.
• Lift lens upwards and away from lamp base, lower edge first
• Lever bulb out of retaining clips
• Reverse procedure to re-fit bulb and lens

• Remove 2x screw cover caps from front face of lamp using small flat bladed screwdriver.
• Remove screws at either end of lamp, and withdraw whole fitting away from rear panel of caravan
• Disconnect lamp from harness
• Re-connect new lamp to harness, and secure lamp to caravan body with 2x screws
• Lamp retaining screws are fixed into a rubber sleeve with a threaded insert, often known as a rawnut. If lamp has been removed / re-flitted several times the rubber sleeve may need replacing, these are available through your dealer

NUMBER PLATE LAMPS

• Bulb access is from the front / via lense of each lamp
• Remove the two screws in the lens of the lamp
• Lever the bulb out of retaining clips
• Reverse the procedure to re-fit a new bulb and the light lens

FRONT MARKER POSITION LAMPS

• Bulb access is from rear of lamp
• Remove 2x screws from light fitting, and withdraw whole fitting from caravan front panel
• Hamess plugs into bulb holder – Twist bulb holder relative to lamp body to release bulb holder from lamp body
• Bulbs are push fit into bulb holder – pull bulb directly away from holder to release
• Reverse procedure to replace bulb in holder, holder in lamp and lamp onto caravan body.

• Bulb access is from rear of lamp. First check from within caravan if the rear of the lamp is accessible;
• If rear of light is accessible:
• Harness plugs into bulb holder – Twist bulb holder relative to lamp body to release bulb holder from lamp body
• Bulbs are push fit into bulb holder – pull bulb directly away from holder to release
• Reverse procedure to replace bulb in holder and holder in lamp
• If rear of light is not accessible;
• Remove 2x screws from light fitting, and withdraw whole fitting from caravan body
• Hamess plugs into bulb holder – Twist bulb holder relative to lamp body to release bulb holder from lamp body
• Bulbs are push fit into bulb holder – pull bulb directly away from holder to release
• Reverse procedure to replace bulb in holder, holder in lamp and lamp onto caravan body
