BrandSwift
ModelChallenger SE (2014)
Product TypeTouring Caravan
Overall Length (approx.)7.2 m (23 ft 7 in)
Overall Width (approx.)2.26 m (7 ft 5 in)
Overall Height (approx.)2.62 m (8 ft 7 in)
MTPLM (Maximum Technically Permissible Laden Mass)1500 kg
MIRO (Mass in Running Order)1300 kg
Payload (approx.)200 kg
Electrical System12V DC and 240V AC hook-up
Water SystemFresh water tank (onboard) and external aqua roll
Gas SystemTwo 6kg propane cylinders (external locker)
HeatingTruma Combi 4E (gas/electric)
RefrigeratorThetford 3-way (12V/240V/gas)
CookerThetford 4-burner hob with grill and oven
ToiletThetford C250 swivel cassette toilet
ShowerSeparate shower cubicle with thermostatic mixer
Number of Berths4 (fixed island bed and front lounge conversion)
MaintenanceAnnual service recommended: check gas, electrics, dampness, wheel bearings
CleaningWash with mild car shampoo; avoid abrasive cleaners. Polish with caravan-specific wax.
Safety FeaturesSmoke alarm, carbon monoxide detector, fire extinguisher point, breakaway cable, stabiliser hitch
Spare Parts AvailabilityAvailable from Swift dealers or online retailers; order using VIN
RepairabilityRepairs should be carried out by approved Swift service centres; body panels can be replaced
General InformationThe Challenger SE is a lightweight, family-friendly caravan with Al-Ko chassis and ATC (trailer control) stability system

Frequently Asked Questions - Challenger SE(2014) Swift

What is the maximum towing weight for the Swift Challenger SE (2014)?
The MTPLM is 1500 kg. Ensure your tow vehicle is capable of towing at least this weight, and check the maximum nose weight (typically 100 kg).
How do I level the caravan when parked?
Use the Al-Ko corner steady legs with a spirit level. Place ramps under the wheels on the lower side, then wind down the steadies. Always use a level indicator on the floor.
How do I operate the water system?
Fill the internal tank or connect an external Aqua Roll. Use the Whale pump (submersible or inboard). Prime the system by turning on taps until water flows. Drain down in winter to prevent frost damage.
How do I use the gas system safely?
Ensure gas cylinders are secured upright in the locker. Open the cylinder valve slowly. Check all gas appliance controls are off before turning on. Use a gas leak detector and test with soapy water.
What electrical hook-up do I need?
The caravan uses a standard 16A blue plug (Type 2). Connect to a mains supply via a surge-protected hook-up cable. The onboard charger will also charge the leisure battery.
How do I maintain the caravan in winter?
Drain all water tanks and pipes fully. Remove the water filter. Open taps to release pressure. Use antifreeze in toilet flush and traps. Leave cupboard doors open for air circulation.
What is the correct tyre pressure for my caravan?
Check the tyre placard (usually inside a cupboard or near the door) or the Swift manual. Typical pressures for 185/70 R14 tyres are around 65 psi (4.5 bar) for the axle load.
How do I replace a blown fuse?
Locate the 12V fuse box (often under the front seat or in a cupboard). Identify the blown fuse by visual inspection. Replace with the same rating (e.g., 10A or 15A). Never use a higher amp fuse.
What should I do if the toilet won't flush?
Check the flush water tank is filled and the pump is running. The Thetford C250 has a small electric pump; clean the filter if blocked. Ensure the cassette is correctly inserted.
Where can I get spare parts or service my caravan?
Contact an authorized Swift dealer or use online parts catalogues. For service, book at a NCC-approved workshop. Always quote the VIN number for accurate parts.

User questions about Challenger SE(2014) Swift

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Caravan in PDF format for free! Find your manual Challenger SE(2014) - Swift and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Challenger SE(2014) by Swift.

USER MANUAL Challenger SE(2014) Swift

email enquiry@swiftgroup.co.uk

For more information visit

www.swiftgroup.co.uk

Issued July 2013

Swift Challenger SE(2014) - 1

1404401

Challenger SE - Conqueror Eccles SE - Elite Technical Handbook

Swift Challenger SE(2014) - 2

10 YEAR

Bodyshell integrity

White, Air, Air

10.2.17

Swift Challenger SE(2014) - 3

Contents

Challenger SE Specifications 2

Eccles SE Specifications 4

Conqueror - Elite Specifications 6

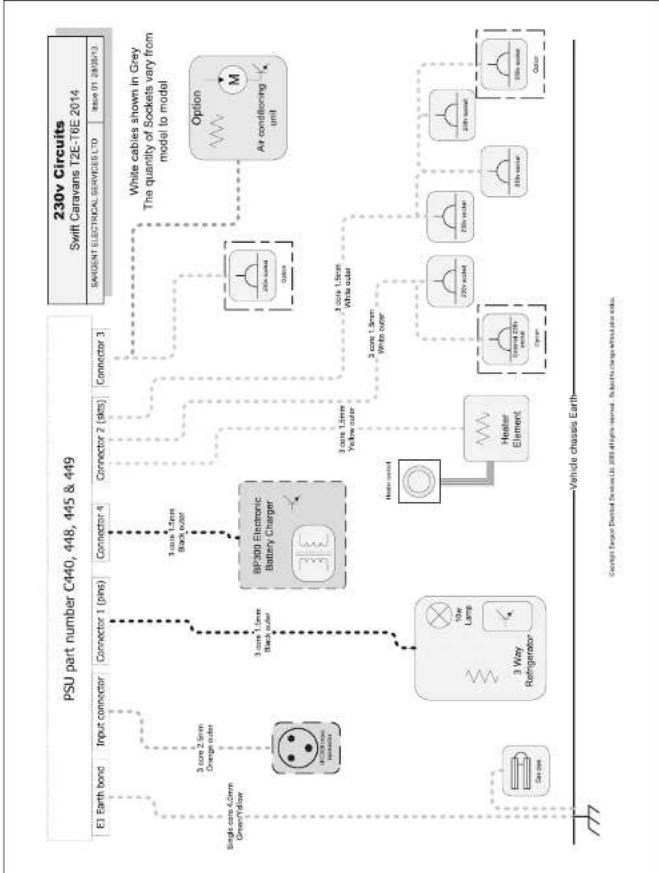

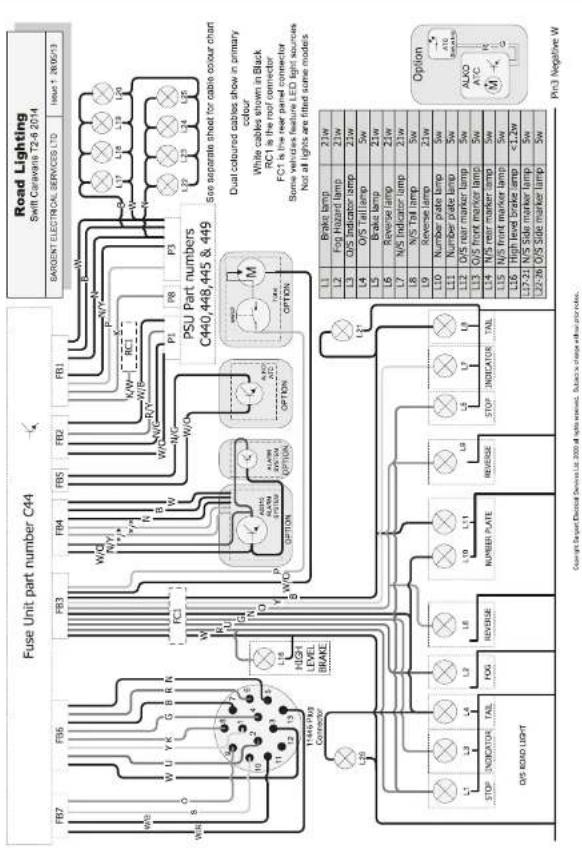

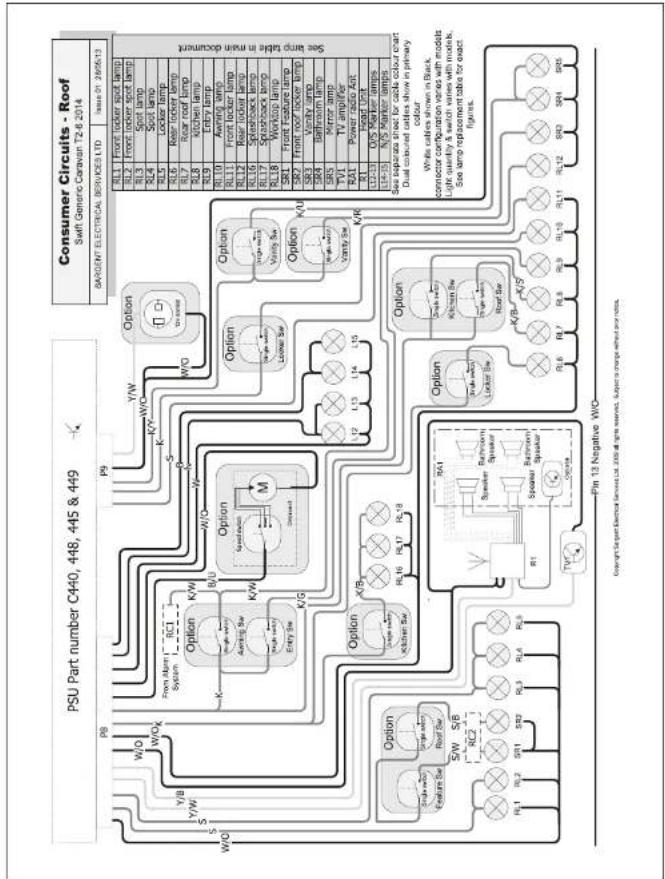

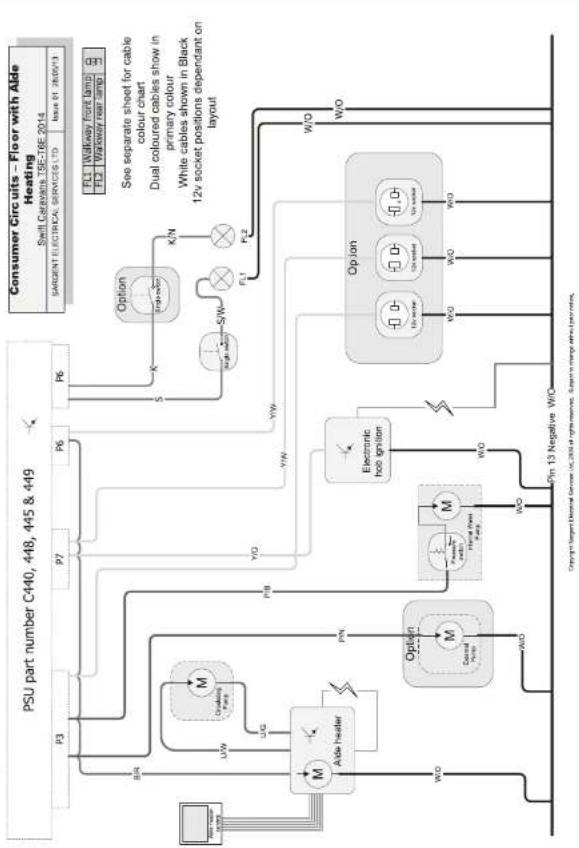

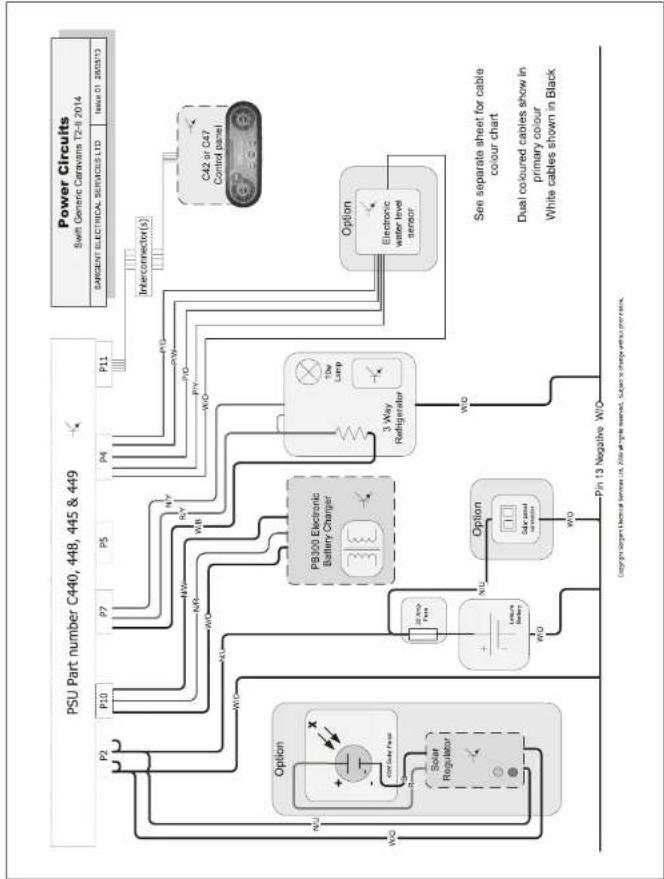

Wiring Diagrams 8

Bulb Chart 15

Bulb Replacement....16

Specification

ChallengerChallenger 480Challenger 530Challenger 565Challenger 570
Baths 2.4.4.4.6.4.6.6.4
Axis 1.1.1.1.2.2.2.2
Internal Length (bed box height)4.40m/14'5"5.25m/17'4"5.63m/18'4"5.60m/18'4"
Overall Width*2.25m/7'49"2.25m/7'49"2.25m/7'49"2.25m/7'49"
Overall Height (inc. TV Serial)*2.64m/8'8"2.65m/8'8"2.65m/8'8"2.65m/8'8"
Maximum Internal Headroom1.95m/6'5"1.95m/6'5"1.95m/6'5"1.95m/6'5"
Overall Length*6.06m/19'11"6.94m/22'9"7.25m/23'9"7.25m/23'9"
Aving A/A dimension6.77m/29'9"9.65m/31'8"9.96m/32'8"9.96m/32'8"
Mass in Running Order (inc. tolerance)1168kg/23.0cwt1331kg/26.2cwt1360kg/26.8cwt1330kg/26.2cwt
Maximum Technical Penmissible Lacer Mass Lower limit1287kg/25.3cwt1481kg/29.3cwt1513kg/29.8cwt1483kg/29.2cwt
Maximum Technical Penmissible Lacer Mass Upper limit1360kg/26.6cwt1500kg/29.5cwt1550kg/30.5cwt1500kg/29.5cwt
Total user Payload121kg/2.4cwt150kg/3.0cwt153kg/3.0cwt153kg/3.0cwt
Personal Effects121kg/2.4cwt150kg/3.0cwt153kg/3.0cwt153kg/3.0cwt
Options0kg/0cwt0kg/0cwt0kg/0cwt0kg/0cwt
Tire Size185 R14C 1020185 R14C 1020185 R14C 1020185 R14C 1020
Tire pressure at Lower limit M/PLM52 ps / 3.8bar62 ps / 4.3bar64 ps / 4.4bar62 ps / 4.3bar
Tire pressure at Upper limit M/PLM55 ps / 3.8bar64 ps / 4.4bar65 ps / 4.5bar64 ps / 4.4bar
Static Load on Coupling Head100kg100kg100kg100kg
Thermal Insulation GradeTHRFFTHRFFTHRFFTHRFF
Bed Sizes
Front Double202cm x 176cm/6'9" x 5'9"202cm x 176cm/6'9" x 5'9"202cm x 156cm/6'9" x 5'1"202cm x 156cm/6'9" x 5'1"
or Front Neaside Single186cm x 72cm/6'1" x 2'4"176cm x 72cm/6'9" x 2'4"156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"
and Front Onside Single176cm x 72cm/6'9" x 2'4"186cm x 72cm/6'1" x 2'4"156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"
Rear Double192cm x 130cm/6'4" x 4'4"
Side Single (offside)180cm x 62cm/5'11" x 2'0"182cm x 68cm/6'4" x 2'3"
Side Single (searside)183cm x 73cm/6'0" x 2'3"
Side Bunk (onside)176cm x 59cm/5'9" x 1'11"
Side Bunk (oneaside)
Side Fixed Lower Bunk
Side Fixed Mid Bunk
Side Fixed Upper Bunk
Challenger 580Challenger 590Challenger 620Challenger 625Challenger 630Challenger 645
5.83m/19'2"6.27m/20'7"6.27m/20'7"6.27m/20'7"6.27m/20'7"6.27m/20'7"
2.25m/7'4%'2.25m/7'4%'2.25m/7'4%'2.25m/7'4%'2.25m/7'4%'2.25m/7'4%'
2.65m/8'8"2.62m/8'7"2.62m/8'7"2.62m/8'7"2.62m/8'7"2.62m/8'7"
1.95m/8'5"1.95m/8'5"1.95m/8'5"1.95m/8'5"1.95m/8'5"1.95m/8'5"
7.48m/24'6"7.93m/26'0"7.93m/26'0"7.93m/26'0"7.93m/26'0"7.93m/26'0"
10.13m/33'5"10.64m/34'11"10.64m/34'11"10.64m/34'11"10.64m/34'11"10.64m/34'11"
1360kg/26.8wt1615kg/31.8wt1579kg/31.1wt1603kg/31.6wt1564kg/30.8wt1575kg/31.0wt
1518kg/29.8wt1850kg/36.4wt1800kg/35.4wt1800kg/35.4wt1800kg/35.4wt1800kg/35.4wt
1560kg/30.5wt1850kg/36.4wt1800kg/35.4wt1800kg/35.4wt1800kg/35.4wt1800kg/35.4wt
156kg/3.1wt235kg/4.6wt221kg/4.4wt197kg/3.9wt288kg/4.6wt225kg/4.4wt
156kg/3.1wt180kg/3.5wt160kg/3.1wt180kg/3.5wt180kg/3.5wt160kg/3.1wt
0kg/0wt0kg/0wt0kg/0wt0kg/0wt0kg/0wt0kg/0wt
185 RH4C 1020185/0 RH4 B81185/0 RH4 B81185/0 RH4 B81185/0 RH4 B81185/0 RH4 B81
64 psi / 4.4bar33 psi / 2.3bar32 psi / 2.2bar32 psi / 2.2bar32 psi / 2.2bar32 psi/2.2bar
65 psi / 4.5bar33 psi / 2.5bar32 psi / 2.2bar32 psi / 2.2bar32 psi / 2.2bar32 psi / 2.2bar
100kg100kg100kg100kg100kg100kg
THIFFTHIFFTHIFFTHIFFTHIFFTHIFF
202cm x 156cmA9'8" x 5'1"202cm x 179cmA9'8" x 5'9"202cm x 179cmA6'8" x 5'9"202cm x 176cmA6'8" x 5'9"203cm x 151cmA9'6" x 4'4"202cm x 156cmA9'6" x 5'1"
156cm x 72cm/5'1" x 2'4"166cm x 72cm/6'1" x 2'4"178cm x 72cm/5'9" x 2'4"176cm x 72cm/5'9" x 2'4"156cm x 72cm/5'1" x 2'4"
156cm x 72cm/5'1" x 2'4"176cm x 72cm/5'9" x 2'4"188cm x 75cm/6'1" x 2'4"186cm x 75cm/6'1" x 2'4"156cm x 72cm/5'1" x 2'4"
185cm x 133cmA9'1" x 4'4"202cm x 133cmA9'9" x 4'4"192cm x 130cmA6'4" x 4'5"192cm x 130cmA9'4" x 4'3"183cm x 133cmA9'1" x 4'4"
186cm x 64cm/6'1" x 2'1"192cm x 68cm/6'4" x 2'9"180cm x 65cmA5'1" x 2'3"180cm x 62cmA5'1" x 2'9"
178cm x 84cm/5'9" x 2'1"193cm x 73cm/6'0" x 2'5"
173cm x 59cmA5'8" x 1'11"178cm x 58cmA5'9" x 1'11"176cm x 59cmA5'9" x 1'11"
163cm x 59cmA5'4" x 1'11"

* Estimated
Weights: From the 2011 season the method of
cassuing: The mass in flaring (not RMD) still and compact, in case that clamped it unless in case
In line with European vehicle directives.
Advances for essential equipment (e.g. aps.
cylinders previously allowed for in the user period
are now contained within the MPO. A provision for a
The following work is to be a well and excellent
equipment paid has now been included within the
personal effects: physical substance
Although the method of calculation has changed, the
Special items are the amount in physical storage to be a mixture of retained the cement, and
calculated in a different manner
Bed Sizes: Please note that the 1 out double bed
5/ES quest art for selling representatives with a deal of dollars. The man de his best quality for a
layour with a chest of drawers filled will be recued
In 1.40(7)4, from that stated.
Awing sizes: Due to varying awning designs and
Spent the setting was given that applicable only. Specific apparatus must be enclosed by war
dealer of a new manufacturer prior to purchase.
2. 2017年1月1日，公司召开2017年第二次临时股东大会，并于2018年第一次临时股东大会审议通过了《关于使用部分闲置募集资金进行现金管理的议案》。
* The time is one given are approximate due to sight
Satisfaction in suspicion of the rights, taking
(1) 12 (2) 12 (3)
Business should verify the social dimensions of
that could be impacted by these dimensions
Please note: Any dealer if options will reduce the
зелки разълки звіднією до се інвіє в під ектахан
If you require additional payback it is possible to
Upgrade the MHI MO of the app. Time. Press of our Sall system choice for more information
(1) 2017年1月1日，公司召开2017年第一次临时股东大会，并于2017年3月15日召开2017年第二次临时股东大会。

Specification

EcclesEccles TopazEccles MoonstoneEccles Solitaire
Berths 2 4 4 4 4 6 6 4
Axlos 1 1 1 1 1 2 2 2
Internal Length (bed box height)4.40m/14'5"5.29m/7'4"5.60m/18'4"
Overall Width*2.25m/7'5%*2.25m/7'4%*2.25m/7'4%*
Overall Height, Inc., IV Aeroft*2.64m/8'6"2.85m/8'8"2.65m/8'6"
Maximum Internal Headroom1.95m/8'5"1.95m/8'5"1.95m/8'5"
Overall Length*6.06m/19'11"6.94m/22'9"7.25m/23'9"
Avening A/A diameter8.7/m/28'9"9.85m/31'8"9.96m/32'8"
Mass in Running Order (inc. tolerance)1171kg/25.1cwt1336kg/26.3cwt1365kg/26.9cwt
Maximum Technical Permissible Lader Mass Upper limit1292kg/25.4cwt1486kg/29.3cwt1518kg/29.9cwt
Maximum Technical Permissible Lader Mass Upper limit1350kg/26.6cwt1500kg/29.5cwt1550kg/30.5cwt
Total user Payload121kg/2.4cwt150kg/3.0cwt153kg/3.0cwt
Personal Effects121kg/2.4cwt150kg/3.0cwt153kg/3.0cwt
Options0kg/0cwt0kg/0cwt0kg/0cwt
Tyre Size185 R14C 102Q185 R14C 102Q185 R14C 102Q
Tyre pressure at Lower limit MTPLM52 psi / 3.6bar62 psi / 4.3bar64 psi/4.4bar
Tyre pressure at Upper limit MTPLM55 psi / 3.8bar64 psi/4.4bar65 psi/4.5bar
Static Load on Coupling Head100kg100kg100kg
Thermal Insulation GraceTHREETHREETHREE
Bed Sizes
Front Double202cm x 176cm/8' x 5'0'202cm x 176cm/9' x 5'0'202cm x 156cm/6' x 5'1'
or Front Naranda Single186cm x 72cm/6'1" x 2'4"176cm x 72cm/5'9" x 2'4"156cm x 72cm/5'1" x 2'4"
and Front Offside Single176cm x 72cm/5'9" x 2'4"186cm x 72cm/6'1" x 2'4"156cm x 72cm/5'1" x 2'4"
Rear Double
Side Single (offside)180cm x 62cm/5'1'' x 2'0"193cm x 84cm/6'4" x 2'3"
Side Single (nearside)183cm x 73cm/6'0" x 2'5"
Side Bunk (offside)176cm x 50cm/5'9" x 1'11"
Side Bunk (nearside)
Side Fixed Lower Bunk
Side Fixed Mid Bunk
Side Fixed Upper Bunk
Eccles RubyEccles QuartzEccles AmethystEccles CoralEccles Wayfarer
5.60m/18'4"5.83m/19'2"6.2/m/20'7"6.2/m/20'7"6.2/m/20'7"
2.25m/7'4%2.25m/7'4%2.25m/7'4%2.25m/7'4%2.25m/7'4%
2.6cm/8'8"2.65m/8'8"2.62m/8'7"2.62m/8'7"2.62m/8'7"
1.9cm/6'5"1.95m/6'5"1.95m/6'5"1.95m/6'5"1.95m/6'5"
7.25m/23'9"7.48m/24'6"7.93m/26'0"7.93m/26'0"7.93m/26'0"
9.96m/32'8"10.19m/33'5"10.64m/34'11"10.64m/34'11"10.64m/34'11"
1335kg/26.3wt1365kg/26.9wt1603kg/31.7wt**1563kg/30.9wt1580kg/31.1wt
1488kg/29.3wt1521kg/29.9wt1800kg/35.4wt**1800kg/35.4wt1800kg/35.4wt
1500kg/29.5wt1550kg/30.5wt1800kg/35.4wt1800kg/35.4wt1800kg/35.4wt
1538kg/3.0wt1568kg/3.1wt1928kg/3.8wt2518kg/4.5wt2208kg/4.3wt
1538kg/3.0wt1568kg/3.1wt1838kg/3.5wt1808kg/3.5wt1808kg/3.1wt
0kg/0wt0kg/0wt0kg/0wt0kg/0wt0kg/0wt
185 R14C 102Q185 R14C 102Q185/70 R14 88T185/70 R14 88T185/70 R14 88T
62 psi/4.3bar65 psi/4.3bar32 psi/2.2bar32 psi/2.2bar32 psi/2.2bar
64 psi/4.4bar65 psi/4.5bar32 psi/2.2bar32 psi/2.2bar32 psi/2.2bar
100kg100kg100kg100kg100kg
THREETHREETHREETHREETHREE
202cm x 150cm/8'8" x 5'1"202cm x 150cm/8'8" x 5'1"202cm x 176cm/8'8" x 5'9"202cm x 131cm/8'8" x 4'4"202cm x 150cm/8'8" x 5'1"
156cm x 72cm/5'1" x 2'4"-56cm x 72cm/5'1" x 2'4"176cm x 72cm/5'9" x 2'4"156cm x 72cm/5'1" x 2'4"
156cm x 72cm/5'1" x 2'4"-56cm x 72cm/5'1" x 2'4"186cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"
162cm x 130cm/6'4" x 4'3"185cm x 133cm/6'1" x 4'4"192cm x 130cm/6'4" x 4'3"185cm x 130cm/6'4" x 4'3"185cm x 133cm/6'1" x 4'4"
190cm x 09cm/6'1" x 2'3"180cm x 62cm/6'1" x 2'0"
176cm x 59cm/6'8" x 1'11"176cm x 58cm/6'8" x 1'11"

* Estimated
Weights: From the 2011 season, the method of calculating the Mass in Ruaming Order (MPO) and per paycard figures has changed or under in being in line with European vehicle directions.
Allowance for essential equipment (e.g. gas cylinders) previously allowed for in the user payback are now contained within the MFC. A provision for a regular level with respect to the author the essential
equipment payned has now been included within the personal effects payment allowance. Although the method of calculation has changed, the overall effect is that the amount of payned available to the customer has remained the same, it is and calculated in a different manner.
Bed Sizes: Please note that the 1st double bed sizes quoted are for sealing configurations without chest of drawers. The first double bed with a layout with a chest of drawers filled will be receded by 0.4m(1.4) from that sloted.
Awning sizes: Due to varying awning designs and sizes, the awning sizes given are approximately only. Specific awning sizes must be continued by your dealer or awning manufacturer prior to purchase.
* The time is one year are approximate due to eight variations in suspension rule heights, leading conditions and eye pressures. Customers should verify the actual dimensions of their current tension before controlling it anything that could be impacted by these dimensions.
Please note: Any dealer fit options will reduce the overall payment available to the use of the customer. If you require additional payload it is possible to upgrade the ATHI M to the upper limit. Please contact your Sall customer cleaner for more information.

Specification

Conqueror Conqueror 480 Conqueror 530 Conqueror 565 Conqueror 570 Conqueror 630 Conqueror 645
Elite Elite Amber Elite Searcher Elite Explorer
Berths 2 4 4 4 4 4
Axes 1 1 1 1 2 2
Internal Length (bed box height)4.74m/13'7"6.50m/18'1"6.60m/18'4"
Overall Width2.31m/7'7"2.31m/7'7"2.31m/7'7"
Overall Height (inc. IV Aerial)2.62m/8'7"2.67m/8'9"2.67m/8'9"
Maximum Internal Headroom1.95m/6'5"1.95m/6'5"1.95m/6'5"
Overall Length6.46m/21'2"7.22m/23'8"7.32m/24'0"
Awing A/A dimension9.12m/29'11"9.88m/32'5"9.98m/32'9"
Mass in Running Order (inc. tolerance)134kg/26.5cwt153kg/30.2cwt1521kg/29.9cwt
Maximum Technical Permissible Lader Mass (lower limit)1473kg/29.0cwt1886kg/33.2cwt1675kg/33.0cwt
Maximum Technical Permissible Lader Mass Upper limit1500kg/29.5cwt1750kg/34.4cwt1750kg/34.4cwt
Total user Payload123kg/2.5cwt153kg/3.0cwt154kg/3.0cwt
Personal Effects125kg/2.5cwt153kg/3.0cwt154kg/3.0cwt
Options0kg/0cwt0kg/0cwt0kg/0cwt
Tyre Size185 R14C 1020195/70 R15C 104R195/70 R15C 104R
Tyre pressure at Lower limit MTPM62 psi / 4.2bar65 psi/4.5bar65 psi/4.5bar
Tyre pressure at Upper limit MTPM64 psi / 4.4bar65 psi/4.5bar65 psi/4.5bar
Static Load on Coupling Head100kg100kg100kg
Thermal Insulation GraceTHREETHREETHREE
Bed Sizes
Front Double207cm x 186cm/6'9" x 6'1"207cm x 176cm/6'9" x 5'0"207cm x 156cm/6'9" x 6'1"
or Front Nearside Single186cm x 72cm/6'1" x 2'4"176cm x 72cm/6'9" x 2'4"156cm x 72cm/6'1" x 2'4"
and Front Offside Single186cm x 72cm/6'1" x 2'4"186cm x 72cm/6'1" x 2'4"156cm x 72cm/6'1" x 2'4"
Rear Double
Rear Bunk
Side Single (offside)180cm x 69cm/5'11" x 2'3"192cm x 72cm/6'4" x 2'4"
Side Single (nearside)183cm x 73cm/6'0" x 2'5"
Side Bunk (offside)176cm x 59cm/5'9" x 1'1"
5.60m/18'4"6.27m/20'7"6.27m/22'7"
2.31m/7'7"2.31m/7'7"2.31m/7'7"
2.67m/8'9"2.62m/8'7"2.82m/8'7"
1.95m/6'5"1.95m/6'5"1.95m/6'5"
7.32m/24'0"7.99m/26'3"7.99m/28'3"
9.98m/32'9"10.65m/34'11"10.65m/34'11"
1521kg/29.9cwt**1677kg/32.9cwt1663kg/32.7cwt
1673kg/33.0cwt**1900kg/37.4cwt1900kg/37.4cwt
1750kg/34.4cwt1900kg/37.4cwt1900kg/37.4cwt
154kg/3.0cwt228kg/4.5cwt237kg/4.7cwt
154kg/3.0cwt160kg/3.1cwt160kg/3.1cwt
Okg/0cwtOkg/0cwtOkg/0cwt
195/70 R15C 104R185/70 R14 88T185/70 R14 88T
65 psi/4.5bar33 psi/2.3bar33 psi/2.3bar
65 psi/4.5bar33 psi/2.3bar33 psi/2.3bar
100kg100kg100kg
THREETHREETHREE
207cm x 156cm/6'0" x 5'1"207cm x 156cm/6'0" x 5'1"207cm x 156cm/6'0" x 5'1"
156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"
156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"156cm x 72cm/5'1" x 2'4"
132cm x 134cm/6'4" x 4'3"192cm x 134cm/6'4" x 4'3"186cm x 133cm/6'1" x 4'4"

* Estimated
Weights: The method of calculating the Waste in Burning Order (MRC) and more pay-out figures has changed in order to bring it in line with European Vehicle Directives.
Advances for essential equipment (e.g. gas cylinders previously allowed for in the user payed are now contained within the MFG. A provider for a ensure facility which used to be within the essential
equipment payned has now been included within the personal effects payment allowance. Although the method of calculation has changed, the overall effect is that the amount of payned available to the customer has remained the same, it is and calculated in a different manner.
Bed Sizes: Please note that the front double back sizes quoted are for sealing configurations without chest of drawers. The front double bed width for a layout with a chest of drawers filled will be receded by 0.4m(1.4") from that slot.
Awing sizes: Due to varying seating designs and sizes the seating sizes given are approximately only. Specific seating sizes must be confirmed by your order or starting manufacturer prior to purchase.
* The time is one year are approximate due to slight variations in suspension rule heights, leading conditions and eye pressures. Customers should verify the actual dimensions of their current tension before controlling it anything that could be impacted by these dimensions.
Please note: Any dealer fit options will reduce the overall payment allowance to be used at the customer. If you require additional payload it is possible to upgrade the MTFM to the upper limit. Please contact your SaaS customer dealer for more information.

Challenger - Conqueror - Eccles - Elite - Road lighting circuits
Fuse Unit part number C44 Road Lighting Swift Caravanis T2-6 2014 SARGENT ELECTRICAL SERVICES LTD Issue 1 269G13 PSU Part numbers C440,448,445 & 449 See separate sheet for cable colour chart Dual coloured cables show in primary colour White cables shown in Black RC1 is the roof connector FC1 is the rear panel connector Some vehicles feature LED light sources Not all lights are fitted some models L1 Brake lamp 21w L2 Fog Hazard lamp 21w L3 O/S Indicator lamp 21w L4 O/S Tail lamp 5w L5 Brake lamp 21w L6 Reverse lamp 21w L7 N/S Indicator lamp 21w L8 N/S Tail lamp 5w L9 Reverse lamp 21w L10 Number plate lamp 5w L11 Number plate lamp 5w L12 O/S rear marker lamp 5w L13 O/S front marker lamp 5w L14 N/S rear marker lamp 5w L15 N/S front marker lamp 5w L16 High level brake lamp <1.2w L17-21 N/S Side marker lamp 5w L18 O/S Side marker lamp 5w PN3 Negative W Stop INDICATOR TAIL FOG REVERSE L10 L11 L8 STOP INDICATOR TAIL L5 STOP INDICATOR TAIL L3 L4 L5 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICITOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L3 STOP INDICATOR TAIL L2-26 N/S Side marker lamp 5w ©AOS ROAD LIGHT ©AOS ROAD LIGHT

Wiring DiagramsV

Challenger - Conqueror - Eccles - Elite - Floor circuits with Alde
Swift Challenger SE(2014) - Wiring DiagramsV - 1

Challenger - Conqueror - Eccles - Elite - Consumer circuits roof
Swift Challenger SE(2014) - Wiring DiagramsV - 2

Wiring Diagrams

Challenger - Conqueror - Eccles - Elite - Power circuits
Swift Challenger SE(2014) - Wiring Diagrams - 1

Challenger - Conqueror - Eccles - Elite 230V circuits Challenger - Conqueror - Eccles - Elite - 13 Pin Circuits

Swift Challenger SE(2014) - Wiring Diagrams - 2


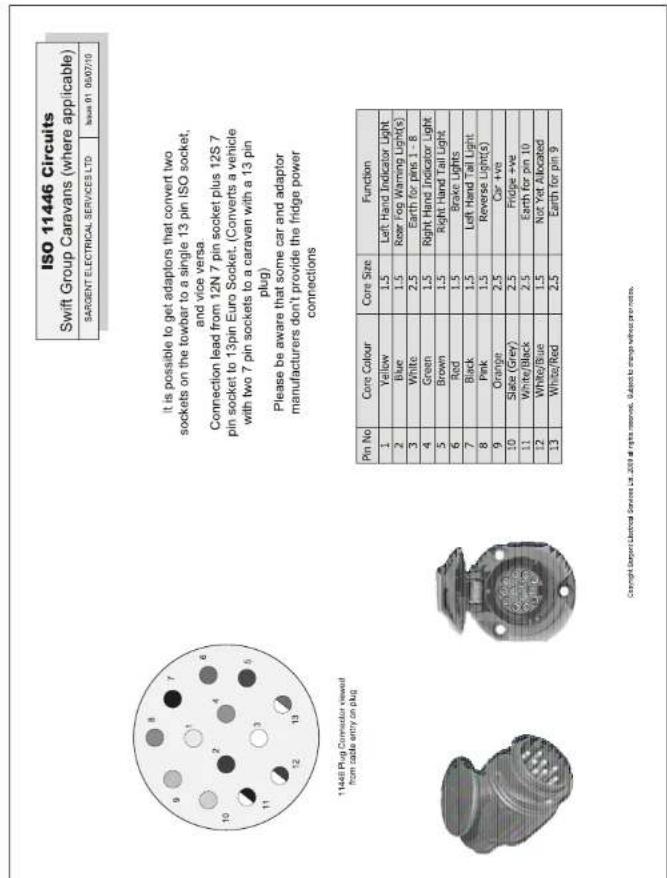

ISO 11446 Circuits Swift Group Caravans (where applicable) SARGENT ELECTRICAL SERVICES LTD Issue 01 08/07/10 It is possible to get adaptors that convert two sockets on the towbar to a single 13 pin ISO socket, and vice versa. Connection lead from 12N 7 pin socket plus 12S 7 pin socket to 13pin Euro Socket. (Converts a vehicle with two 7 pin sockets to a caravan with a 13 pin plug) Please be aware that some car and adaptor manufacturers don't provide the fridge power connections Pin No Core Colour Core Size Function 1 Yellow 1.5 Left Hand Indicator Light 2 Blue 1.5 Rear Fog Warning Light(s) 3 White 2.5 Earth for pins 1 - 8 4 Green 1.5 Right Hand Indicator Light 5 Brown 1.5 Right Hand Tail Light 6 Red 1.5 Brake Lights 7 Black 1.5 Left Hand Tail Light 8 Pink 1.5 Reverse Light(s) 9 Orange 2.5 Car +ve 10 Slate (Grey) 2.5 Fridge +ve 11 White/Black 2.5 Earth for pin 10 12 White/Blue 1.5 Not Yet Allocated 13 White/Red 2.5 Earth for pin 9 Copyright ©sporl Electrical Services Ltd., 2009 all rights reserved. Subject to change without prior notes. © Copyright ©sporl Electrical Services Ltd., 2009 all rights reserved. Subject to change without prior notes.

Wiring Diagrams

Bulb Chart

Challenger - Conqueror - Eccles - Elite - Cable colour chart

[Unreadable due to severe distortion and noise]

KPINK
WWHITE
SSLATE GERY
pPURPLE
UBLUE
GGREEN
YYELLOW
OORANGE
RRED
NBROWN
BBLACK

12y Cable Colors

BLUE
U
GGREEN
YYELLOW
OORANGE
WWHITE
NBROWN
BBLACK

230V Cable Colors

Cable Colour ChartSwift range
Sargent E. Fertecoral Serviceless 10Huee Design
Yellow cable with Blue stripe
Exterior Lights Bulb type Bulb rating
Front marker lights Complete lamp 12v LED
Side marker - Low Level W5W 12v 5W
Side marker - High Level R5W 12v 5W
Reversing light P21 12v 21W
Rear indicator light P21 12v 21W
Rear indicator light P21W Orange Bulb 12v 21W
Brake / tail light P21/5W 12v 21W/5W
Fog lightP21 12v 21W
Number plate lightC5W12v 5W
High level brake lightJokon ZHBL 12 RedLED
Interior / Other LightsBulb type Bulb rating
Awning lampFEM0845 complete lamp12v LED
Locker spotlightsFEM0854 complete lamp12v LED
Downlighters, ChromeFEM1199 LED complete unit12v LED
Downlighters, Offset lensFEM0855 complete lamp, silver12v LED
Worktop feature lightCompote lamp (500mm/1000mm)12v LED
Kitchen light (solarinback)FEM1049 complete lamp, surface mount12v LED
Kitchen light500mm cold citode 4.5W light12v 4.5W OCFL
Over locker lightingFluorescent 300mm12v 8W
Over locker lightingFEM121412v LED
Feature light over front sealingFEM0937 complete lamp12v LED
Wardrobe lampHalogen capsule bulbGLU 12V 5W
Ceiling light tricle LEDFEM0858 complete lamp12v LED

Note: Not all bulbs and lights feature on all models within a range.

Bulb replacement

T5D / T6D CHALLENGER / ECCLES / CONQUEROR / ELITE ROAD LIGHT BULB ACCESS

REAR LIGHT CLUSTERS (CONTAINING INDICATOR, TAIL / STOP, REVERSE AND FOG LAMPS)

All of the bulbs within the clusters are accessed from the rear of the cluster.

To remove the cluster, release the four screws that can be seen around the perimeter of the lense of the lamp. The whole lamp can then be withdrawn from the rear of the caravan.

The relevant bulb holder can now, from the rear of the lamp, be twisted relative to the body of the lamp to release it.

The bulbs are then a bayonet fitting into the bulb holder - push the bulb lightly toward the holder, and twist, to release.

Please take additional care replacing stop/tail light in correct orientation. When fitted correctly brake light illumination will be brighter than tail lamp illumination.

Re-fit the bulb holder into the lamp body.

FRONT LOW LEVEL MARKER / POSITION LAMPS (CLEAR LENSE)

These lamps are LED and have no user serviceable parts inside.

Replacements should be undertaken by your dealer, as the lamps are sealed onto the mounting panel.

This lamp is single piece and has no user serviceable parts inside.

Replacements should be undertaken by your dealer, as the lamps are sealed onto the mounting panel.

NUMBER PLATE LAMPS

Bulb access is from via the front lense of each lamp.

Remove the two screws in the lens of the lamp, and remove.

Lever the bulb out of retaining clips.

Reverse the procedure to re-fit a new bulb and the light lens.

Bulb access is from rear of lamp.

If rear of lamp is visible from inside the caravan;

- Depending on the location, a small brown plastic cover may be present covering the connections to the lamp. Remove the screws in the cover to release and access the rear of the lamp.

- The harness plugs directly into the bulb holder - twist the bulb holder relative to the lamp body to release, and withdraw the bulb holder and bulb.

- Bulbs are push fit into bulb holder - pull bulb directly away from holder to release

- Reverse the procedure to replace the bulb in the holder, holder in the lamp and the lamp onto the caravan body. Replace plastic cover.

If rear of lamp is not visible from inside the caravan:

- Remove the 2 screws from the front of the light fitting, and withdraw the whole fitting from the caravan body

- The harness plugs directly into the bulb holder - twist the bulb holder relative to the lamp body to release, and withdraw the bulb holder and bulb.

- Bulbs are push fit into bulb holder - pull bulb directly away from holder to release

- Reverse the procedure to replace the bulb in the holder, holder in the lamp and the lamp onto the caravan body.

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Swift

Model : Challenger SE(2014)

Category : Caravan
