Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ C/ 32^ F or above 40^ C/ 104^ F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

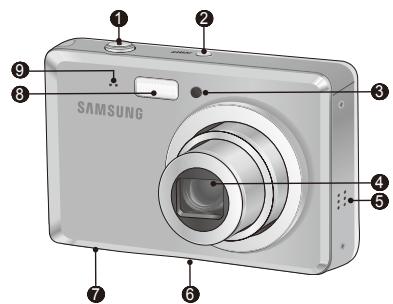

Camera layout

SAMSUNG

① Shutter button
② POWER button
③ AF-assist light/timer lamp
4 Lens / Lens cover
5 Speaker
6 Tripod mount
⑦ Battery chamber cover
8 : Flash
9 Microphone

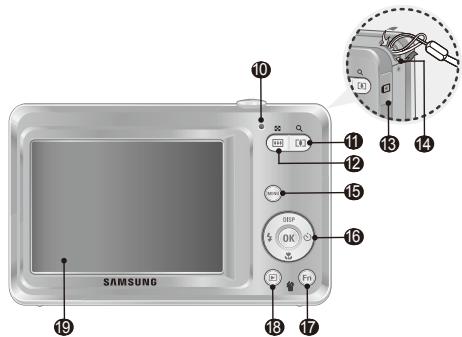

SAMSUNG 10 11 12 13 14 15 16 17 18 19

10 Status lamp
11 Zoom Tele(T) button (Digital zoom)
12 Zoom Wide(W) button (Thumbnail)
13 USB and A/V port
14 Strap eyelet
15 MENU button
16 Navigation button/OK button
17 Fn / Delete button
18 | Playback button
19 LCD monitor

Setting up your camera

Unpacking

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Camera

Rechargeable Battery

AC adapter/ USB cable

Camera strap

Quick Start Manual

Software CD-ROM (User manual included)

Optional accessories

Memory cards

Camera case

A/V cable

Setting up your camera

Inserting the battery and memory card

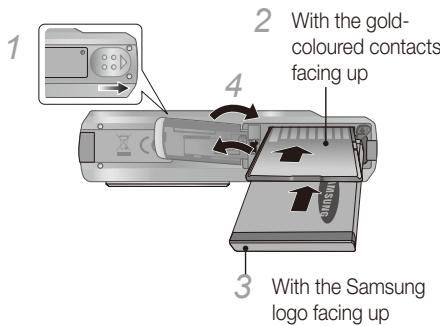

1 2 With the gold- coloured contacts facing up 3 With the Samsung logo facing up 4

▼ Removing the battery

Diagram of a device internal structure with arrows indicating movement or force (no text or symbols)

▼ Removing the memroy card

Cross-sectional diagram of a mechanical component with internal arrows indicating flow or movement (no text or symbols)

Push gently until the card disengages from the camera and then pull it out of the slot.

Charging the battery

Before using the camera for the first time, you must charge the battery.

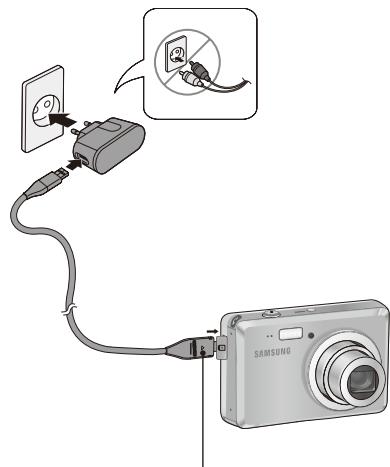

Diagram showing connection between a Samsung camera and a digital charger, with an instructional diagram illustrating the setup.

Indicator light

• Red: Charging
• Green: Fully charged

Turning on your camera

1 Press [POWER].

- The initial setup screen appears.

Display Language Date & Time MENU Exit ▶ Change

2 Press [💡] to select Language and press [💡].
3 Press [DISP] or [💡] to select a language and press [OK].
4 Press [DISP] or [💡] to select Date & Time and press [💡].
5 Press [⚡] or [💡] to select an item.
6 Press [DISP] or [💡] to change the number or select another date format and press [OK].

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

EV MENU Back Move

• To move left or right, press [⚡] or [💡].
• To move up or down, press [DISP] or [✿].

3 Press [OK] to confirm the highlighted option or menu.

- Press [MENU] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 Press [MENU] to select (☐).

2 Align your subject in the frame.

3 Press [Shutter] halfway down to focus automatically.

- A green frame means the subject in focus.

F3.2 1/30 00001 F A I F

4 Press [Shutter] all the way down to take the photo.

Recording a video

1 Press [MENU] to select (☐).

2 Align your subject in the frame.

3 Press [Shutter].

- Press [OK] to pause or resume.

4 Press [Shutter] again to stop the recording.

Number of photos by resolution (for 1 GB SD)

Resolution		Super fine	Fine	Normal
10M	3648 x 2736	183	334	472
9M	3648 x 2432	200	362	511
7M	3648 x 2052	252	442	613
7M	2592 x 1944	252	445	619
5M	2592 x 1944	334	578	793
3M	2048 x 1536	495	814	1,067
1M	1024 x 768	1,238	1,673	1,876

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [▶].

2 Press [⚡] or [💡] to scroll through files.

- Press and hold to view files quickly.

Silhouette of a person holding a pointer, no text or symbols present

Viewing videos

1 Press [▶].
2 Press [OK].

100-0002 00:00:11 OK Play Capture

3 Use the following buttons to control playback.

[⚡]	Scan backward
[OK]	Pause or resume playback
[💡]	Scan forward

Transferring files to a PC (Windows)

1 Insert the installation CD in a CD-ROM drive and follow the onscreen instructions.
2 Connect the camera to the PC with the USB cable.

Diagram showing a device connected to a Samsung camera via cable, with no visible text or symbols.

Disconnecting safely (for Windows XP)

EN® 10:00 AM Click Safely remove USB Mass Storage Device - Drive(H): EN 10:00 AM Click

3 Turn on the camera.
4 On your PC, select My Computer → Removable Disk → DCIM → 100SSCAM.
5 Select the files you want and drag or save them to the PC.

Specifications

Image sensor	Type: 1/2.33" (approx. 1.09 cm) CCDEffective pixels: approx. 10.2 mega-pixelsTotal pixels: approx. 10.3 mega-pixels
Lens	Focal length: Samsung lens f = 6.3 - 18.9 mm (35 mm film equivalent: 35 - 105 mm)F-stop range: F3.2 (W) - F5.8 (T)
Display	2.5" (6.4 cm) 230 K, TFT LCD
Focusing	TTL auto focus (Multi AF, Center AF, Face Detection AF)
Shutter speed	Auto: 1/8 - 1/1,500 sec.Program: 1 - 1/1,500 sec.Night: 8 - 1/1,500 sec.Firework: 4 sec.
Storage	Internal memory: approx. 9 MBExternal memory (Optional): SD card (up to 2 GB guaranteed),SDHC card (up to 8 GB guaranteed), MMC Plus (up to 1 GB guaranteed)Internal memory capacity may not match these specifications.
DC power input connector	4.2 V
Rechargeable battery	SLB-10A, 3.7V (1050mAh)
Dimensions (W x H x D)	90.4 x 59 x 21.6mm (excluding protrusions)
Weight	116 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %
