IK520 - Anti-insectes Khind - Free user manual and instructions

Product Type	Electric Insect Killer (Bug Zapper)
Model	IK520
Brand	Khind
Dimensions (Approx.)	20 cm x 15 cm x 10 cm
Weight (Approx.)	0.5 kg
Power Source	AC 220-240V, 50Hz
Power Consumption (Approx.)	6W
Attraction Method	UV Light (Ultraviolet)
Killing Mechanism	High Voltage Electric Grid (approx. 2000V)
Coverage Area (Approx.)	Up to 30 m²
Material	ABS Plastic (body), Metal Grid
Color	White / Black (typical)
Mounting Options	Wall-mounted or Free-standing
Protection Grade	IPX2 (drip proof)
Included Accessories	Power cord, Wall mount brackets, Screws
Cleaning Instructions	Disconnect power, remove tray, clean with brush
Safety Features	Insulated grid, protective casing, auto-shutoff when opened
Spare Parts Availability	Replacement bulbs and grid available
Certifications	CE, RoHS
Warranty (Standard)	1 year

Frequently Asked Questions - IK520 Khind

How does the Khind IK520 insect killer work?

It uses UV light to attract insects and an electric grid with high voltage to kill them instantly.

Is the UV light harmful to humans or pets?

The UV light is designed to attract insects and is safe for humans and pets when used as directed. Avoid prolonged direct exposure to the light.

How do I clean the Khind IK520?

First, disconnect power. Remove the collection tray and clean dead insects with a soft brush. Use a damp cloth for the exterior. Do not touch the grid.

Can I use the device outdoors?

The IK520 is intended for indoor use only. It is not weatherproof and should be placed in a dry area away from moisture.

How often should I replace the UV bulb?

The bulb typically lasts about 3000 hours. Replace it if it stops attracting insects or if the light dims significantly.

Where should I place the insect killer for best results?

Place it 1.5-2 meters above the ground in a location away from competing light sources, such as windows. Avoid areas with strong air currents.

Is the insect killer safe to leave on overnight?

Yes, it is designed for continuous operation. However, ensure it is placed on a stable surface and not near flammable materials.

What should I do if the device sparks or makes unusual noises?

Immediately turn off and unplug the device. Check for debris or moisture on the grid. If the problem persists, contact Khind customer support.

Can I disassemble the device to clean the grid?

Only remove the collection tray. The grid is not user-serviceable due to high voltage. For thorough cleaning, refer to the manual.

Does the device have a warranty?

Yes, Khind offers a 1-year warranty against manufacturing defects. Keep your purchase receipt for claims.

USER MANUAL IK520 Khind

Abstract graphic with teal and white geometric shapes resembling a world map or globe, no text or symbols present.

Please read this manual carefully before operating this product. Keep this manual handy for future reference. 请在使用此产品前，详读此说明书，并将之收藏以作日后参考。

This manual is also available online.

P/N: 40-50026-06

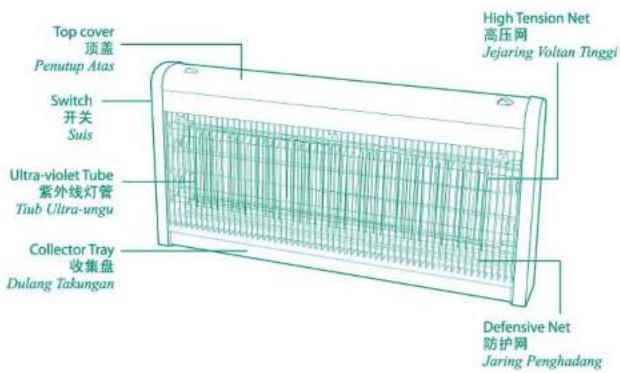

Parts identification / 零件名称 / Pengenalan bahagian

Specifications / 规格 / Spesifikasi

Model/型号/Model	:IK 510	IK 520
Voltage/电压/Voltan	:220-240V~50Hz	220-240V~50Hz
Power/功率/Kuasa	:26W	43W
Tube/灯管/Tiub	:2×10W Tubes/Tiub	2×20W Tubes/Tiub
Gross Weight/毛重/Berat Kasar	:2.9 Kg	4 Kg
Box Dimension/箱子尺寸/Dimensi Kotak	:435×105×325mm	705×98×325mm

* Specifications are subject to change without prior notice. 以上规格有任何的改变，恕无另行通知。Perubahan spesifikasi boleh dilakukan tanpa seburang notis

Caution and safe operation / 注意事项和安全操作

1. Do not touch the HIGH TENSION NET with hand or any electric conductor. 不要用手或其他电导体来触碰高压网。
2. Do not use water to clean this insect killer. 不要使用清水来清理此捕虫机。
3. Do not spray water on the HIGH TENSION NET to prevent short circuit. 不要把水溅在高压网以避免电线短路。
4. Please do not place this unit near the kitchen which is surrounded by a lot of smoke to avoid breakdown on the high tension net. 请不要把此捕虫机放在靠近厨房那些周围都是烟围绕的地方以避免高压网损坏。
5. This unit is designed for indoor use such as in houses, restaurants, shops, sports centres and public places which have roof or rain protection. 此捕虫机只适合在有屋顶或挡雨的户内如家里，餐馆，店面，运动中心和公共场所使用。
   6.This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. 此电器不适合这些人士使用：小孩，体力弱及感官，精神上有障碍，缺少经验及知识者；除非有人监督或指示如何操作，并负责操作人的安全。小孩需紧密的监督，此电器严禁被小孩当玩具玩。
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 当电源线损坏时，请送往维修中心，所授权的维修中心或拥有同等技术的人士替换。
7. Put this unit at the places with sufficient ventilation like near the door, balcony and corridor or on the top of the cabinet. 将此捕虫机放在空气流通的地方如靠近门，阳台和走廊或放在橱顶上。
8. Avoid direct sunshine, rain and keep away from children. 应避免直接曝晒，淋雨和远离小孩。
9. Place or hang this unit at a height of 2-3 meters from the floor. 在离地面2-3米的地方放置或吊起此捕虫机。

Maintenance / 保养

1. Remove plug from the socket before doing any maintenance. 进行保养前请先拔出插头。
2. Use dish-cloth with cleaner to softly clean the defensive net and collector tray. 使用软布和清洁剂轻柔的擦拭防护网和收集盘。
3. Use wet dish-cloth (wring first) to clean the high tension net and then wipe with dry-cloth, 使用湿布（先拧干）擦拭高压网后再用干布擦干。
4. Clean the unit as frequently as possible. 建议经常清理捕虫机。
