ARF72W - Deep fryer Khind - Free user manual and instructions

Type	Air Fryer
Model	ARF72W
Brand	Khind
Dimensions (L x W x H)	367 x 285 x 320 mm
Net Weight	4.3 kg
Power	1500 W
Voltage	220-240 V ~ 50-60 Hz
Frying Basket Capacity	7.2 L
Temperature Range	80°C to 200°C
Timer Range	0 to 60 minutes
Control Type	Manual knobs (temperature and timer)
Indicator Lights	Power and Heating indicator lights
Exhaust Vent	Located at rear
Basket Material	Non-stick coating
Tray Included	Yes
Viewing Window	Yes (in basket)
Safety Features	Automatic shut-off? (not specified); cool-touch handle? (not specified); do not immerse; do not fill basket with oil
Cleaning	Non-abrasive sponge, mild detergent; heating element brush
Warranty	Via Khind Care App (e-warranty registration)
Accessories	Frying basket, tray
Intended Use	Household only; commercial use voids warranty
Certifications	Not specified
Country of Origin	Not specified

Frequently Asked Questions - ARF72W Khind

What is the capacity of the Khind ARF72W air fryer?

The frying basket capacity is 7.2 liters, suitable for families.

Can I use oil in the air fryer?

Do not fill the frying basket with oil. If you want to use oil, toss ingredients with oil in a separate bowl before placing them in the basket.

What temperature range does the air fryer have?

The temperature can be adjusted from 80°C to 200°C.

How do I clean the air fryer?

Unplug and let it cool. Wipe the exterior with a damp cloth. Clean the basket with hot water, mild detergent, and a non-abrasive sponge. Use a brush for the heating element.

Is the basket dishwasher safe?

The manual does not specify dishwasher safety; recommend hand washing to preserve non-stick coating.

What should I do if the power cord is damaged?

It must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

Can I cook frozen food directly?

Yes, many frozen foods like french fries, chicken nuggets, and fish sticks can be cooked directly. Refer to the cooking tips in the manual.

How do I register for warranty?

Download the Khind Care Mobile App to register for e-warranty and enjoy hassle-free after-sales services.

Does the air fryer have a timer?

Yes, the timer can be set from 0 to 60 minutes. The timer bell sounds when done.

Can I cook steak in the air fryer?

Yes, for example, a 450g steak can be cooked at 200°C for 10-12 minutes for medium doneness. Season as desired.

USER MANUAL ARF72W Khind

USER MANUAL

AIR FRYER

ARF72W

Line drawing of a DHND air fryer with two control knobs (no text or symbols)

KHIND®

Experience More

KHIND CARE Mobile App

Mobile App

Download to register for E-Warranty & enjoy hassle-free after-sales services.

1-800-88-0032

khind.com.my

IMPORTANT

Please read this manual carefully before operating this product. Keep this manual handy for further reference.

P/N: 40-51843-00

Safety Precaution Information

Safety & Warning Information

1. Read this instruction manual carefully before using the appliance.
2. Recommended to connect the appliance directly to the AC mains.
3. This appliance is for household use only. Commercial use will void warranty.
4. Do not modify this appliances.

5. This appliances is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance,

6. Always unplug from AC mains, for the following situations:
   a) If this appliance is not in use or
   b) When cleaning this appliance or
   c) When moving this appliance

7. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
8. Always place this appliance on a flat and stable surface.

9. Do not operate this appliance on carpets or table cloth as they may obstruct air flow to the exhaust.

10. Do not touch the appliance's surface during and after cooking. It will be very hot!

11. Do not immerse the housing and power cord into water or other liquid.

12. Do not let the cord hang over the edge of table or counter.

13. This appliance is not intended to be operated by means of an external limer or separate remote-control system.

14. Do not move the appliance while hot food inside.

15. Do not fill Frying Basket with oil or other liquid.

16. Do no place anything on top of appliance while in operation.

17. Do not cover Exhaust Vent during cooking operation.

Cleaning & Maintenance

1. Clean the appliance after use.
2. The Frying Basket and inside of the appliance consist of non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean it, as this may damage the non-stick coating.
3. Disconnect from mains and allow the appliance to cool down before cleaning. You can cool down the appliance faster by removing the Frying Basket.
4. Wipe the outside of the appliance with a damp cloth. Use mild detergent if necessary.
5. Clean the Frying Basket with hot water, mild detergent and a non-abrasive sponge. You can use degreasing liquid to remove any remaining dirt.
6. Tip: If dirt gets stuck to the Frying Basket, fill with hot water and mild detergent. Let the Frying Basket soak for approximately 10 minutes.
7. Clean the heating element with a cleaning brush to remove any food residues.

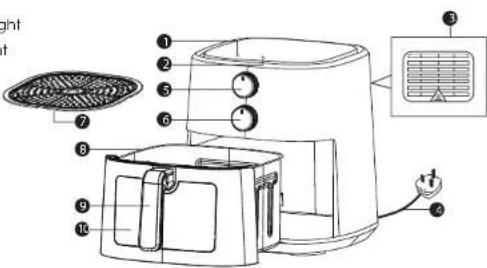

Parts Identification

1. Heating Indicator Light

2. Power Indicator Light

3. Exhaust Vent

4. Power Cord

5. Timer Knob

6. Temperature Knob

7. Tracy

8. Frying Basket

9. Handle

10. Window

* Pictures are for illustration purpose only.

Specifications

Model	ARF72W
Voltage	220-240V-	50-60Hz
Power	1500W
Frying Basket Capacity 7.2L
Net Weight	4.3kg

Product Dimension (L x W x H) 367 x 285 x 320mm
* Specifications are subject to change without prior notice.

How to Use

1. Prepare the desired food & remove the Frying Basket and ensure Tray inside the Frying Basket.

1. Insert ingredients into the Frying Basket.

a. Warning: Do not fill oil into the Frying Basket. If decided to use oil, kindly toss the ingredient with oil in separate bowl then transfer back it into Frying Basket.

b. You may refer below table chart for cooking tips on recommended amount of ingredients, cooking time and temperature.

3

1. Slide the Frying Basket into the Air Fryer. Please close it securely.

2. Plug in the Air Fryer to Main AC.

3. Turn to the desired Temperature. Adjust the temperature selection from 80°C to 200°C.

4. Turn to the desired Time. Adjust the timer from 0 to 60 minutes.

5. After setting temperature & timer, the Healing Indicator Light will illuminate, and Air Fryer will begin cooking.

B. Shake or flip the food.

a. During air frying operation, take the Frying Basket out to shake or flip the ingredients. (E.G. French Fries.)

b. To shake the ingredients by using "Tongs" if necessary. (Tongs is not provided).

c. Slide the Frying Basket back into Air Fryer to continue the operation.

1. Timer bell will make a sound after air frying.

2. Enjoy your meals!

Cooking Tips

Type	Amount	Time(Minutes)	Temperature(°C)	Overturning	AdditionalInformation
Meat	4 pieces	6 (chewy)8 (crispy)	200°C	No
Chicken Breast(Thick, about 250g)	About3 pieces	25-30	190°C	Yes Brush with oil,season with salt& desired spices
Chicken Drumsticks/thighs (150g each)	About5 pieces	16-18	200°C	No	Season with salt& desires spices
Chicken Nuggets	About20 pieces	10	200°C	Yes
Chicken Wings(Flats and Drumettesseparated)	12 pieces	18-20	200°C	Yes	Season with salt;enjoy as is or,when done, toss infavourite chickenwing sauce
	20 pieces	7	200°C Yes Fish Sticks (frozen)
(frozen/thick)	350-450g	16-20	200°C	YesFrench Friesbake twice
(frozen/thick)	350-500g	18-22	200°C	YesFrench Friesbake twice
(homemade cut intosquare pieces)	350-500g	20-25	200°C Rinse with Yes French Frieswater, pat dry,toss with 1tbspolive oil, seasonwith salt & desiredspices; use longsto loss duringcooking
(120g each)	2 patties	12(medium)	190°C Brush with Yes Burgersseason with salt &desired spices suchas freshly groundblack pepper &garlic powder
(frozen)	20 pieces	7	200°C Yes Mozzarella Sticks
about 220g)	2 pieces	12	200°C Season with Yes Cellops (bone-in,and desired spices
about 90g)	4 pieces	15	200°C Season with No Cellops (boneless,and desired spices
	900g	10-12(medium)	200°C Pat dry, to Yes Siltimp (large)1/2 tbsp olive oil,season with salt& desired spices;shake often

4

Type	Amount	Time (Minutes)	Temperature (°C)	Overturning	Additional Information
Steak	450g	10-12 (medium doneness)	200°C	No	Season with salt and desired spices
Salmon (about 130g)	3 pieces	10 (medium doneness)	200°C	No Brush	skin with oil & place on tray skin-side down.Season with salt & desired spices

*Above chart is for suggestion cooking purpose only.

*You may follow own preferences to cook your perfect meal.

Frying Tips

1. Smaller amount of ingredients usually require only a slightly shorter preparation time than larger amount of ingredients.
2. Shaking smaller ingredient halfway through the frying process optimizes the end result and can help prevent uneven fries.
3. Add some oil to the fresh potatoes for a crispy result.
4. Do not recommend air fried extremely greasy ingredients such as sausages in the Air Fryer.
5. Snacks that can be prepared in an oven can also be prepared in the Air Fryer.
6. You can also use the Air Fryer to reheat ingredient, e.g. pizza.
