Product Type	Digital Air Fryer
Model	ARF3500D
Voltage	220-240V~ 50/60Hz
Power Consumption	1300W
Frying Basket Capacity	3.5 Litres
Net Weight	3.6 kg
Product Dimensions (LxWxH)	265 x 330 x 300 mm
Temperature Range	80°C to 200°C (adjustable in 5°C increments)
Timer Range	1 to 60 minutes (adjustable in 1-minute increments)
Display Type	Digital LED (Temperature/Timer)
Controls	Touch sensors: +/-, Time, Temp, Start/Stop
Interior Coating	Non-stick coating on basket and interior
Accessories Included	Frying Rack, Skewer
Safety Features	Auto shut-off after timer; fan cool-down cycle; safety cut-off when basket removed
Cleaning Method	Non-abrasive sponge, mild detergent, degreasing liquid; brush for heating element
Material Exterior	Plastic with metal accents
Unit Weight with Basket	Approx. 3.6 kg
Power Cord Length	Approx. 0.8 m (estimated)

Frequently Asked Questions - ARF3500D Khind

How do I preheat the Khind ARF3500D air fryer?

The ARF3500D does not have a dedicated preheat function. Simply set the desired temperature and time, then press Start. The appliance will begin heating immediately. For best results, allow it to run empty for 3-5 minutes before adding food.

Can I use oil in the air fryer?

It is recommended not to fill the frying basket with oil or other liquids. However, you can brush or spray a small amount of oil on food for crispiness. Adding oil directly to the basket may cause smoke and damage.

Why does my air fryer produce white smoke?

White smoke is often caused by greasy food residues or cooking high-fat ingredients like sausages. Ensure the basket is cleaned after each use. If smoking persists, cook at a slightly lower temperature or reduce food quantity.

How do I clean the heating element?

After the appliance cools down, use a soft cleaning brush to gently remove food residues from the heating element. Do not use abrasive materials or immerse the element in water.

The basket is stuck or won't slide in properly. What should I do?

Check if the basket is overfilled (do not exceed the MAX line). Ensure the basket is aligned correctly and pushed in until you hear a click. If still stuck, remove ingredients and try again.

Can I cook frozen French fries directly?

Yes. For thin frozen fries (350-450g), cook at 200°C for 16-20 minutes. Shake twice during cooking for even results. No need to thaw.

What is the maximum cooking time?

The timer can be set up to a maximum of 60 minutes. Adjust in 1-minute increments using the +/- buttons.

How do I switch between Celsius and Fahrenheit?

Press and hold the TEMP button for 3 seconds to toggle between Celsius and Fahrenheit. The display will change accordingly.

Why does the fan keep running after cooking?

This is normal. The fan runs for about 1 minute after cooking to cool down the appliance. You will hear 3 beeps when it finishes and the fan shuts off automatically. Do not unplug immediately.

Can I use metal utensils in the basket?

No. Avoid metal kitchen utensils or abrasive cleaning materials as they can damage the non-stick coating. Use silicone, wood, or plastic utensils instead.

USER MANUAL ARF3500D Khind

Abstract grayscale graphic with white silhouettes of a globe and Earth, no text or symbols present

••• Digital Air Fryer / 智能空气电炸锅/Penggoreng Elektronik Digital

Instruction Manual/说明指示书/Buku Panduan

Please read this manual carefully before operating this product. Keep this manual handy for further reference. 请在使用此产品前，详读此说明书。并将之收藏以作日后参考。

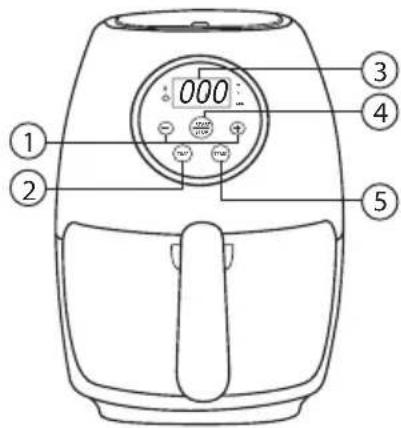

Parts Identification

1 "+/-" Touch Sensor
2 Time Touch Sensor
3 Temperature / Timer Display
4 Start / Stop Touch Sensor
5 Temperature Touch Sensor

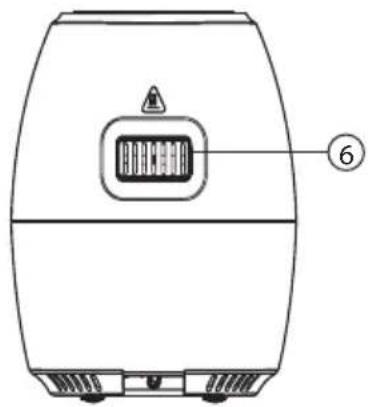

6 Air Fryer Exhaust Vent

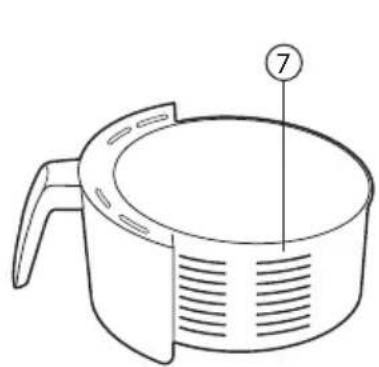

7 Frying Basket Exhaust Vent
8 Frying Basket Handle
9 Frying Basket
10 Frying Rack

Line drawing of a kitchen pot with handle and side panel (no text or symbols)

Diagram of a circular fan or vent with a numbered label (10) pointing to the center, no text or symbols present.

Accessories

Line drawing of a BBQ rack skewer with mesh structure (no text or symbols)

Three parallel curved metal rods with no text or symbols

* Picture are for illustration purpose

Specifications

Model	ARF3500D
Voltage	220 - 240V~ 50/60Hz
Power	1300W
Frying Basket Capacity	3.5 Litres
Net Weight	3.6kg
Product Dimension (LxWxH)	265 x 330 x 300mm

* Specifications are subject to change without prior notice.

Caution

Read this Instruction Manual before using appliance.

1. Use only high quality sockets as poor connection of plug top to AC mains may damage the appliance or affect its operation.

2. This appliance is for household use only. Commercial use will void warranty.

3. DO NOT MODIFY this appliance.

4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

1. Do not leave the appliance unattended when in use.

2. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. Do not use this appliance in damp conditions or close to open fire.

4. Always place this appliance on a flat and stable surface.

5. Do not operate this appliance on carpets or table cloth as they may obstruct air flow to the exhaust.

6. Do not touch the appliance's surface during and after cooking. It will be very hot!

7. Do not immerse the housing and power cord into water or other liquid.

8. In event of fire, do not extinguish flames with water. Switch off power, smother flames with a damp cloth.

9. This appliance is not intended to be operated by means of an external timer.

10. Do not move appliance with hot food inside.

11. Do not fill Frying Basket with oil or other liquid.

12. Do not place anything on top of appliance while in operation.

13. Do not cover Exhaust Vent during cooking operations.

Do not switch off the main supply on the wall socket immediately after cooking, fan will continue operate for 1 minute to cool down the appliance. 3 beep sound will be emitted after 1 minute and fan will shut off automatically.

Cleaning & Maintenance

1. Clean the appliance after every use.

2. The Frying Basket and the inside of the appliance consist of non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.

3. Disconnect from mains and allow the appliance to cool down before cleaning. You can cool the appliance faster by removing the Frying Basket.

4. Wipe the outside of the appliance with a moist cloth. Use mild detergent if necessary.

5. Clean the Frying Basket with hot water, mild detergent and a non-abrasive sponge. You can use degreasing liquid to remove any remaining dirt.

6. Tip: If dirt gets stuck to the Frying Basket, fill with hot water and mild detergent. let the Frying Basket soak for approximately 10 minutes.

7. Clean the inside of the appliance with hot water and a non-abrasive sponge.

8. Clean the heating element with a cleaning brush to remove any food residues.

How To Use

Diagram of a mechanical device with internal components and arrows indicating motion (no text or symbols)

1. Connect unit to the Mains.

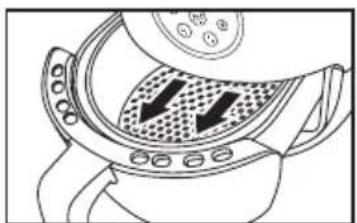

2. Remove Frying Basket.

Line drawing of a mechanical device with internal components and a handle (no text or symbols)

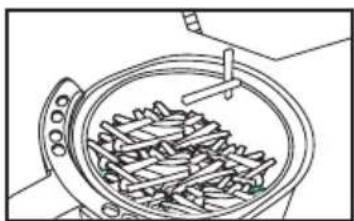

1. Insert ingredients into Frying Basket.

Mechanical assembly diagram showing gear and housing components (no text or labels)

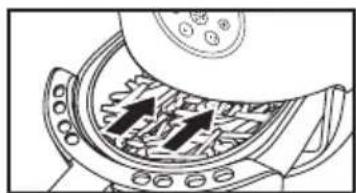

1. Slide Frying Basket into Air Fryer.

How To Use

1. To switch on the appliance, a beep will be emitted after pressing START/STOP. Press the "Time" to select the frying time. Press "+" or "-" to adjust the time duration. A beep sound will be heard on every press. Maximum cooking time is 60 min. The time is adjustable by 1 minute interval.

1. Press the "TEMP" to select the frying temperature. Press "+" or "-" to adjust the temperature. A beep sound will be heard on every press. Maximum temperature is 200°C. The temperature is adjustable by 5°C interval. Option: Press and hold the "TEMP" button for 3 seconds, the Celsius degree will change to Fahrenheit degree.

Illustration of a hand using a tool to chop contents in a bowl (no text or symbols)

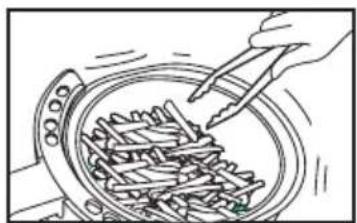

1. Some ingredients may require "Shaking" during frying(eg. French Fries) a. Remove Frying Basket. (appliance's heater and fan will stop operating for safety purpose) b. To shake ingredients, use "Tongs" if necessary. ("Tongs" is not provided) c. Slide Frying Basket into Air Fryer.

2. The Timer Bell will make a sound after frying period has lapsed.

3. Remove Frying Basket. Serve immediately or follow suggested cooking time as below.

SUGGESTED COOKING SETTING
Type Amount Time				Temp	Shake / Flip
			(min)	(°C)
French Fries (Frozen/Thin)	350 - 450g	16 - 20	200	Shake Twice
French Fries (Frozen /Thick)	350 - 500g	18 - 22	200	Shake Twice
Chicken nuggets	11 - 13 pcs	10	200	Turn over if needed
Chicken Wings	5 - 6 pcs	18 - 20	200	Turn over if needed
Chicken Drumsticks	3 - 4 pcs	16 - 18	200	Turn over if needed
Chicken Breast	3 pcs	25 - 30	190	Turn over if needed
Steak	450g	12(medium doneness)	200	Turn over if needed
Burger	2 patties	12(medium doneness)	190	Turn over if needed

How To Use

Frying Tips

1. Smaller amount of ingredients usually require only a slightly shorter preparation time than larger amount of ingredients.
2. Shaking smaller ingredients halfway through the frying process optimises the end result and can help prevent uneven fries.
3. Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you have added the oil.
4. Do not prepare extremely greasy ingredients such as sausages in the air fryer.
5. Snacks that can be prepared in an oven can also be prepared in the air fryer.
6. You can also use the air fryer to reheat ingredients.

Troubleshooting

Problem	Possible Cause Solution
The Air Fryer is not working / will not turn on.	The appliance is not plugged in.	Insert plug into the electrical outlet.
	The cooking time is not set.	Press “Time” and “+/-” to set desired cook time. Press “Start” to turn on the Air Fryer.
	The Air Fryer Basket is not completely pushed into place.	Use the Basket Handle to push basket securely into place.
The ingredients fried with the Air Fryer are not done.	The basket is too full.	Put smaller batches of ingredients in the basket to fry more evenly.
	The set temperature is too low.	Press “TEMP” and “+/-” to adjust to a higher temperature.
The ingredients are fried unevenly in the Air Fryer.	Certain ingredients need to be shaken halfway through.	Shake halfway through the cooking time.
The basket unable to slide into the appliance properly.	There are too many ingredients in the basket.	Do not fill the basket above the MAX fill line.
	The basket is not placed in the Air Fryer correctly.	Push the basket into the Air Fryer until you hear a click.
There is white smoke coming out of the Air Fryer.	Greasy ingredients are being prepared.	Frying greasy ingredients causes a large amount of oil to leak into the basket. This will produce smoke but does not affect the appliance or cooking of your food.
	The pan still contains greasy residue from previous use.	Make sure the Air Fryer basket is cleaned properly after every use.
Air Fryer is producing a significant amount of smoke.	High fat content foods, such as sausage, tend to produce a significant amount of smoke when cooked at a high temperature setting.	This will not damage the air fryer or affect the final result of the food, but in order to avoid smoke, fry at a lower temperature.

零件名称

Line drawing of a cylindrical kitchen appliance with a handle and vent, labeled with number 7 (no text or symbols on the device itself)

Diagram of a circular mechanical component with concentric rings and a central hub, labeled with number 10 (no text or symbols beyond the number)

配件

Three parallel curved metal rods with rounded ends, no text or symbols present

* 图片仅供参考。

规格

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

1. 连接至电源。

2. 移出煎炸篮子。

Line drawing of a mechanical device with internal components and a handle (no text or symbols)

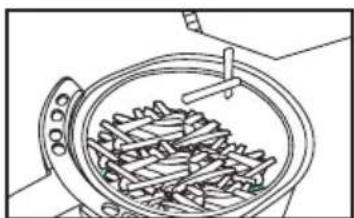

1. 将食材放入煎炸篮子。

Mechanical gear assembly diagram showing internal components and motion arrows (no text or labels)

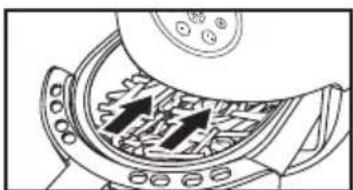

1. 将煎炸篮子放入炸锅里。

使用方法

Illustration of a hand using a tool to stir contents in a circular container (no text or symbols)

1. 有些食材在煎炸时需要摇晃，例如薯条。

a. 移出煎炸篮子。

(炸锅将停止操作发热器及风扇以确保安全。)

Line drawing of a kitchen pot with handle and vent, labeled with number 7 (no text or symbols on the pot itself)

Diagram of a circular mechanical or electrical component with concentric rings and a central hub, marked with number 10 (no text or symbols present)

Aksesori

Line drawing of a rack-mounted heating element with wavy top frame (no text or symbols)

Three parallel curved metal rods with no text or symbols

Skewer

Diagram of a mechanical device with internal components and arrows indicating flow or movement (no text or symbols)

Line drawing of a steamer with fins and a handle (no text or symbols)

Mechanical assembly diagram showing gear and housing components (no text or labels)

Line drawing of a hand using a tool to clean or prepare food in a bowl (no text or symbols)

1. Sesetengah bahan-bahan mungkin perlu "digoncang" semasa menggoreng.
