ARF45W - Deep fryer Khind - Free user manual and instructions

Product Type	Deep Fryer
Brand	Khind
Model	ARF45W
Color	White
Capacity	2.5 Liters
Power Rating	1800 Watts
Voltage	220-240V, 50/60Hz
Temperature Range	150°C - 190°C
Adjustable Thermostat	Yes
Indicator Lights	Power and Ready
Frying Basket	Removable with cool-touch handle
Lid	With viewing window
Oil Drain	Yes
Non-stick Coating	Yes (inner pot)
Overheat Protection	Yes
Cool-touch Exterior	Yes
Cord Storage	Yes
Dimensions (LxWxH)	30 x 20 x 25 cm
Weight	2.5 kg
Easy Clean	Removable parts dishwasher safe
Safety	Automatic shut-off
Included Accessories	Basket, Lid

Frequently Asked Questions - ARF45W Khind

How do I use the Khind ARF45W deep fryer?

Fill the inner pot with oil up to the MAX line (approx. 2.5L). Set the desired temperature using the adjustable thermostat (150-190°C). Wait for the ready indicator. Place food in the basket and lower into oil. Fry until golden brown. Lift basket and allow excess oil to drain.

What type of oil is recommended?

Use high smoke point oils like canola, peanut, sunflower, or vegetable oil. Avoid olive oil or butter as they burn easily.

How much oil should I put in the fryer?

Fill oil to the marked MAX line inside the non-stick pot. Do not exceed this level. Typically, it requires about 2.5 liters.

Can I fry frozen foods?

Yes, but pat dry excess ice to reduce splatter. Lower basket slowly. Caution: Frozen foods may cause oil to bubble more.

How do I clean the ARF45W?

Unplug and let oil cool completely. Remove the pot and basket. Wash with warm soapy water or place in dishwasher (top rack). Wipe exterior with a damp cloth. Do not immerse the base in water.

What is the maximum temperature setting?

The adjustable thermostat allows a maximum temperature of 190°C. This is suitable for most frying needs.

Is it safe to leave the fryer unattended?

No, always monitor the fryer during use. It has overheat protection and automatic shut-off, but unattended operation is not recommended.

How should I store the deep fryer?

After cleaning, dry all parts completely. Store with the cord wrapped in the cord storage compartment. Keep in a dry, cool place. Do not place heavy items on top.

What do the indicator lights mean?

The Power light turns on when plugged in. The Ready light indicates oil has reached the set temperature. It cycles on/off to maintain temperature.

Can I adjust the temperature while frying?

Yes, turn the thermostat dial to your desired temperature at any time. The ready indicator will cycle accordingly.

USER MANUAL ARF45W Khind

USER MANUAL

KHIND®

Experience More

AIR FRYER

ARF45W

Line drawing of a kitchen air fryer with two handles and control knobs (no text or symbols)

KHIND CARE Mobile App

Mobile App

Download to register for E-Warranty & enjoy hassle-free after-sales services.

1-800-88-0032

khind.com.my

IMPORTANT

Please read this manual carefully before operating this product. Keep this manual handy for further reference.

P/N: 40-51821-00

Safety Precaution Information

Safety & Warning Information

1. Read this instruction manual carefully before using the appliance.
2. Recommended to connect the appliance directly to the AC mains.
3. This appliance is for household use only. Commercial use will void warranty.
4. Do not modify this appliances.

5. This appliances is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

6. Always unplug from AC mains, for the following situations:
   a) If this appliance is not in use or
   b) When cleaning this appliance or
   c) When moving this appliance

7. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
8. Always place this appliance on a flat and stable surface.

9. Do not operate this appliance on carpets or table cloth as they may obstruct air flow to the exhaust.

10. Do not touch the appliance's surface during and after cooking. It will be very hot!

11. Do not immerse the housing and power cord into water or other liquid.

12. Do not let the cord hang over the edge of table or counter.

13. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

14. Do not move the appliance while hot food inside.

15. Do not fill Frying Basket with oil or other liquid.

16. Do no place anything on top of appliance while in operation.

17. Do not cover exhaust vent during cooking operation.

Cleaning & Maintenance

1. Clean the appliance after use.
2. The Frying Basket and inside of the appliance consist of non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean it, as this may damage the non-stick coating.
3. Disconnect from mains and allow the appliance to cool down before cleaning. You can cool down the appliance faster by removing the Frying Basket.
4. Wipe the outside of the appliance with a damp cloth. Use mild detergent if necessary.
5. Clean the Frying Basket with hot water, mild detergent and a non-abrasive sponge. You can use degreasing liquid to remove any remaining dirt.
6. Tip: If dirt gets stuck to the Frying Basket, fill with hot water and mild detergent. Let the Frying Basket sock for approximately 10 minutes.
7. Clean the heating element with a cleaning brush to remove any food residues.

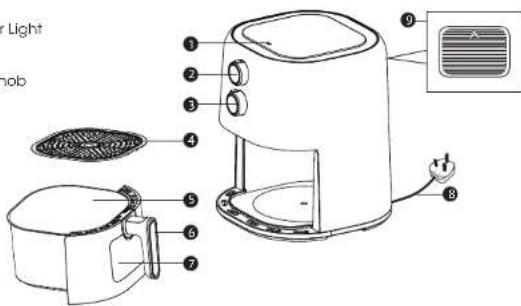

Parts Identification

1. Power Indicator Light
2. Timer Knob
3. Temperature Knob
4. Troy
5. Frying Basket
6. Basket Handle
7. Window
8. Power Cord
9. Exhaust Vent

* Pictures are for illustration purpose only.

Specifications

Model	ARF45W
Voltage	220-240V~	50/60Hz
Power	1400W
Frying Basket Capacity 4.5L
Net Weight	3.2kg

Product Dimension (L x W x H) 240 x 280 x 305mm
* Specifications are subject to change without prior notice.

How to Use

1. Prepare the desired food & remove the Frying Basket.

Two-step line drawing showing a cooking process: top panel shows air fryer with cooling pan, bottom panel shows fried chicken with food being cooked (no text or symbols)

1. Insert ingredients into the Frying Basket. a. Warning: Do not fill oil into the Frying Basket. If decided to use oil, kindly loss the ingredient in separate bowl then transfer back it into Frying Basket.
   b. You may refer below table chart for cooking tips on recommended amount of ingredients, cooking time and temperature.

3

1. Slide the Frying Basket into the Air Fryer. Please close it securely.
2. Plug in the Air Fryer to Main AC.
3. Turn the desired Temperature Knob. Adjust the temperature selection from 80°C to 200°C.
4. Turn the desired Timer Knob. Adjust the timer from 0 minutes to 30 minutes.
5. Start cooking. After setting temperature & timer, the indicator light will illuminate, and Air Fryer will begin cooking.
6. Shake or flip the food.

a. During air frying operation, take the Frying Basket out to shake or flip the ingredients. (E.G. French Fries.)
b. To shake the ingredients by using "Tongs" if necessary. (Tongs is not provided).
c. Slide the Frying Basket back into Air Fryer to continue the operation.
9. Timer bell will make a sound after Air Frying.
10. Enjoy your meals!

Cooking Tips

Type	Amount	Time(Minutes)	Temperature(°C)	Overturning	AdditionalInformation
Meat	4 pieces	6 (chewy)8 (crispy)	200°C	No
Chicken Breast(Thick, about 250g)	About3 pieces	25-30	190°C	Yes Brush	with oil,season with salt& desired spices
Chicken Drumsticks/Thighs (150g each)	About5 pieces	16-18	200°C	No	Season with salt& desires spices
Chicken Nuggets	About20 pieces	10	200°C	Yes
Chicken Wings(Flats and Drumettesseparated)	12 pieces	18-20	200°C	Yes	Season with salt;enjoy as is or,when done, toss infavourite chickenwing sauce
	20 pieces	7	200°C YesFish Sticks (frozen)
(frozen/thin)	350-450g	16-20	200°C	YesFrench FriShake twice
(frozen/thick)	350-500g	18-22	200°C	YesFrench FriShake twice
(homemade cut intasquare pieces)	350-500g	20-25	200°C Shake twiceYesFrench Fries
(120g each)	2 patties	12(mecium)	190°C Brush withYesBurgers
(frozen)	20 pieces	7	200°C YesMozzarella Sticks
about 220g)	2 pieces	12	200°C Season withSoCatsops (bone-in,and desired spices
about 90g)	4 pieces	15	200°C Season withSoCatsops (boneless,and desired spices
	900g	10-12(mecium)	200°C Pat dry, toYesSithmp (large)
				1/2 fosp olive oil,season with salt& desired spices:shake often

4

Type	Amount	Time (Minutes)	Temperature (°C)	Overturning	Additional Information
Steak	450g	10-12 (medium doneness)	200°C	No	Season with salt & desired spices
Salmon (about 130g)	3 pieces	10 (medium doneness)	200°C	No Brush	skin with oil & place on tray skin-side clown.Season with salt & desired spices

*Above chart is for suggestion cooking purpose only.

*You may follow own preferences to cook your perfect meal.

Frying Tips

1. Smaller amount of ingredients usually require only a slightly shorter preparation time than larger amount of ingredients.
2. Shaking smaller ingredient halfway through the frying process optimizes the end result and can help prevent uneven fries.
3. Add some oil to the fresh potatoes for a crispy result.
4. Do not recommend air fried extremely greasy ingredients such as sausages in the Air Fryer.
5. Snacks that can be prepared in an oven can also be prepared in the Air Fryer.
6. You can also use the Air Fryer to reheat ingredient, e.g. pizza.

!

安全和警告信息

*图片仅供参考。

规格

Two-step illustration showing a cooking process: top panel shows air fryer with a rotating pan, bottom panel shows a cooking pot with a lid (no text or symbols)
