Product Type	Induction Cooker
Brand	Imarflex
Model	IDX-1750T
Unit Dimensions (W x D x H)	270 x 345 x 60 mm
Net Weight	1.94 kg
Gross Weight	2.2 kg
Power Supply	230 V ~ 50/60 Hz
Power Consumption	1800 W
Control Type	Touch-sensitive control panel
Cooking Functions	Hot Pot, Stir Fry, Soup, Porridge, Milk, Steam, Warm, Roast
Timer Range	1 minute to 3 hours (cooking) / up to 24 hours (preset)
Preset Function	Yes, up to 24 hours delay start
Child Lock	Yes, press and hold Lock key for 3 seconds
Auto-Off	Yes, after 50 seconds if no pot detected
Overload Protection	Yes
Suitable Cookware	Magnetized stainless steel and cast iron, diameter 12-24 cm
Unsuitable Cookware	Non-magnetized stainless steel, aluminum, glass, porcelain, plastic
Safety Features	Overheat protection, automatic pot detection, child lock
Cleaning Instructions	Unplug, let cool, wipe with damp cloth, no immersion, avoid caustic detergents
Warranty Registration	Email warranty card to [e-mail]
Country of Origin	China

Frequently Asked Questions - IDX-1750T Imarflex

What type of cookware is suitable for the Imarflex IDX-1750T induction cooker?

Use magnetized stainless steel or cast iron pots with a flat bottom and diameter between 12 cm and 24 cm. To check if a pot is compatible, see if a magnet sticks firmly to its base.

How do I use the child lock feature?

Press and hold the Lock/Unlock key for 3 seconds to activate the child lock. The lock indicator will light up and all other buttons become inoperative. Repeat the same to unlock.

What is the preset timer and how do I set it?

The preset timer allows you to delay the start of cooking. Press the Timer/Preset key, adjust the desired start time using +/- (from 1 minute to 24 hours), then select your cooking function. The cooker will start automatically when the countdown ends.

How do I clean the induction cooker?

Always unplug and let the unit cool completely. Wipe the glass surface and body with a clean damp cloth. Use a mild detergent for stubborn stains. Never immerse in water or use abrasive cleaners like benzene or thinner.

What does error code E0 indicate?

E0 means the supply voltage is too low. Check that the plug is properly inserted and the wiring current capacity is sufficient. Also ensure the power outlet is functioning correctly.

Can I use aluminum or glass cookware on this induction cooker?

No, only magnetic cookware works. Aluminum, glass, porcelain, plastic, and non-magnetized stainless steel are not suitable and will not heat.

What is the maximum power output?

The maximum power is 1800 W for functions like Hot Pot and Soup. The power can be adjusted from 100 W to 1800 W in manual modes.

How does the auto-off feature work?

If no pot is detected on the cooking zone, the unit will beep and automatically turn off after 50 seconds. This ensures safety and energy saving.

Is it safe to use the induction cooker near a pacemaker?

Scientific tests confirm safety, but as a precaution, persons with a pacemaker should maintain a minimum distance of 60 cm from the unit while it is operating.

What should I do if the unit shows '----'?

The '----' display means the induction cooker is ready but no pot is detected, or the pot is not suitable. Place an induction-compatible pot centered on the cooking zone.

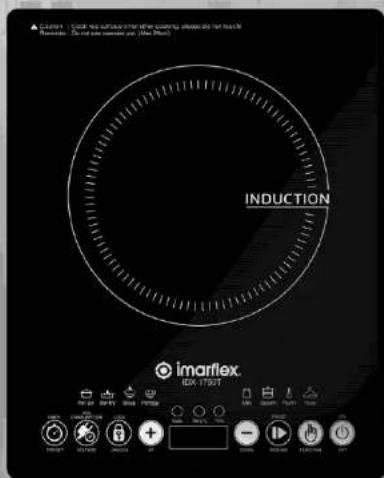

USER MANUAL IDX-1750T Imarflex

INDUCTION COOKER

TOUCH

Sensitive

CONTROL PANEL

• High energy efficiency
• Auto-sense ON pot
- Child-lock function

• Auto-off feature
  • Up to 180-minute timer
  • Overload protection

UNIT DIMENSION : 270*345*60mm

GROSS WEIGHT : 2.2 kg.

UNIT WEIGHT : 1.94 kg.

IMPORTANT SAFEGUARD:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.

2. Do not use the Induction Cooker on any metal table.

3. Do not use the Induction Cooker next to devices, which react sensitively to magnet (e.g. radios, TV, cassette recorders, etc.).

4. Keep curtains, furniture, flammable materials, etc. away from the Induction Cooker and from the convenience outlet where the Induction Cooker is plugged.

5. Before using the Induction Cooker, check if the voltage indicated corresponds with the convenience outlet (230Va.c.)

6. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the Induction Cooker to the nearest Authorized Service Center.

7. Do not use the two-way socket with other appliance.

8. Do not place the unit near gas stove, an electric burner, in heated oven or near any hot surface.

9. Do not touch the Induction Cooker and the power plug with wet hands.

10. Do not block the ventilation slots of the Induction Cooker. Keep a minimum distance of 10cm to 20cm away from the wall or from other items.

11. The Induction Cooker's surface is made of glass, if damaged, unplug immediately.

12. Do not insert objects like wires or tools into the ventilation slots, this may cause electric shocks.

13. Do not allow the cord to touch the hot surface of the unit.

14. The Induction Cooker does not heat up during cooking, but the heat from the cookware may transferred to in the Induction Cooker. Do not touch the hot surface of the glass.

15. Scientific tests have proven that Induction Cookers are safe to use. However, persons with a pacemaker should keep a minimum distance of 60cm from the unit while using.

16. Do not place any metal kitchen utensils, pan lids, knives or other metal objects on the cooker. These may heat up when the Induction Cooker is ON.

17. Do not place any magnetic objects on the glass surface while the Induction Cooker is in use.

18. To protect against electric shock, do not immerse the Induction Cooker in water.

OPERATION & USAGE:

1. Plug in the unit. (ON/OFF light indicator will blink indicating that unit is in STAND-BY mode).

2. Put the induction-ready cookware on the center of the Induction Plate.

a. Timer: During the use of induction cooker, press the "Timer/Preset" key and the screen will display the default time and it can be adjusted by pressing the "-" or "+"

b. Pre-set: Before choosing the cooking function, press the key of "Timer/Pre-set" to choose pre-set function. According to the needs, you can adjust the time by pressing "-" or "+" . Pressing the "-" or "+" it will decrease or increase by one minute, then press the preferred cooking function. After selecting the schedule time, it will start the countdown. The induction cooker will automatically turn on when it is shown "0:00" (The longest timer is 24 hours).

c. Lock: Press the "Lock/Unlock" key to choose lock function. You need to fixedly press the "Lock/Unlock" key three seconds. The indicator light of "Lock" will light, and then it will lock automatically. You cannot press other keys to choose other functions after locking. It needs to fixedly press the key of "lock" for three seconds to unlock. Then you can choose other functions.

CLEANING AND MAINTENANCE:

1. Turn off the power and pull out the plug before cleaning.

2. Clean the unit after it cools down completely.

3. Select proper detergent to remove the dirt.

4. Use clean damp cloth to clean the unit after removing the dirt.

5. Do not clean the unit directly with water.

6. Clean the induction glass plate and pan before cooking, otherwise, food residue may get difficult to clean and the plate may get discoloration.

7. You may clean air vent or air entry's dirt by vacuum cleaner to suck or by cotton. If there is dirt with oil, you can use a toothbrush with a little detergent to clean the surface. Never clear inside with water or any kind of liquid.

8. Do not use caustic detergents to clean the unit. It may damage the unit by chemical reaction.

9. Do not use benzene, thinner, scrubbing brush or polishing powder to clean the induction cooker.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Topgadget Distributions, Inc. 2120 A. Linao St. Malate, Manila Made in China

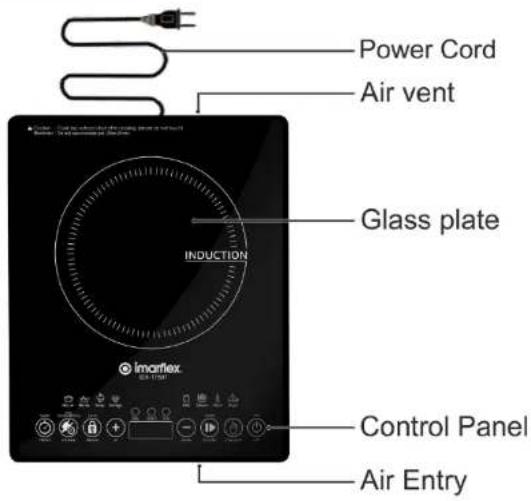

DESCRIPTION OF PARTS:

OPERATING PRINCIPLE:

Induction Cooker applies the heating principle of the magnetic field inducing the whorl electric current. It utilizes the magnetic field produced by the current passing the loop when the magnetic force line passes the bottom of the stainless steel cookware. It produces numberless whorl electric current that will heat up the stainless steel cookware rapidly. This process is extremely efficient and minimizes the use of electricity.

The Imarflex Induction Cooker automatically detects if the cookware is induction-ready.

SUITABLE COOKWARES:

• Magnetized stainless steel and cast iron
• Acceptable pot diameter is 12cm-24cm

NOTE: FOR OPTIMAL PERFORMANCE AND EFFICIENCY, USE POTS THAT ARE WITHIN THE SIZE OF THE CIRCULAR PRINT ON THE INDUCTION PLATE.

UNSUITABLE COOKWARES:

• Non-magnetized stainless steel, aluminum, plastic, glass and porcelain

CAUTION:

• Do not leave an empty cookware with the Induction Cooker ON
• When STIR-FRYING with little oil in the pot, don't overheat the oil, otherwise it will kindle easily
• When FRYING, the volume of the oil in the pot should be not less than 0.9 liter since little oil might burn easily

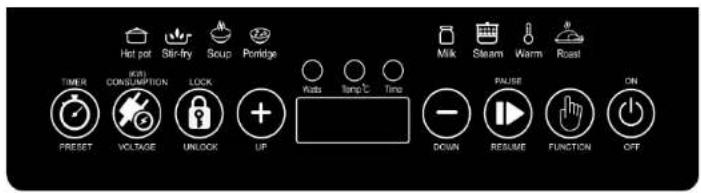

CONTROL PANEL

TROUBLE SHOOTING:

PROBLEM	POSSIBLE CAUSES
There is no warning sound and the indicator light of “on/off” does not light	Check whether the plug desquamate with supply socketCheck the power supply switch or the fuse open circuitCheck for power failure
Automatically turn off after 50 seconds with warning sound.	The pot size or shape may not be suitable for the induction cookerCheck if the pot is properly placed in the center of induction glassThe pot diameter is less than 12cm
“E0”	The supply voltage is too lowPlease check if it is properly plug-inCheck the wiring current capacity
“E1”	The supply voltage is too high
“E2”	Temperature of the pot is too high
“E3”	Unreasonable high temperature inside cookerCheck if the exhaust block or fan stuckThere is a safety cut-off for internal temperature. Please wait for ten minutes and check it again
“E5” OR “E9”	The heat sensor of the pot is not working
“E6”	The heat sensor of radiator (IGBT) is not working
(Heat Preservation) the temperature cannot control	Check the bottom of the pot if it is flat and it touches the induction cooker properly
“----”	Induction cooker is ready to useNo pot on the induction cookerThe pot is not suitable on the induction cooker

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. This induction cooker is only intended for tabletop use.

3. Do not use the Induction Cooker for other than intended use.
4. Not intended for outdoor use.
5. For household use only, not intended for any business purposes.
6. Save this instruction for future references.

PARAMETER TABLE:

Function	Working Mode	Control Measure	Default Power	Default Timer (Hr)	Time (Hr)	Preset (Hr)	Power Range
Hot Pot	Manual	Fire Power	1800W	2:00	0:01 – 3:00	0:01 – 24:00	100W – 1800W
Stir Fry	Manual	Fire Power	NONE	1:00	0:01 – 3:00	0:01 – 24:00	NONE
Soup	Manual	Fire Power	1200W	2:00	0:01 – 3:00	0:01 – 24:00	100W – 1800W
Porridge	Manual	Fire Power	1000W	2:00	0:01 – 3:00	0:01 – 24:00	100W – 1800W
Milk	Auto	Fire Power	800W	0:20	0:01 – 3:00	0:01 – 24:00	800W
Steam	Manual	Fire Power	1400W	1:00	0:01 – 3:00	0:01 – 24:00	100W – 1800W
Warm	Auto	Fire Power	NONE	2:00	0:01 – 3:00	0:01 – 24:00	NONE
Roast	Manual	Fire Power	NONE	2:00	0:01 – 3:00	0:01 – 24:00	NONE
