IDX-1650S - Cooker Imarflex - Free user manual and instructions

Product Type	Induction Cooker
Brand	Imarflex
Model	IDX-1650S
Rated Voltage	230V a.c. 60Hz
Power Consumption	1500W
Unit Dimensions (W x D x H)	360 x 280 x 38 mm
Box Dimensions (W x D x H)	406 x 320 x 160 mm
Unit Weight	2.87 kg
Gross Weight	3.38 kg
Functions	Hot Pot, Stir-Fry, Boil, Steam, Warm
Timer Range	1 minute to 24 hours (preset up to 24 hours for Boil)
Child Lock	Yes, with 3-second press to lock/unlock
Auto Shut-off	Yes (Auto-OFF feature)
Overload Protection	Yes
Pot Detection	Auto-sense ON Pot
Suitable Cookware	Magnetized stainless steel and cast iron
Cookware Diameter Range	12 cm to 24 cm
Cleaning Instructions	Unplug, let cool, wipe with damp cloth; do not immerse in water
Safety Features	Overheat protection, automatic pan detection, child lock, overload protection
Use	Indoor household tabletop use only
Country of Origin	Made in China

Frequently Asked Questions - IDX-1650S Imarflex

What types of cookware can I use with the Imarflex IDX-1650S induction cooker?

Use magnetized stainless steel or cast iron cookware with a flat bottom. The recommended diameter is between 12 cm and 24 cm for optimal performance. Non-magnetic stainless steel, aluminum, glass, and porcelain are not suitable.

What does the error code E0 mean and how can I fix it?

Error code E0 indicates either no cookware on the cooking zone or the cookware is not induction-compatible. Ensure you are using a suitable magnetized pot and place it centrally on the glass plate.

How do I clean the induction cooker safely?

Always unplug and let the unit cool completely before cleaning. Use a soft damp cloth with mild detergent to wipe the glass plate and body. Never immerse in water or use abrasive cleaners, benzene, or thinner.

Is it safe for people with pacemakers to use this induction cooker?

Scientific tests show induction cookers are safe, but as a precaution, people with pacemakers should maintain a minimum distance of 60 cm from the unit while it is operating.

Can I use the induction cooker outdoors?

No, this appliance is intended for indoor household use only. It should not be used outdoors or for commercial purposes.

What is the maximum timer setting for the Boil function?

The Boil function allows a preset timer from 1 minute up to 24 hours. Other functions have a timer range of 1 minute to 4 hours.

How do I activate and deactivate the child lock?

Press and hold the Lock key for 3 seconds to lock the control panel. The lock indicator will light up. To unlock, press and hold the same key for another 3 seconds.

Why does the induction cooker turn off automatically during cooking?

The cooker has an auto-off feature for safety. It may also shut off if it overheats, if the cookware is removed, or if the timer expires. Check the error code displayed for more details.

Can I place metal utensils on the glass surface while cooking?

No, do not place metal kitchen utensils, pan lids, knives, or other metal objects on the cooker. They can heat up and cause burns or damage.

What should I do if the fan is not working or the unit displays error E5?

Error E5 indicates overheating. Ensure the air vents are not blocked and the ambient temperature is not too high. Wait 10 minutes and try again. If the fan is not working, check for obstructions or contact service.

USER MANUAL IDX-1650S Imarflex

• Overload Protection
- Up to 24-hour Timer
- Child-lock Function

IDX-1650S

SPECIFICATION:

MODEL NO. : IDX-1650S

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 1500 Watts

BOX DIMENSION : 406*320*160mm

UNIT DIMENSION : 360*280*38mm

GROSS WEIGHT : 3.38 kg.

UNIT WEIGHT : 2.87 kg.

IMPORTANT SAFEGUARD:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Do not use the Induction Cooker on any metal table.
3. Do not use the Induction Cooker next to devices, which react sensitively to magnet (e.g. radios, TV, cassette recorders, etc.).
4. Keep curtains, furniture, flammable materials, etc. away from the Induction Cooker and from the convenience outlet where the Induction Cooker is plugged.
5. Before using the Induction Cooker, check if the voltage indicated corresponds with the convenience outlet (230Va.c.)
6. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the Induction Cooker to the nearest Authorized Service Center.
7. Do not use the two-way socket with other appliance.
8. Do not place the unit near gas stove, an electric burner, in heated oven or near any hot surface.
9. Do not touch the Induction Cooker and the power plug with wet hands.
10. Do not block the ventilation slots of the Induction Cooker. Keep a minimum distance of 10cm to 20cm away from the wall or from other items.
11. The Induction Cooker's surface is made of glass, if damaged, unplug immediately.
12. Do not insert objects like wires or tools into the ventilation slots, this may cause electric shocks.
13. Do not allow the cord to touch the hot surface of the unit.

CLEANING AND MAINTENANCE:

1. Turn off the power and pull out the plug before cleaning.
2. Clean the unit after it cools down completely.
3. Select proper detergent to remove the dirt.
4. Use neat wet cloth to clean the unit after removing the dirt.
5. Do not clean the unit directly with water.
6. Clean the induction glass plate and pan before cooking, otherwise, dirt after charring is difficult to clean and the plate may get discoloration.
7. You may clean air vent or air entry's dirt by vacuum cleaner to suck up or by cotton. If there is dirt with oil, it is right to use toothbrush with a little detergent to clean the surface. Never clear inside with water or any kind of liquid.
8. Do not use caustic detergents to clean the unit. It may damage the unit by chemical reaction.
9. Do not use benzene, thinner, scrubbing brush or polishing powder to clean the induction cooker.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Topgadget Distributions, Inc.

2120 A.linao St., Malate, Manila

Made in China

TROUBLE SHOOTING:

PROBLEM	POSSIBLE CAUSES
There is no warning sound and the indicator light of “on/off” does not light.	- Check whether the plug desquamate with supply socket.- Check the power supply switch or the fuse open circuit.- Check for power failure.
“E0”	- Check-Unusable cooking cookware.- Check-No pot.
“E1”	- Check if the voltage too low.- Check if the electric component break.
“E2”	- Check if the voltage too high.
“E5”	-Check whether the environment temperature is very high or not.- Check whether there is some block on the air inlet or outlet. Whether the fan is working or not.-Check whether the keep warm temperature is already reached the temperature set or not.- Check if the fan still working, it maybe the adjustment of the unit itself, try it again after 10 minutes.
“E4”	-Check thermostat was broken.
“E6”	- Check if the radiator was broken.
“E3”	- Check if the pot has no water in.

1. The Induction Cooker does not heat up during cooking, but the heat from the cookware can be transferred to in the Induction Cooker. Do not touch the hot surface of the glass.
2. Scientific tests have proven that Induction Cookers are safe to use. However, persons with a pacemaker should keep a minimum distance of 60cm from the unit while using.
3. Do not place any metal kitchen utensils, pan lids, knives or other metal objects on the cooker. These may heat up when the Induction Cooker is turned on.
4. Do not place any magnetic objects on the glass surface while the Induction Cooker is in use.
5. To protect against electric shock, do not immerse the Induction Cooker in water.
6. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
7. This induction cooker is intended for tabletop use only.
8. Do not use the Induction Cooker for other than intended use.
9. Not intended for outdoor use.
10. For household use only, not intended for any business purposes.
11. Save this instruction for future references.

PARAMETER TABLE:

FUNCTION	WORKING MODE	CONTROL MEASURE	DEFAULT POWER	DEFAULT °C	POWER RANGE	°C RANGE	DEFAULT TIME	TIMING RANGE	PRESET RANGE
HOT POT	MANUAL	FIRE POWER	1500W	NONE	1500W-2000W	NONE	2 hrs.	1 min.-4 hrs.	NONE
STIR-FRY	MANUAL	FIRE POWER	NONE	240°C	NONE	80°C-240°C	2 hrs.	1 min.-4 hrs.	NONE
BOIL	AUTO	FIRE POWER	1500W	NONE	NONE	NONE	20-30 mins.	NONE	1 MIN.-24 hrs.
STEAM	AUTO	FIRE POWER	1400W	NONE	NONE	NONE	1 hr.	NONE
WARM	AUTO	FIRE POWER	800W	NONE	NONE	NONE	2 hrs.	NONE

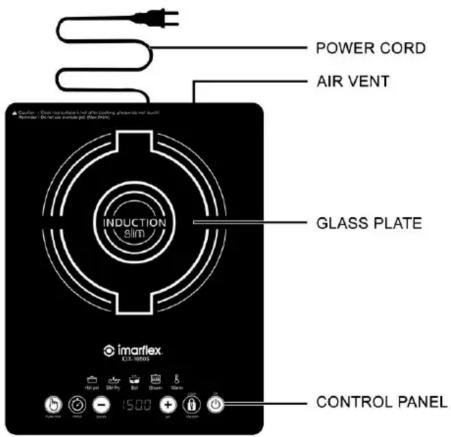

DESCRIPTION OF PARTS:

OPERATING PRINCIPLE:

Induction Cooker applies the heating principle of the magnetic field inducing the whorl electric current. It utilizes the magnetic field produced by the current passing the loop when the magnetic force line passes the bottom of the stainless steel cookware. It produces numberless whorl electric current that will heat up the stainless steel cookware rapidly. This process is extremely efficient and minimizes the use of electricity.

The Imarflex Induction Cooker automatically detects if the cookware is induction-ready.

SUITABLE COOKWARES:

• Magnetized stainless steel and cast iron
• Acceptable pot diameter is 12cm-24cm

NOTE: FOR OPTIMAL PERFORMANCE AND EFFICIENCY, USE POTS THAT ARE WITHIN THE SIZE OF THE CIRCULAR PRINT ON THE INDUCTION PLATE.

UNSUITABLE COOKWARES:

- Non-magnetized stainless steel, aluminum, plastic, glass and Porcelain.

CAUTION:

• Do not leave an empty cookware with the Induction Cooker ON
• When STIR-FRYING with little oil in the pot, don't overheat the oil, otherwise it will kindle easily
• When FRYING, the volume of the oil in the pot should be not less than 0.9 liter since little oil might burn easily

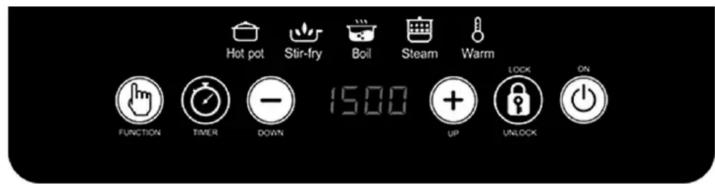

CONTROL PANEL

OPERATION & USAGE:

1. Plug in the unit. (ON/OFF light indicator “----” will blink indicating that unit is in STAND-BY mode).
2. Put the induction-ready cookware on the center of the Induction Plate.

a. Timer: During the use of induction cooker, press the "Timer" key and it can be adjusted by pressing the "-" or "+"

Lock: Press the "Lock/Unlock" key to choose lock function. You need to fixedly press the "Lock/Unlock" key three seconds. The indicator light of "Lock" will light, and then it will lock automatically. You cannot press other keys to choose other functions after locking. It needs to fixedly press the key of "lock" for three seconds to unlock. Then you can choose other functions.
