IDX-1000 - Cooker Imarflex - Free user manual and instructions

Product Type	Electric Multi-Cooker
Model	IDX-1000
Brand	Imarflex
Power Consumption	1000 W
Capacity	5.0 L (approx.)
Dimensions (W x D x H)	30 cm x 30 cm x 28 cm (approx.)
Weight	3.8 kg (approx.)
Voltage	220-240 V, 50/60 Hz
Cooking Functions	Rice, Steam, Slow Cook, Soup, Porridge, Keep Warm
Control Type	Digital with LED Display
Timer Range	Up to 24 hours (delay start)
Inner Pot Material	Non-stick Coated Aluminum
Lid Type	Sealed with Steam Vent
Cleaning	Removable inner pot and steam valve for easy cleaning
Safety Features	Auto shut-off, overheat protection, pressure release
Spare Parts Available	Inner pot, sealing ring, steam basket, measuring cup
Repairability	Modular design for easy replacement of components
Included Accessories	Measuring cup, rice paddle, steaming tray, user manual

Frequently Asked Questions - IDX-1000 Imarflex

How do I set the timer on the Imarflex IDX-1000?

Press the Timer button, then use the + and - buttons to set the desired hours and minutes. Confirm by pressing Start.

Can I cook frozen food directly in the cooker?

Yes, but ensure the food is properly placed and stir occasionally for even cooking. Adjust cooking time accordingly.

How do I clean the steam vent?

Remove the steam vent cover by twisting it off. Rinse under warm water and dry thoroughly. Reattach before use.

Why does the cooker display an error code E1?

E1 indicates a temperature sensor issue. Try resetting the unit by unplugging for 10 seconds. If persists, contact support.

Is the inner pot dishwasher safe?

No, hand wash with a soft sponge and mild detergent. The non-stick coating may be damaged by dishwashers.

What is the maximum rice quantity for best results?

For optimal cooking, do not exceed 4 cups of uncooked rice (approx. 2.5L cooked). Refer to the measuring cup included.

How do I replace the sealing ring?

Remove the old ring from the inner lid, stretch the new ring into the groove evenly. Ensure it sits securely before use.

Can I use the cooker for deep frying?

No, this appliance is not designed for deep frying. Use only for cooking with moisture or liquids.

What does the 'Keep Warm' function do?

After cooking, the cooker automatically switches to Keep Warm mode, maintaining food at a safe temperature for up to 12 hours.

Where can I purchase spare parts?

Authorized Imarflex dealers or the official website carry spare parts like inner pots, sealing rings, and power cords.

USER MANUAL IDX-1000 Imarflex

Induction Cooker

INSTRUCTION MANUAL

ULTRA-HIGH ENERGY EFFICIENCY

SPECIFICATION:

MODEL NO. : IDX-1000

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 1800 Watts

IMPORTANT SAFEGUARD:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.

2. Do not use the Induction Cooker on any metal table.

3. Do not use the Induction Cooker next to devices, which react sensitively to magnet (e.g. radios, TV, cassette recorders, etc.).

4. Keep curtains, furniture, flammable materials, etc. away from the Induction Cooker and from the convenience outlet where the Induction Cooker is plugged.

5. Before using the Induction Cooker, check if the voltage indicated corresponds with the convenience outlet (230Va.c.)

6. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the Induction Cooker to the nearest Authorized Service Center.

7. Do not use the two-way socket with another appliance.

8. Do not place the unit near gas stove, an electric burner, in heated oven or near any hot surface.

9. Do not touch the Induction Cooker and the power plug with wet hands.

10. Do not block the ventilation slots of the Induction Cooker. Keep a minimum distance of 10cm to 20cm away from the wall or from other items.

11. The Induction Cooker's surface is made of glass, if damaged, unplug immediately.

12. Do not insert objects like wires or tools into the ventilation slots, this may cause electric shocks.

13. Do not allow the cord to touch the hot surface of the unit.

14. The Induction Cooker does not heat up during cooking, but the heat from the cookware can be transferred to in the Induction Cooker. Do not touch the hot surface of the glass.

15. Scientific tests have proven that Induction Cookers are safe to use. However, persons with a pacemaker should keep a minimum distance of 60cm from the unit while using.

PARAMETER TABLE:

Function	Working Mode	Control Measure	Default Power	Default Timer (Hr)	Time (Hr)	Preset (Hr)	Power Range
Hot Pot	Manual	Fire Power	1800W	2:00	0:01 – 3:00	NONE	400W – 1800W
Stir Fry	Manual	Fire Power	1800W	1:00	0:01 – 3:00	NONE	400W – 1800W
Soup / Porridge	Auto	Fire Power	NONE	2:00	0:30 – 3:00	0:01 – 24:00	NONE
Steam	Auto	Fire Power	NONE	2:00	0:30 – 3:00	0:01 – 24:00	NONE

CLEANING AND MAINTENANCE:

1. Always unplug the unit from the convenience outlet before cleaning.
2. Never immerse the unit in water.
3. Wipe the Body and the Induction Plate with damp cloth, regularly.
4. Do not use chemical base solution.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Topgadget Distributions, Inc.

2120 A. Linao St. Malate, Manila

Made in China

TROUBLE SHOOTING

PROBLEM	POSSIBLE CAUSES
There is noise when using fan.	1. There is noise when the exhaust working, please check if it is the noise from the exhausting.2. If it is reminder with “Beep”.
If there is “Beep” noise and the LED display shows “E0” Code and Light flash NO HEATING.	1. Please check the pot if compatible for induction cooker.2. If the pot is not placed in the center of the ceramic plate.
Stop heating when using.	1. Please check if the temperature around plate is too high.2. If the Air-in or exhaust hole is plug up.3. if the working time over defaulted working time or the timer finish.
No response for the key.	1. Please check the plug if it is in right position.
The LED display shows “E1” or such code, together with Alarm.	1. Please check if the cooker is in right operation.2. Unplug and plug the unit.3. If malfunction happen continuously, please contact the authorized service center.

1. Do not place any metal kitchen utensils, pan lids, knives or other metal objects on the cooker. These may heat up when the Induction Cooker is turned on.
2. Do not place any magnetic objects on the glass surface while the Induction Cooker is in use. To protect against electric shock, do not immerse the Induction Cooker in water.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
4. This induction cooker is intended for tabletop use only.
5. Do not use the Induction Cooker for other than intended use.
6. Not intended for outdoor use.
7. For household use only, not intended for any business purposes.
8. Save this instruction for future references.
9. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

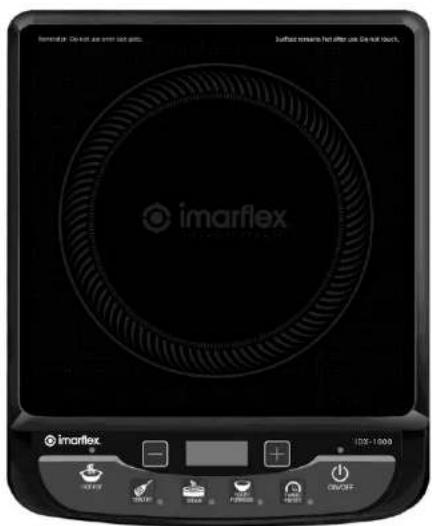

DESCRIPTION OF PARTS:

OPERATING PRINCIPLE:

Induction Cooker applies the heating principle of the magnetic field inducing the whorl electric current. It utilizes the magnetic field produced by the current passing the loop when the magnetic force line passes the bottom of the stainless-steel

cookware. It produces numberless whorl electric current that will heat up the stainless-steel cookware rapidly. This process is extremely efficient and minimizes the use of electricity.

The Imarflex Induction Cooker automatically detects if the cookware is induction-ready. It will beep if the cookware is not suitable.

SUITABLE COOKWARES:

■ Magnetized stainless steel and cast iron.
■ Acceptable pot diameter is 16.5-20cm.

NOTE: FOR OPTIMAL PERFORMANCE AND EFFICIENCY, USE POTS THAT ARE WITHIN THE SIZE OF THE CIRCULAR PRINT ON THE INDUCTION PLATE.

UNSUITABLE COOKWARES:

- Non-magnetized stainless steel, aluminum, plastic, glass and porcelain.

CAUTION:

• Do not leave an empty cookware with the Induction Cooker ON.
• When STIR-FRYING with little oil in the pot, don't overheat the oil, otherwise it will kindle easily.
• When FRYING, the volume of the oil in the pot should be not less than 0.9 liter since little oil might burn easily.

CONTROL PANEL

OPERATING INSTRUCTIONS:

1. Put the induction-ready cookware on the center of the Induction Plate.

2. Plug in. A "beep" sound will be heard, (ON/OFF light indicator will blink indicating that unit is in STAND-BY mode).

3. Press ON/OFF control key, to turn the Unit ON.
4. The function is automatically set on HOT POT.

PRE-SET FUNCTION TABLE:

PRESET FUNCTION	LIGHT INDICATOR	PROCEDURE
HOT POT	HEAT (watts)	1. Press the ON/OFF key. HOT POT light indicator will turn ON.
NOTE: Preset Temperature is “140°C”		2. To change the temperature: Press the -/+ keys to change the power settings from 400W – 1800W.
STIR FRY	HEAT (watts)	1. Press the STIR FRY function, light indicator will turn ON.
NOTE: Preset Wattage is “1800W”.		2. To change the temperature: Press the -/+ keys to change the power settings from 400W – 1800W.
STEAM	HEAT (watts)	1. Press the STEAM function, light indicator will turn ON.
NOTE: Preset Wattage is “1600W”.		2. After 8 minutes of cooking, wattage will decrease to 800W.
SOUP/ PORRIDGE	HEAT (watts)	1. Press the SOUP/PORRIDGE the light indicator will turn-ON.
TIMER		1. Press TIMER Key. “+” to increase minute and “-” to increase hour.2. Can be set from 1 minute up to 3 hours.
