Product Type	Video Projector
Brand	Vankyo
Model	Leisure 550W
Display Technology	LCD
Native Resolution	800 x 480 pixels
Maximum Resolution	1920 x 1080 pixels
Brightness	1500 lumens
Contrast Ratio	2000:1
Lamp Type	LED
Lamp Life	30,000 hours
Throw Ratio	1.5:1
Screen Size	30 – 150 inches
Keystone Correction	±15° manual
Built-in Speaker	1 x 3W
Connectivity	HDMI, USB, VGA, AV, Audio Out
Power Consumption	80W
Input Voltage	100 – 240V, 50/60Hz
Dimensions (W x D x H)	8.7 x 6.3 x 3.1 inches
Weight	2.2 lbs
Noise Level	35 dB
What's in the Box	Projector, Power Cord, Remote Control, User Manual, AV Cable
Cleaning Instructions	Use a soft, dry cloth. Avoid solvents and abrasives.
Safety Warning	Do not look directly into the lens. Keep ventilation slots unblocked.

Frequently Asked Questions - Leisure 550W Vankyo

How do I connect an HDMI device?

Use a standard HDMI cable to connect your device (laptop, game console) to the projector's HDMI port. Then select the corresponding input source via the remote or menu.

How can I adjust the projected image size?

Move the projector closer to or farther from the screen. Use the zoom ring (if available) or adjust the focus ring to sharpen the image.

How do I clean the lens?

Turn off and unplug the projector. Use a soft, lint-free cloth lightly dampened with lens cleaner (or water). Gently wipe the lens in a circular motion. Never use abrasive materials.

What should I do if the projector won't turn on?

Check the power cable connection and the power outlet. Ensure the power switch is in the ON position. If the lamp indicator is off, the lamp may be faulty.

Does this projector support Bluetooth?

No, the Leisure 550W does not have built-in Bluetooth. You can connect external speakers via the audio out port.

What is the expected lamp life?

The LED lamp is rated for up to 30,000 hours of use. Actual lifespan may vary based on usage and environment.

How do I use keystone correction?

Go to the Menu settings, find Keystone, and use the remote arrow keys to adjust the image shape. This compensates for angled projection.

Why is my projected image blurry?

Turn the focus ring on the lens until the image is sharp. Also ensure the projector is at the correct distance from the screen.

Can I mount this projector on the ceiling?

Yes, it supports ceiling mounting, but the mount is not included. You will need a compatible universal projector mount and follow the installation instructions.

How do I update the firmware?

Firmware updates are not typically available for this model. Check Vankyo's official website for any updates. If available, follow the provided instructions carefully.

USER MANUAL Leisure 550W Vankyo

Line drawing of a Vankyo air purifier device with control knobs and buttons (no text or symbols on the device itself)

LEISURE 550W

USER MANUAL

Please read this manual throughly before using and keep it for future reference.

PACKING LIST

Line drawing of a mechanical device with circular and triangular features (no text or symbols)

LEISURE 550W

Remote (Batteries Not Included)

User Manual

Simple line drawing of a cable with a connector (no text or symbols)

Adapter

AV Cable

HD Cable

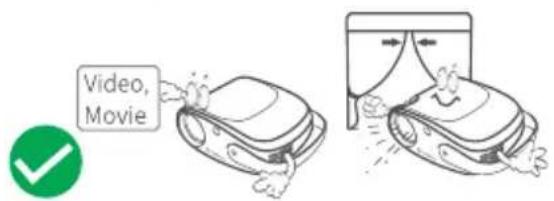

NOTICE

Recommended

Illustration of two identical robotic car models connected by a device, with no visible text or symbols.

NOT Recommended

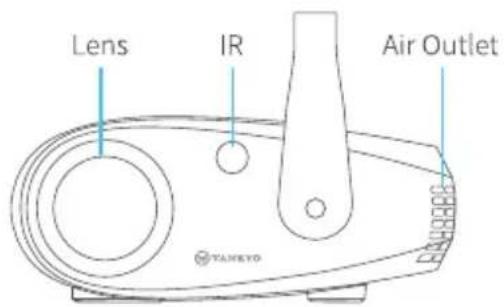

PRODUCT OVERVIEW

[e-mail]

QUICK START

Line drawing of a computer monitor with cable and indicator lights (no text or symbols)

Plug the power cord into an outlet.

Line drawing of a handheld device with a circular component and a circular base, no text or symbols present

Take off the lens cover.

Connect your device to the projector correctly.

Press the Power Button to turn on the projector.

Line drawing of a remote control with a hand interacting with the button (no text or symbols)

Select the correct input source to project your device.

Line drawing of a handheld device with a magnified inset showing a small component (no text or symbols)

Adjust the kickstand accordingly.

Adjust the focus ring and keystone to get the best image performance.

Press the Power Button twice to turn off the projector.

INPUT SOURCE

Press ⓐ on the remote to enter the interface of Input Source.

A. Screen Mirroring

Line drawing of a portable electronic device connected to a tablet, showing ports and control panel (no text or symbols)

B.HD Connection

Line drawing of a portable electronic device with ports and ventilation, connected to a laptop (no text or symbols present)

C. AV Connection

Input Source

HDMI

Screen Mirroring

AV

SD

USB

Input Source

HDMI

Screen Mirroring

AV

SD

USB

Input Source

HDMI

Screen Mirroring

AV

SD

USB

[e-mail]

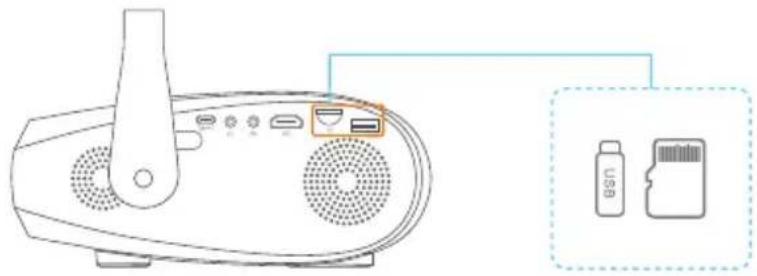

D. Multimedia Connection

Line drawing of a portable electronic device with ports and ventilation slots, connected to a USB card (no text or symbols on the device itself)

PROJECTOR CONNECTIONS

1

②

3

4

5

6

SCREEN MIRRORING

Important:

Before screen mirroring, please press the Ⓔ button on the remote to enter the interface of Input Source and select Screen Mirroring.
2 Press OK button on the projector/remote to switch the interfaces between Screen Mirroring for iOS System and Screen Mirroring for Android System.

Screen Mirroring through Wireless Connection

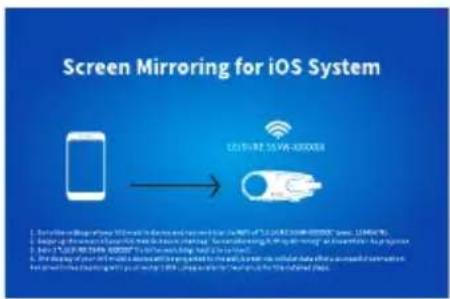

For iOS System

• Streaming with cellular data
1 Turn on the projector, select Screen Mirroring as the input source to enter the interface of Screen Mirroring for iOS System.

2 Go to the settings of your iOS mobile device and connect it to the WiFi of LEISURE 550W-XXXXXX (pwd: 12345678).

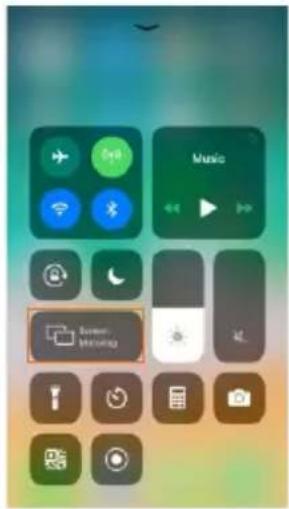

3 Activate Screen Mirroring/AirPlay Mirroring on your iOS device and search for the projector.

[e-mail]

4 Select LEISURE 550W-XXXXXX from the searching results to connect.
5 The display of your iOS mobile device will be projected to the wall/screen via cellular data after a successful connection.

• Streaming with your router's WiFi

1 Turn on the projector, select Screen Mirroring as the input source to enter the interface of Screen Mirroring for iOS System.

2 Go to the settings of your iOS mobile device and connect it to the WiFi of LEISURE 550W-XXXXXX (pwd: 12345678).
3 Visit http://192.168.49.1 from a browser on your mobile device, tap WiFi AP > Scan, select your router's WiFi and enter the right password, then tap Connect to continue.

4 Your router's WiFi will be displayed on interface of Screen Mirroring for iOS System after a successful connection.

[e-mail]

5 Get back to the WiFi setting of your iOS mobile device, then connect it to the same router's WiFi.
6 Activate Screen Mirroring on your iOS device and search for the projector, then select LEISURE 550W-XXXXXX from the searching results to connect.
7 The live streaming content from your iOS mobile device will be projected to the wall/screen through WiFi connection.

Tip:

If you'd like to connect to another router's WiFi, please repeat the procedures mentioned in the section of Streaming with your router's WiFi.

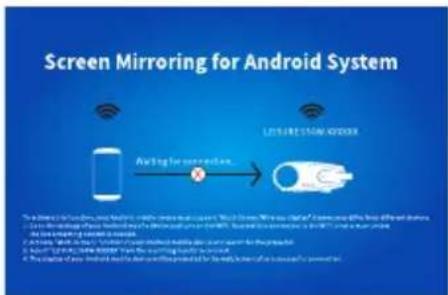

For Android System

To activate this function, your Android device must support Multi-Screen/Wireless display. Names may differ from different devices.

1 Turn on the projector, select Screen Mirroring as the Input Source, then press OK button on the projector/remote to switch to the interface of Screen Mirroring for Android System.

EN

2 Activate Multi-Screen function on your Android device and search for the projector.
3 Select LEISURE 550W-XXXXXX from the searching results to connect.
4 Your Android device display will be projected to the wall/screen after a successful connection.

Important Tips for Wireless Connection

The fluency of screen mirroring with wireless connection will be affected by the network environment. A bandwidth of 100Mbit or more is recommended when using screen mirroring.
② Make sure your mobile device is close to the projector when using wireless connection. A distance within 3.3ft is recommended.
3 Some mobile devices may not support screen mirroring due to the compatibility.
4 If the projected image freezes when you switch the screen mirroring interfaces, please long press OK button for 5 seconds on the projector/remote to do a reset, and the reset process will complete in 2 minutes, please wait patiently.

\* Upgrade the Firmware Version of Screen Mirroring

When there is a newer version, you will see Discover new firmware... on the projected screen, please press OK button on the remote and follow the steps to upgrade the firmware version of screen mirroring as needed.

[e-mail]

Notes:

1 Make sure the projector is connected to WIFI and DO NOT power off during updating.
2 It takes around 6-8 minutes for the update completes, please wait patiently.
3 The screen mirroring system will restart once the upgrade is completed.

Screen Mirroring with the Original USB Cable

For iOS System

1 Turn on the projector, select Screen Mirroring as the input source to enter the interface of Screen Mirroring for iOS System.
2 Connect your iOS mobile device to the USB port of the projector with the ORIGINAL lightning cable.
3 Select Trust in the pop-up window of Trust This Computer.

Trust This Computer?

Your settings and data will be accessible from this computer when connected wirelessly or using a cable.

Trust

Don't Trust

4 The display of your iOS mobile device will be projected to the wall/screen after a while.

Tip:

If the projection fails, please unplug the lightning cable from the projector and repeat the steps mentioned above.

For Android System

1 Turn on the projector, select Screen Mirroring as the input source, then press the OK button on the projector/remote to switch to the interface of Screen Mirroring for Android System.
2 Go to the settings of your mobile device, find Developer options and turn on USB debugging.

Tips:

The steps to turn on Developer options vary from different models of Android device. You may check it from Internet or contact us for the detailed steps. We take Samsung Galaxy S8+ as an example.

* Go to settings of your Android device, then tap About phone > Software information > Build number.
* Continuously tap on Build number for several times until it shows Developer mode had been turned on.
* Get back to the settings of your mobile device, it will show Developer options.

3 Connect your Android mobile device to the USB port of the projector with the ORIGINAL USB cable.

4 Tap OK when your Android mobile device pops out the window of Allow USB debugging?, then your Android device will be projected to the wall/screen.

Allow USB debugging?

USB debugging is intended for development purposes only. It can be used to copy data between your computer and your device, install application, and read log data.

CANCEL

[e-mail]

Notes:

The USB cable MUST be the ORIGINAL cable or the cable which can transfer the data, otherwise screen mirroring may fail. You can plug the cable into your laptop to check the availability of transferring the data.
2 Some mobile devices may not support screen mirroring due to the compatibility.
3 Some Android mobile devices may only transfer the display without audio due to the protocol restrictions.

PROJECTION DISTANCE&SIZE

The recommended projection distance varies with different projection contents. Please adjust the distance between the wall/screen and the projector properly as needed.

Ambient darkness will improve the clarity of the projected images.

SPECIFICATION

Display Technology	LCD	Light Source	LED
Resolution	Native 1280 x 720	Input Signal	576i、720P、1080i、1080P
Installation Type	Front/Rear/Ceiling	Aspect Ratio	4:3/16:9/Auto
Focus	Manual	Keystone	Manual±15°
Speaker	3W/4Ohm	Input	DC21V 3A
Unit Dimension	199 x 154 x85mm(7.83 x 6.06 x3.35inches)	Unit Net Weight	1.1kg(2.43lb)
Photo Format Supported	BMP/JPG/PNG/GIF/JPEG	Audio Format Supported	AAC/MP2/MP3/PCM/FLAC/WMA
Video Format Supported	AVI/MP4/MKV/FLV/MOV/RMVB/MPEG2/MPEG1/3GP/H.264/XVID	Ports	HD In x1/USB x1/ Audio Out x1/Type-C x1/AV In x1/Memory Card Slot x1
Mounting Screw	1/4"	Number of Screw	1

TROUBLESHOOTING GUIDE

The content from Hulu, Netflix, and similar services can not be mirrored or cast.

* Due to the copyright restriction from Hulu, Netflix, and similar services, the contents MAY NOT be mirrored or cast.

2 What should I do if I want to watch the content from Hulu, Netflix, and similar services via the projector?

* Make sure remote points at IR receiver directly.

* Please prepare a Fire TV stick, Roku stick or Chromecast(not included), then connect it to the projector to watch the content.

3 Blurry Image

* Adjust focus ring/keystone.

* Projector and screen/wall must be in effective distance.

4 Remote Unresponsive

* Make sure remote points at IR receiver directly.

* Do not cover IR receiver.

* Try a new pair of AAA batteries.

5 Upside Down Images

* Go to Menu > PICTURE > Projection Mode to flip the projection image.

6 Factory Reset

* Go to Menu > OPTION > Restore Factory Default to restore the projector to default settings.

FCC Statement

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

ISEDC Warning

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance. The minimum distance from body to use the device is 20cm.

To avoid replacement of a battery with an incorrect type.

Don't dispose of a battery into fire or a hot oven, or mechanically crush or cut a Battery.

Don't leave a battery in an extremely high temperature surrounding environment.

To avoid battery subjected to extremely low air pressure.

The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

The symbol indicates for indoor use only

Class II equipment

The symbol indicates DC voltage

RECYCLING

This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

User has the choice to give this product to a competent recycling organization or the retailer when he buys a new electrical or electronic equipment.

This product can be used across EU member states.

The device is low power device, it can meet the requirement of the RF exposure.

EU Compliance Statement: Shenzhen VanTop Technology & Innovation Co., Ltd. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU.

A copy of the EU Declaration of Conformity is available online at https://doc.vantop.com/.
