USER MANUAL SLS705 Setti+

TAŚMA LED RGB SLS705

Operating Manual & Warranty Terms

WARUNKI BEZPIECZEŃSTWA I ZAGROŻENIA

INSTALACJA I OBSŁUGA APLIKACJI

DEKLARACJA

SAFETY AND HAZARD PRECAUTIONS

1. This product may only be operated by children aged 8 or more, by mentally and/or physically deficient persons, and by persons without knowledge of or experience in operating this appliance provided that they are supervised and/or have been instructed in its safe operation, and as a result have clear understanding of all related risks. Children should not play with the device. Unsupervised children should not carry out maintenance and cleaning of the device.
2. Do not immerse the device in water or other liquid.
3. The device is designed for domestic use only.

1. Do not handle the device by holding to the power cord.
2. One shall not expose the device to harmful atmospheric conditions, excessive sunlight, moisture.
3. Do not operate the device with wet hands.
4. Do not use a damaged device or one with damaged components.
5. Do not place the device near an open flame.
6. Do not interfere with the interior of the device and alter its design.
7. Unplug the device from the socket before cleaning when it will not be used for a long time.
8. Protect the device from falling and dirt.
9. The device should be connected to the power source according to the data provided on the nameplate.
10. The device should be installed on a well-cleaned and degreased surface.
11. When disconnecting the power supply from the socket, always grab the plug, and do not pull the cord.

BATTERY HANDLING

• never attempt to charge non-rechargeable batteries,
• use only batteries of the recommended type or equivalent,
• insert the batteries observing the correct polarity,

PLEASE NOTE! CHOKING HAZARD! KEEP BATTERIES AWAY FROM CHILDREN.

• if the battery is swallowed, immediately seek medical assistance,
• do not expose the battery to heat,
• do not incinerate the battery,
• if you do not use the device for a long time, remove the batteries from it,
• waste batteries should be disposed of in accordance with applicable law.

INTRODUCTION

Thank you for the trust you have placed in us when purchasing a Setti+ device. We are convinced that this high quality device will provide you with a lot of joy and satisfaction during its use.

PLEASE CAREFULLY READ AND FOLLOW THE USER MANUAL!

This device is intended for domestic or other non-commercial use. The manufacturer is not responsible for damages resulting from improper use or misuse.

TECHNICAL DATA

Strip model SLS705
Power supply DC 12 V
Power 18W
Service life 25000 godz.
Type of LEDs SMD 5050
Adjustable luminous flux YES
Colour of light RGB colours
Number of LEDs 30 pcs/1m
Strip length 5 m
Strip width 10 mm
Strip shortening intervals every 10cm (designated place)
Protection rating IP65 for the strip, IP20 for power supply and controller
Remote power source CR2025 3V battery
System requirements Android, IOS
Control applications Setti+, Tuya
Bluetooth 5.0 (BLE)
Wi-Fi Transmission Frequency 2.4GHz
Frequency range 2412 - 2472 MHz
Maximum transmission power 14.66 dBm
Power supply model SLS705
Input voltage 100-240V~
Input current 0.5A
Input AC frequency 50/60 Hz
Output voltage, current & power 12V	== 1.5A, 18W
Average active efficiency 81.1%
Low load efficiency (10%) -
No-load power consumption	0.189

PRODUCT DESCRIPTION

PREPARATION FOR USE

1. Unpack the device and make sure it is not damaged.

PLEASE NOTE! BEFORE INSTALLATION, MAKE SURE THAT THE PRODUCT IS NOT DAMAGED, DO NOT START A DAMAGED DEVICE. MAKE SURE THE PRODUCT COMPLIES WITH THE ORDER AND EXPECTATIONS (STRIP TYPE, LIGHT COLOUR AND PERFORMANCE). PRODUCT THAT IS DISASSEMBLED, CUT OR DAMAGED DURING INSTALLATION IS NON-RETURNABLE.

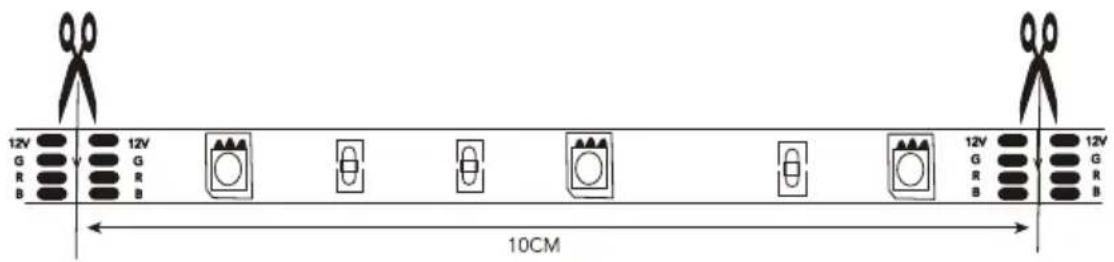

1. Before installing the strip:

2. measure the length of the surface the strip is to be glued to,

3. cut the strip along the dashed line to the appropriate length in the place marked with the scissors symbol:

• make sure that there is an electrical socket at the installation site that can power the strip,
• clean and degrease the surface for strip installation by wiping it with a wet cloth rinsed in warm water with the addition of dishwashing liquid,
• wipe the installation surfaces thoroughly to dryness.

INSTALLATION AND COMMISSIONING

1. To install the LED strip, peel off the protective layer on the back of the strip:

Then stick the strip to a flat surface so that it adheres perfectly to it.

1. Connect the flat strip connector to the controller output so that the arrows on the connectors point to each other:

1. Connect the power adapter plug to the power input of the controller, then connect the power adapter plug to a mains socket.

The strip will illuminate and start flashing, entering the configuration mode. In order to configure the strip with the application, follow the section „Installation and Operation of the App”.

1. To turn the strip power on/off, press the "on/off" controller button.

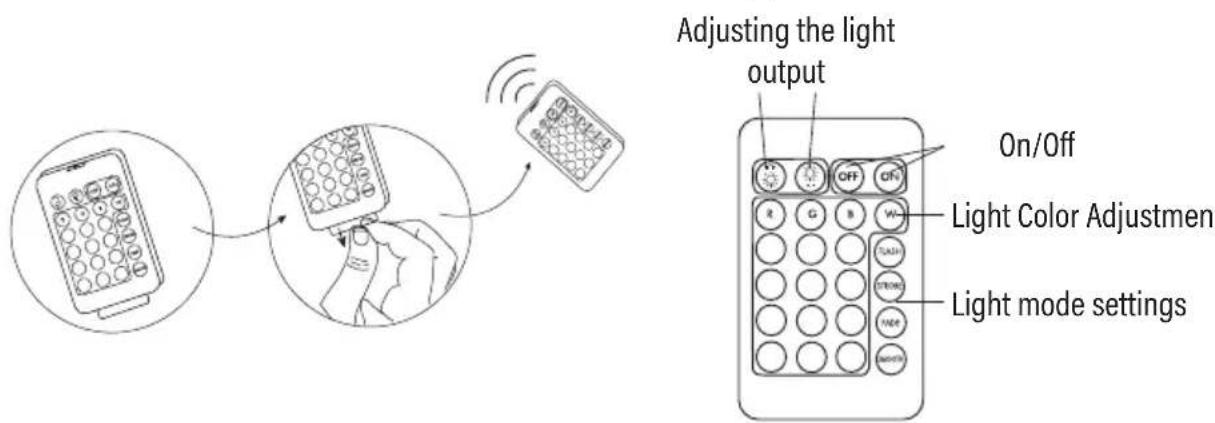

REMOTE CONTROL

In order to use the remote control, first remove the battery protection blister:

PLEASE NOTE! WHEN USING THE REMOTE, POINT IT TOWARDS THE CONTROLLER. THE RANGE OF THE REMOTE CONTROL IS ABOUT 6 METERS.

Replacing the remote battery

To replace the battery with a new one, follow the instructions on the remote control housing:

• press the release button towards the drawer, then remove it,
• replace the CR2025 battery by always inserting it with the „+” pole facing up,
• slide the battery drawer back in and lock it in the recess.

INSTALLATION AND OPERATION OF THE APP

1. Download the Setti+ app from the site by scanning the QR code below:

1. Open the installed app and make sure your mobile device is connected to the network.
2. As a new user, set up a new account. If you already have an account, log in with your access data.
3. Connect the strip to the power supply and wait until the light flashes quickly, if it does not, press and hold the controller button for 5 seconds until the light flashes.
4. Open the "Setti+" app, press "+" in the top right corner and select "Add Device".
5. Select the appropriate device from the list: Lighting -> SLS705 LED strip.

6. Allow the app to access your location. Make sure your Wi-Fi is in the 2.4GHz band, then select the network your device will connect to, enter your network password, and select "Next".

7. Confirm that the strip lights flash quickly, then select "Next".

8. The app will search for the device, click to add it, then select "Finished".
9. Once connected successfully, you can fully enjoy the remote operation of your device.
10. To reset the device connectivity and make a new configuration, press and hold the button for 5 seconds until the strip lights flash quickly.

Detailed instructions for use of the device are available at: https://setti.pl/wsparcie/aplikacja or after scanning this QR code:

DECLARATION

ART-DOM Sp. z o.o. hereby declares that the SLS705 strip complies with the relevant requirements of EU harmonization legislation: Directive 2014/53/EU and other EU harmonization legislation. The full text of the EU declaration of conformity is available at the following address: www.artdom.net.pl/deklaracja/SLS705

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The strip is not on.	Incorrect connection of the strip to the controller.	The strip input connector must be connected to the controller so that the arrows on the connectors point to each other.
	Incorrect power supply connection.	Correctly connect the power supply to a socket. Make sure that the output connector of the power supply is connected correctly to the input connector of the controller.
The strip could not be configured using a Wi-Fi network.	The router operates on a 5GHz network.	Enable 2.4GHz router network. 5GHz and 2.4GHz networks should have distinct names.
	The Wi-Fi signal is not strong enough at the place of installation of the device	Boost the router's Wi-Fi signal or change its location.
	Too many devices supported by the router.	Too many devices supported by the router.
The app does not display the current status devices „Off the network".	The Wi-Fi signal is not strong enough in place of device installation.	Boost the router's Wi-Fi signal or change its location.
	The router configuration has been changed.	Reconfigure the device according to the section „Installation and operation of the app".
	Too many devices supported by the router.	The router has exceeded the number of supported devices. Restart your router.

ECO-FRIENDLY AND ENVIRONMENTALLY FRIENDLY DISPOSAL

This device is marked, in accordance with Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE), with the symbol of a crossed-out waste container:

26 Do not dispose of the device marked with this symbol together with household waste.

For disposal return the device to your local waste treatment and disposal facility or contact your local authorities.

DISPOSAL OF WASTE BATTERIES

In accordance with the EU Directive 2006/66/EC, as amended, on batteries, this product is marked with the symbol of a crossed out waste bin. The symbol indicates that the batteries or rechargeable batteries used in this product should not be disposed of together with normal household waste. Users of batteries and rechargeable batteries must use the available collection network for these elements, which allows them to be returned, recycled and disposed of.

YOU CAN HELP PROTECT THE ENVIRONMENT!

Proper handling of waste electrical and electronic equipment contributes to avoiding harmful consequences for human health and the environment resulting from the presence of hazardous components and improper storage and processing of such equipment.

WARRANTY CONDITIONS FOR LED STRIP

1. ART-DOM Sp. z o.o. with its registered office in Łódź (92-402) at ul. Zakładowa90/92 National Court Register Number 0000354059 (Guarantor) guarantees that the purchased device is free from physical defects. The warranty covers only defects resulting from the causes inherent in the item sold (manufac turing defects).
2. A disclosed defect will be removed at the Guarantor's expense within 14 days from the date of reporting the damage to the authorized service or point of sale.

3. In exceptional cases, e.g. the need to import spare parts from their manufac turer, the repair period may be extended up to 30 days.

4. The warranty period for the user is 24 months from the date of delivery of the goods.

5. The goods are intended for use only in the conditions of an individual household.
6. The present warranty does not cover:

a. damage caused by using the device in a manner inconsistent with the user manual,
b. mechanical, chemical or thermal damage,
c. repairs and modifications made by companies or persons that were not authorized to do so by the manufacturer,
d. parts that are inherently easy to wear or consumables such as: batteries, bulbs, fuses, filters, knobs, shelves, accessories,
e. installation, maintenance, inspection, cleaning, unlocking, removal of contaminants and instruction.

1. The Guarantor will select the mode of defect removal at its own discretion. Removal of a confirmed defect of the device will take place through warranty repair or replacement of the device. The Guarantor may perform repairs when the buyer requests replacement or the Guarantor may perform replacements when the buyer requests repair, if bringing the goods (device) into conformity in accordance with the granted warranty in the manner selected by the buyer is impossible or would require excessive costs at the part of Guarantor. In particularly justified cases, if both repair and replacement are impossible or would require excessive costs for the Guarantor, the Guarantor may refuse to bring the goods into compliance with the granted warranty and propose another way to settle the warranty claim.
2. The exchange of goods is made at the point of sale at which the goods were purchased (replacement or refund) or an authorized service point, if it offers such service (replacement). The returned device must be complete, without mechanical damage. Failure to comply with these conditions may result in failure to accept the warranty claim.
3. In the event of non-compliance of the goods with the sales contract, the buyer is entitled by law to legal protection measures on the part and at the expense of the seller, and the warranty does not affect these remedies.
4. The present warranty is valid in Poland.
5. The condition for the warranty repair or replacement of the device is the presentation of proof of purchase and the use of the goods in accordance with the information contained in the operating manual

CAUTION!

Damage or removal of the rating plate from the device may result in warranty being deemed void.
