KBSS7512 - Scale Becken - Free user manual and instructions

Product Type	Digital Kitchen Scale
Dimensions	20 x 15 x 2 cm
Weight	300 g
Power Supply	2 x AAA batteries
Max Capacity	5 kg
Precision	1 g
Display	LCD screen
Tare Function	Yes
Unit Conversion	g, kg, lb, oz, ml, fl.oz
Auto-Off	After 2 minutes of inactivity
Material	Stainless steel platform, plastic body
Maintenance	Wipe with a damp cloth; do not submerge
Safety Warning	Do not immerse in water; keep away from heat sources
Spare Parts	Batteries (AAA)
Warranty	1 year

Frequently Asked Questions - KBSS7512 Becken

How do I change the batteries?

Open the battery compartment on the bottom, remove old batteries, and insert two new AAA batteries with correct polarity.

How do I calibrate the scale?

Place the scale on a flat, stable surface. Press the ON/OFF button and wait for it to show zero. If needed, use a calibration weight (not included). Check manual for specific procedure.

What is the maximum weight capacity?

The maximum capacity is 5 kg (11 lb). Exceeding this may damage the scale.

How do I clean the scale?

Wipe the surface with a soft, damp cloth. Do not use abrasive cleaners or immerse the scale in water.

Which units are available?

You can switch between grams (g), kilograms (kg), pounds (lb), ounces (oz), milliliters (ml), and fluid ounces (fl.oz).

How does the tare function work?

Place an empty container on the scale and press the TARE button to reset the display to zero. Then add ingredients; the display shows only the net weight.

What happens if the display shows 'Err'?

'Err' usually indicates overloading. Remove excess weight immediately to avoid damage. If persistent, check batteries or contact support.

Is the scale waterproof?

No, the scale is not waterproof. Keep it dry and clean with a damp cloth only. Do not submerge.

How do I turn off the scale manually?

Press and hold the ON/OFF button for about 3 seconds until the display turns off. The scale also has an auto-off feature after 2 minutes of inactivity.

Where can I find the spare parts?

Spare parts such as AAA batteries are widely available. For original parts, contact the manufacturer or visit the official website.

USER MANUAL KBSS7512 Becken

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use. Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Humidity and Water 5
1.2. Cleaning 6
1.3. General Precautions 6

2. OPERATING INSTRUCTIONS 8

2.1. Product Usage 8
2.2. Maintenance 13
2.3. Troubleshooting 14

3. TECHNICAL SPECIFICATIONS 14

4. POST-SALE SERVICE 15

5. ENVIRONMENTAL PROTECTION 15

1. SAFETY INSTRUCTIONS

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children aged from 10 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 10 and supervised. Keep the appliance and its cord out of reach of children aged less than 10 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

These instructions are also available at www.suporteworten.pt

1.1. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.2. Cleaning

To clean the exterior of the product, use a dry soft cloth only.

1.3. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• This full body scale can help you conveniently measure body weight, body balance, BMI, body fat rate, visceral fat, body water, skeletal muscle rate, muscle mass, bone mass, protein, BMR, body age, etc.

• DO NOT use with medical implants such as pacemakers.

• DO NOT stand on the edge of the scale or jump on it;
  • DO NOT overload the scale (max. 180 kg)

• DO NOT drop the scale or drop any objects on it as this may damage the sensors.
• DO NOT immerse the scale in water or use chemical cleaning agents. Clean the scale with a slightly damp cloth.
  • Not recommended for pregnant women.
• Not recommended for infants, toddlers, and children under 10 years of age.
• Any measurement obtained using this device is for reference only and should not be considered as a medical opinion.
• Consult your primary care doctor or physician before making changes to your diet, exercise plan or physical activities.
• Always place the scale on a hard, dry and flat surface before measurement.
• Make sure your feet are dry before stepping on the scale.

- Connect the batteries in accordance with the correct polarities indicated.

- Remove the batteries if the scale is not to be used for a prolonged period of time.

2. OPERATING INSTRUCTIONS

2.1. Product usage

Scan the corresponding QR Code to download the APP

Fitdays APP features

1. Weight 8. Skeletal muscle
2. BMI 9. Muscle mass
3. Body fat 10. Bone mass
4. Fat-free body weight 11. Protein
5. Subcutaneous fat 12. BMR
6. Visceral fat 13. Body age
7. Body water

SYMBOLS

LO	Low battery - please change the batteries(2x 1.5 V AAA battery).
Err Overload
C	An error has accorded during measurement. Step off the scale and step onto them again to repeat the measuring process.

How to install the Fitdays app

1. Search 'Fitdays' in the Apple Store or Google Play or scan the QR Code below:

2. Download and install the app on your device.

3. The app icon will appear on your phone or tablet after installation is completed.

How to use the Fitdays app

1. Place 2x AAA batteries in the battery holder on the back of the scale. Place the scale on a hard, flat ground.
2. Turn on the Bluetooth on your smartphone or tablet.
3. Register your own ID by email or using a social media account.
4. Add personal data and confirm by pressing OK.

Note: Entering the wrong gender, age, height, or body level may result in measurement being inaccurate.

1. Pair the scale via Bluetooth. Click 'Me--->My device ---> Find Kubo Scale KBSS7512'. Now your phone is paired with the scale.

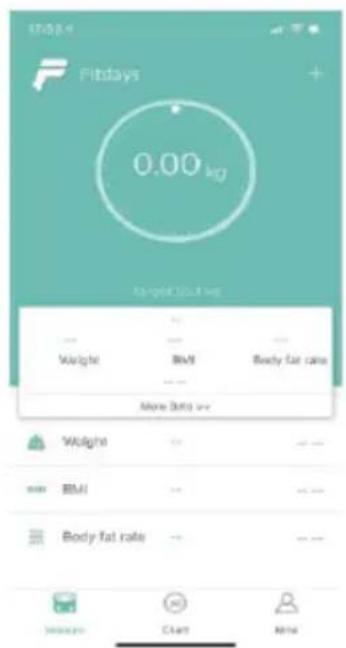

1. Tap your foot on the scales to activate the display. Wait until the display shows "0.0"kg.
2. Step on the scale with BARE feet to turn the scale on.

Note: If you step on the scale with socks, only your weight and BMI will be measured and displayed on the main page. For complete data, please step on the scale barefoot.

1. The number on the display is flashing when the scale is weighing and analysing. When the LCD shows your left weight & right weight, you will have about 5-10 s to adjust your stance. Try getting an equal left & right weight.

Continue to stand on the scale until the circle is stable and shows 'Test Done'. Then, your phone has received all the data from the scale.

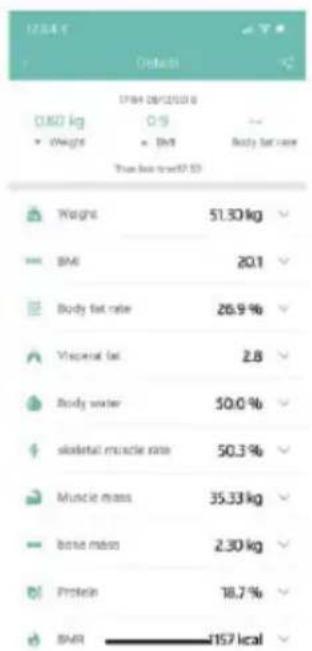

1. You can find a report on body weight, BMI, BMR, muscle, bone mass, etc. When you click 'Record', you can see your long-term detailed chart.

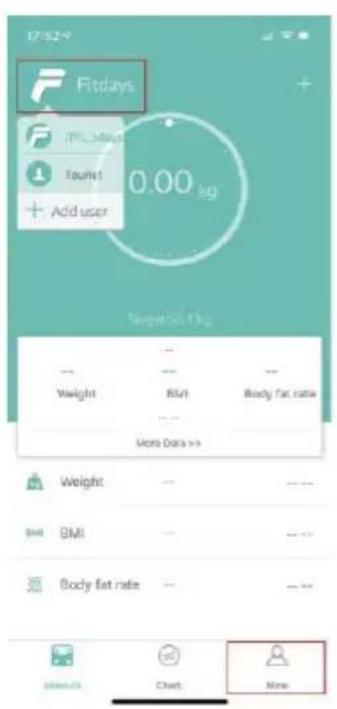

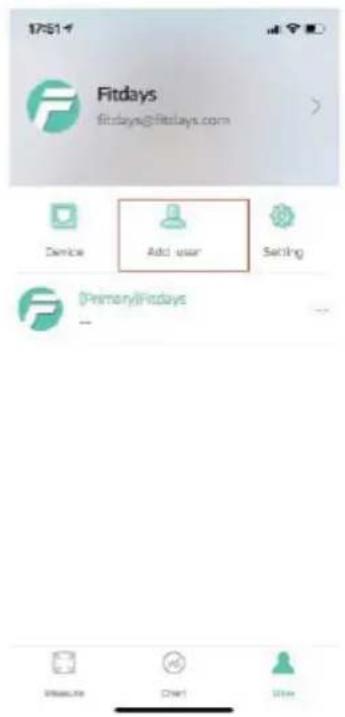

1. Add or switch users by click the icon. Alternatively, click 'Me--> Manage users' and add your personal data. The Smart Scale can recognise which user stepped on it and remind the user to switch to the correct user profile.

1. Weighing a baby: Click `+ --> Baby Mode'. Step on the scale by you own. The scale will record your weight, and then step onto the scale holding the baby. The scale will weigh the baby.

2.2. Maintenance

Battery Advice

* If the scale is not to be used for long periods, it's recommended to remove the battery to avoid damage to the scale due to possible battery leakage.
* Keep the battery our of each of children.
* Do not mix old and new batteries, with different compositions or of different brands, so as not to prevent possible leakage, explosion.
* Do not heat or deform the batteries or explore to fire.

2.3. Troubleshooting

1. Bluetooth not connected

• The scale and smartphone must both be Bluetooth enabled.
• Check the OS version of your smartphone; it must be iOS 8.0 or higher/Android 6.0 or higher.
• Click 'Me--->My device ---> find scale ID'.

2. No body fat data measured when weighing

• The user must be barefoot.
• Make sure your feet and the scale are both dry.
• The scale has not yet finishing weighing the user while

the number display is flashing (remain on the scale for approximately 10 second until the number on the display stops flashing).

• The Bluetooth is not enabled.
• The Bluetooth is paired with a different scale.

3. The scale is showing inconsistent weight.

• Check whether the scale is on a hard, flat surface.
• Check each foot sensor on the back to make sure nothing is stuck to the bottom of it.
• Remove the batteries to restart the scale.

4. The app is displaying the incorrect fat-muscle ratio

- The body parameter setting is incorrect. Check to make sure you have entered the correct gender, height and age.

5. How do I re-calibrate the scale after moving it or changing the batteries?

- Step on the scale to turn it on. Let it automatically drop to 0.0 kg to calibrate.

6. The scale does not turn on

- Remove the batteries and put them back in. Make sure to place the batteries in the correct orientation.

7. How to exchange the scale's unit

- Locate the unit button on the back of the scale and press it to change between kg/lb/st.

3. TECHNICAL SPECIFICATIONS

Product size: 260 x 260 x 20 mm LCD display: 62 x 27 mm Weight unit: kg/lb/st Weight limit: 5 – 180 kg Power supply: 2x 1.5 V AAA batteries Number of accounts: 10

Baby mode: Adequate to weight a baby

Operating temperature: 10 – 40 °C

Operation humidity: 20 – 90 %

Frequency Range: 2402MHz\~2480MHz

Maximum Transmitted Radio Frequency Power: -13,2dBi

Support Devices:

iOS 8.0 and higher

Android 6.0 and higher

4. POST-SALE SERVICE

Kubo has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a warranty against manufacturing defects for a 3-year period, or for another period provided for by the applicable legislation, from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty. All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no visible text or labels

Worten hereby declares that this equipment BALANÇA CONECTAVEL KUBO KBSS7512 is in compliance with Directive 2014/53/ EU of the European Parliament and of the Council of 16 April 2014. The full declaration is available at the following Internet address: https://www.suporteworten.pt
