Aphrodite Ml1 L - Chair Gamdias - Free user manual and instructions

Product Type	Gaming Chair
Brand	Gamdias
Model	Aphrodite Ml1 L
Recommended Weight Capacity	150 kg (330 lbs)
Chair Weight	Approx. 22 kg (48.5 lbs)
Base Material	5-star nylon base
Casters	60 mm smooth-rolling casters
Gas Lift	Class 4 gas lift
Seat Material	Breathable mesh backrest, high-density foam seat cushion
Backrest	Reclining with adjustable angle
Armrests	Fixed padded armrests
Seat Height Adjustment	Yes, via gas lift lever
Tilt Lock	Yes, multi-angle lock mechanism
Included Components	5-star base, gas lift, seat, backrest, armrests, mechanism, hardware, assembly tools
Assembly Required	Yes, with included instructions
Cleaning Instructions	Wipe with soft damp cloth; avoid harsh chemicals

Frequently Asked Questions - Aphrodite Ml1 L Gamdias

How do I assemble the Gamdias Aphrodite Ml1 L chair?

Follow the included assembly instruction. Steps: 1) Attach casters to the 5-star base. 2) Insert the gas lift into the base. 3) Mount the mechanism onto the seat bottom. 4) Attach the backrest to the mechanism using bolts. 5) Attach armrests. 6) Tighten all bolts with provided tools. Assembly typically takes 30-45 minutes.

What is the maximum weight capacity of this chair?

The recommended maximum weight capacity is 150 kg (330 lbs). Exceeding this may compromise safety and durability.

How do I adjust the seat height?

Use the lever located under the right side of the seat. To raise the seat, lift the lever while applying minimal weight. To lower, press the lever while seated. Release to lock.

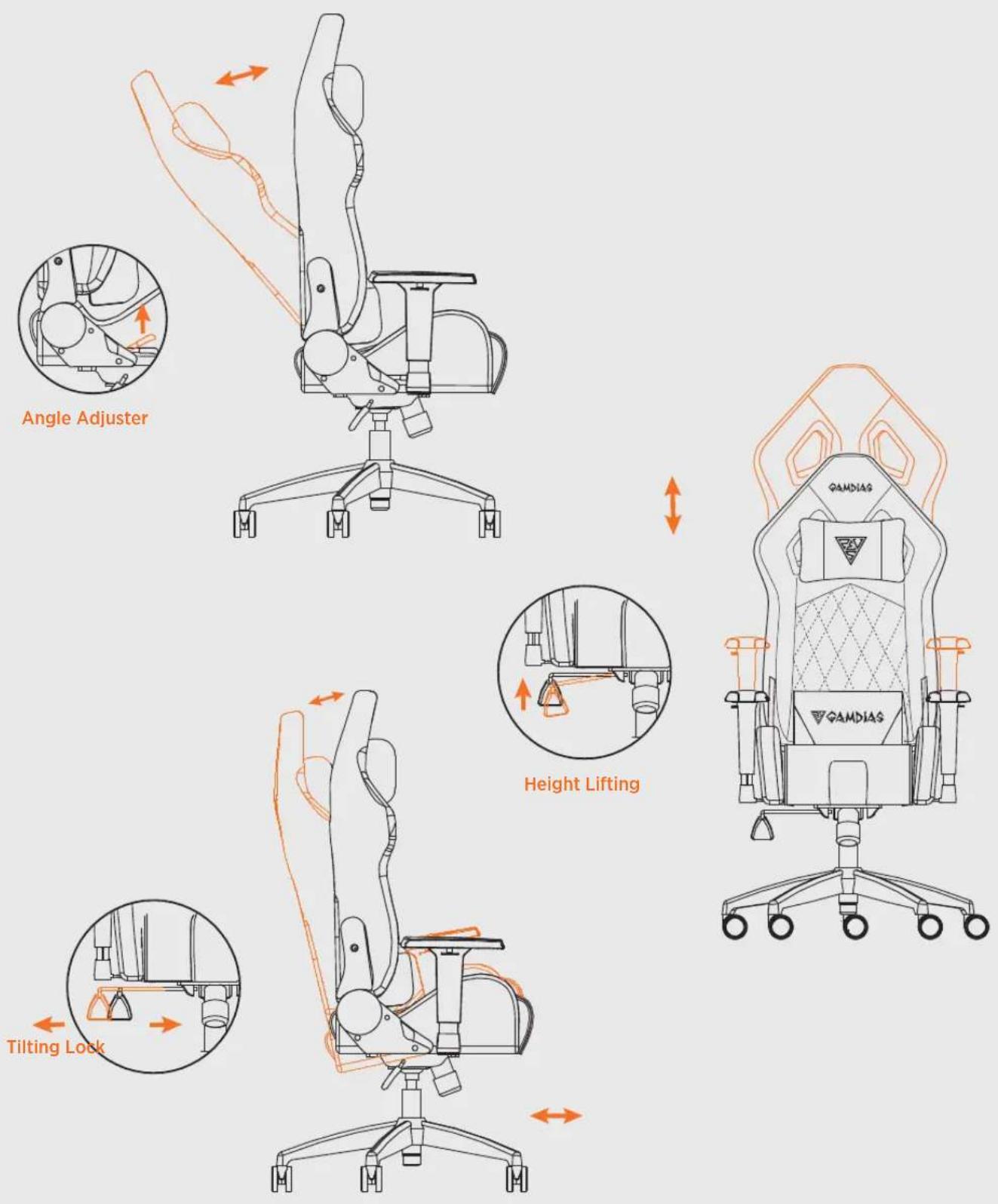

How do I recline the backrest?

Pull the recline lever on the right side of the seat, then lean back to your desired angle. Release the lever to lock the backrest in place. The mechanism allows multiple angle positions.

How should I clean and maintain the chair?

Use a soft cloth dampened with mild soap and water to wipe the mesh and seat cushion. Avoid abrasive cleaners or solvents that may damage the material. Regularly check and tighten bolts.

Are the armrests adjustable?

No, the armrests are fixed but padded for comfort. They are not height or angle adjustable.

What should I do if the chair feels unstable?

First, check that all bolts are tightened securely. Ensure the casters are fully pushed into the base. Inspect the gas lift for proper insertion. If instability persists, contact support.

Can I replace the gas lift if it fails?

Yes, you can purchase a compatible gas lift. To remove the old one, detach the seat and base, then tap the gas lift out. Insert the new lift and reassemble. Follow safety precautions.

What is the warranty period for this chair?

Warranty details are not specified in the provided manual. Please contact Gamdias support directly for warranty information.

How long does assembly typically take?

With the included tools and instructions, assembly can be completed in 30 to 45 minutes by one person.

USER MANUAL Aphrodite Ml1 L Gamdias

Tool Base Support & Seat Back & Angle Adjuster Bolts

Black Screws for R/I Plastic Cover

Line drawing of a car seat with mesh pattern and two side handles (no text or symbols)

Seal Back

x5

ArmrestCasters

Sost Angle Adjuster (R) Connector (L)

Mechanism Base Support Plastic Cover (R) Plastic Cover (L)

Gas Lin

5 Star Base

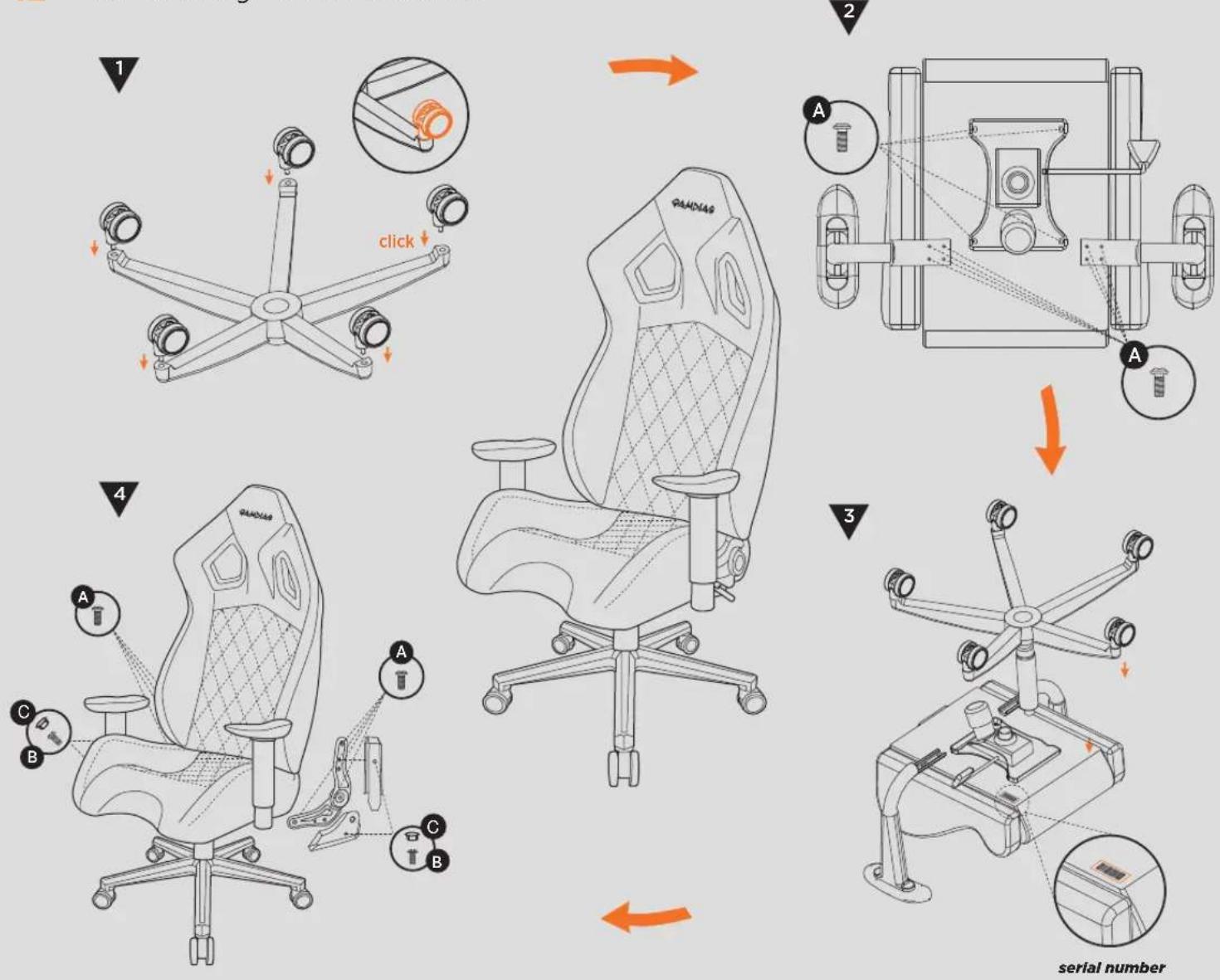

Assembly Instruction

GAMDIAS Technology Co., Ltd. www.GAMDIAS.com
7F, No.113, Jian 2nd Rd., Jhonghe Dist., New Taipei City 23585, Taiwan (R.O.C.)

© 2019 GAMDIAS Technology Co., Ltd. All rights reserved. All GAMDIAS trademarks and logos are registered trademarks of GAMDIAS Technology Co., Ltd. All other trademarks and logos presented in this material are the property of their respective owners. GAMDIAS Technology Co., Ltd. reserves the right to revise the specifications mentioned on this packaging.
