Achilles E2 L - Chair Gamdias - Free user manual and instructions

Product Type	Gaming Chair
Brand	Gamdias
Model	Achilles E2 L
Series	Achilles Series
Upholstery Material	High-quality PU leather
Foam Type	Cold-cure foam
Frame Material	Steel
Base Material	Nylon
Armrest Type	2D adjustable (height and rotation)
Tilt Mechanism	Multi-function with lock
Gas Lift Class	Class 4
Casters	60mm smooth-rolling nylon
Backrest Recline	90° to 135° lockable
Seat Height Range	45 - 53 cm
Overall Height	125 - 135 cm
Overall Width	70 cm
Overall Depth	55 cm
Maximum Weight Capacity	150 kg (330 lbs)
Net Weight	22 kg (48.5 lbs)
Included Accessories	Headrest and lumbar pillow (memory foam)
Assembly	Easy, tools included
Cleaning Instructions	Wipe with damp cloth, avoid abrasive cleaners
Warranty	2 years limited

Frequently Asked Questions - Achilles E2 L Gamdias

How to assemble the Gamdias Achilles E2 L chair?

Follow the included manual. Steps: 1) Attach casters to base. 2) Insert gas lift into base. 3) Mount seat onto gas lift. 4) Attach backrest to seat with provided screws. 5) Adjust armrests and tighten all bolts. Tools and instructions are included.

What is the maximum weight capacity?

The maximum weight capacity is 150 kg (330 lbs). Ensure not to exceed this limit for safety.

How to adjust the armrests?

The armrests are 2D adjustable. To change height, press the button on the side and move up/down. To rotate, lift the armrest and turn 90 degrees inward or outward.

How to clean the PU leather?

Wipe with a soft damp cloth. For stubborn stains, use mild soap and water. Avoid alcohol, bleach, or abrasive cleaners as they may damage the material.

Is the chair suitable for taller persons?

Yes, the chair supports users up to 185 cm (6'1") comfortably due to the adjustable seat height and backrest angle.

Does the chair recline fully flat?

No, the backrest reclines from 90 degrees upright to 135 degrees lockable. It does not recline to a completely flat position.

What is the warranty period?

Gamdias offers a 2-year limited warranty covering manufacturing defects. Contact customer support for claims.

Can I replace the gas lift?

Yes, the gas lift is replaceable. Contact Gamdias support for compatible replacement parts or consult a professional.

How to adjust the tilt tension?

Under the seat, turn the tilt tension knob clockwise to increase tension (harder to rock) or counterclockwise to decrease. Lock tilt by pushing the lever in.

Are replacement parts available?

Yes, replacement parts such as armrests, casters, gas lift, and foam can be ordered through Gamdias customer service or authorized retailers.

USER MANUAL Achilles E2 L Gamdias

Assembly demonstration video

Gamdias Multifunction PC Gaming Chair

Line drawings of an office chair with front and side views, no text or symbols present

Package Contents

Seat Back

Seat

Armrest

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Mechanism Base Spport

x4 Seat Back Bolts

Head Pillow

Lumbar Support Pillow

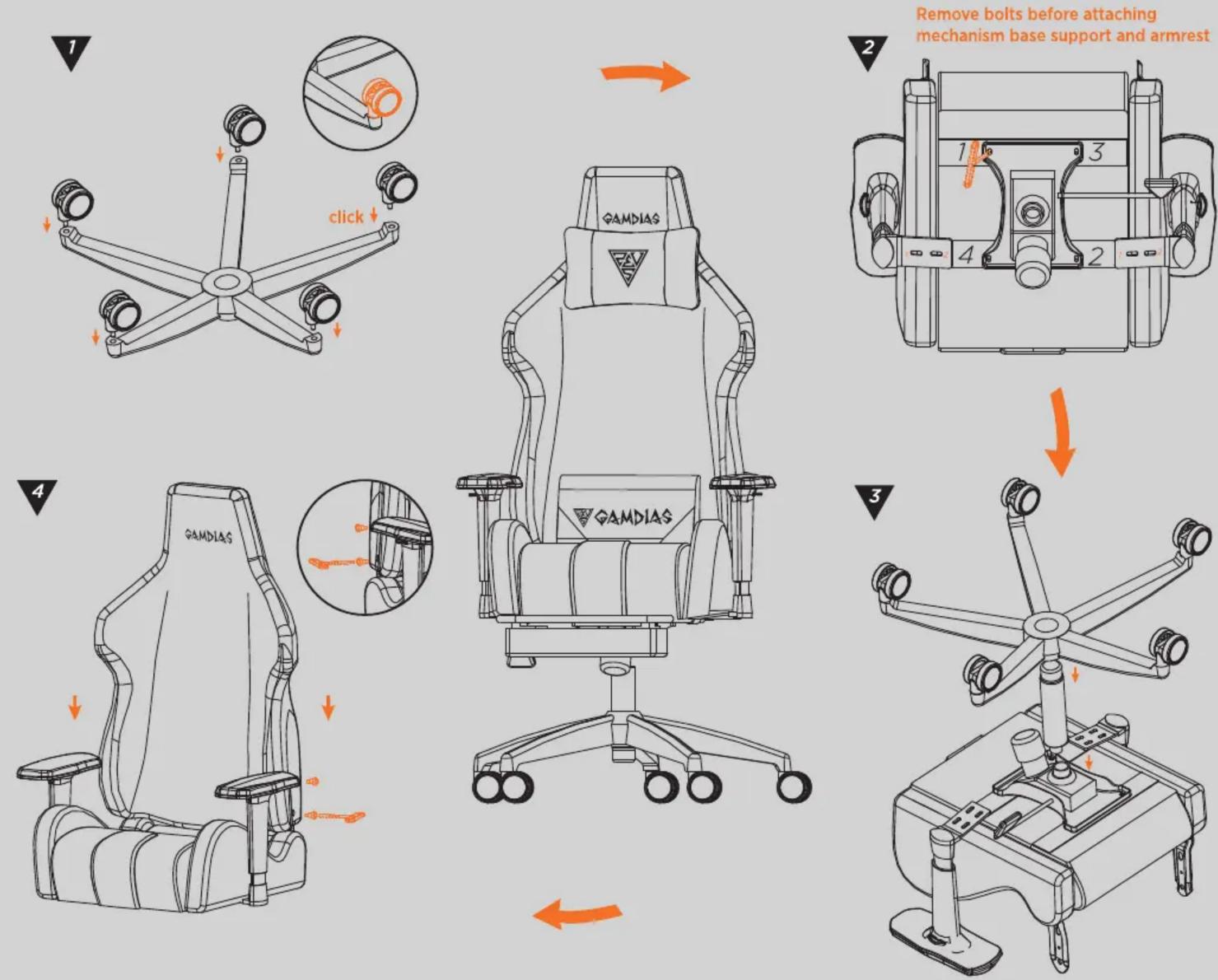

Assembly Instruction

FEATURE DEMONSTRATION

GAMDIAS Technology Co., Ltd. www.GAMDIAS.com

7F, No.113, Jian 2nd Rd., Jhonghe Dist., New Taipei City 23585, Taiwan (R.O.C.)

© 2017 GAMDIAS Technology Co., Ltd. All rights reserved. All GAMDIAS trademarks and logos are registered trademarks of GAMDIAS Technology Co., Ltd. All other trademarks and logos presented in this material are the property of their respective owners. GAMDIAS Technology Co., Ltd. reserves the right to revise the specifications mentioned on this packaging.
