Product Type	Gaming Chair
Brand	Gamdias
Model	Achilles P1 L
Material	PU Leather, High-Density Foam
Frame Material	Steel
Base Material	Aluminum Alloy
Weight Capacity	150 kg (330 lbs)
Seat Height Adjustment	Yes (Gas Lift, 45-55 cm from floor)
Armrest Adjustment	2D (Height and Rotation)
Lumbar Support	Yes (Adjustable via knob)
Headrest Pillow	Yes (Removable and Adjustable)

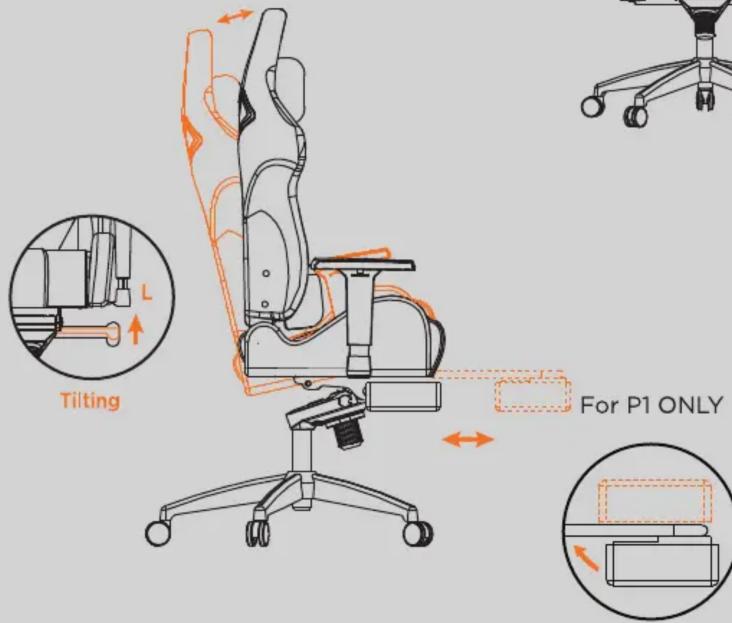

Tilt Mechanism	Rocking with Lock (Multi-angle)
Recline Angle	135° Maximum
Seat Dimensions (W x D)	54 cm x 50 cm
Backrest Height	84 cm
Overall Height (with base)	128-138 cm
Net Weight	24 kg (53 lbs)
Assembly Required	Yes (Tools Included)
Certification	BIFMA Compliant
Warranty	2 Years (Limited)

Frequently Asked Questions - Achilles P1 L Gamdias

How do I assemble the chair?

Unpack all parts and follow the step-by-step manual. Start by attaching the base to the gas lift, then mount the seat onto the lift. Finally, attach the backrest and armrests using the provided Allen key and screws.

How to adjust the seat height?

Lift the height adjustment lever located under the right side of the seat. Your weight will lower the chair; lift off slightly to raise it. Release the lever to lock the desired height.

How do I adjust the armrests?

The armrests have 2D adjustment. Press the button on the side to raise or lower the armrest, and rotate the top pad to your preferred angle.

How to clean the chair?

Wipe the PU leather surface with a soft damp cloth. For stubborn stains, use a mild soap solution. Avoid abrasive cleaners and excessive moisture. Dry with a soft towel.

What is the maximum weight capacity?

The chair is rated for a maximum weight capacity of 150 kg (330 lbs). Exceeding this may damage the gas lift or base.

Can I replace the gas lift?

Yes, the gas lift is replaceable. Purchase a compatible Class 4 gas lift (same diameter). Use a rubber mallet to remove the old one and install the new one by pressing it in.

How to adjust the lumbar support?

Turn the knob on the left side of the backrest. Clockwise increases support, counterclockwise decreases it. Adjust until you feel optimal lower back comfort.

Is the chair suitable for tall people?

Yes, the backrest height of 84 cm and seat height range of 45-55 cm accommodate users up to 190 cm tall. The adjustable headrest provides additional support.

Does this chair come with a warranty?

Yes, Gamdias offers a 2-year limited warranty covering manufacturing defects. It does not cover normal wear and tear or damage from misuse. Register your product online for full coverage.

How to fix a squeaky chair?

First, tighten all bolts and screws using the Allen key. If noise persists, apply silicone spray lubricant to moving parts like the gas lift and tilt mechanism hinges.

USER MANUAL Achilles P1 L Gamdias

Line drawing of a stylized helmet or device with no visible text, numbers, or symbols

Seat Back

Technical line drawing of a mechanical device with no visible text or symbols

Seat

Armrest

Technical line drawing of a mechanical clamp or lever assembly (no text or symbols)

Mechanism Base Spport

x4 Seat Back Bolts

Line drawing of a propeller with five blades and a labeled star base (no text or symbols on the diagram itself)

USB Extension Clable

Casters

Head Pillow

Lumbar Support Pillow

Assembly Instruction

Software Download http://www.gamdias.com/

Line drawing of a car seat assembly with visible seat, armrest, and coiled cable (no text or symbols)

GAMDIAS Technology Co., Ltd. www.GAMDIAS.com
7F, No.113, Jian 2nd Rd., Jhonghe Dist., New Taipei City 23585, Taiwan (R.O.C.)
© 2017 GAMDIAS Technology Co., Ltd. All rights reserved. All GAMDIAS trademarks and logos are registered trademarks of GAMDIAS Technology Co., Ltd. All other trademarks and logos presented in this material are the property of their respective owners. GAMDIAS Technology Co., Ltd. reserves the right to revise the specifications mentioned on this packaging.
