Sanctuary SSE 10M - Amplifier PEAVEY - Free user manual and instructions

Product Type	Guitar Combo Amplifier
Power Output	10 Watts RMS
Speaker	1 x 8" Peavey Custom Speaker
Channels	1 (Clean/Overdrive switchable)
Controls	Gain, Tone (or Bass, Middle, Treble), Master Volume
Inputs	1/4" instrument input
Outputs	1/4" headphone output (silent practice)
Dimensions (H x W x D)	13 x 12 x 7.5 inches
Weight	11.5 lbs
Power Supply	120V AC, 60 Hz (US model)
Construction	Closed-back cabinet with black Tolex covering
Amplifier Type	Solid-state
Key Features	Overdrive circuit, 3-band EQ, headphone jack
Accessories Included	Power cord, user manual
Maintenance & Cleaning	Unplug before cleaning; wipe with a dry, lint-free cloth
Safety	Do not expose to rain or moisture; use only grounded outlet
Repairability	Contact authorized Peavey service center for repairs

Frequently Asked Questions - Sanctuary SSE 10M PEAVEY

What type of amplifier is the Peavey Sanctuary SSE 10M?

The Peavey Sanctuary SSE 10M is a solid-state guitar combo amplifier with a 10-watt power rating, ideal for practice and small gigs.

Does the SSE 10M have built-in effects?

No, the SSE 10M is a basic amp with an overdrive circuit and 3-band EQ. It does not include built-in reverb or modulation effects.

Can I use headphones with this amplifier?

Yes, the SSE 10M features a 1/4" headphone output for silent practice. When headphones are connected, the internal speaker is muted.

What is the speaker size in the Sanctuary SSE 10M?

The amplifier comes with a single 8-inch Peavey Custom speaker.

How do I clean the amplifier?

Always unplug the amplifier before cleaning. Use a dry, lint-free cloth to wipe the exterior. Do not use liquids or abrasive cleaners.

What is the power consumption?

The SSE 10M is rated for 120V AC, 60 Hz (US model) and consumes approximately 30 watts.

Is the amplifier suitable for bass guitar?

No, this amplifier is designed for electric guitar. Using it with a bass may cause distortion or damage.

Can I connect an external speaker?

The SSE 10M does not have an external speaker output. It is a self-contained combo with a fixed internal speaker.

What is the warranty coverage?

Peavey typically offers a limited warranty covering defects in materials and workmanship for a specified period. Check your user manual for details.

How do I replace a blown fuse?

Refer to the user manual for the correct fuse rating. Always unplug the amplifier before replacing a fuse. Use the same type and rating.

USER MANUAL Sanctuary SSE 10M PEAVEY

Exterior view of a dark gray rectangular box with a small white square on top (no text or symbols visible)

Description

The SSE 10M is a new low-profile monitor enclosure featuring high power ratings with custom components, a sleek look and a unique, snap-in metal grille. The SSE 10M is a full-range, two-way system featuring the highly acclaimed Peavey 14T titanium compression driver with the diverse Sound Guard IV tweeter protection network and a maximum-performance 10" woofer for a smooth response. The SSE 10M is rated at 400 Watts program and 800 Watts peak. This lightweight speaker system may be placed on stage at angles of either 30° or 45° and is ideal for smaller venues where stage space is at a premium. Connections are made using a four-pin Twist-Lock or a paralleled two-position terminal block for additional cabinets. The SSE 10M is available in black or white.

Features

• Two-way monitor enclosure
• Peavey 14T ^TM titanium compression driver
• Sound Guard™ IV tweeter protection network
  • 400 Watts program/800 Watts peak power handling
  • 12 mm birch plywood construction
  • 80 Hz to 17 kHz
• 95 dB at 1W/1m
  • 8 Ohms
  • Available in two finishes: Black or White

Frequency response, 1 meter on-axis, swept-sine in anechoic environment: 80 Hz to 17 kHz ( ± 3 dB)

Usable low frequency limit (-10 dB point): 60 Hz

Power handling:

Full Range:

400 Watts program

800 Watts peak

Sound pressure level, 1 Watt, 1 meter in anechoic environment: Full range: 95 dB SPL (2.83 V input)

Maximum sound pressure level (1 meter):

Full range:

118 dB SPL continuous

124 dB SPL peak

Transducer complement:

Low frequency section:

Premium grade 10" woofer

High frequency section:

Peavey 14T ^™ tita id muin aphragm

compression driver on a 90° x 60° constant directivity horn

Box tuning frequency:

Low Frequency Section: 78 Hz

Harmonic distortion:

1% rated power

Second harmonic:

100 Hz: 0.43%

1 kHz: 0.07%

Third harmonic:

100 Hz: 0.58%

1 kHz: 1.02%

10% rated power

Second harmonic:

100 Hz: 2.28%

1 kHz: 0.40%

Third harmonic:

100 Hz: 0.97%

1 kHz: 2.02%

Electro-acoustic crossover frequency (internal passive):

2.8 kHz

Impedance (Z):

Full range:

Nominal: 8 Ω

Minimum: 5.4 Ω

Input connection:

One four-pin Twist-Lock in parallel

with one two-position terminal strip

Enclosure materials & finish:

Dado-joined 12 mm birchfimited

textured acrylic polyurethane with a full-length metal grille covered in acoustical-grade grille cloth. Available in black or white

Dimensions (H x W x D):

14.56" x 19.63" x 15.95"

370 mm x 498 mm x 405 mm

Net weight:

29 lbs. (13.2 kg)

Frequency response

This measurement is useful in determining how accurately a given unit reproduces an input signal. The frequency response of the SSE 10M is measured at a distance of 1 meter using a 1 Watt swept-sine input signal (into the nominal impedance). As shown in figure 1, the selected drivers in the SSE 10M combine to give a smooth frequency response from 80 Hz to 17 kHz.

Power handling

There are many different approaches to power handling ratings. Peavey rates this loudspeaker system's power handling using a full-range form of the AES Standard 2-

1. Using audio band 20 Hz to 20 kHz pink noise with peaks of four times the RMS level, this strenuous test signal assures the user that every portion of this system can withstand today's high technology music.

This rating is contingent upon having a minimum of 3 dB available amplifier headroom.

Harmonic distortion

Second and third harmonic distortions vs. frequency are plotted infigu res 3 & 4 for two power levels: ten percent (10%) of rated input power and either one percent (1%) of rated input power or 1 Watt, whichever is greater. Distortion is read from the graph as the difference between the fundamental signal (frequency response) and the desired harmonic. As an example, a distortion curve that is down 40 dB from the fundamental is equivalent to 1% distortion.

Architectural & engineering specifications

The loudspeaker system shall have an operating bandwidth of 80 Hz to 17kHz. The nominal output level shall be 95 dB when measured at a distance of one meter with an input of one Watt. The nominal impedance shall be 8 ohms. The maximum program power handling shall be 400 Watts, with a peak power input of at least 800 Watts and a minimum amplifier headroom of 3 dB. The nominal radiation geometry shall be 90° in the horizontal plane and 60° in the vertical plane. The outside dimensions shall be 14.56" high by 19.63" wide by 15.95" deep. The weight shall be 29 lbs. The loudspeaker system shall be a model SSE 10M.

NOTE: Features and specifications subject to change without notice.

WARRANTY INFORMATION AVAILABLE ONLINE

Amplitude Response (1W 1m On-Axis)

Figure 1

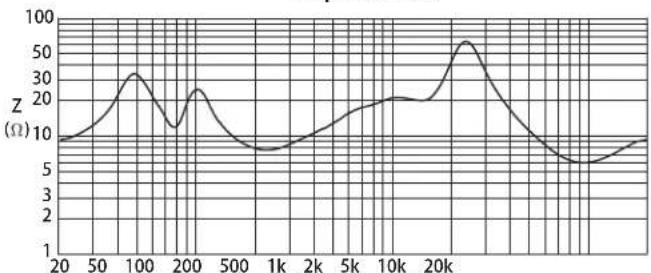

Impedance

Figure 2

Harmonic Distortion : 10% Rated Power

Figure 5
.... 2nd Harmonic --- 3rd Harmonic

Harmonic Distortion : 1% Rated Power

Figure 6
.... 2nd Harmonic --- 3rd Harmonic

www.peavey.com

Warranty registration and information for U.S. customers available online at

www.peavey.com/warranty

or use the QR tag below

Features and specifications subject to change without notice.

Peavey Electronics Corporation

5022 Hartley Peavey Drive

Meridian, MS 39305

[phone]

FAX [phone]

Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005

The bar is the symbol for marking of new waste and is applied only to equipment manufactured after 13 August 2005
