AVE4/CH - Faucet Caple - Free user manual and instructions

Brand	Caple
Model	AVE4/CH
Product Type	Faucet
Installation Type	Deck-mounted
Number of Holes	Single hole
Handle Type	Single lever
Spout Type	High arc
Material	Brass
Finish	Chrome
Valve Type	Ceramic disc
Flow Rate	1.2 GPM (4.5 L/min)
Operating Pressure	20–80 psi (1.4–5.5 bar)
Overall Height	Approx. 10 inches (254 mm)
Spout Height	Approx. 6 inches (152 mm)
Spout Reach	Approx. 5 inches (127 mm)
Weight	Approx. 1.5 lbs (0.7 kg)
Warranty	Limited lifetime
Certifications	cUPC, NSF 61
Care Instructions	Clean with mild soap and water; avoid abrasive cleaners
Spare Parts	Available from manufacturer (cartridge, aerator, handles)

Frequently Asked Questions - AVE4/CH Caple

What tools are needed for installation?

You will need an adjustable wrench, plumber's tape, and a basin wrench. Ensure the water supply is turned off before starting.

How do I adjust the water flow?

The single lever controls both flow and temperature. Lift the lever to increase flow, and rotate left/right for hot/cold.

Why is the faucet dripping?

A dripping faucet usually indicates a worn ceramic disc or O-ring. Replacing the cartridge often solves the issue. Refer to the manual for part numbers.

What is the recommended water pressure?

The faucet works best with a water pressure between 20 and 80 psi (1.4–5.5 bar). Higher or lower pressure may affect performance.

How do I clean the aerator?

Unscrew the aerator from the spout tip, disassemble, and soak in vinegar to remove mineral deposits. Rinse and reassemble.

Is the faucet compatible with a tankless water heater?

Yes, the ceramic disc valve handles high temperatures well. However, ensure your water heater's flow rate meets the faucet's minimum requirement.

What finish options are available?

The AVE4/CH model comes in a chrome finish. Other finishes may be available under different model numbers.

How do I remove the handle for maintenance?

Use a small Allen wrench to loosen the set screw under the handle cap, then lift the handle off. The cartridge is accessible underneath.

Can I install this faucet on a granite countertop?

Yes, but you may need a special drill bit. The faucet mounts through a single hole with a diameter of 1.375 inches (35 mm).

What is the warranty length?

Caple offers a limited lifetime warranty against defects in materials and workmanship. Proof of purchase is required.

USER MANUAL AVE4/CH Caple

BLACKENED COPPER, BRUSHED NICKEL & CHROME TAP CARE, INSTALLATION AND GUARANTEE INFORMATION

Model code: AVE4/BC, AVE4/BN & AVE4/CH

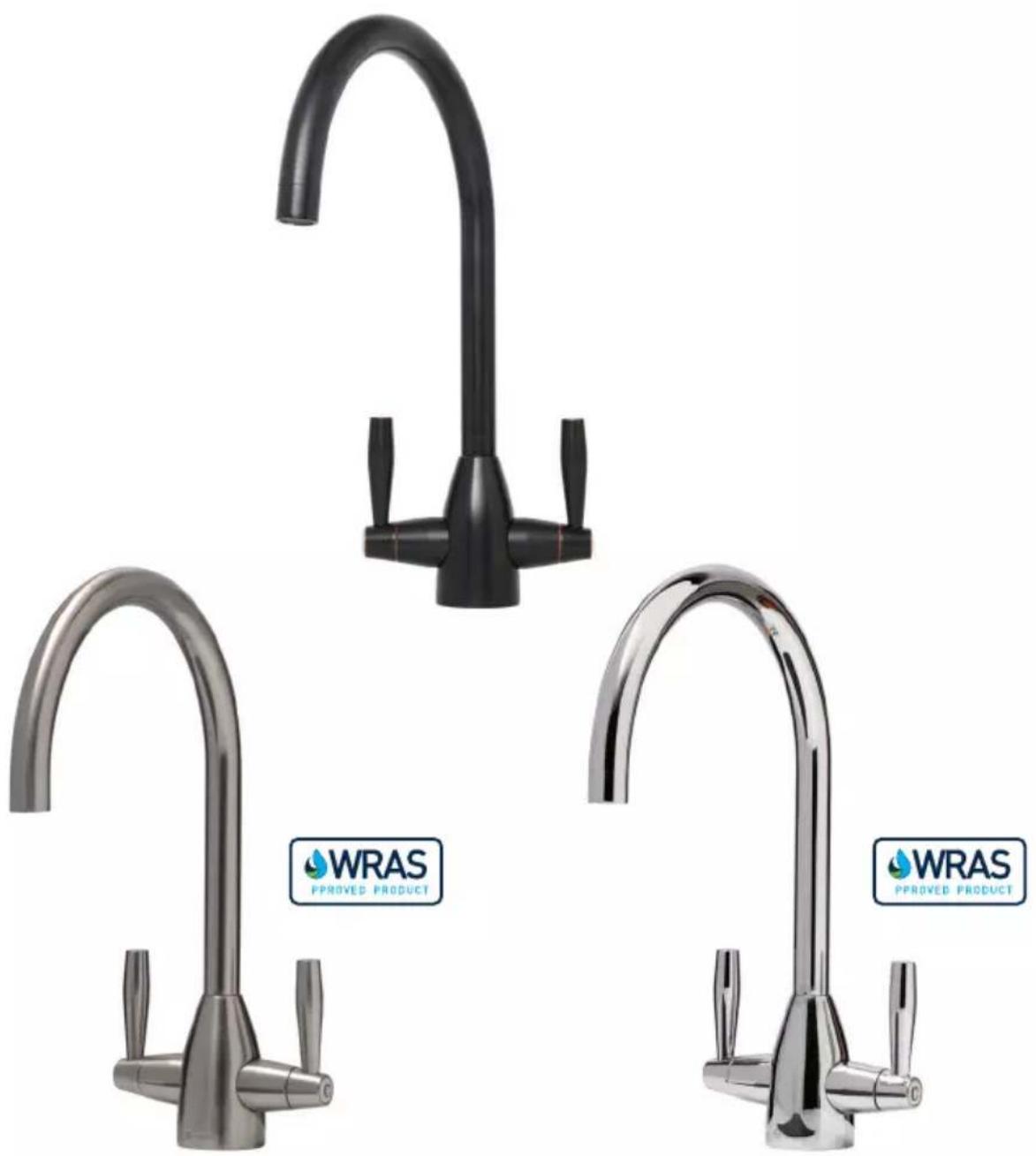

Three stainless steel kitchen faucet designs with WRAS product logos (no text on faucet itself)

INSTALLATION GUIDE

Thank you for purchasing your Caple tap.

These taps have been manufactured and inspected to exacting standards and are guaranteed to give years of trouble free operation providing our care and installation guidelines have been followed.

NOTE: Please see back page for installation instructions

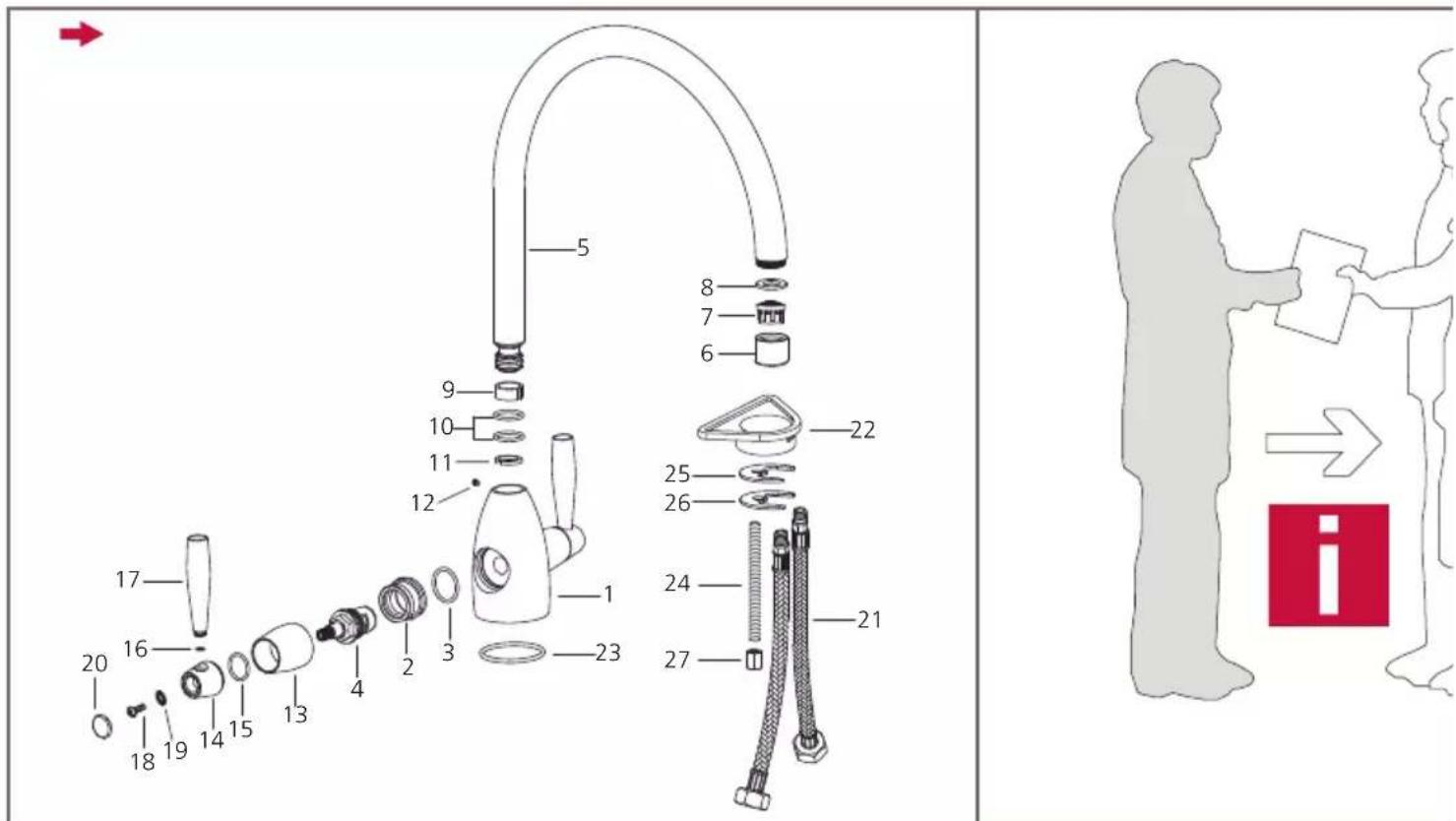

INSTALLATION INSTRUCTIONS

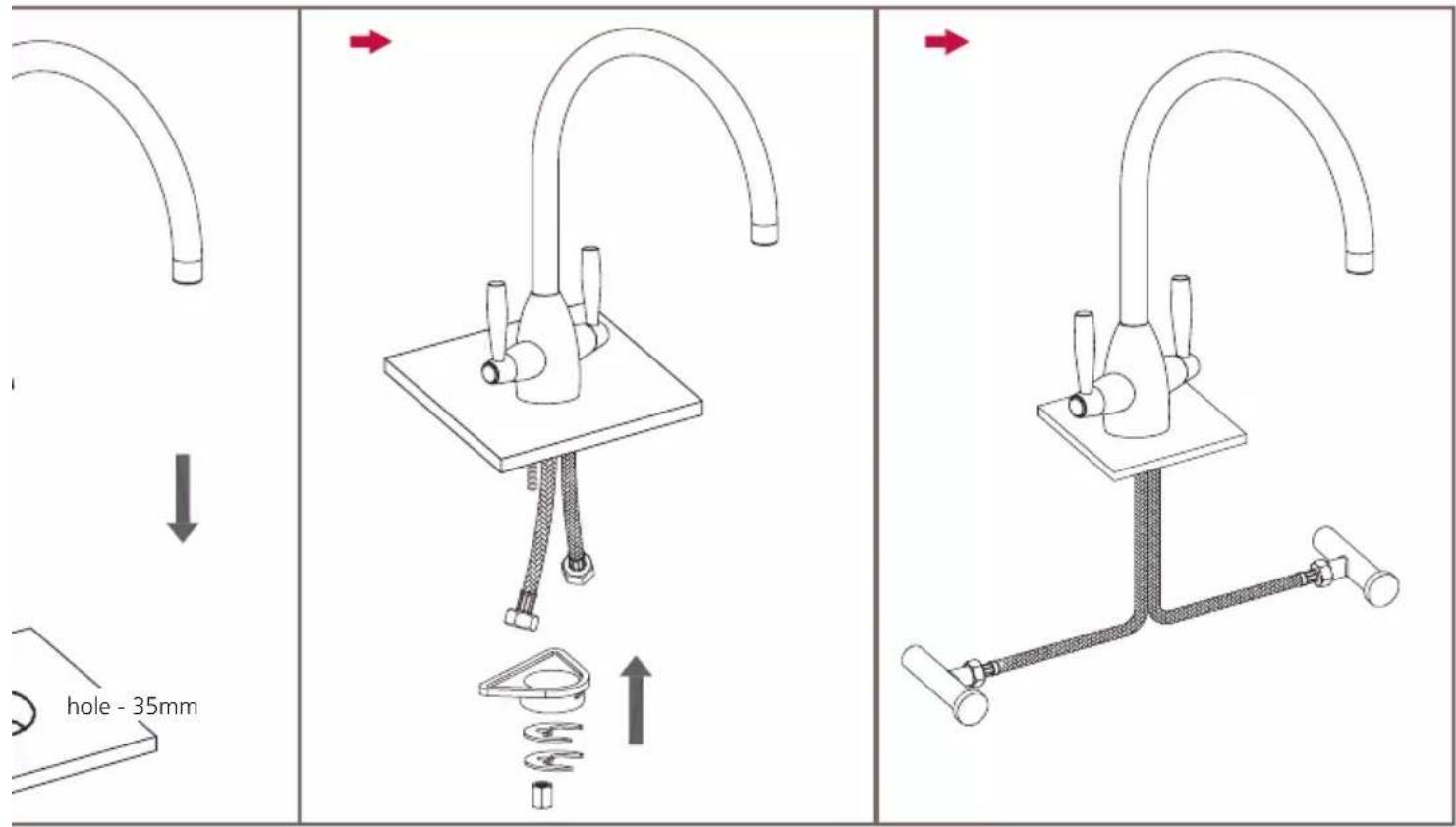

• Turn the spout and body so the tap is facing forwards, the screw on the spout indicates the rear of the body. The hot water connection should be on the left of the tap.
• Ensure the hot and cold pipes are thoroughly flushed to remove any debris.
• A 35mm hole is required in either the sink or worktop.
• The fixing bolt must be screwed into the tap base, ensuring the threads of the bolt are not damaged in the process.
• Pass the nylon washer over the fixing bolt flush to the bottom of the tap base, then pass the bolt through the

CARE OF YOUR TAPS

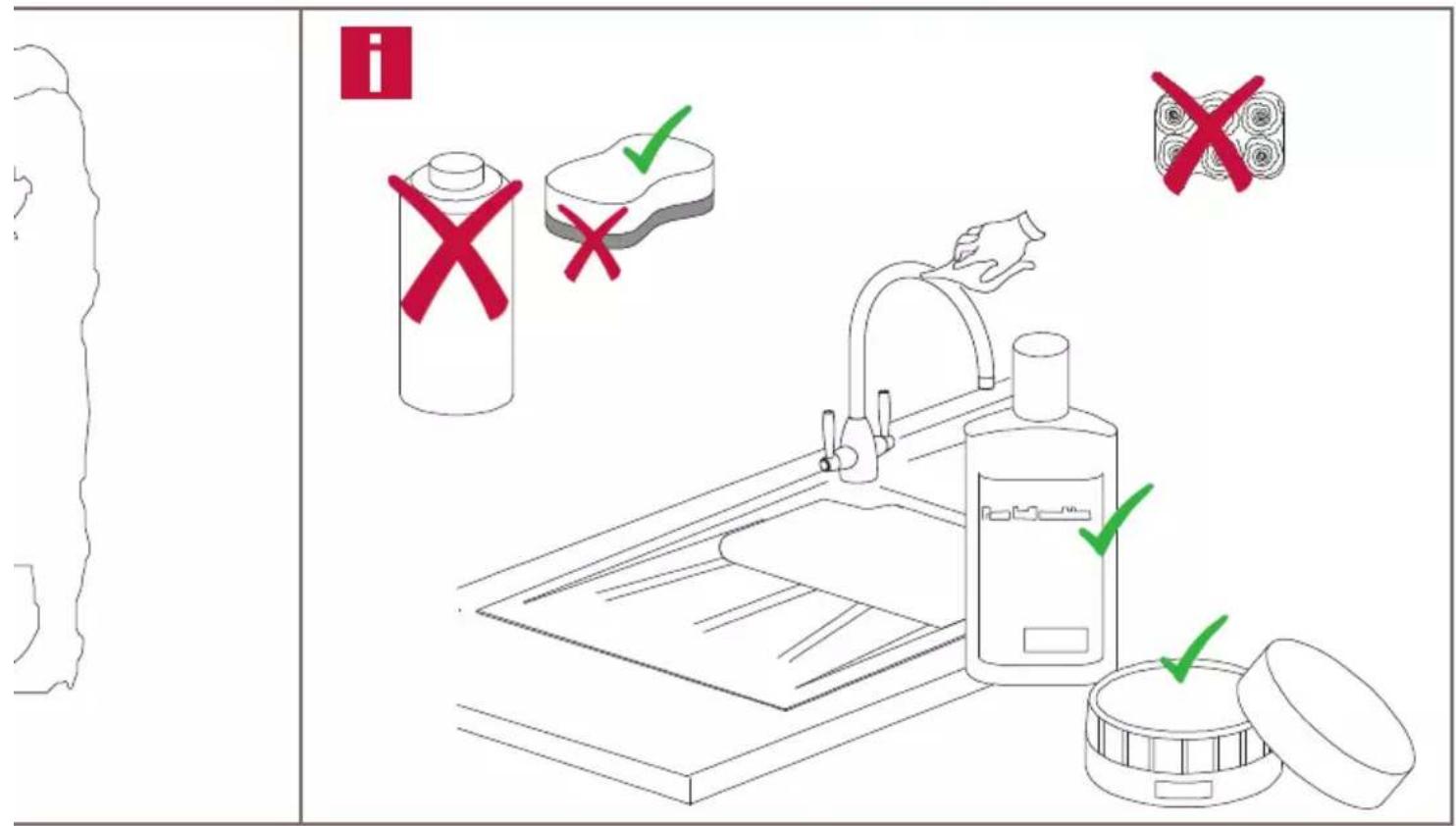

• Only clean your taps with soap or mild liquid detergent and clean water then dry using a soft cloth
• Do not use chemical cleaners, or bleach based solutions to clean your tap, contact could affect the finish of your tap.

PRE INSTALLATION CHECKS

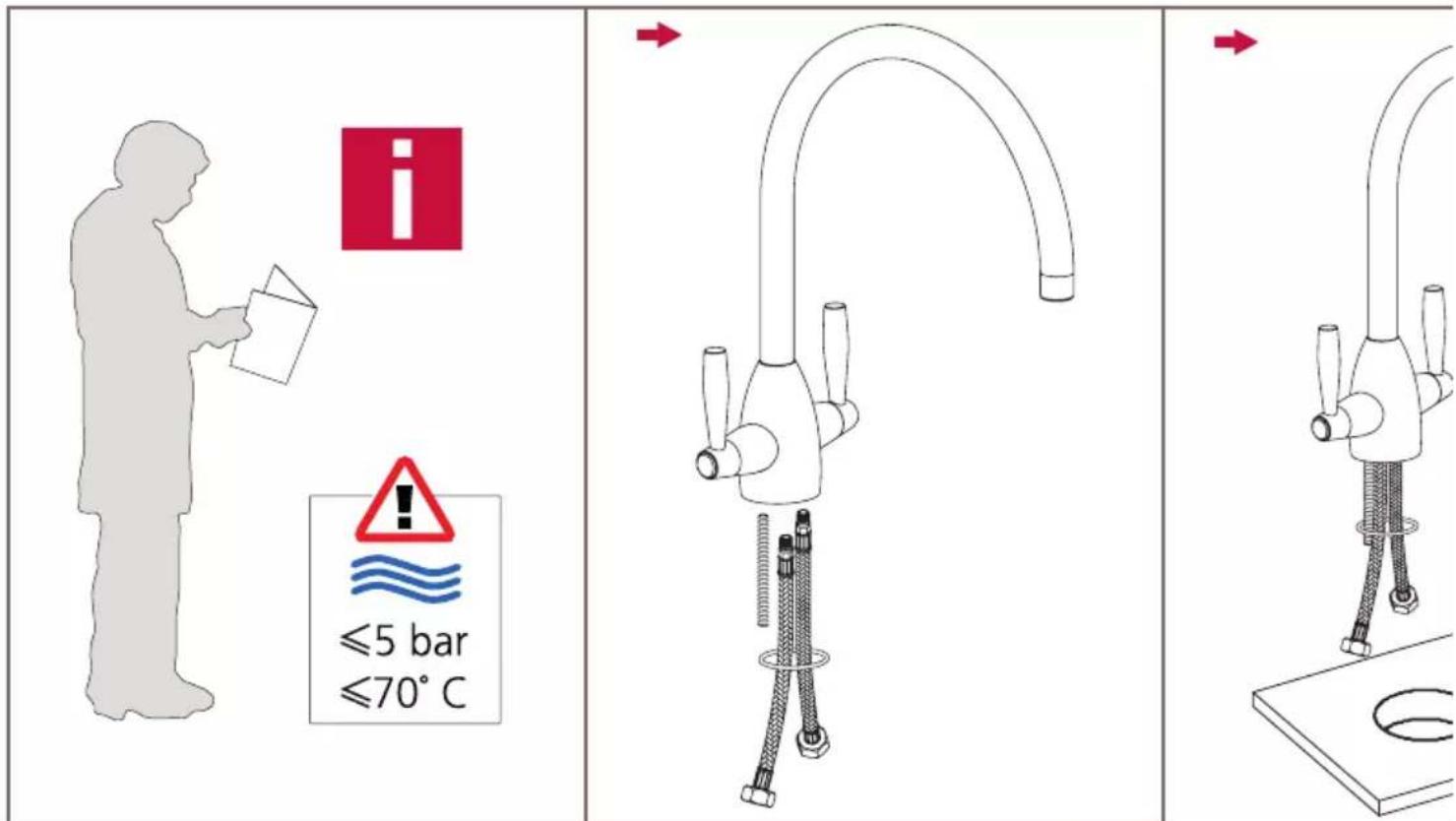

• The temperature of the hot water supply must not exceed 70^ C.
• Water pressure requirements: minimum required pressure varies dependent on model, maximum pressure 5 bar.
• Always seek advice from a qualified installer to ensure your installation and water supply to your taps comply with the water regulation (WRAS) requirements and good plumbing practice.

POST INSTALLATION POINTS

• We suggest when connecting screw connections that PTFE tape is used before the joints are fully tightened.
• Before use correctly check the installation for leaks, and turn the hot and cold water on to thoroughly flush any small particles that may have been dislodged during the tap installation.

sink or worktop (ensuring the nylon washer remains directly under the tap base).

• Pass the rubber washer and then the metal washer (on the underside of the sink/worktop) over the fixing bolt and fix using the fixing nut.
• Screw the flexi-tail pipes into the base of the tap, ensuring the pipes threads are not damaged in the process. If the flexi-tails are already inserted into the tap base, please ensure these are screwed in tightly to prevent any leaks.

• Finally connect the flexi-tail pipes to the hot and cold supplies ensuring they are connected to the correct supplies.

• Do not use abrasive cleaners, liquids, powders or pads. These will damage the finish of your tap and void the guarantee.

• Provided all of the above points are adhered to the surface finish of your Caple Tap is guaranteed for 5 years.

• It is good practice to ensure that both hot and cold water supplies to your tap are of an equal pressure to provide a consistent flow. If supplies are not of equal pressure then a non return valve should be fitted on the hot inlet.

• Supplies of water should be from a common source (mains or tank fed).
• We recommend that a service valve is installed in the supply lines to the tap to enable water isolation if required.

- THESE INSTRUCTIONS ARE INTENDED AS A GUIDE, IF IN ANY DOUBT ENSURE YOU SEEK ADVICE FROM A CERTIFIED PLUMBER.

GUARANTEE

• Your Caple tap is guaranteed for 5 years.
• Should you have any defects as detailed above during the appropriate guarantee period we guarantee to repair or replace the defective products or parts, or, at our option refund the purchase price assuming we were advised immediately of any claim in writing.
• It is important that you keep a proof of purchase (such as your receipt) to facilitate your guarantee.

TERMS AND CONDITIONS

• Guarantee conditions are only valid if the Care guidelines listed above are followed.
• Our obligation under the guarantee is to the original purchaser, and may not be transferred.
• The guarantee is valid for UK domestic installations only and relates to defects in manufacture, materials and workmanship only.
• Issues that arise due to normal wear and tear (for example valves, discs or washers), poor installation, improper use or accidental damage are not covered by the Caple guarantee. Spare parts can be purchased from our Customer care helpline 0117 938 1900.
• No liability is accepted for consequential damage to other household fixtures, fittings or furnishings relating to any claim – even if attached to the product.
• If it is more economically viable a replacement tap will be supplied, this tap might vary from the original design should range changes of occurred since the initial supply.
• We reserve the right to inspect any tap before committing to support under the guarantee conditions.
