Product Type	Kitchen Faucet
Brand	Caple
Model	SPI2
Material	Brass, Stainless Steel
Finish	Chrome
Installation Type	Deck Mounted
Number of Holes	1
Faucet Height	15.7 inches (400 mm)
Spout Reach	8.3 inches (210 mm)
Spout Height	10.2 inches (260 mm)
Maximum Deck Thickness	2 inches (50 mm)
Weight	4.4 lbs (2 kg)
Water Supply Connection	3/8 inch compression
Flow Rate	1.8 GPM (6.8 L/min) at 60 psi
Cartridge Type	Ceramic disc
Handle Type	Single lever
Handle Material	Metal
Spray Function	No
Pull-out Spout	No
Warranty	5 years limited
Certifications	NSF 61, ASME A112.18.1
Care & Cleaning	Wipe with soft damp cloth; avoid abrasive cleaners
Repairability	Replaceable cartridge and handles

Frequently Asked Questions - SPI2 Caple

How do I install the Caple SPI2 faucet?

Installation requires a 1-hole deck mount. Follow the provided manual: thread the supply lines, secure the base, and connect to water supply using 3/8 inch compression fittings. Use a basin wrench for tight spaces.

What tools are needed for installation?

You'll need an adjustable wrench, basin wrench, plumber's tape, and a screwdriver. Some installations may require a drill if holes need to be enlarged.

How do I clean the faucet?

Clean with a soft damp cloth and mild soap. Avoid abrasive cleaners, steel wool, or harsh chemicals as they can damage the chrome finish.

What is the warranty period?

Caple offers a 5-year limited warranty on the SPI2 faucet covering manufacturing defects. Normal wear, misuse, or improper installation are not covered.

Can I install this faucet on a thicker countertop?

The faucet is designed for countertops up to 2 inches (50 mm) thick. For thicker surfaces, extension kits may be needed; consult the manual.

How do I replace the cartridge?

Turn off water supply, remove the handle (often with a set screw), unscrew the retaining nut, and pull out the old cartridge. Insert new ceramic disc cartridge and reassemble.

What should I do if the faucet leaks?

First check if the supply connections are tight. If the leak is from the spout, the cartridge may need replacement. If from the handle, tighten the packing nut.

Is the faucet compatible with a water filter?

The SPI2 does not have a built-in filter, but you can connect an inline water filter to the supply lines before the faucet. Ensure the filter has 3/8 inch compression fittings.

What is the flow rate?

The maximum flow rate is 1.8 GPM (6.8 L/min) at 60 psi, compliant with water efficiency standards.

Can I buy spare parts for the SPI2?

Yes, replacement cartridges, handles, and other parts are available. Contact Caple or authorized dealers for specific part numbers.

USER MANUAL SPI2 Caple

CHROME TAP CARE, INSTALLATION AND GUARANTEE INFORMATION

MODEL CODE: SPI2/CH

Modern stainless steel kitchen faucet with spiral handle and side arm (no text or symbols visible)

INSTALLATION GUIDE

Thank you for purchasing your Caple tap.

These taps have been manufactured and inspected to exacting standards and are guaranteed to give years of trouble

free operation providing our care and installation guidelines have been followed.

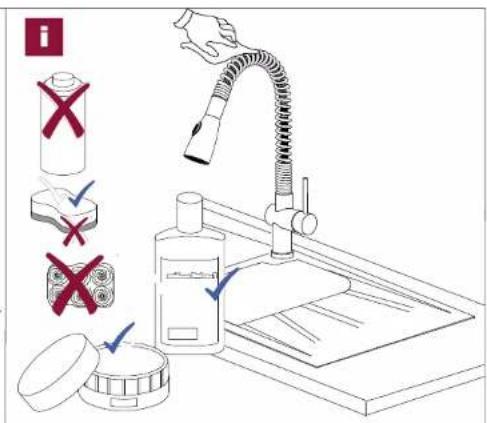

CARE OF YOUR TAPS

• Only clean your taps with soap or mild liquid detergent and clean water then dry using a soft cloth
• Do not use chemical cleaners, or bleach based solutions to clean your tap, contact could affect the finish of your tap
• Do not use abrasive cleaners, liquids, powders or pads. These will damage the finish of your tap and void the guarantee.
• Provided all of the above points are adhered to the surface finish of your Caple Tap is guaranteed for 5 years.

PRE INSTALLATION CHECKS

• The temperature of the hot water supply must not exceed 70^ C.
• Water pressure requirements: minimum required pressure varies dependent on model, maximum pressure 5 bar.

• Always seek advice from a qualified installer to ensure your installation and water supply to your taps comply with the water regulation (WRAS) requirements and good plumbing practice.

• It is good practice to ensure that both hot and cold water supplies to your tap are of an equal pressure to provide a consistent flow. If supplies are not of equal pressure then a non return valve should be fitted on the hot inlet.

• Supplies of water should be from a common source (mains or tank fed).
• We recommend that a service valve is installed in the supply lines to the tap to enable water isolation if required.

POST INSTALLATION POINTS

• We suggest when connecting screw connections that PTFE tape is used before the joints are fully tightened.
• Before use correctly check the installation for leaks, and turn the hot and cold water on to thoroughly flush any small particles that may have been dislodged during the tap installation.

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE, IF IN ANY DOUBT ENSURE YOU SEEK ADVICE FROM A CERTIFIED PLUMBER.

GUARANTEE

• Your Caple tap is guaranteed for 5 years.
• Should you have any defects as detailed above during the appropriate guarantee period we guarantee to repair or replace the defective products or parts, or, at our option refund the purchase price assuming we were advised immediately of any claim in writing.
• It is important that you keep a proof of purchase (such as your receipt) to facilitate your guarantee.

TERMS AND CONDITIONS

• Guarantee conditions are only valid if the Care guidelines listed above are followed.
• Our obligation under the guarantee is to the original purchaser, and may not be transferred.
• The guarantee is valid for UK domestic installations only and relates to defects in manufacture, materials and workmanship only.
• Issues that arise due to normal wear and tear (for example valves, discs or washers), poor installation, improper use or accidental damage are not covered by the Caple guarantee. Spare parts can be purchased from our Customer care helpline 0117 938 1900.
• No liability is accepted for consequential damage to other household fixtures, fittings or furnishings relating to any claim - even if attached to the product.
• If it is more economically viable a replacement tap will be supplied, this tap might vary from the original design should range changes of occurred since the initial supply.
• We reserve the right to inspect any tap before committing to support under the guarantee conditions.
