Product Type	Kitchen Faucet
Model	EMB/BRI/SS
Brand	Caple
Material	Brass with Stainless Steel finish
Finish	Brushed Stainless Steel
Mounting Type	Deck mount, single hole
Spout Height	15.7 inches (40 cm)
Spout Reach	8.3 inches (21 cm)
Flow Rate	2.2 GPM (8.3 L/min) at 60 psi
Number of Handles	1 handle (single lever)
Valve Type	Ceramic disc cartridge
Water Supply Connection	1/2" NPT female
Recommended Operating Pressure	20-80 psi (1.4-5.5 bar)
Drain Assembly Included	Yes
Warranty	10 years limited warranty on cartridge, 1 year on finish
Weight	4.2 lbs (1.9 kg)
Dimensions (Overall)	20.9 x 10.6 x 16.1 inches (53 x 27 x 41 cm)
Certifications	ASME A112.18.1, NSF 61, WaterSense certified
Compliance	Low Lead compliant (Safe Drinking Water Act)
Installation Kit Included	Yes (mounting hardware, water supply lines, Allen key)

Frequently Asked Questions - EMB/BRI/SS Caple

How do I install the Caple EMB/BRI/SS faucet?

Installation requires basic tools. First, shut off water supply. Place the faucet through the sink hole (1-1/4" to 1-1/2" diameter). Secure with mounting nut from below. Connect water supply lines (1/2" NPT). Tighten connections by hand, then a quarter turn with a wrench. Turn on water and check for leaks. Refer to the manual for detailed steps.

What is the recommended cleaning method?

Clean the faucet with a soft cloth and mild soap. Rinse with water and dry. Avoid abrasive cleaners, steel wool, or harsh chemicals. For stubborn stains, use a 50/50 water-vinegar solution. Rinse thoroughly.

How do I replace the cartridge?

First, shut off water supply and remove the handle (usually by prying off a cap and unscrewing). Unscrew the cartridge retaining nut. Pull out the old cartridge using pliers. Insert a new ceramic disc cartridge (verify model). Reassemble. Turn water on and test.

What is the warranty coverage?

Caple offers a 10-year limited warranty on the cartridge and a 1-year warranty on the finish. The warranty covers manufacturing defects. Proof of purchase required. See warranty card for details.

Can I use this faucet with a reverse osmosis system?

Yes, the faucet is compatible with most reverse osmosis systems. However, ensure the water pressure is within 20-80 psi. Low pressure may require a booster pump.

Does the faucet include a sprayer?

The EMB/BRI/SS model does not include a separate sprayer. It is a standard single-spout faucet. However, it may be compatible with aftermarket side sprayers (check deck hole availability).

How do I fix a leaking faucet?

Leaks usually indicate a worn cartridge or loose connections. Check supply line nuts first. If not, replace the cartridge. For handle leaks, tighten the handle screw. Persistent leaks may require professional help.

What is the spout rotation range?

The spout rotates 360 degrees freely. This allows flexible positioning for washing and filling pots.

Can I install the faucet on a marble countertop?

Yes, but take care to avoid chipping. Use a diamond-hole saw for drilling. Tighten mounting nut by hand only to avoid cracking. Some models require additional sealing; consult a professional.

Where can I find replacement parts?

Contact Caple customer service or visit official distributors. Common parts like cartridges, handles, and sprayers can be ordered online. Use model number EMB/BRI/SS for compatibility.

USER MANUAL EMB/BRI/SS Caple

STAINLESS STEEL DUAL CONTROL TAP CARE, INSTALLATION AND GUARANTEE INFORMATION

MODEL CODES: EMB/BRI/BK & EMB/BRI/SS

Modern stainless steel faucet with adjustable handle and flanges (no text or symbols visible)

INSTALLATION GUIDE

Thank you for purchasing your Caple tap.

These taps have been manufactured and inspected to exacting standards and are guaranteed to give years of trouble

free operation providing our care and installation guidelines have been followed.

NOTE: Please see back page for installation instructions

CHANGING THE ACCESSORIES

AERATOR COVER

Unscrew the existing cover to remove. Take the aerator and washer from the existing cover and place inside the new cover before fixing into place.

Two identical diagrams of a faucet mechanism with arrows indicating movement or assembly (no text or symbols present)

HANDLES

Loosen the grub screw at the back of the handle. Lift off the handle, replace with chosen colour and tighten the grub screw to secure in place.

Diagram showing two variations of a pipe valve mechanism with adjustment arrows (no text or labels)

BASE RING

Unscrew the fixing bracket and remove along with the gaskets. Replace the base ring and secure in place for completing these steps in reverse. Once the ring is changed go on to install the tap.

Diagram of a faucet assembly with multiple circular components and downward arrows indicating assembly steps (no text or labels)

Diagram of a faucet assembly with multiple circular components and upward arrows indicating assembly or installation (no text or labels)

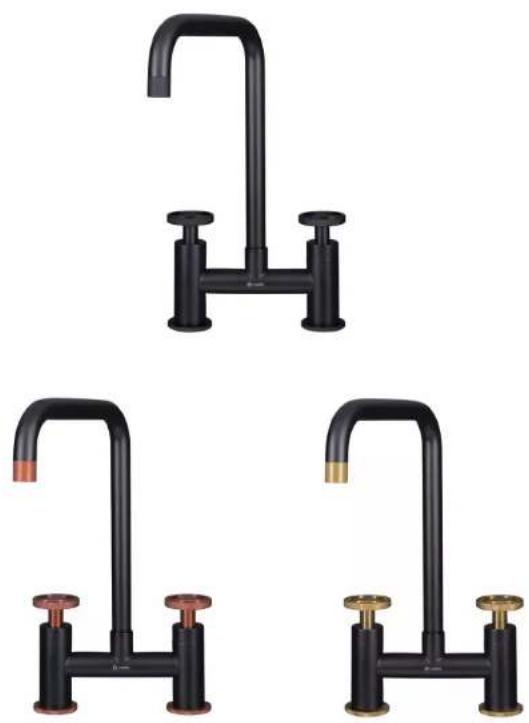

Three black plumbing fittings with handles and fittings, arranged vertically (no text or symbols visible)

INSTALLATION INSTRUCTIONS

• Turn the spout and body so the tap is facing forwards, the screw on the spout indicates the rear of the body. The hot water connection should be on the left of the tap.
• Ensure the hot and cold pipes are thoroughly flushed to remove any debris.
• A 26mm hole is required in either the sink or worktop.
• The fixing bolt must be screwed into the tap base, ensuring the threads of the bolt are not damaged in the process.
• Pass the nylon washer over the fixing bolt flush to the bottom of the tap base, then pass the bolt through the sink or worktop (ensuring the nylon washer remains directly under the tap base).
• Pass the rubber washer and then the metal washer (on the underside of the sink/worktop) over the fixing bolt and fix using the fixing nut.
• Screw the flexi-tail pipes into the base of the tap, ensuring the pipes threads are not damaged in the process. If the flexi-tails are already inserted into the tap base, please ensure these are screwed in tightly to prevent any leaks.
• Finally connect the flexi-tail pipes to the hot and cold supplies ensuring they are connected to the correct supplies.

CARE OF YOUR TAPS

• Only clean your taps with soap or mild liquid detergent and clean water then dry using a soft cloth
• Do not use chemical cleaners, or bleach based solutions to clean your tap, contact could affect the finish of your tap.
• Do not use abrasive cleaners, liquids, powders or pads. These will damage the finish of your tap and void the guarantee.
• Provided all of the above points are adhered to the surface finish of your Caple Tap is guaranteed for 5 years.

PRE INSTALLATION CHECKS

• The temperature of the hot water supply must not exceed 70^ C.
• Water pressure requirements: minimum required pressure varies dependent on model, maximum pressure 5 bar.
• Always seek advice from a qualified installer to ensure your installation and water supply to your taps comply with the water regulation (WRAS) requirements and good plumbing practice.
• It is good practice to ensure that both hot and cold water supplies to your tap are of an equal pressure to provide a consistent flow. If supplies are not of equal pressure then a non return valve should be fitted on the hot inlet.
• Supplies of water should be from a common source (mains or tank fed).
• We recommend that a service valve is installed in the supply lines to the tap to enable water isolation if required.

POST INSTALLATION POINTS

• We suggest when connecting screw connections that PTFE tape is used before the joints are fully tightened.
• Before use correctly check the installation for leaks, and turn the hot and cold water on to thoroughly flush any small particles that may have been dislodged during the tap installation.

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE, IF IN ANY DOUBT ENSURE YOU SEEK ADVICE FROM A CERTIFIED PLUMBER.

GUARANTEE

-Your Caple tap is guaranteed for 5 years.

• Should you have any defects as detailed above during the appropriate guarantee period we guarantee to repair or replace the defective products or parts, or, at our option refund the purchase price assuming we were advised immediately of any claim in writing.
• It is important that you keep a proof of purchase (such as your receipt) to facilitate your guarantee.

TERMS AND CONDITIONS

• Guarantee conditions are only valid if the Care guidelines listed above are followed.
• Our obligation under the guarantee is to the original purchaser, and may not be transferred.
• The guarantee is valid for UK domestic installations only and relates to defects in manufacture, materials and workmanship only.
• Issues that arise due to normal wear and tear (for example valves, discs or washers), poor installation, improper use or accidental damage are not covered by the Caple guarantee. Spare parts can be purchased from our Customer care helpline 0117 938 1900.
• No liability is accepted for consequential damage to other household fixtures, fittings or furnishings relating to any claim – even if attached to the product.
• If it is more economically viable a replacement tap will be supplied, this tap might vary from the original design should range changes of occurred since the initial supply.
• We reserve the right to inspect any tap before committing to support under the guarantee conditions.
